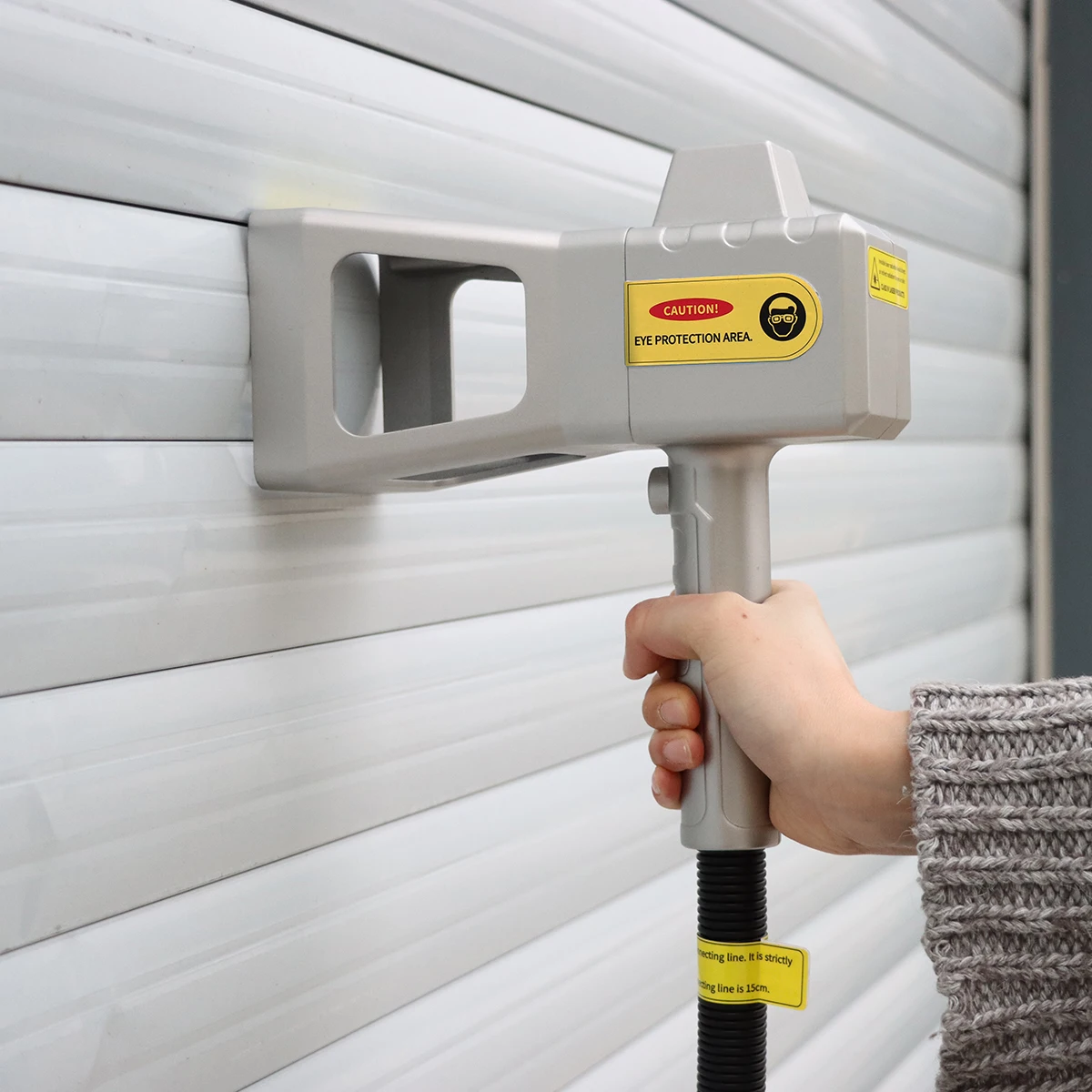

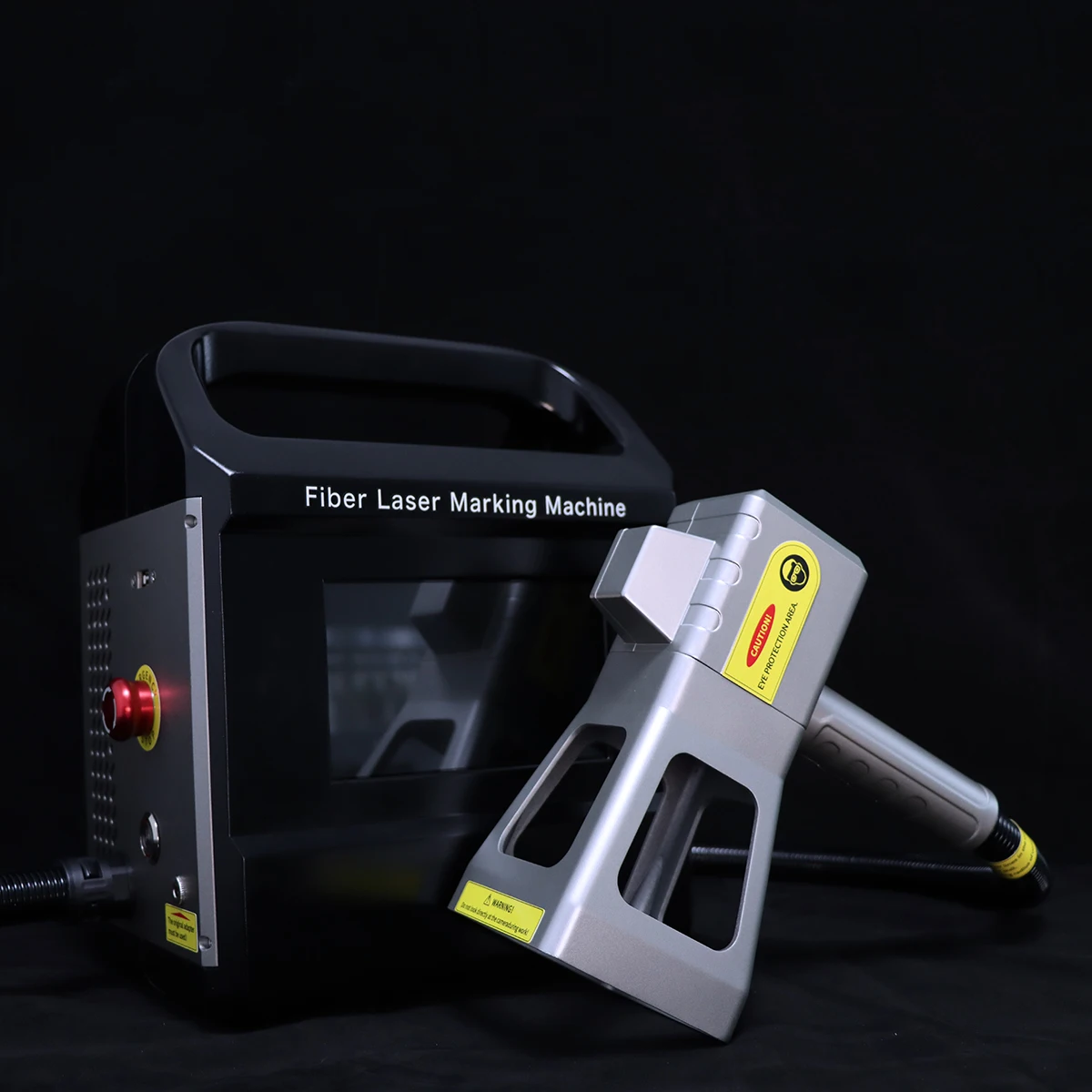

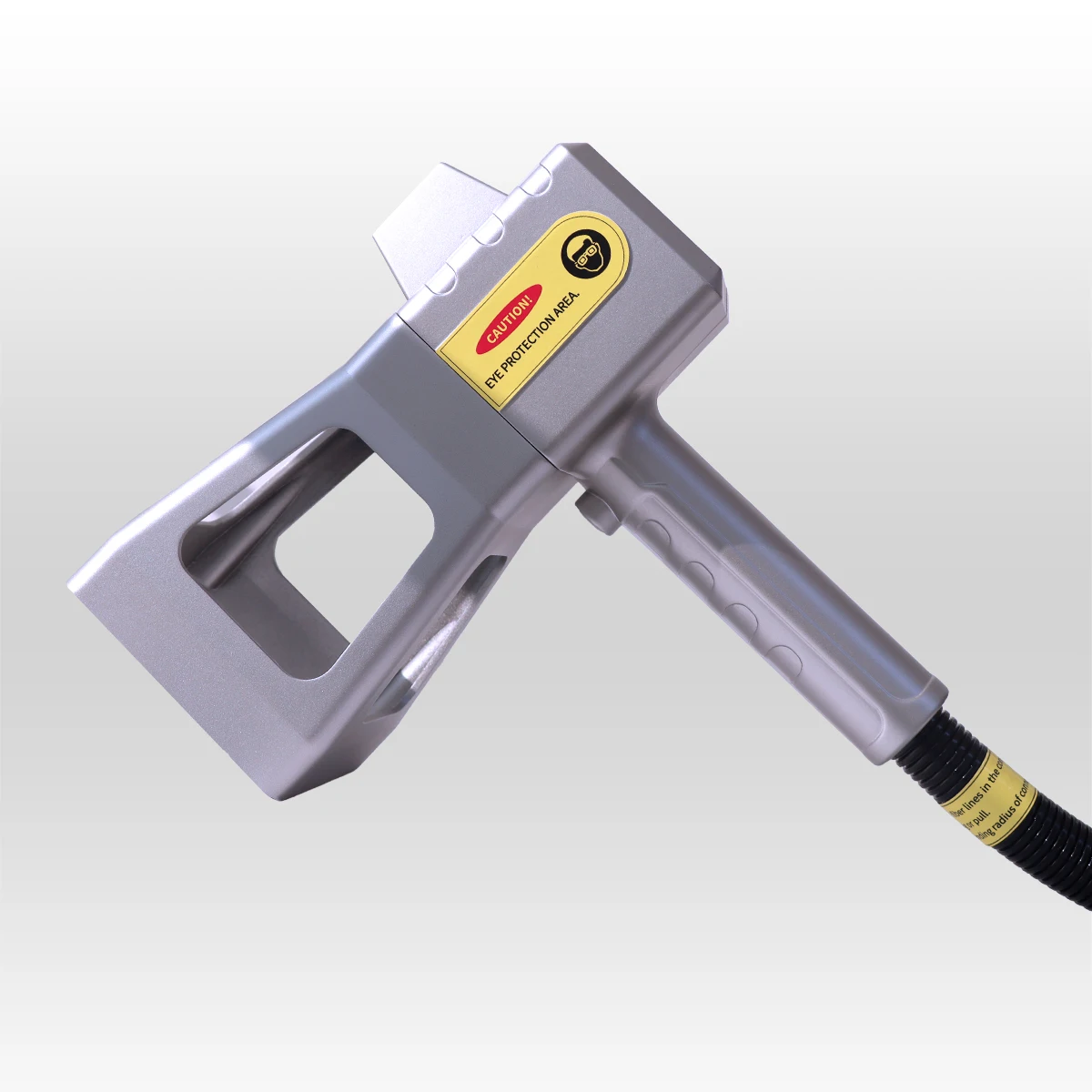

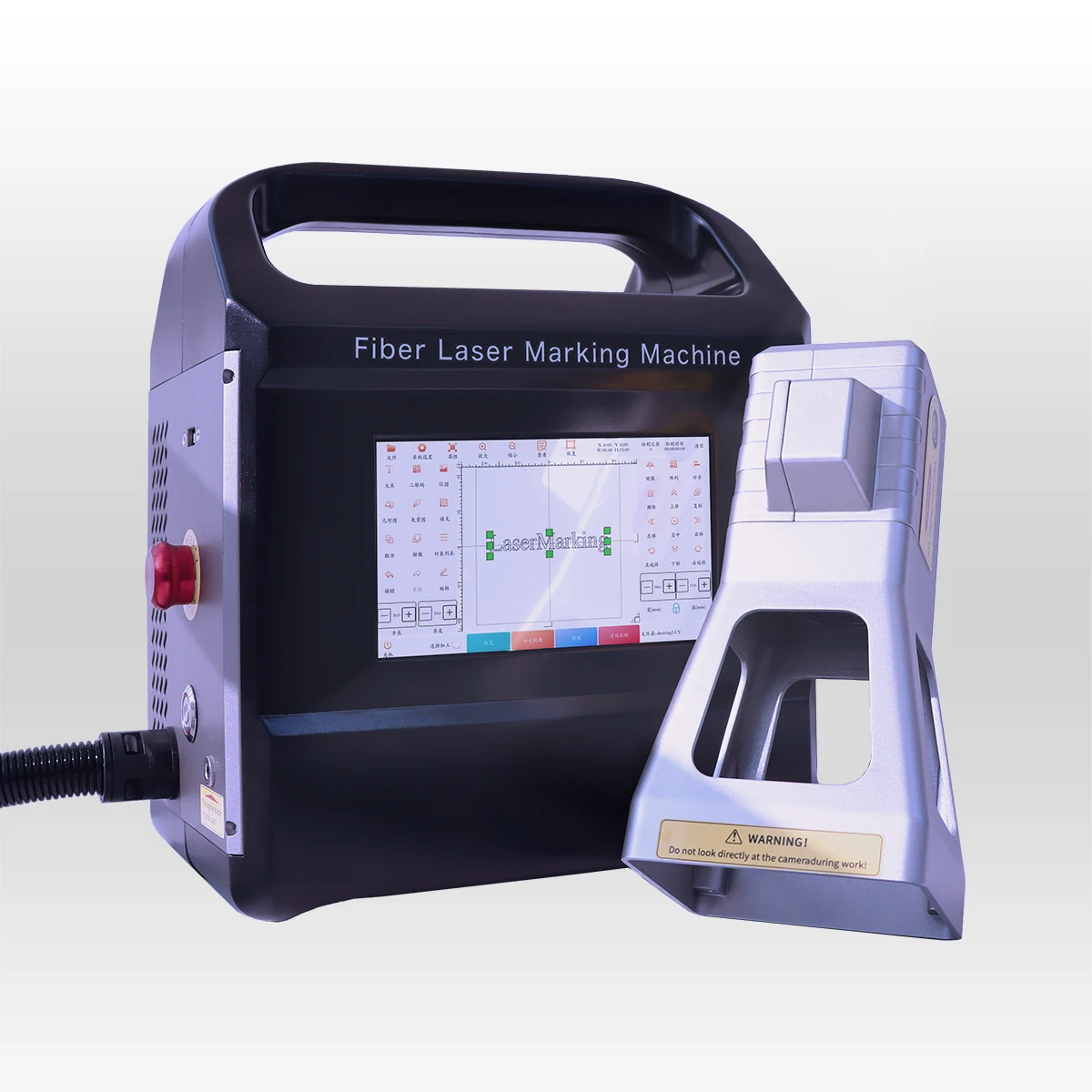

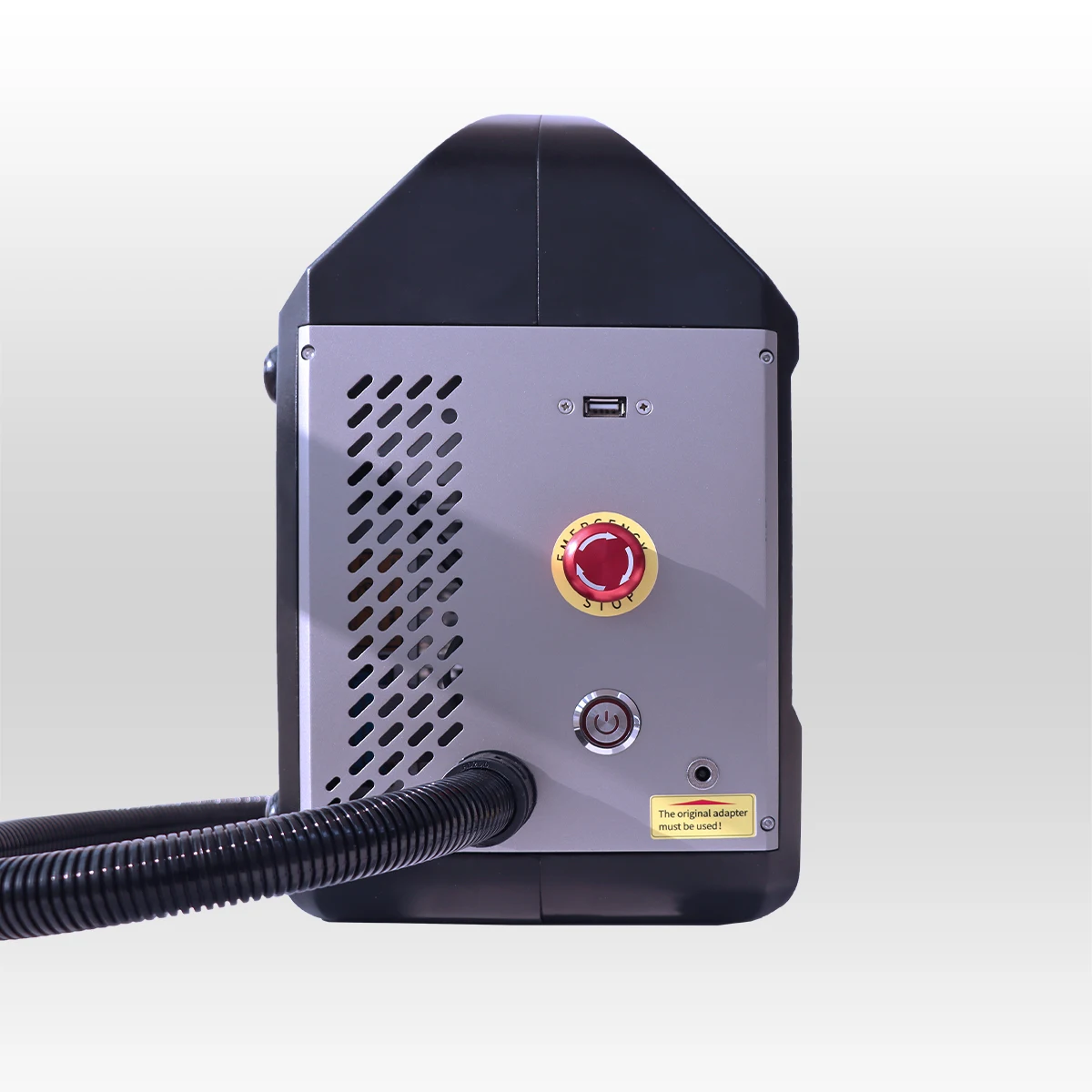

Hot sale LMB25 vin number portable fiber laser marking machine with high quality
- Category: >>>
- Supplier: LZY Technology Co. Ltd
Share on (1600965656237):
Product Overview
Description
Product Parameters
Product parameter table | 20W 30W 50W Portable mini fiber laser marking machine | ||||
Laser attributes | Laser Type | Fiber Laser Generator | |||
Laser output power | 20W/25W/30W/50W | Lithium battery model: LMB20/LMB30/LMB50 | |||
Laser wavelength | 1064nm | ||||
Max pulse energy | 0.7mJ -1.1mJ | ||||
Frequency adjustable range | 1-1000 khz | ||||
Laser life | 100000hours | ||||
Marking attribute | Marking method | High-precision two-dimensional scanning method | |||
Marking speed | ≤7000mm/s | ||||
Operation interface | Embedded 7 inch touch screen, intelligent operating system | ||||
Marking range | 100mm*100mm (standard), 60mm*60mm, 150mm*150mm(for optional) | ||||
Positioning method | Red light positioning | ||||
Interface language, input method support language | Supports Simplified Chinese, Traditional Chinese, English, Korean, Japanese, German, Russian, Arabic, Spanish, Portuguese, French, etc. | ||||
Supported marking types | QR code, Barcode, Multipecharacters, Date, Logos, Patterns, S/N, etc. | ||||
File format | Bitmap: JPG/PNG/BMP; Vector illustration:DXF/SVG/PLT; Sheet:Excel | ||||
Barcode/QR code | Barcode: EAN code, UPC code, PDF417 code and CODE standard code; QR code: DataMatrix, QRCode | ||||
Supported marking materials | Iron, aluminum, copper metal, stainless steel, PVC/PP/PB/ABS/polymer plastic, epoxy resin, rubber, leather, lacquered wood, coated paper shell/corrugated cardboard shell, photovoltaic panels, circuit boards, etc. | ||||
Electrical properties | Cooling method | Air cooling | |||
Power supply | AC 90V-240V, 50/60Hz | ||||
Maximum power consumption W | 20W:120W / 30W: 150W/ 50W:200W | ||||
Continuous working time with full power | 4-6 hours | ||||
Charging time | 1.5 hours | ||||
Lithium battery specifications | 24V/15AH, supports 500 charges and discharges | ||||
Whole machine attributes | Electrical properties | Environmentally friendly engineering plastics | |||
Net weight | Electric model:6KGS; battery model：8KGS | ||||
Working temperature | 0-40℃ | ||||
Working environment humidity | 30-85% RH (no condensation) | ||||
Whole dimensions | 330mm*280mm*220mm | ||||
Handheld head specifications | Handle diameter 35-41mm, net weight of handheld head 0.7-1.1kg | ||||
Product Features
Related products
Packing & Delivery
Package:
Suitcase package, plus carton packaging outer.
Strong, wear-resistant and reusable.
Wooden case package.
Suitable for ocean shipping and long-term transportation.
Carton package, plus stretch film outer.
Small size and light weight, suitable for air transportation and express delivery.
Small size and light weight, suitable for air transportation and express delivery.
Delivery:
Company Profile
ENTERPRISE ADVANTAGES&TECHNOLOGICAL ADVANTAGES
Enterprise advantages:
With 10,000 square meters + production center and modern office service center, won the national high-tech enterprise, provincial "specialized and special new" enterprise, provincial "Gazelle" enterprise, AAA credit, ISO9001 quality system certification, EU National CE certification and many other honors and qualifications, excellent brand image, good business credit and professional service team.
Technical advantages:
Relying on a high-quality elite R&D team to build an independent innovation R&D center, a large number of core and key technologies with extensive competitive advantages have been accumulated, with 8 invention patents, more than 20 utility model patents and more than
20 software copyrights, and always maintain laser The dominant position in the industry, continuous creation of high-quality products, combined with product design and sample preparation, engineering services and large-scale high-efficiency, low-cost and high-quality manufacturing advantages, provide customers with the most competitive full set of laser equipment accessories products.
20 software copyrights, and always maintain laser The dominant position in the industry, continuous creation of high-quality products, combined with product design and sample preparation, engineering services and large-scale high-efficiency, low-cost and high-quality manufacturing advantages, provide customers with the most competitive full set of laser equipment accessories products.
Service advantages:
Provide global delivery sales services, ensure that the goods are delivered to the location
designated by the customer in "appropriate, timely, appropriate, and appropriate" quantities, and cooperate with customers to achieve the goal of having the goods in stock when they are not needed, and zero inventory when the goods are not needed.
designated by the customer in "appropriate, timely, appropriate, and appropriate" quantities, and cooperate with customers to achieve the goal of having the goods in stock when they are not needed, and zero inventory when the goods are not needed.
Customer Visits
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. And we have been in the laser field for more than 10 years.
Q: How long is your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, you only need undertake the freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment.
A: We are factory. And we have been in the laser field for more than 10 years.
Q: How long is your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, you only need undertake the freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment.
