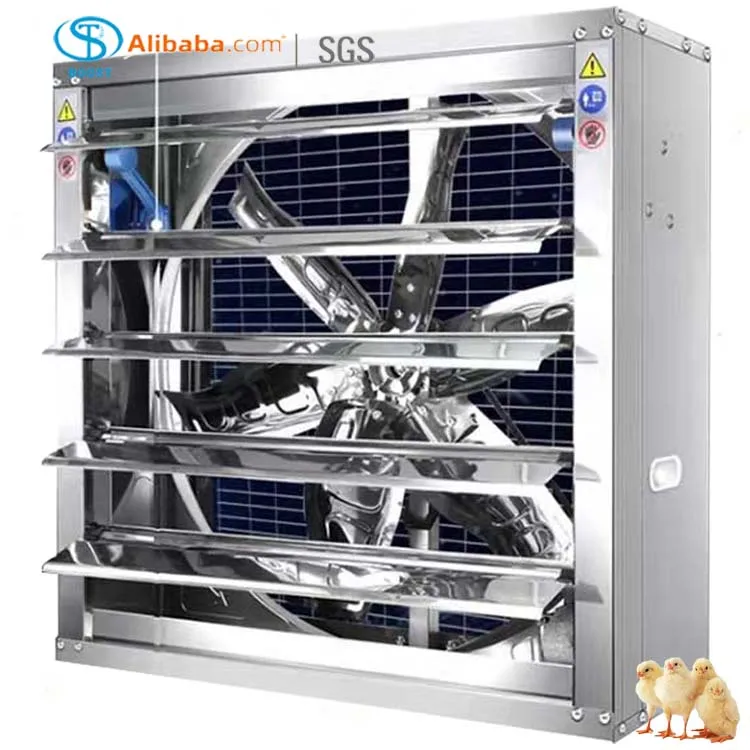

Broiler poultry shed design Exhaust Fan Poultry Farm Cooling Fan Industrial Ventilation Fan for Chicken house Breeding farm/Cow
- Category: >>>
- Supplier: Qingzhou Boost Temperature Control Equipment Co. Ltd.
Share on (1600965660414):
Product Overview
Description
Products Description

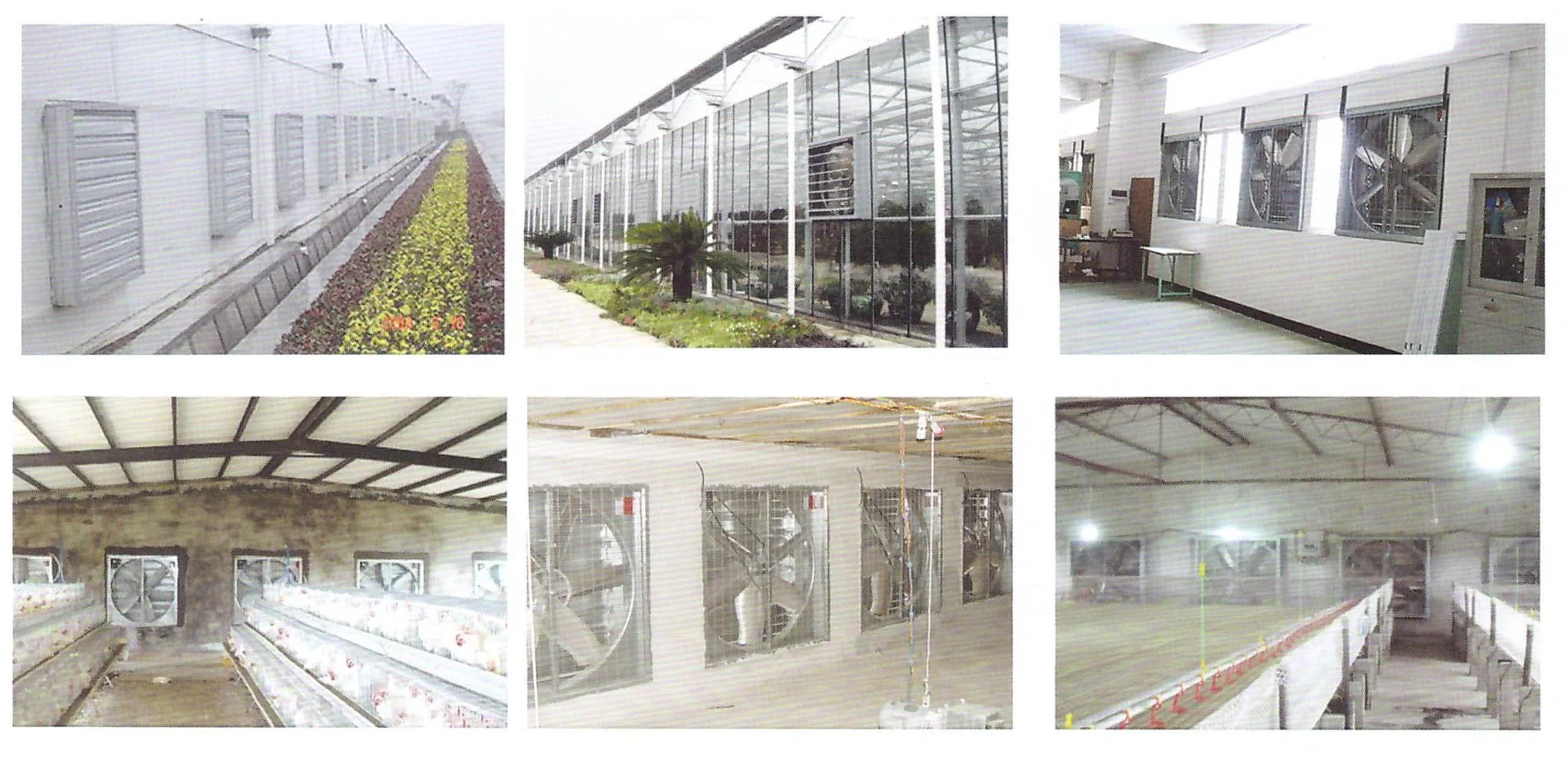

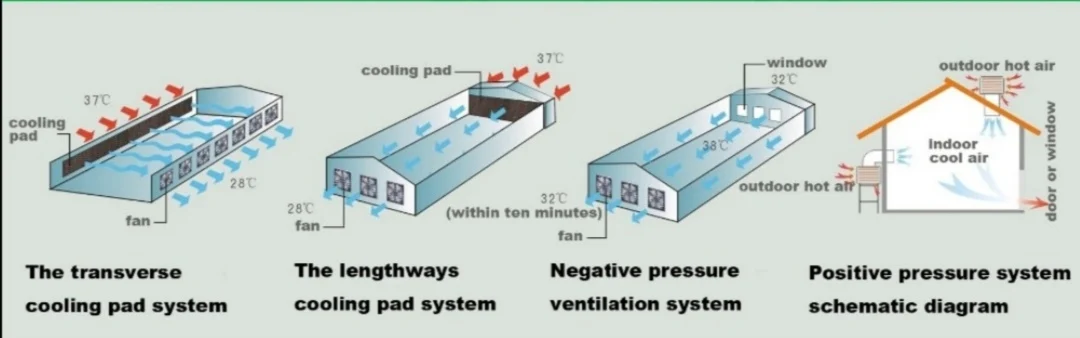

Application

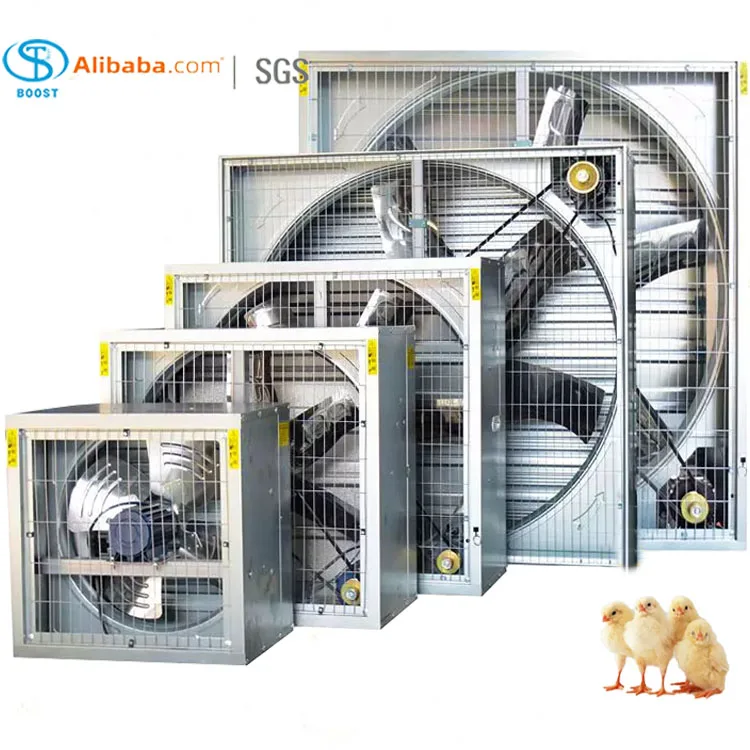

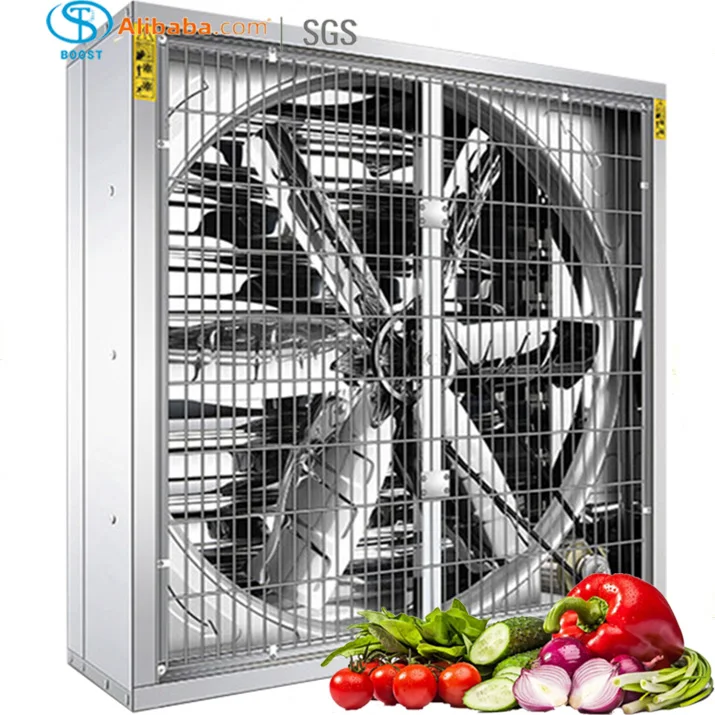

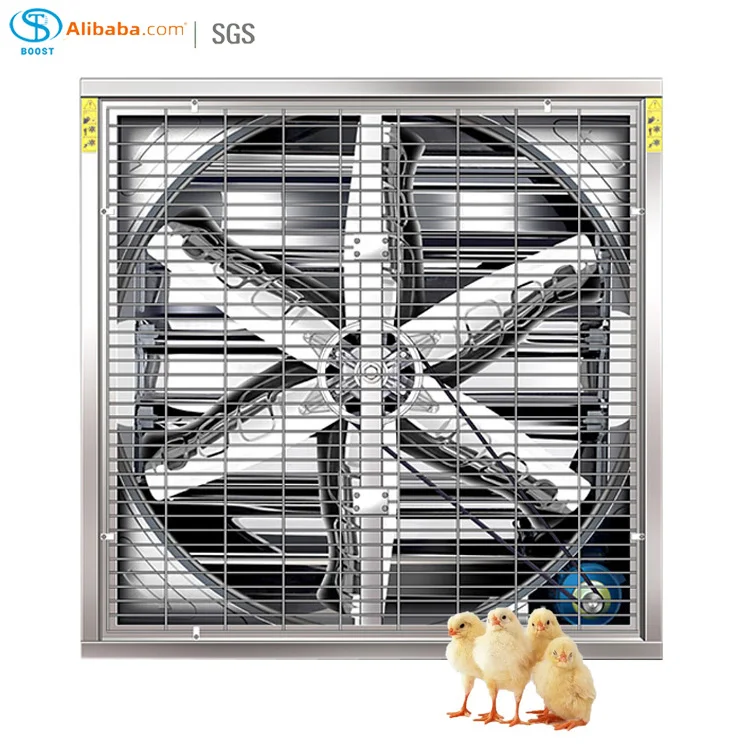

Broiler poultry shed design Exhaust Fan Poultry Farm Cooling Fan Industrial Ventilation Fan for Chicken house Breeding farm/Cow
New type of plant ventilation and cooling equipment.
BOOST Exhaust fan are widely used in Agriculture,flowers,animal husbandry,factories,textiles,and mining,coal,chemical,shopping malls,and supermarkets,medicine,food,tea, vegetables,wooding ,and other industries.
BOOST Exhaust fan are widely used in Agriculture,flowers,animal husbandry,factories,textiles,and mining,coal,chemical,shopping malls,and supermarkets,medicine,food,tea, vegetables,wooding ,and other industries.
Model | BST1380 |
Blade diameter | 1250mm |
Blade rpm | 439rpm |
Motor rpm | 1400rpm |
Air flow | 44000m³/h |
Input power | 1100W |
Rated power | 220V/380V/Customized |
Size | 1380*1380*400mm |
Noise | <64 |
Model | Drive | Blades Diameter(mm) | Blades Rotational Speed(rpm) | Motor Rotational Speed(rpm) | Air flowm³/h | Input power(W) | Noise(db) |
BST480 | Direct | 380 | 1400 | 1400 | 3000 | 180 | < 70 |
BST600 | Direct | 500(20inch) | 1400 | 1400 | 5700 | 370 | < 70 |
BST800 | Belt | 710(28inch) | 660 | 1400 | 18000 | 370 | < 65 |
BST900 | Belt | 750(30inch) | 630 | 1400 | 22000 | 370 | ＜65 |
BST1000 | Belt | 900(36inch) | 610 | 1400 | 25000 | 750 | ＜65 |
BST1100 | Belt | 1000(40inch) | 600 | 1400 | 32500 | 750 | ＜65 |
BST1220 | Belt | 1100(44inch) | 460 | 1400 | 38000 | 750 | ＜64 |
⭐BST1380 | Belt | 1250(50inch) | 439 | 1400 | 44000 | 1100 | ＜64 |
BST1530 | Belt | 1400(56inch) | 325 | 1400 | 55800 | 1500 | ＜64 |
Product Specifications
Motor
Broiler poultry shed design Exhaust Fan Poultry Farm Cooling Fan Industrial Ventilation Fan for Chicken house Breeding farm/Cow
Brand: Chinese motor and Siemens motor
Certificate: CCC
Protectionclass: IP55 grade
Insulation class: F grade
Volt and frequency:Customized
Insulation class: F grade
Volt and frequency:Customized
Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.
Advantage:
Pure copper wire,High-efficiency,Energy-saving.

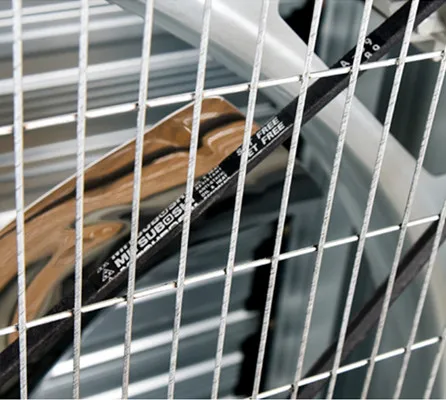

Belt
Broiler poultry shed design Exhaust Fan Poultry Farm Cooling Fan Industrial Ventilation Fan for Chicken house Breeding farm/Cow
We have Chinese belt and Japanese Mitsubishi brand belt for customer choice.
Long service life and no repair
Modified B type belt,so that service life increase 3 times than Type A
Modified B type belt,so that service life increase 3 times than Type A

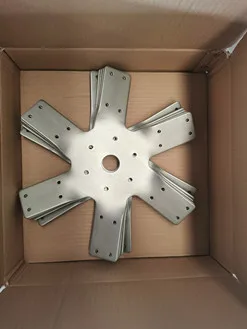

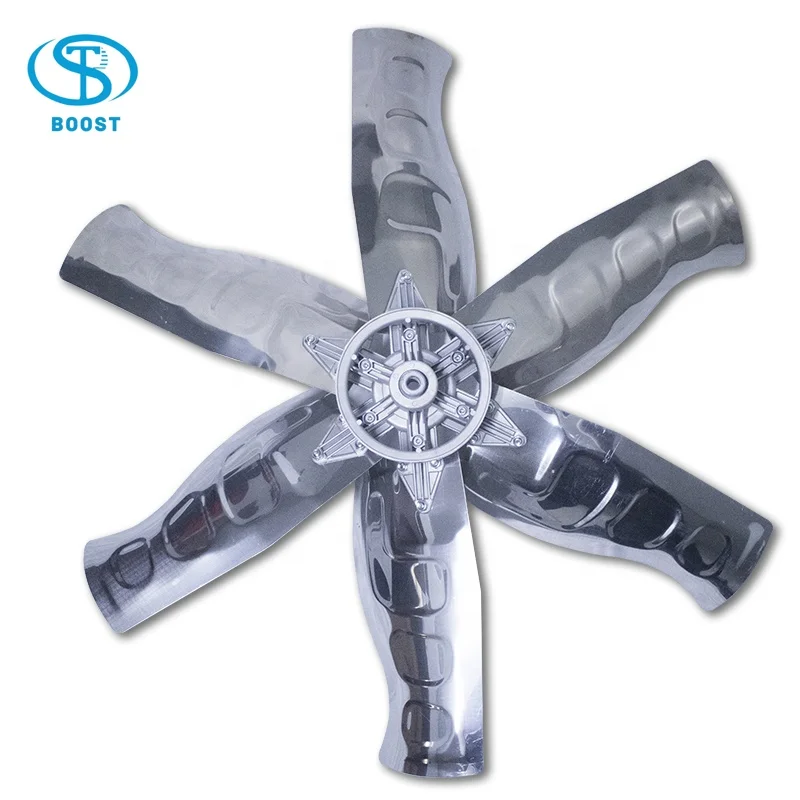

Fan blade which punching formed
Broiler poultry shed design Exhaust Fan Poultry Farm Cooling Fan Industrial Ventilation Fan for Chicken house Breeding farm/Cow
1. Material : Krupp 430 stainless steel,
thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option

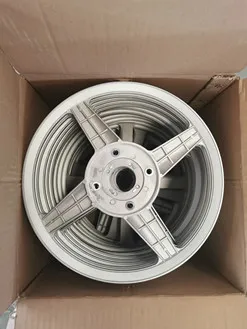

Fan belt pulley
Broiler poultry shed design Exhaust Fan Poultry Farm Cooling Fan Industrial Ventilation Fan for Chicken house Breeding farm/Cow
Fan belt pulley and flange are made of aluminum-magnesium alloy by pressure casting.Good outlook with lightweight.
Especially to reinforcing rib to increased strength.
No broken . Long service life.
The angle of blade hub is designed after double tested which can be fix with blade exactly.
The angle of blade hub is designed after double tested which can be fix with blade exactly.
Advantage:
Small wind resistance,Large air flow, attractive and durable.
Small wind resistance,Large air flow, attractive and durable.
Opening system-Hammer Heavy
Broiler poultry shed design Exhaust Fan Poultry Farm Cooling Fan Industrial Ventilation Fan for Chicken house Breeding farm/Cow
1.Material: High quality Nylon PA66
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
1.No electricity ventilation,Pull ring for asistance the Heavy Hammer
2.It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
1.No electricity ventilation,Pull ring for asistance the Heavy Hammer
2.It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.

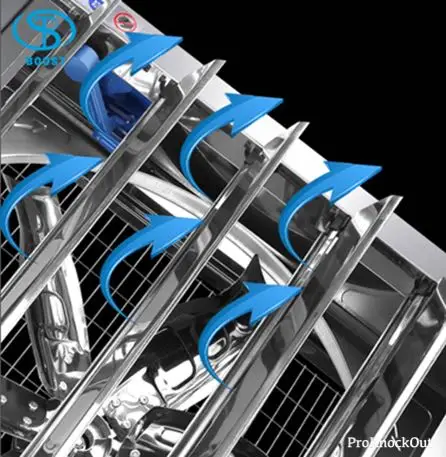

Shutters open/close automatically
Broiler poultry shed design Exhaust Fan Poultry Farm Cooling Fan Industrial Ventilation Fan for Chicken house Breeding farm/Cow
No electricity ventilation，
Pull ring for assistance the Heavy Hammer,
then Shutters can open and close automatically.
Advantage:
Windproof ,Rainproof
Advantage:
Windproof ,Rainproof

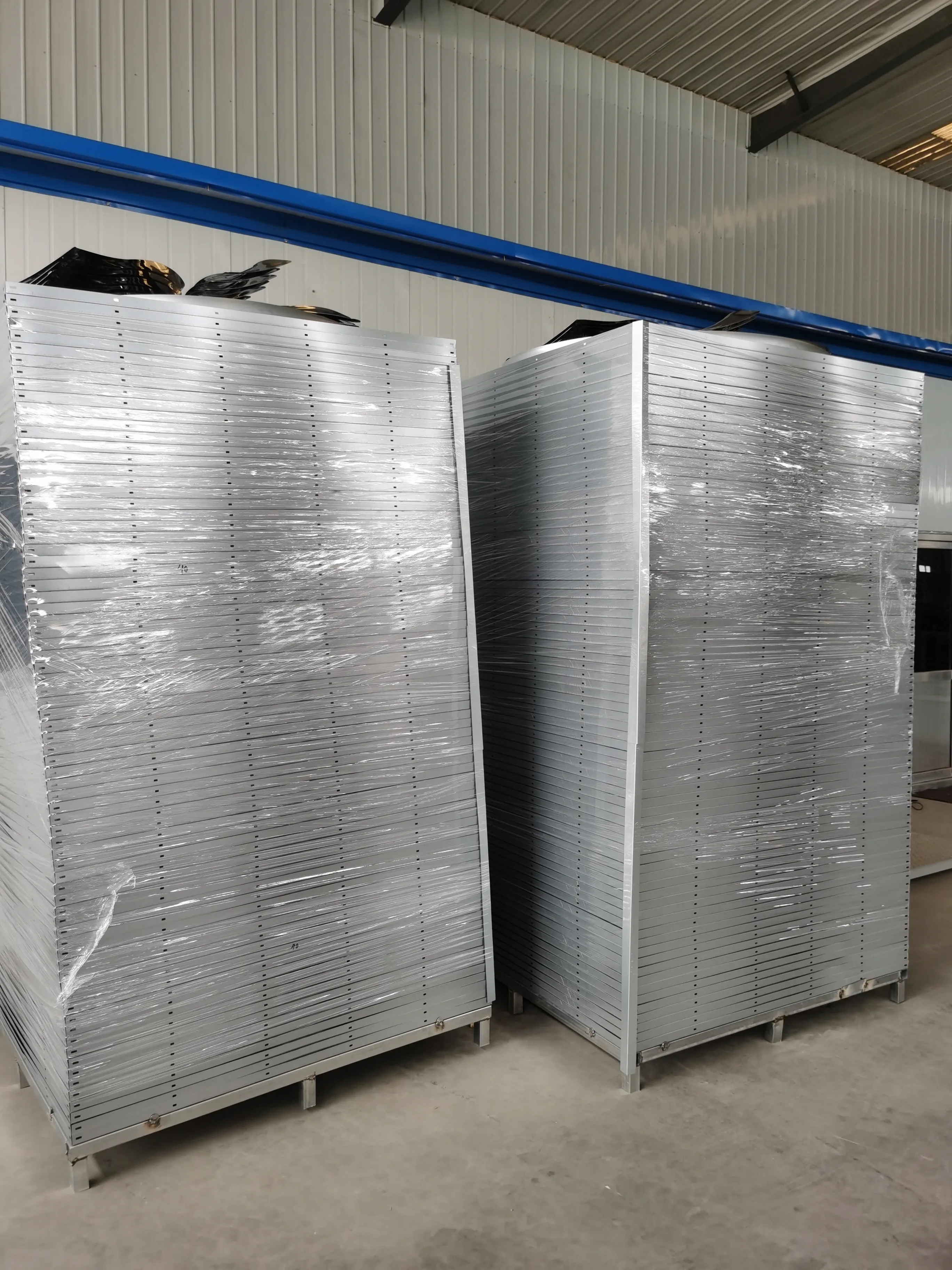

Frame: Thicken galvanized sheet
Broiler poultry shed design Exhaust Fan Poultry Farm Cooling Fan Industrial Ventilation Fan for Chicken house Breeding farm/Cow
We has advanced production technology with automatic equipment. professional production line, NC-based professional equipment.Auto punching and bending.
Highly-accurate.
Materials is made by 275g coating weight galvanized sheet.
Advantage:
High strength,Strong corrosion resistance
Advantage:
High strength,Strong corrosion resistance
Handle design
Broiler poultry shed design Exhaust Fan Poultry Farm Cooling Fan Industrial Ventilation Fan for Chicken house Breeding farm/Cow
More humanized design
Easy to move
Not to be broken
Easy to move
Not to be broken
Detail Images

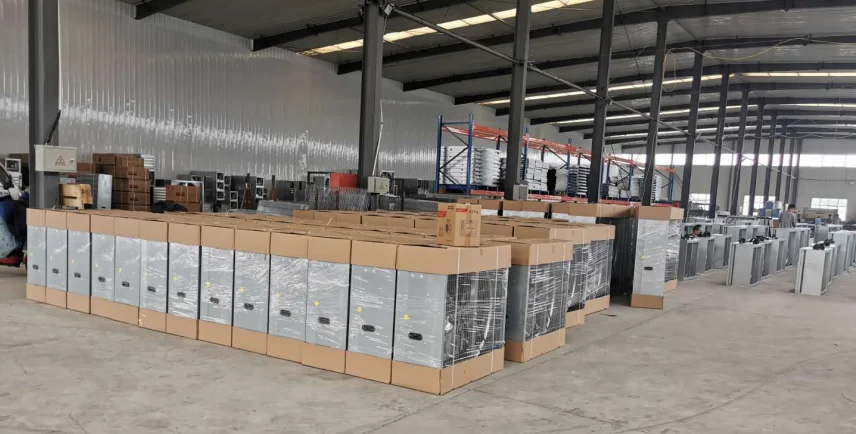

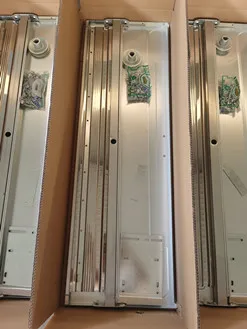

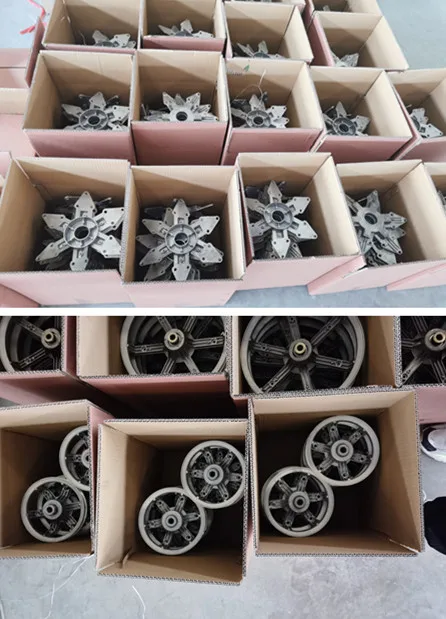

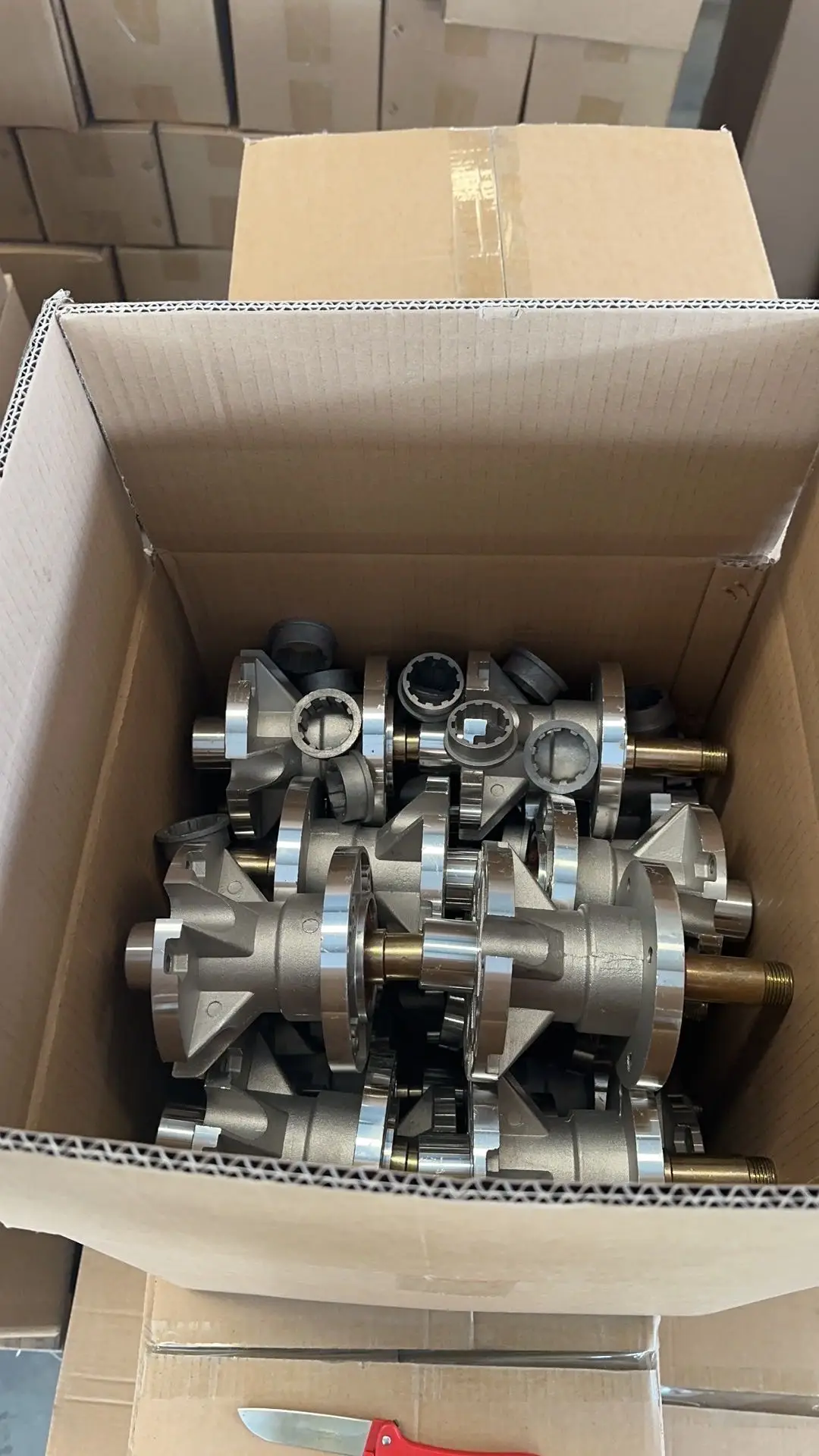

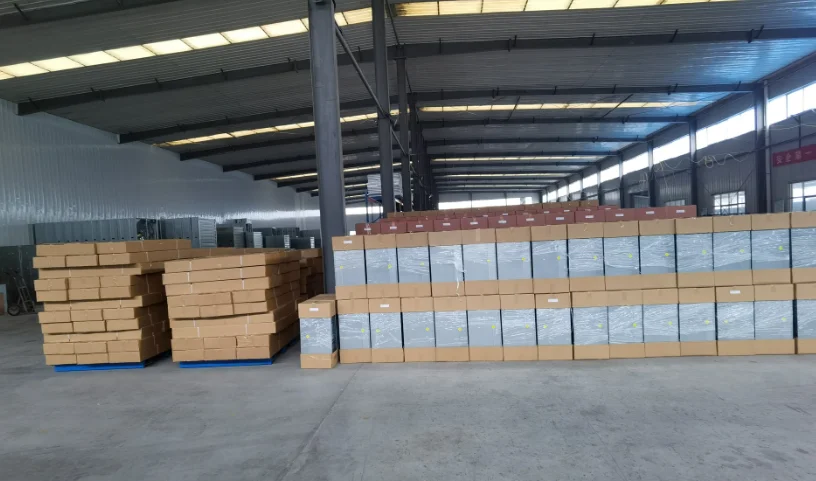

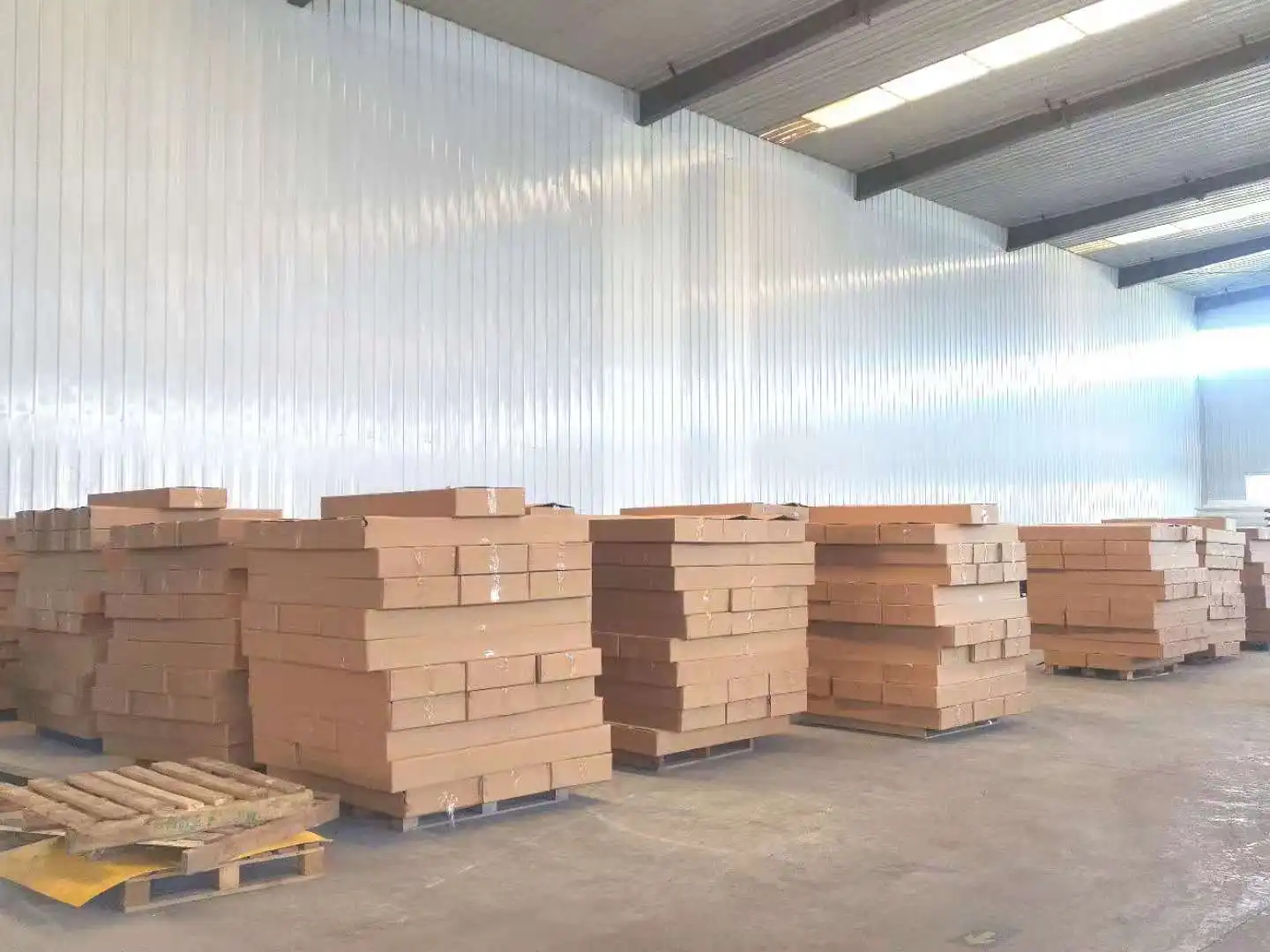

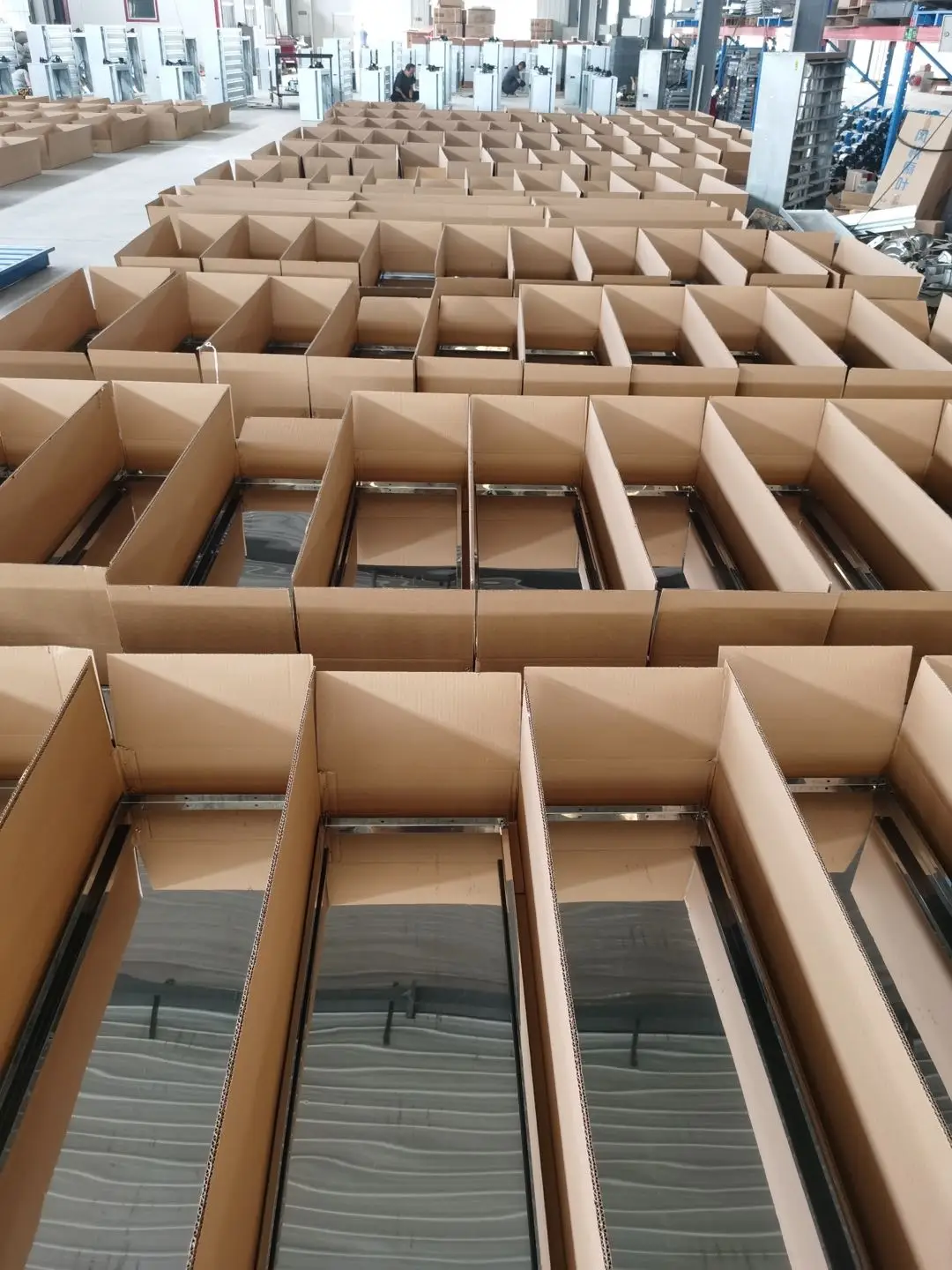

Packaging&Shipping

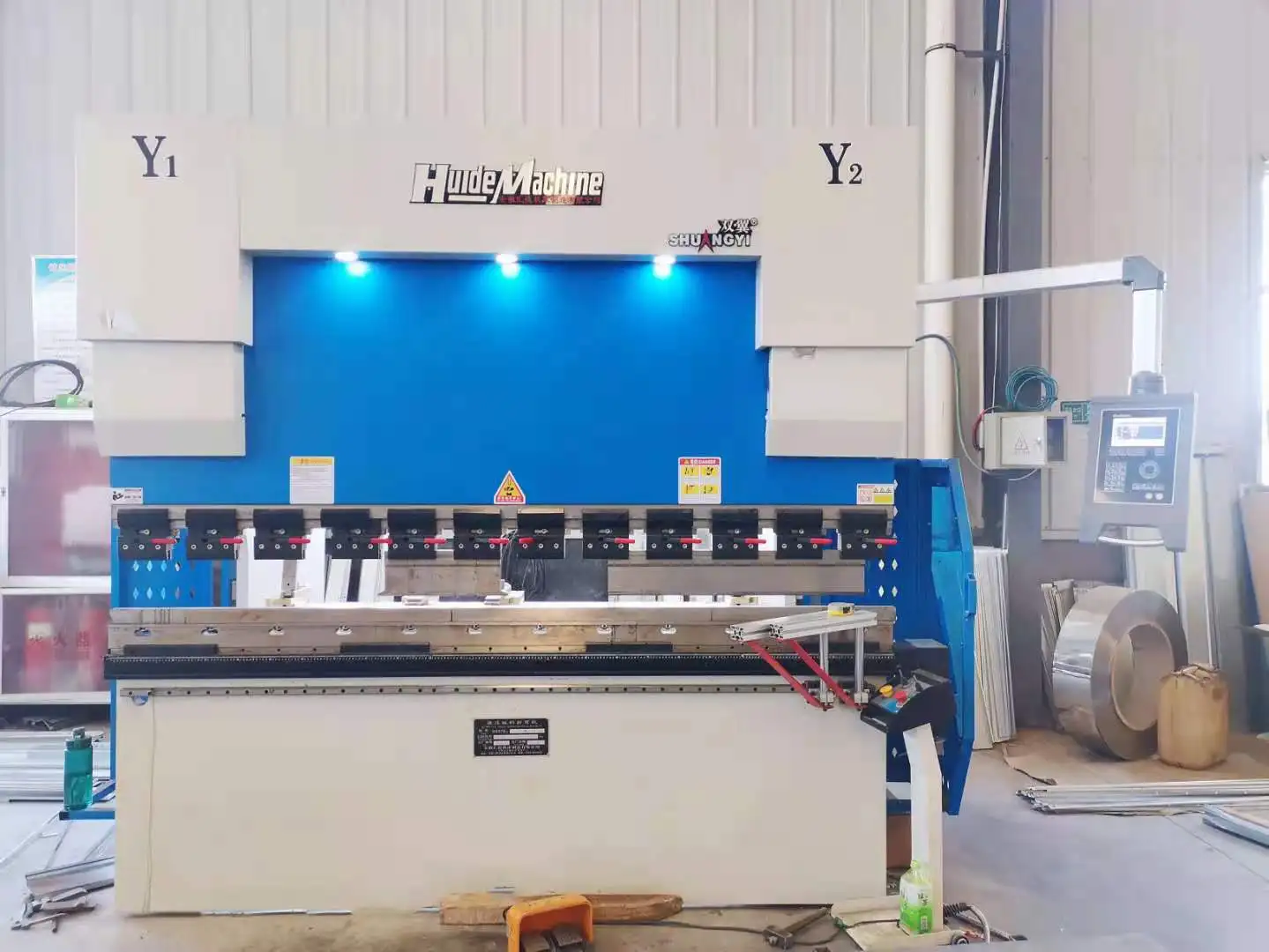

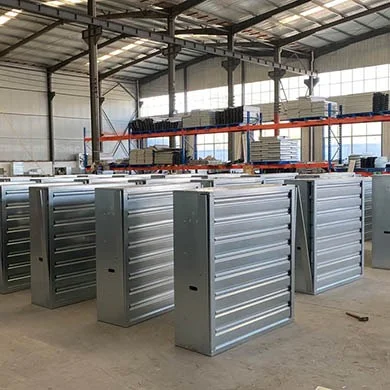

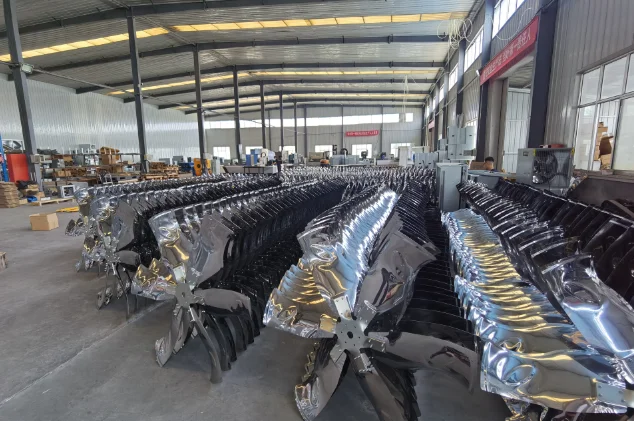

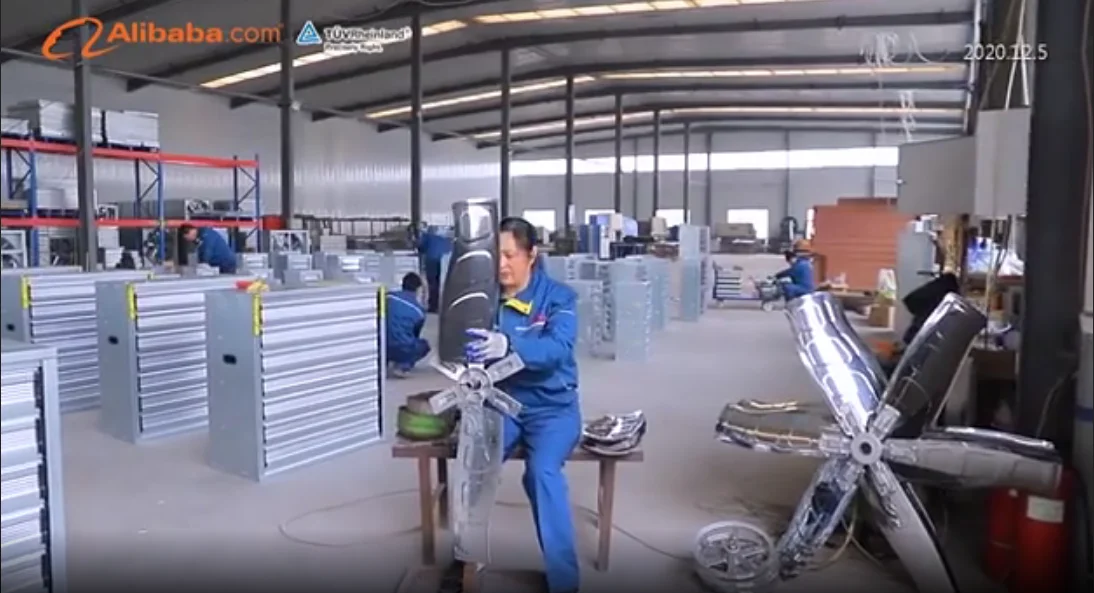

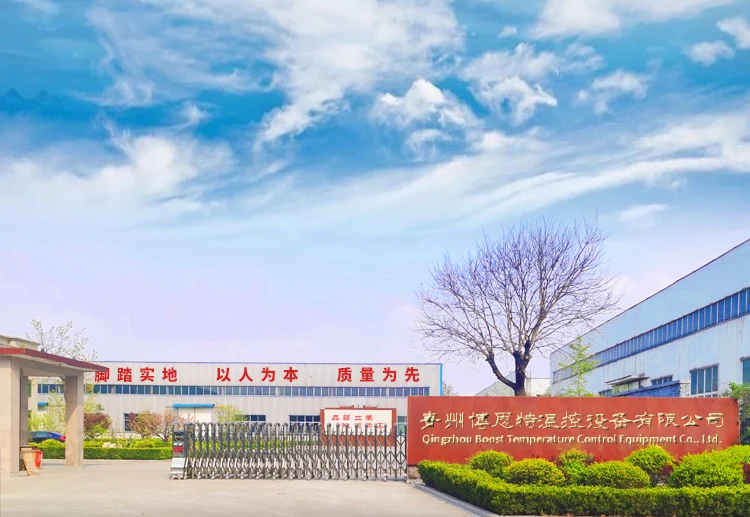

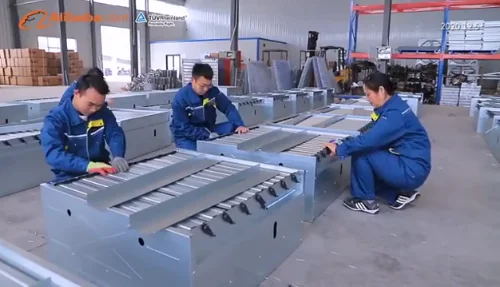

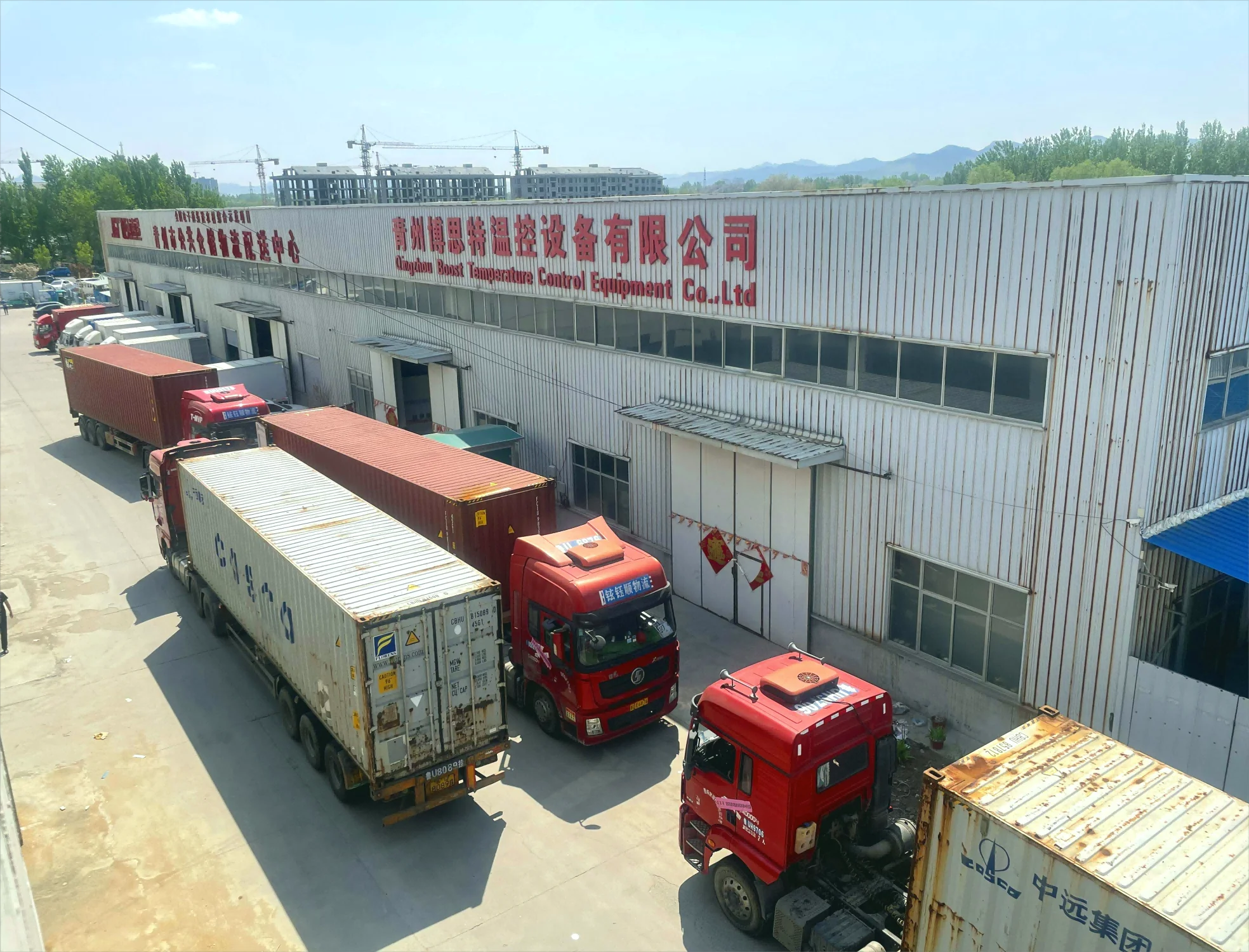

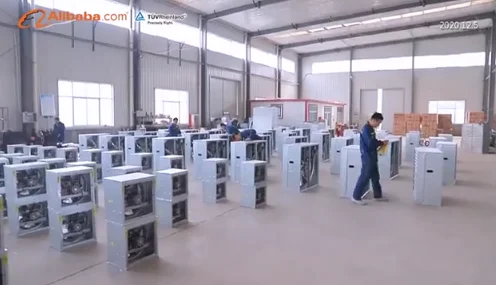

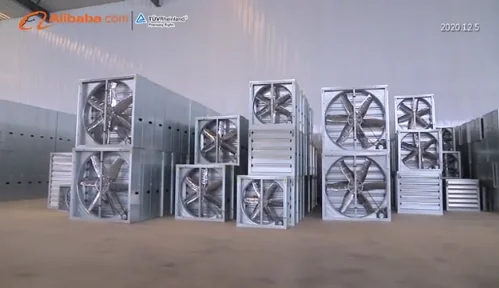

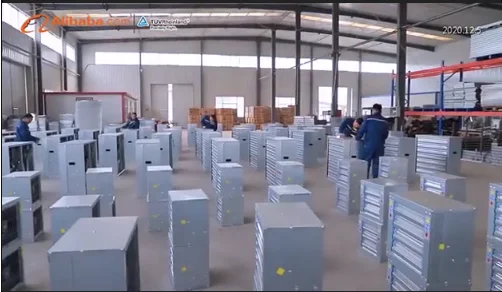

Factory&Workshop
WHY CHOOSE BOOST?

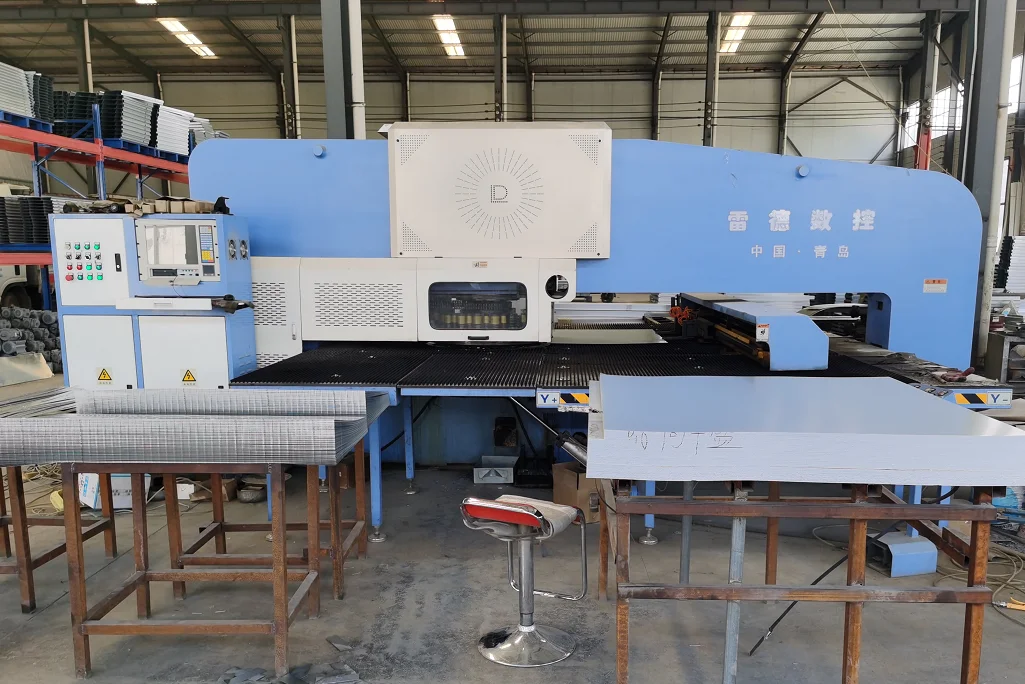

BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.

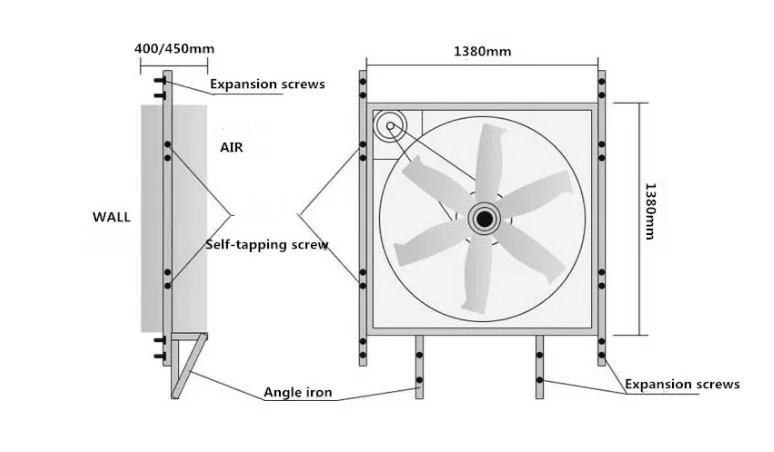

How to install Exhaust Fan
Remarks
1. Adjust the horizontal and vertical , keeping the fan blade running smoothly
2. After fixing the fan, the remaining gap need to be sealed
3. The Expansion screws and Self tapping screw can be used to fix .
3. The Expansion screws and Self tapping screw can be used to fix .
FAQ
After-sales service
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Visit our Factory.
After-sales service
* Training how to install the machine, training how to use the
machine.
* Engineers are available to service machinery overseas
* Engineers are available to service machinery overseas
