Product Overview
Description
Product Overview
New 1500m Dual Borehole Inspection Camera Water Well Camera with Auto Cable Function and Dual Camera

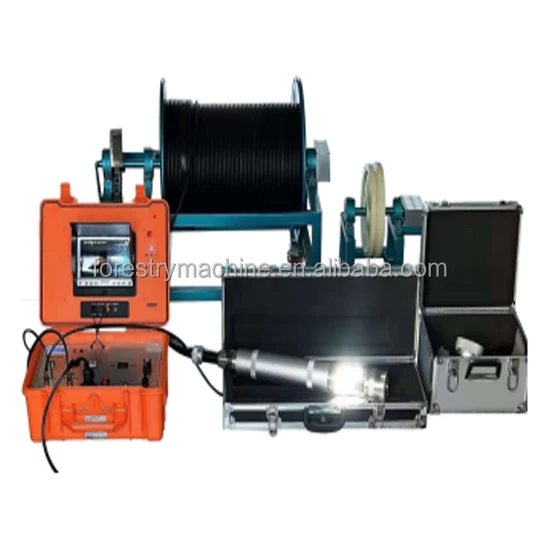

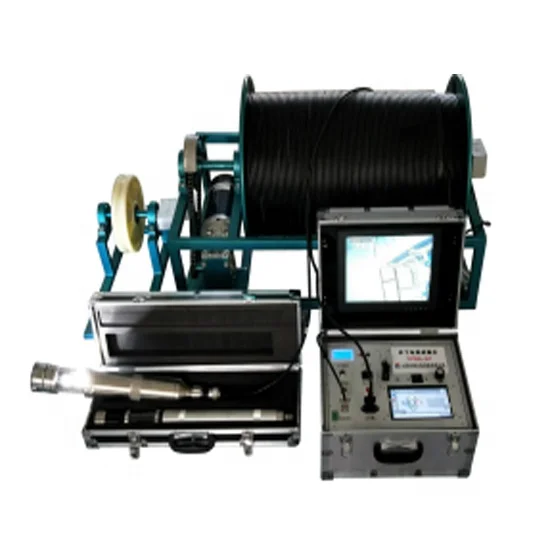

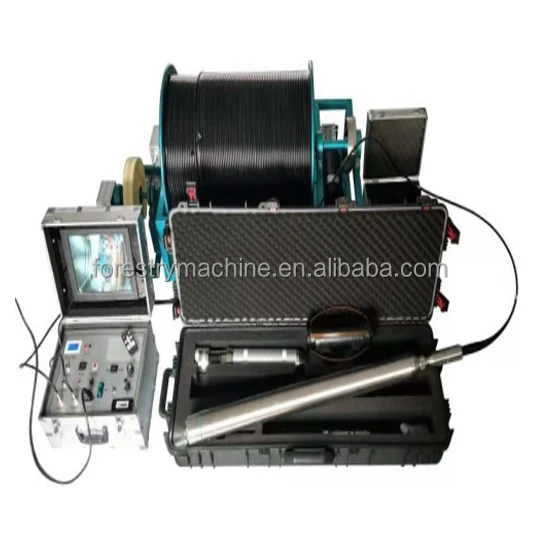

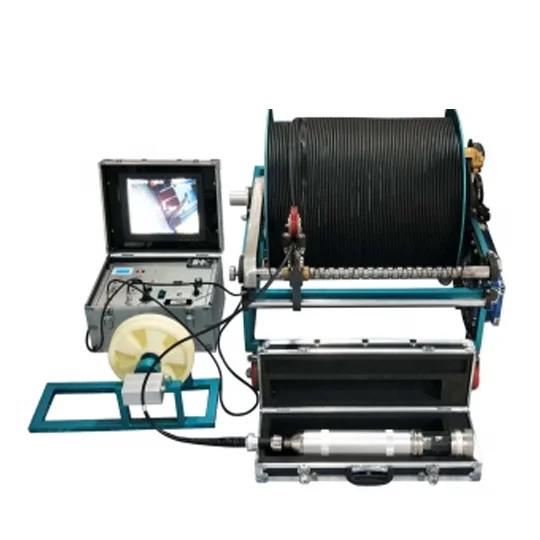

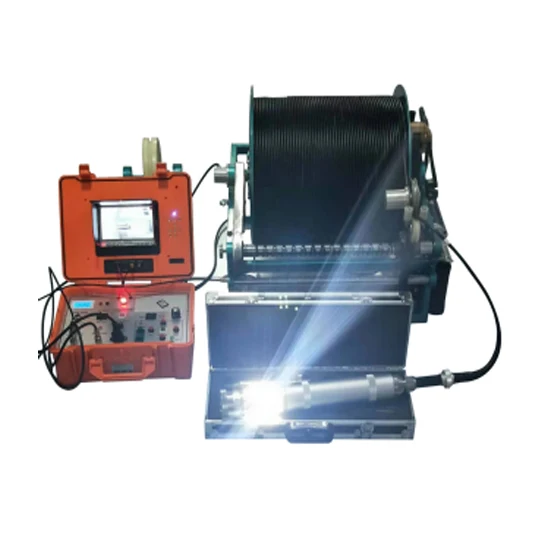

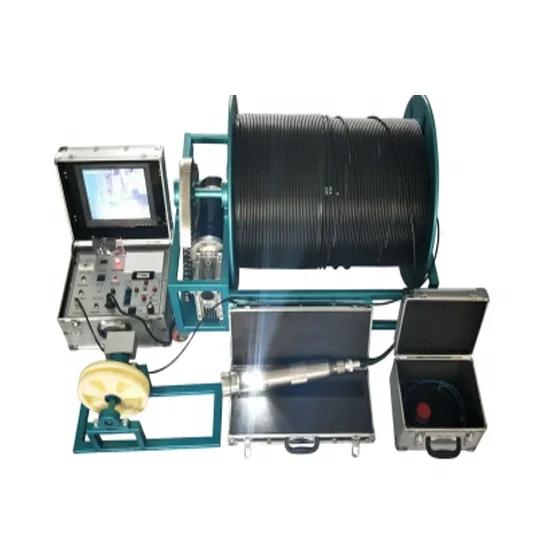

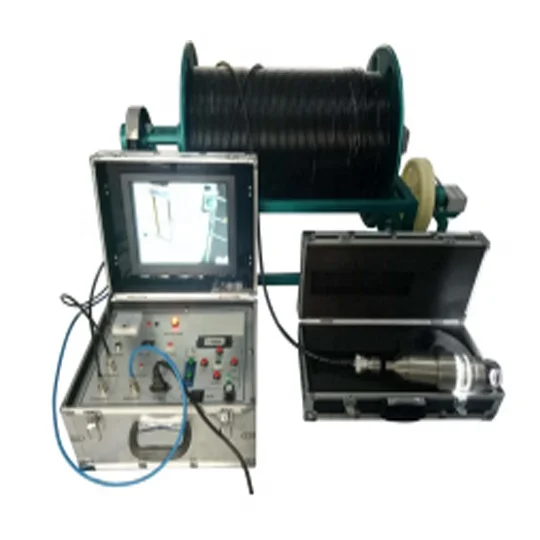

Downhole Video Camera is a great combination of modern technology and affordable price. It is well suited for inspecting various reservoirs, wells, borehole, shafts, pipes, tanks and other objects from the top down. It is equipped with Ø75mm dual camera head.
The Ø75mm dual camera head enabling operators to receive a complete detailed image of the inspection area. The camera head is with 2 cameras, one side view camera supports 360 pan rotation side view and one down view camera for down view. The image of the side
view camera & the down view camera can be switched, and showed on the screen when needed.
The Ø75mm dual camera head enabling operators to receive a complete detailed image of the inspection area. The camera head is with 2 cameras, one side view camera supports 360 pan rotation side view and one down view camera for down view. The image of the side
view camera & the down view camera can be switched, and showed on the screen when needed.
FEATURES AT A GLANCE
New 1500m Dual Borehole Inspection Camera Water Well Camera with Auto Cable Function and Dual Camera
I. Physical button control system:
* ABS engineering plastic master control box / aviation aluminum alloy control box
* Voltage input: 220V / 12V
* Depth interface: connection depth sensor
* probe interface: connect probe, transmit video and power
* data interface: can write the well number, can calibrate the depth
* video system: ultra HD SD card video recorder, video, photo, direct back function, 16G SD card video system, maximum support 32G
* depth zero: please depth to zero before logging, in order to count accurately
* Depth display: depth real-time display to the control box display,
* display: 7 inch / 10 inch / 12 inch bright LED display,
* control box panel button operation of the direction and Angle of the downhole camera, rotation and camera light source brightness and focus length adjustment, and the rise and speed of the cable and camera probe
* 12v Battery power supply function, (available within 600 m of well depth
PRODUCT SPECIFICATIONS
Downhole TV in oil, hydrological drilling is mainly used for the division of formation structure, wall formation fissure and karst development discrimination, distinguish fault fracture development zone, determine the karst distribution position and long-term monitoring in hole, downhole TV can in vertical drilling, horizontal drilling and have any Angle of drilling monitoring.In the repair project of the well, the underground TV mainly detects the damage of the casing, the falling objects in the well and the filter pipe hole. It can shoot the damage and leakage of the casing and casing wall of the burning well in real time, and transmit the clear images to the display on the ground by using its supporting special underwater cable
* Unite rotation 360; pitch 180
* The camera uses SONY CCD HD camera, fully automatic light sensing system.
* Focal lens with adjustable focal length (manual ground)
* Front-highlighted LED light source
* φ 90mm rear fill strong light source
* Light source brightness is adjustable
* Pressure pressure of 20Mpa * Maximum logging depth of 2,000 m
* External diameter: 42mm / 75mm / 90mm * Material: stainless steel
The Ø75mm dual camera is equipped with CCD sensors and 16pcs high-output long-lasting LED light allowing for capturing bright and detailed images even in poor lighting environments. The downhole camera head housing is IP68 waterproof and withstand pressure up to 200 bars in water.
The Downhole Camera features a compact control unit with a high-resolution 7” LCD display(12’’ optional). The inspection process can be viewed on the display right on site, captured as video files. All data can be saved on 16G SD card(Maximum 32G).
The Downhole Camera features a compact control unit with a high-resolution 7” LCD display(12’’ optional). The inspection process can be viewed on the display right on site, captured as video files. All data can be saved on 16G SD card(Maximum 32G).
The user-friendly interface offers various operation features.
The system works with Ø7.8mm modified polypropylene cable(which can bear 280KG) of different lengths (from 100m to 2000m).
The system works with Ø7.8mm modified polypropylene cable(which can bear 280KG) of different lengths (from 100m to 2000m).
Thecable be securely coiled on an electric winch. The electric winch is with different speeds by control. The depth show on the screen. The depth supports reset.
The downhole camera works on a conventional AC220V power supply or AC110V with a AC110V to AC220V converter.
The downhole camera works on a conventional AC220V power supply or AC110V with a AC110V to AC220V converter.
Features | * Ø75mm dual camera head, one 360 degree rotation side view camera, one down view panoramic camera, LED & side view camera focus adjustable, stainless steel CCD camera, 720TVL * IP68 waterproof ,up to 200 Bars(20 MPA) * 100m-2000m polypropylene cable with electric winch * Electric winch winding speed adjustable * Depth counter, the depth shows on the display, the depth accuracy: 0.05m and it supports depth reset * 7inch LCD display (12inch optional) * DVR control box with video recording function * 16G SD card(max 32G) to storage video * Power supply: AC220V Optional functions: * Ø50mm dual camera (Optional) * Ø70mm/ Ø55mm down view camera (Optional) |
Ø75mm Dual Camera Head | * Ø75mm dual camera head, one 360 degree rotation side view camera, one down view panoramic camera. * LED & side view camera focus adjustable * the image of the side view camera & the down view camera can be switched, and showed on the screen when needed. * CCD camera, 720TVL * Waterproof IP68 Operating depth 200 bars (20 MPA) * Camera Material: 304 stainless steel * Camera Lens Material: Explosion-proof optical glass * Sensor resolution: PAL 720H×576V NTSC 720H×480V * Camera LED: Front 8 pcs, Rear 8 pcs high bright LED, Five-level dimming |
Ø 50mm Dual Camera Head (optional) | * Ø50mm dual camera head, one 360 degree rotation side view camera, one down view panoramic camera. * CCD camera, 720TVL * Pan 360° rotate endless * Waterproof IP68 Operating depth 200 bars (20 MPA) * Camera Material: 304 stainless steel * Camera Lens Material: Explosion-proof optical glass * Sensor resolution: PAL 720H×576V NTSC 720H×480V * Camera LED: Front 12 pcs, Rear 24 pcs high bright LED, Five-level dimming |
The Display | * 7″ LED display, 291*251*48mm (12inch optional) * Display model 4:3 * Contrast Ratio: 400: 1* Brightness: 450cd / m * Resolution: 1024 × 768 * Power: DC 12V * Color System: PAL / NTSC / SECAM |
Control Part | * Input voltage: 220V * Depth Interface: Connect depth sensor * Probe Interface: Connect the probe, transmit video and power * Data Interface: Write their own wells pound, self-calibration depth * Winch operating knob(adjusting speed, cable up and down, brake) * Camera rotation control button * LED brightness control button * HD DVR Video record * Video storage Medium: 16G SD card(Max 32G) * the depth reset |
Electric Winch | * Electric winch; * Winding speed:0~20m/min * Cable speed adjustable * Φ7.8mm polypropylene cable (100m-2000m optional) * Power supply: AC220V * Pulley: Pulley is with depth sensor. |
Other Accessories | One Manual, a set of connecting cables, 5 pcs seals, a set of wearing parts |
