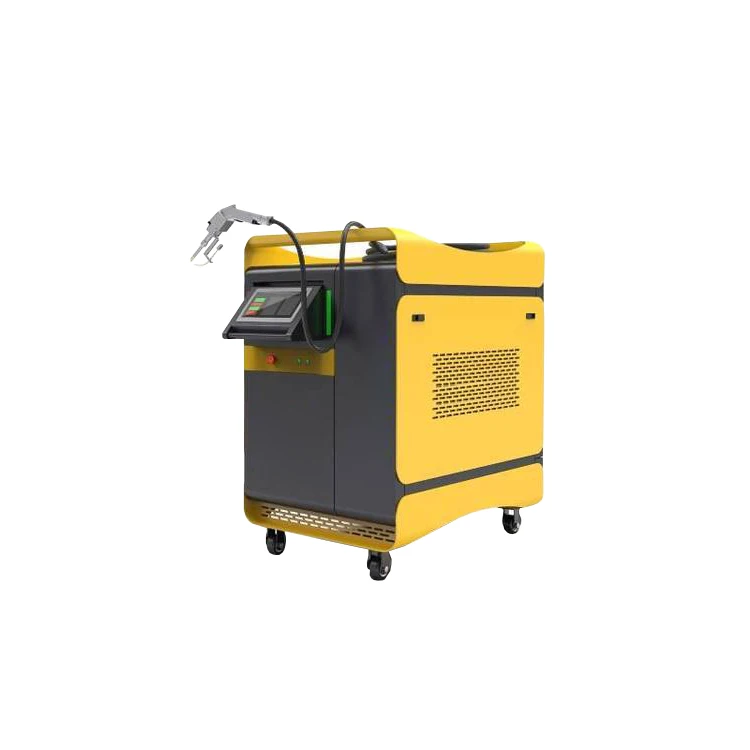

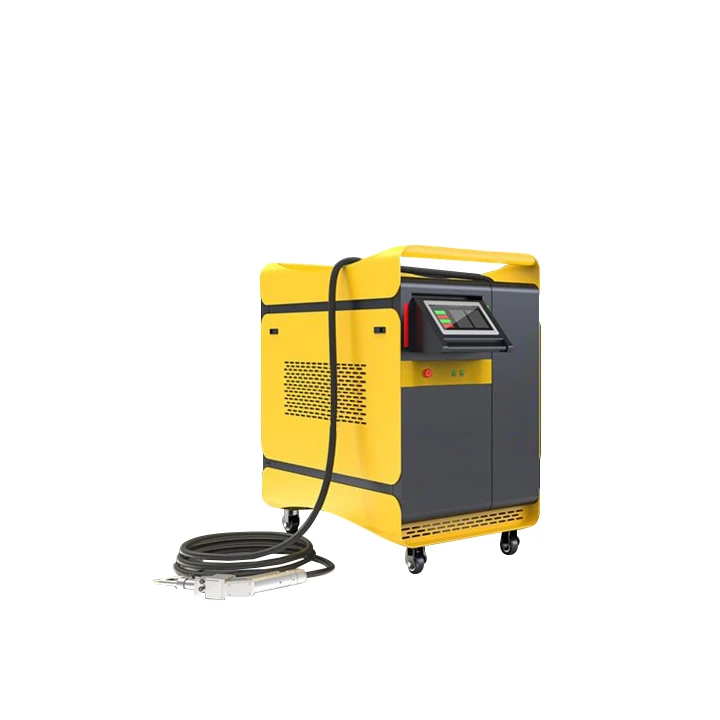

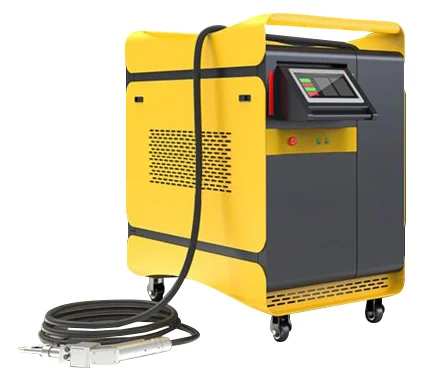

Handheld Laser Welders 1500w 2000w Fiber Laser Welding Machine Water Cooling laser welder
- Category: >>>
- Supplier: Wuhan Doya Optic & Electric Equipment Co. Ltd.
Share on (1600965666169):
Product Overview
Description

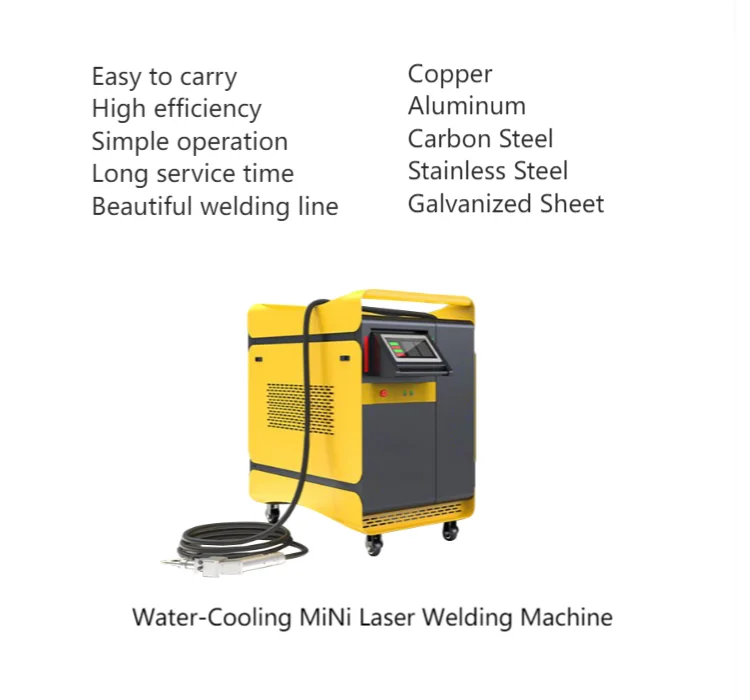

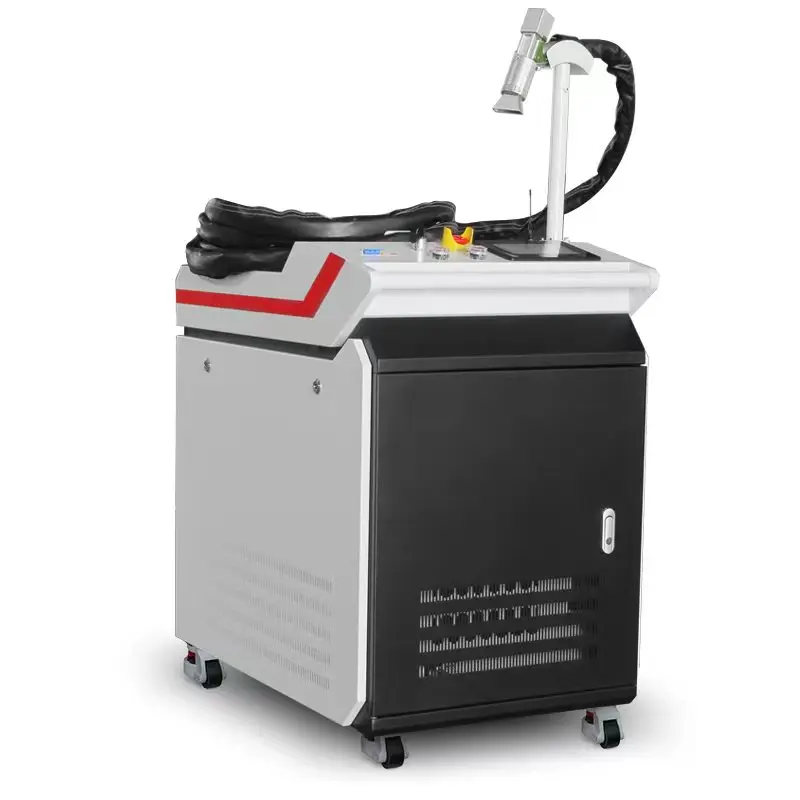

Fiber Laser Welding Machine
Hand-held fiber laser welding machine adopts the latest generation of fiber laser and is equipped with intelligent laser welding head. It has many advantages such as simple operation, beautiful welding line, fast welding speed and no consumables.
Laser power: 1000W 1500W 2000W
Laser source brand: BWT/Raycus/Max(optional)
Fiber laser width: 10m, 15m, 20m (optional)

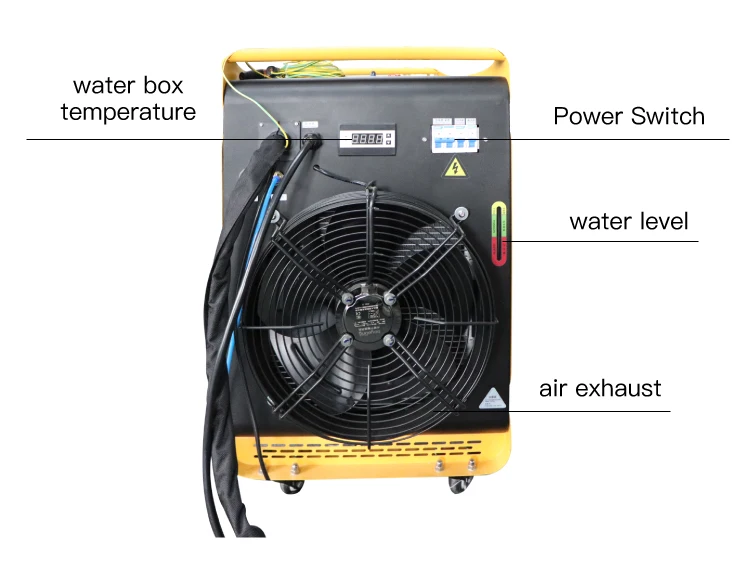

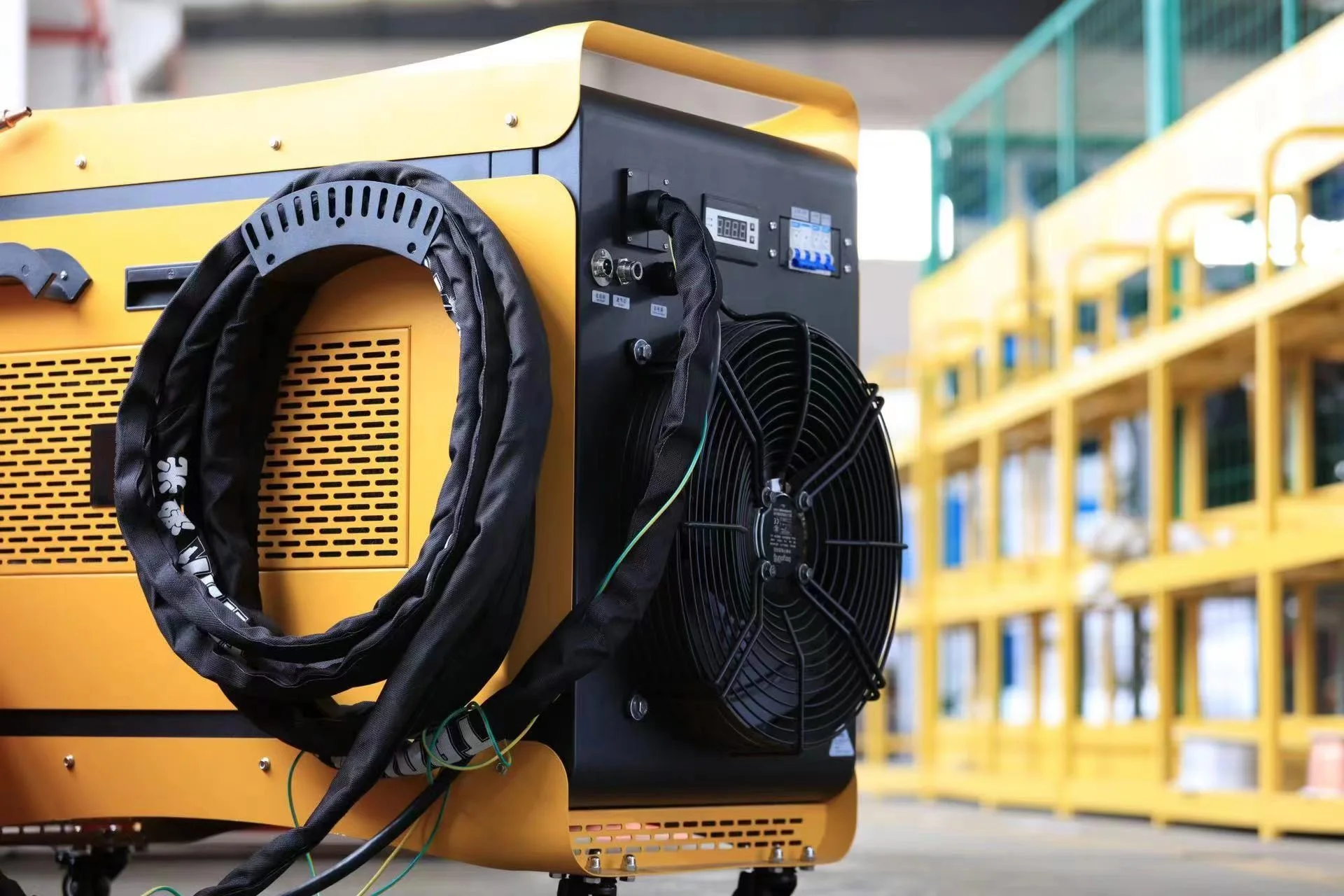

Cooling system: Water cooling
Cooling system: Water cooling
Air system: Air compressor
Application: thin stainless steel plates, carbon steel plates, galvanized sheets, ect

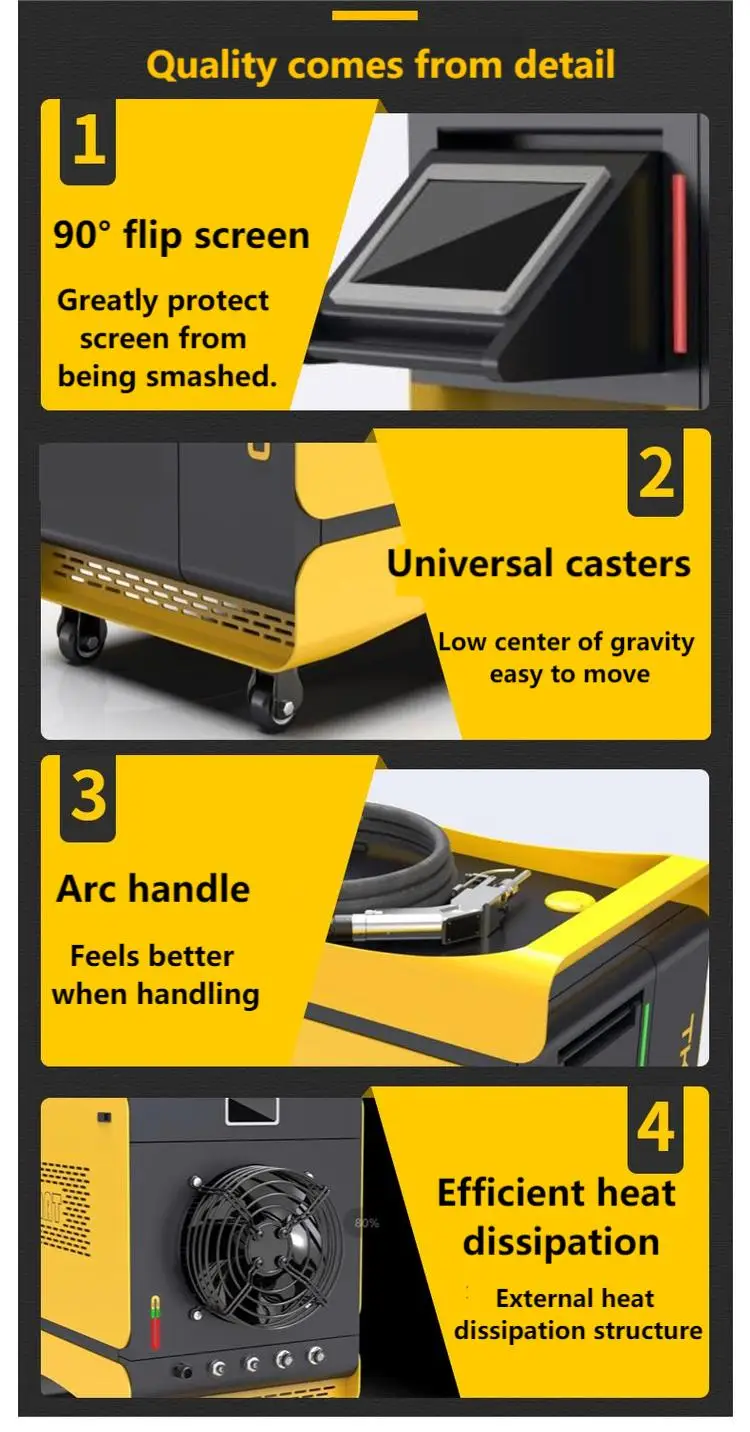

Features:
Features:
1.High efficiency.
2.Simple interface operation.
3.Hand-held design is easy to carry.
Model | DHW-1000 | DHW- 1500 | DHW- 2000 | ||||
Average Output Power | 1000W | 1500W | 2000W | ||||
Power Consumption | 4500W | 6000W | 7500W | ||||
Laser Wavelength | 1070nm | ||||||
Working Mode | continuous or modulate | ||||||
Optical Fiber Length | 10m(customize) | ||||||
Diameter of Fiber Core | 50um | ||||||
Adjustment Range of Power | 10-100% | ||||||
Auxiliary Gas | Nitrogen/Argon | ||||||

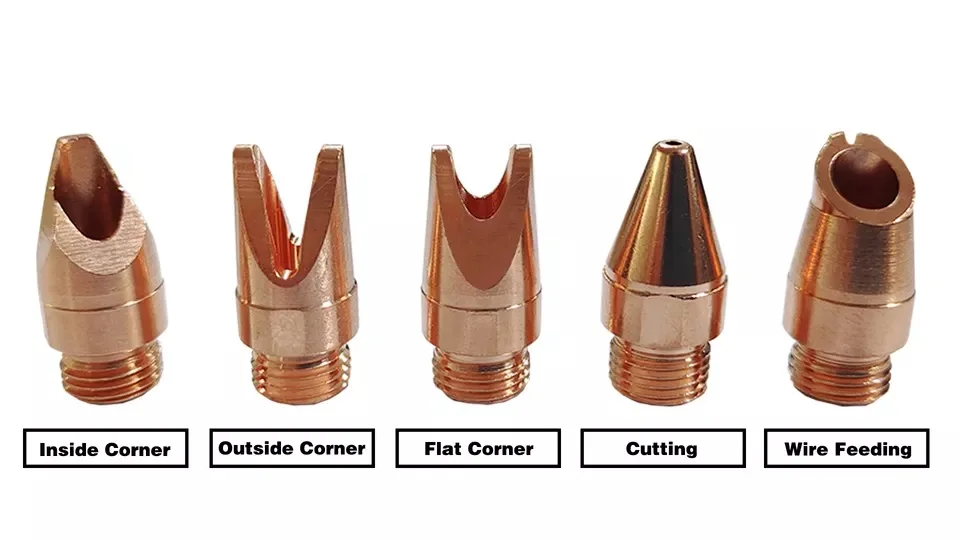

Type of Welding Head | single/double wobble head(optional) | ||||||

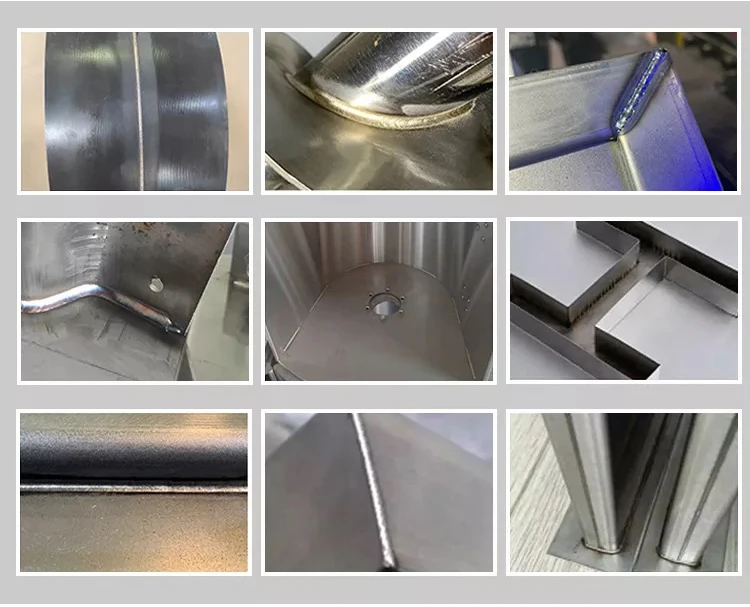

Suitable Material | aluminum, carbon steel, stainless steel, galvanized sheet, etc | ||||||
Power Supply | 220V ± 10%/50/60 Hz AC | ||||||
Welding Speed Range | 0-120mm/s | ||||||

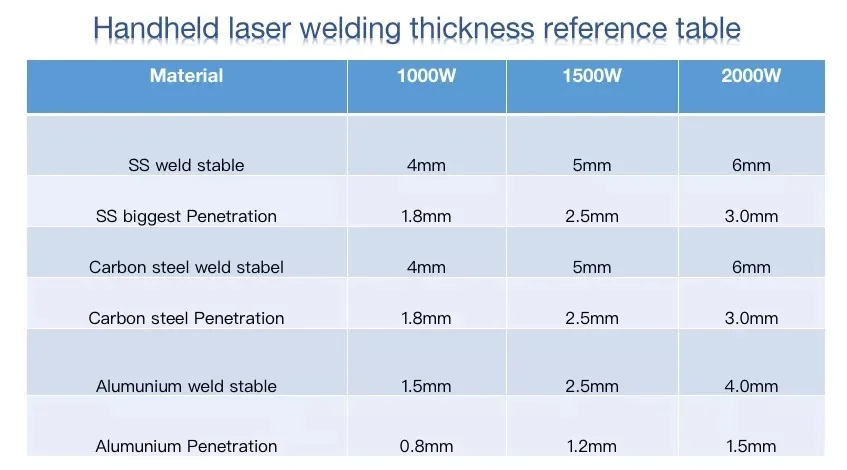

Welding Thickness Range | 0.5-6mm | ||||||
Cooling Type | water cooling | ||||||
Working Time | 24 hours | ||||||

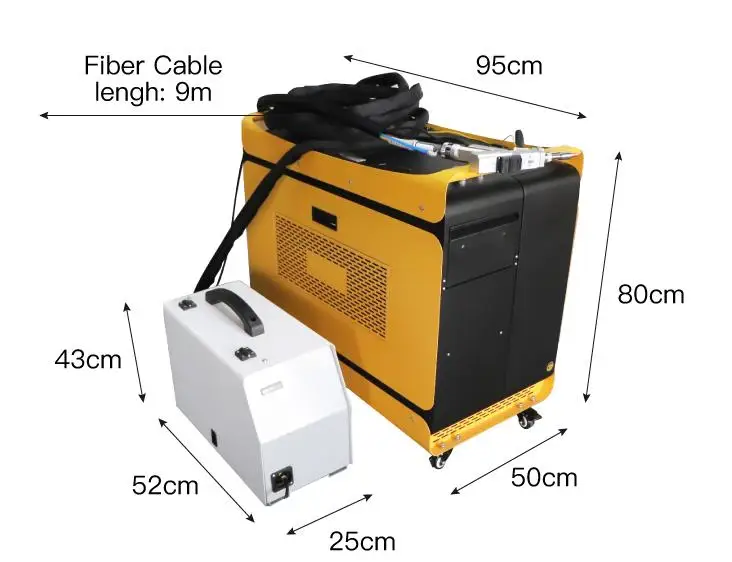

Size | 95*50*80mm | ||||||
Weight | 90KG | ||||||
After-sales service & Customer visiting:
1.Two years for laser source, one year for other spare parts free and lifelong maintenance.
2.Plenty of technical support online is available.
3.Quick Back-up PartsAvailable&Technical Assistance.
4."Training Video","Instruction Book",and"Operation Manual"will be offered.

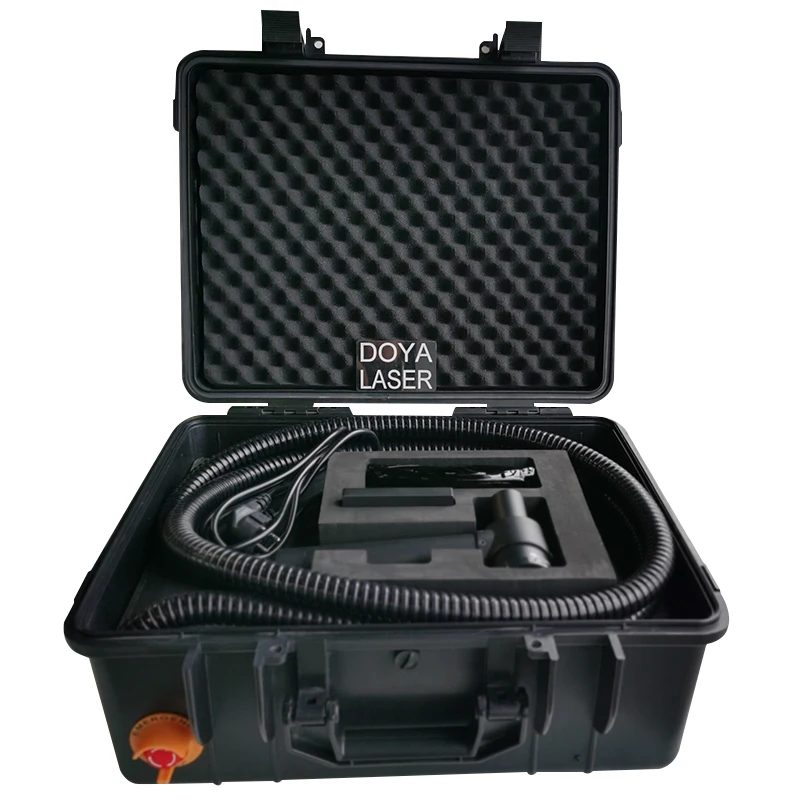

According to different products and size, we use different packaging materials, our packaging staff are very experienced, and we absolutely guarantee the safety of the products during transportation.
