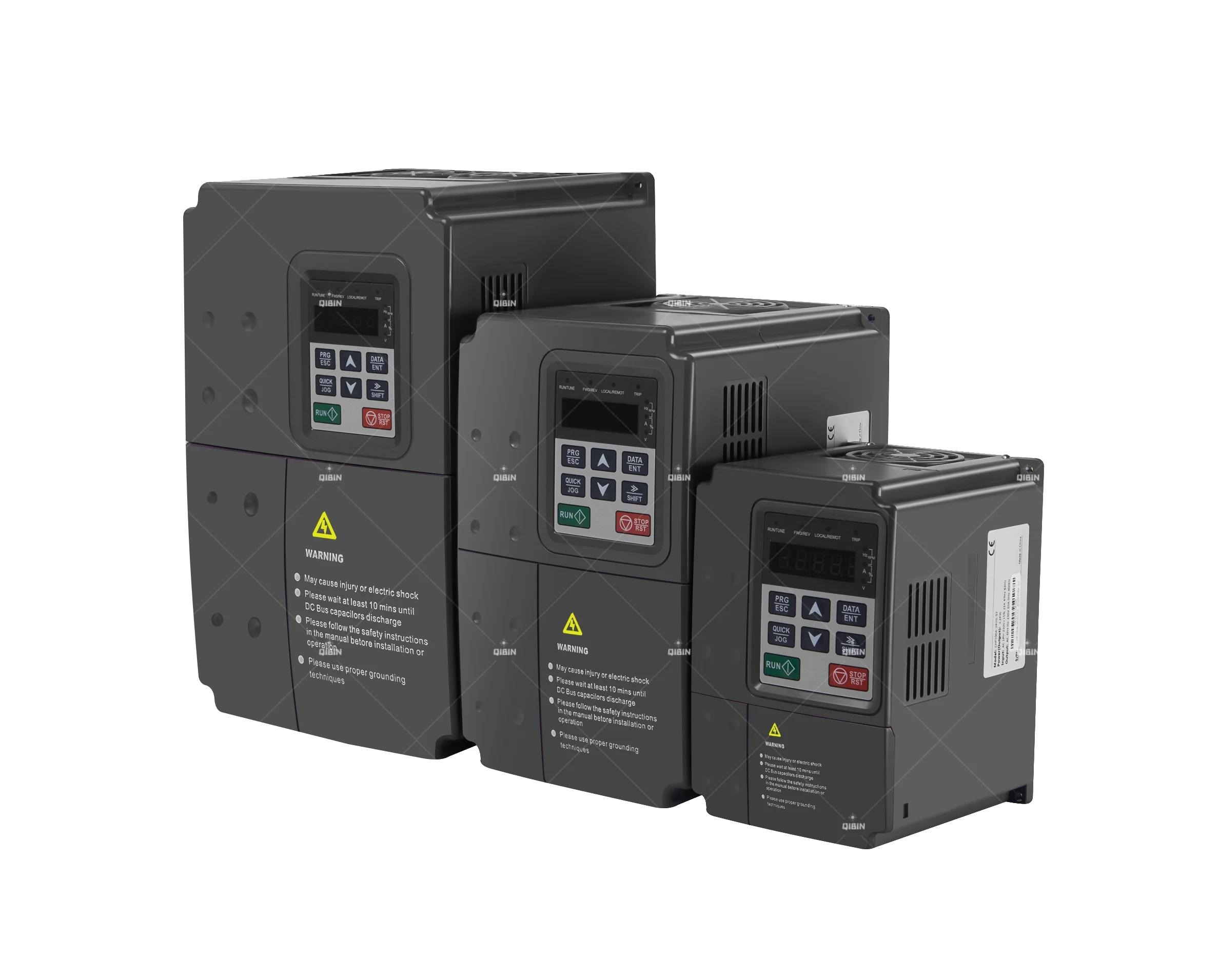

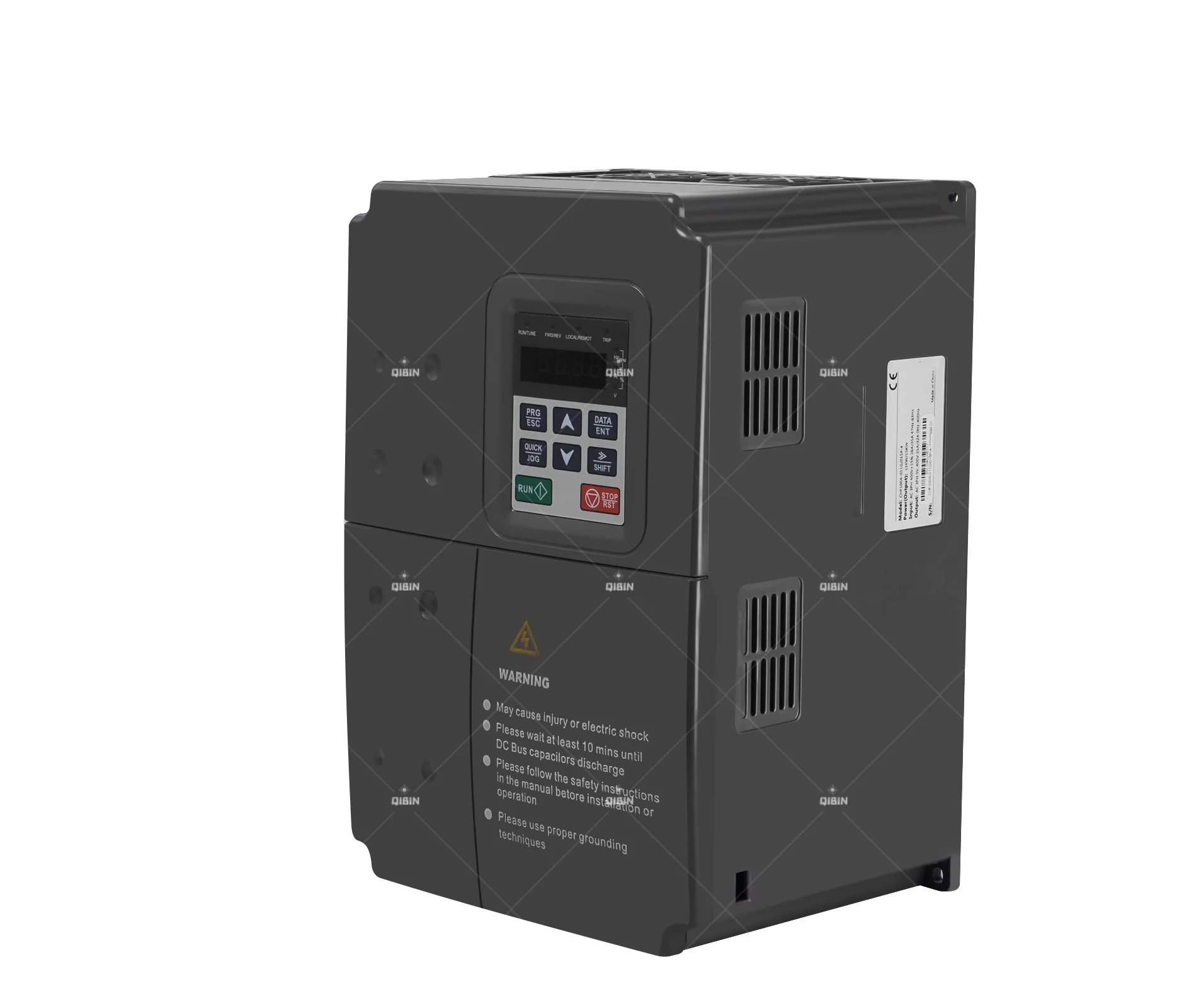

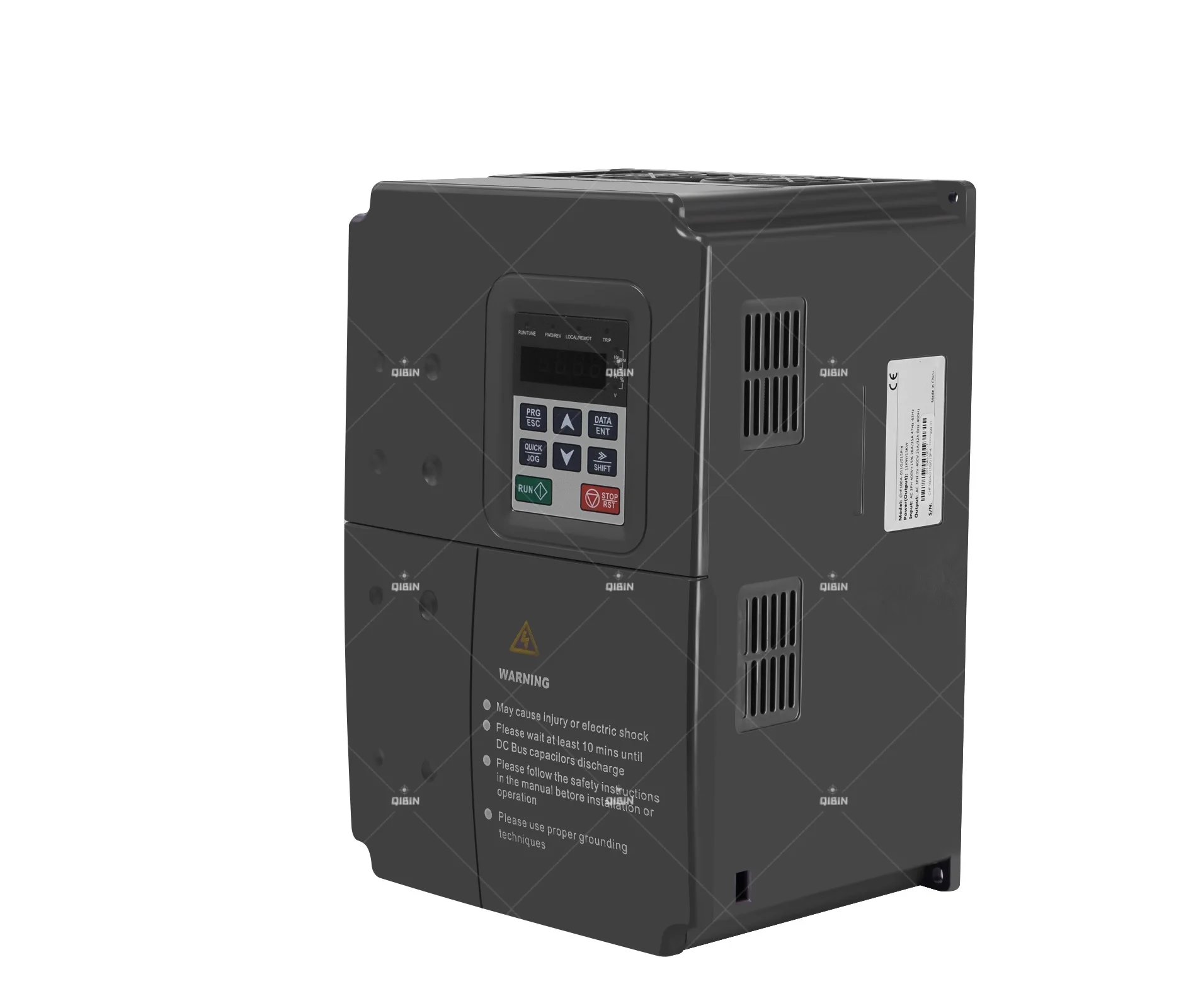

Best Seller 220V 1 Phase 5.5kw CHF100 Solar Pump inverter variable frequency drive AC drive for water pumps Irrigation

Function description

Specification  indexes

Control nature

Control mode

Control Without PG Vector,V/F Control,Torque control

Start torque

0.5Hz 150%(SVC)

1.0Hz 150%(V/F)

Speed adjustable range

1:100(SVC)

Stable speed precision

±0.5%Max speed(SVC)

Product functions

Important function

RPM track,Torque limitation,Multi-step speed,automatic self-adjustment,Slip compensate,PID adjust,Sagged control,Current control,Torque boost,Multifunctions input /output terminal

Frequency given way

Keyboard,upper computer,Analog AI1/AI2,Terminal pulse HDI,Multi-step speed and PLC,PID,The combination of multi-modes and the switch between different modes can be realized.

Frequency Range

0.00-400.00Hz

Acc and Dec time

0.1-3600.0s

     Dynamic braking

DC braking start frequency:0.00-400.00Hz;DC braking current:0.0-150%;DC braking time:0.0-50.0s;Noneed for DC braking start waitting time,realize quickly braking

Special function

Multifunctions shortcut key

Multifunctions shortcutkey can be seted for these operation:JOG inching,REV and FWD,Clear UP/DOWN set,left shift key display the status,Quickly debug mode

Multi menu mode

Basic menu mode,Fast menu mode

Common DC bus

Many frequency inverters Common DC bus,Energy automatic equilibrium

Swing frequency control

Multi pyramidal wave frequency control

Counting control

Counting function

Protection function

Overcurrent,Overvoltage,Undervolage,Over temp,Phase lack,Overload

Environment

Operation Place

Indoor,hide sunshine,No dust,Corrosive gas,combustible gas,Oil mist,Water vapor,salinity

Altitude

<1000m

Temperature

-10ºC~+40ºC(temperature at 40ºC~50ºC,Drop the forehead use)

Humidity

<95%RH,No droplet

Vibration

<5.9m/s2(0.6g)

Stock

-20ºC~+60ºC
