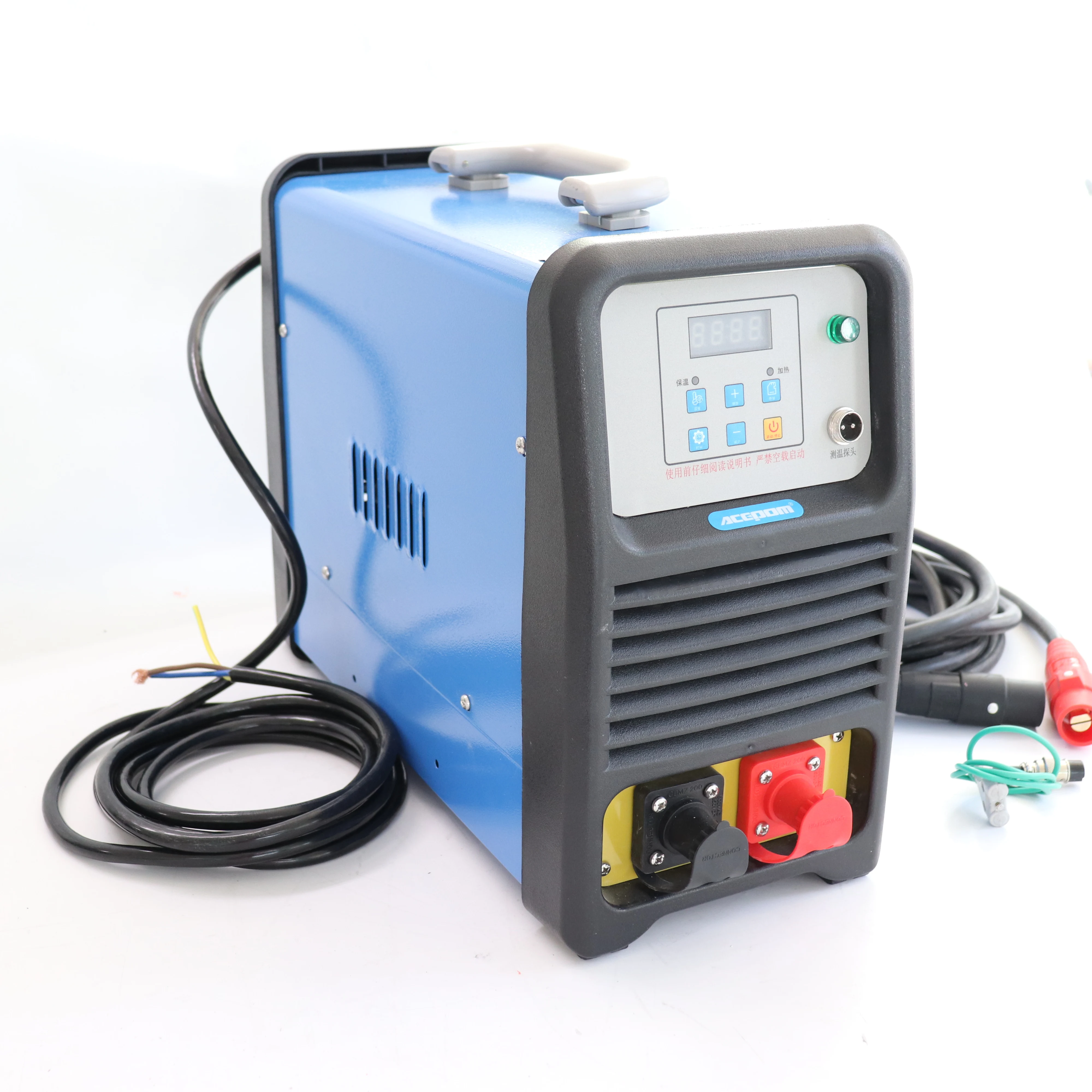

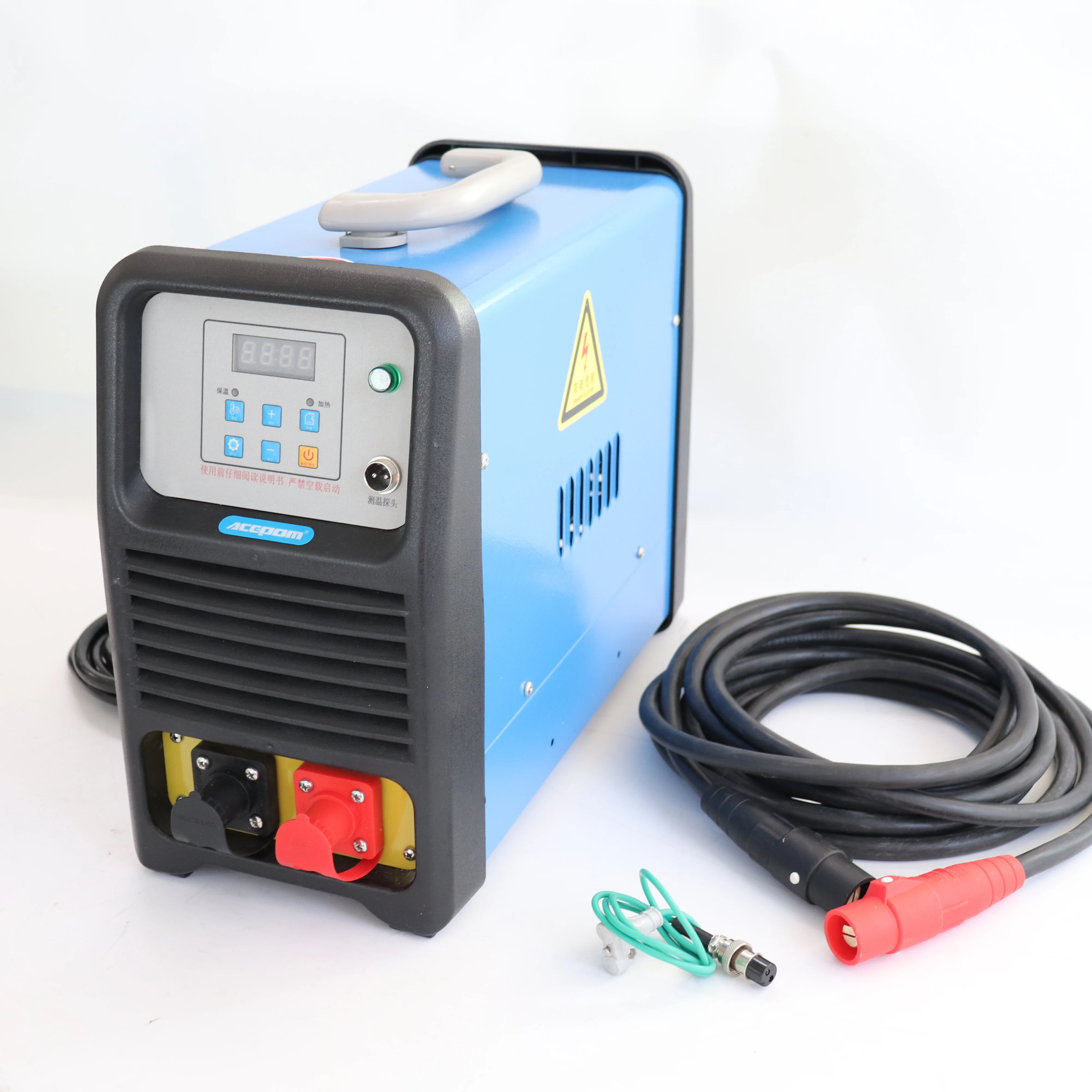

variable frequency induction heater ACEPOM RX2 10KVA Bearing/labyrinth seal/bearing ring/bearing seat

variable frequency induction heater ACEPOM RX2-5KVA

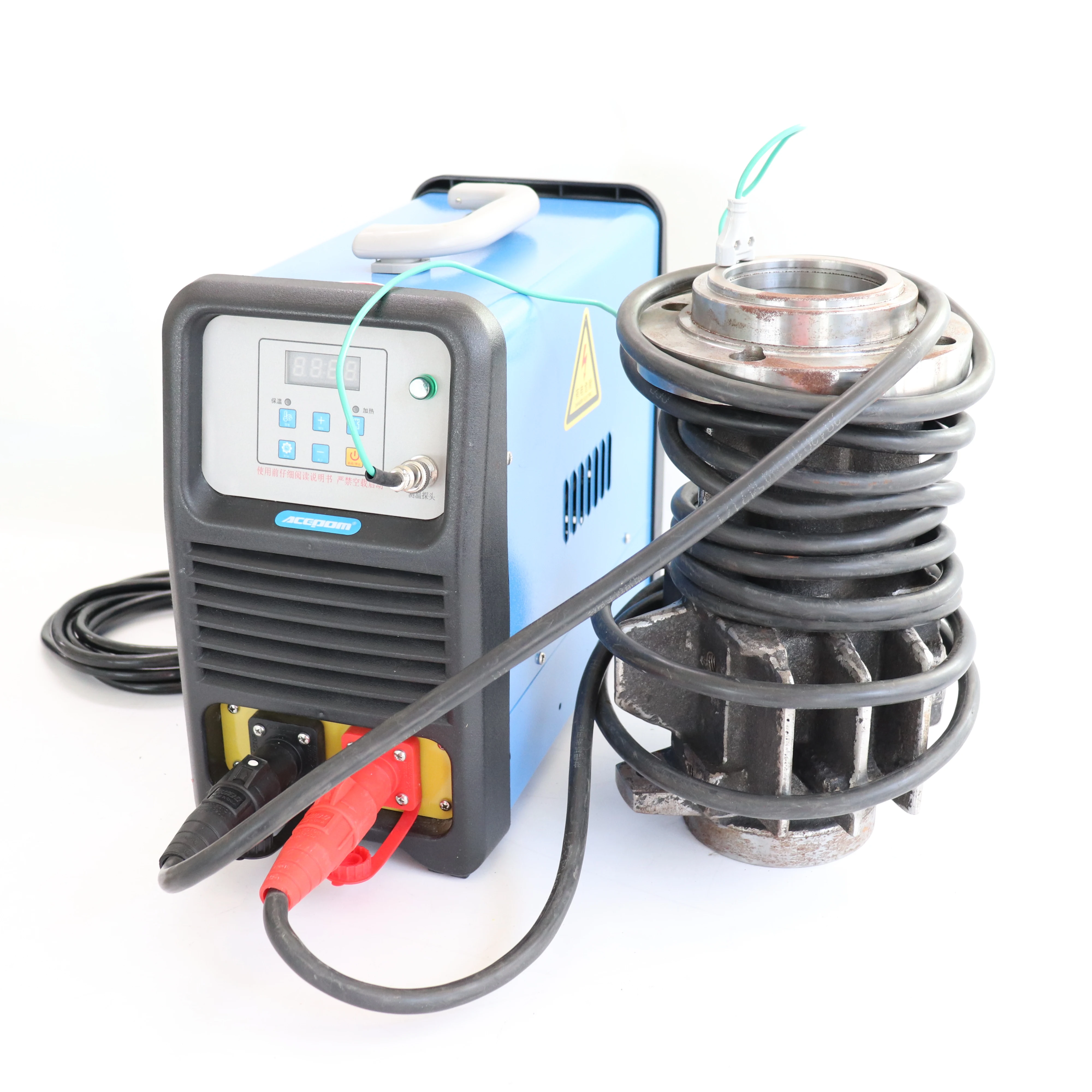

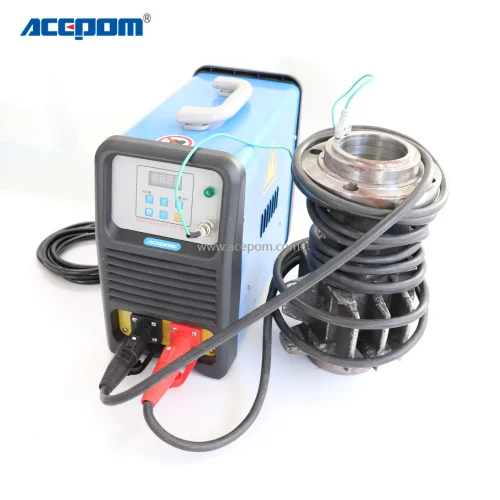

The standard configuration includes a heating wire): heating the workpiece with an outer diameter of 130-200 requires four to five turns.

Heating the inner diameter requires 10 turns.

ACEPOM RX fast heater – medium frequency technology

Installation, removal and preheating of metal parts

Fast heating using medium frequency induction technology

ACEPOM RX series medium frequency induction heater uses medium frequency technology and the principle of electromagnetic induction. It can make the metal workpiece placed in the induction loop produce alternating magnetic field through the induction loop to induce the current of the workpiece itself, and make the workpiece heated rapidly. ACEPOM RX series medium frequency induction heater consists of fixed or flexible induction coil and control cabinet. Its compact size makes it easy to move.

ACEPOM RX series medium-frequency induction heater can save time because it requires less operations and heating speed compared with traditional methods. Because of its lower power consumption, the energy use efficiency is higher. One of the main advantages of this type of induction heater is that the flexible inductor can be wound on any size or shape.

Advantages of ACEPOM RX series medium frequency induction heater

For installation, removal and preheating

Suitable for steel, cast iron, stainless steel and titanium

Temperature and/or time controlled heating

Easy to use and flexible

Suitable for production and maintenance applications

No remanence

No fire hazard caused by open fire

No noise, smoke or smoke nuisance

Air cooling: no water cooling

No damage to the workpiece and can be reused

working principle

The three-phase voltage is rectified and smoothed. Then, the rectifier voltage is converted into an AC voltage with a frequency between 10 and 25 kHz through the inverter. power

Then, the inductor (coil) is applied to the workpiece magnetically through the "resonant capacitor".

Induction heater

ACEPOM RX series fast heater – medium frequency technology

5/10/20/40/80/120/160 Power kW

ACEPOM RX2 series fast heater

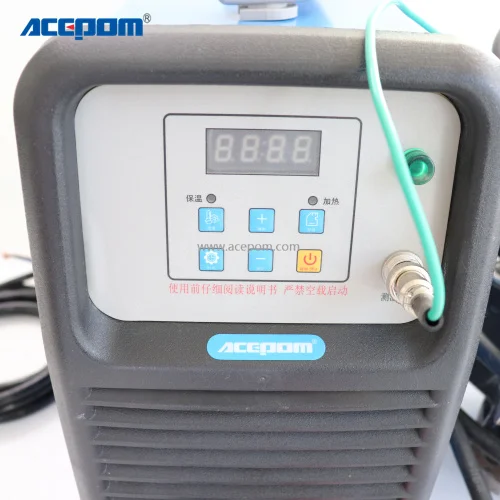

Compact design, digital LCD panel

7 power options: 5/10/20/40/80/120/160KVA

Adjustable power

Intelligent electronic equipment ensures the best working frequency

Two heating modes: time control and temperature control

Flexible coil or customized fixed coil can be selected

Fast Plug and Play connector

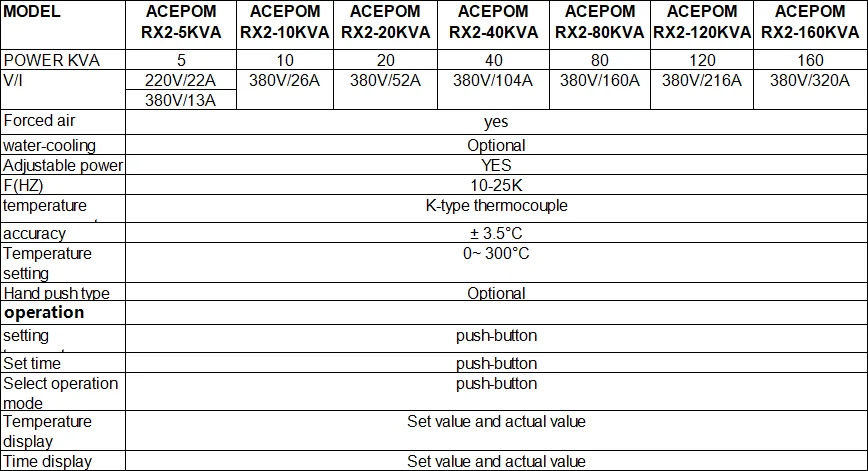

Technical data
