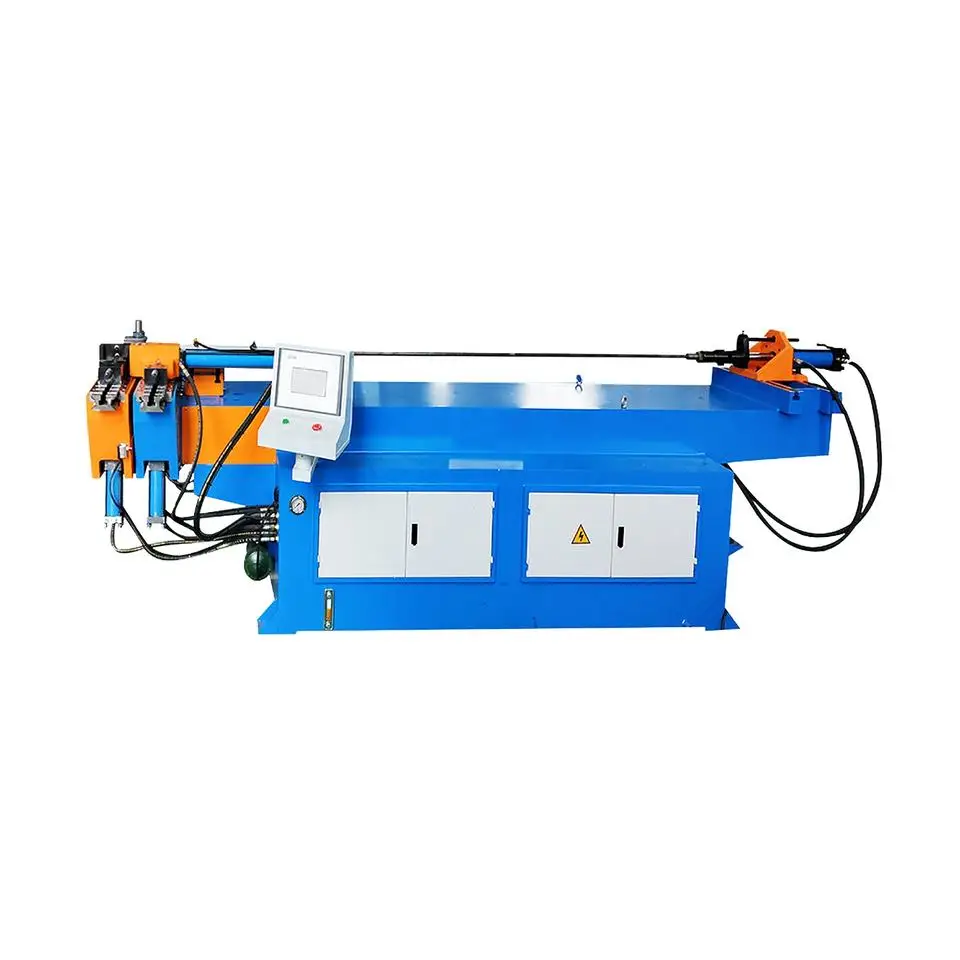

Easy To Operate Manual Stainless Steel NC Plate Tube Bending Machine
- Category: >>>
- Supplier: Sjr Machinery Co. Ltd.
Share on (1600965816694):
Product Overview
Description
Recommend Products
Product Description
Machine Characteristics

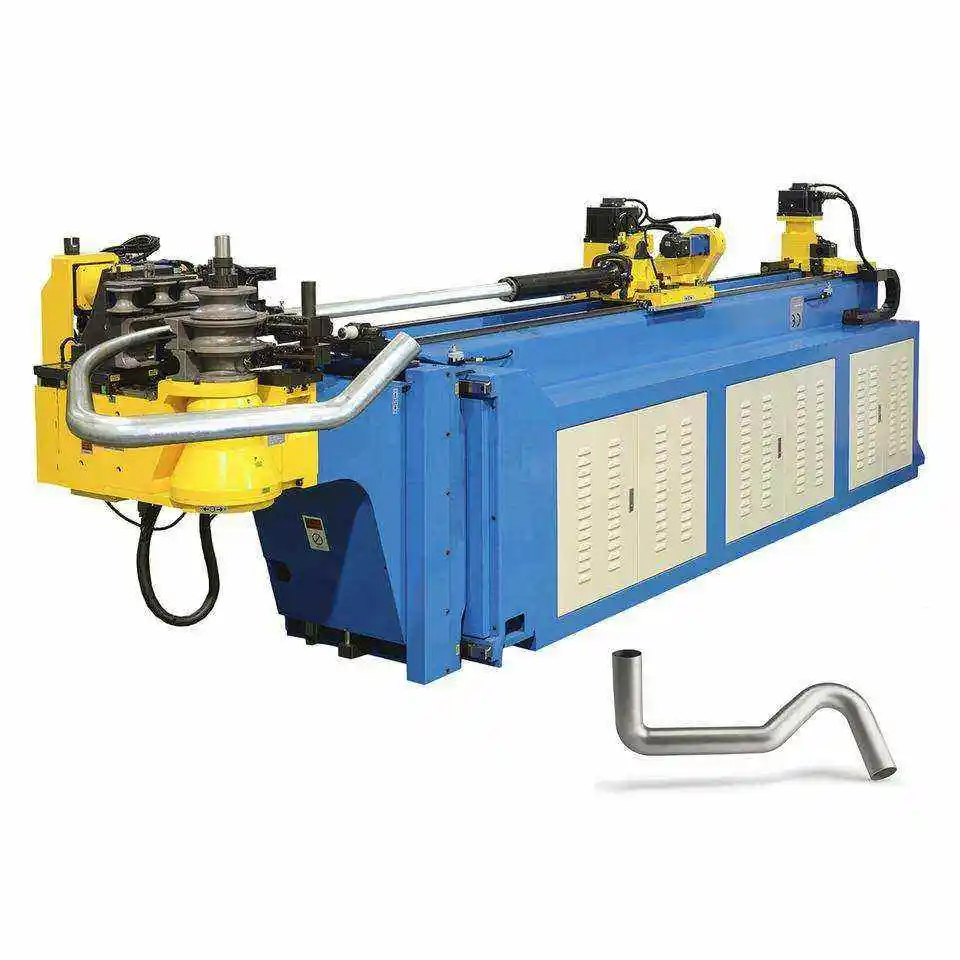

◆63CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinates of motions under precisioncontrol by industrial computer can realize full-auto mandrel on or mandrel off rapid bending
Title goes here.

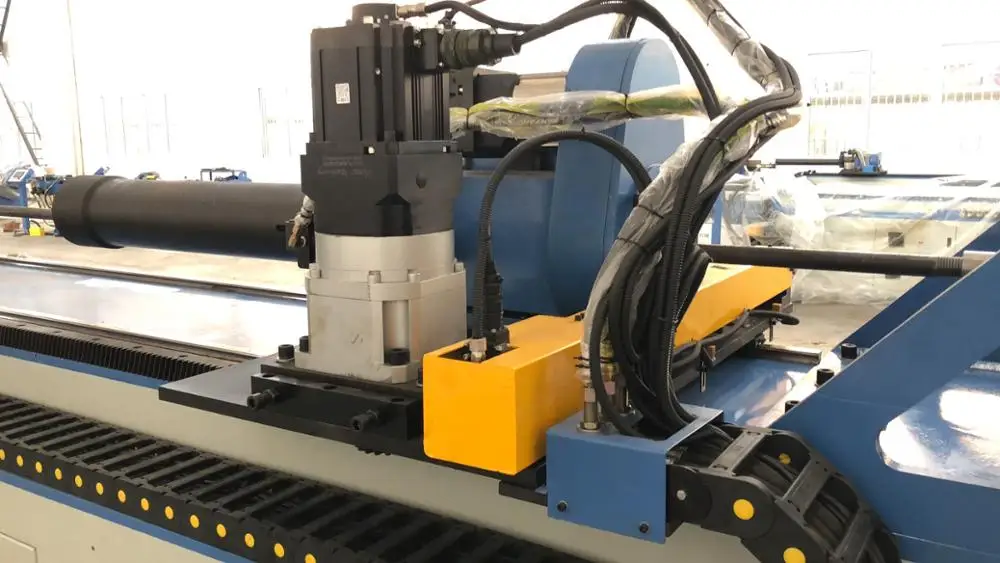

◆CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe bending(C axis), pipe rotating (B axis), and pipe feeding(Y axis) are all drove by closed ring servomotor. Advanced technology, high automation reliability, integrated design all
make CNC pipe bending machine the first class pipe processing machine in the world.
make CNC pipe bending machine the first class pipe processing machine in the world.
Specification
Name | Unit | Parameter |
Max. Bending Capacity | mm | ￠63*6 |
Bending Radius Range | mm | 30-300 |
Max. Bending Angle | ° | 190° |
Bending Speed | °/sec | 30 |
Turning Speed | °/sec | 160 |
Feeding Speed | mm/sec | 800 |
Bending Precision | ° | ±0.10 |
Turning Precision | ° | ±0.10 |
Feeding Precision | mm | ±0.10 |
Turning Servomotor Power | kW | 1 |
Feeding Servomotor Power | kW | 1.5 |
Though Effective Distance | mm | 2600 |
System Motor Power | kW | 7.5 |
Max. Pressure | Mpa | 16 |
Oil Pump Delivery Volume | L | 25 |
L*W*H (Packaging Dimension) | mm | 5000*1200*1350 |
Weight | T | 3.5 |
Company Profile
Exhibition
Customer Photos
Certifications
FAQ
Q1.Can I put my own label and logo on the products?
A: Yes,there are two options.
1), Send your label design to us and we make them for you.
2), Send your finished labels to us and we put them on the product.
Q2.Payment ways available?
A: Paypal , Western Union, T/T, L/C, Ali-express, anyways you prefer.
Q3.Why choose us?
A: (1)Own strong design team with various styles.
(2)More than 20 years experience manufactures with Reasonable price.
(3)High quality & quick response within 24 hours.
Q4.Can we visit your factory?
A: We warmly welcome you to visit our factory anytime.
