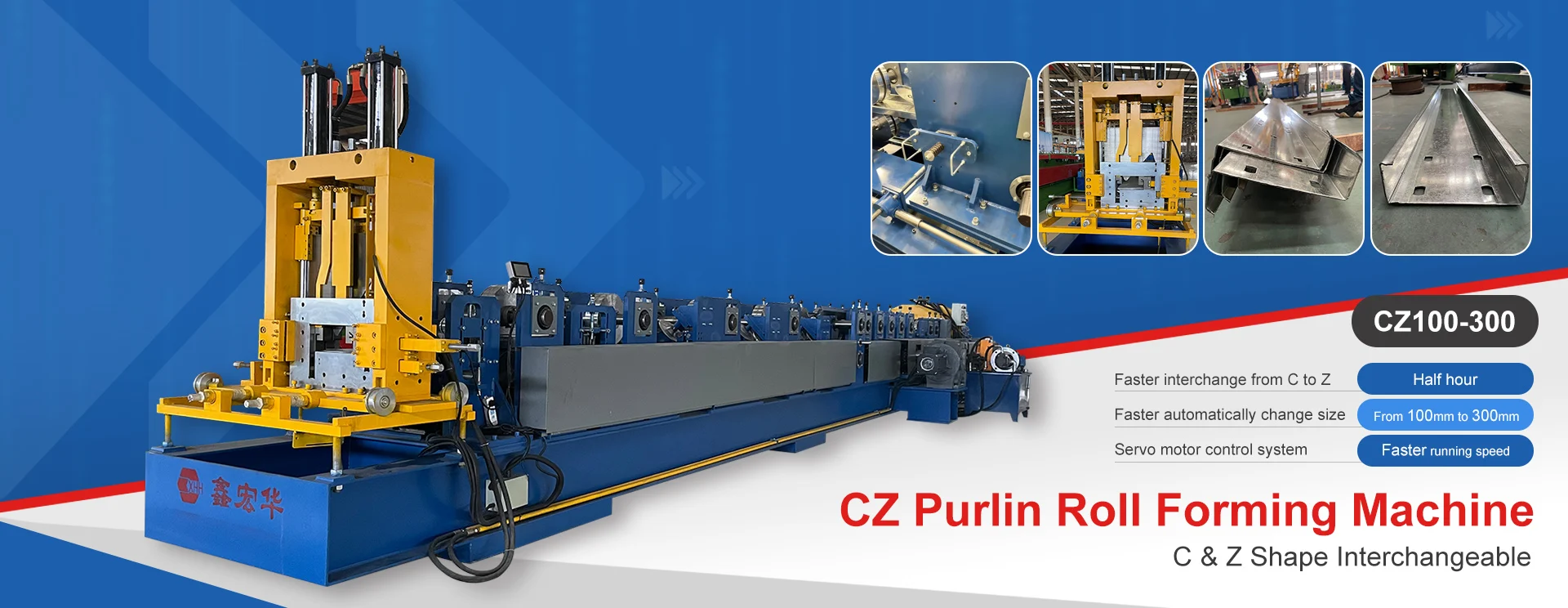

Automatic C Z U Purlin Roll Forming Machine

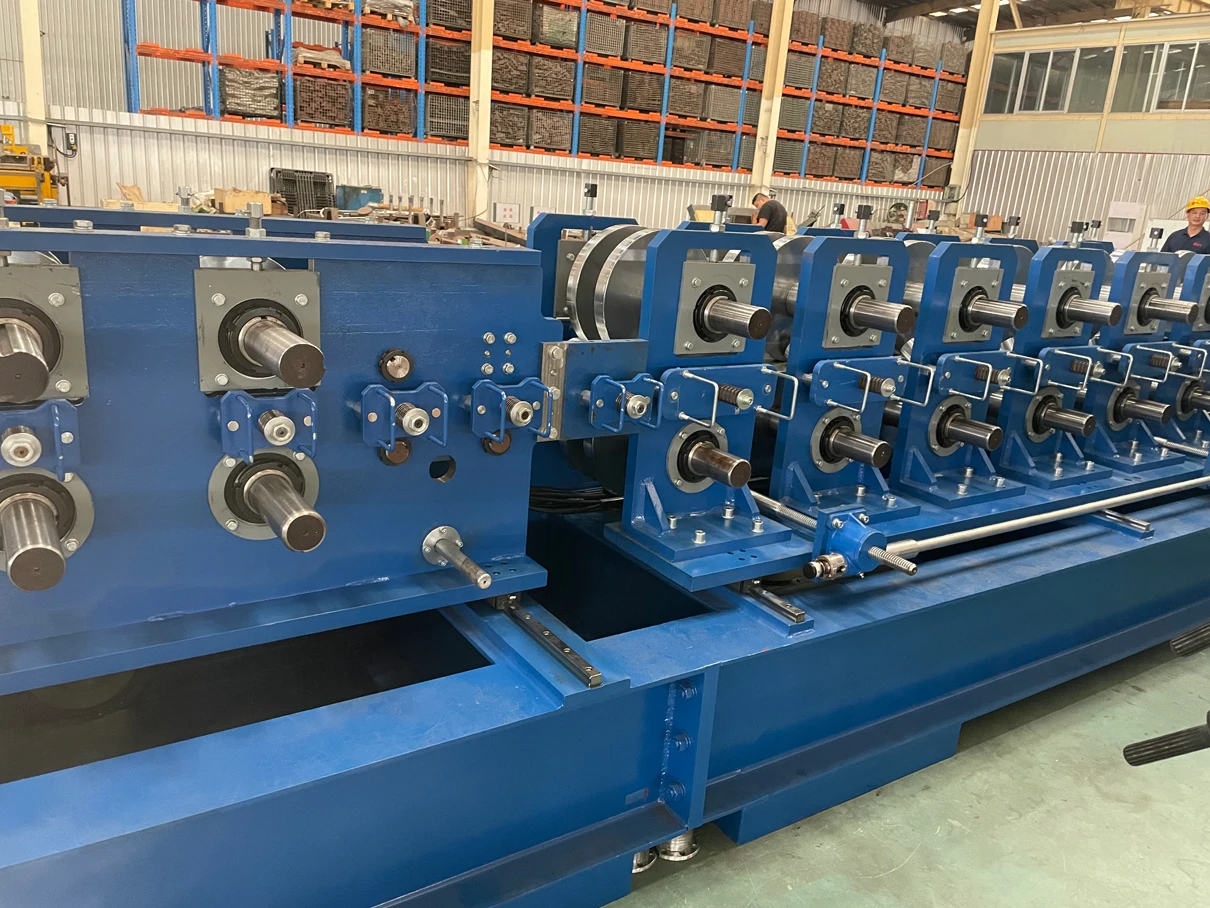

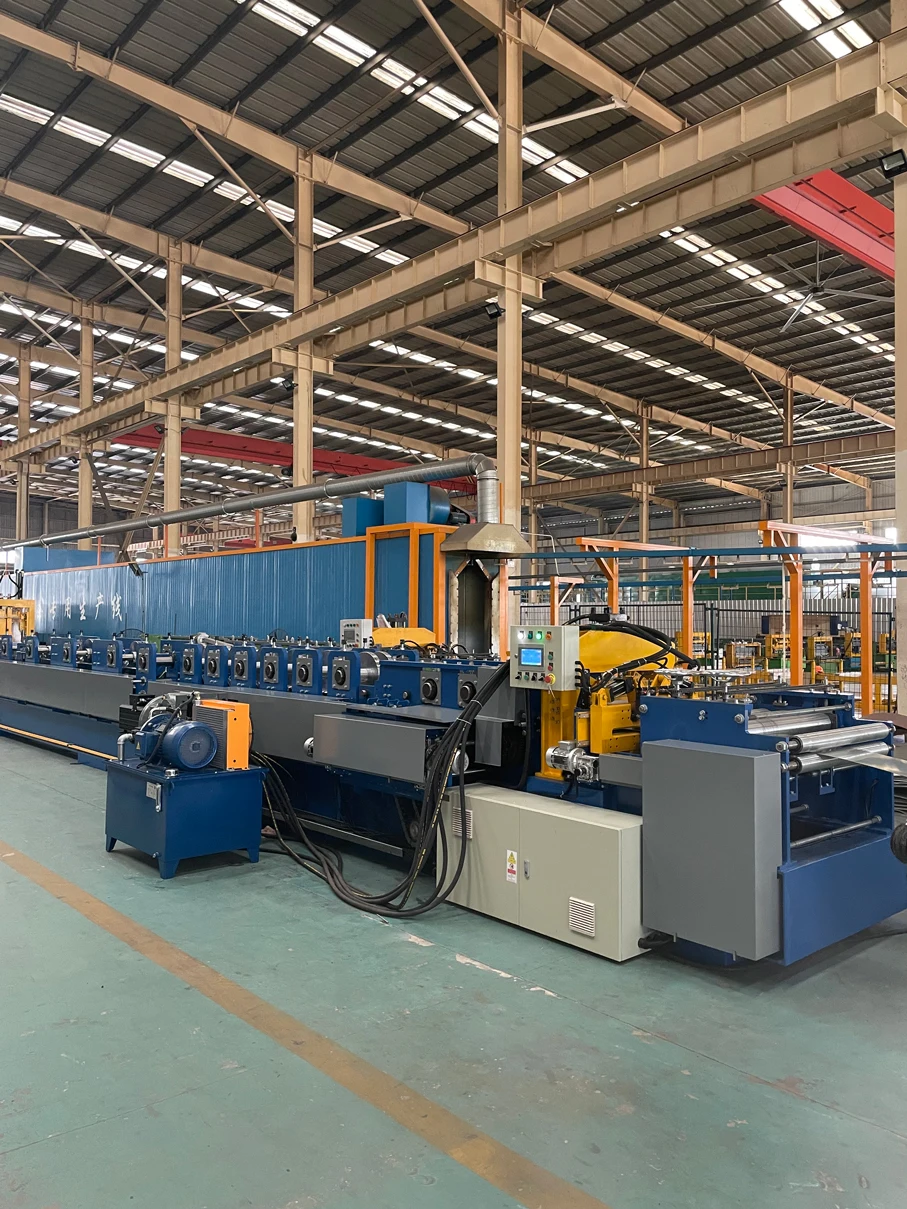

The automatic CZ exchange roll forming machine is a complete roll forming system designed to manufacture CZ purlins in a variety of specifications. This advanced equipment includes key components such as a passive loading frame, leveling device, automatic punching system, front shear device, main forming unit, continuous post-forming shear unit, hydraulic station, and a computerized control system.
With the fully automatic CZ interchangeable section roll forming machine, you can swiftly switch between C and Z purlins in just 30 minutes. It also allows rapid size adjustments for any model between 100-300mm within 5 minutes, meeting your specific requirements with ease. The forming cutter supports continuous cutting of any model in this range without needing to change tools. Additionally, it features automatic centering and feeding port adjustments, precise fixed-length cutting, high-speed forming, reducing labor costs, and significantly boosting production efficiency.
With the fully automatic CZ interchangeable section roll forming machine, you can swiftly switch between C and Z purlins in just 30 minutes. It also allows rapid size adjustments for any model between 100-300mm within 5 minutes, meeting your specific requirements with ease. The forming cutter supports continuous cutting of any model in this range without needing to change tools. Additionally, it features automatic centering and feeding port adjustments, precise fixed-length cutting, high-speed forming, reducing labor costs, and significantly boosting production efficiency.

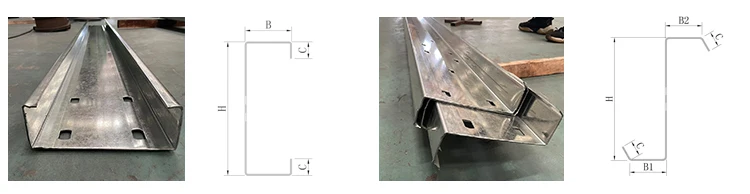

C Z Profile Drawing:
Profile Model | C Section（mm） | Thickness | ||||
Web | Flange | Lip | ||||
C100-300 | 100-300mm | 40-100mm | 10-20mm | 1.2-3.0mm | ||
Z120-300 | 120-300mm | 40-100mm | 10-20mm | 1.2-3.0mm | ||
We offer customization options! Whether it's profile, color, or logo, just let us know your requirements. You can either provide design drawings or simply tell us the material, profile, feeding width, and thickness, and we'll tailor the solution to meet your needs.
Technical Parameters:
Uncoiler Machine 1 set
1) Hydraulic Uncoiler
2) Coil Exterior Diameter：≤1300mm
3) Rated Load：5T
4) Material Width:50-500mm
5) Inner Diameter:450-530mm
2) Coil Exterior Diameter：≤1300mm
3) Rated Load：5T
4) Material Width:50-500mm
5) Inner Diameter:450-530mm

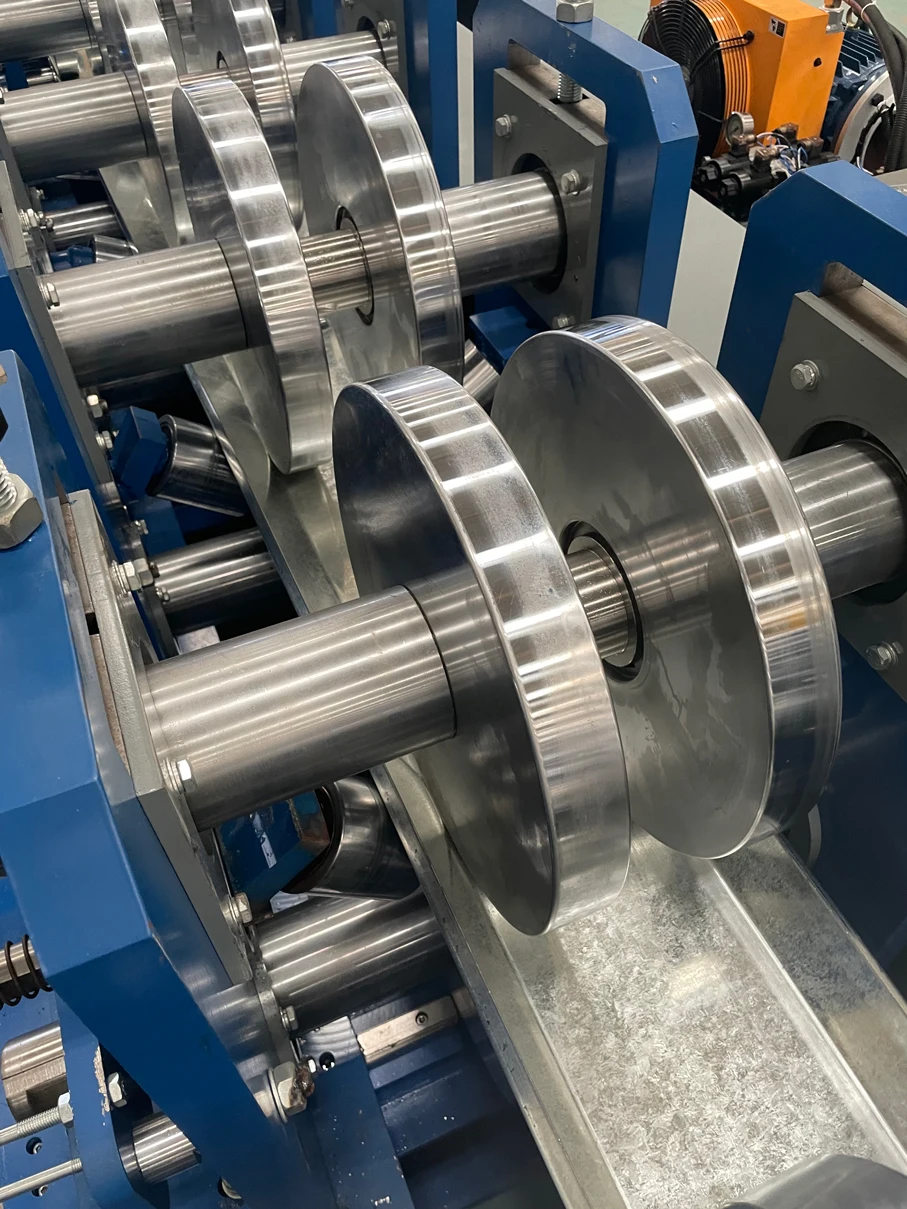

Roll Former 1 set
1) Forming Steps:23 steps;
2) Running Speed:30m/min(without punching and cutting);
3) Main Servo Motor Power:30kw;
4) Roller Material:Gcr15/Cr12
2) Running Speed:30m/min(without punching and cutting);
3) Main Servo Motor Power:30kw;
4) Roller Material:Gcr15/Cr12

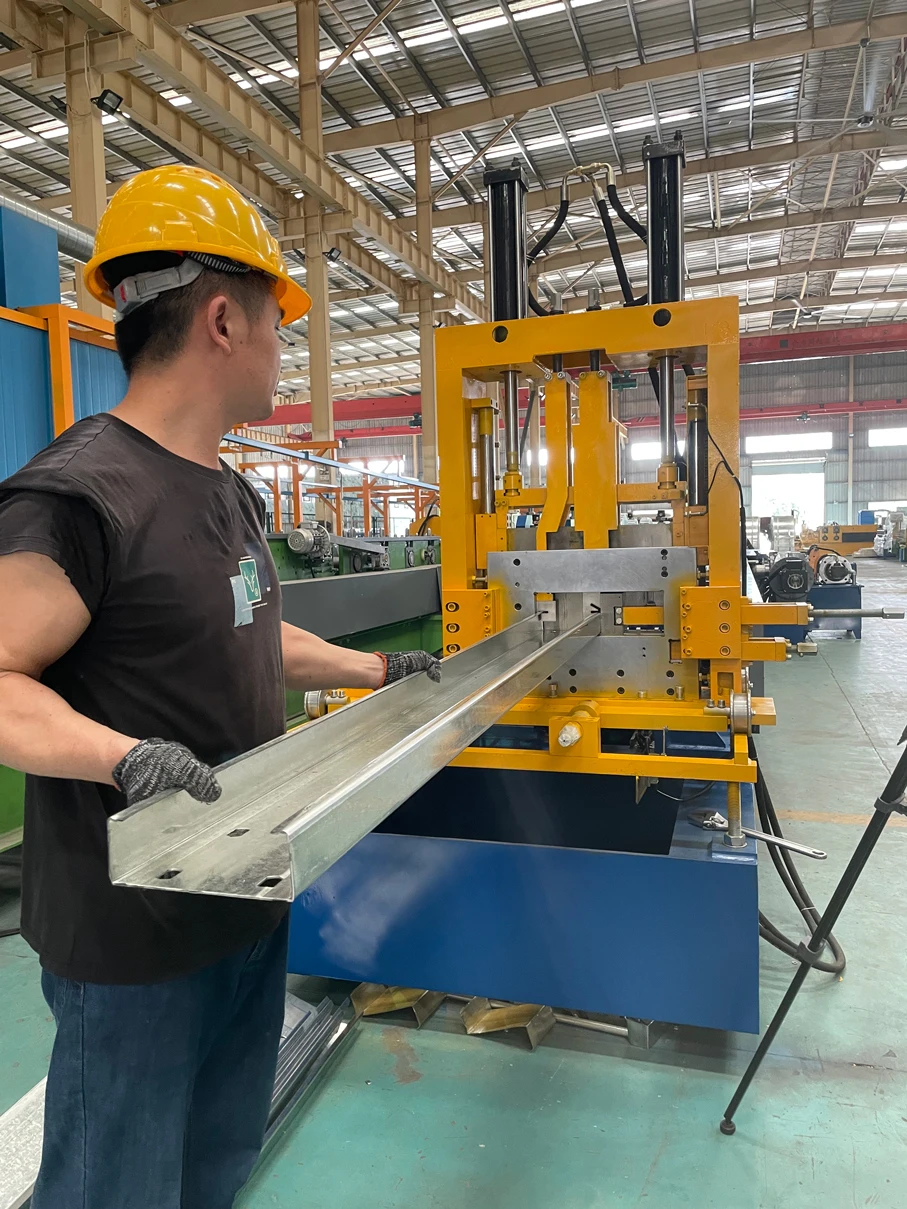

Hydraulic Pre Cutter & Hydraulic Pre Puncher 1 set
1) Material :Cr12Mov;
2) surface treatment：CNC semi-finishing ,Vacuum treatment to 58-60HRC CNC refining。
Hydraulic Post Cutter 1 set
1) Cutting method：Multiple size cutter
2) material of cutter blade:Cr12Mov；
3) surface treatment：CNC semi-finishing
3) surface treatment：CNC semi-finishing

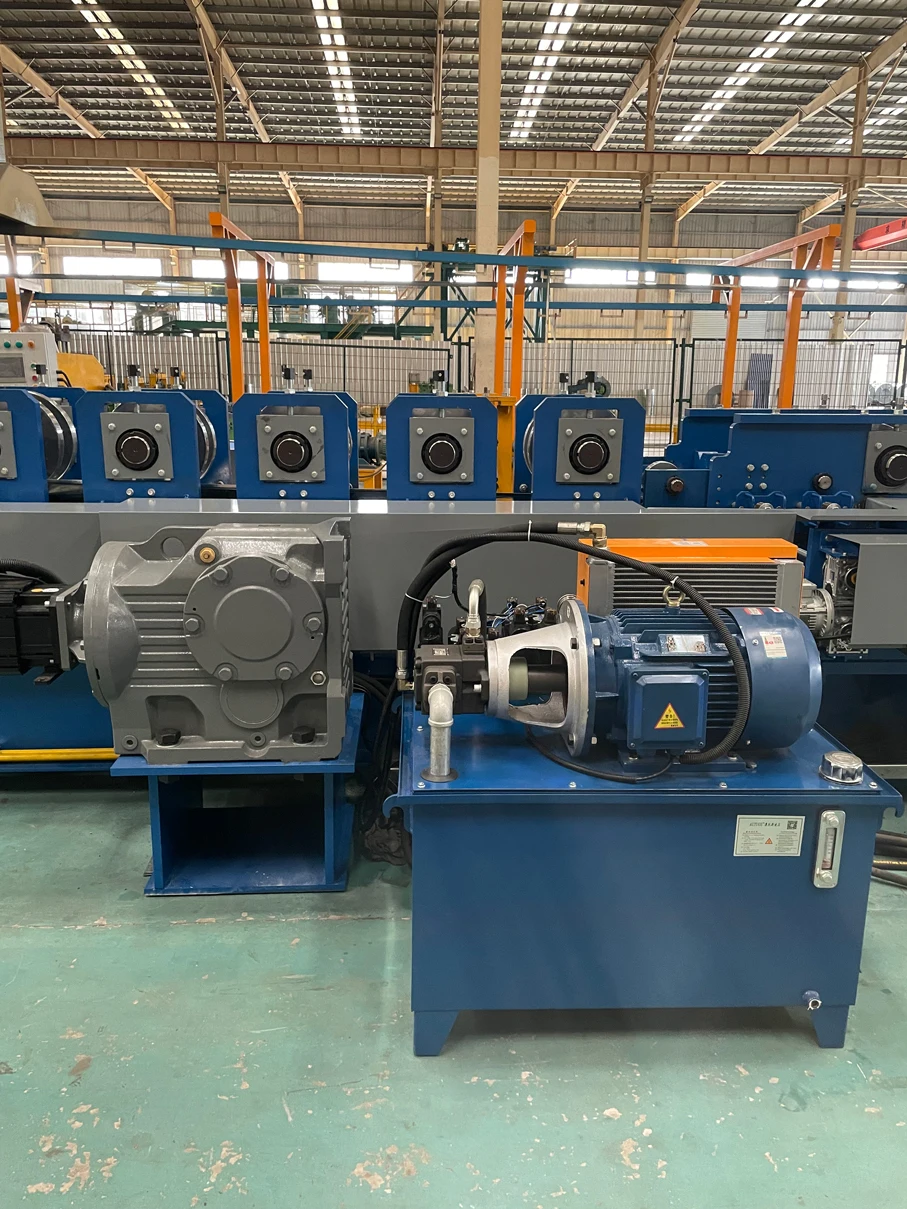

Hydraulic System 1 set
1) Hydraulic Power:7.5KW;
2) Hydraulic Brand:Yuken;
3) Oil Tank:120L;
4) Cooling System:fan cooling.
3) Oil Tank:120L;
4) Cooling System:fan cooling.
PLC Controlling System 1 set
1) Punching Position Controlling；
2) Cutting Position Controlling；
3) Production Batch Quantity Controlling；
4) Batch Detail Quantity Controlling
2) Cutting Position Controlling；
3) Production Batch Quantity Controlling；
4) Batch Detail Quantity Controlling
Main Technical Data:
Size for C Purlin | 100-300mm |
Size for Z Purlin | 120-300mm |
Machine Dimension | 11000*1800*1500mm |
Machine Weight | 1ltons |
Material Thickness | 1.2-3.0mm |
Main Servo Motor Power | 30KW |
Forming Steps | 18steps |
Running Speed | 0-30m/min |
Hydraulic Power | 7.5KW |
Roller Material | Gcr15&Crl2,heat treatment,plate hard chrome |
Cutter Material | SKD-11 |
Machine Frame Material | H-Beam with 30mm thickness |
Our Service:
1. Factory Lifetime Service:offer technical support for the entire life of our machines.
2. Customized Profile:can design the profile according to customer request.
3. ONE-YEAR Guarantee Period:we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.
2. Customized Profile:can design the profile according to customer request.
3. ONE-YEAR Guarantee Period:we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.
