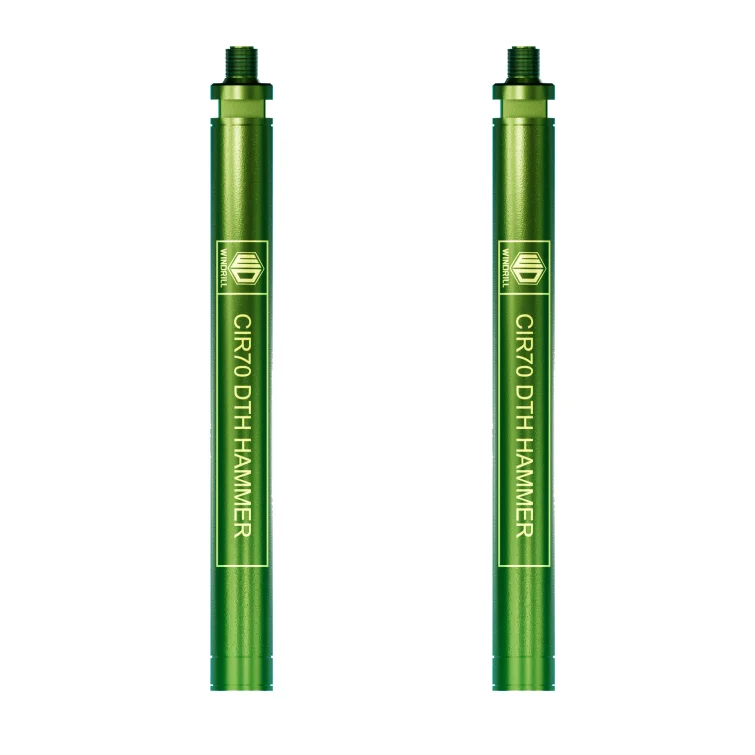

Water well drilling CIR low aire pressure DTH hammer CIR70 Quarry Mining Low Air Pressure DTH Hammer

Product Overview

Description

CIR series low air pressure DTH hammer







DTH hammer is used for drilling holes through a wide range of rock types, the variety of which continues to extend well beyond the original conception of early blast hole drilling. Down-the-Hole refers to where the hammer action occurs when compared to drifter hammers, which hammer on top of the drill string. The DTH hammer piston always makes direct contact with the drill bit and there is generally no loss of transmitted energy as the hammer drills deeper, as is the case with drifter (top hammer) rigs. Win Drill offers a wide range of DTH hammers suitable for a variety of drilling operations. Our Down the Hole hammers provide the most versatile and cost effective rock drilling method. It's widely utilized for foundation work, landslide prevention work, quarrying services, marine civil work, etc.



Advantages:

1. Easy service and maintenance designs reduces machine downtime.
2. Advanced hammer designs with high power and air efficiency increases productivity.

3.Tailored product offering covers all your applications and conditions.

4.Light and simple, easy to handle and support.



CIR SERIES CIR50/CIR60/CIR65/CIR70/CIR76/CIR90/CIR110/CIR130/CIR150/CIR170

1. CIR series is steel valve type hammers designed for high performance at low operating air pressure.

     The strong energy of single impact and the low engergy consumption in rock crushing.

2. CIR series hammers maximizes energy output and reduce service requirements.

3. A good performance in central air exhaust and cutting discharge, which reduces the repeated crushing of rock.

4. All critical internal components are heat treated under strict control to maximize tool longevity.



EXCLUSIVE FEATURES The patent of steel valve design increases the wok efficiency, it is 20% at least.



APPLICATIONS:

Water Well Mining Construction Quarry

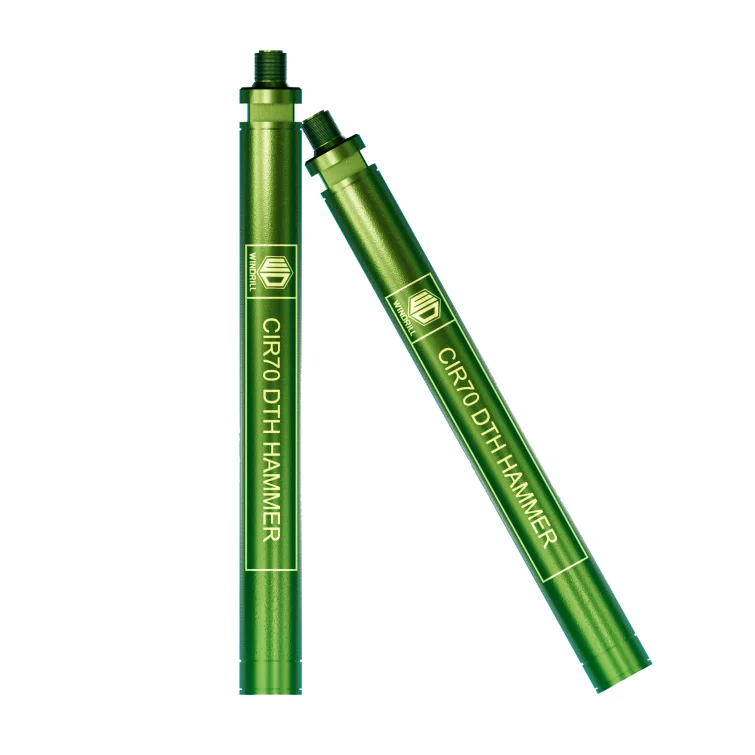

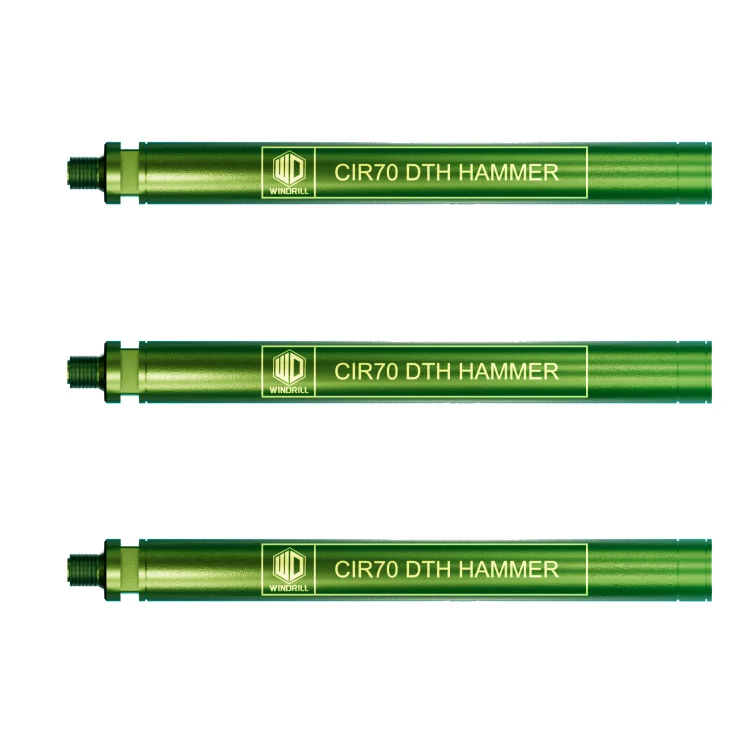

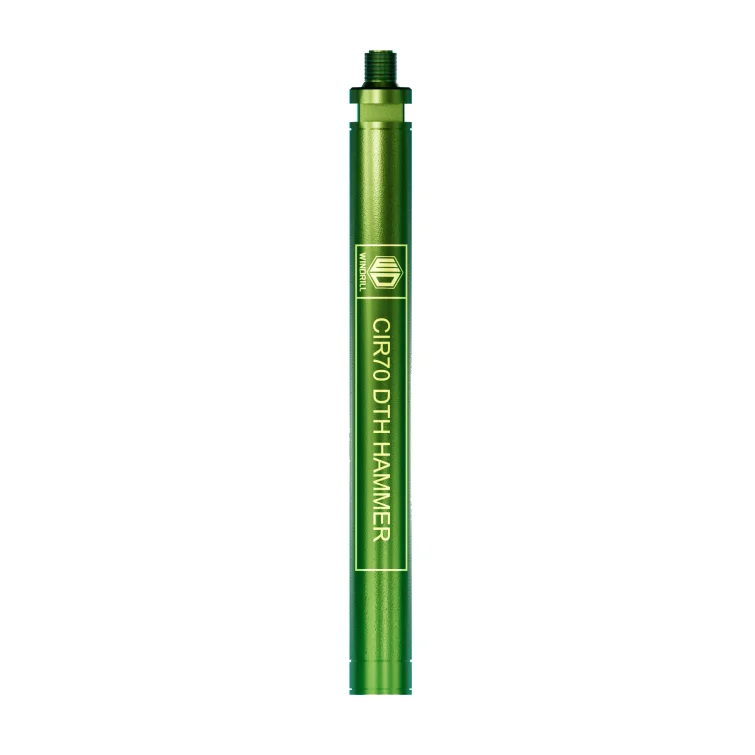

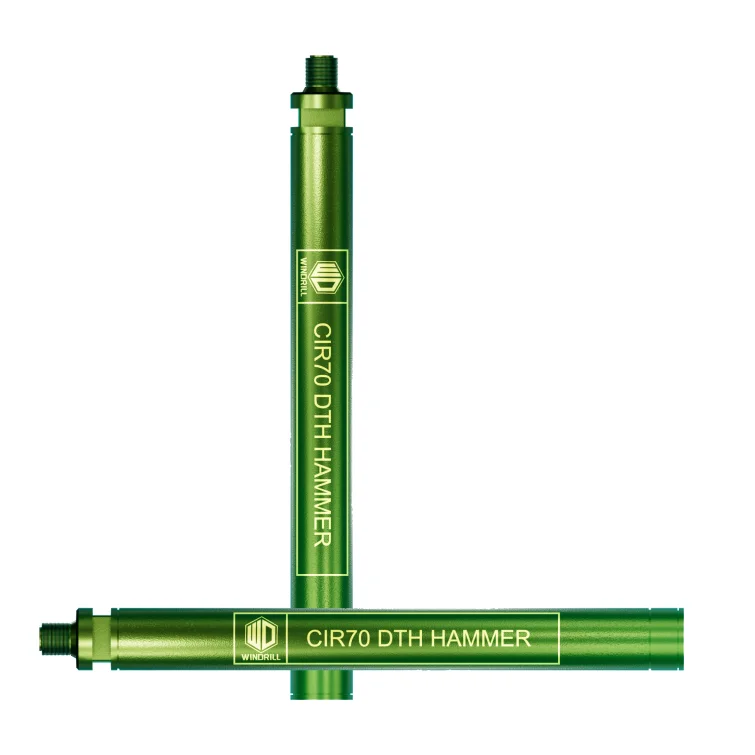

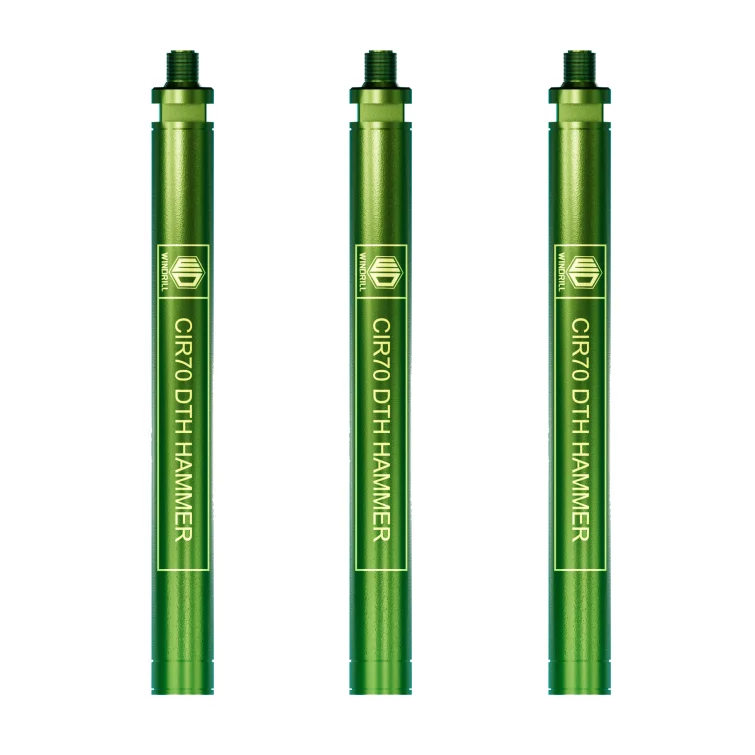

CIR70 Water Well Drilling Mining Rock Drilling DTH Down The Hole Hammer
Length (without bit)	Weight (Without bit)	External diameter	Bit shank	Hole range	Connection thread
777mm	13.5kg	Φ66mm	CIR70	Φ76mm	F48x10PIN
Working pressure	Impact rate at 0.5Mpa	Recommended rotation speed		Air consumption
				0.4Mpa	1Mpa
0.4-1Mpa	14Hz	25-40r/min		6m³/min	10m³/min
