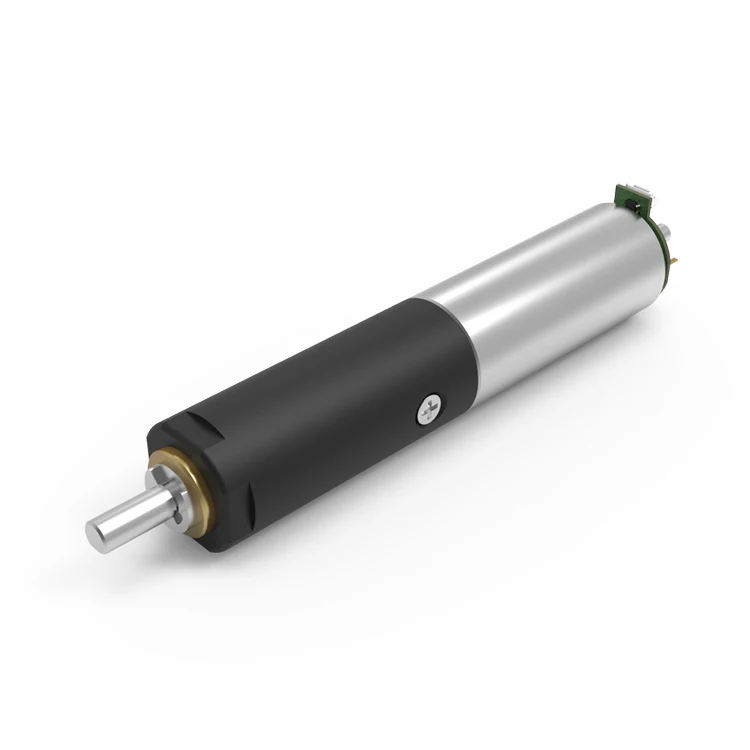

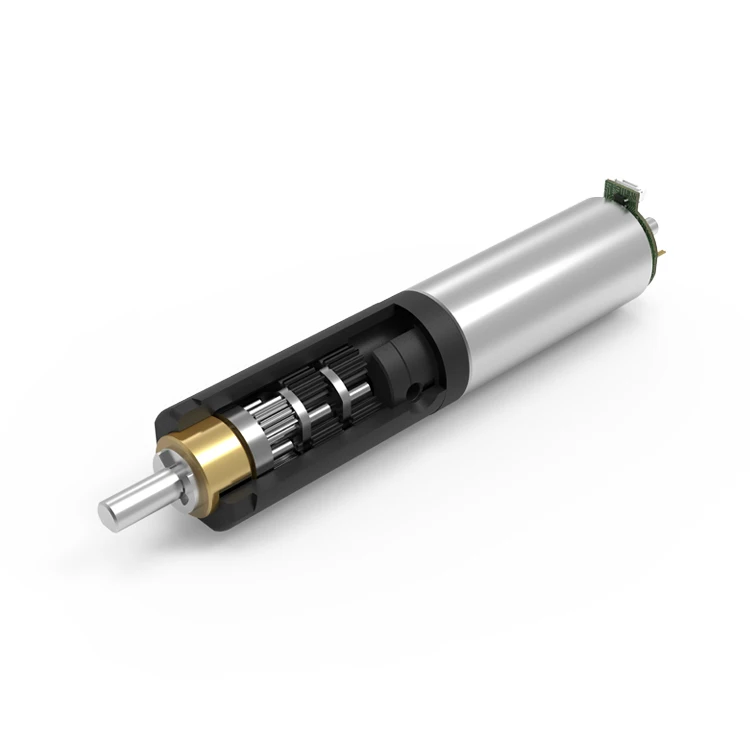

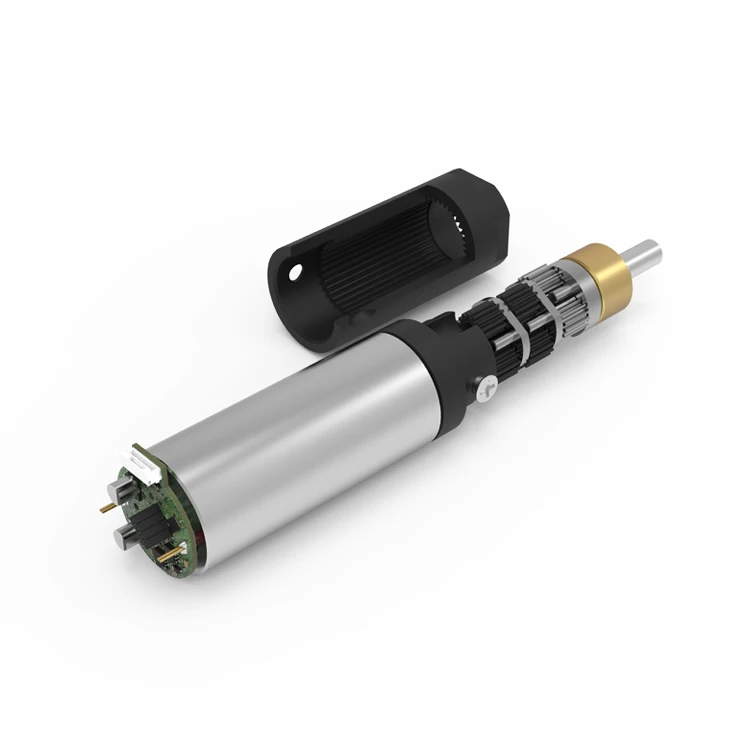

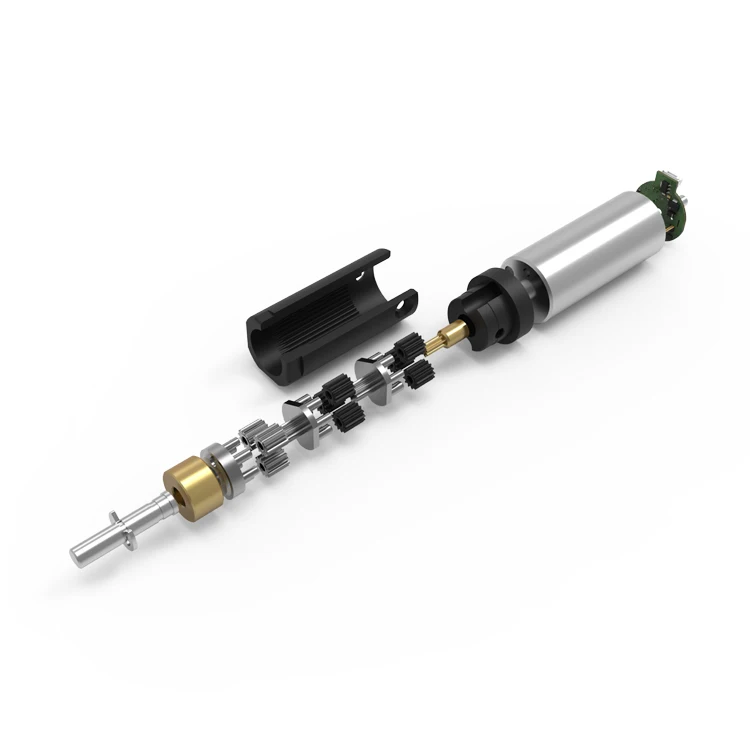

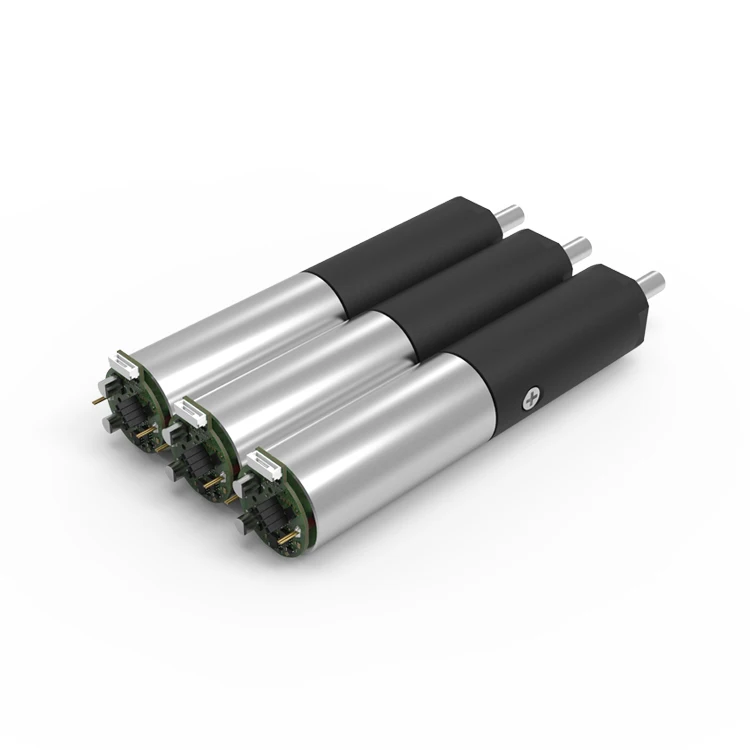

custom 6mm gear motor 12v 20 rpm high torque low rpm dc planetary gearbox micro stepper gear motor for robotics
- Category: >>>
- Supplier: Shenzhen Zhaowei Machinery & Electronics Co. Ltd.
Share on (1600965856205):
Product Overview
Description
| Motor Specifications:6mm motor | |
| motors(optional) | brush motor,Coreless motor,stepper motor |
| voltage(optional) | 3-12v |
| input speed | <=30000rpm |
| current | 100mA max |
| Performance Data:6mm metal gear motor | |||||||
| Model | Rated Speed | Max Speed | Max Rated Torque | Max Instant Torque | Reduction Ratio | gearbox Length | Overall Length |
| rpm | rpm | gf.cm | gf.cm | mm | mm | ||
| MD006006-5 | 1563 | 6250 | 330 | 800 | 4.8 | 9.7 | 23.7 |
| MD006006-6 | 1166 | 4666 | 330 | 800 | 6.43 | 9.7 | 23.7 |
| MD006006-23 | 326 | 1302 | 330 | 800 | 23.04 | 12.1 | 26.1 |
| MD006006-31 | 243 | 972 | 330 | 800 | 30.86 | 12.1 | 26.1 |
| MD006006-41 | 181 | 726 | 330 | 800 | 43.33 | 12.1 | 26.1 |
| MD006006-110 | 68 | 271 | 330 | 800 | 110.6 | 14.5 | 28.5 |
| MD006006-148 | 51 | 203 | 330 | 800 | 148.1 | 14.5 | 28.5 |
| MD006006-198 | 38 | 151 | 330 | 800 | 198.4 | 14.5 | 28.5 |
| MD006006-266 | 28 | 113 | 330 | 800 | 265.7 | 14.5 | 28.5 |
| MD006006-531 | 14 | 57 | 600 | 1500 | 530.8 | 16.9 | 30.9 |
| MD006006-711 | 11 | 42 | 600 | 1500 | 711.0 | 16.9 | 30.9 |
| MD006006-952 | 8 | 32 | 600 | 1500 | 952.2 | 16.9 | 30.9 |
| MD006006-1275 | 6 | 24 | 600 | 1500 | 1275.2 | 16.9 | 30.9 |
| MD006006-1708 | 4 | 18 | 600 | 1500 | 1707.9 | 16.9 | 30.9 |
| * The above specifications are subject to change without prior notice. They are for reference only and can be customized as required. | |||||||
