Product Overview

Description



Product Description


Multi-in-1 OTDR 1550nm 20dB 80km Fiber Tester Connector SC APC UPC Converter

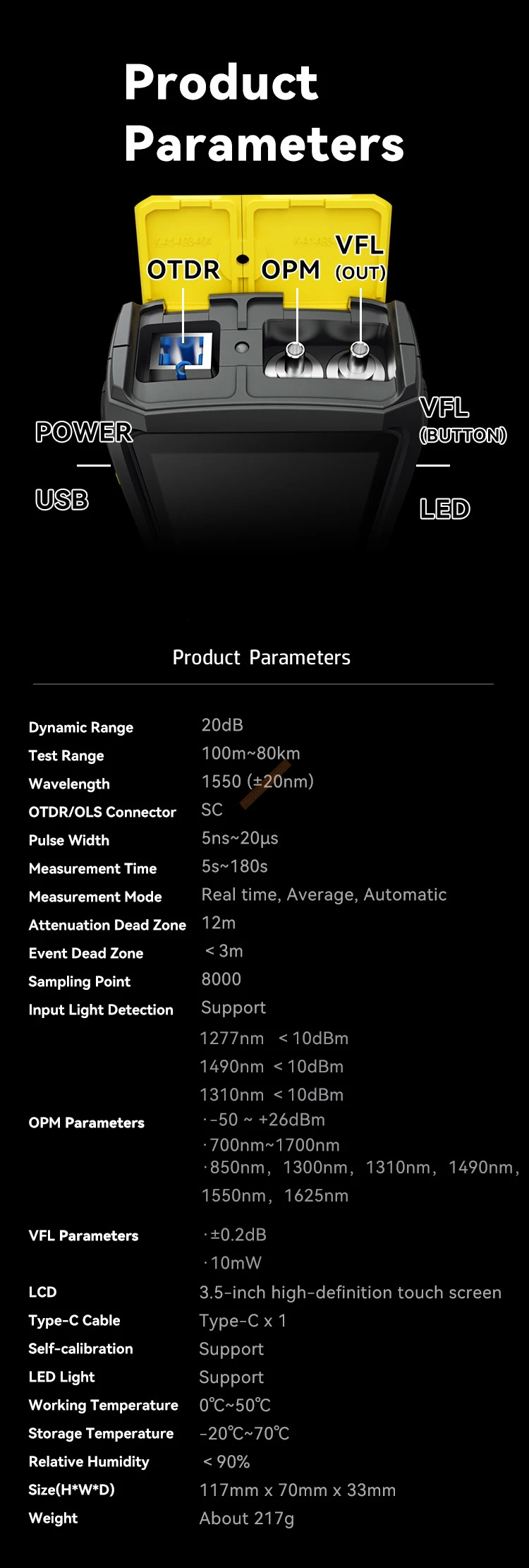

Technical Specfication:
Model No: eFVV-100U/eFVV-100A
Product Place : China
Market Year: Sep,2021

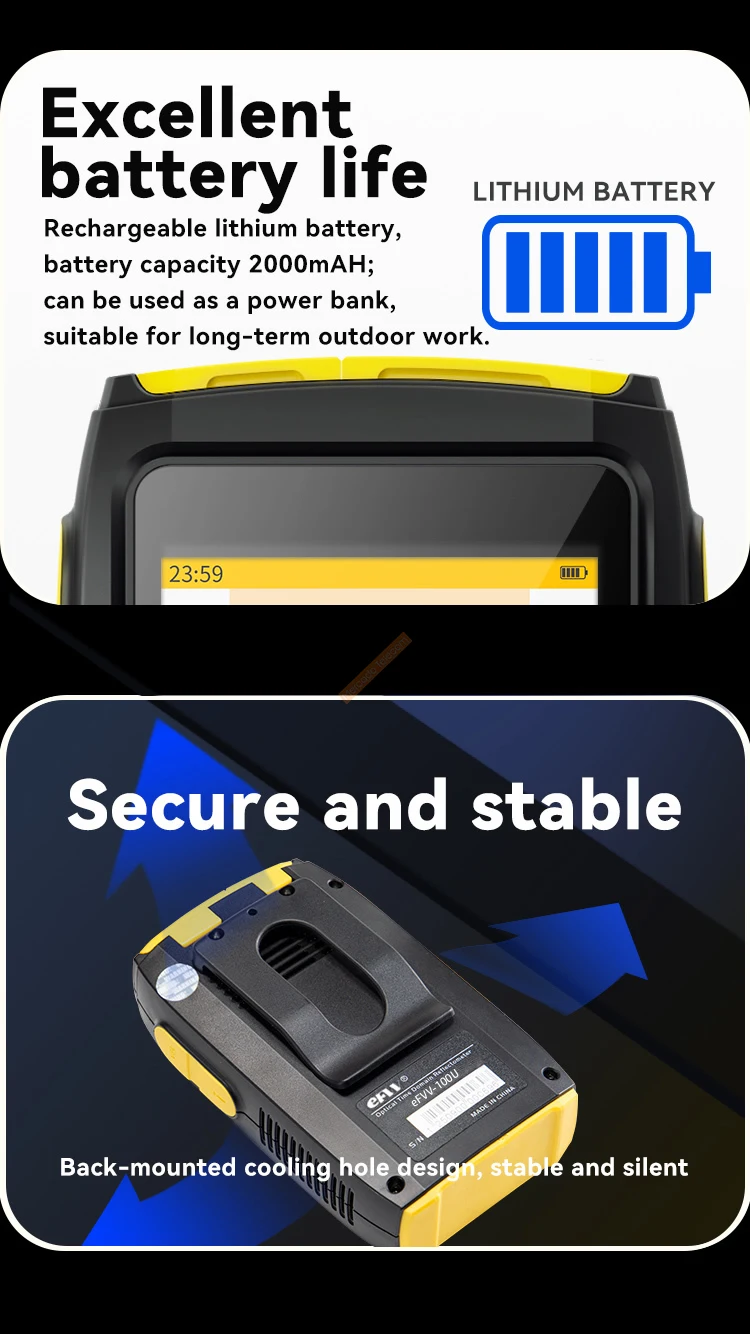

Battery Capacity: Li-battery 2000mAH (about 12hours)

Core Parameters
Dynamic range: 20dB
Test range: 100m~80km
Wavelength: 1550 (±20nm)
Optical interface: SC
Pulse: 5ns~20us
Measuring time: 5s~180s
Measurement mode: real-time, average, automatic
Attenuation blind zone: 12m
Event dead zone:<3m
Sampling point: 8000
Input light detection: support
Maximum allowable power for light test:
1270nm<10dBm
1310nm<10dBm
1490nm<10dBm

OPM:
OPM power range: -50~26dBm
OPM response wavelength: 700~1700nm
OPM calibration wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
OPM power uncertainty: ±0.2dB

OLS:
Wavelength : 1550nm

Frequency & Mode : CW/270Hz/1kHz/2kHz/1kHz+Blink/2kHz+Blink

VFL:
Wavelength : 650nm
Mode: On,Glint, Off

Features:
Display: 3.5’inch full touch screen
Data line type: Type-C x1
Manual calibration function: support
LED flashlight: support
Expandable external storage: U disk (temporary storage)
Working temperature: 0°C~50°C
Storage temperature: -20°C~70°C
Relative humidity:<90%
Size: 117mmx70mm*33mm
Weight: 250g










Specification


item
value
Model Number
FWT-100-S5F-(iOLA)
Type
OTDR
Place of Origin
China
Guangdong
Brand Name
OFW
Use
FTTX/FTTH
Warranty Time
1 YEARS
Network
Wireless Lan, wifi, 4g, 3G
Product name
OTDR
Test range
0.1~80Km
Wavelength
1550(±20nm)[iOLA 1310/1550]
Measurement time
5~180s
Attenuation dead zone
12m
Event dead zone
<3m
Dimensions
117*70*33mm
Weight
0.217Kg
MOQ
1pc
