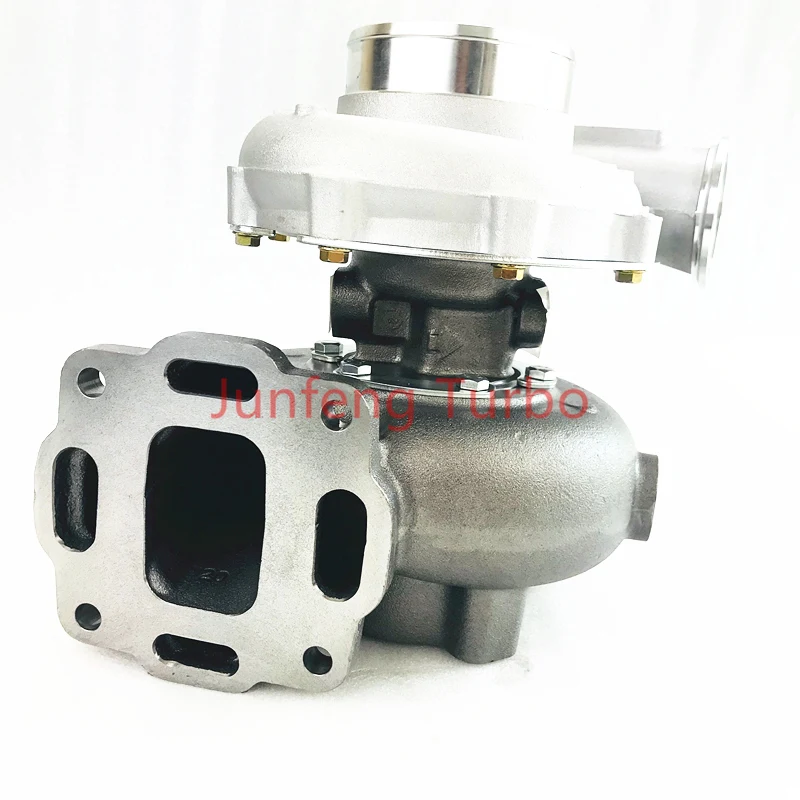

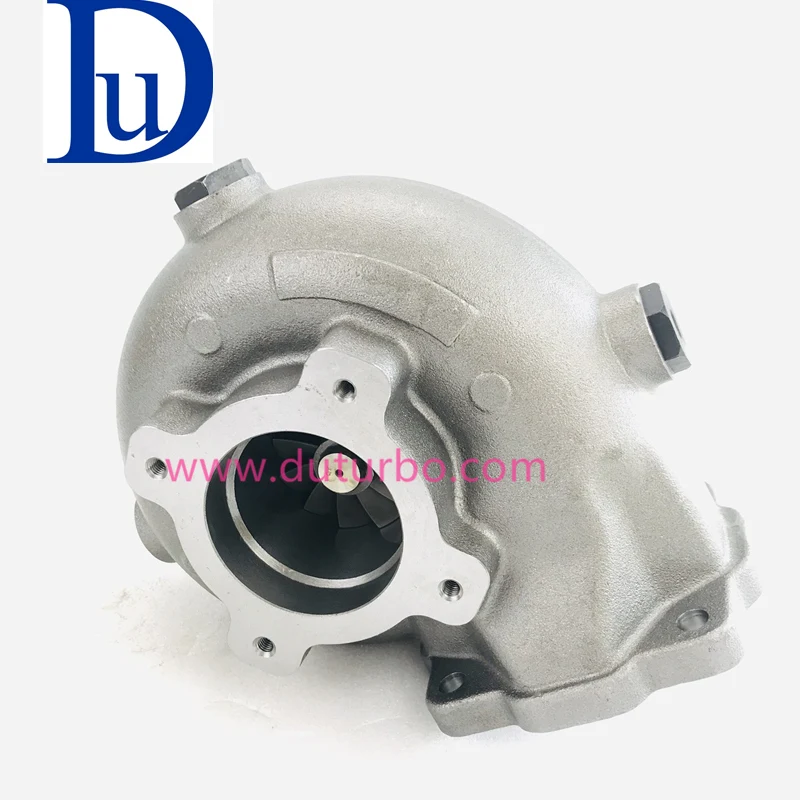

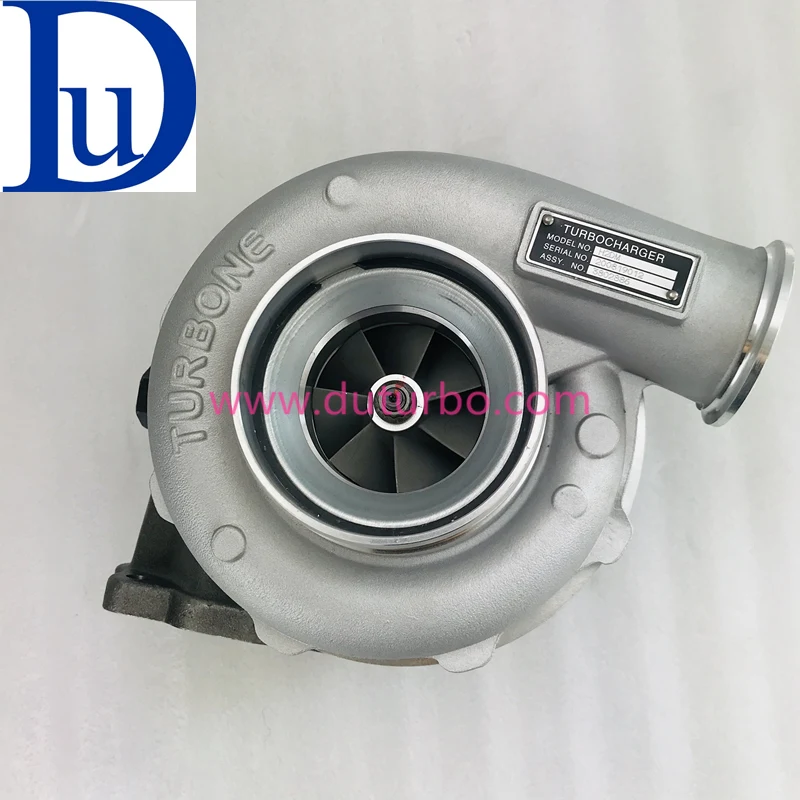

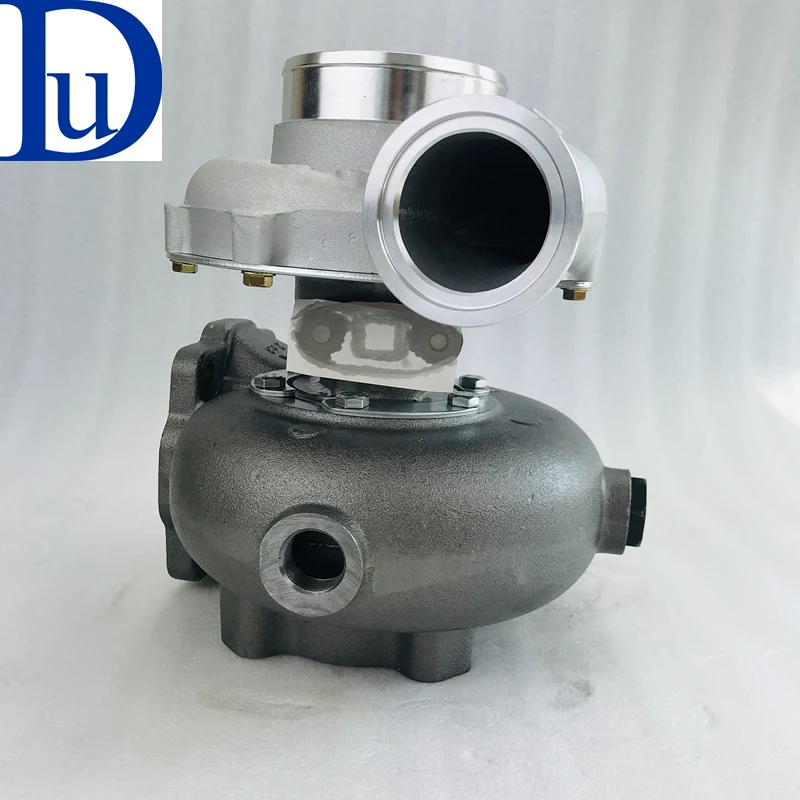

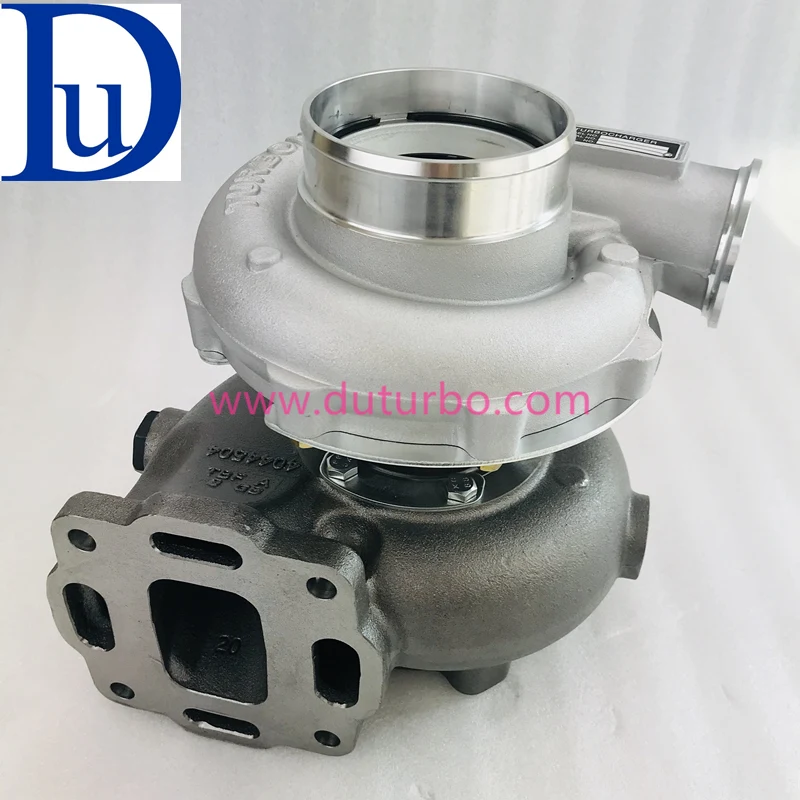

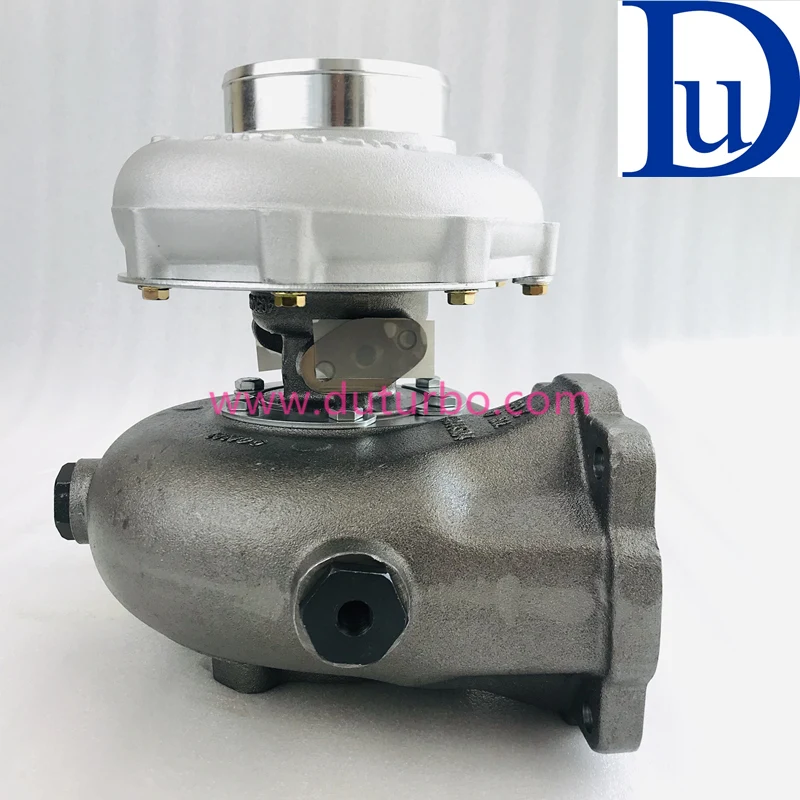

HX50M turbo 3802886 H2DM 3535043 3538624H 3535044 turbocharger fits for Cummins Marine 8.3L 6C 6BTA 6BTAM series engine
- Category: >>>
- Supplier: Guangzhou Junfeng Auto Parts Co. Ltd.
Share on (1600965898221):
Product Overview
Description
HX50M H2DM Turbo 3538626 3802886 turbocharger for Cummins 6CTAM Engine
Product Description
| art Number | 3535043 |
| Previous versions | 3535044 |
| OE number | 3802639, 3802639NX, 3802639RX |
| Description | Marine |
| Turbo Model | H2D, H2D-9361N/HA20S3, H2DM |
| Engine | 8.3L 6C, 6BTA "B" Series |
| CHRA | 3545751 (3545751H) $350.00 NEW IN STOCK, MADE IN USA |
| Engine Manufacturer | Cummins |
| CPL | 1975, 2208, 8457 |
| Displacement | 8.3L,, 6L, 8300 ccm |
| Fuel | Diesel |
| KW | 330/370 HP |
| Angle α (compressor housing) | 258° |
| Angle β (turbine housing) | 270° |
| Bearing Housing | 3525199 (352519900)(Oil Cooled) $86.00 NEW IN STOCK |
| Turbine Wheel | 3522232 (Ind. 85.95 mm, Exd. 72. mm, 11 Blades)(1152302435) $195.00 NEW IN STOCK |
| Comp. Wheel | 3524997 (Ind. 64. mm, Exd. 94. mm, 7+7 Blades) $82.00 NEW IN STOCK |
| Back plate | 62564 (167543, 3562564)(1253300300) $17.29 NEW IN STOCK |
| Heat shield Number | 3529846 (3533038)(1153052340) $13.22 NEW IN STOCK |
| Repair Kit | 3545653 (1152302750) $68.80 NEW IN STOCK |
| Turbine Housing | Water-Cooled |
| Gasket Kit | 3545769 |
Application
1995-06 turbocharger for Cummins Marine with 6BTAM Engine
Product Show
Material Description
Factory Information
Package
Packaging Details: Neutral Carton, one turbo in one carton
Delivery Detail: within 7 days after your payment arrives
