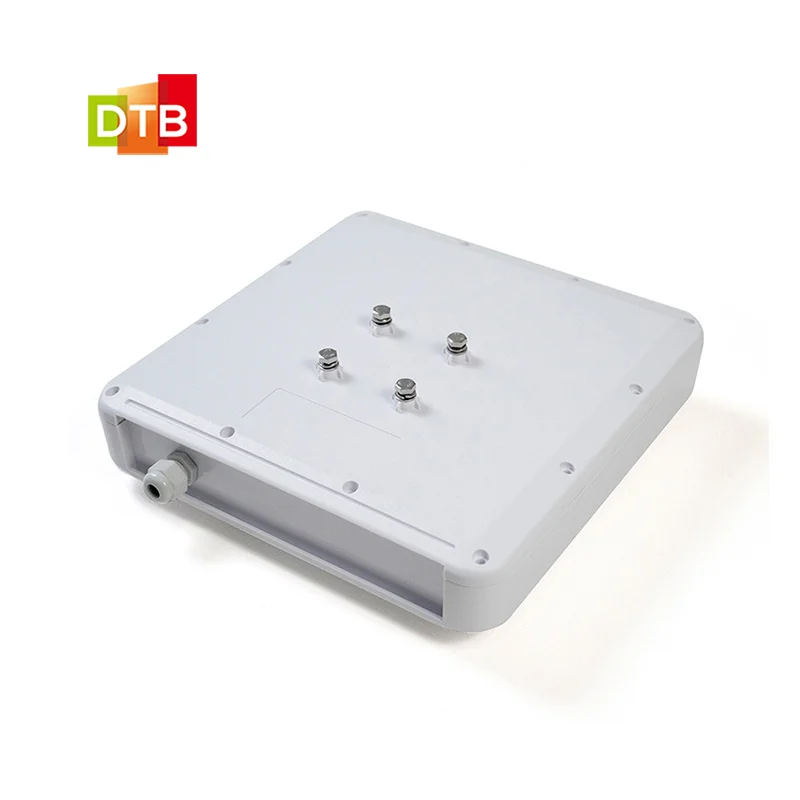

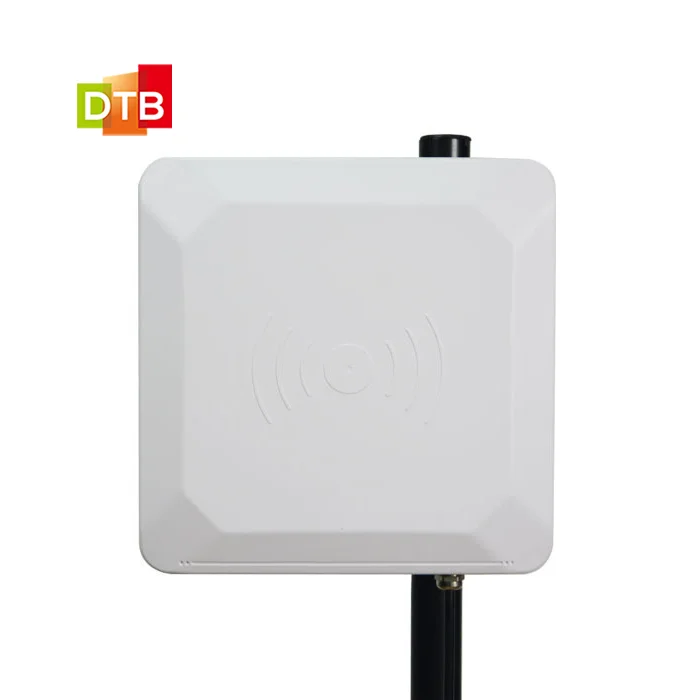

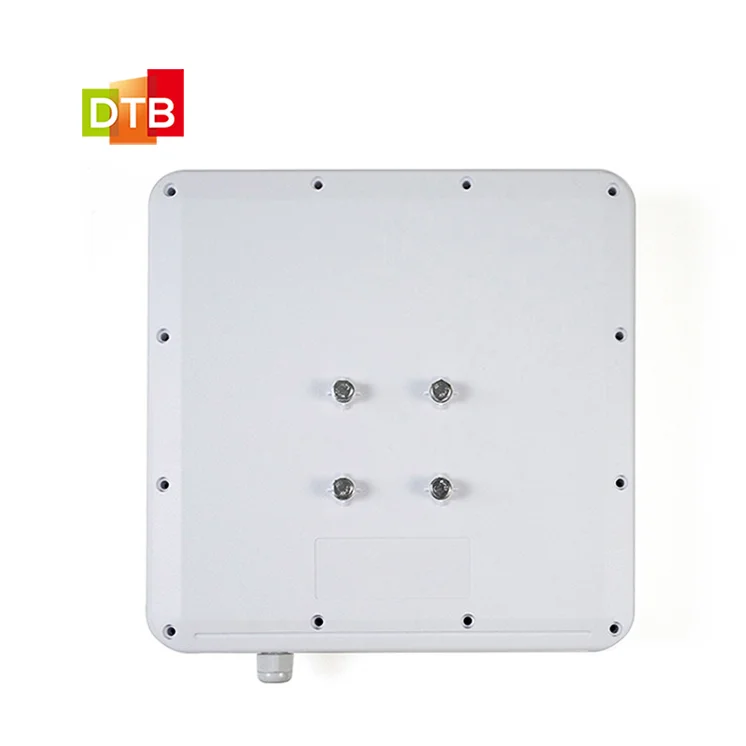

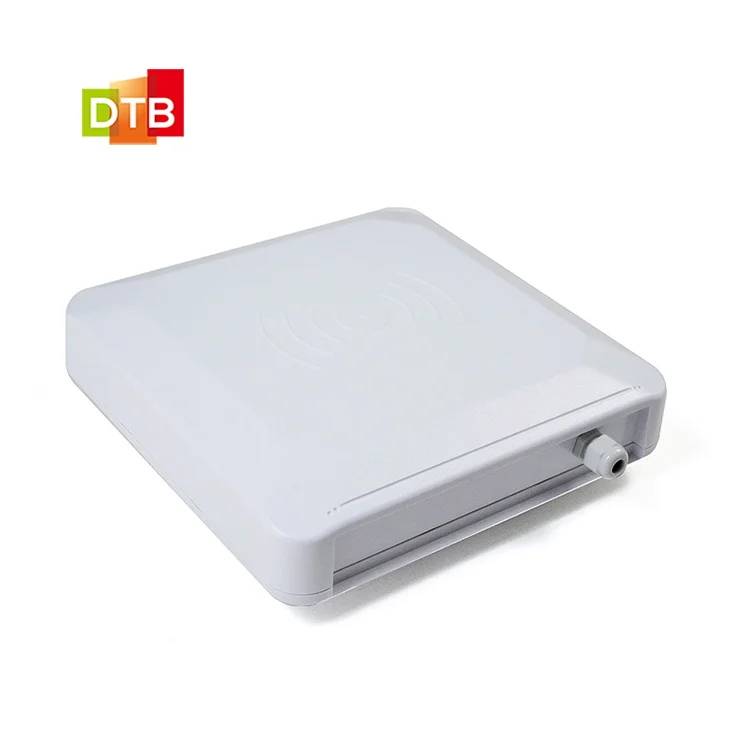

ABS Long distance RFID UHF Reader Antenna 8/9/12dib all in one Reader ISO18000 6C read and write in Batches read
- Category: >>>
- Supplier: Shenzhen DTB RFID Co. Ltd.
Share on (1600965922095):
Product Overview
Description
RFID UHF Reader All -in -one machine
QY-UR01F This is a fixed and exquisite RFID reader, compatible with ISO 18000-6C and ISO 18000-6b standards. Its operating frequency is 902MHz ~ 928MHz, with exquisite appearance and outstanding reading and writing performance. The reader can be widely used in the fields of warehousing logistics management, retail logistics center management, corporate transportation management and automated production line management.
Product Features
Built in Impinj R2000 UHF Chip Module
Rich Interface: TCP/IP,RS-232
Antenna Connection Detection Function
Unique Anti - Collision Algorithm
Industrial - Grade Design, Good Reliability
Built in Impinj R2000 UHF Chip Module
Rich Interface: TCP/IP,RS-232
Antenna Connection Detection Function
Unique Anti - Collision Algorithm
Industrial - Grade Design, Good Reliability
Servece Country | Clients | Annual Capacity | R&D Staff Percentage |
Product Description
Product Information | ||
Model | QY-UR01F | |
Weight | 650 g | |
Tag Protocol | ||
Antenna Gain | 8dBi | |
Polarization Mode | Circular Polarization | |
Plane Half Power Beamwidth | Hor: 70” Ver: 55° | |
VSWR | <=1.3 | |
Front to Back Ratio | 225 | |
Receiver Sensitivity | -80dBm | |
Output Power | 0-30dBm, Adjustable in 1dB Step | |
Support Area | FCC 902-928 MHZ(USA) CN 920-925MHz(China) 865-868MHz(Europe) | |
Structure Installation | ||
Physical Size | 216*216*60 mm(LW*H) | |
Antenna Cover Material | ABS | |
Antenna Cover Color | White/Back | |

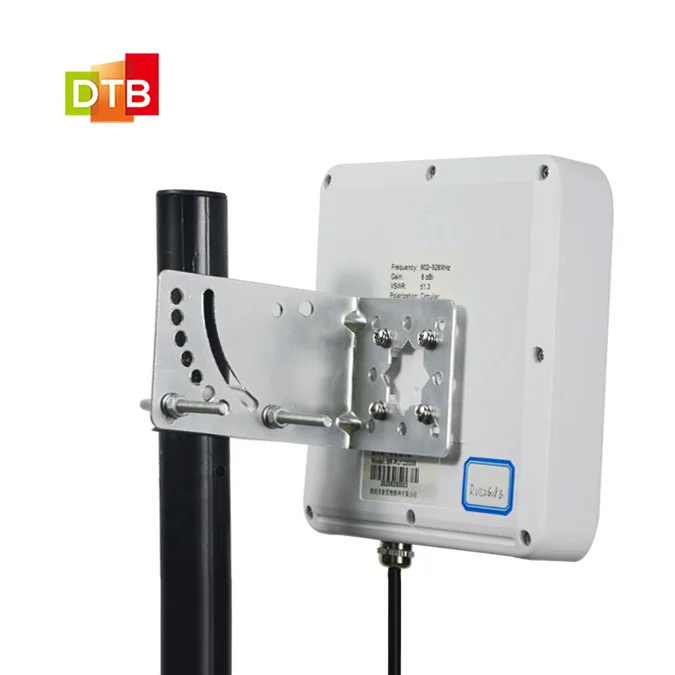

Pole Diameter | Φ30-50 mm | |
Power Supply | ||
DC Power Supply | DC 12-24V 2A | |
Maximum Working Current | 0.8A(30dBm) 0.95A(31dBm) | |
Stand-By Current | 0.13A | |
Lightning Protection | Power Lightning Protection, Communication Interface Lightning Protection | |
Reading Tag Distance | ||
Furthest Reading Tag Distance | 13m | |
Furthest Write Tag Distance | 6m | |
Product Features
Outer cover PC material
Light quality, heat resistance, wear resistance, strong resistance to impact resistance
The body is strong and difficult to deform
One -piece molding, smooth surface, higher quality durable
Exquisite craftsmanship Manufacturing
Through reasonable size design, optimize the internal structure layout
Wide range of applications
Small volume, easy to use and is widely used in various industries

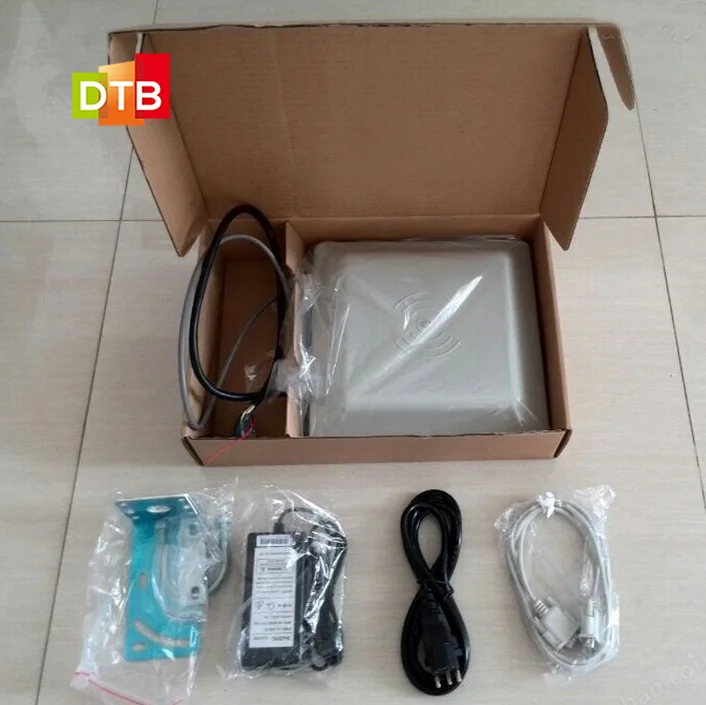

Packaging&Delivery
Application
Asset Management
Warehouse logistics
Garment Industry
Parking lot
About Us
DTB RFID - Professional RFID Products and Service Supplier
DTB RFID was founded in 2008. It is a hi-tech company which is specialized in RFID products and IOT information system.
DTB has imported advanced machines to build up production line for smart card and RFID tag. With many years development, DTB can provide customers with one-stop service including antenna design, product design, manufacturing and chip personalization.Also, DTB products are widely used in event management, supply chain, asset tracking, library management, apparel and retail etc.
Base on experienced and well-educated technician team, DTB does support customers from all over the world well. The tech-team not only help customers to do product design and sample testing but also support system development.
DTB keeps improving production technology and workshop management system. In 2016,our factory were approved by ISO 9001:2008 and ISO14001:2004 management system.
To do the best for all, it is our faith to help DTB move forward.It also helps us to offer better quality and better service to be your best partner in business.
DTB has imported advanced machines to build up production line for smart card and RFID tag. With many years development, DTB can provide customers with one-stop service including antenna design, product design, manufacturing and chip personalization.Also, DTB products are widely used in event management, supply chain, asset tracking, library management, apparel and retail etc.
Base on experienced and well-educated technician team, DTB does support customers from all over the world well. The tech-team not only help customers to do product design and sample testing but also support system development.
DTB keeps improving production technology and workshop management system. In 2016,our factory were approved by ISO 9001:2008 and ISO14001:2004 management system.
To do the best for all, it is our faith to help DTB move forward.It also helps us to offer better quality and better service to be your best partner in business.
FAQ
1. Are you Manufacturer ?
Yes. Our factory is located in Shenzhen, and we have been involved in this industry more than 10 years.
2. What is your MOQ?
It is very flexible.Usually, our MOQ is 500pcs, for some items, the MOQ is 1000pcs.
3.What is your payment terms?
For bulk order:50% deposit and 50% before delivery by TT Or Western Union.
For Samples order Below USD100, Paypal is OK.
4. What do you usually deliver the goods?
By DHL, Fedex, TNT, etc. It takes 3-7 working days door to door service.
Some bulk order, also send by air shipment.
5. Can you offer free sample?
If the stock available,free samples can be provided any time.
6.What's your production capacity?
RFID Tag:5,000,000pcs/month
RFID Card: 3,000,000pcs/month
RFID Inlay: 5,000,000pcs/month
Yes. Our factory is located in Shenzhen, and we have been involved in this industry more than 10 years.
2. What is your MOQ?
It is very flexible.Usually, our MOQ is 500pcs, for some items, the MOQ is 1000pcs.
3.What is your payment terms?
For bulk order:50% deposit and 50% before delivery by TT Or Western Union.
For Samples order Below USD100, Paypal is OK.
4. What do you usually deliver the goods?
By DHL, Fedex, TNT, etc. It takes 3-7 working days door to door service.
Some bulk order, also send by air shipment.
5. Can you offer free sample?
If the stock available,free samples can be provided any time.
6.What's your production capacity?
RFID Tag:5,000,000pcs/month
RFID Card: 3,000,000pcs/month
RFID Inlay: 5,000,000pcs/month
