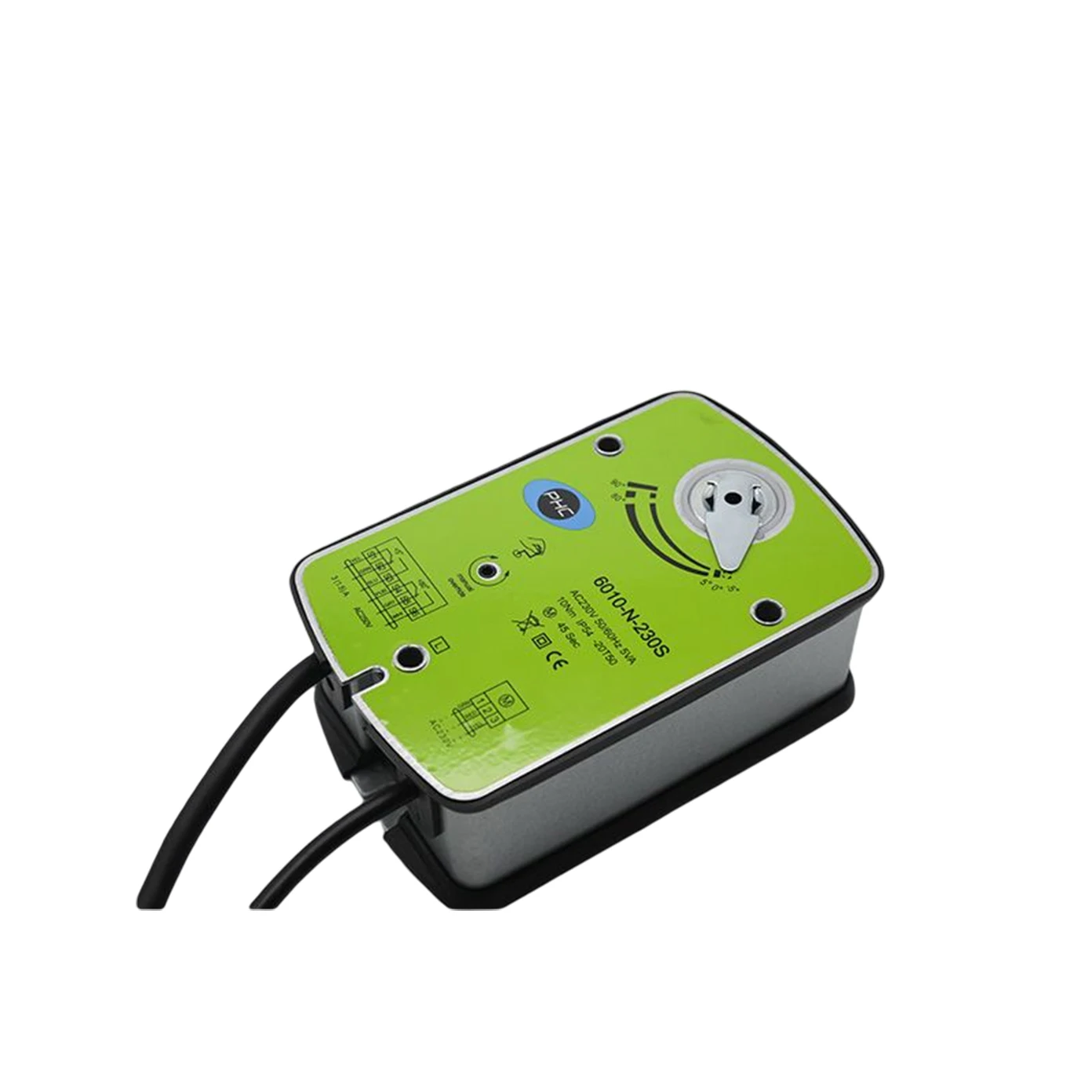

Low Moq Manufacturer Ventilation 24V Hvac System On/Off Control 5Nm Damper Actuator
- Category: >>>
- Supplier: PHC Electronic Products (Beijing) Co. Ltd.
Share on (1600965976737):
Product Overview
Description
Products Description
1.General Information
■Pric 4005-N Series Fire Smoke damper actuator Series are designed specifically for Fire and Smoke application.
■PHC high quality damper actuators are developed for use with fire and smoke damper. The actuator motorized the damper or other devices when power on and spring back to it original position when power is cut off or trip by the thermal sensor.
■For the operation of air dampers that perform safety functions(e.g. frost and smoke protection, hygiene, etc.). The actuator moves the damper to its normal working position while tensioning power supply is interrupted, the damper back to its safe osition.
■Pric 4005-N Series Fire Smoke damper actuator Series are designed specifically for Fire and Smoke application.
■PHC high quality damper actuators are developed for use with fire and smoke damper. The actuator motorized the damper or other devices when power on and spring back to it original position when power is cut off or trip by the thermal sensor.
■For the operation of air dampers that perform safety functions(e.g. frost and smoke protection, hygiene, etc.). The actuator moves the damper to its normal working position while tensioning power supply is interrupted, the damper back to its safe osition.

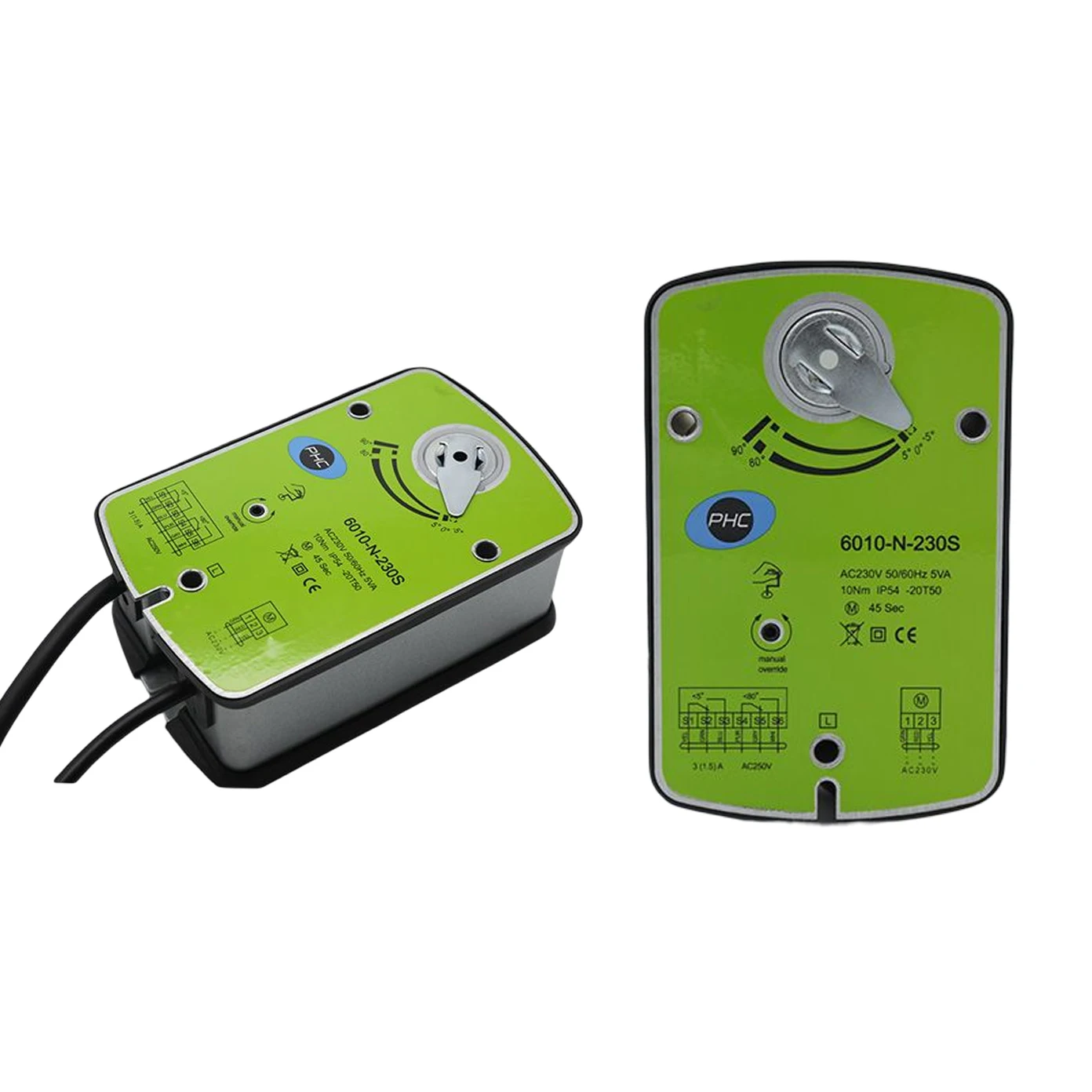

6010-N-24(230)S | 6010-N (230V AC) | |
Torque — Motor (Rated Voltage) — Spring | Min. 5 Nm Min. 5 Nm | Min. 5 Nm Min. 5 Nm |
Damper Size | 1 m² | 1 m² |
Power Supply | AC/DC 24 V | AC 230V |
Frequency | 50...60Hz | 50...60Hz |
Consumption Operating | 6 W | 6W |
Consumption At the end stops | 2.5 W | 2.5 W |
For wire sizing | 7.0 VA | 7.0 VA |
Auxiliary Switches Rating (Amp and Voltage) | 3 (1.5) A / 230 V (for 24 V and 230 V) | 3 (1.5) A / 230 V (for 24 V and 230 V) |
Protection Class | III (Safety Low Voltage) | II (Completely Insulation) |
Controls Signal | 2 Point On/Off | 2 Point On/Off |
Angle of Rotation | 90˚ (95˚ mechanical) | 90˚ (95˚ mechanical) |
Thermal Temperature Trip | >72˚ Celsius | >72˚ Celsius |
Weight | 1.8 Kg | 1.9 Kg |
Life Cycle | 60,000 rotation | 60,000 rotation |
Sound Level | Below 62 dB | Below 62 |
IP Protection | IP54 | IP54 |
Ambient Temperature | -20˚...50˚ as per IEC 721-3-3 | -20˚...50˚ as per IEC 721-3-3 |
Ambient Humidity | 5...95% RH | 5...95% RH |
Inventory Temperature | +70˚ as per 721-3-2 | +70˚ as per 721-3-2 |
Maintenance | Maintenance free | Maintenance free |
Certification | CE | CE |
2.Product Features
■2 points on/off control
■Damper Size up to 1.0 m²
■Voltage AC/DC 24V and AC 230V available

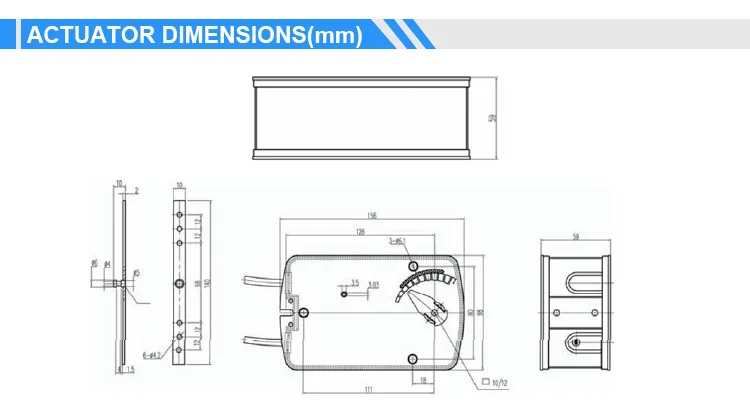

■Shaft dimension Form Fit 12mm square
■Adapter supplied for Form Fit 8 or 10 mm square
■Manual Over ride by crank handle when required
■Anti-rotation bracket provided for stability
■Selectable direction of rotation by reversing actuator
■2 SPDT Fixed auxiliary switches as Standard
■Energy saving at end stops
■Actuators with 1m cable connection
■Thermal Sensor when requested
■Customized version available on request
■2 points on/off control
■Damper Size up to 1.0 m²
■Voltage AC/DC 24V and AC 230V available
■Shaft dimension Form Fit 12mm square
■Adapter supplied for Form Fit 8 or 10 mm square
■Manual Over ride by crank handle when required
■Anti-rotation bracket provided for stability
■Selectable direction of rotation by reversing actuator
■2 SPDT Fixed auxiliary switches as Standard
■Energy saving at end stops
■Actuators with 1m cable connection
■Thermal Sensor when requested
■Customized version available on request
Product Category
Company Profile

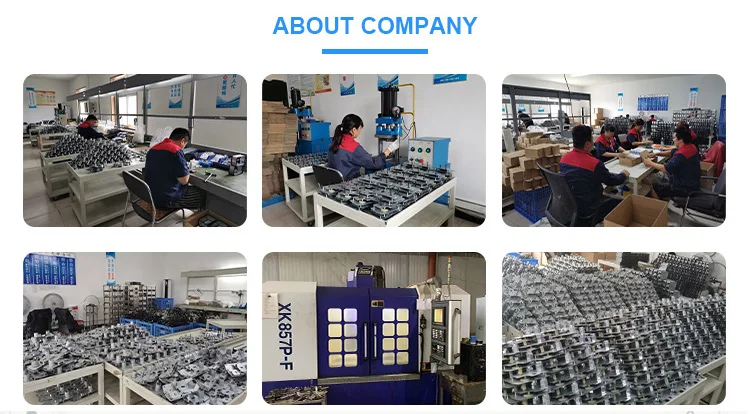

About Company
Why Choose Us
Certifications
FAQ
Q1 : How long is your delivery time ?
A1 : Samples need 3 days , mass production time need 5-7days，It is according to ordering quantity
Q2 : Can my logo be printed on PHC products ?
A2:Yes,your logo can be printed on the PHC products.
The MOQ of Logo outer packing pattem customization is 100 pieces
Q3 : Do you provide samples ?
A3 : Yes , we could offer the sample free of charge , but need to pay the cost of freight
Q4 : What are the advantages of your product ?
A 4 : We offer 24 months warranty to our products and have a completepre-sale and after-sales service
Q5 : What is your mode of transportation ?
A 5 : We accept ship by TNT , DHL , Fedex , UPS or by sea . Air shipment needs 3-6 days and sea shipping needs 30-40 days , depending on the destination.
A1 : Samples need 3 days , mass production time need 5-7days，It is according to ordering quantity
Q2 : Can my logo be printed on PHC products ?
A2:Yes,your logo can be printed on the PHC products.
The MOQ of Logo outer packing pattem customization is 100 pieces
Q3 : Do you provide samples ?
A3 : Yes , we could offer the sample free of charge , but need to pay the cost of freight
Q4 : What are the advantages of your product ?
A 4 : We offer 24 months warranty to our products and have a completepre-sale and after-sales service
Q5 : What is your mode of transportation ?
A 5 : We accept ship by TNT , DHL , Fedex , UPS or by sea . Air shipment needs 3-6 days and sea shipping needs 30-40 days , depending on the destination.
