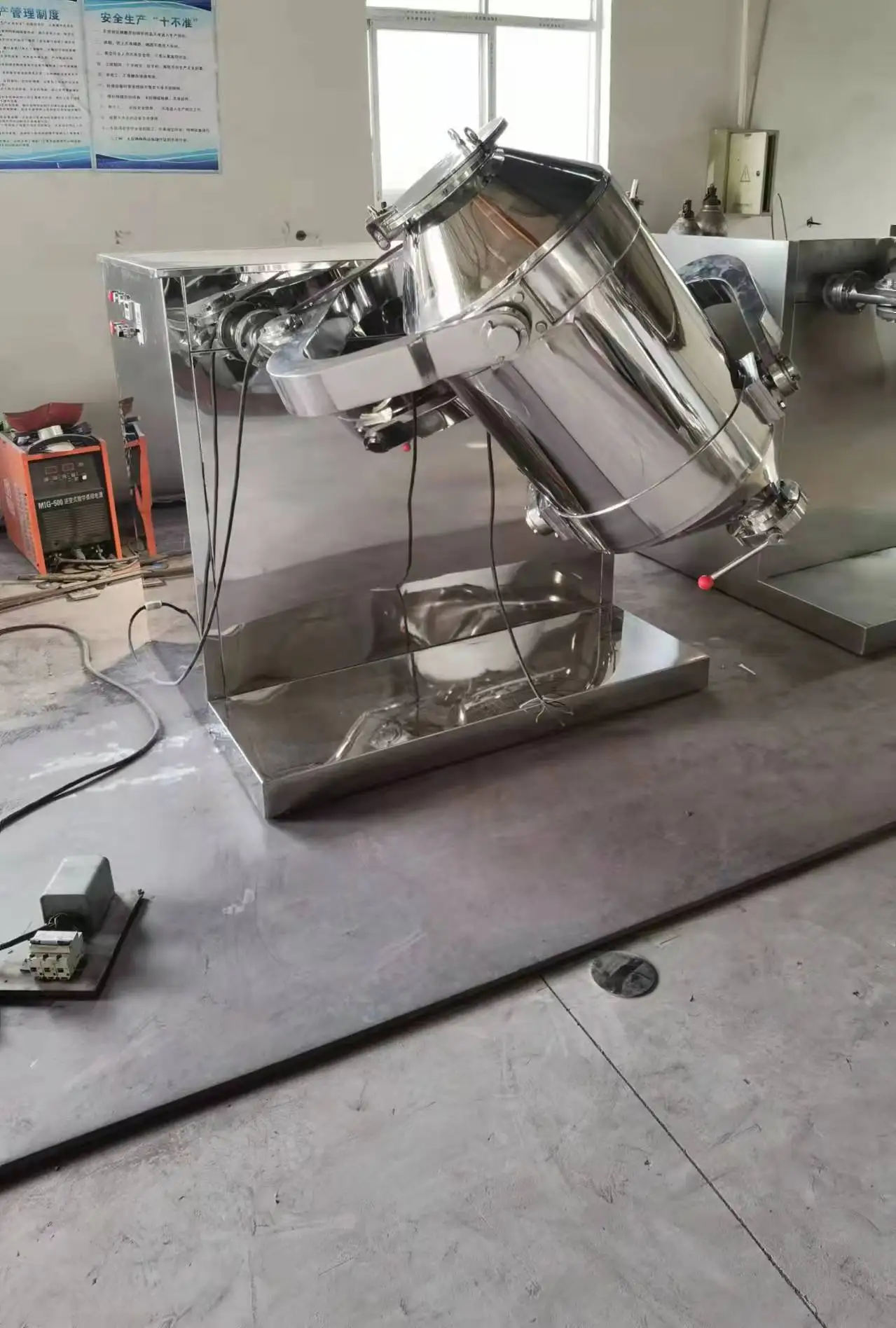

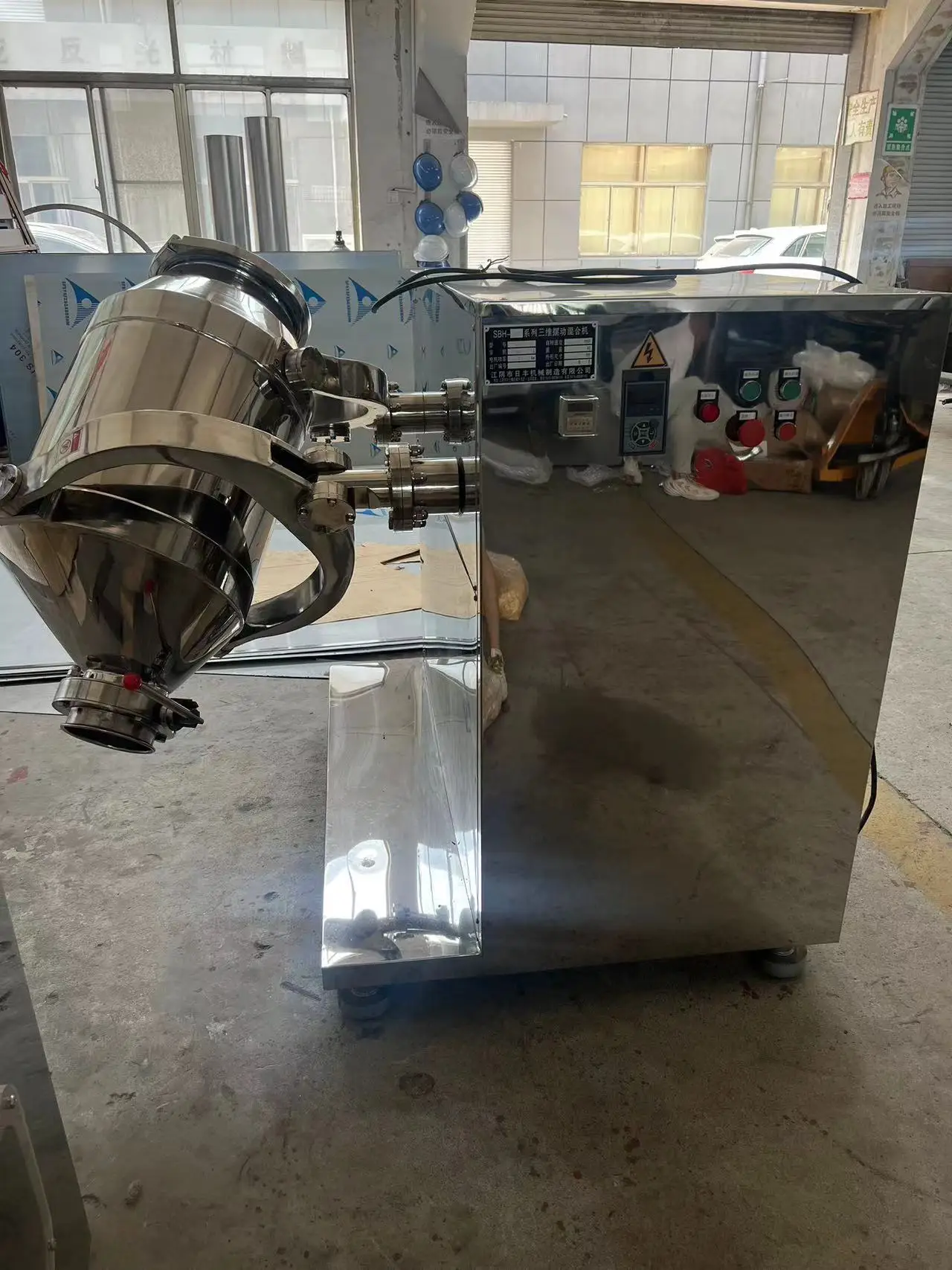

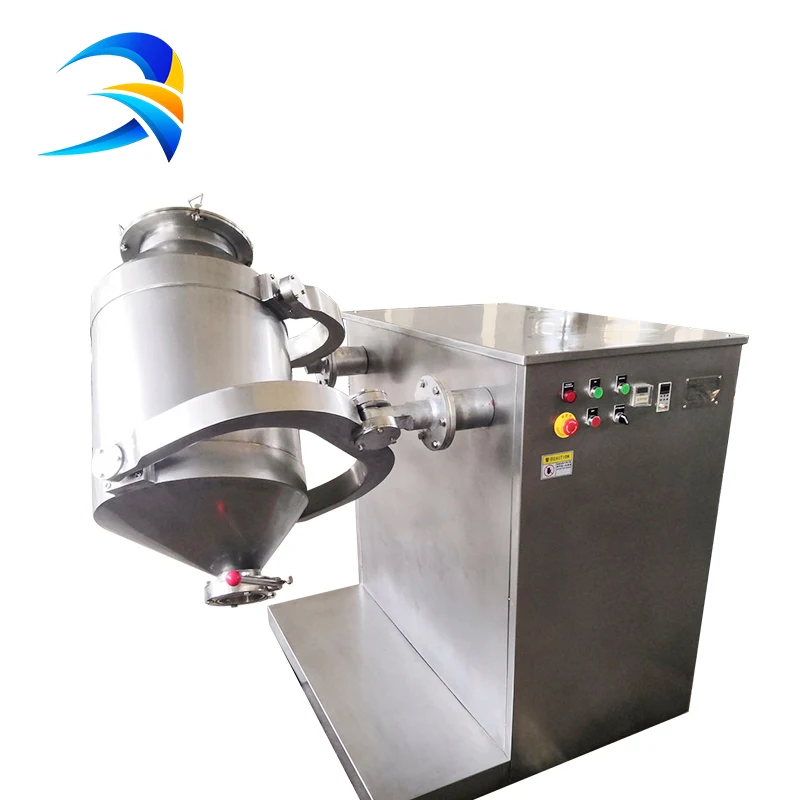

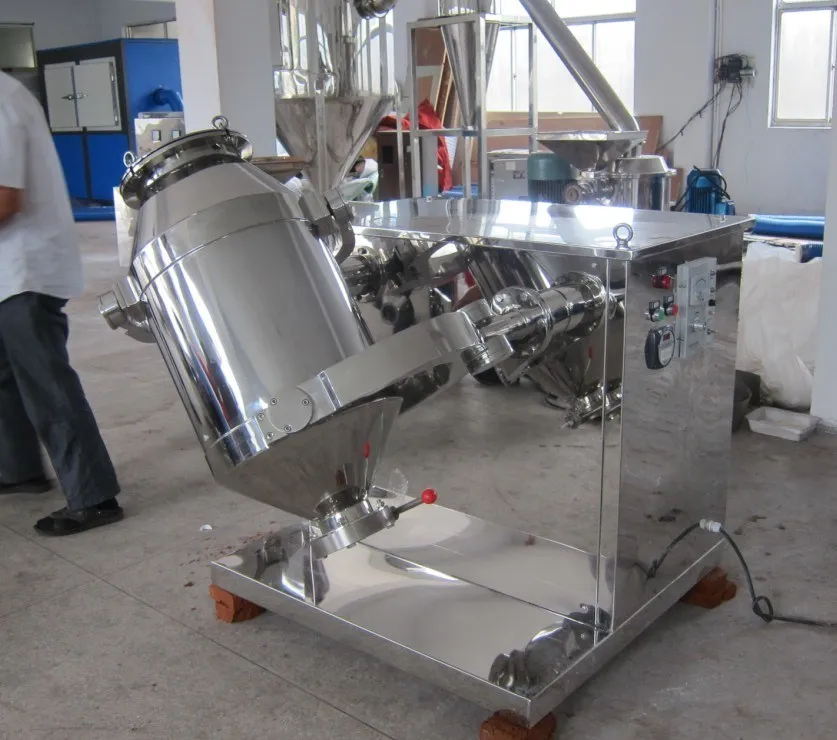

Automatic food chemical powder mixer blender rotating drum 3d mixing machine
- Category: >>>
- Supplier: Jiangyin City Xuan Teng Machinery Equipment Co. Ltd.
Share on (1600965987136):
Product Overview
Description

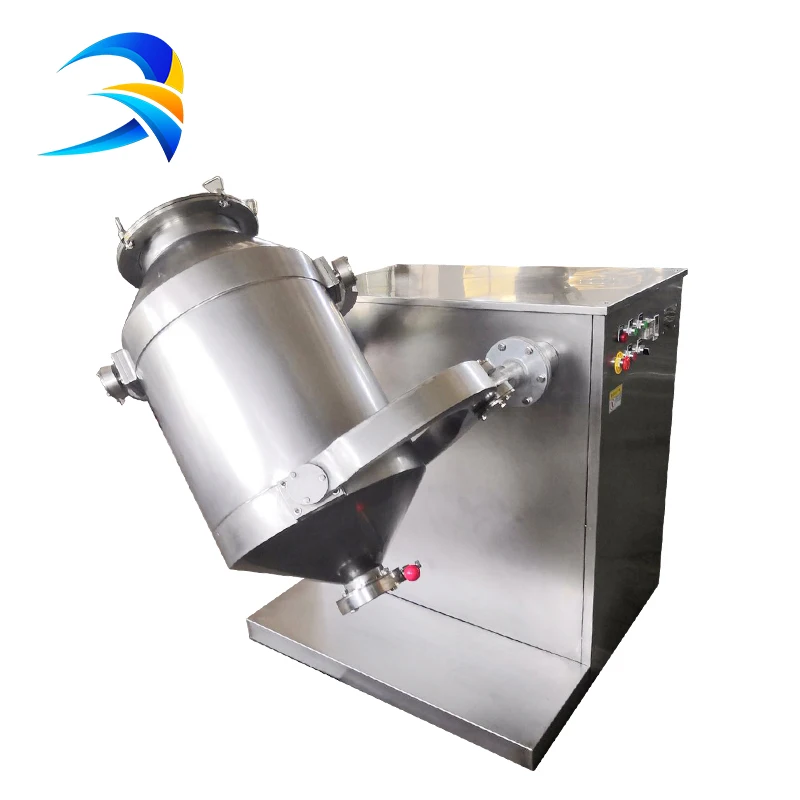

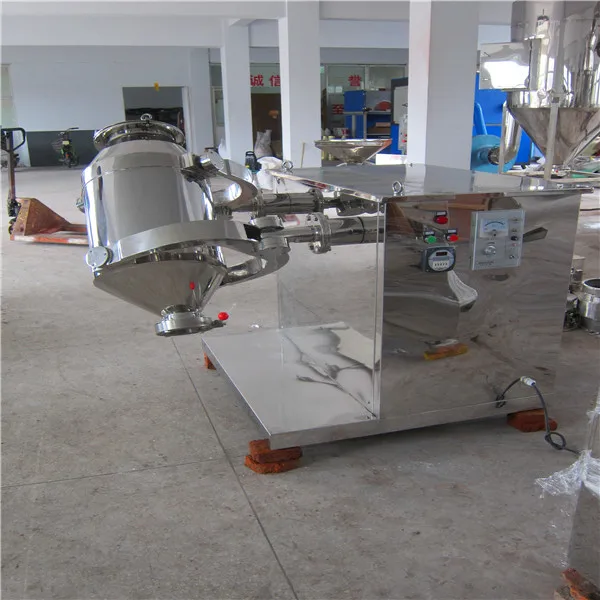

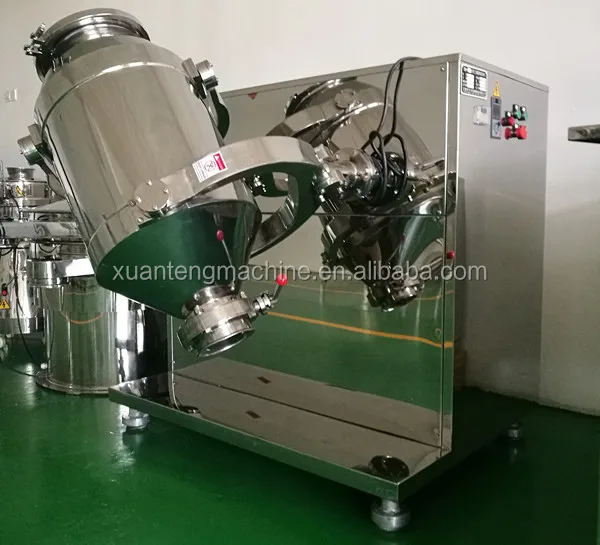

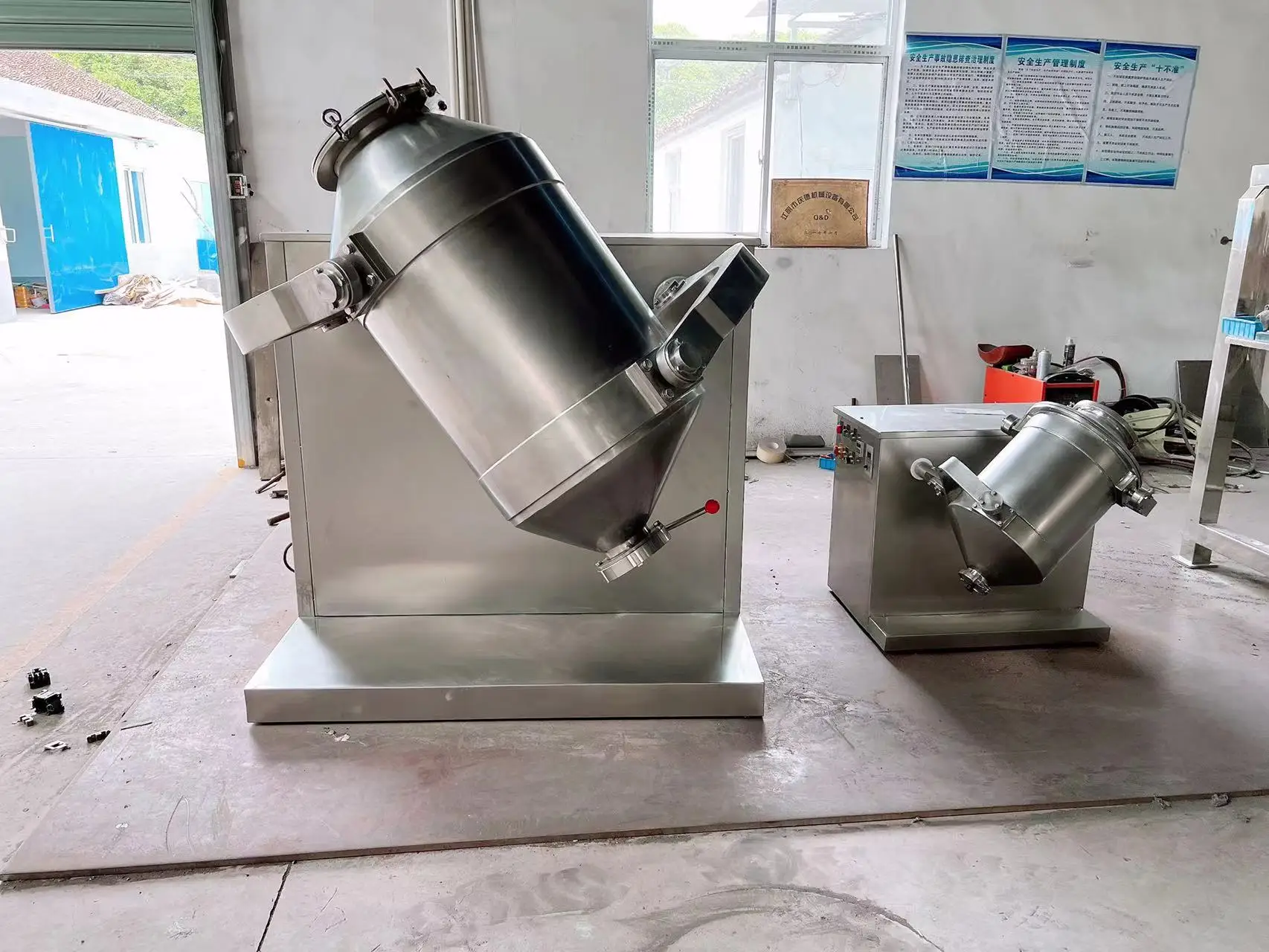

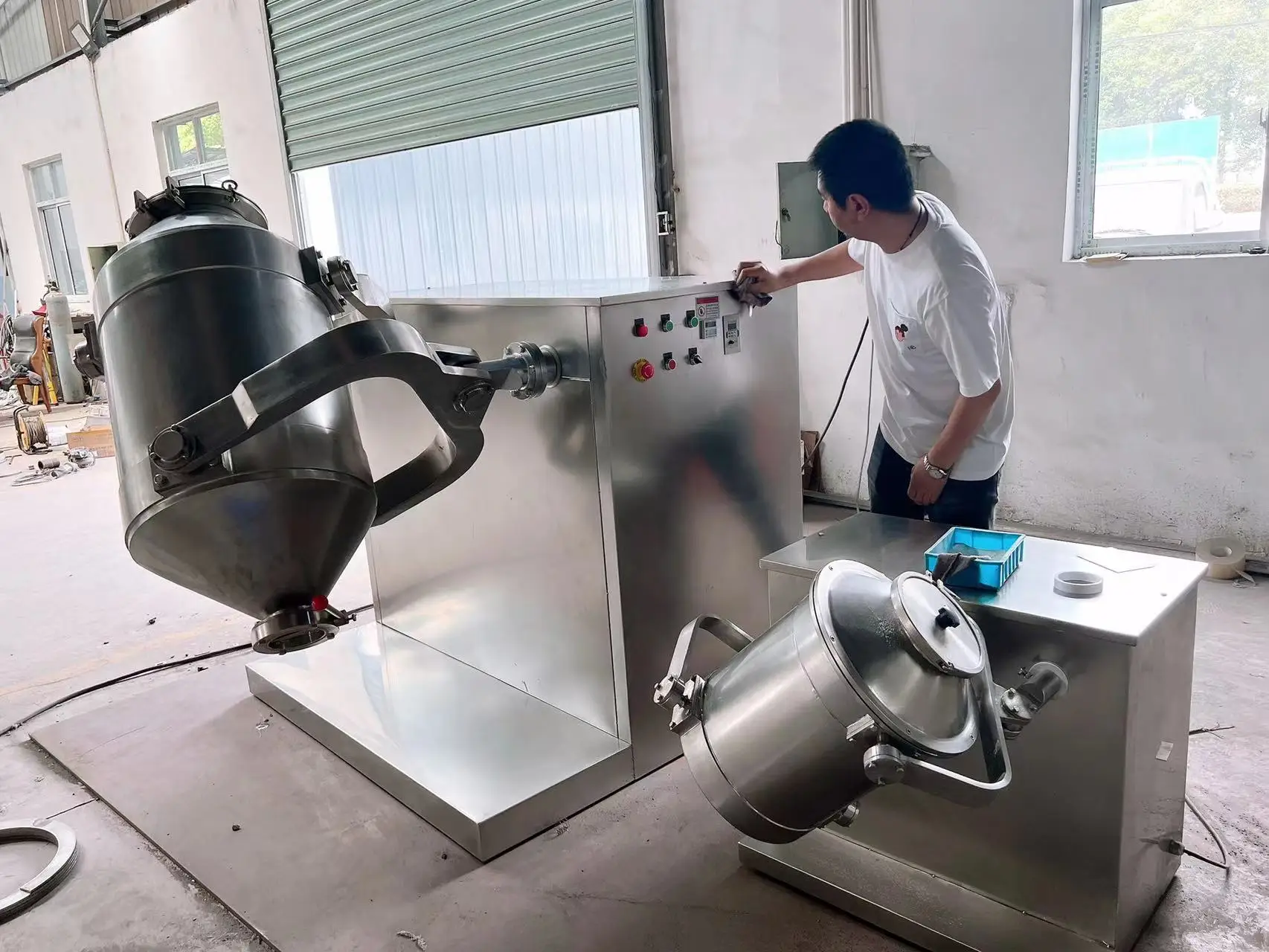

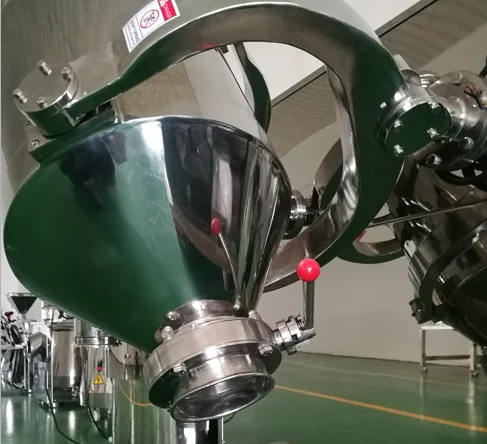

SYH Series 3D Swing Mixer
Main Application
The machine is widely used for the mixing of powder materials by chemicals and foodstuff industries, as well as for the quick and even mixing of various materials in different granule size and gravity.
Characteristics
With its unique three-dimensional swing, parallel moving and rolling methods, the mixer can generate a strong pulse movement to push forward and to mix target materials continuously. The excellent mixing effects are the result of its changeable vortex movement that possesses the energy grads inside. It also has the merits of smooth running, low noise, high loading quantity and short mixing time as well.
Model | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 |
Mixing Barrel Volume(L) | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 |
MAx Loading Volume (L) | 75 | 160 | 320 | 480 | 640 | 800 | 950 | 1200 |
Max (Kg) | 75 | 160 | 320 | 480 | 640 | 800 | 950 | 1200 |
Principal axis speed(r/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 |
Motor Power(KW) | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 11 | 15 |
Overall size （L×W×H） | 1200×1700 ×1500 | 1400×1800 ×1600 | 1800×2100 ×1950 | 1900×2100 ×2250 | 2200×2400 ×2300 | 2250×2600 ×2600 | 2400×2800 ×2800 | 2500×2950 ×3000 |
Weight(kg) | 500 | 800 | 1200 | 1500 | 2000 | 2500 | 2800 | 3000 |
1.It is suitable for mixing dry material powder in food and chemical industry.
2.It can also increase to blend the function compulsorily. It can mix thin powder and more than two form powders including the materials that contain water.
1.It is suitable for mixing dry material powder in food and chemical industry.
2.Three-dimensional swing mixing, the best mixing effect and the highest uniformity.
CH Trough Type Mixer
1.Horizontal trough mixer, suitable for mixing powdery or pasty materials.
2.By driving of mechanism of the mixer, the S stir paddle turns the target material to and fro to mix it evenly.
2.By driving of mechanism of the mixer, the S stir paddle turns the target material to and fro to mix it evenly.
1.It is suitable for mixing dry material powder in food and chemical industry.
2.Double cone mixing container.A stirring stick can be added for mixing materials containing a small amount of water.
2.Double cone mixing container.A stirring stick can be added for mixing materials containing a small amount of water.
1.Suitable for high-volume mixing of materials in the food, chemical industries.
2.The inner ribbon makes the material move outwards,while the external ribbon makes the material move inwards which forms a good
circulation of material.
2.The inner ribbon makes the material move outwards,while the external ribbon makes the material move inwards which forms a good
circulation of material.
ABOUT US
Jiangyin City Xuan Tai Machinery Equipment Co.,Ltd is located by the site of Taihu lake with the economic prosperity and beautiful scenery —Zhutang Town,Jiangyin city,Jiangsu Province.Which is near to Shanghai in the east,Wuxi in the South,North is the Jiangyin Yangtze River Bridge.The “golden channel “of Shanghai Nanjing High—Speed splitte rand Xicheng Expressway passing near by the geographic location is advantageous and the transportation is very convenient.
Our company specializes in producing food machinery,chemical machinery.We are a professional manufacturing factory with research,development and sales of food machinery.Through the rigorous testing system to ensure 100% qualified.
Main Five series products:Pulverzier,sifting machine,mixer,granulator and dryer machine. Our company products in the market are welcomed and praised by customers.
The enterprise sticks to the business purposes of “to the quality of survival,to the efficiency of development”.Being
pioneers,creative and striving to improve product quality.We will provide our customers with better service.
Sincerely thank our new and old customers cooperation and support,welcome to contact us to discuss business and create a better future together!
Jiangyin City Xuan Tai Machinery Equipment Co.,Ltd is located by the site of Taihu lake with the economic prosperity and beautiful scenery —Zhutang Town,Jiangyin city,Jiangsu Province.Which is near to Shanghai in the east,Wuxi in the South,North is the Jiangyin Yangtze River Bridge.The “golden channel “of Shanghai Nanjing High—Speed splitte rand Xicheng Expressway passing near by the geographic location is advantageous and the transportation is very convenient.
Our company specializes in producing food machinery,chemical machinery.We are a professional manufacturing factory with research,development and sales of food machinery.Through the rigorous testing system to ensure 100% qualified.
Main Five series products:Pulverzier,sifting machine,mixer,granulator and dryer machine. Our company products in the market are welcomed and praised by customers.
The enterprise sticks to the business purposes of “to the quality of survival,to the efficiency of development”.Being
pioneers,creative and striving to improve product quality.We will provide our customers with better service.
Sincerely thank our new and old customers cooperation and support,welcome to contact us to discuss business and create a better future together!
1. Who are we?
We are based in Jiangsu, China, start from 2015,sell to Domestic Market(20.00%),Southeast Asia(12.00%),North
America(10.00%),Western Europe(10.00%),South America(8.00%),Central America(5.00%),Oceania(4.00%),Mid East(3.00%),SouthernEurope(3.00%),Northern Europe(2.00%),Eastern Europe(2.00%),Africa(1.00%),South Asia(1.00%),Eastern Asia(1.00%). There are total about 5-10 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.What can you buy from us?
Pulverizer,Mixer,Sifting machine,Granulator,Drier
4. Why should you buy from us not from other suppliers?
We specializes in producing food machinery ,chemical machinery .Like pulverizer,sifter,mixer,granulator and drier machine. We are a professional manufacturing factory with research,development and sales of food machinery.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Jiangsu, China, start from 2015,sell to Domestic Market(20.00%),Southeast Asia(12.00%),North
America(10.00%),Western Europe(10.00%),South America(8.00%),Central America(5.00%),Oceania(4.00%),Mid East(3.00%),SouthernEurope(3.00%),Northern Europe(2.00%),Eastern Europe(2.00%),Africa(1.00%),South Asia(1.00%),Eastern Asia(1.00%). There are total about 5-10 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.What can you buy from us?
Pulverizer,Mixer,Sifting machine,Granulator,Drier
4. Why should you buy from us not from other suppliers?
We specializes in producing food machinery ,chemical machinery .Like pulverizer,sifter,mixer,granulator and drier machine. We are a professional manufacturing factory with research,development and sales of food machinery.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
