Good price WE67K 63/1600 cnc hydraulic press brake plate bending machine/metal sheet bender from china factory
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1600966069553):
Product Overview
Description
Product Description

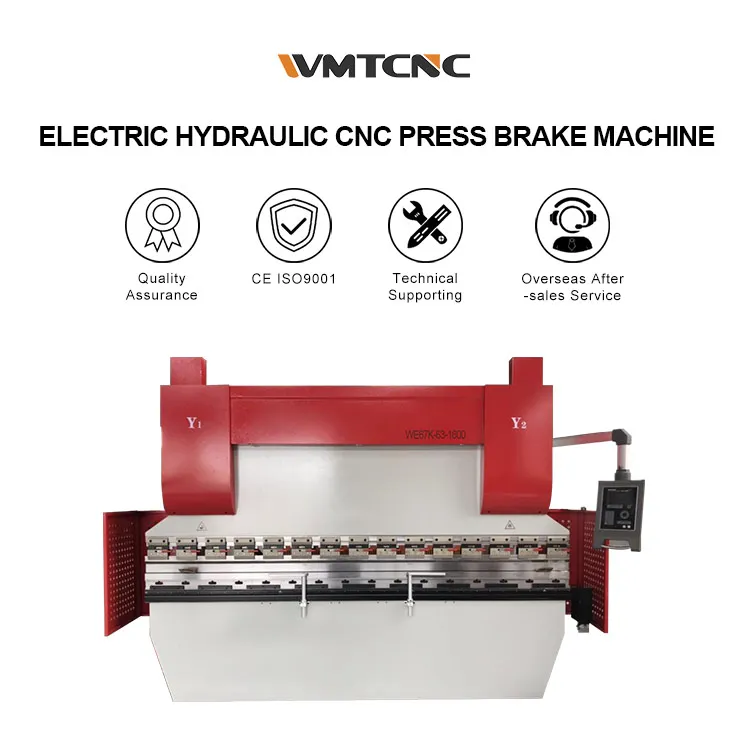

Electric Hydraulic CNC Press Brake Machine WE67K-63/1600
The whole structure of press brake machine:
1)Totally European design, streamlined looking, monoblock,welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.
2)WMTCNC press brake machine is equipped with the ESA user-friendly user interface, the S630 provides all main press brake functionality.
3)Automatic tonnage and stroke adjustment for bending angles. Perfect bending results with easy angle input and operation of machine.
1. Hydraulic system (Y1, Y2 axis)
1)A complete electrolyte servo synchro CNC controlled press brake. Close loop electro-hydraulic servo-control system, the most advanced.
2)Hydraulic system is from HAWE, a full loop electric-hydraulic proportional servo control by HAWE from Germany.
3)All seals in cylinder is NOK from JAPAN, being able to work under rated load continuously, stable working and high precision.
4)The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).
2. Electrical system
3)Automatic tonnage and stroke adjustment for bending angles. Perfect bending results with easy angle input and operation of machine.
1. Hydraulic system (Y1, Y2 axis)
1)A complete electrolyte servo synchro CNC controlled press brake. Close loop electro-hydraulic servo-control system, the most advanced.
2)Hydraulic system is from HAWE, a full loop electric-hydraulic proportional servo control by HAWE from Germany.
3)All seals in cylinder is NOK from JAPAN, being able to work under rated load continuously, stable working and high precision.
4)The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).
2. Electrical system
1)Electrical cabinet under the standard of IP55, electrical under international CE Standard, safe and
reliable, strong anti interference capability.
2)Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.
reliable, strong anti interference capability.
2)Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.
3)Front side covers with safety switches, back light safety guards, foot pedal conforming to CE regulation.
3. Synchro control system
3. Synchro control system
1)Press brake have a perfect bending accuracy thanks to the FAGON optical lines. Y1+Y2 axis in a
tolerance of ±0.01 mm.
2)Full electronic synchronisation with proportional valve technology assuring maximum bend accuracy and repeatability through constant monitoring and correction of beam parallelism by a S630 CNC system.
3)The system is designed to allow for the programming of Ram tilting Y1, Y2 be programmed separately, can bend cone-shape workpiece.
4. S630 CNC Controller
tolerance of ±0.01 mm.
2)Full electronic synchronisation with proportional valve technology assuring maximum bend accuracy and repeatability through constant monitoring and correction of beam parallelism by a S630 CNC system.
3)The system is designed to allow for the programming of Ram tilting Y1, Y2 be programmed separately, can bend cone-shape workpiece.
4. S630 CNC Controller
1)The most powerful in its class. 10” touch screen with powerful graphic.
2)All the performances of a high-level cnc in an economical and user-friendly controller.
3)High-level graphic programming for easiness of use and sophisticated algorithms to make the most of your machine.
4)Direct management of any kind of servo valves with no need of external amplifiers.
2)All the performances of a high-level cnc in an economical and user-friendly controller.
3)High-level graphic programming for easiness of use and sophisticated algorithms to make the most of your machine.
4)Direct management of any kind of servo valves with no need of external amplifiers.
5)Can Manage up to four axes in any combination, including electrical press brakes and tandem.
5. TYPICAL APPLICATIONS
5. TYPICAL APPLICATIONS
1)Conventional press-brakes (mechanical and hydraulic), synchro Hydraulic press-brakes.
2)Servo controlled hydraulic single cylinder press-brakes, electrically driven press-brakes, tandem press-brakes.
3)Hydro-mechanical press-brakes American style.
3)Hydro-mechanical press-brakes American style.
4)Guillotine shears, with 3-4 axes.
5)Graphic colour 10” touch screen display (1024 x 600 pixels resolution).
6)128 MB silicon disk.
5)Graphic colour 10” touch screen display (1024 x 600 pixels resolution).
6)128 MB silicon disk.
7)Interactive 2d graphic editor for work-pieces and tools data entry.
8)2D graphic display of machine frame, workpiece and tools.
9)Manual 2D graphic identification of the best bending sequence(option).
8)2D graphic display of machine frame, workpiece and tools.
9)Manual 2D graphic identification of the best bending sequence(option).
Specification | Unit | WE67K-63/1600 |
Nominal pressure | KN | 630 |
Length of worktable | mm | 1600 |
Distance between uprights | mm | 1250 |
Height of worktable | mm | 900 |
Throat depth | mm | 400 |
Storke | mm | 150 |
Open height | mm | 420 |
Motor power | KW | 7.5 |
Gear pump | L | 16 |
Downward speed | mm/s | 180 |
Working speed | mm/s | 10 |
Return speed | mm/s | 160 |
Weight | KG | 3000 |
Dimension | mm | 2100*1550*2500 |

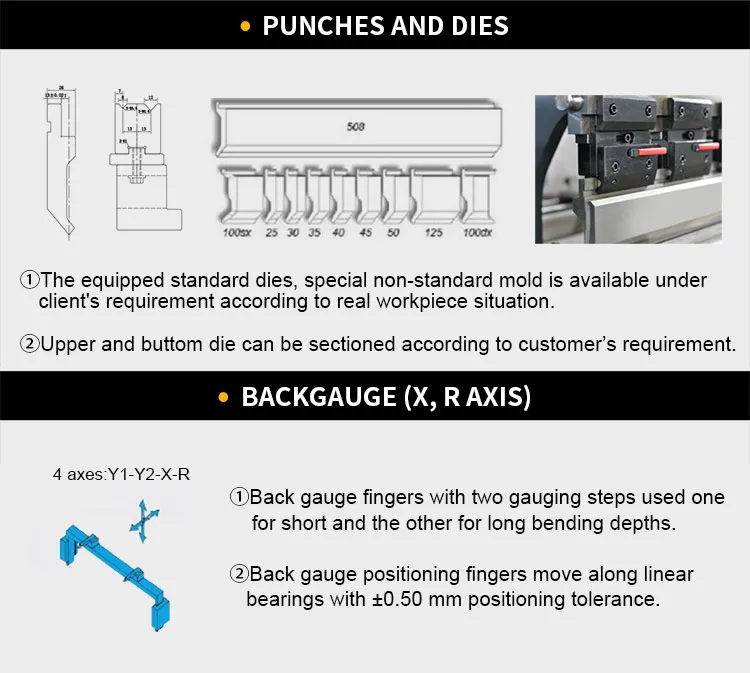

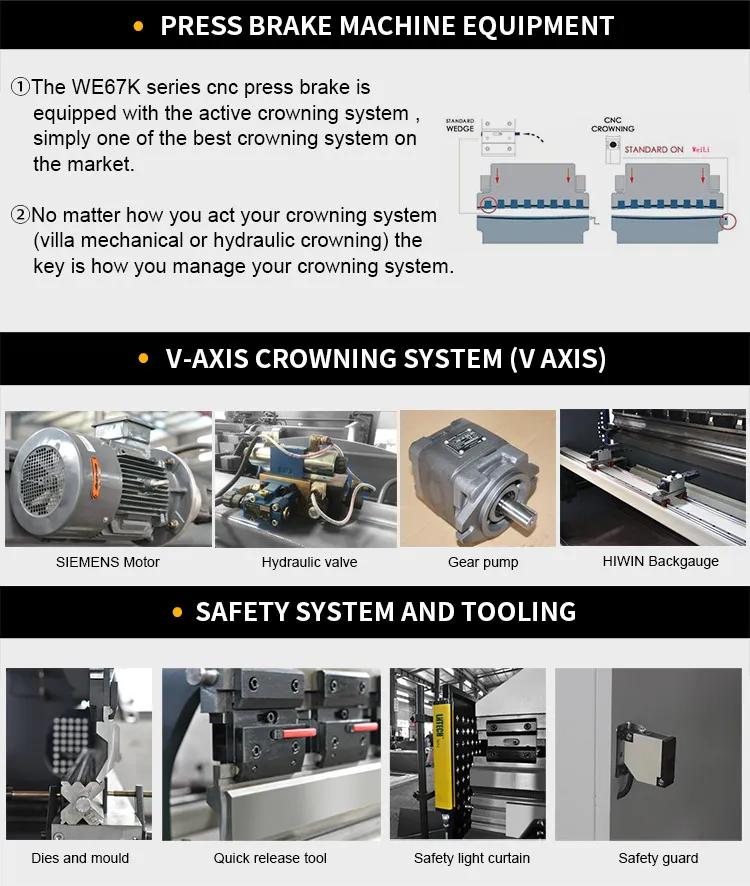

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
