14dBi 698~960/1710~2690MHz 4G LTE Omni directional Outdoor WiFi Antenna For Hotspot Cellular Modem 4G LTE Router
- Category: >>>
- Supplier: Suzhou Cowin Antenna Electronics Co. Ltd.
Share on (1600966088026):
Product Overview
Description

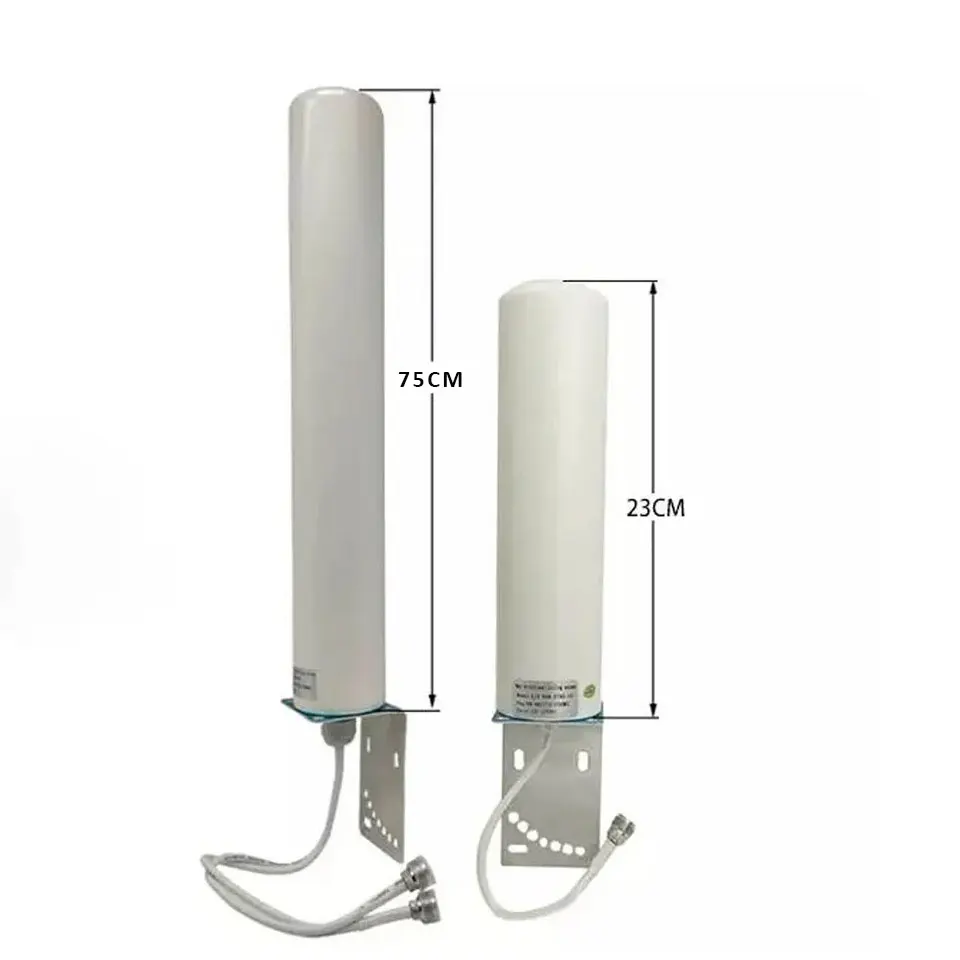

1. Custom antenna gain and length with 75CM and 23CM for your choose
2. custom cable length and connector type
3. Custom one wire for antenna or two wire for antenna
4. Custom antenna frequency with 5G 4G GSM WIFI For router
5. The wireless communication antenna use for outdoor with IP67 waterproof
Product Description
Item | Specifications | ||
Antenna | Frequency Range | 698-6000MHz or custom band | |
Gain | 10-14dBi | ||
V.S.W.R | ≤1.5 | ||
Impendance | 50Ω | ||
Antenna size | 75*63MM | ||
Material | Polarization | Vertical | |
Mechanical | Inner Material | Copper tube | |
Connector type | SMA male Connector or customizable | ||
Mounting Method | Fixed Wall Mount | ||
Environmental | Operating Temperature | -40℃~+80℃ | |
Storage Temperature | -40℃~+85℃ | ||
Package | Environmentally Friendly | ROHS Compliant | |
High Gain 10 dBi WiFi GSM 4G 5G Antenna for Verizon AT&T T-Mobile
This antenna also supports both the 2.4 GHz and 5.8 GHz WiFi frequency bands.

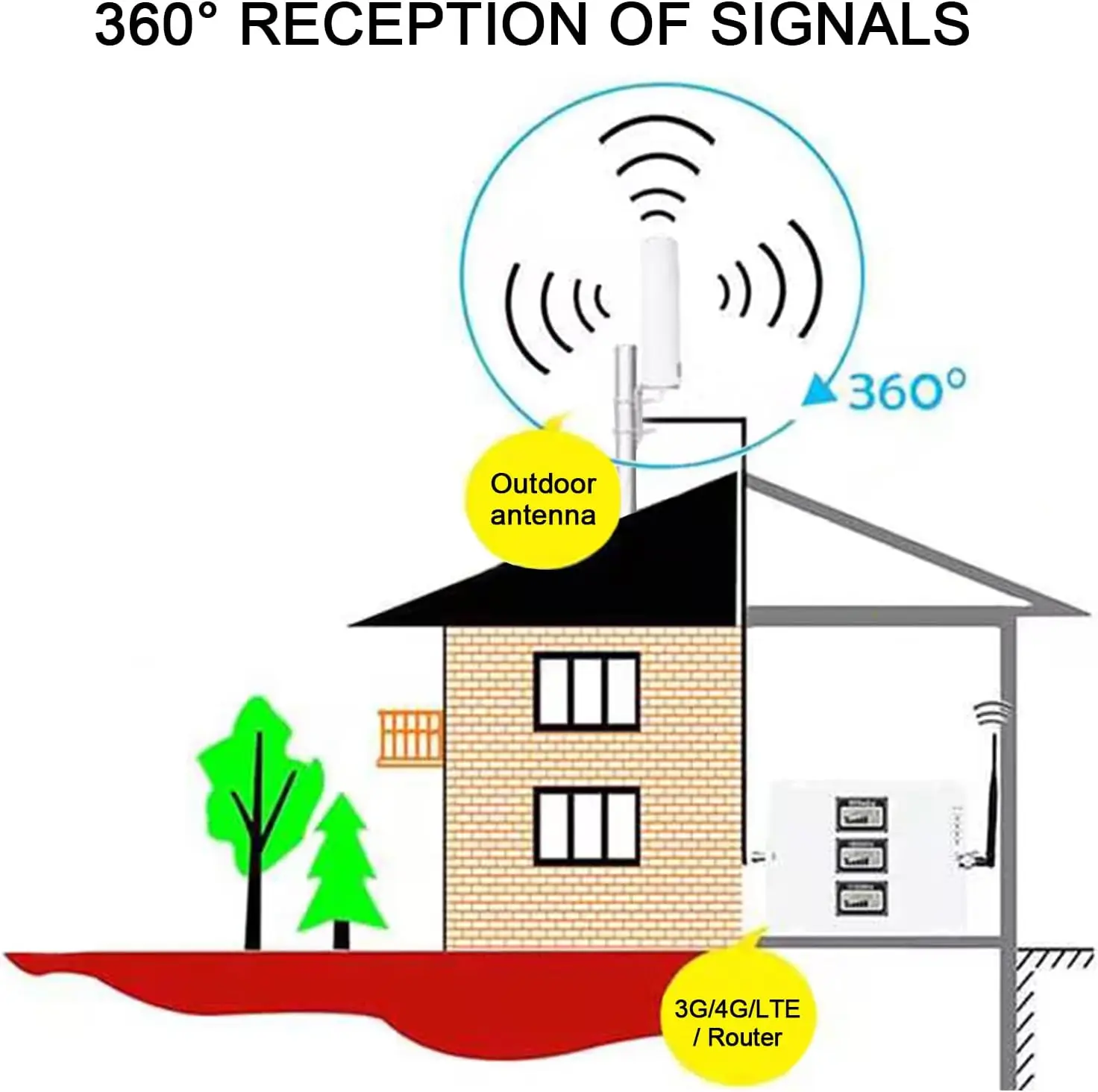

The omni-directional design provides high gain without the cellular tower location and alignment hassles of directional antennas. Its powerful high efficiency radiating elements maximize the energy output of your radio device.

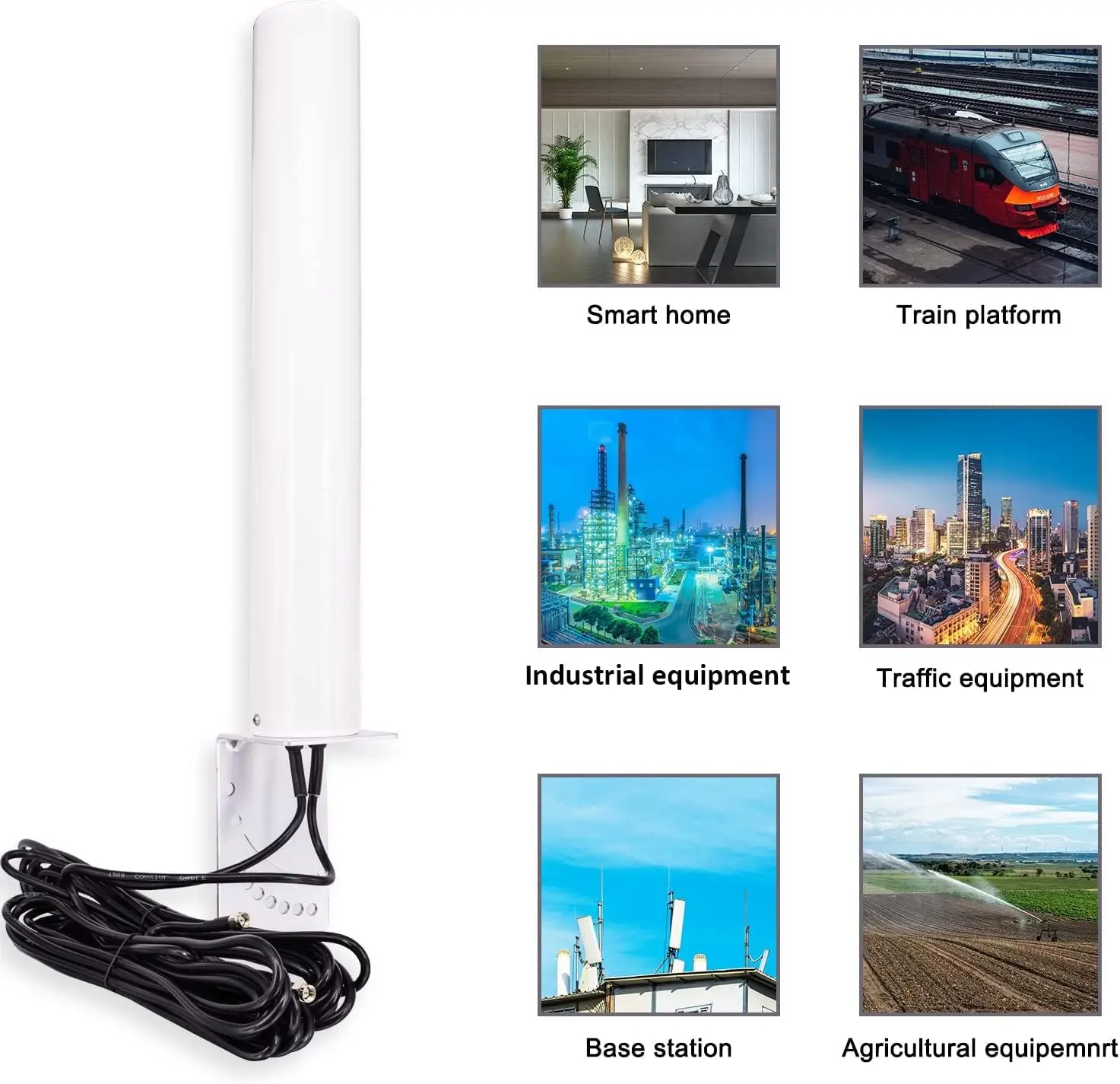

With its compact size, white finish and all stainless hardware, it is ideal for outdoor applications including rooftops, utility poles, surveillance trailers, well sites, meters, homes and offices.
With the appropriate adapter cable (not included), this antenna is compatible with USB cellular modems and Mi-Fi Hotspots, external 4G/5G cellular modems, routers and signal amplifiers from companies such as CalAmp, Cisco, Cradlepoint, Digi, MoFi, Netgear, Novatel, Pepwave, Proxicast, Sierra Wireless, SureCall, weBoost/Wilson and ZTE.
Requires a direct wired connection to an existing modem, router, amplifier/booster. WILL NOT boost reception of cell phones – they require a powered booster/amplifier.
Hot Product
Company Profile
Company profile :
15 years of antenna research and development
The CEO and engineers of Suzhou Cowin Antenna Electronics Co., Ltd have been researching and developing antennas for 15 years. With our rich experience in the field, we have developed many kinds of products including Cellular Antenna, 5G NR Antenna, 4G LTE Antenna, GSM GPRS 3G Antenna, WiFi Antenna, GNSS Antenna, GPS GSM combo Antenna,Waterproof antenna and a variety of RF Connectors and Antenna Cable Assemblies. These products are exported to USA, Europe, Asia, the Middle East, Africa and so on.
The CEO and engineers of Suzhou Cowin Antenna Electronics Co., Ltd have been researching and developing antennas for 15 years. With our rich experience in the field, we have developed many kinds of products including Cellular Antenna, 5G NR Antenna, 4G LTE Antenna, GSM GPRS 3G Antenna, WiFi Antenna, GNSS Antenna, GPS GSM combo Antenna,Waterproof antenna and a variety of RF Connectors and Antenna Cable Assemblies. These products are exported to USA, Europe, Asia, the Middle East, Africa and so on.
We serve a large number of high quality brand customers, such as ASTEELFLASH, BEL, Cambium Networks, Tongfang Co., Ltd.
Customized support with 20 Engineers, We have an R&D team with 20 engineers who can develop more than 5 kinds of new products for customer option by advanced R&D device, and complete projects according to clients' specifications within 15 days, it only need 7 days if product need small changes
Large Capacity With Fast Delivery, Our factory has five advanced production lines, has 200 skilled workers and a daily capacity of 20,000 units, delivery time can be as fast as 7 days.
Production process
Our equipment
Certifications
Our Advantages
Target market
Payment & Delivery
FAQ
What's your company MOQ?
Donot has any MOQ for common product, if they are customizable products, we will ask at least 1000-5000pcs, this we can negotiate.
What's your delivery time?
Products can send out once receive your deposit If we have stock, if they are customizable products, delivery time is around 7-12 working days.
Can your company accept customize?
Welcome OEM & ODM.
How do you solve after sale service?
Exchange goods without reasons within 7 days if products aren't OK for you, and 2 years quality warranty
Can you send samples for us to test?
Yes, we can provide free samples if they are our common products, shipping cost will be paid by you, you need to pay samples fee if they are customizable products.
Donot has any MOQ for common product, if they are customizable products, we will ask at least 1000-5000pcs, this we can negotiate.
What's your delivery time?
Products can send out once receive your deposit If we have stock, if they are customizable products, delivery time is around 7-12 working days.
Can your company accept customize?
Welcome OEM & ODM.
How do you solve after sale service?
Exchange goods without reasons within 7 days if products aren't OK for you, and 2 years quality warranty
Can you send samples for us to test?
Yes, we can provide free samples if they are our common products, shipping cost will be paid by you, you need to pay samples fee if they are customizable products.
