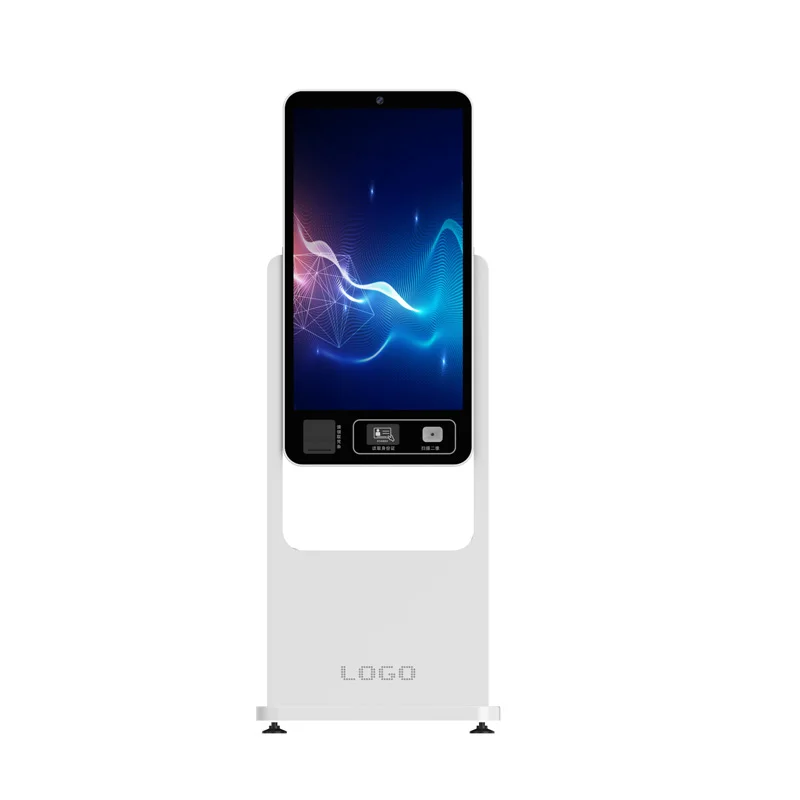

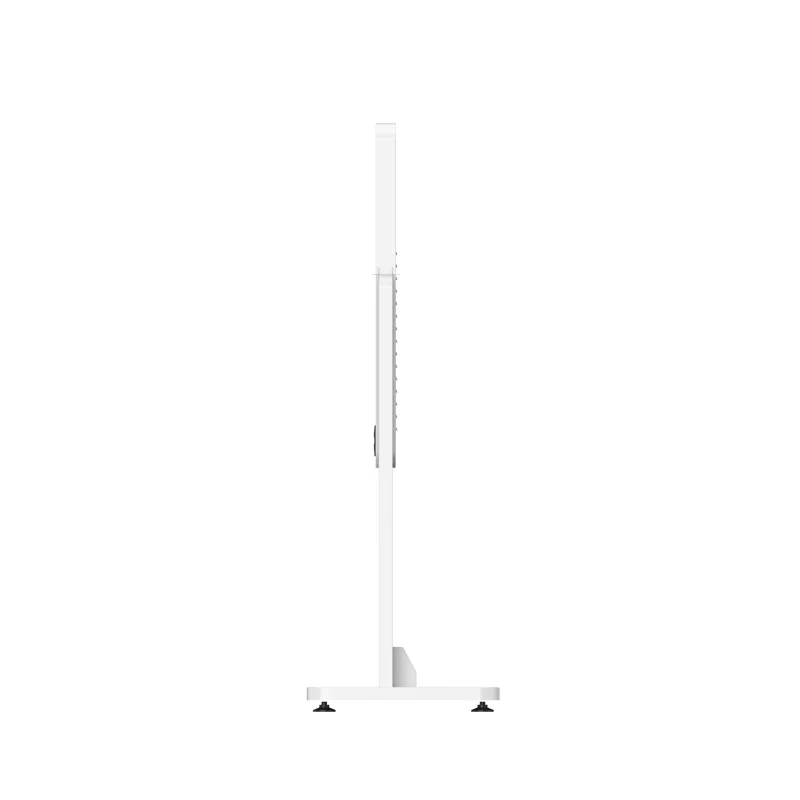

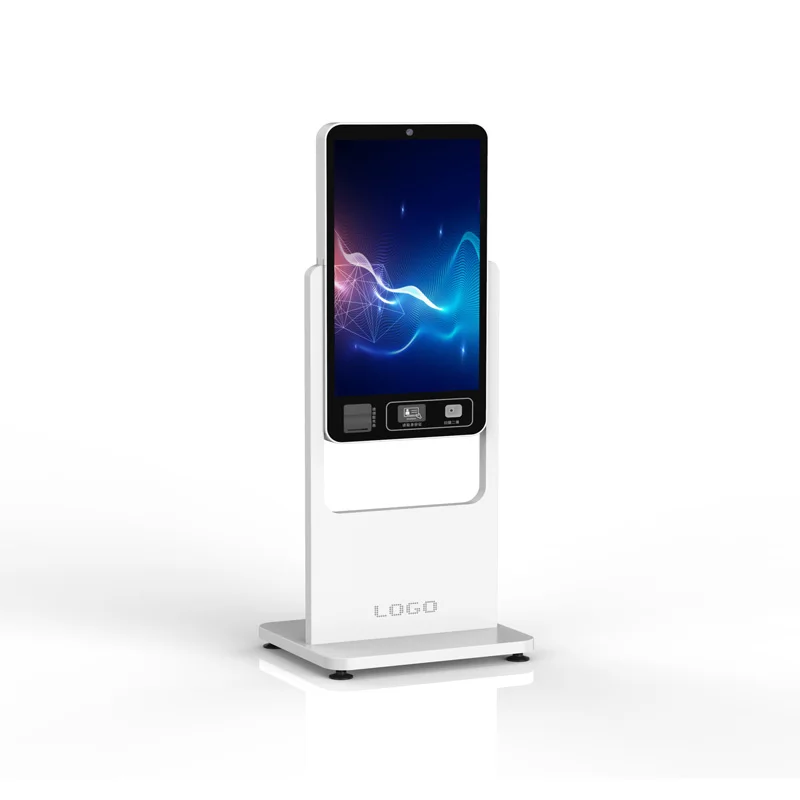

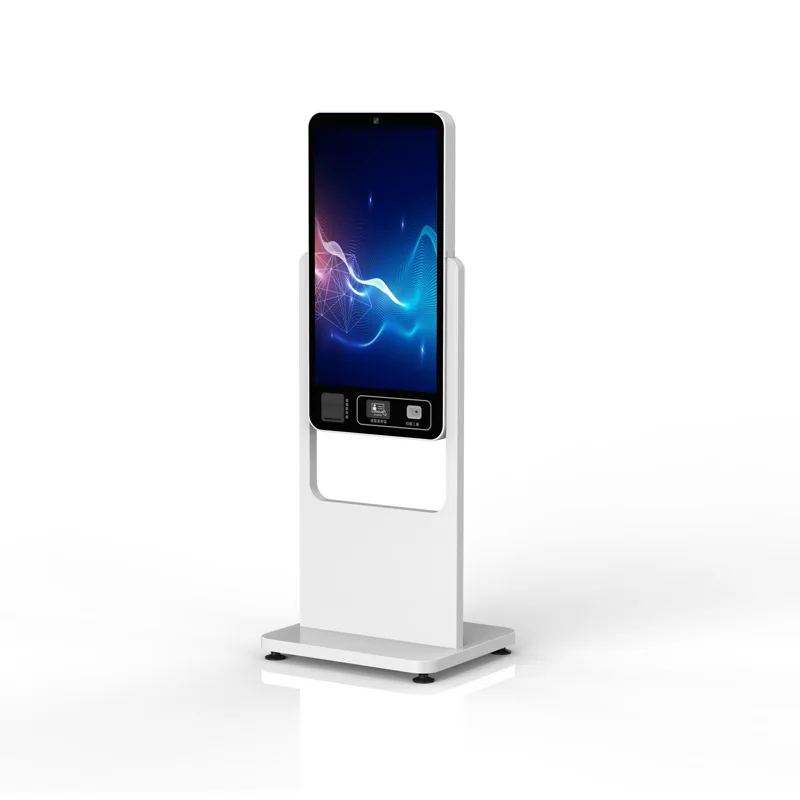

Automatic Ordering Machine 15.6 21.5 32 Inch Self Order Machine Wall Mounted or Floor Stand
Automatic Ordering Machine 15.6 21.5 32 Inch Self Order Machine Wall Mounted or Floor Stand
Automatic Ordering Machine 15.6 21.5 32 Inch Self Order Machine Wall Mounted or Floor Stand
Automatic Ordering Machine 15.6 21.5 32 Inch Self Order Machine Wall Mounted or Floor Stand
Automatic Ordering Machine 15.6 21.5 32 Inch Self Order Machine Wall Mounted or Floor Stand
Automatic Ordering Machine 15.6 21.5 32 Inch Self Order Machine Wall Mounted or Floor Stand

Automatic Ordering Machine 15.6 21.5 32 Inch Self Order Machine Wall Mounted or Floor Stand

Share on (1600966267908):


Price:$399.00 - $589.00

Quantity:


Product Overview

Description



Product Description





self-service vending machine
15.6/ 21.5/ 32 Inch, etc

1. optional Android or Windows
support Linux;
2. Optional processor and memory;
3. Support OEM/ ODM.





ODM/ OEM


Professional R&D team, 8 years OEM & ODM Service, Provide you with professional solutions.
Our products are exported to the EU, America, Asia, etc., and have enjoyed a great reputation in the whole world market.
Free industrial design, extremely short production cycle
Professional quality control at all levels from raw materials to products.
Strong pre-sales and after-sales service team.

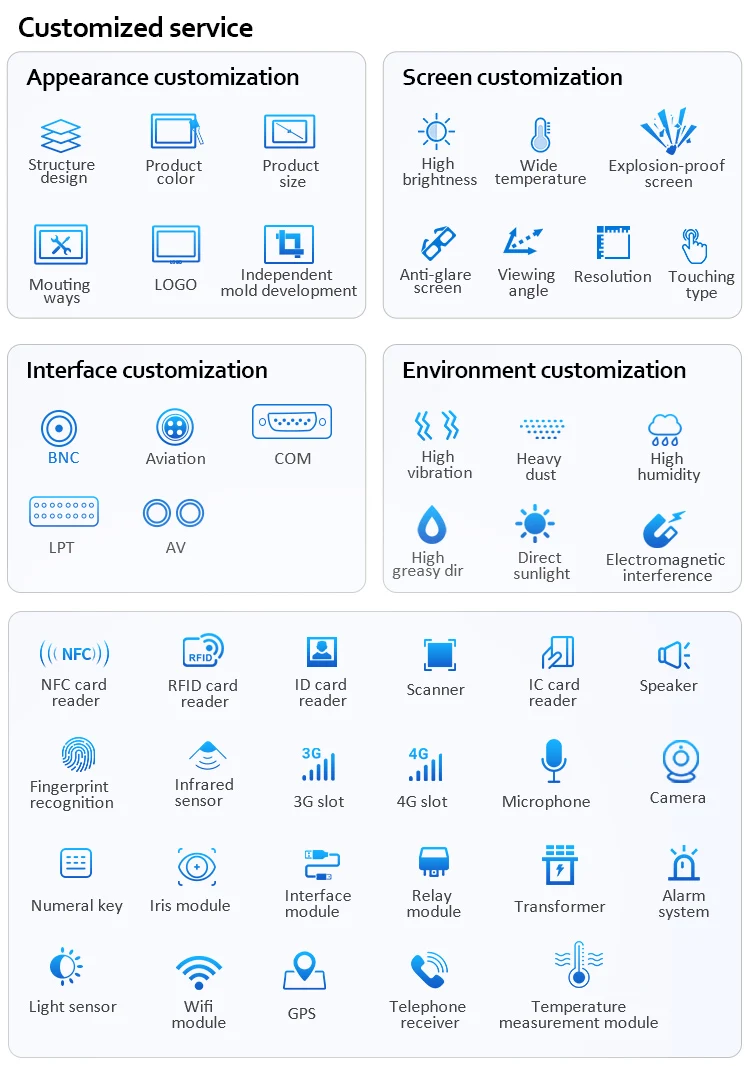

Customized service
* Design and production of appearance and structure
* Screen customization
* Interface customization
* Product environment parameters require customization
* Product function customization
* Processor, memory customization


support touch size customized
wall-mounted or Floor stand
free industrial designs




Application


kinds of self-services machines
kinds of vending machines
kinds of cabinet lockers


auto control machines
workstations, consoles, etc.
monitoring, desktop use, etc.




Specification



Please noted, the below specifications for H05D20, if have any questions or needs contact us feel free.
We also supply 7/ 8/ 10.1/ 12/ 13/ 15.6/ 17/ 19/ 21.5/ 23/ 27inch, etc industrial touch panels. Optional Windows, Android system.
Support desktop bracket, wall-mounted bracket and top bracket.


Core parameters
CPU
RK3288/ 4 core frequency 1.6GHz
RAM
2 GB
EMIC
16 GB
GPU
ARM Mali-T764
Brightness
300 cd/㎡
Resolutions
720*1280
Perspective
Full view
Touch
3 points (capacitive touch)
Size
1 43*76.7*29.2 mm, Total weight 0.4kg
Interface parameters
Serial port
2 * RS232, 1 RS485
USB
1 USB HOST, 1 USB DEVICE
Audio
1
Ethernet
1 , 10/100Mbps adaptive network interface
GPIO
2 , 3.3V level bidirectional IO
Wi-Fi (optional)
1 , WIFI 2.4G, support BT4.2
4G (optional)
1 , CAT1/CAT4 4G module
GPS (optional)
1 needs to be replaced with a 4G module with GPS function, which supports Beidou and GPS dual positioning.
SIM card
1, flip top MICRO SIM card holder
Led
1 system indicator light
Power supply
1 channel XH2.54 2P socket, voltage range: DC12V±5% to DC36V ±5%
Button
2, 1 power button, 1 burning button
