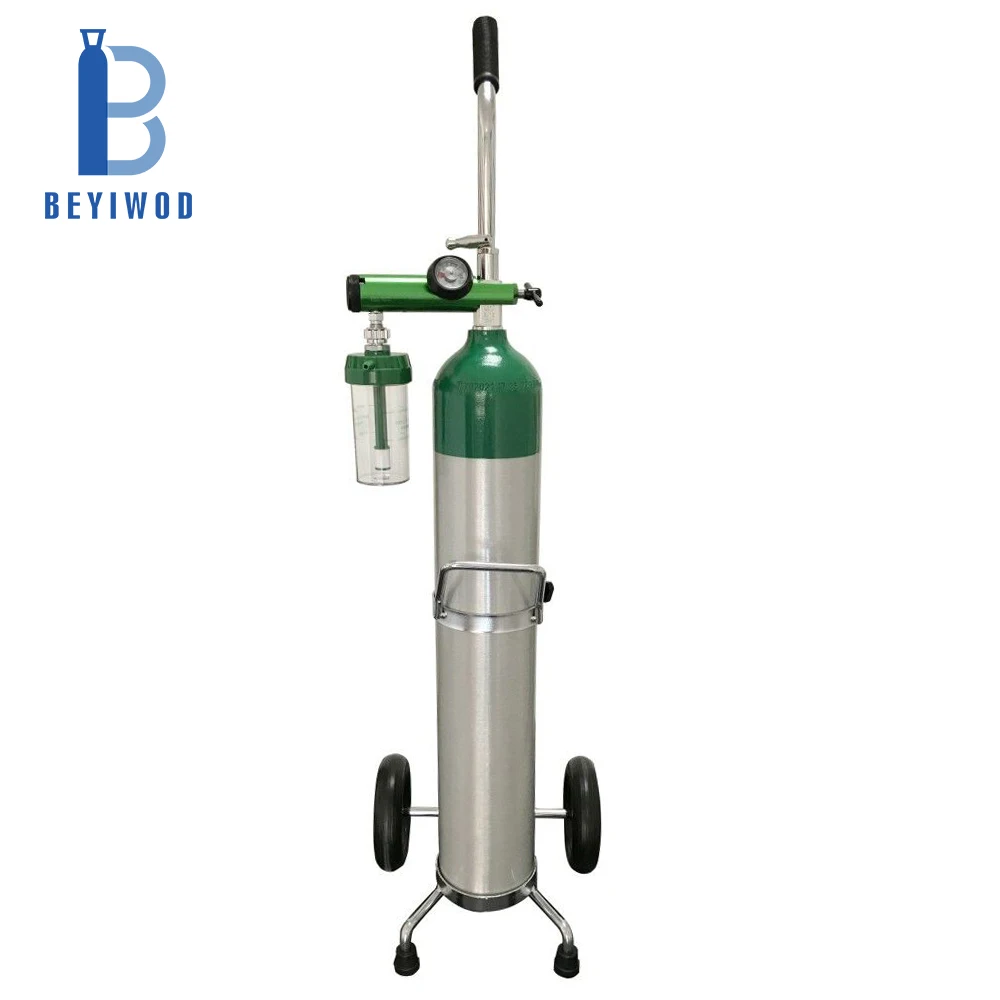

ME MD M6 medical oxygen cylinder DOT 3AL STANDARD 2015 PSI oxygen cylinder with trolley
- Category: >>>
- Supplier: Shanghai Bene High Pressure Container Co. Ltd.Shanghai Ltd.
Share on (1600966271843):
Product Overview
Description
Product Description

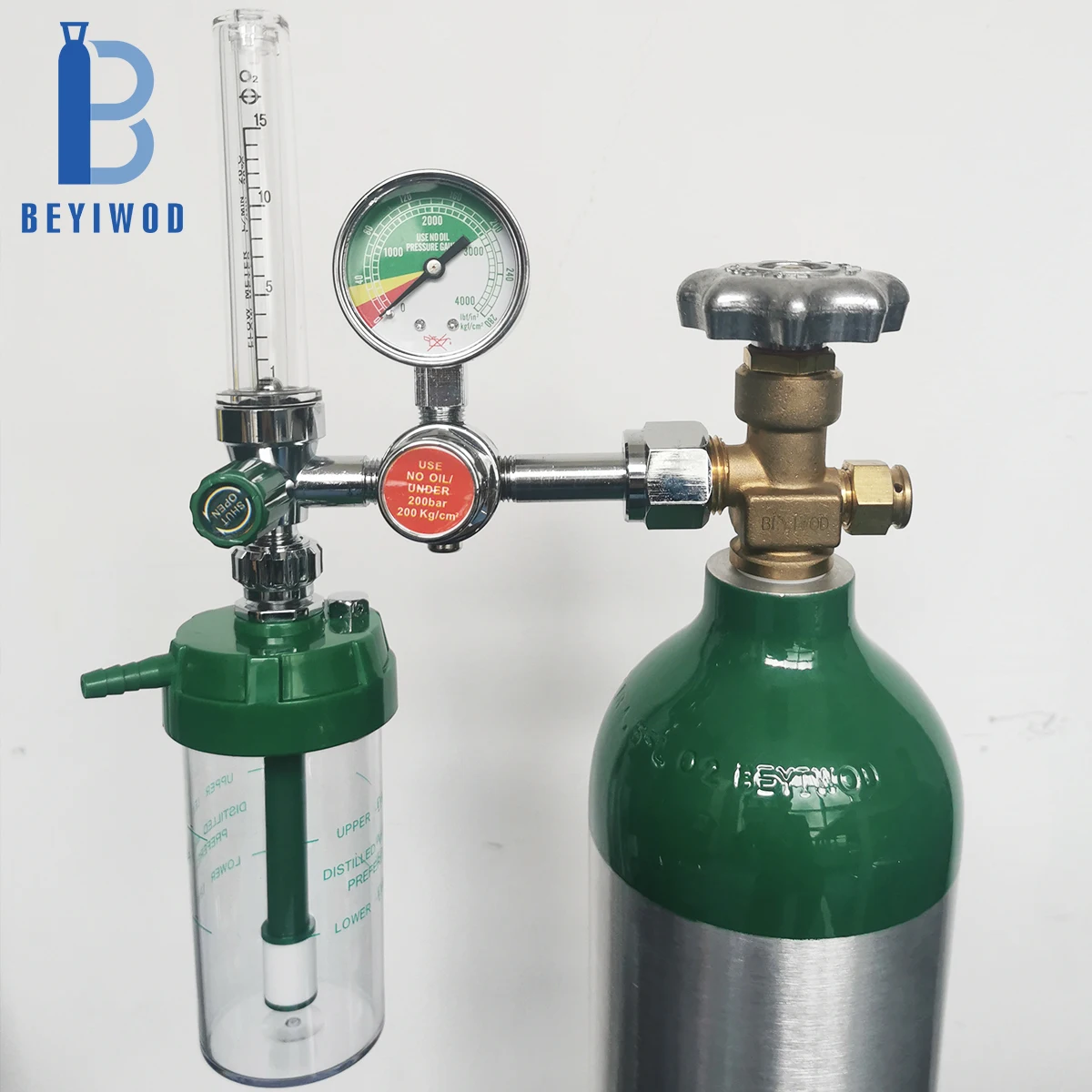

We offer different valve for you ,not only CGA870,but also DIN477

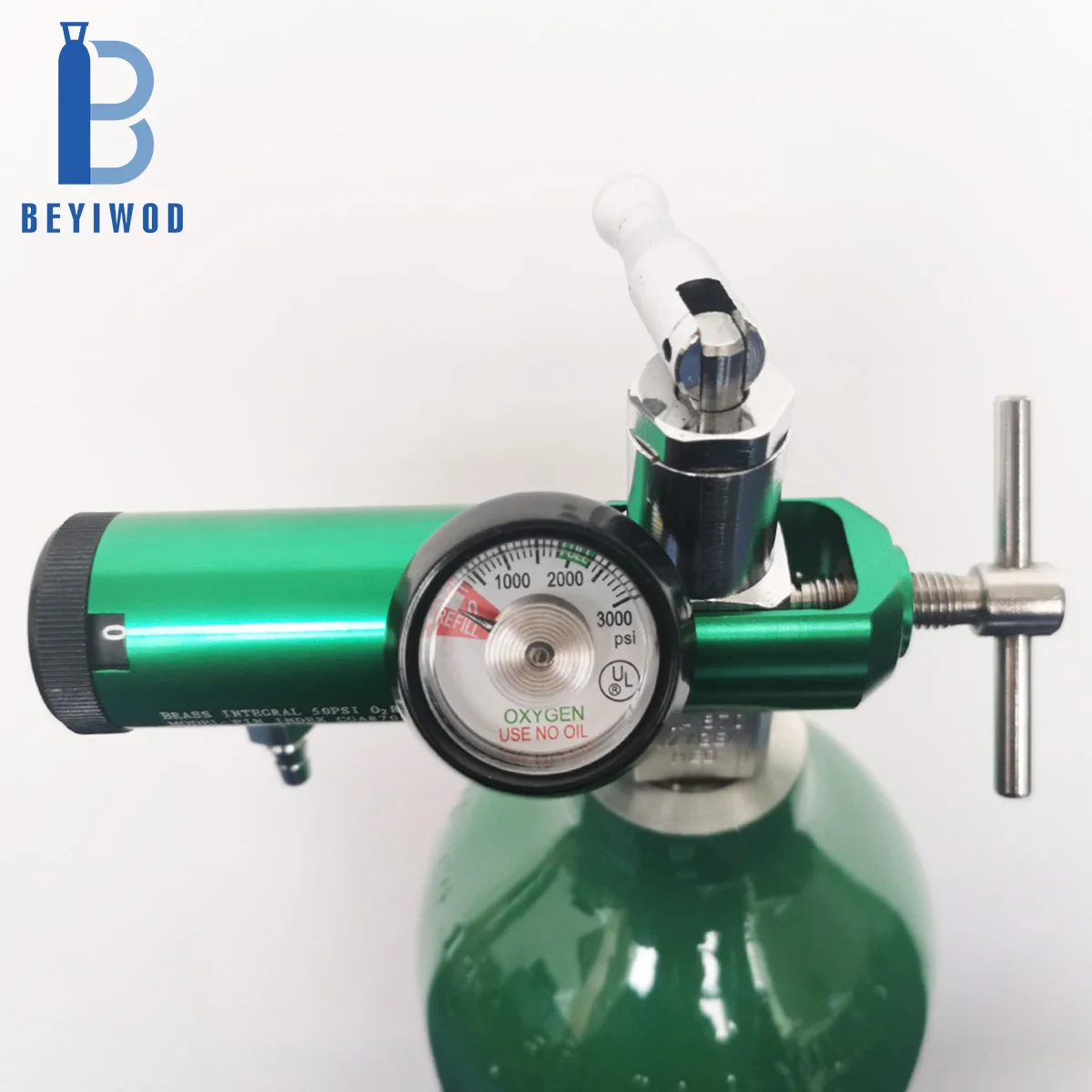

At the same time , medical regulator Green CGA870, medical flow meter also available
Specification
item | value |
Pressure | High |
Place of Origin | China |
Material | Aluminium AA6061 |
Brand Name | BEYIWOD |
Use | Medical aluminum oxygen cylinder |
Working Pressure | 2216psi |
Test Pressure | 3694psi/3364psi |
Certification | DOT3AL |
Color | green on top |
Medium | high purity medical oxygen gas |
Application | medical |

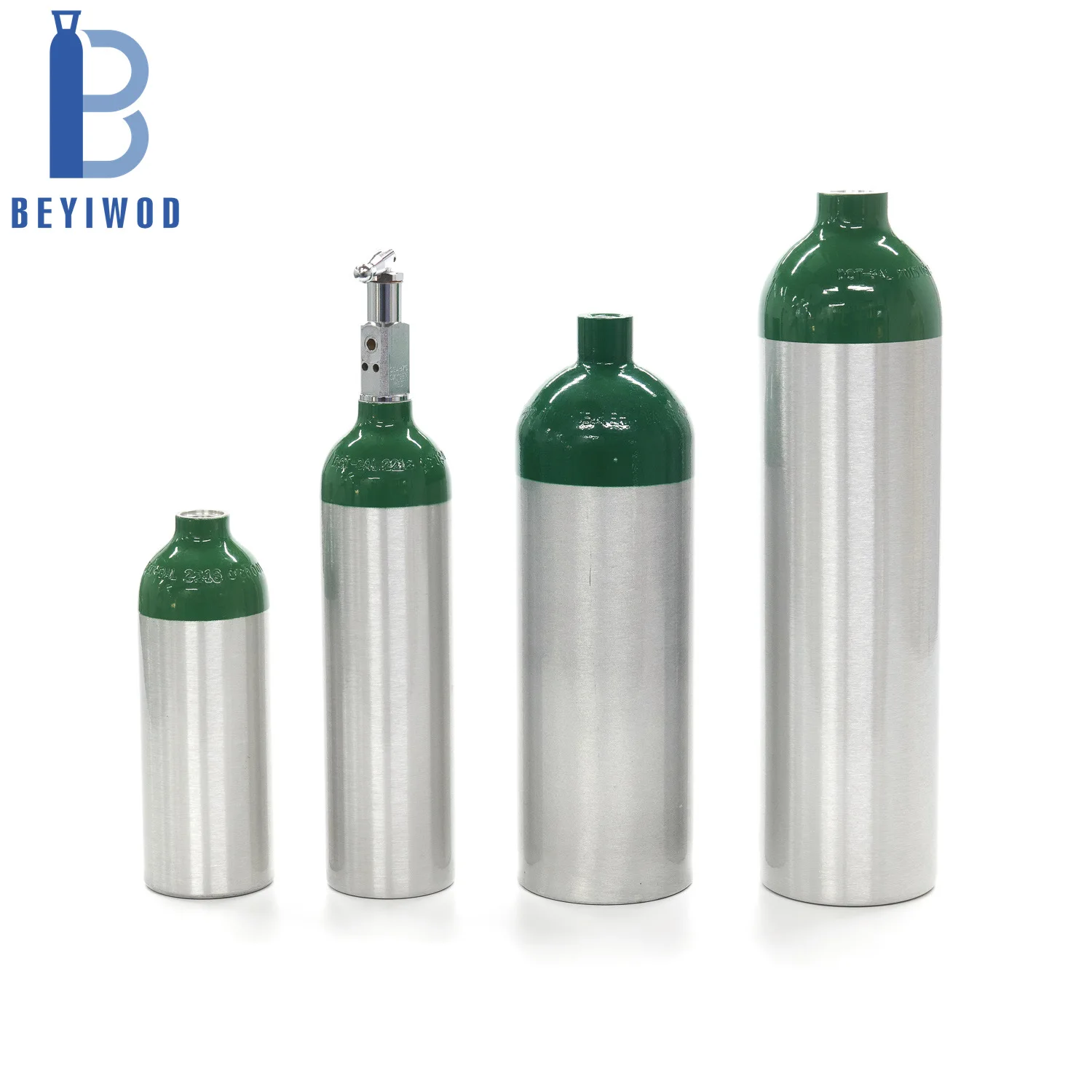

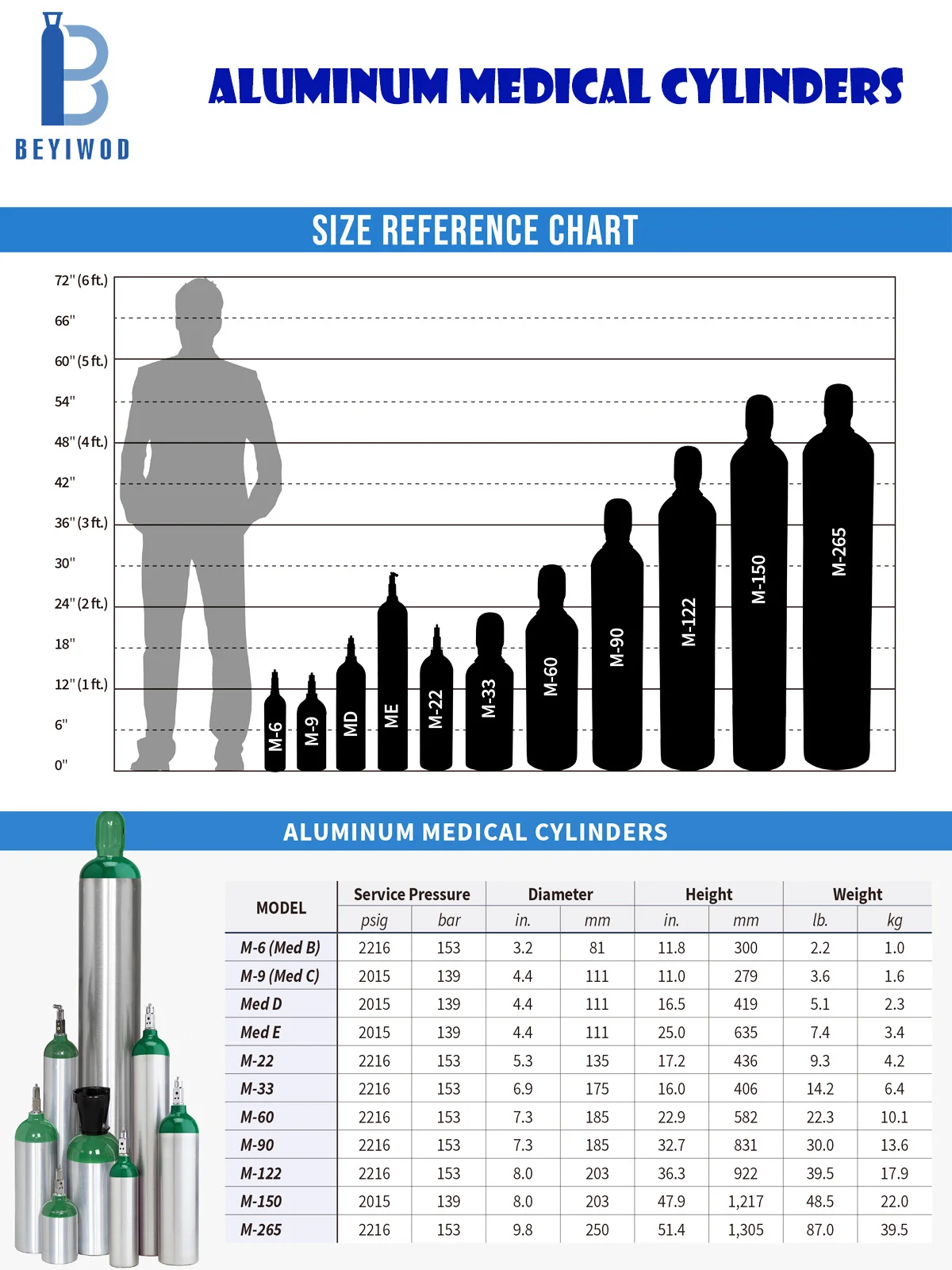

Product Catalogue
Size | Diameter mm | Length mm | Volume L/water capacity | Weight kg/lbs | Working pressure bar/psi | Test pressure bar/psi |
M2 | 51 | 238 | 0.30 | 0.37 | 120/1800 | 210/3000 |
9oz | 54 | 245 | 0.38 | 0.38 | 124/1800 | 210/3000 |
12oz | 64 | 245 | 0.51 | 0.49 | 124/1800 | 210/3000 |
M4 | 81 | 205 | 0.68 | 0.72 | 124/1800 | 210/3000 |
20oz | 81 | 245 | 0.85 | 0.80 | 124/1800 | 210/3000 |
47ci | 90 | 210 | 0.70 | 1.22 | 210/3000 | 350/5000 |
M6 | 81 | 295 | 1.00 | 1.14 | 155/2216 | 260/3695 |
ML6 | 111 | 195 | 1.08 | 1.34 | 139/2015 | 232/3360 |
M9/2.5lbs(co2) | 111 | 276 | 1.68 | 1.75 | 139/2015 | 232/3360 |
MD | 111 | 423 | 2.75 | 2.45 | 139/2015 | 232/3360 |
M22 | 133 | 420 | 3.90 | 3.3 | 139/2015 | 232/3360 |
ME | 111 | 650 | 4.55 | 3.6 | 139/2015 | 232/3360 |
5lbs(co2) | 133 | 369 | 3.34 | 3 | 124/1800 | 207/3000 |
10lbs(co2) | 175 | 430 | 6.70 | 6 | 124/1800 | 207/3000 |
M60 | 184 | 581 | 10.00 | 9.8 | 153/2216 | 255/3695 |
20lbs(co2) | 203 | 600 | 13.40 | 10.8 | 124/1800 | 207/3000 |
MM | 203 | 907 | 21 | 19 | 153/2216 | 255/3695 |

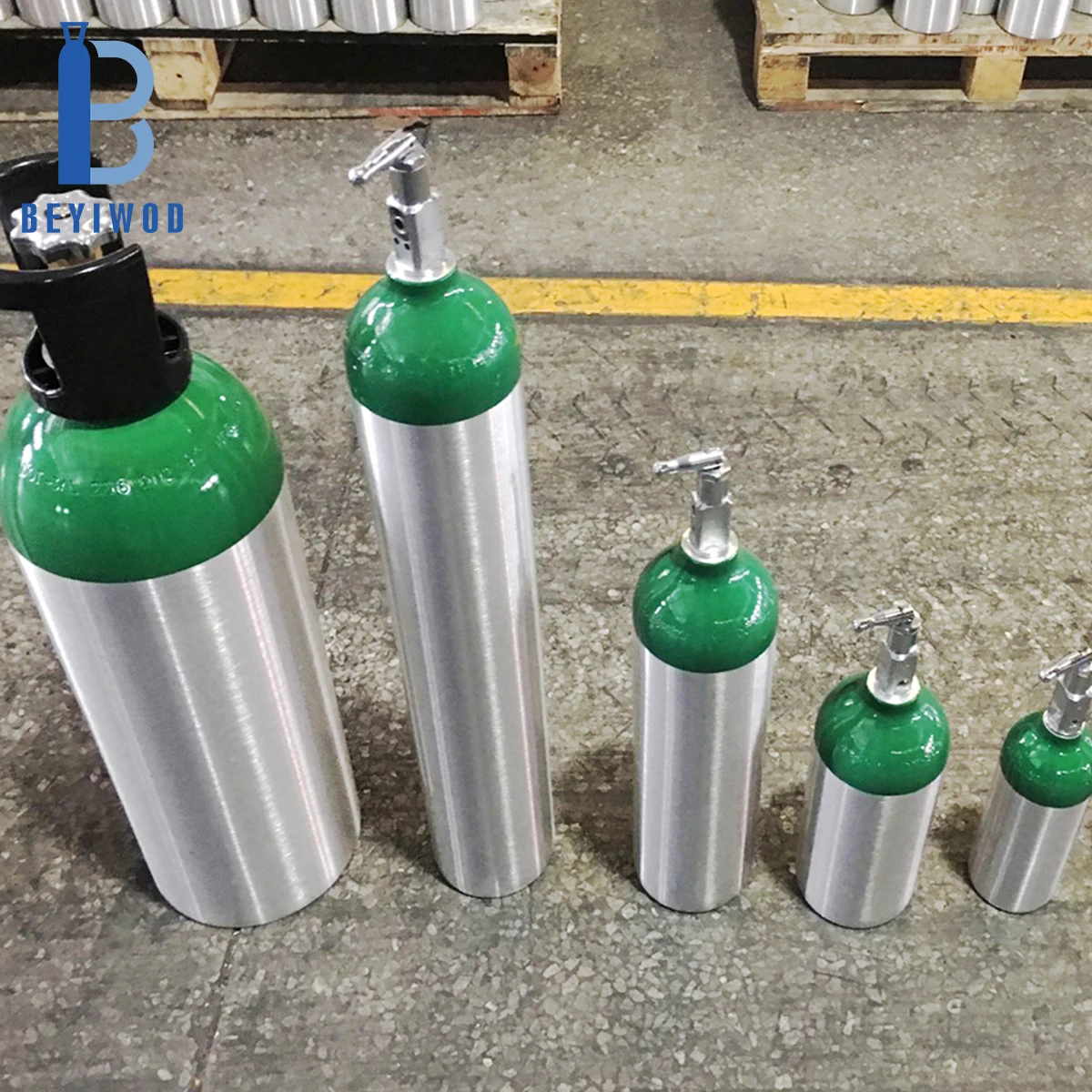

M series :

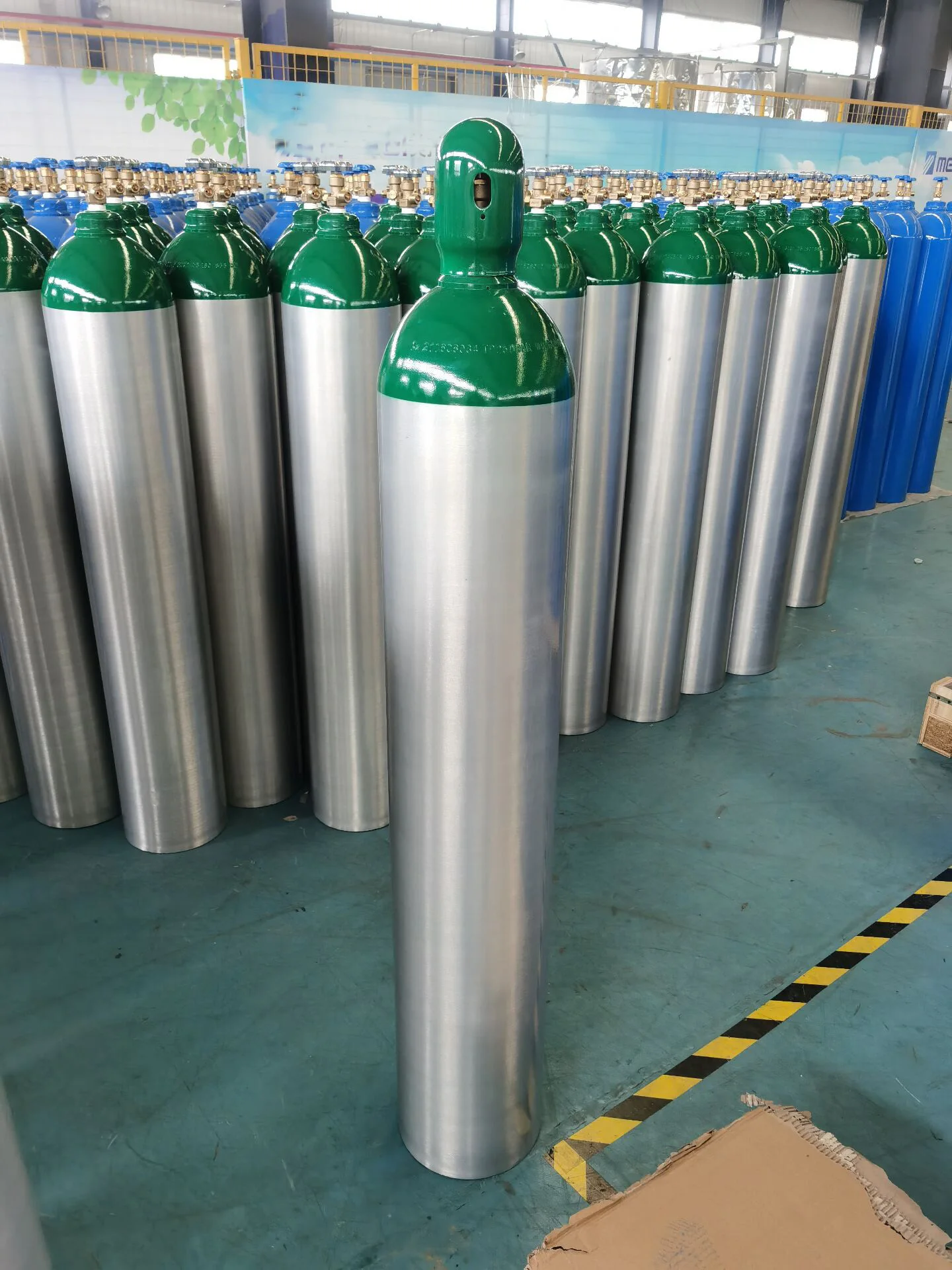

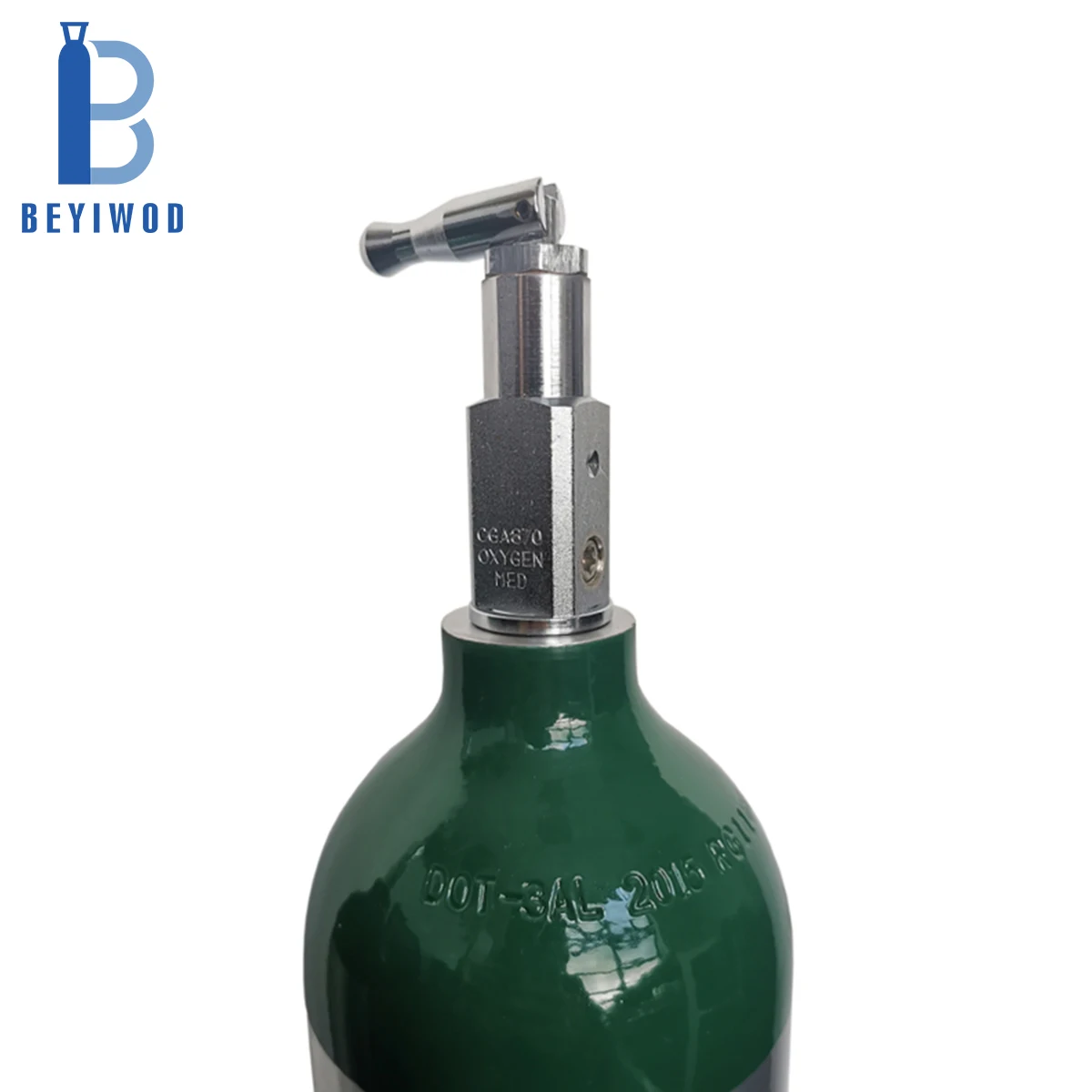

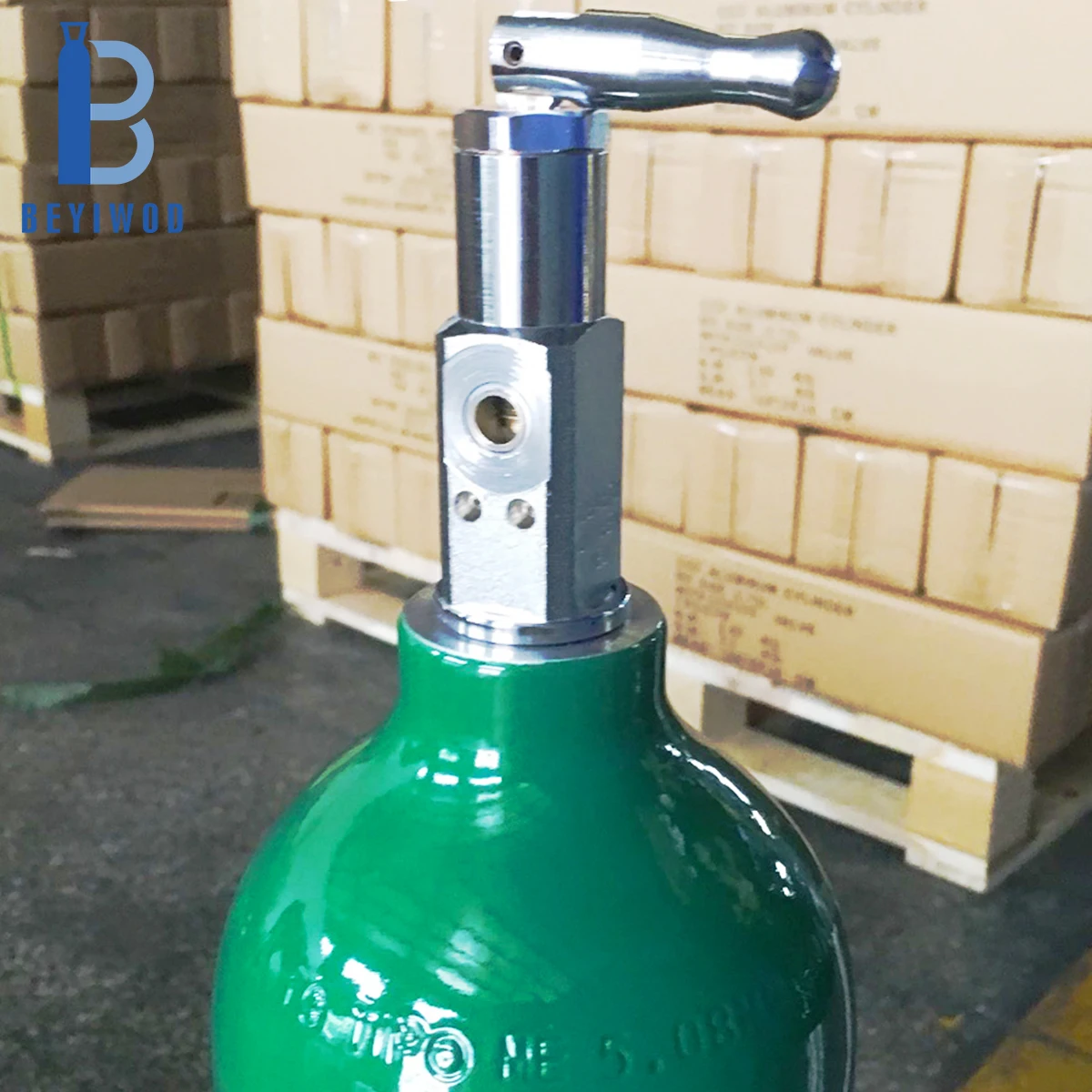

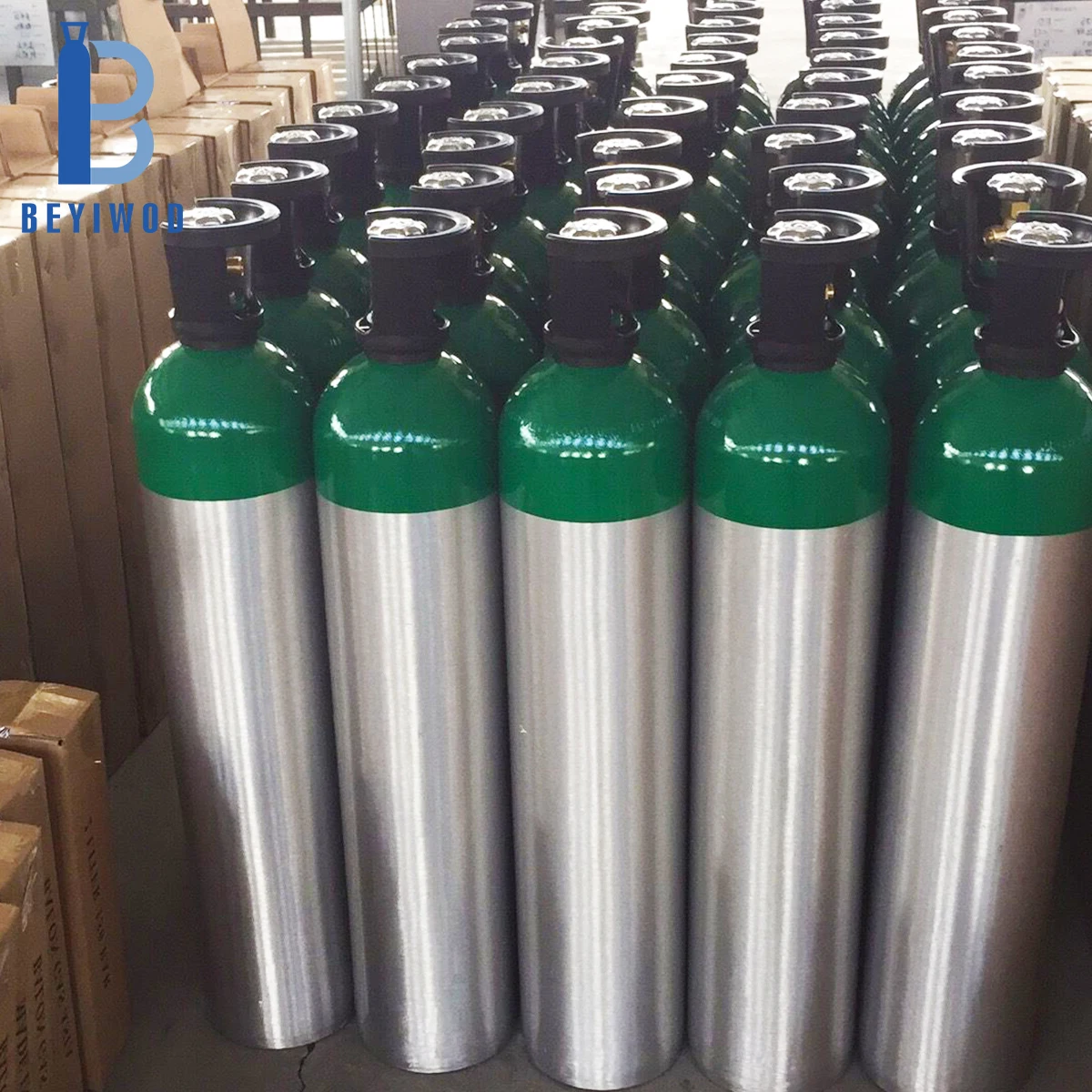

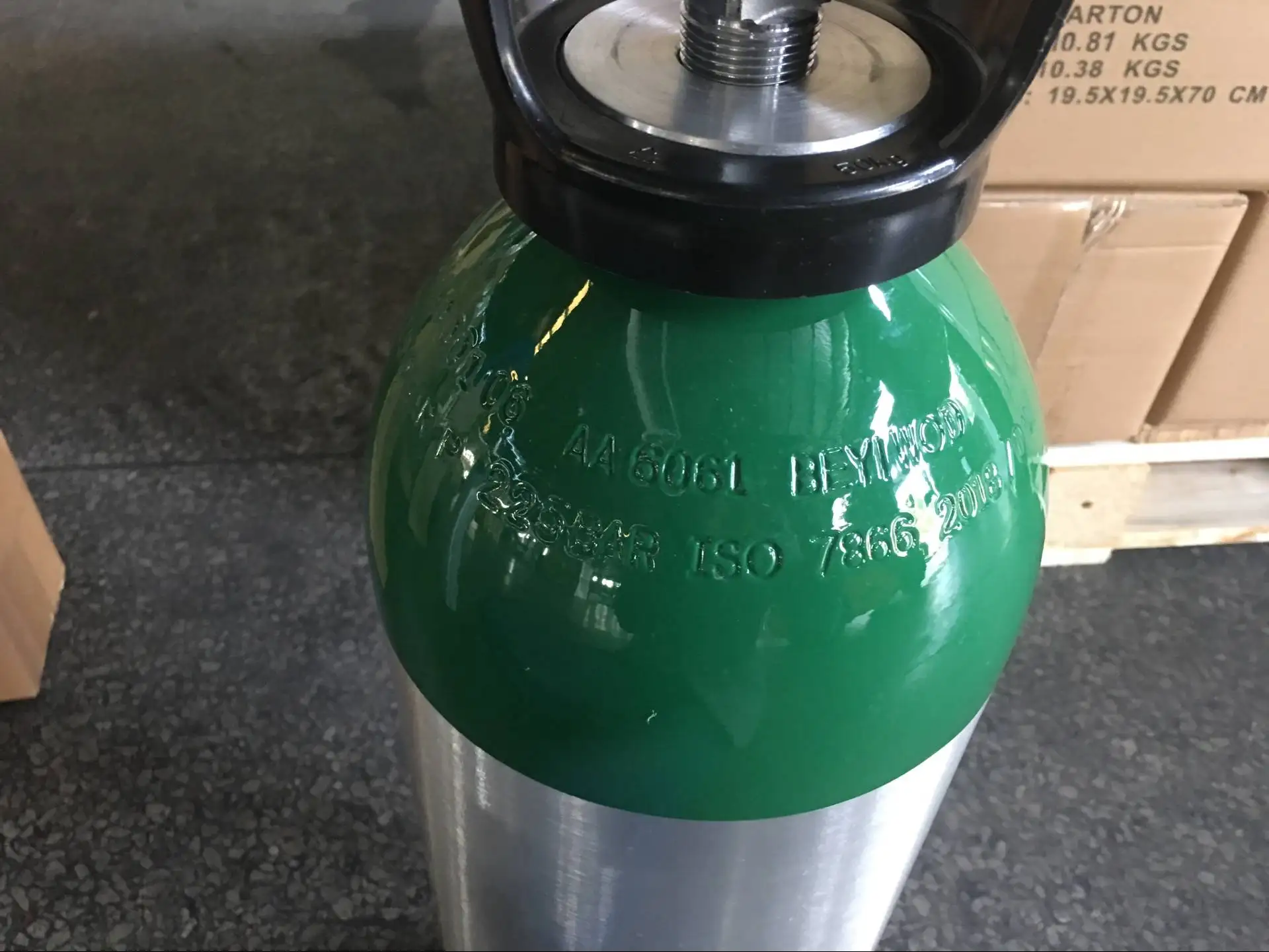

Manufactured in the CHINA to meet or exceed DOT 3AL and TC 3ALM requirements Cylinders are constructed from lightweight, high-strength aluminum 60610T6 alloy Clear powder coat protective finish, and green neck to indicate oxygen Cylinders have a 0.750-16 UNF-2B thread size and are shipped standard with a CGA870 post valve or optional CGA870 toggle valve for easy operation ME cylinders are designed with a 5 year hydrostatic test capacity and a filling pressure of 2015 PSI

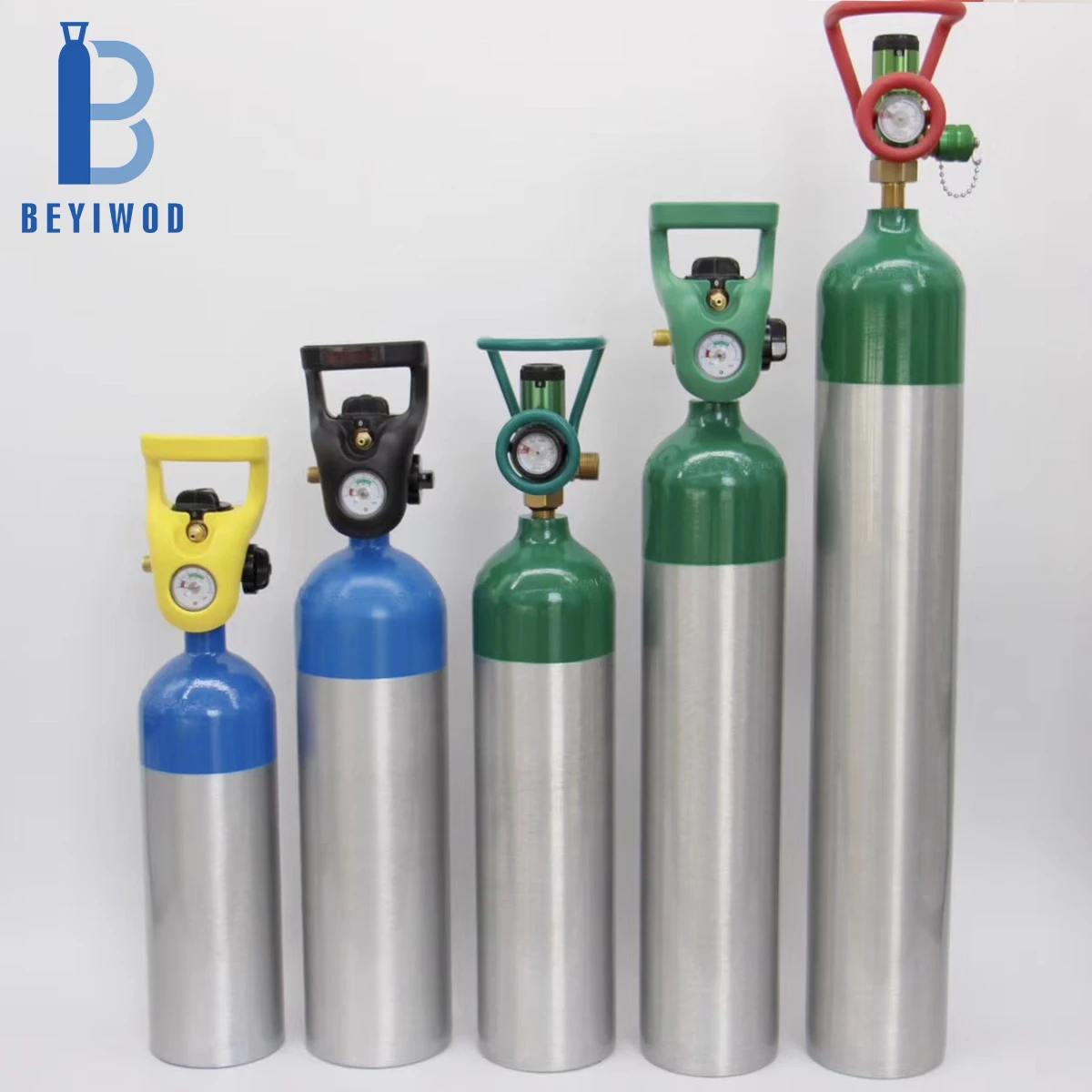

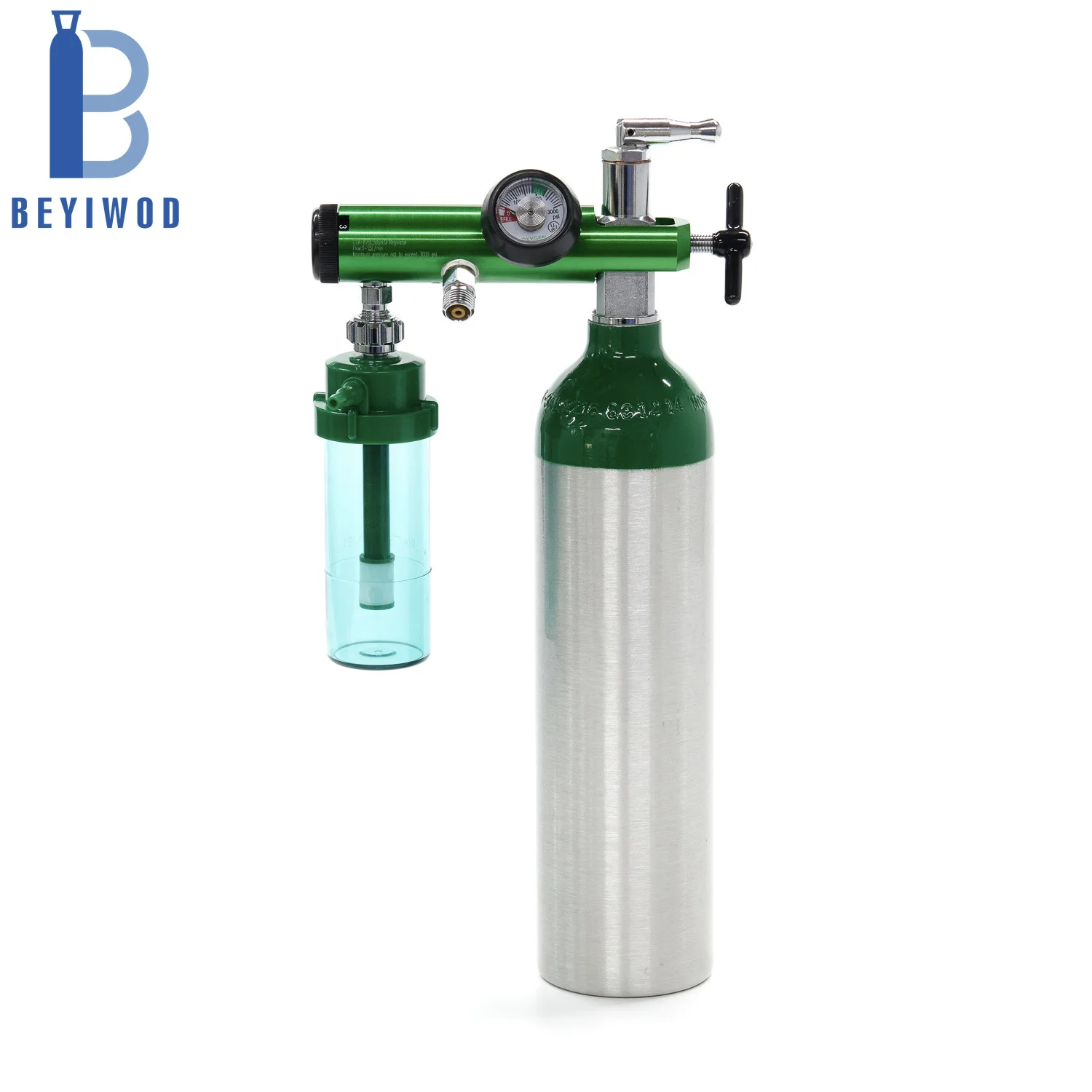

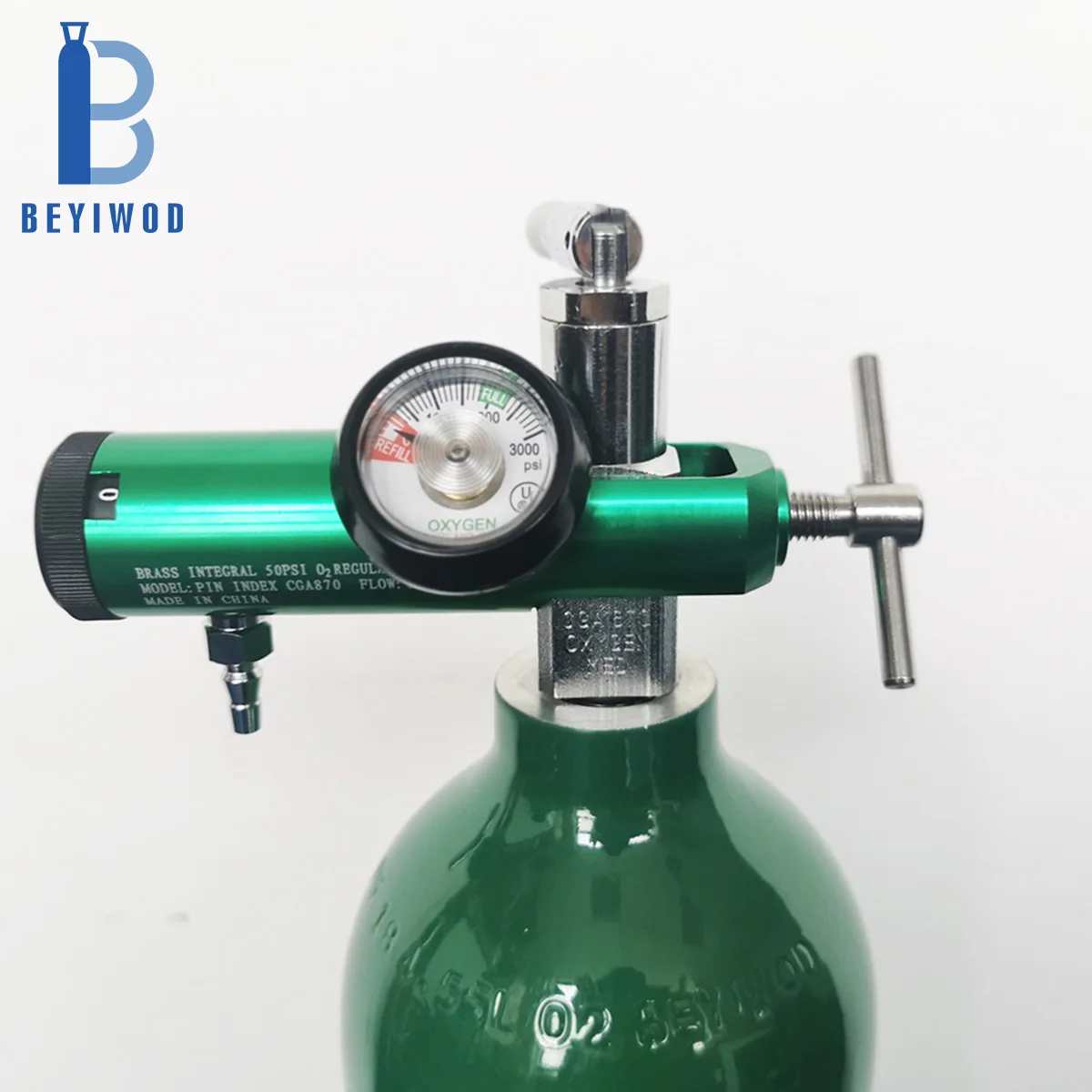

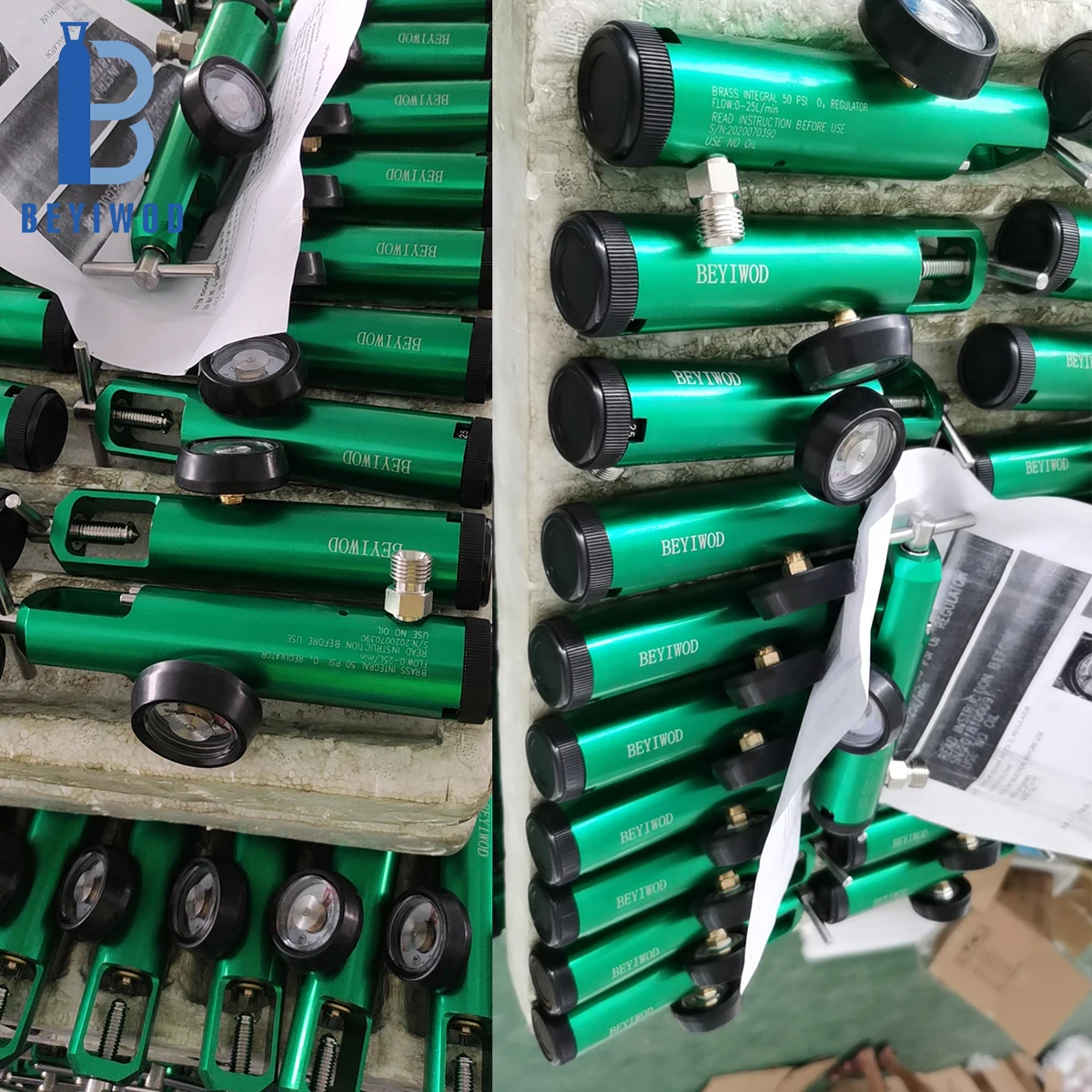

ALL M series can fit CGA870 OXYGEN REGULATOR, we can offer different color , green , red, yellow （whatever you want). the flow range is 0-25 or customized, please click the photo, if you want buy one for your cylinder!

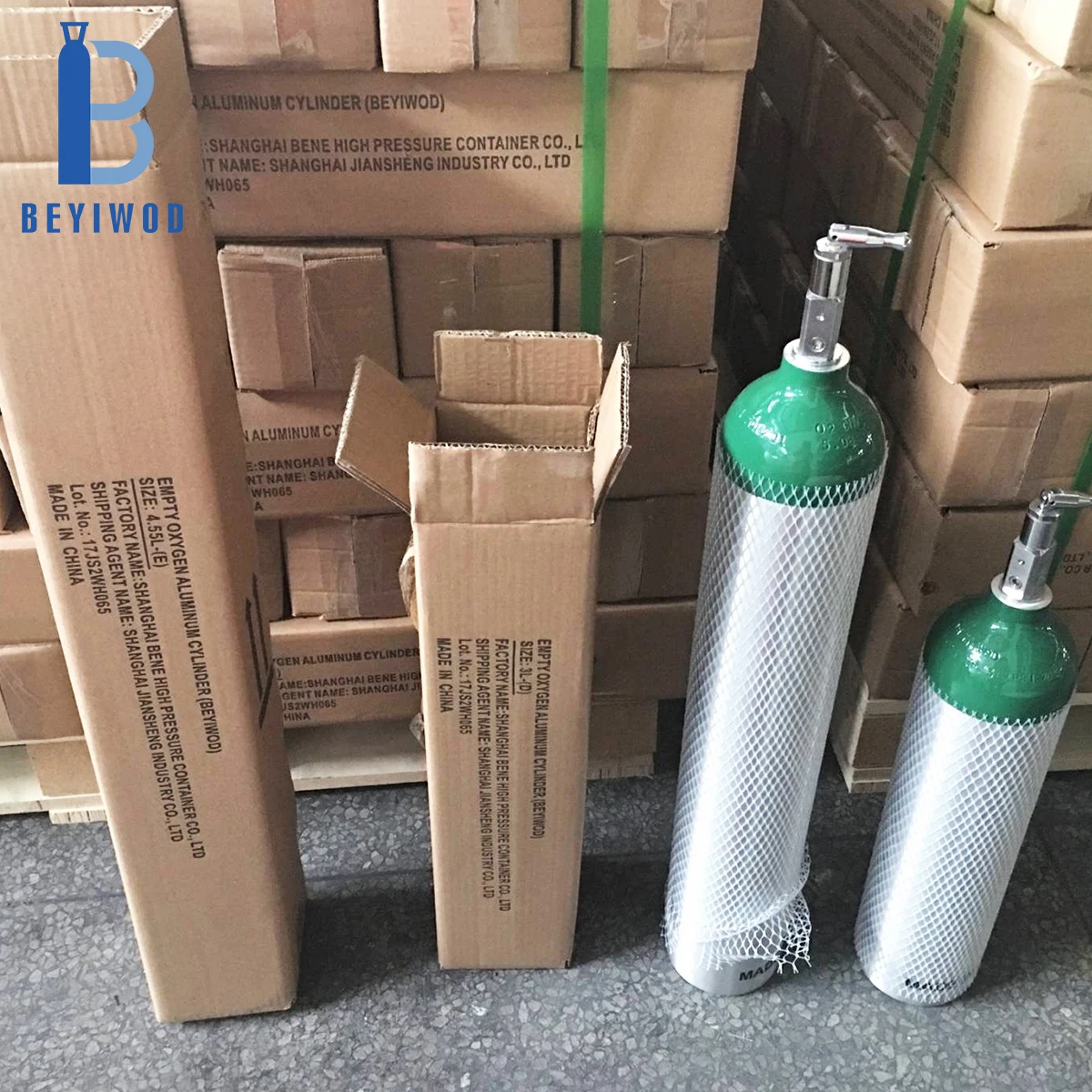

Packing & Delivery
nylon net , carton and wooden pallet. usually, 1pc/box Or as request.if you have other question for packing please talk with me now!
