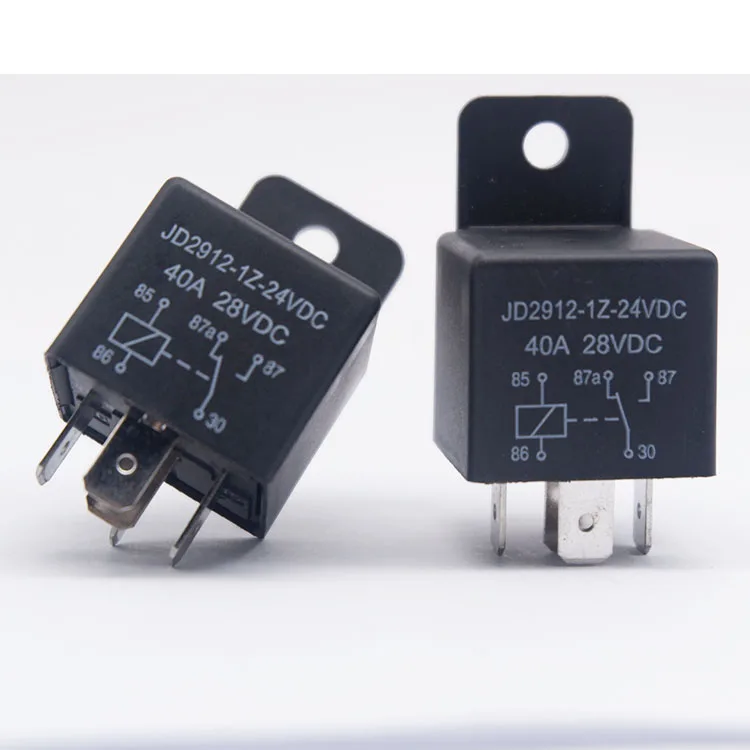

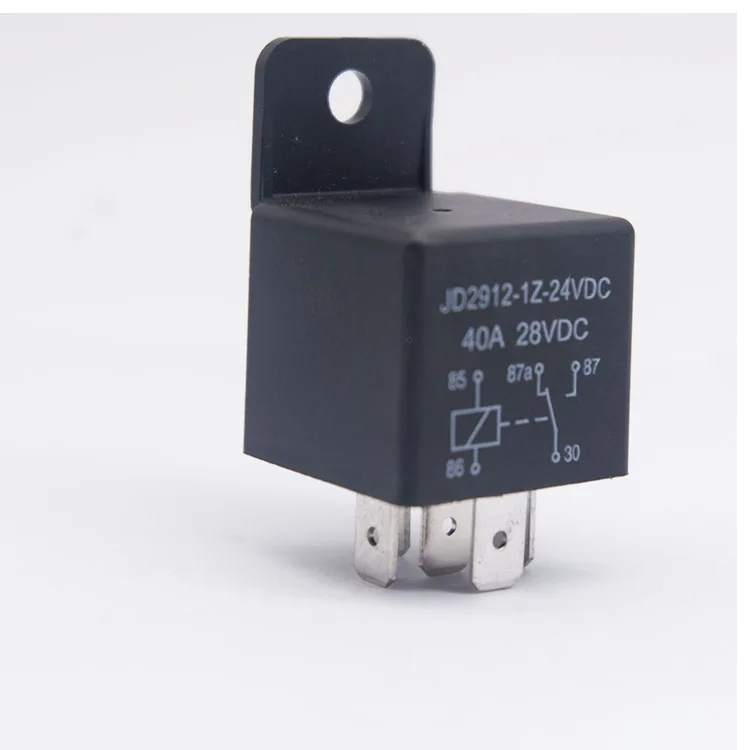

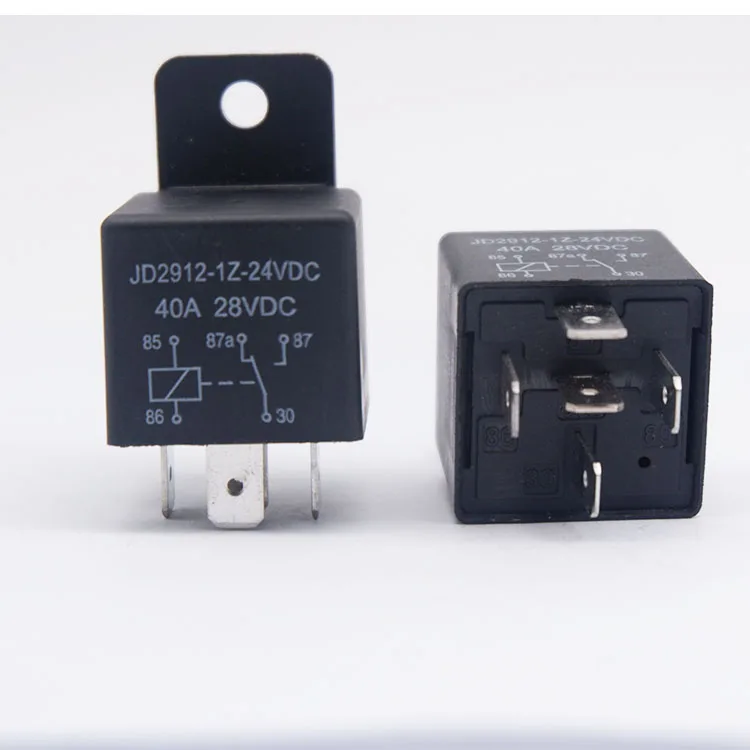

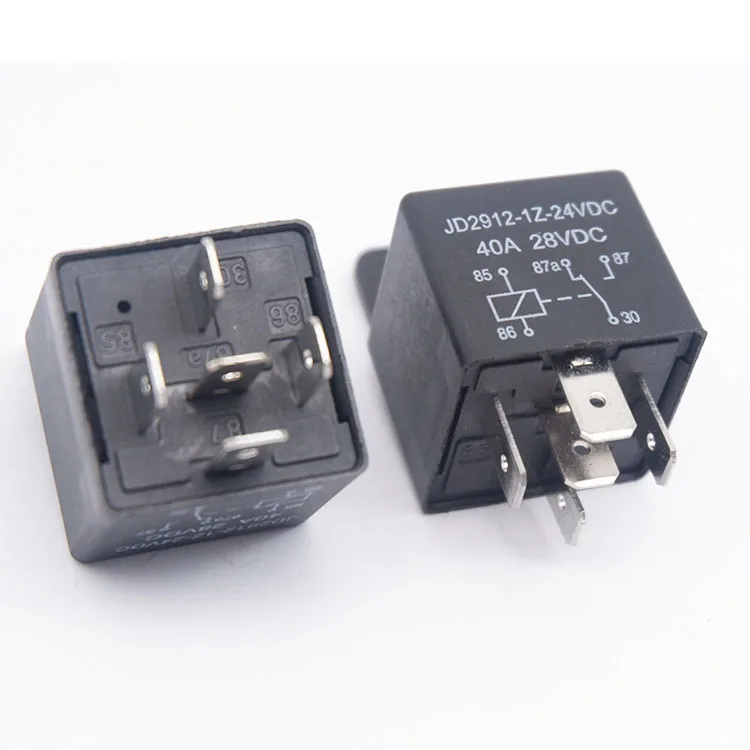

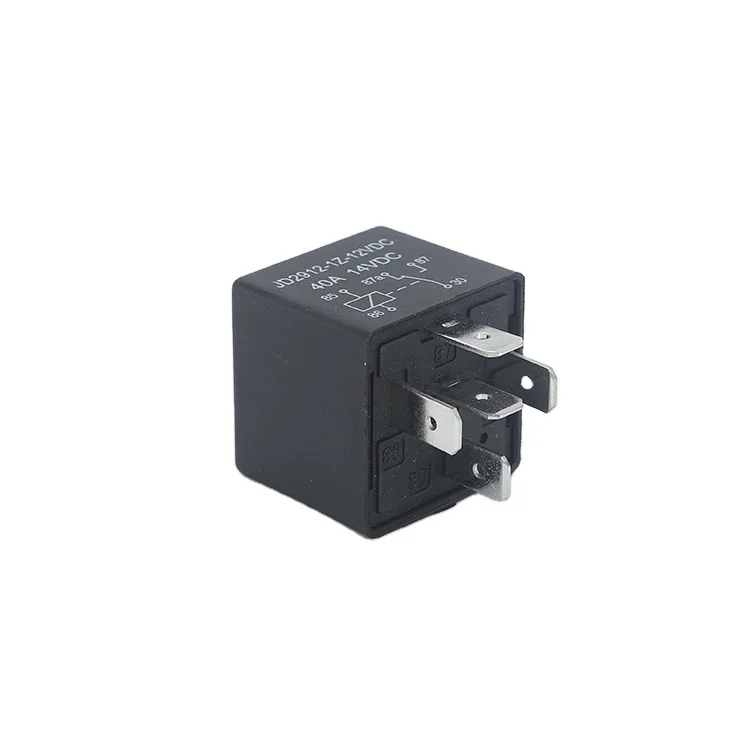

High Performance Pin Fan Parts Relay 24V 5 pin 40A Relay
- Category: >>>
- Supplier: Yueqing Kuanghong Electronic Technology Co. Ltd.
Share on (1600966408196):
Product Overview
Description
Product Description
Name | Automotive Relay |
Contact Material | Silver Alloy |
Colour | Black |
Shape | Square |
Size | 28.5*28.5*41.5mm |
Characteristic | Voltage 24V |
CONTACT DATA
Contact Material | AgSnO12 |
Contact Form | 1Z(1C)\\1H(1A) |
Contact Ratings | NO:40A 14VDC |
Contact Resistance | 100mMax at6VDC 1A |
Max Switching Current | 40A |
Max Switching Voltage | 75VDC |
Max Switching Power | 560W |
Life Expectancy Electrical | 100,000 Operations(at 30 Operations/minute) |
Life Expectancy Mechanical | 100,000 Operations |
COIL SPECIFICATION
Nominal Voltage（VDC） | 12 | ||
Coil Resistance（Ω） | 1.8W | 80 | |
Max Operate Voltage（VDC） | 6.0~8.0 | ||
Mix Release Voltage（VDC） | 1.2~3.6 | ||
Max Applicable Voltage(VDC) | 15.6 | ||
CHARACTERISTICS
Temperature Range | -30℃~+80℃ | ||
Vibration Resistance | 10~55Hz，1.5mm | ||
Shock Resistance | Operations Extremes | 10g | |
Damage Limits | 100g | ||
Humidity | 40%~85% | ||
Insulation Resistance | 100mΩ Min at 500VDC | ||
Safety Standard | CCEE | ||
Dielectric Strength Between Open Contacts | 500VAC（for one minute/sec） | ||
Between Contact And Coil | 750VAC(for one minute/sec) | ||
Operate Time | 7ms | ||
Release Time | 5ms | ||

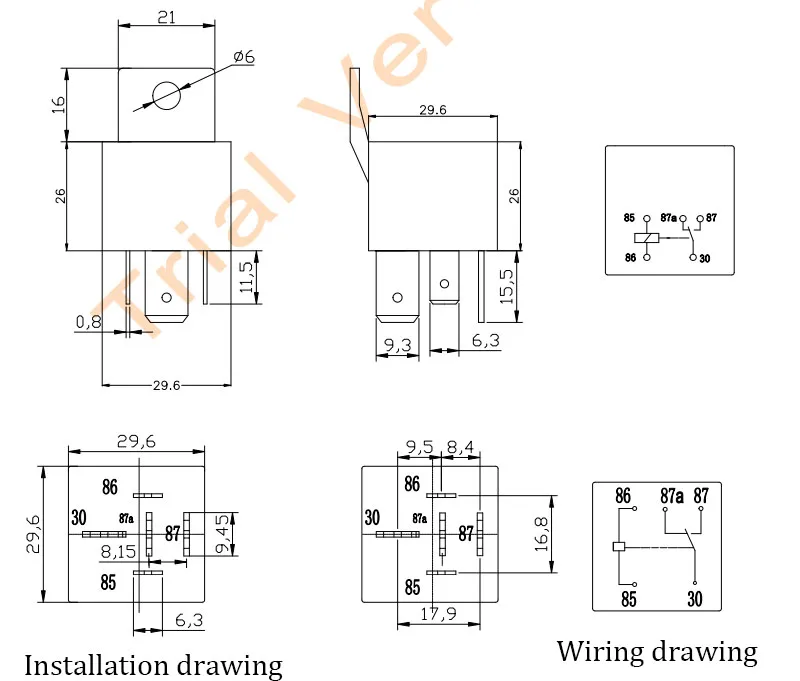

Specification
