cake slicing equipment Ultrasonic cutter
- Category: >>>
- Supplier: Hangzhou Cheersonic Ulltrasonics Equipments Co. LimitedHangzhou Limited
Share on (1600966552605):
Product Overview
Description
Please contact us for more information. Cheersonic Linked with success. We follow this guiding principle by constantly developing our technologies and products so that we can continue to produce optimum plastic connections. Our corporate history is also associated with success: continuous growth ensured that we were able to expand our customer base.
Ultrasonic Cutting System - CS1000DC Ultrasonic Power Supply

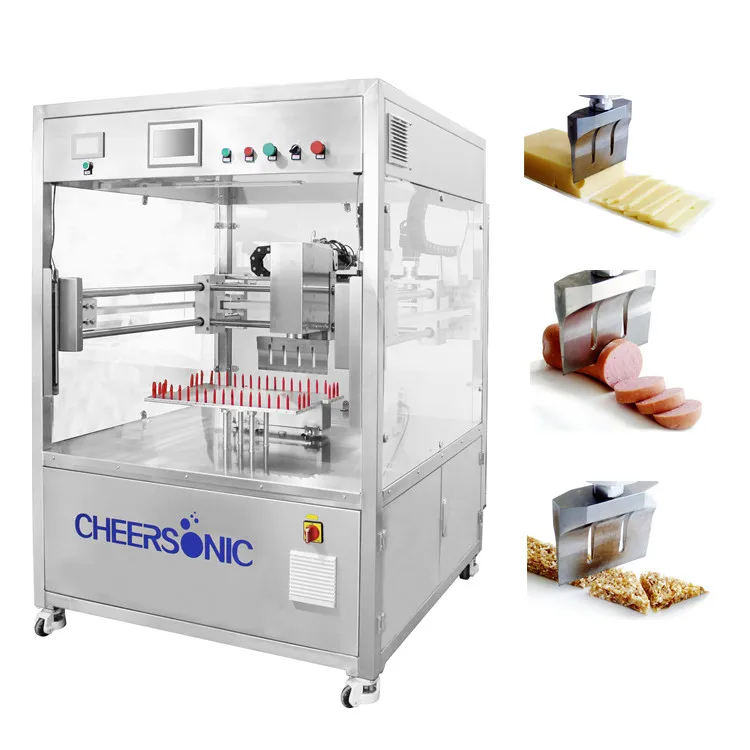

UFM5000 Automatic Ultrasonic Food Cutting Machine
Product Description ·
UFM5000 intelligent ultrasonic food cutting standard machine is a fully automatic, high-performance food cutting equipment, with multi-axis standard control system. In the actual production of food according to the needs of fixed-point positioning cutting, automatic completion of operations, greatly improving work efficiency. With the most economical purchase, to maximize the benefits.
The device has four cutting modes, including circular aliasing mode, slice mode, rectangular cut box mode, rectangular tangent triangle mode. Working speed and angle parameters are adjustable.
For the round, rectangular and other shapes of bread, cakes, pizza and other baked goods for a variety of shapes of cutting function.
Cutting Mode Schematic ·
Actual Cutting Effect ·
![]{43K6]~%NVMJ0A3G7APA}L.jpg](http://sc01.alicdn.com/kf/HTB1sq0aSpXXXXX8XVXXq6xXFXXXy/230500914/HTB1sq0aSpXXXXX8XVXXq6xXFXXXy.jpg)
Key Features ·
Ultrasonic cutting to achieve non-contact, zero pressure cutting processing mode.
Treat creamy jelly and other sticky food sticky knives, smooth and beautiful.
Simple and fast product positioning, according to the needs of all-round cutting.
The cutting products can be automatically positioned and cut according to the parameters entered in advance.
Automatic use of conveyor belts for efficient food cutting, saving manpower.
Respond to market consumers’ needs to maximize food hygiene and safety.
During the slitting process, the job is fully automated without human intervention and increased productivity.
Application ·
This ultrasonic cleaning machine for food can be applied to baking foods (cakes, bread, pizza, sandwiches, etc.) that are shaped like round, rectangular, triangular, etc. to achieve the optimal cutting effect.
Baking cakes
Pizza
Sandwiches
Candy
Ice cream
Cheese
Frozen products
Parameter ·
| Automatic UFM5000 Ultrasonic Food Slicing Machine | |
| Machine Size | 1300*1280*1700mm |
| Weight | 300kg |
| Voltage | 220v |
| Rated Power | 6kw |
| Cutting Speed | <60beats/minute |
| Can Handle Size Range | 400*600mm |
| Temperature Range | -14℃—40℃ |
| Height of the Effective Blade | 60mm |
| Length of the Effective Blade | 600mm |
| Control System | Six-axis Control System |
| Mechanical Material | Stainless Steel |
| Blade Material | Titanium |
| Operation Mode | Automatic |
| Operation Interface | Touch Screen |
| Food Loading Mode | Semi-automatic |
| Cutting Can Control Height | YES |
| Cutting Can Control Angle | YES |
| Cutting Accuracy | ±0.2mm |
Related Suggestion ·
Choose Cheersonic ·

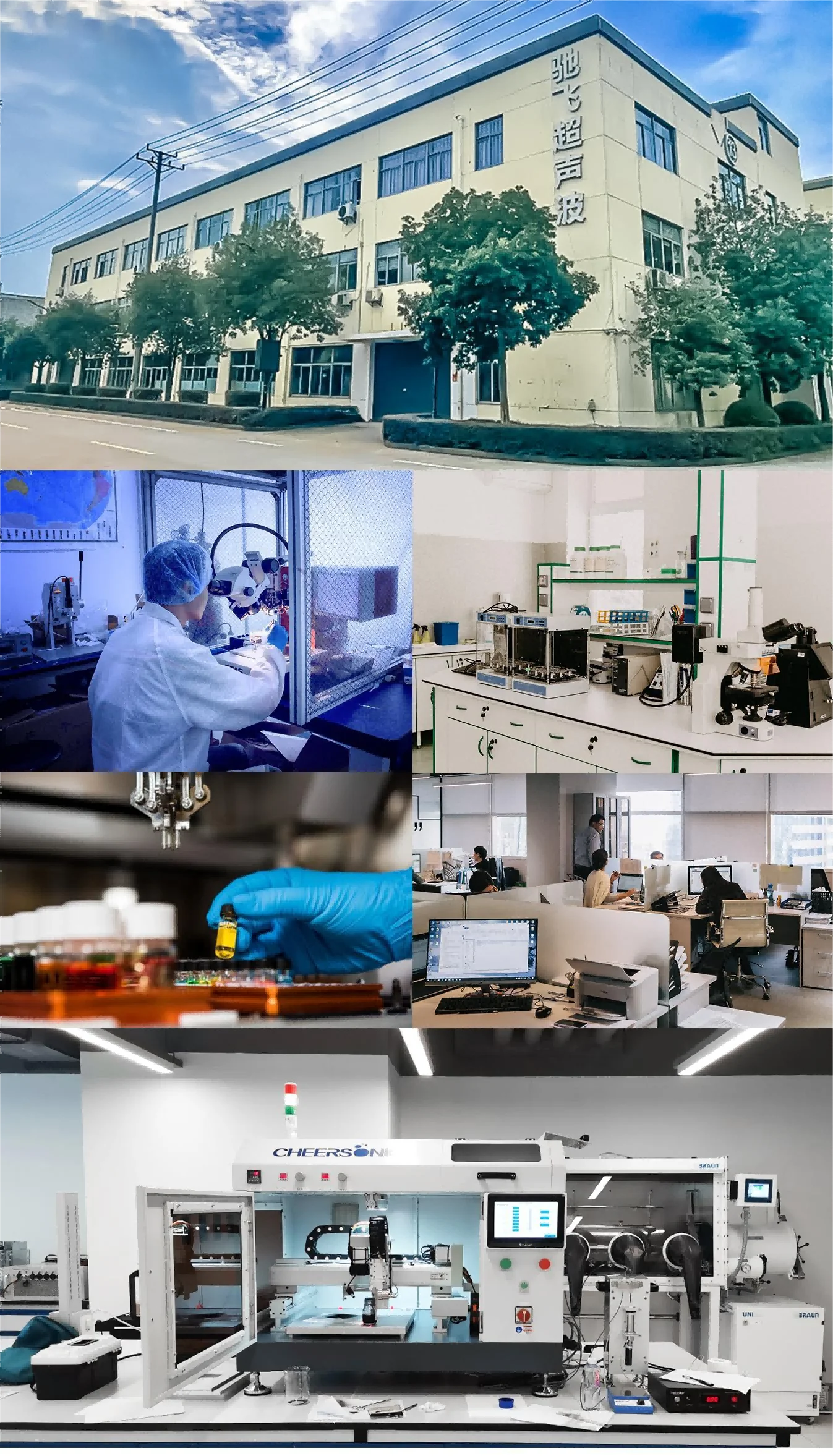

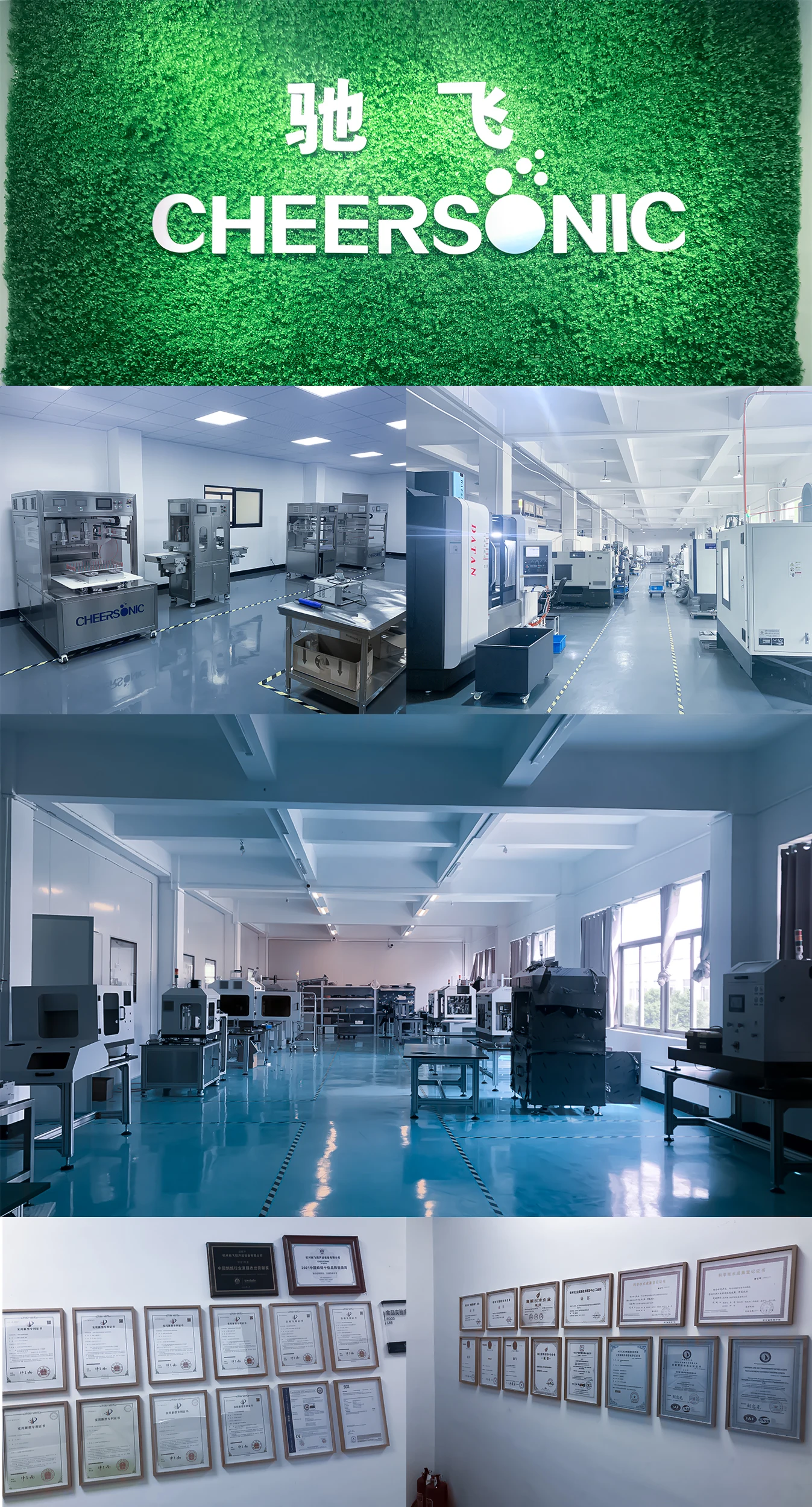

Founded in 1998, Cheersonic is the manufacturer and marketer of industrial ultrasonic products. As an industrial leader of ultrasonic technology, Cheersonic specializes in the design, development, manufacture, and marketing of ultrasonic products in the line of food process, plastics joining, medical coating and ultrasonic processing. Cheersonics principal manufacturing and distribution facility is located in Fuyang, Zhejiang province.
We develop and produce ultrasonic equipments which we sell as complete units or individual assembles such as generators and converters. Our customers and special purpose machine builders benefit from high-quality components and machines with simple, user-friendly operation. We are committed to providing solutions that can meets the needs of our customers, providing the latest in technology, both in products and processes.
For us, quality is not just an empty word but a basic attitude which is the foundation for our thinking and actions. Each product has checked by our QC department before sending to our customers.
Free test
Economic, Environmental & compatible design of all products
Easy maintenance & inexpensive spare parts
24 hours technical supports and after sales services
Diversity of customized services, Strong OEM capability available
One step sourcing on all ultrasonic products
The most professional team in line of ultrasonic
Certificate ·
How to work with cheersonic ·

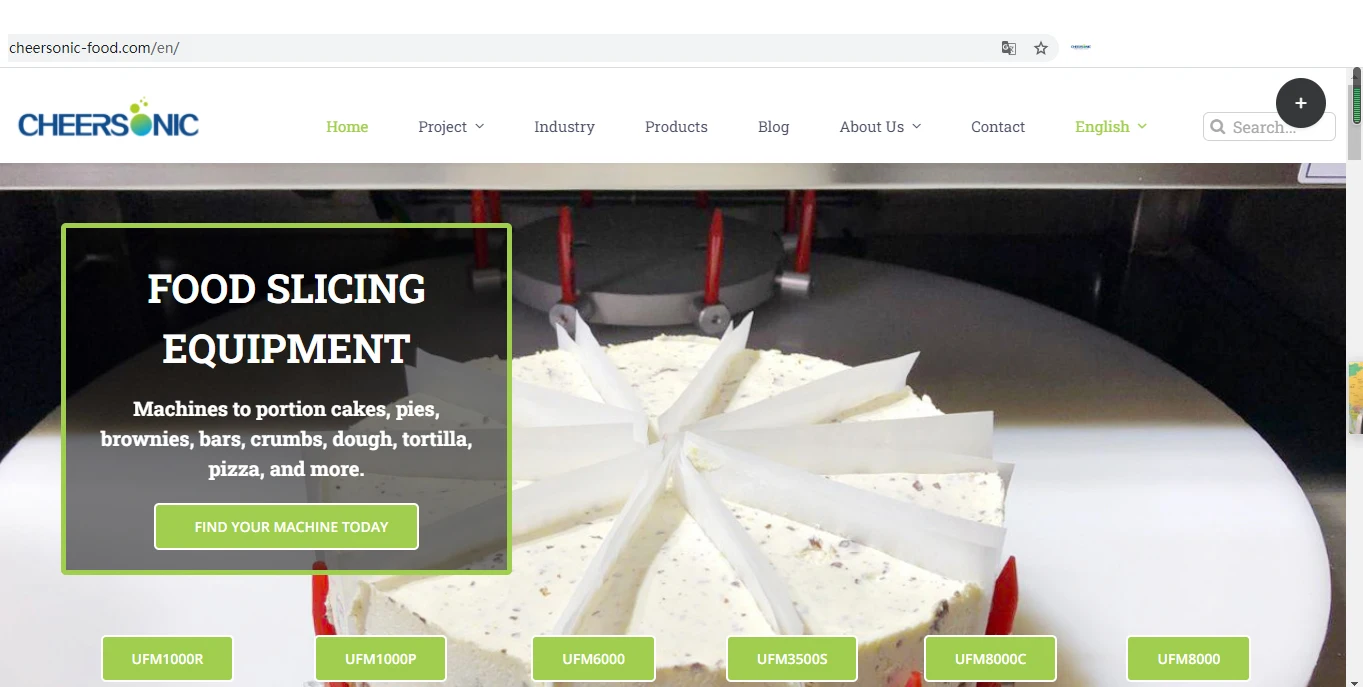

Visit the website for more details and send us the enquire, we will reply it within 24 hours
Welcome to visit our official website for more details and leave message on“contact us", we will reply it within 24 hours
Let our sale engineers know your condition and requirement and then we will estimate your process and let you know the solutions
We will help you test and estimate if you send us your materials for test
The ultrasonic solutions will be made according to your condition
Please contact us for more detail. Cheersonic Ultrasonics are Looking forward to have a cooperation with you.
