BLIIoT Node Red Gateway Linux Ubuntu Debian ARM Embedded Industrial PC
- Category: >>>
- Supplier: Shenzhen Beilai Technology Co. Ltd.
Share on (1600966583763):
Product Overview
Description
Details Images
Product Description
Model List
The Embedded controller comes with 4 serial ports, 1 CAN port, 2 Ethernet ports, 2 Digital inputs, 2 Digital outputs, 2 SIM card slots, 1 Mini PCIe expansion slot for 4G/WiFi module. This tiny embedded computer is widely applicable to a variety of industrial solutions.

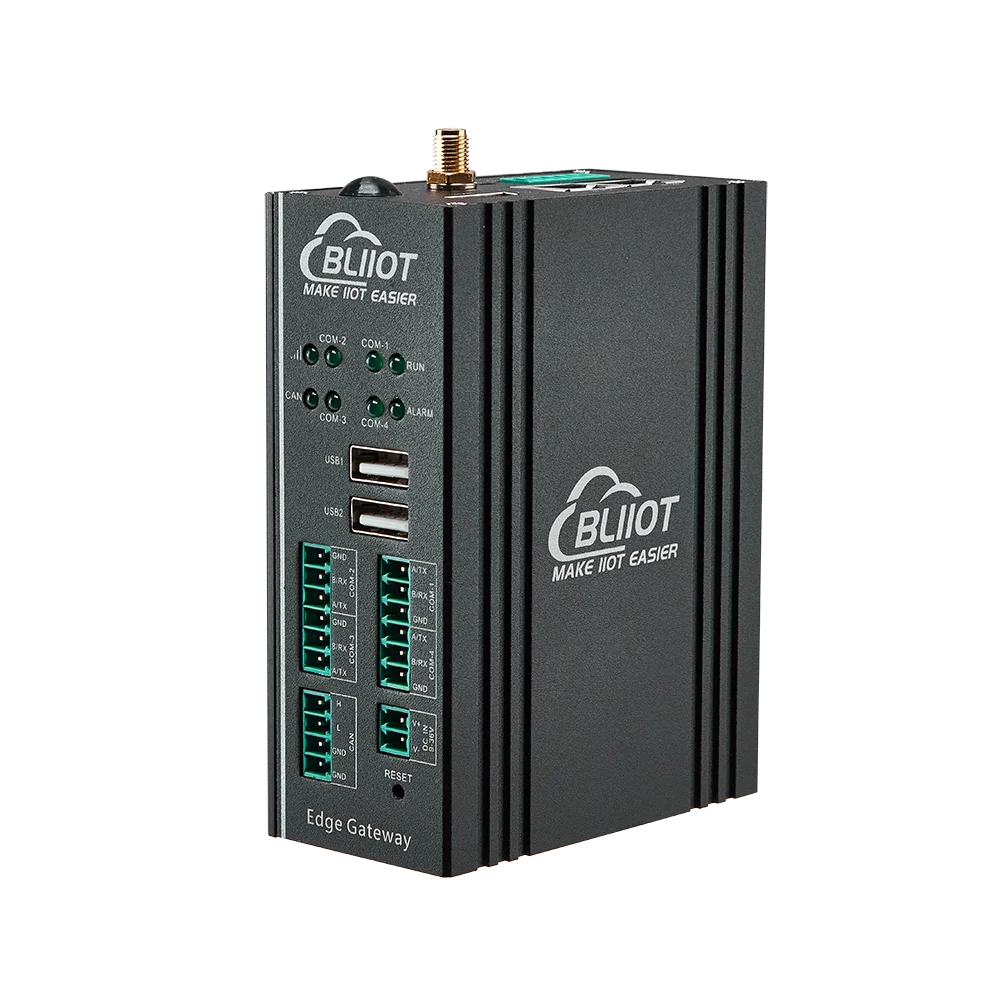

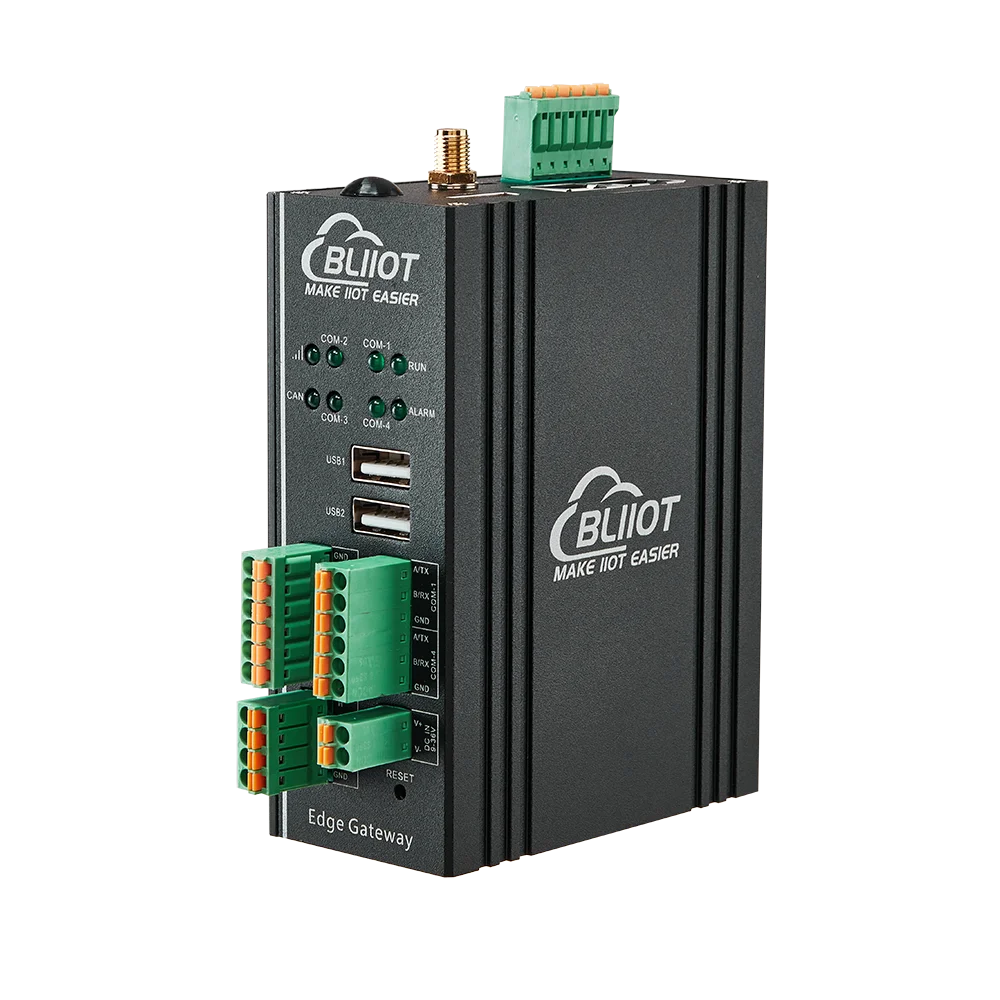

BL304 Embedded ARM Edge Computer EdgeCom
EdgeCOM BL304 Embedded ARM Computer is built around NXP i.MX8M based on Arm Cortex-A53 and Cortex-M4 cores, running speed up to 1.8GHz, 2G DDR4 RAM, 8GB eMMC Flash. The embedded ARM based controller supports Linux, FreeRTOS and other systems.
The Embedded controller comes with 4 serial ports, 1 CAN port, 2 Ethernet ports, 2 Digital inputs, 2 Digital outputs, 2 SIM card slots, 1 Mini PCIe expansion slot for 4G/WiFi module. This tiny embedded computer is widely applicable to a variety of industrial solutions.
Model | Parameter | Description |
System | CPU | i.MX8M Mini Quad Core 64-bit |
Processor Frequency | 1.8GHz | |
RAM | 2GB DDR4 | |
Storage | 8G eMMC | |
Power | Input Voltage | DC 9～36V |
Power Consumption | Normal: 360mA@12V Maximum: 550mA@12V | |
Reverse Polarity Protection | Support | |
Network Port | Network Port Specifications | 2*RJ45, 1*10/100Mbps, 1*10/100/1000Mbps, adaptive MDI/MDIX. |
Network Port Protection | ESD ±16kV (contact), ±18kV (air); EFT 40A (5/50ns); Lightning strike 6A (8/20µs). | |
Serial Port | Number of Serial Ports | 4*RS232/RS485 |
Serial Baud Rate | 300bps-115200bps | |
Data Bits | 7,8 | |
Check Digit | None, Even, Odd | |
Stop Bt | 1, 2 | |
Serial Port Protection | ESD ±8kV (contact), ±15kV (air); EFT 2KV, 40A (5/50ns). | |
USB Interface | Quantity | 1*Micro-USB, 2*USB 2.0 |
Protect | Overcurrent protection | |
SD Card Slot | Quantity | 1 |
Specification | Supports SD, SDHC and SDXC (UHS-I) cards | |
HDMI Interface | Quantity | 1 |
Other | Shell | Metal Material |
Size | 110mm×43mm×83mm(L*W*H) | |
Protection level | IP30 | |
Installation method | Rail | |
Operating Temperature | 0℃~70℃ | |
Relative Humidity | 10~90% (No Condensation) |
