Integrated Open Pit Portable Air Compressor Stone Mountain Borehole Drilling Machine price
- Category: >>>
- Supplier: Shanghai Newton Machinery Co. Ltd.
Share on (1600966657149):
Product Overview
Description
Integrated Open Pit Portable Air Compressor Stone Mountain Borehole Drilling Machine price

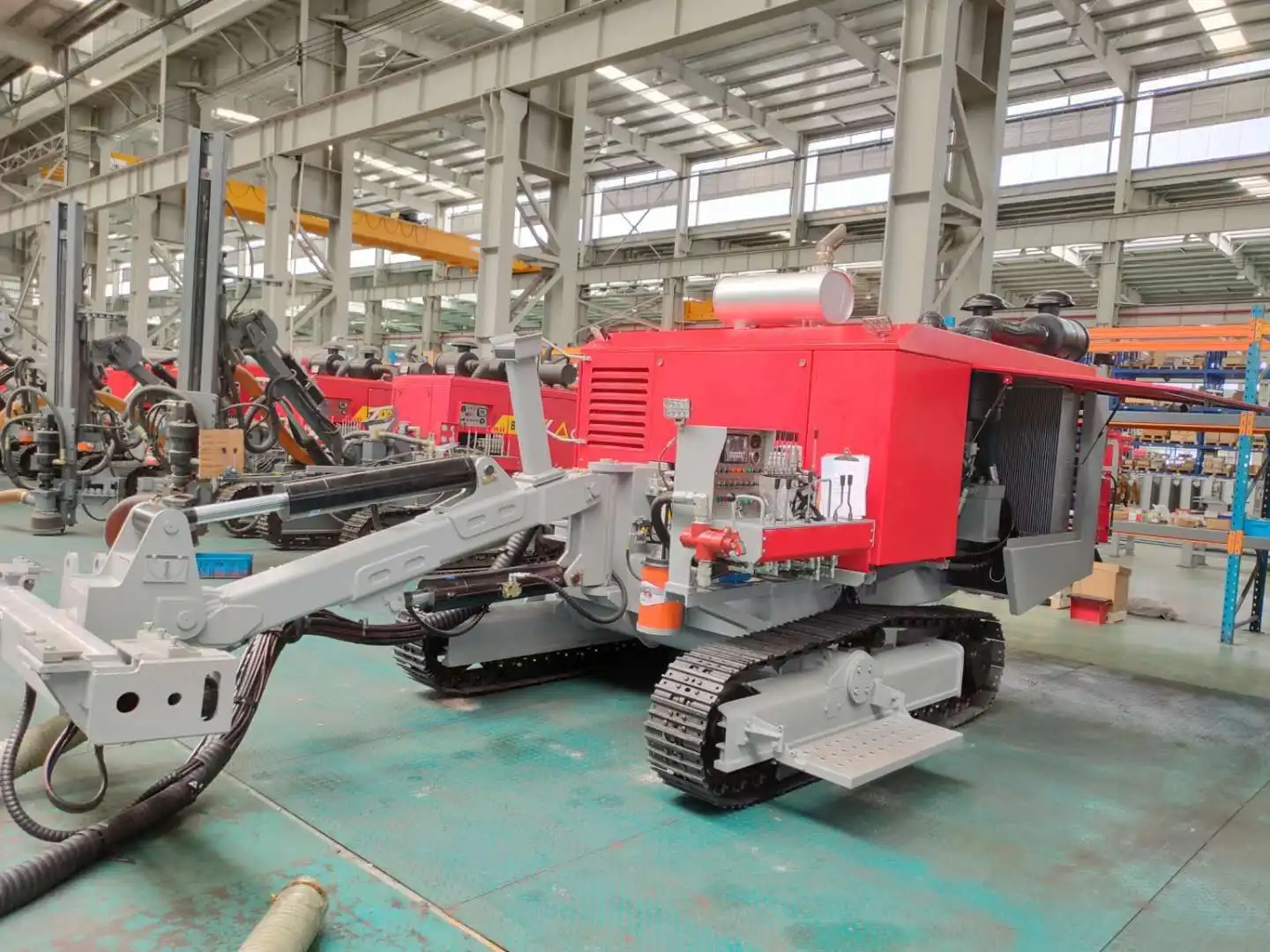

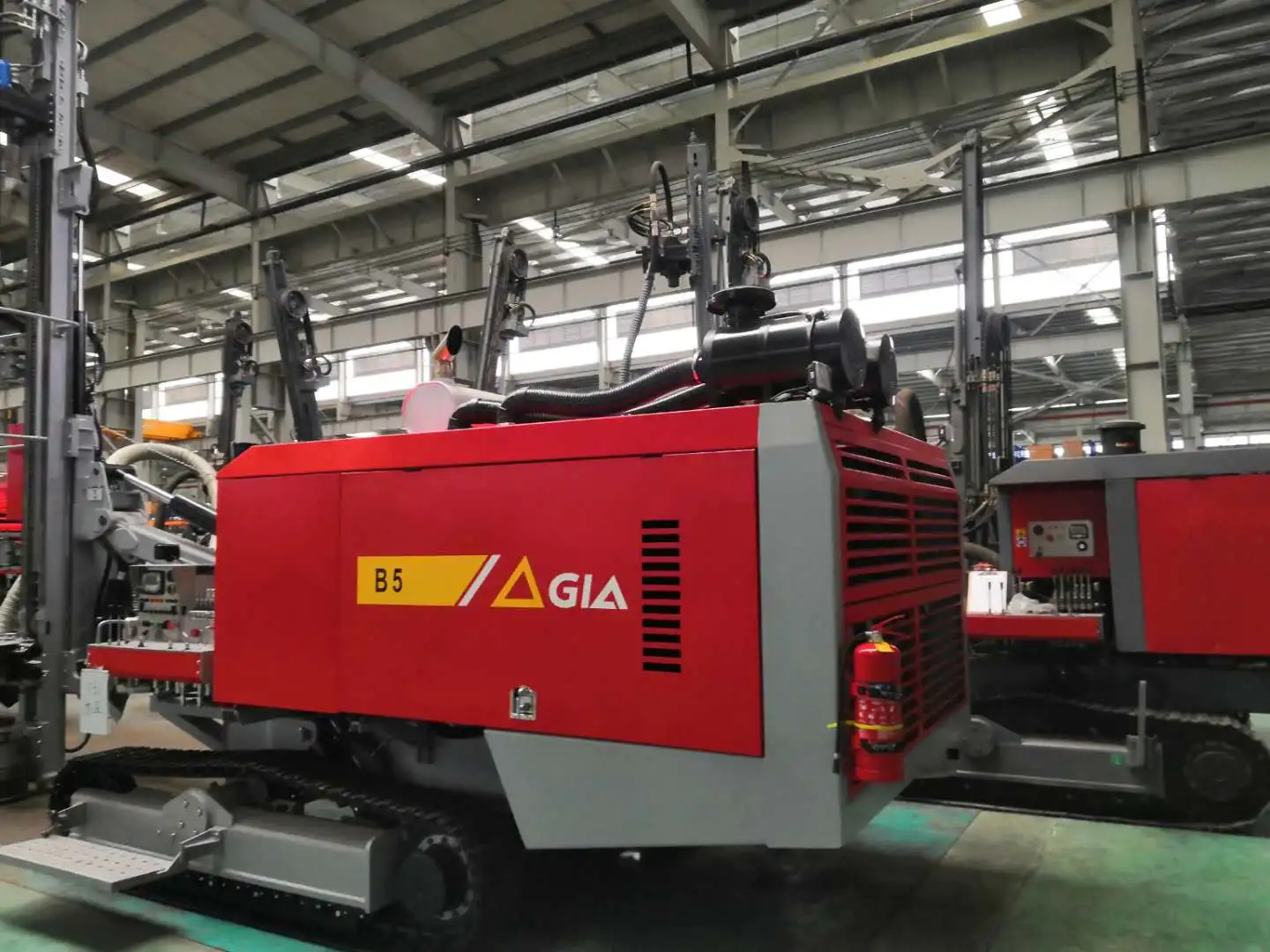

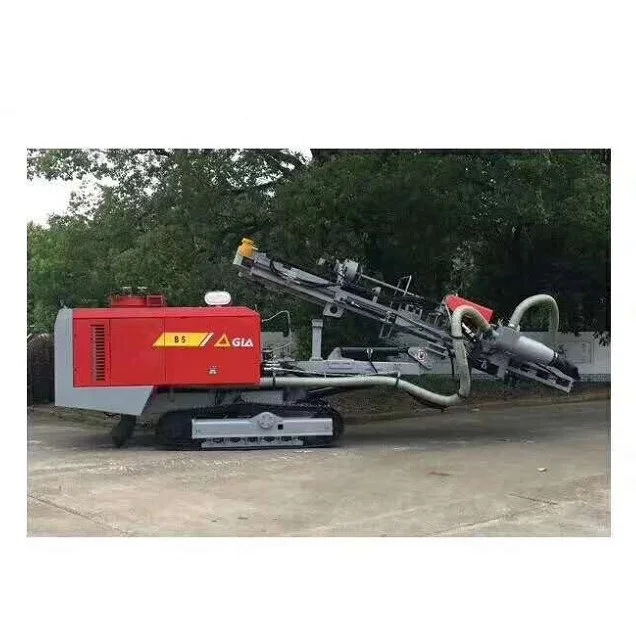

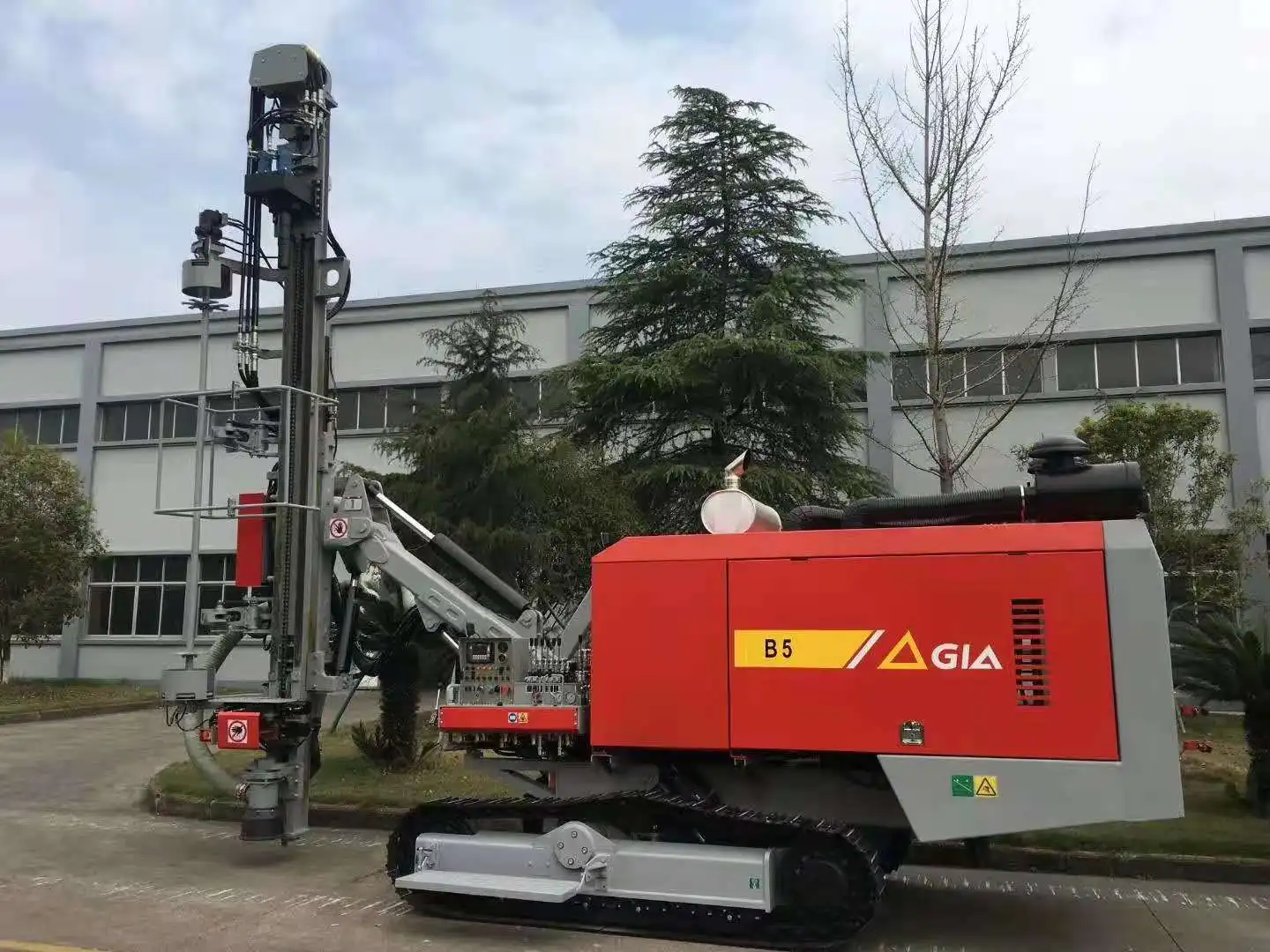

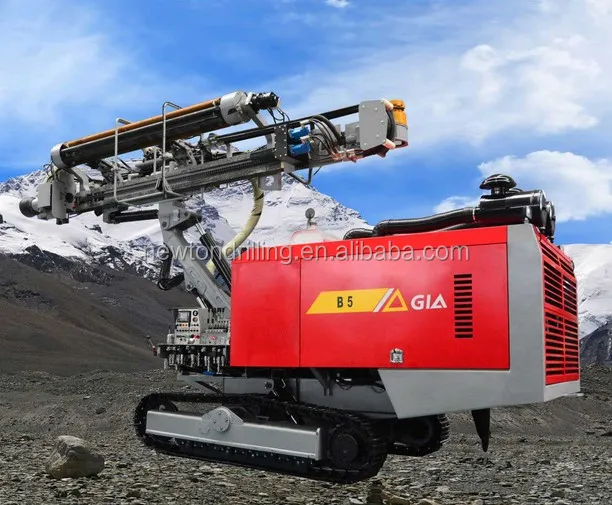

B5 integrated open-air DTH drilling rig is a drilling equipment that combines open-air DTH drilling rig, screw air compressor and dust collector.
It has a compact structure, good integrity and easy movement. The rig is energy-efficient, safe, environmentally friendly, flexible, easy to operate, and stable in performance.
The fully automatic rod change function of the B5 drilling rig can save labor costs; excellent dust removal performance helps to minimize the impact on the environment; stable climbing ability is outstanding, and it has a very high cost performance.
With the launch of B5, the excellent comprehensive performance makes it to be the leader among similar products in China, and it has won the praise and trust of customers in Xinjiang.
It is mainly used for drilling and blasting holes in open pit engineering such as mining quarrying, road construction, water conservancy and electric power etc. Suitable for drill hole range: 110 - 130 mm.
As a key research and development machine, the B5 integrated drilling rig is an open pit mining quarry drilling rig that combines high efficiency and low fuel consumption.

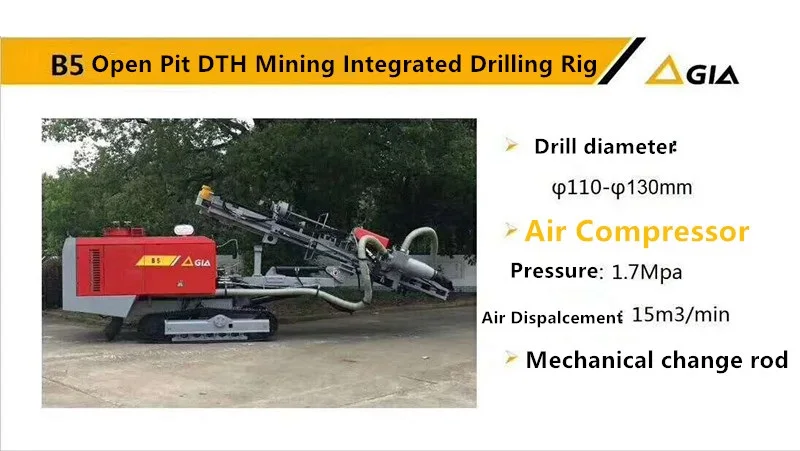

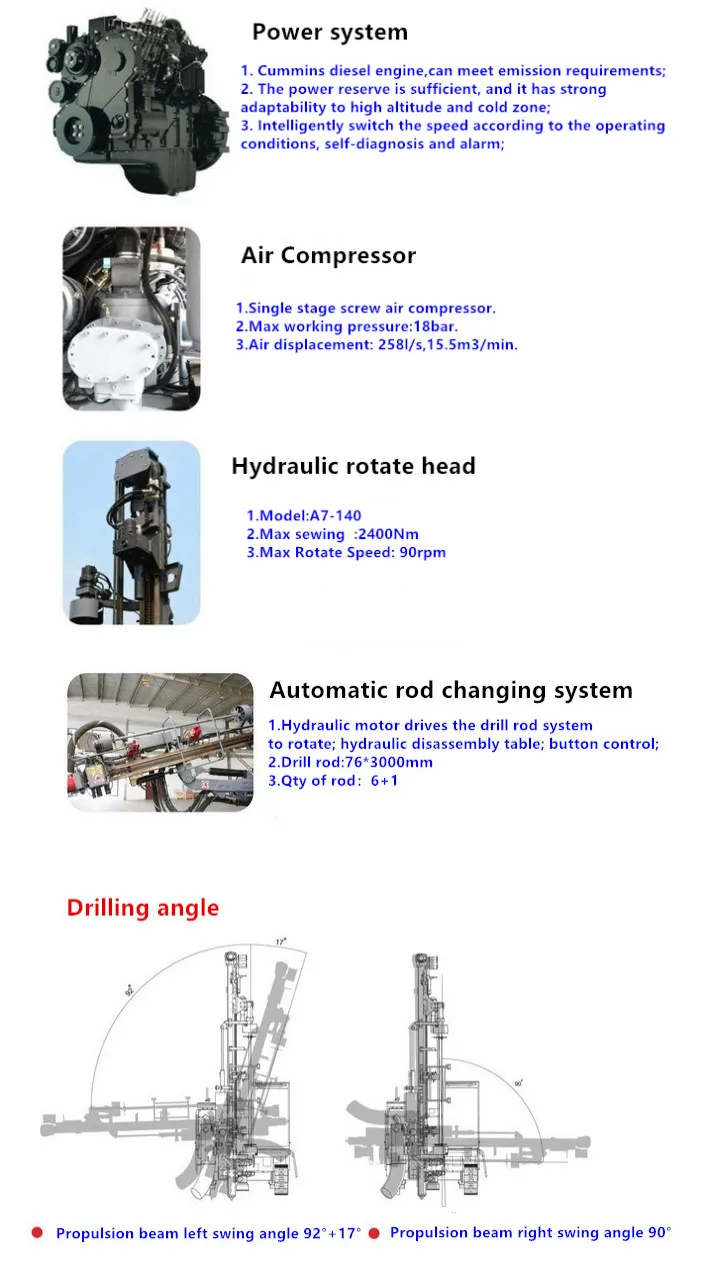

Technical Parameter
| Diesel engine | DCEC |
| Diesel engine model | QSC8.3-C260 |
| Rated Power(KW@rpm) | 194 kw @2200 |
| Air Compressor end | HANBELL |
| Air displacement(m3/min) | 15 |
| Pressure (bar) | 17 |
| Diamter of hole (mm) | 110-130 |
| Drill pipe | 76mm*3m |
| Drill Depth (m) | 21 |
| Climbing ability DTH Impactor | 4'' |
| Rod changer and number of rod | 6+1 (Mechanical Auto) |
| Rotate head | A7 |
| Rotate speed(rpm) | 0-100 |
| Max torque(Nm) | 2400 |
| Chassis | 135 pitch / 3 tooth track |
| Walking speed(km/h) | 1.6/3.2 |
| Track frame swing angle | ±10° |
| Propulsion system | Steel beam + motor + chain |
 | B3 Integrated Full Hydraulic Crawler Drilling Rig (80-115mm),Pls click to find it! |

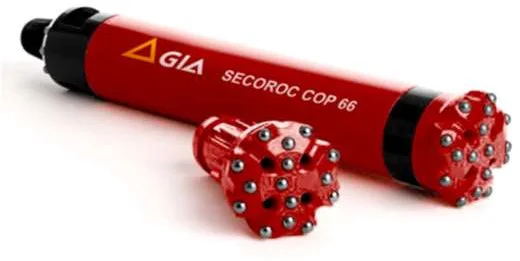

 | Recommend drill tools,pls click to view. |
Pls contact me for more informations.
Phone whatsapp:+86 18721862438.
GIA Applications

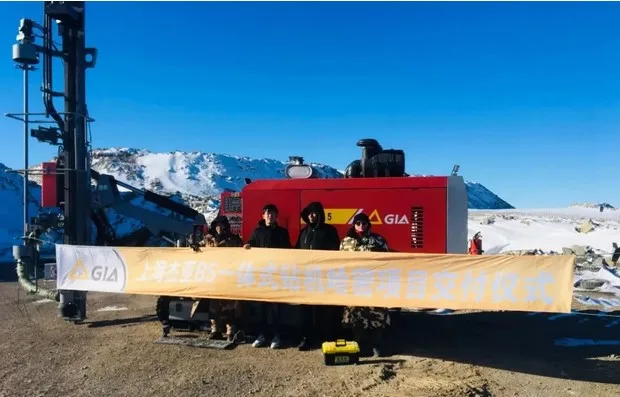

Machine working site
Company Information
Our factory was founded in 1997,covers an area of 173,160 square meters,inside there are 70,000 square meters standard workshops. We has advanced production lines,assembly lines,quality control center and electrostatic spray coating lines.Manufactures in making air compressors and drilling machines. We currently manufactures a wide range of machines,such as all kinds of piston air compressors,screw air compressors,pneumatic rock drills,pneumatic and hydraulic down hole drills,breakers,drilling wagons etc.
In May 25th 2016 Our factory signed a strategic cooperation agreement with Atlas (China) Investment Co., Ltd. Under the agreement, and WE will jointly develop, produce and sell mining & construction equipments.

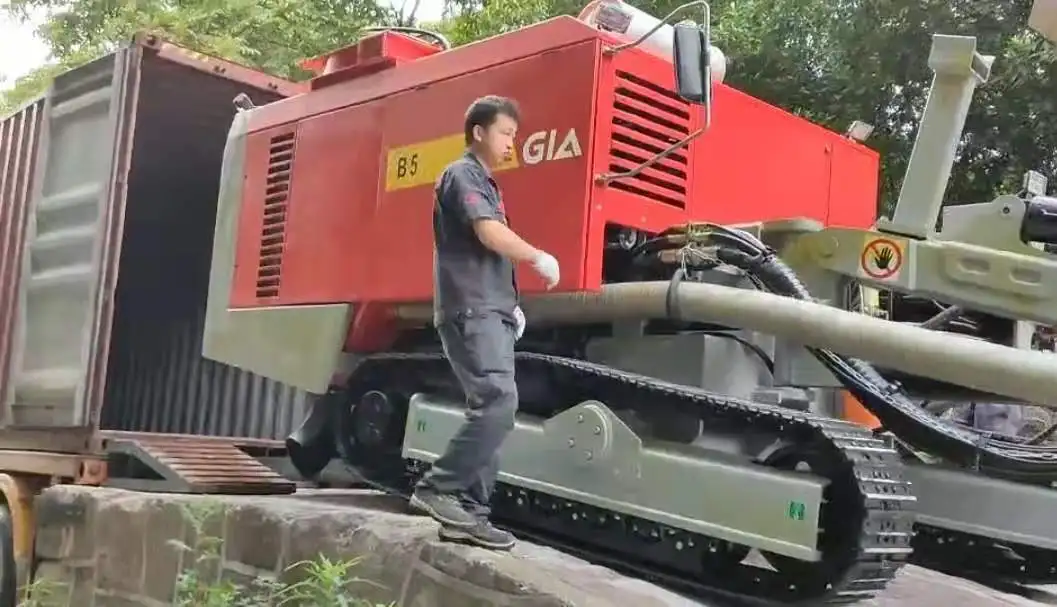

Packaging & Shipping
FAQ
1. How long is your air compressor & drilling rig warranty?
∗ 1 years for the whole machine after leave the factory
2. Do you provide After- sales service parts?
∗Of course, we have.
3.How long could your machine be used?
∗More than 10 years if have regular maintenance.
4. How is your machine quality?
∗All the machines must pass the strict test before leave factory.
And our factory has above 20 years manufacturing experience,can gurantee the quality.
5.Which payment term you accpet?
∗Now we will accpet TT,LC,Western Union,Trade Assurance online,Paypal,Cash,etc.
6.How about the delivery time?
∗Within about 1 week.
7.Can visit your factory?
∗Yes,welcome to our factory. We will treat you in China,and pick you up at airport.
We are near to Pudong Airport.
8.Are you a manufacturer?
∗We are trade offcie in Shanghaim,our factory is in Zhejiang.
