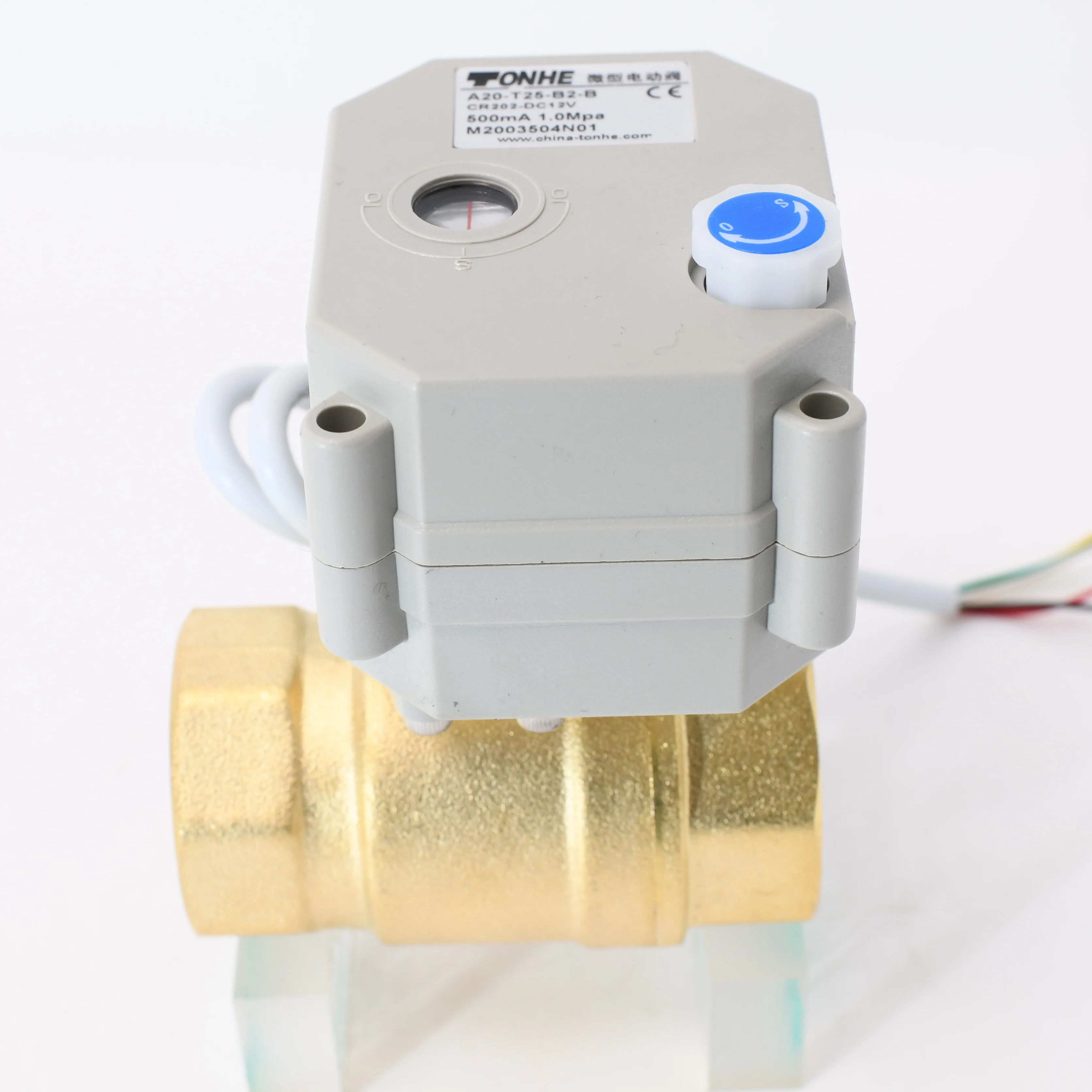

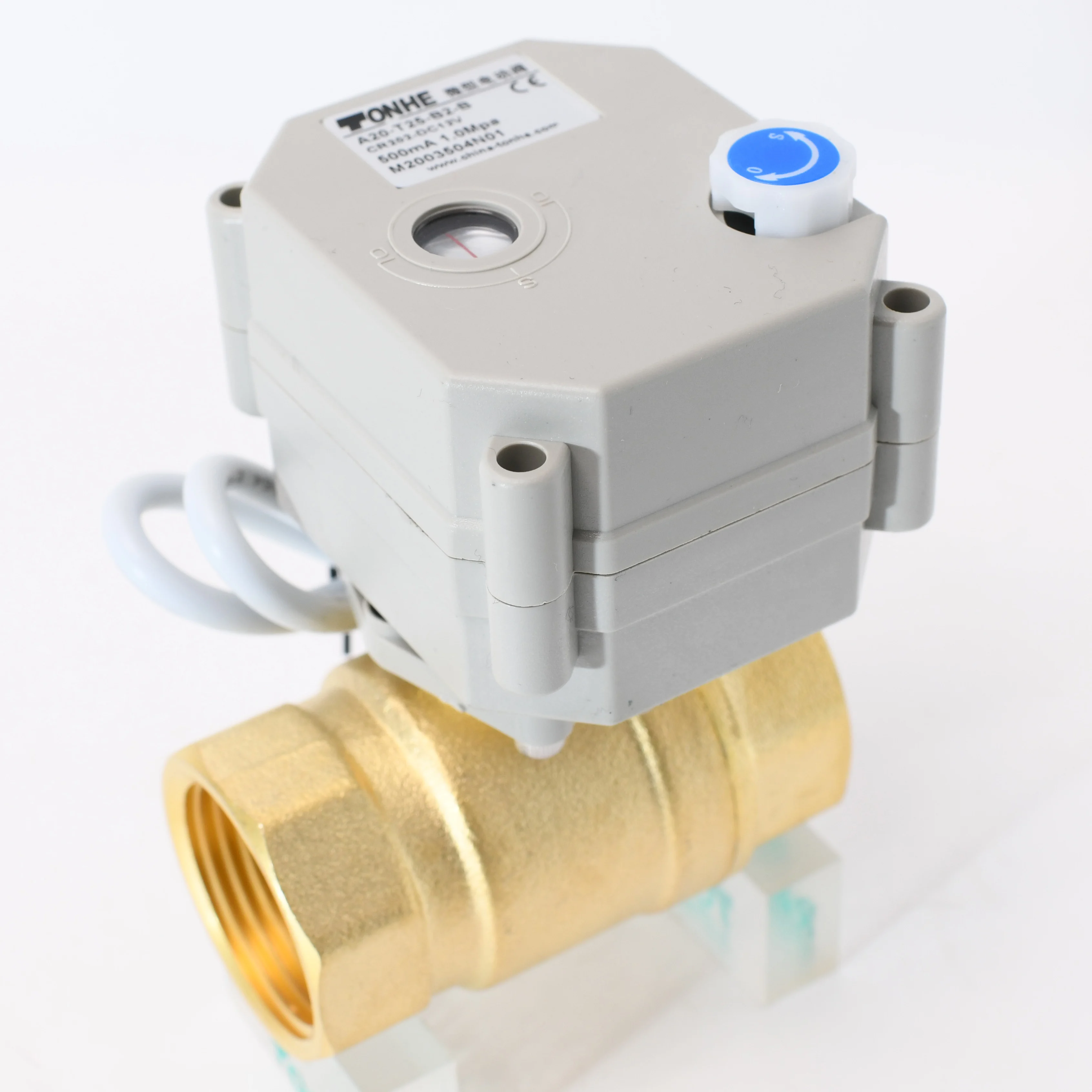

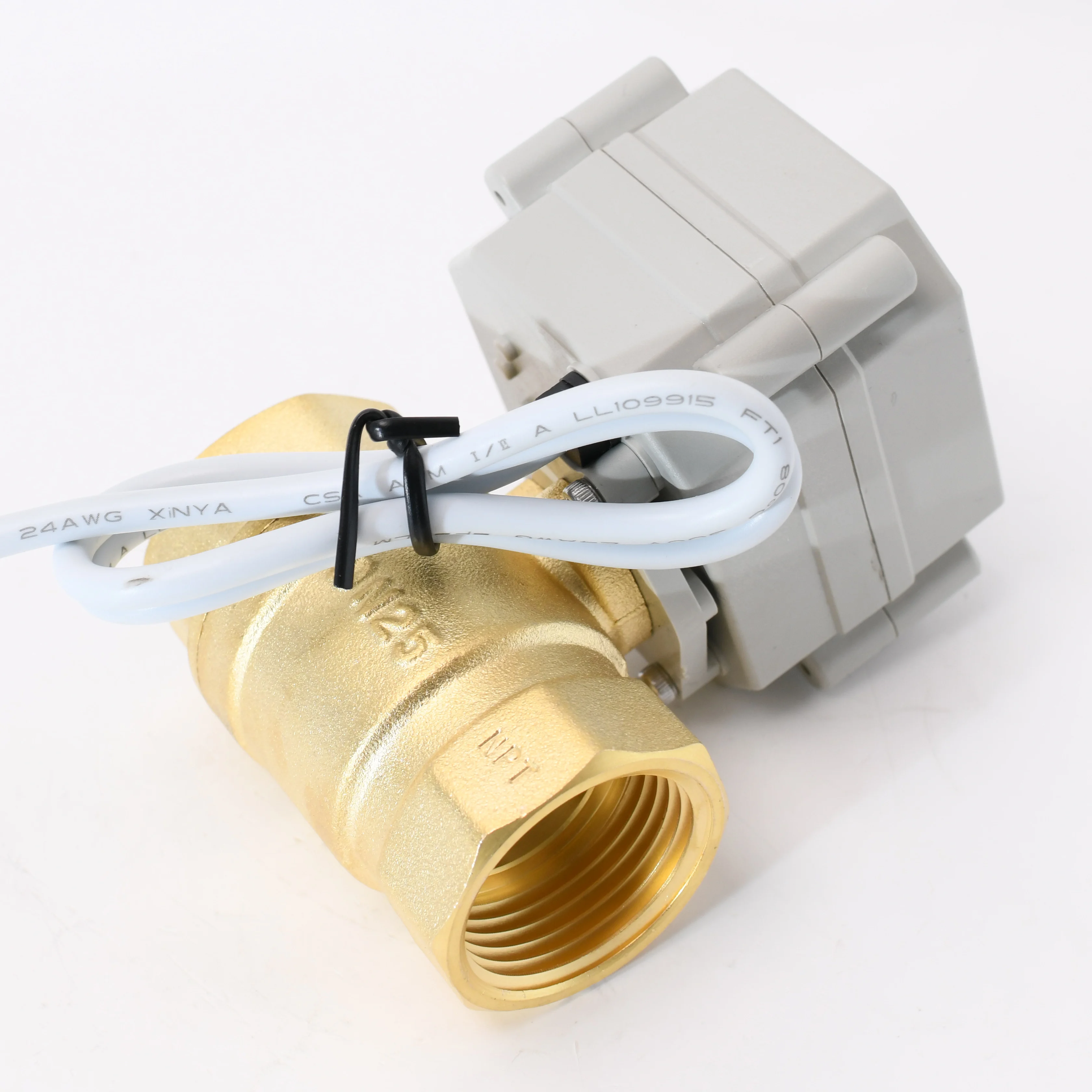

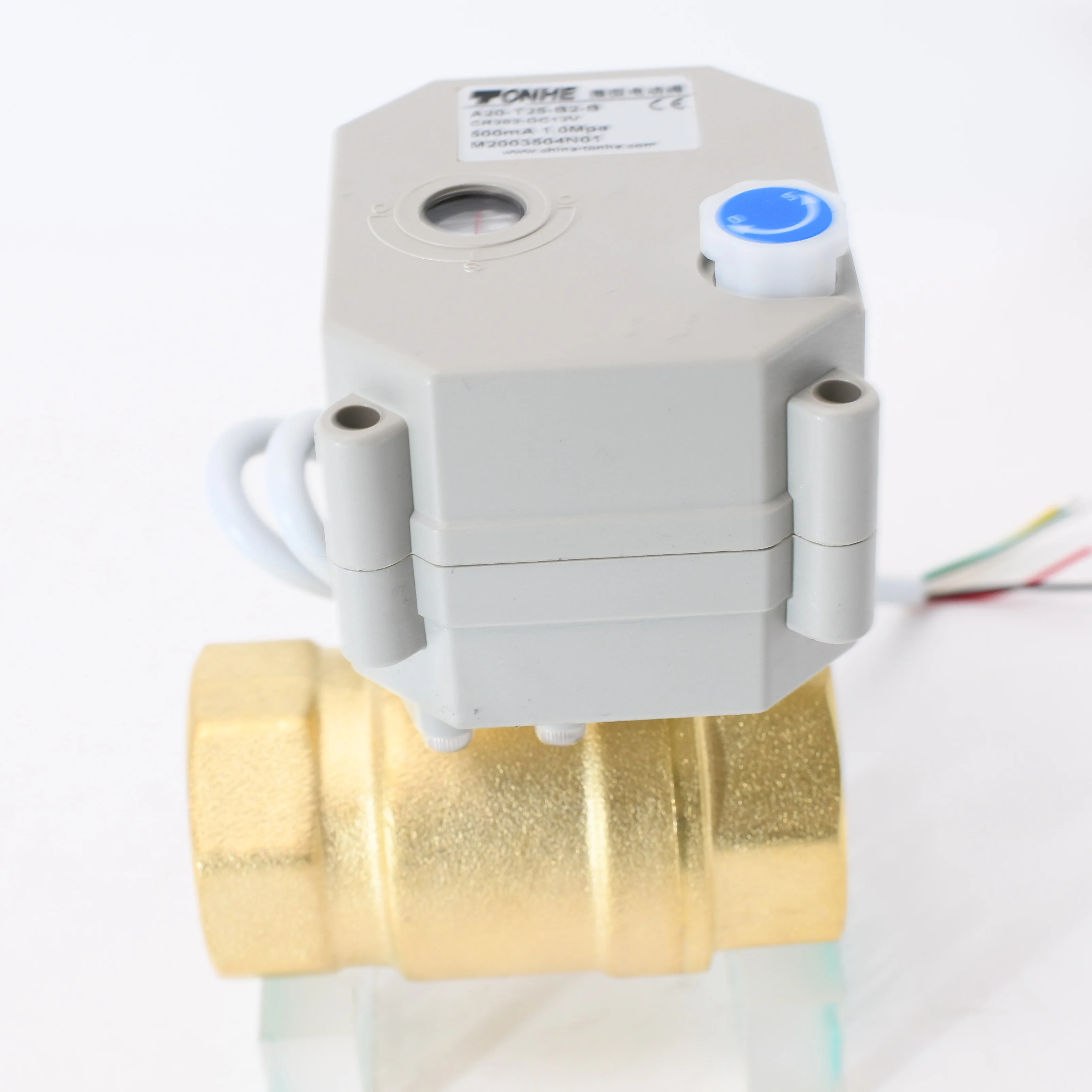

DC5V 1' Brass electric CR301 2 way motorized ball valve

Product Overview

Description

Technical parameters:

Product sizes:	NPT/BSP 1/4''  3/8''  1/2''  3/4''  1 ''  1 1/4''
Max.working pressure:	1.0MPa
Circulation medium:	Fluid,air
Working voltage:	DC5V,DC12/24V,AC/DC9-24V,AC110-230V
Wiring diagram:	contact for more information
Working current:	less than 500mA
Open/close time:	less than 5s
Life time:	70,000 times at least, testing pressure is 0.4MPa in water
Valve body:	Brass
Acutuator material:	PPO
Torque force:	2N.m
Cable length:	0.5m, 1.5m
Ambient temperature:	-15~50℃
Liquid temperature:	2~90℃
Manual override:	Yes
On/off indicator:	Yes
Protection:	IP67



Packing method:



1pc/inner carton,30pcs/master carton, packing requirements and packing qty negotiable



Inspection:

100% inspection tested on the testing shelves before packing. Both actuator part and valve part need to running and pass water leackage or air-tight test.



Taizhou Tonhe Flow Control Co.,Ltd is located in Huangyan,Taizhou City,Zhejiang Province,China, which specialized in the development,design,manufacture,sales and technical servise of electric ball valve.

Products made by Tonhe are widely exported to different contries and areas all over the world and won a great trust, praise and reputation from kindness customers. Main marktes are North American and European markets.

Tonhe produces motorized ball valve, electric actuator, modulating valve, water leakage detector system and etc, most of these valves are CE,WRAS,NSF and RoHS aprroved, feel confortable purchasing from TONHE.





Application range:



1.air pump tank automatic drainage

2.automatic watering

3.water treatment

4.energy saving

5.industrial automation

6.other small equipment



Records of attending Exhibitions:

Tonhe will participate in some industrial exhibitions every year several times. Flowtech Guangzhou, Flowtech Shanghai, Canton Fair or other fairs in domestic areas.



Why us:



1. Full stock and short lead time

2.OEM and ODM allowed, logo printing or oppointed design available

3.Good quality, competitive price,professional sales team with  fast response and reliable service

4. Professional production team and inspection team

5. Counting cheapest shipping cost for you and make invoice at once

6. Email tracking No.for better tracing parcels.

7. Good comments see below.
