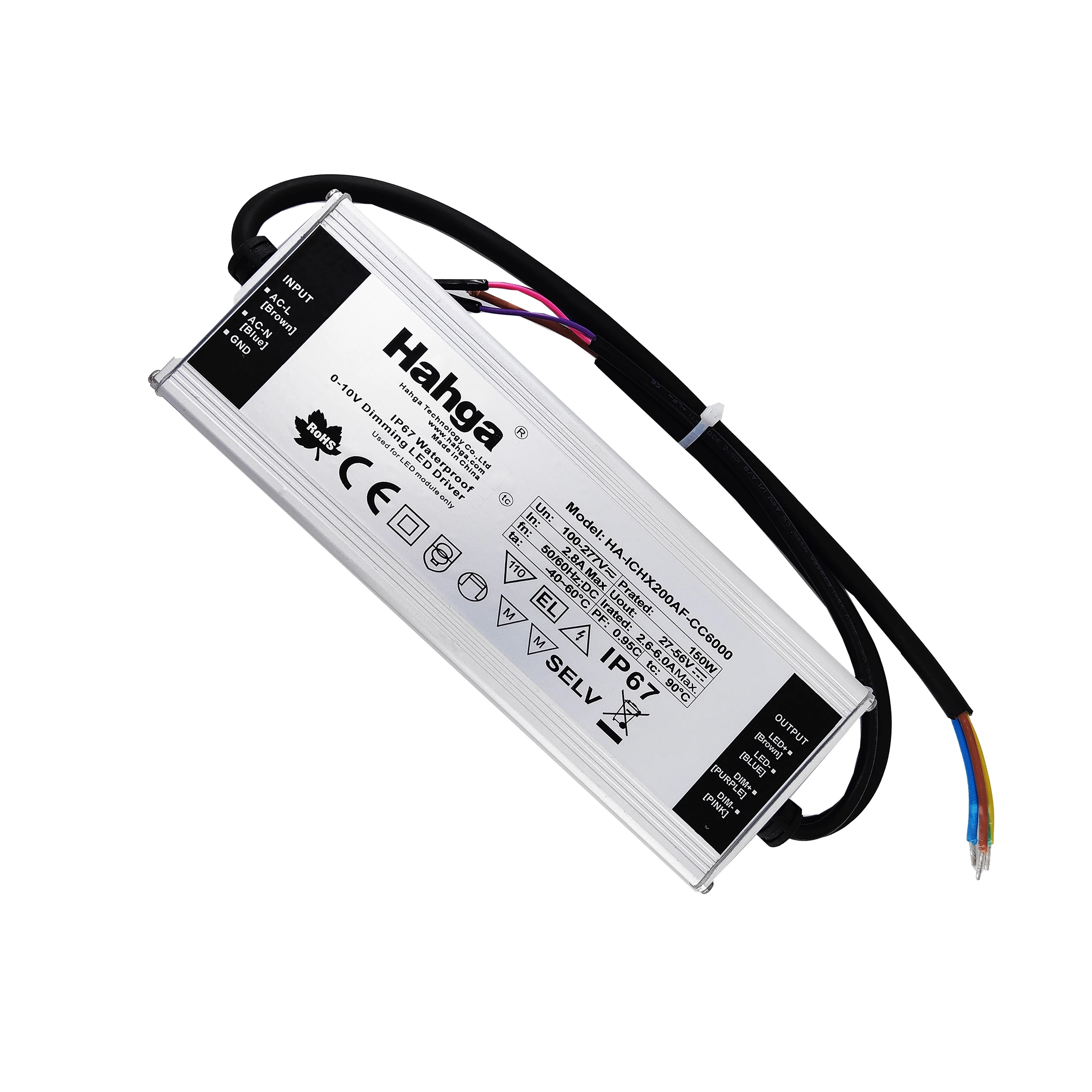

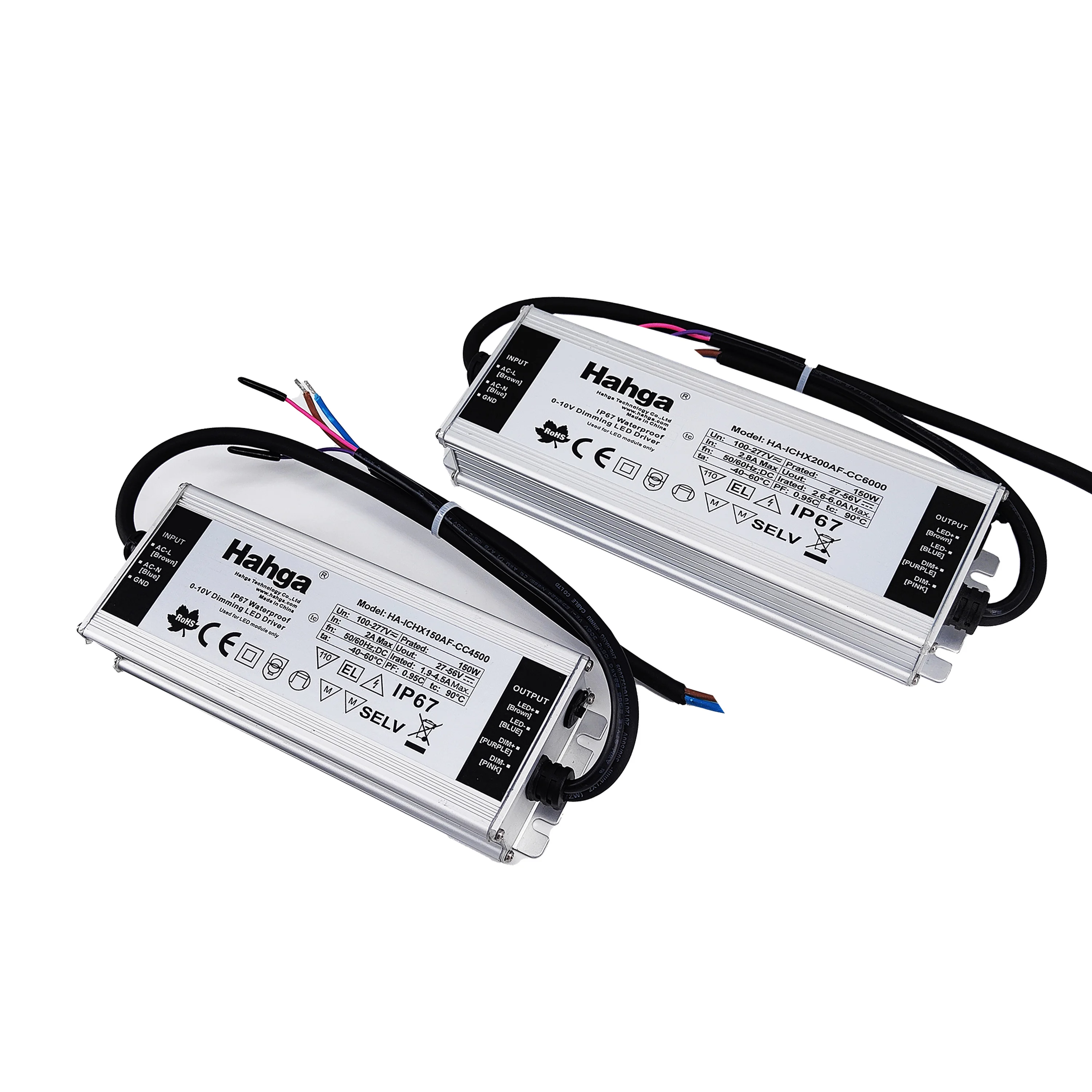

150w 700ma transformer 0 10V 1 10V dimmable led driver high Efficiency constant current non isolation flicker free led driver
- Category: >>>
- Supplier: Zhongshan Hahga Technology Co. Ltd
Share on (1600966845298):
Product Overview
Description
Hahga
Products Description
Features
■Output Constant Current
■Range: 110-277VAC 120-277VDC
■Power Factor:≥0.95
■Efficiency up to 93%
■Protections: short circuit/over load/ over temperature
■IP67 design for indoor and outdoor installation

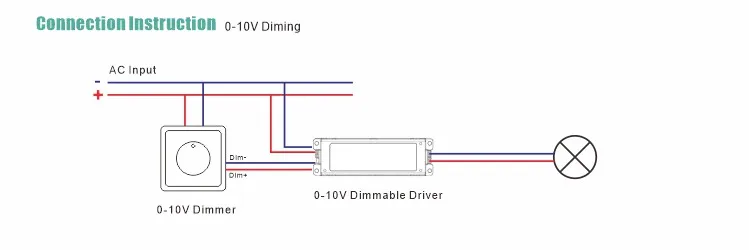

■Dimming function: 0-10V Dimming
■Digital dimming, accurate, stable and smooth dimming
■Single light control, more flexible control
■Signal wire isolation
■Turn Switchable for Current and Wattage,
■Flicker-free
■Dimming from 1%-100% Dimming depth 0.1%
■CE Rohs approval
■5-year warranty
■Range: 110-277VAC 120-277VDC
■Power Factor:≥0.95
■Efficiency up to 93%
■Protections: short circuit/over load/ over temperature
■IP67 design for indoor and outdoor installation
■Dimming function: 0-10V Dimming
■Digital dimming, accurate, stable and smooth dimming
■Single light control, more flexible control
■Signal wire isolation
■Turn Switchable for Current and Wattage,
■Flicker-free
■Dimming from 1%-100% Dimming depth 0.1%
■CE Rohs approval
■5-year warranty

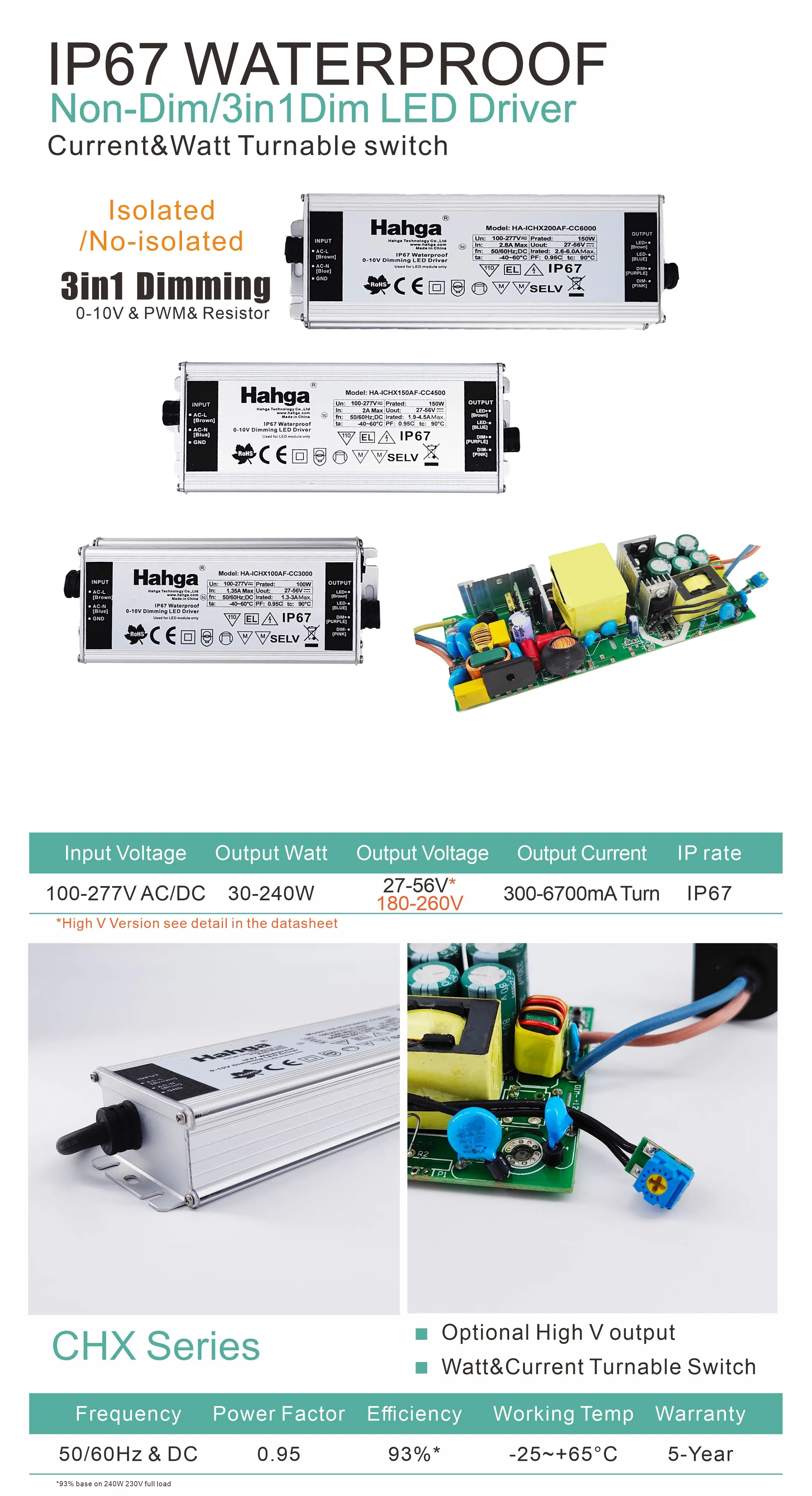

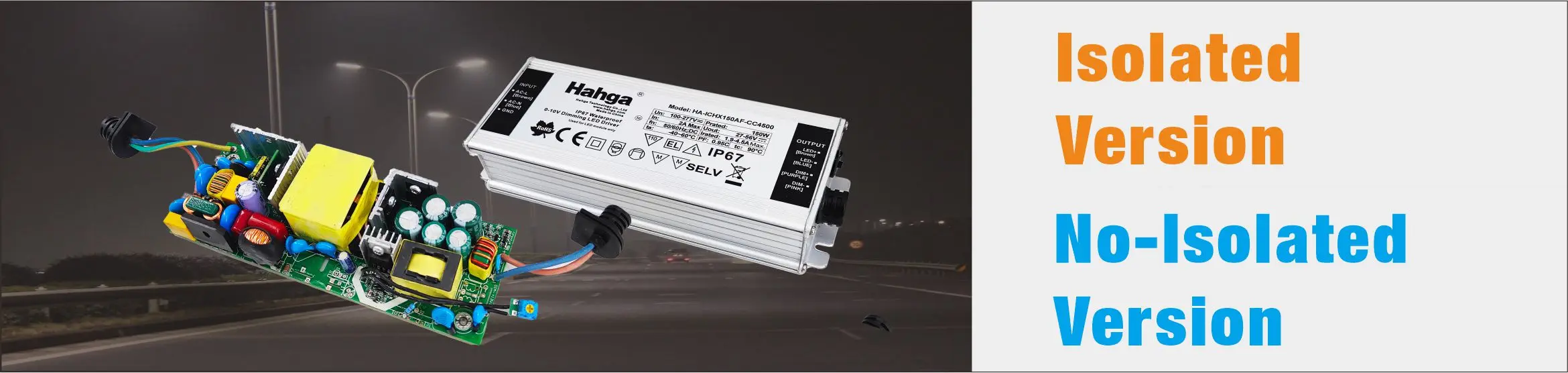

Isolated Flicker Free Version (No-Dim / 3in1 Dim optional) | ||||||||||
Model | Power & Size | Input | Output Voltage | Output Current | Efficiency | |||||
HA-ICHX030AF-CC | 30W 143*49*33MM | 100-277V DC | 25-56V | 300-1000mA | 89 | |||||
HA-ICHX050AF-CC | 50W 132*52*20MM | 25-56V 16-72V | 600-1000mA 500-1050mA | 90 | ||||||
HA-ICHX075AF-CC | 75W 149*61*33MM | 25-56V 54-108V | 900-2100mA 500-1050mA | 91 | ||||||
HA-ICHX100AF-CC | 100W 167*67*33MM | 25-56V 71-143V | 1300-3000mA 500-1050mA | 91 | ||||||
HA-ICHX150AF-CC | 150W 190*66*36MM | 25-56V 95-214V | 1800-4500mA 500-1050mA | 91 | ||||||
HA-ICHX200AF-CC | 200W 211*69*36MM | 25-56V 143-286V | 2600-5600mA 500-1050mA | 93 | ||||||
HA-ICHX240AF-CC | 240W 225*69*36MM | 25-56V 171-434V | 3500-6700mA 500-1050mA | 93 | ||||||
Isolated Version （No-Dim/3in1 Dim optional） | ||||||||||
Model | Power & Size | Input | Output Voltage | Output Current | Efficiency | |||||
HA-ICHF030AF-CC | 30W 109*31*33mm | 200-277V AC | 20-56V | 200-1000mA | ||||||
HA-ICHF050AF-CC | 50W 109*31*33mm | 200-277V AC | 20-56V 36-72V | 500-1600mA 500-1050mA | 90 | |||||
HA-ICHF075AF-CC | 75W 141*61*33mm | 20-56V 54-108V | 800-2400mA 500-1050mA | 91 | ||||||
HA-ICHF100AF-CC | 100W 157*61*33mm | 20-56V 71-143V | 1300-3200mA 500-1050mA | 91 | ||||||
HA-ICHF150AF-CC | 150W 179*69*36mm | 20-56V 107-214V | 1700-4700mA 500-1050mA | 91 | ||||||
HA-ICHF200AF-CC | 200W 211*69*36mm | 20-56V 95-190V | 2600-6300mA 500-1050mA | 93 | ||||||
HA-ICHF240AF-CC | 240w 240*69*36mm | 20-56V 114-228V | 3500-7500mA 500-1050mA | 93 | ||||||
No-Isolated Version Flicker free（No-Dim/3in1 Dim optional） | ||||||||||
Model | Power & Size | Input | Output Voltage | Output Current | Efficiency | |||||
HA-ICHT030AF-CC | 30W 109*56*32mm | 100-277V AC | 90-150V 180-260V | 150-300mA 70-150mA | 89 | |||||
HA-ICHT050AF-CC | 50W 109*56*32mm | 200-277V AC | 90-150V 180-260V | 250-500mA 120-250mA | 90 | |||||
HA-ICHT075AF-CC | 75W 159*56*32mm | 90-150V 180-260V | 350-750mA 180-380mA | 91 | ||||||
HA-ICHT100AF-CC | 100W 159*56*32mm | 90-150V 180-260V | 500-1000mA 250-500mA | 91 | ||||||
HA-ICHT120AF-CC | 120W 162*56*32mm | 90-150V 180-260V | 600-1200mA 300-600mA | 91 | ||||||
HA-ICHT150AF-CC | 150W 162*56*32mm | 90-150V 180-260V | 750-1500mA 400-750mA | 91 | ||||||
HA-ICHT200AF-CC | 200W 179*68*37mm | 90-150V 180-260V | 1000-2000mA 600-1000mA | 93 | ||||||
HA-ICHT240AF-CC | 240w 179*68*37mm | 90-150V 180-260V | 1200-2400mA 750-1200mA | 93 | ||||||
HA-ICHT320AF-CC | 320W 214*68*37mm | 180-260V | 900-1600mA | 93 | ||||||
No-Isolated Version （No-Dim/3in1 Dim optional） | ||||||||||
Model | Power & Size | Input | Output Voltage | Output Current | Efficiency | |||||
HA-ICHG030AF-CC | 30W 105*56*32mm | 100-277V AC | 90-130V | 150-300mA | 89 | |||||
HA-ICHG050AF-CC | 50W 105*56*32mm | 200-277V AC | 90-130V | 260-500mA | 90 | |||||
HA-ICHG075AF-CC | 75W 136*56*32mm | 90-130V | 390-750mA | 91 | ||||||
HA-ICHG100AF-CC | 100W 136*56*32mm | 90-130V | 800-1500mA | 91 | ||||||
HA-ICHG120AF-CC | 120W 145*56*32mm | 90-130V | 650-1200mA | 91 | ||||||
HA-ICHG150AF-CC | 150W 145*56*32mm | 90-130V | 570-1500mA | 91 | ||||||
HA-ICHG200AF-CC | 200W 150*68*37mm | 90-130V | 1080-2000mA | 93 | ||||||
HA-ICHG240AF-CC | 240w 150*68*37mm | 90-130V | 1300-2400mA | 93 | ||||||
Item | |||||||
Voltage Range | AC 100-277V | ||||||
Limited Voltage | 277V AC | ||||||
Power Factor | >0.95 | ||||||
T.H.D | <10% | ||||||
Efficiency | 90% | ||||||
Output | Current Accuracy | ±3% | |||||
Power-on Time | <500ms | ||||||
Dimming | Dimming Type | 0-10V PWM Resistor Dimming | |||||
Dimming Range | 0-100% | ||||||
Dimming Depth | 0.1% | ||||||
Protection | Short Circuit | constant voltage mode, recover automatically after fault condition is removed | |||||
Over Loading | ≤120% constant voltage limiting, recover automatically after fault condition is removed | ||||||
Over Temperature | 100℃±10℃ Shut down o/p voltage, recovers automatically after temperature goes down | ||||||
Others | Ta | 60℃ | |||||
Tc | 90℃ | ||||||
IP rating | IP67 | ||||||
Life span | 50000hours | ||||||
Warranty | 5years | ||||||
Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | ||||||
