Tool sensor cnc 4 axis router Taiwan PMI 30MM guide rails cnc router wood carving machine cnc router machine for wood 4 axis
Product introduction

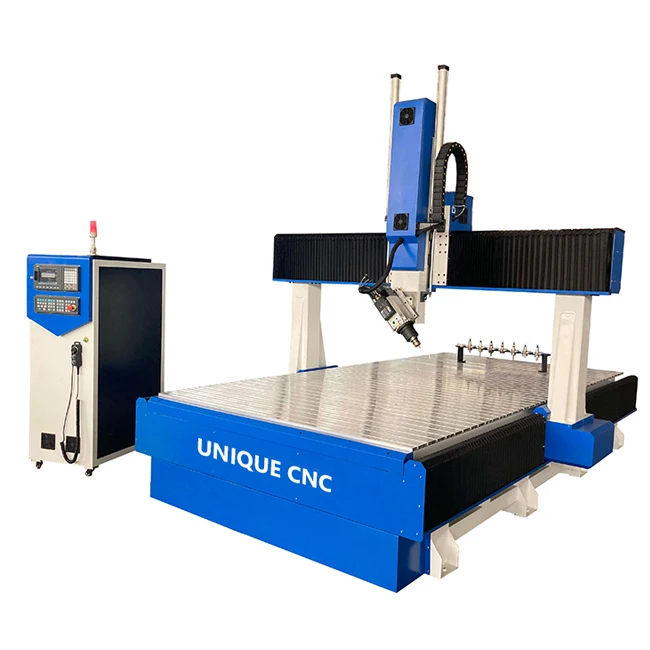

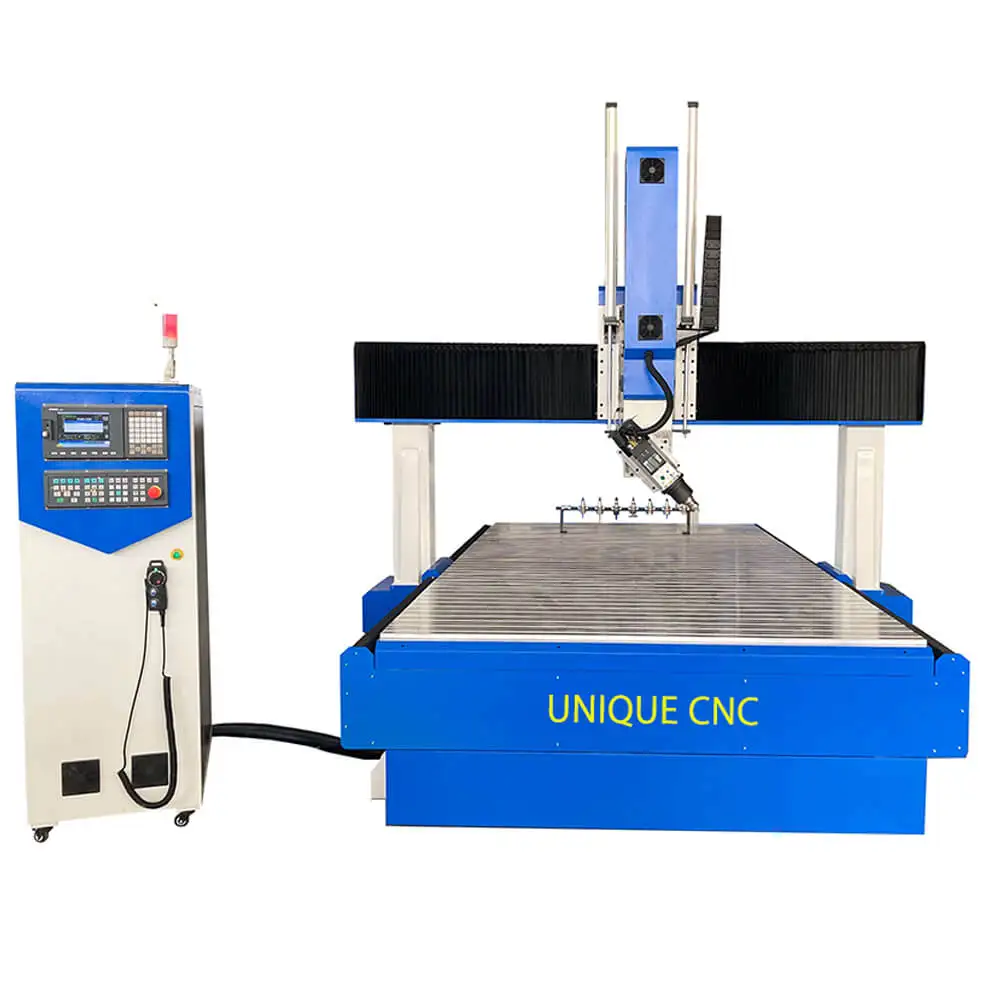

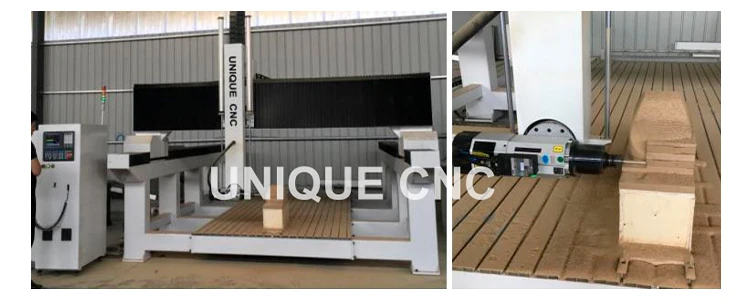

Main features of Unique CNC 4 Axis Wood/Foam Mold CNC Router
1.The spindle can rotate 180 degree(±90 degree), can make multi-kinds of surface which can designed by CAM softwares.
2.Heavy-duty structure to guarantee the stability. The structure is welded by thick steel tube,then processed by professional maching center to mill the surface of guide rails and gear rack and drill holes,rust cleaning,then painting.
3.Unique CNC mold CNC routers machine structures all processed by heat-treatment,it release the tensile force of the steels.After heat-treatment,the structure become very rigid, no deform, harder and low-noisy.
4.Beautiful and scientific structure design.

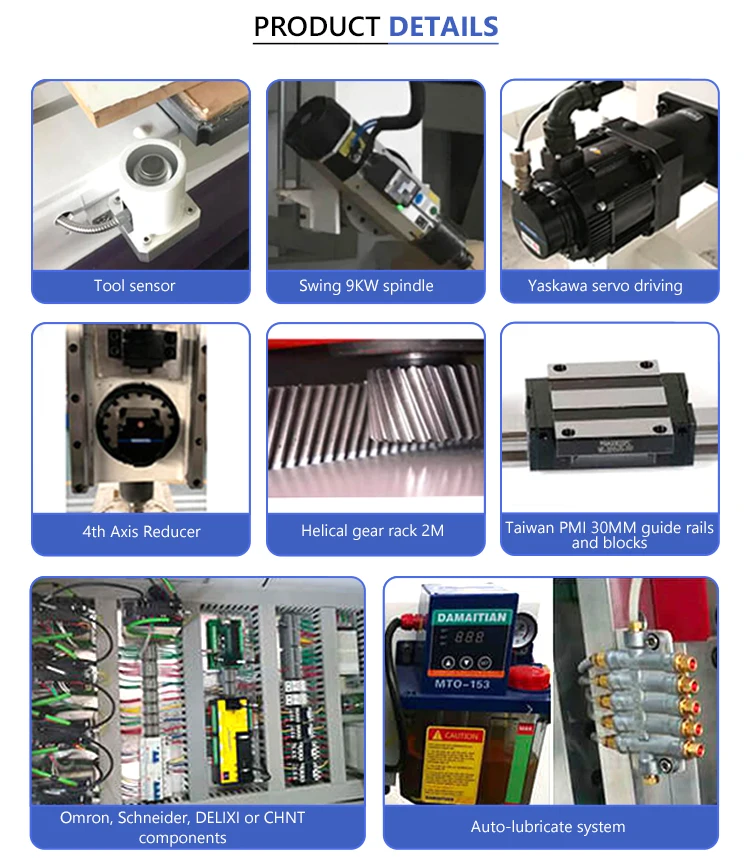

5.The machine equips with world famous components: Italy HSD spindle, Yaskawa servo motors and drivers, Delta driver, Taiwan made guide rails and ballscrews, helical gear rack, Syntec controller, best quality cable and so on.
6.Professional 4-Axis control system Syntec 60W-E,multi-functional,stable and easy to learn and operate.
7.Italy HSD spindle, higher precision, longer life and low noise. The spindle passed the IP65 water proof test, the inside bearings are ceramic materials. Max.speed is 24000rpm. Double cooling systems of the spindle make it very long life.

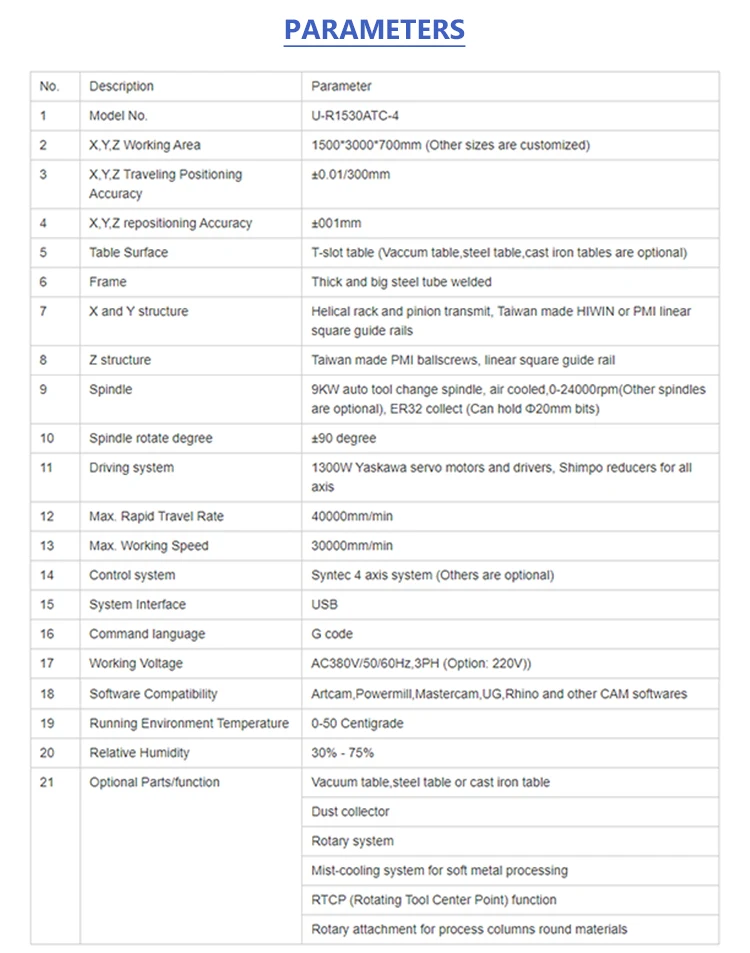

Parameters
No. | Description | Parameter |
1 | Model No. | U-R1530ATC-4 (other sizes are optional or customized) |
2 | X,Y,Z Working Area | 1500*3000*700mm (Other sizes are customized) |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
4 | X,Y,Z repositioning Accuracy | ±0.01mm |
5 | Table Surface | T-slot table (Vaccum table is optional) |
6 | Frame | Thick and big steel tube welded |
7 | X and Y structure | Helical rack and pinion transmit, Taiwan made HIWIN or PMI linear square guide rails |
8 | Z structure | Taiwan made PMI ballscrews, linear square guide rail |
9 | Spindle | 9KW auto tool change spindle, air cooled,0-24000rpm(Other spindles are optional), ER32 collect (Can hold Φ20mm bits) |
10 | Spindle rotate degree | ±90 degree |
11 | Driving system | 1300W Yaskawa servo motors and drivers, Shimpo reducers for all axis |
12 | Max. Rapid Travel Rate | 40000mm/min |
13 | Max. Working Speed | 30000mm/min |
14 | Control system | Syntec 4 axis system (Others are optional) |
15 | System Interface | USB |
16 | Command language | G code |
17 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
18 | Software Compatibility | Artcam,Powermill,Mastercam,UG,Rhino and other CAM softwares |
19 | Running Environment Temperature | 0-50 Centigrade |
20 | Relative Humidity | 30% - 75% |
21 | Optional Parts/functions | 4th rotary device for processing round columns Dust collector Mist-cooling system for soft metal processing |

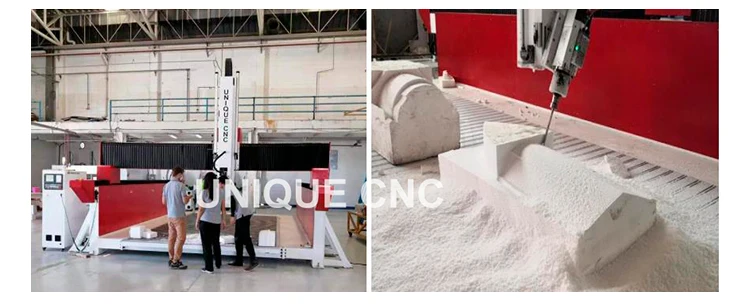

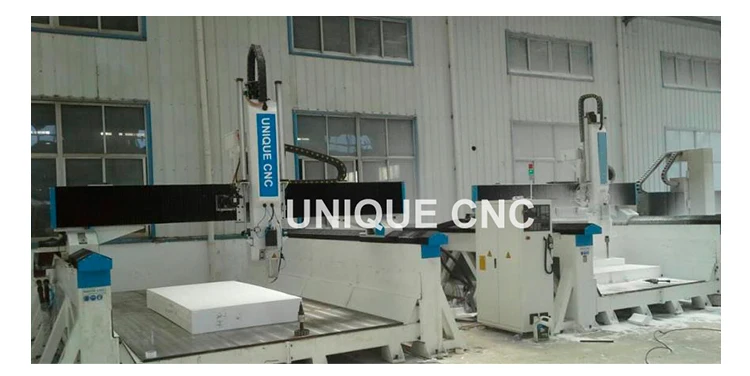

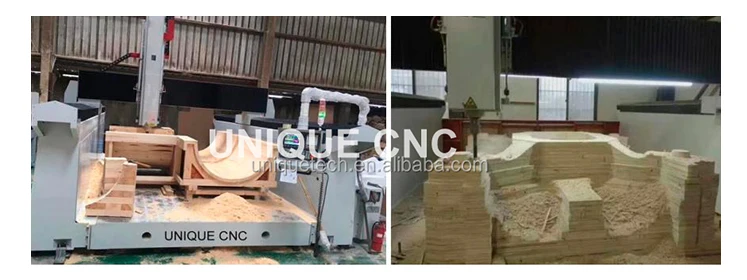

1 U-R2758 (2.7x5.8x1.2M)4 Axis EPS CNC Router With ATC For Making Styrofoam Sailing Vessel Mold In Thailand
2 U-R2050(2x5x1M)4 Axis EPS CNC Router For Making Car Wood Foam Mold in Ireland.

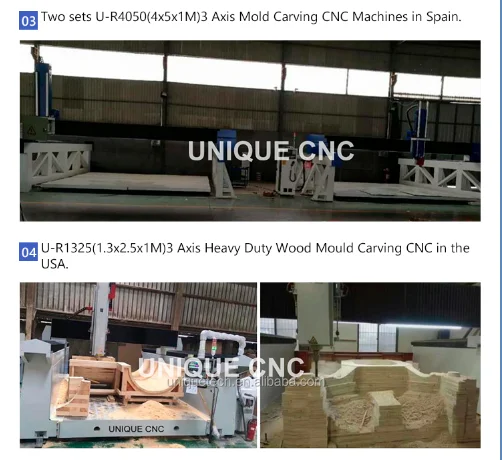

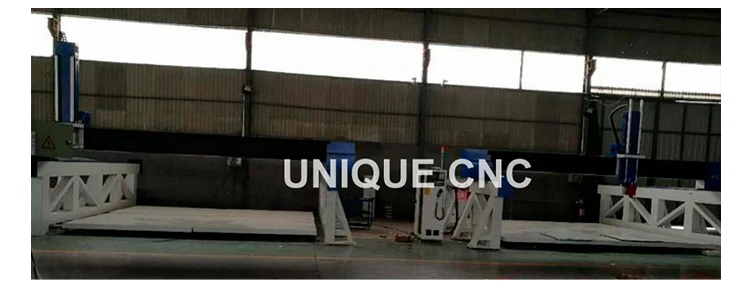

3 Two sets U-R4050(4x5x1M)3 Axis Mold Carving CNC Machines in Spain.
4 U-R1325(1.3x2.5x1M)3 Axis Heavy Duty Wood Mould Carving CNC in the USA.
5 Two sets U-R1530EPS(1.5x3x1M)3 Axis Styrofoam CNC Cutting Machine in Peru.

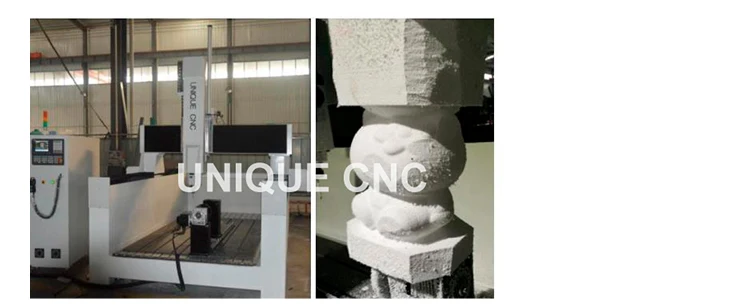

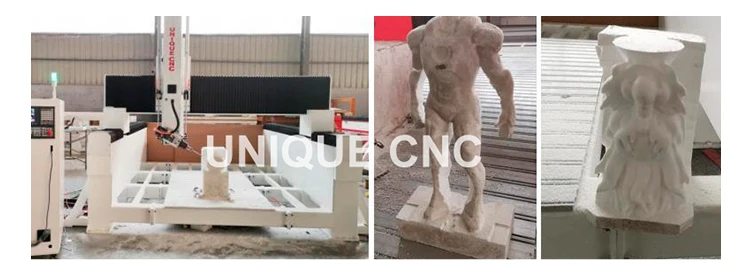

6 U-R1325EPS (1.3x2.5x1M) 4 Axis Foam Mold CNC With Rotating Spindle for making statue in Poland.
7 U-R1325EPS (1.3x2.5x1M) Economical 3 Axis Foam Mold CNC With Rotary for making dinosaur in Gr.

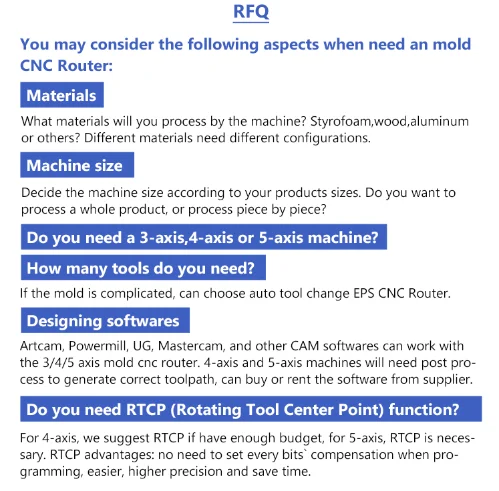

RFQ
You may consider the following aspects when need an mold CNC Router:
Materials
What materials will you process by the machine? Styrofoam,wood,aluminum or others? Different materials need different configurations.
Machine size
Decide the machine size according to your products sizes. Do you want to process a whole product, or process piece by piece?
Do you need a 3-axis,4-axis or 5-axis machine?
How many tools do you need?
f the mold is complicated, can choose auto tool change EPS CNC Router.
Designing softwares
Artcam, Powermill, UG, Mastercam, and other CAM softwares can work with the 3/4/5 axis mold cnc router. 4-axis and 5-axis machines will need post process to generate correct toolpath, can buy or rent the software from supplier.
Do you need RTCP (Rotating Tool Center Point) function?
For 4-axis, we suggest RTCP if have enough budget, for 5-axis, RTCP is necessary. RTCP advantages: no need to set every bits` compensation when programming, easier, higher precision and save time.
Our Advantages
01 Professional
Nearly 13 years of professional production and export experience. Cooperation with the largest customers from some countries.
02 Quality Assurance
All the products have the cetificate of ISO and CE approval, Guaranteed quality.
03 Fast Delivery
There are a large number of products in stock, so generally we can ship goods in about 3-5 days.
04 Price Advantage
Good quallity, resonable price, on time shipping and best service for each customers.
05 Customized Service
Tailor-made for each customer's requirements.
06 After-Sale Advantages
Long time guarantee period and 24 hours online service.
Our certificate
FAQ
Q Why should we choose you ?
A If you choose us, you will get top quality, best service, reasonable price and reliable warranty.
Q I'm not familiar with the machine,how to choose?
A Just tell us materials, thickness and working size, I will recommend the suitable machine.
Q How to operate the machine?
A We will deliver English manual and video with the machine to you. If you still need our further help, please contact us.
Q Can I get the sample to check quality of machine ?
A Of course. Please provide your logo or design to us, free samples can be provided for you.
Q Can the machine be customized according my requirements?
A Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q Can you arrange the shipment for us?
A Of course. We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, CFR are available.
