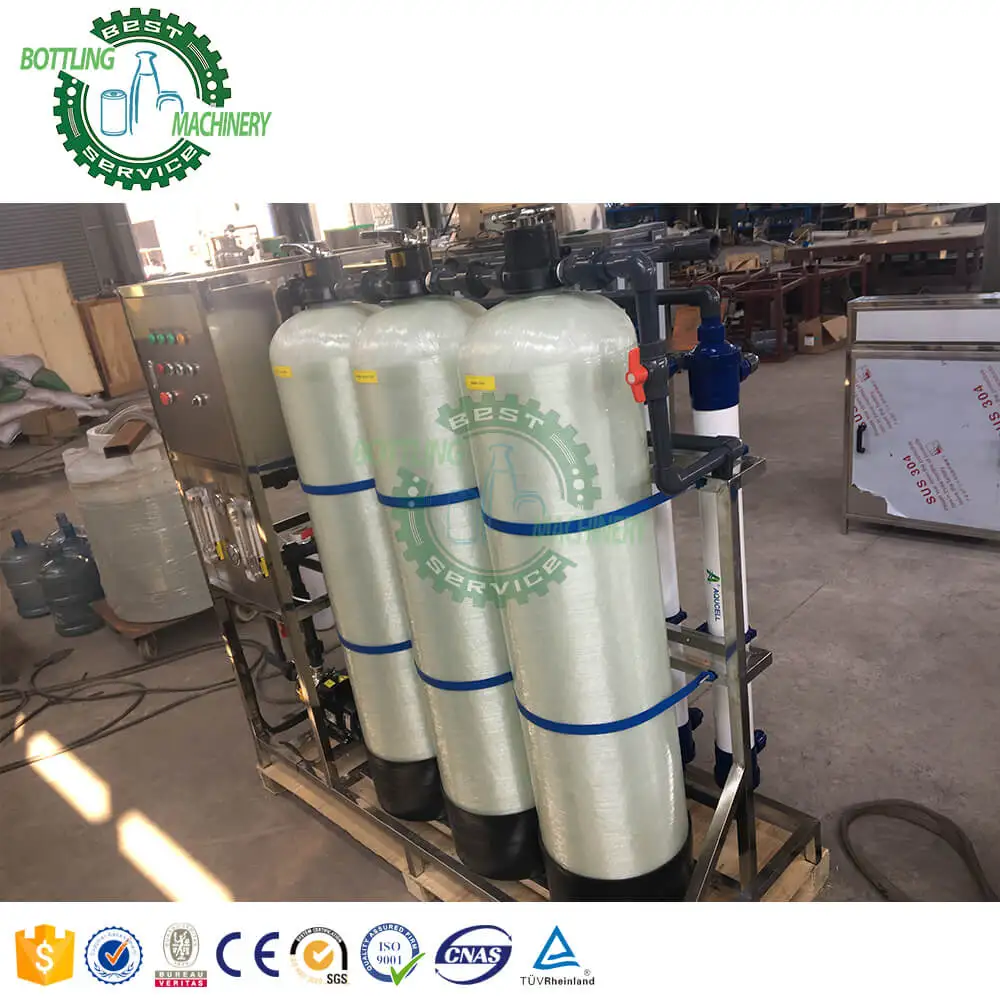

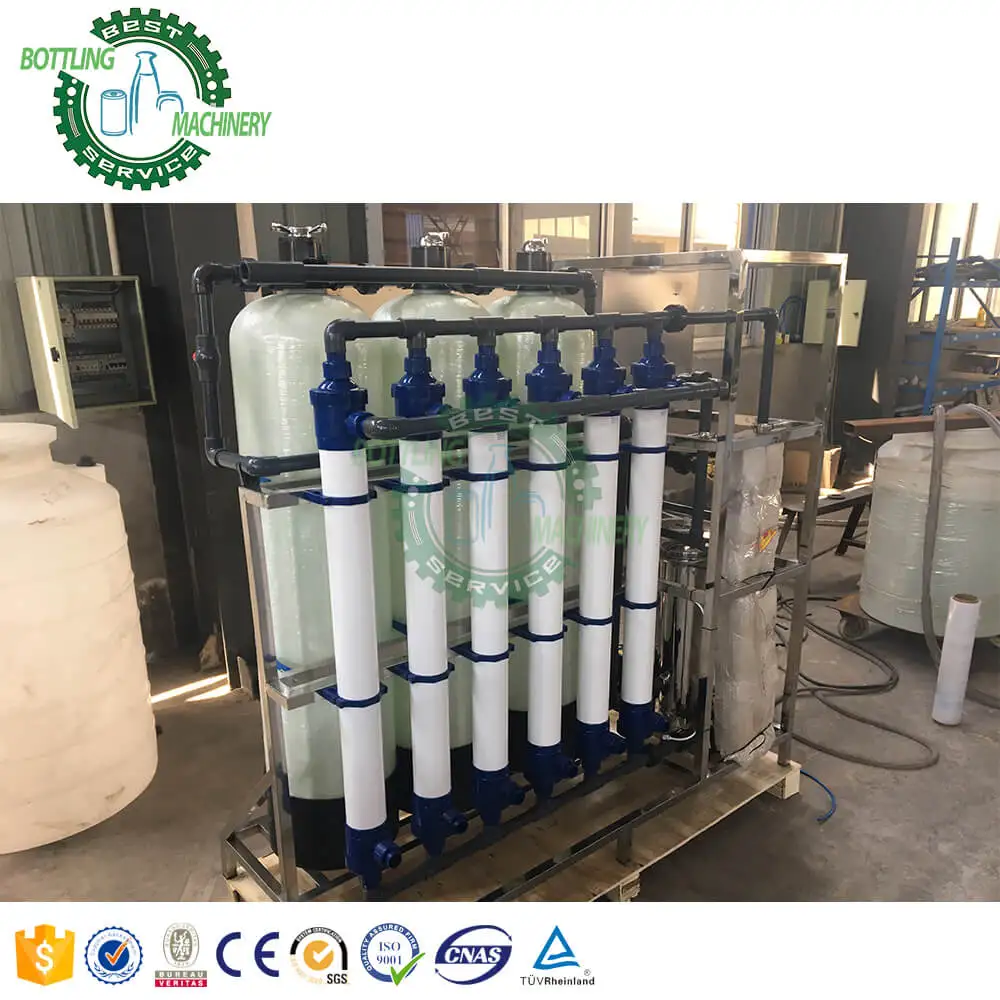

0.5 30T/H manual valve fiberglass Active Carbon Quartz sand filter tank UF Ultrafiltration water purifying machine for community
- Category: >>>
- Supplier: Zhangjiagang City Bottling Machinery Co. Ltd.
Share on (1600966892294):
Product Overview
Description
Products Description

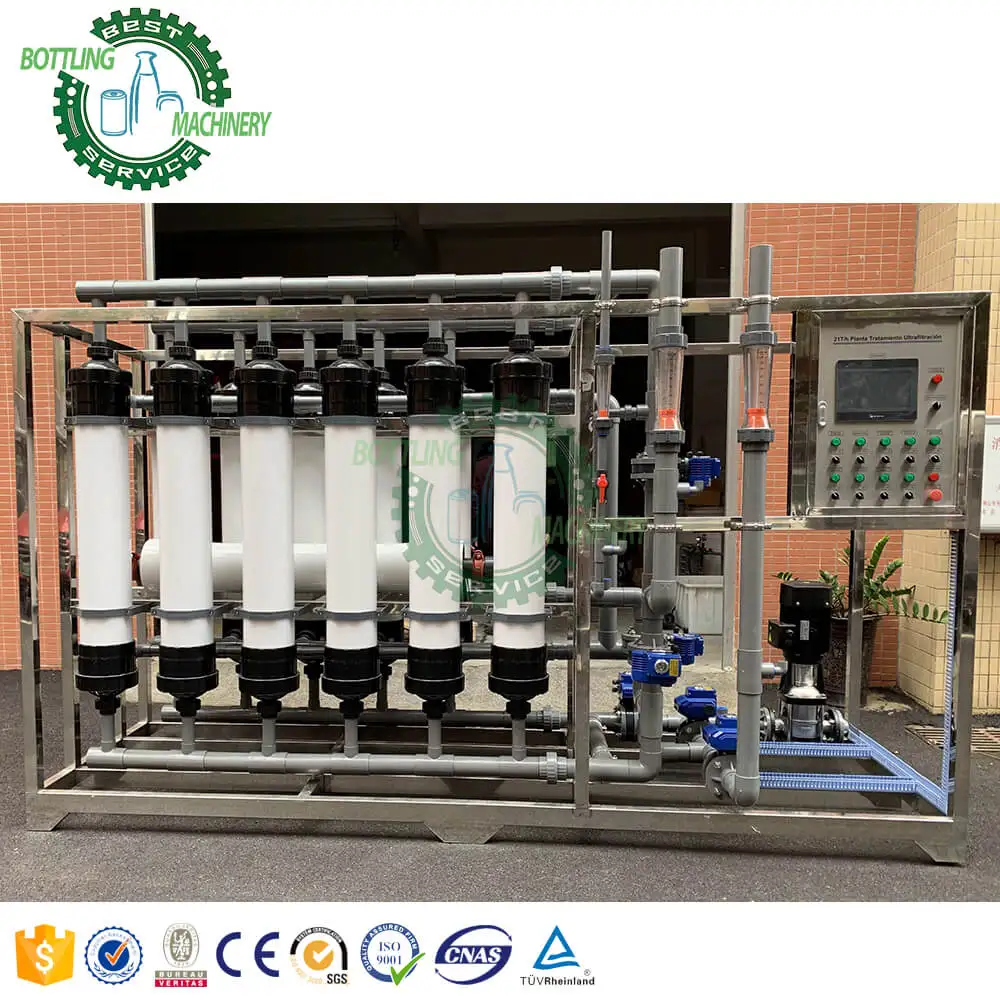

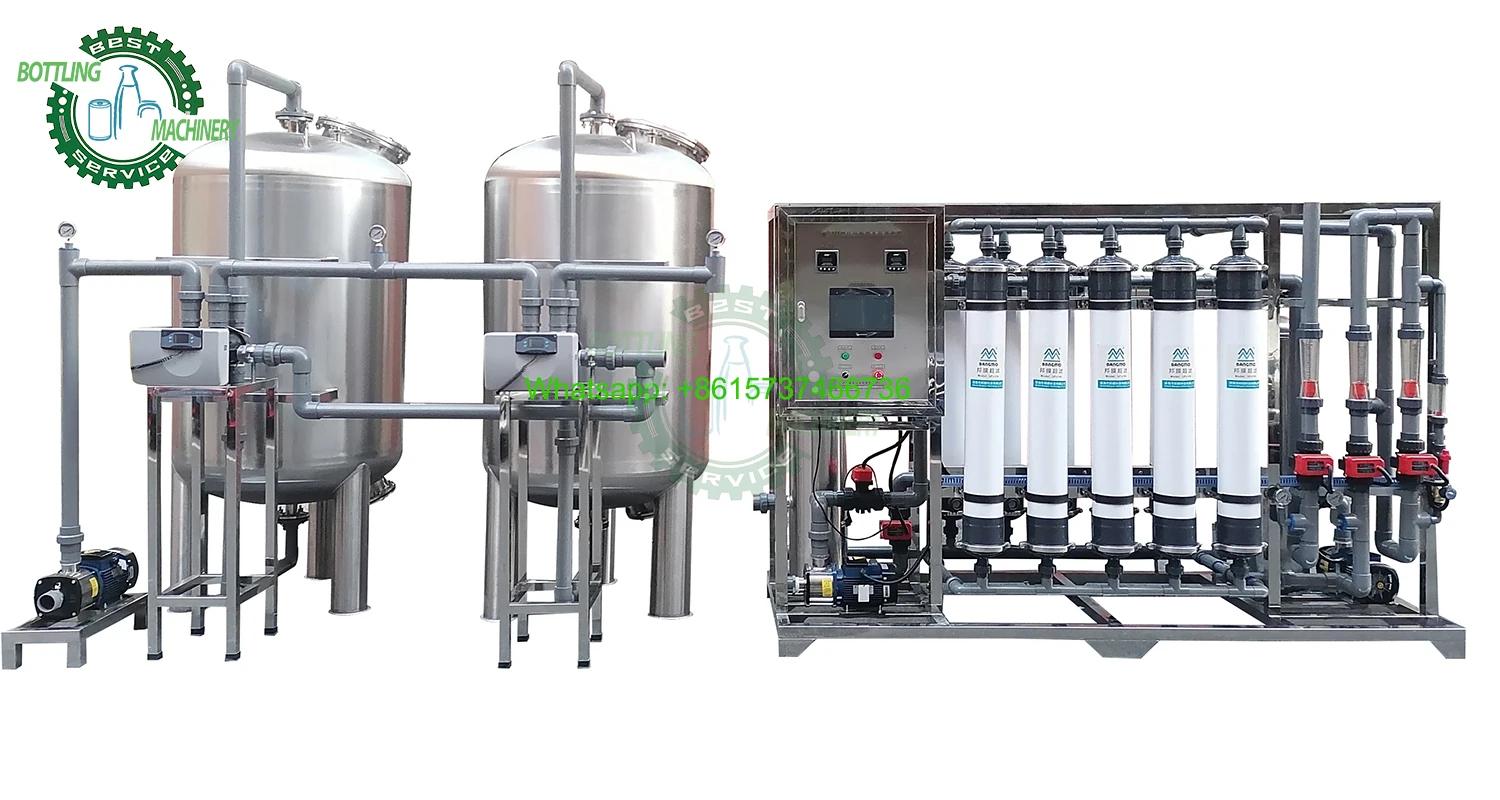

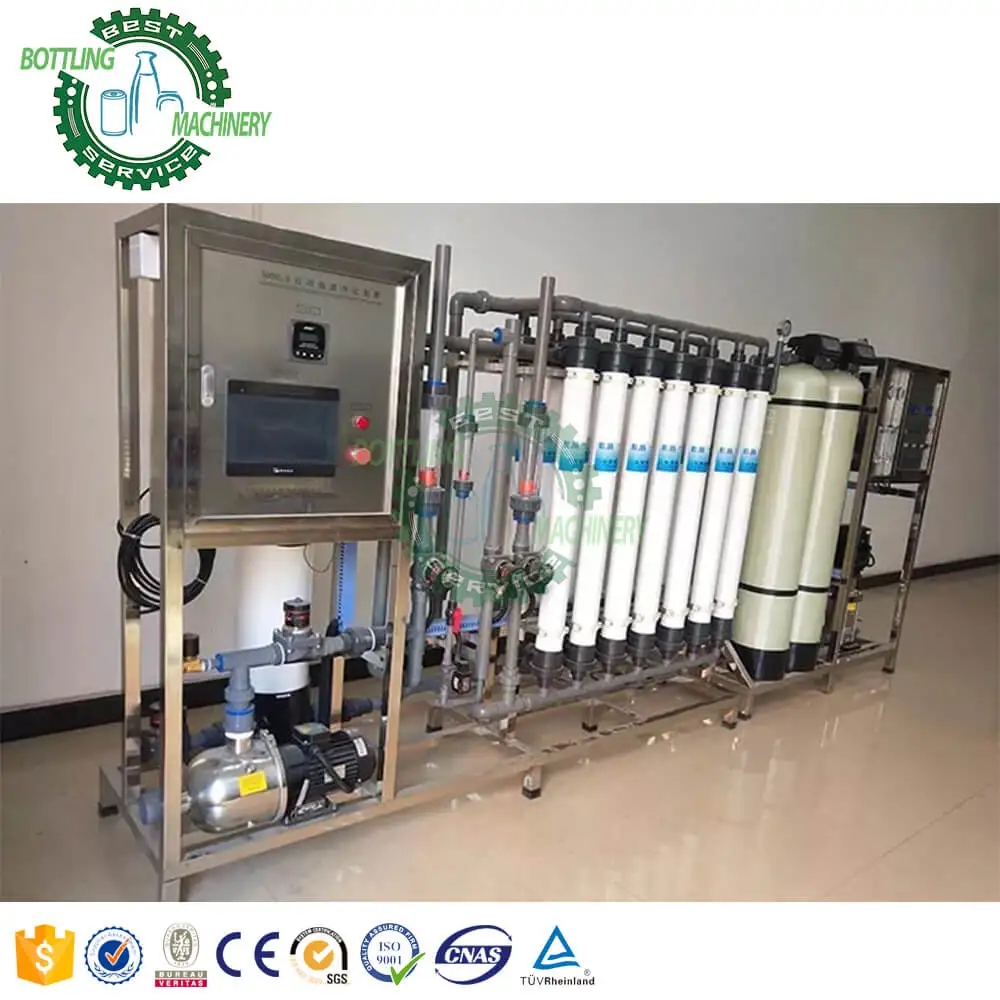

UF Ultrafiltration water treatment machine - 500-30000 Liters per hour
Ultrafiltration (we called UF) is the most widely used membrane separation technology. It is mainly used for separation of substances at high molecular level. It has a very good effect on deeply reducing turbidity, clarification, sterilization and separation, concentration, classification and purification of macromolecular substances. In the field of water treatment, it can be used to remove suspended solids, particles, bacteria, virus, pyrogen and macromolecular organic substances in water and make water purified.
UF membrane is the key part of whole UF, it will decide the system workable or not. The water passing UF can remove bacterial, organic substance and microorganism.
Whole SUS304 rack, automation part apply AC contactor control, apply flow meter, pressure gauge and auto flush electrical magnetic valve, etc.
Protect device：Low pressure and high pressure protect switch is set before water entry and after water discharge. Booster pump and system will stop when water supply is not enough. Make cut off on booster pump when there is too much discharge pressure to avoid system running under pressure exceeding status.
Whole SUS304 rack, automation part apply AC contactor control, apply flow meter, pressure gauge and auto flush electrical magnetic valve, etc.
Protect device：Low pressure and high pressure protect switch is set before water entry and after water discharge. Booster pump and system will stop when water supply is not enough. Make cut off on booster pump when there is too much discharge pressure to avoid system running under pressure exceeding status.

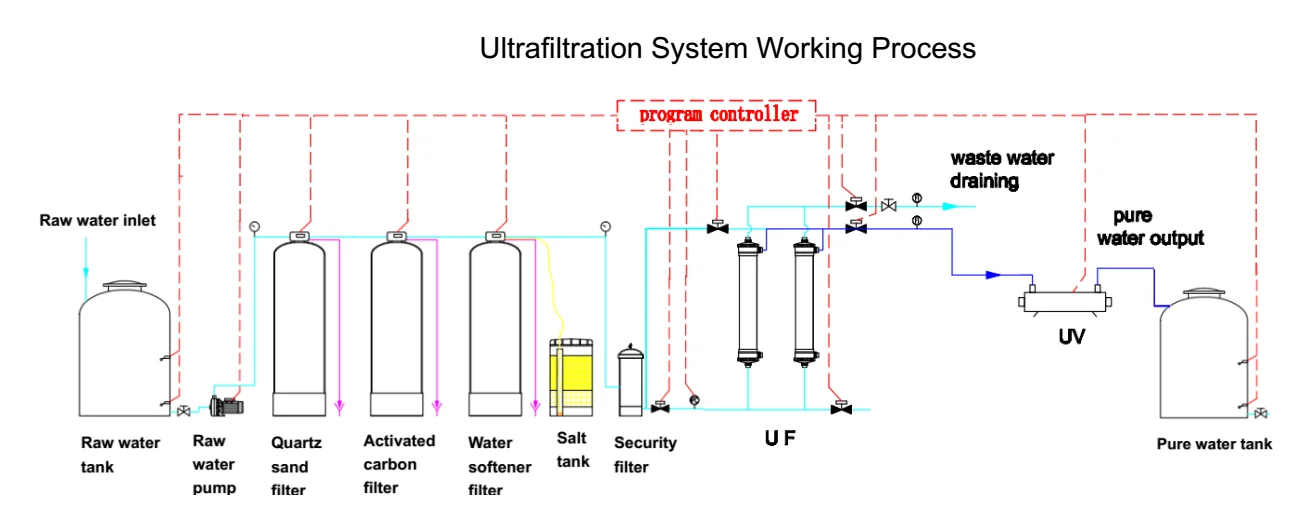

Raw water tank→ raw water pump→ quartz sand filter→ active carbon filter→ water softner (optional) → security filter→ UF System (including chemical cleaning device)→ UV sterilizer (ozone generator)→ Pure water storage tank
Main Features:
1.Can run and produce water continuously, highly automatic
2.No need chemical to regeneration,easy operation and maintaince
3.Automatic switch on when lack of water,and switch off when no water or full of water
4.UF membrane auto wash and reduce the pollution speed.
5.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.
6.Production water conductivity meter monitors water quality online continuously.
7.Input water and dense water pressure meters.
1.Can run and produce water continuously, highly automatic
2.No need chemical to regeneration,easy operation and maintaince
3.Automatic switch on when lack of water,and switch off when no water or full of water
4.UF membrane auto wash and reduce the pollution speed.
5.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.
6.Production water conductivity meter monitors water quality online continuously.
7.Input water and dense water pressure meters.
Product Name | Material | Brand | Usage |
Raw Water Pump | SUS-304 | CNP | Provide needed pressure for every pre-treatment filter |
Remove the water contains sediment, manganese, rust, colloid material, and other particles in the above 20UM of substances hazardous to health. | |||
Activated Carbon Filter | FRP/SUS-304 | China | Remove the pigment in the water, smell, organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants. |
Water softener | FRP/SUS-304 | China | Water softener can remove Calcium ion(Ca2+) and magnesium ion(Mg2+) to reach the aim of removing hardness from water. |
Security Filter | SUS-304 | China | Remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree. |
UF Membrane | UFc90AL | China | Remove impurities great than 0.001 micron. |
Back-washing Pump | SUS-304 | CNP | Flushing the UF membrane 40s when the machine operation. |
UV Sterilizer | 40W | China | Kill bacterial in water. UV for direct drinking water. Ozone generator |
Technological Flow process:
1st stage pretreatment: Sand filter, replaced every 2-3years
2nd stage: Activated Carbon filter, replaced every 1-2years
3rd stage pretreatment: Sodium ion exchanger, replaced every 2-3years
5th stage pretreatment: Precision filter, replaced every 6months
2nd stage: Activated Carbon filter, replaced every 1-2years
3rd stage pretreatment: Sodium ion exchanger, replaced every 2-3years
5th stage pretreatment: Precision filter, replaced every 6months
The core UF membrane:
Brand:China
Filter aperture:0.01mircon
Service life: 2years
Name: UF membrane
Brand:China
Filter aperture:0.01mircon
Service life: 2years

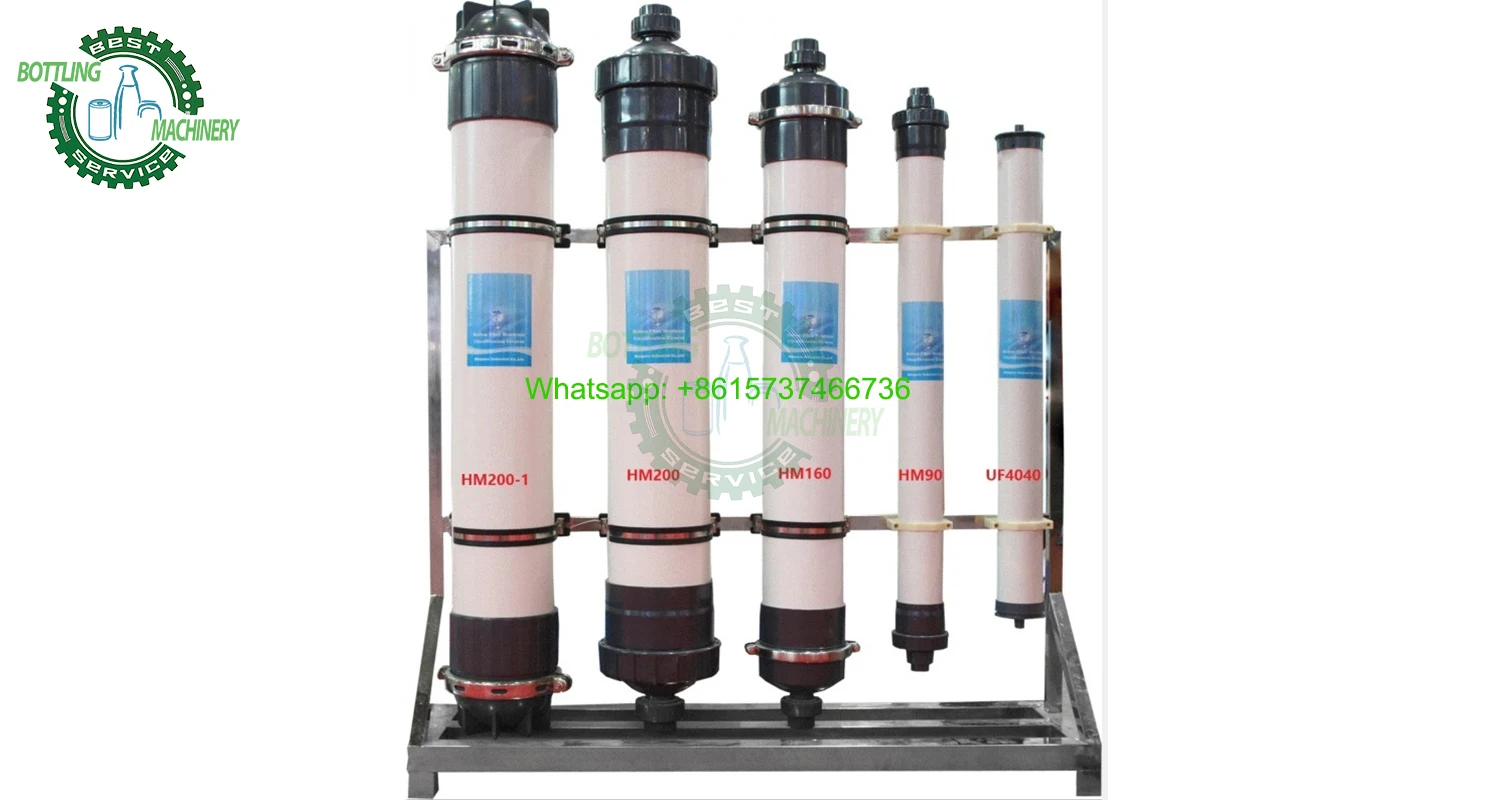

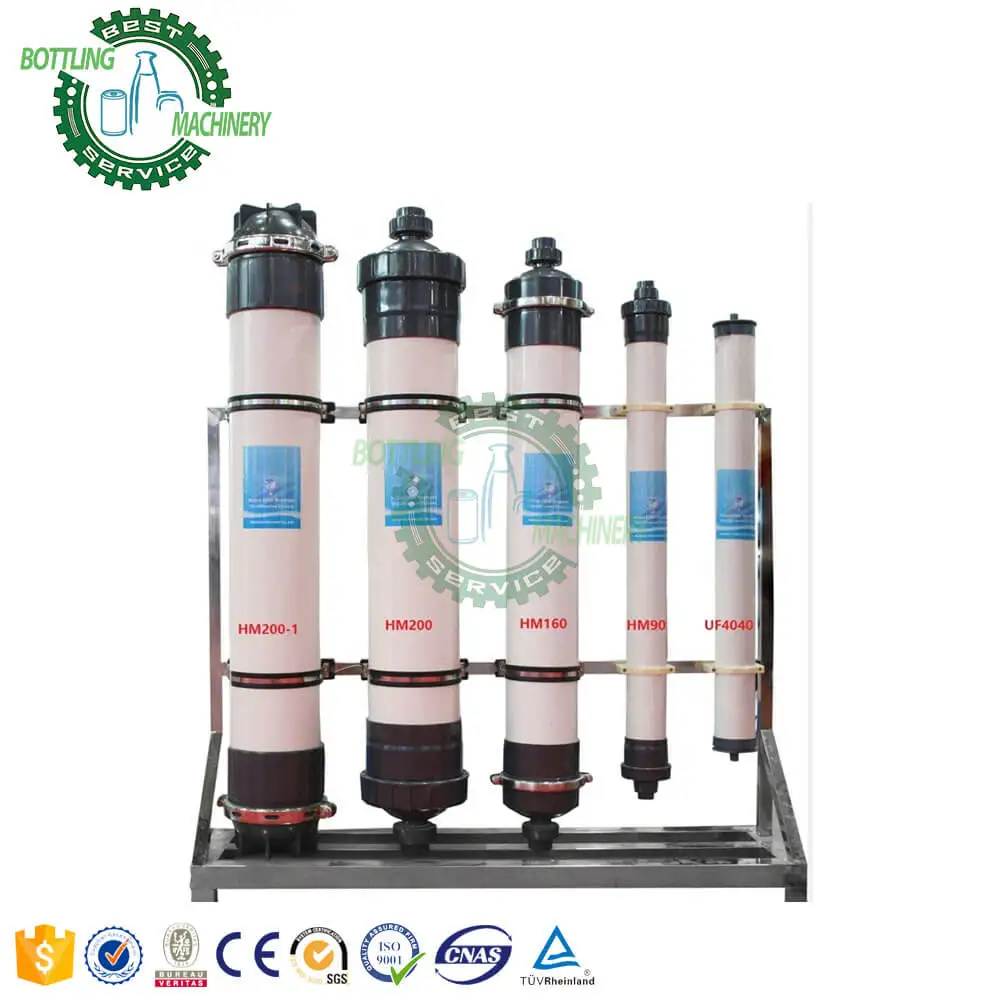

Capacity of membrane:
UF4040 and HM90: 500LPH
HM160: 1000LPH
UF8040/HM200: 2000LPH

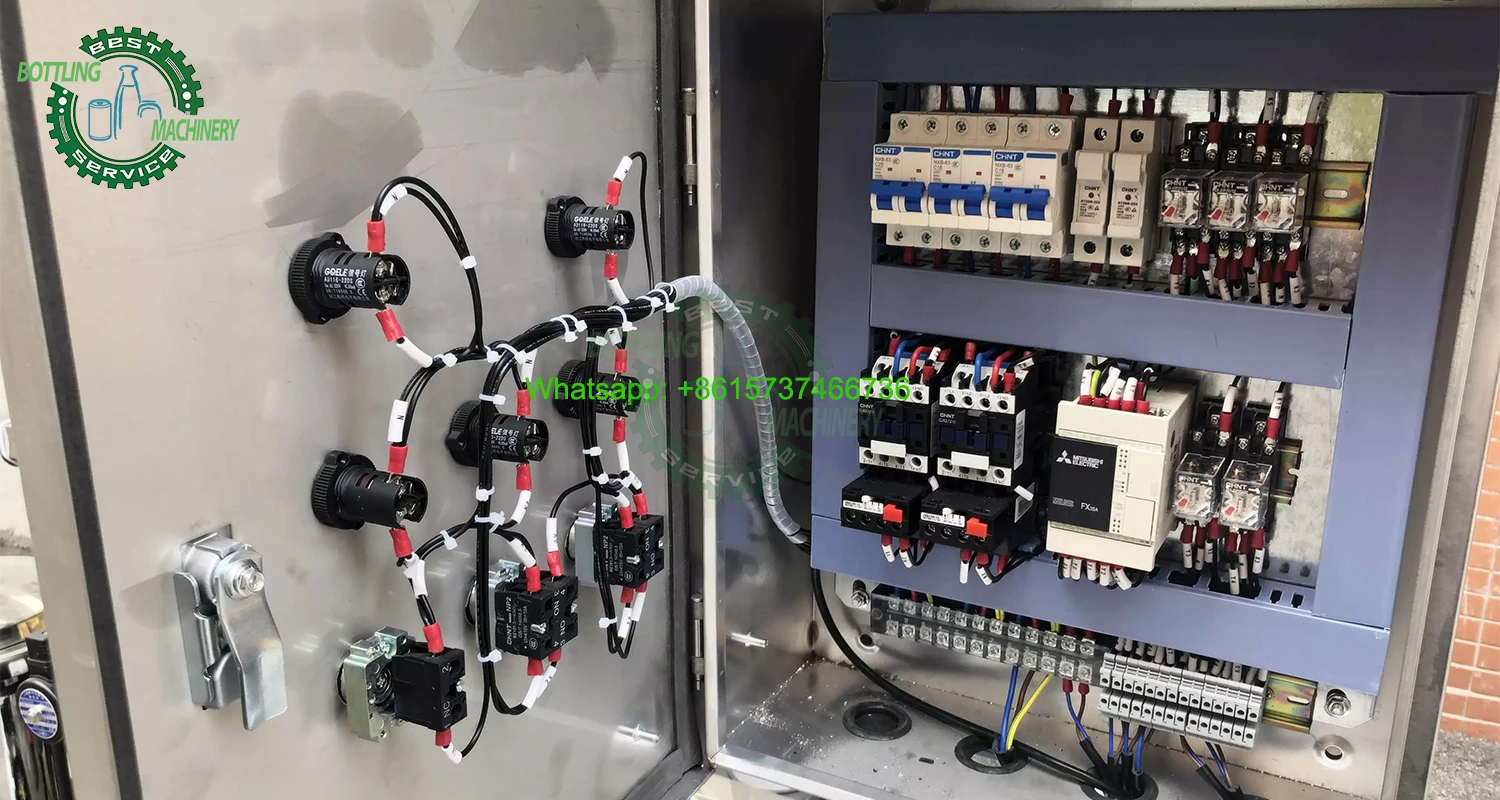

Electric control box:
Air switch:protect the electric system
PLC(Programmable Logic Controller):Design the progaram as requirements you need.
Air switch:protect the electric system
Optional Components :
A. Regulating wheels
B. PLC Touch Screen
C. Two-stage RO system
D. PH adjustment anti-scale
E. Automatic cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank
Spare parts of this system: | ||
Part name | Advice Replacement time | |
pp filter cartridge | Every one month | |
Quartz sand | Every 15-18months | |
Activated carbon | Every 15-18months | |
UF membrane | Every 2years | |
UF-1000LPH
UF-2000LPH
UF-3000LPH
UF-5000LPH
UF-20 tons per hour
UF-40 tons per hour
Raw water tank
SUS304 filter tank
FRP filter tank
UV sterilizer
Ozone generator/sterilizer
Aseptic pure water tank
