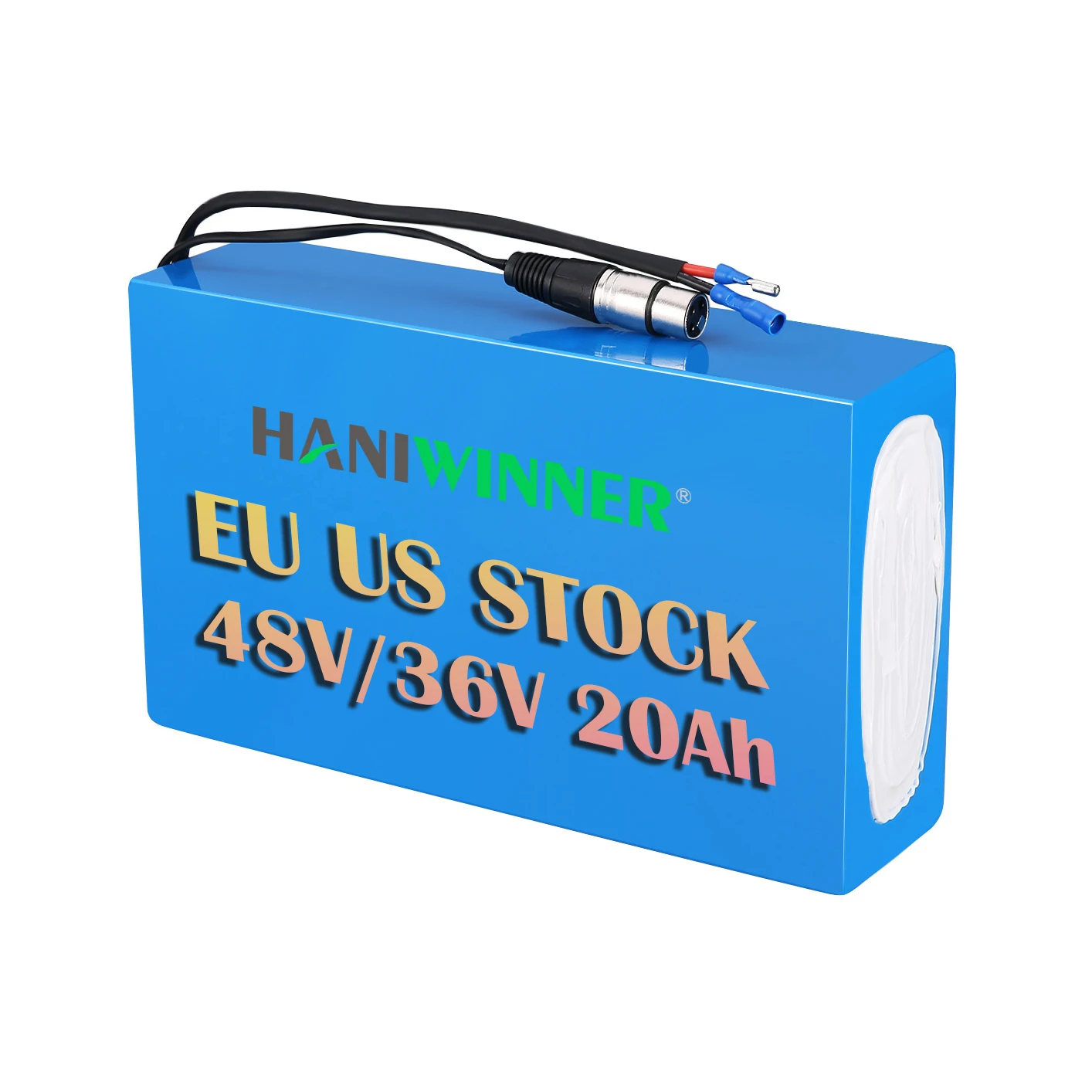

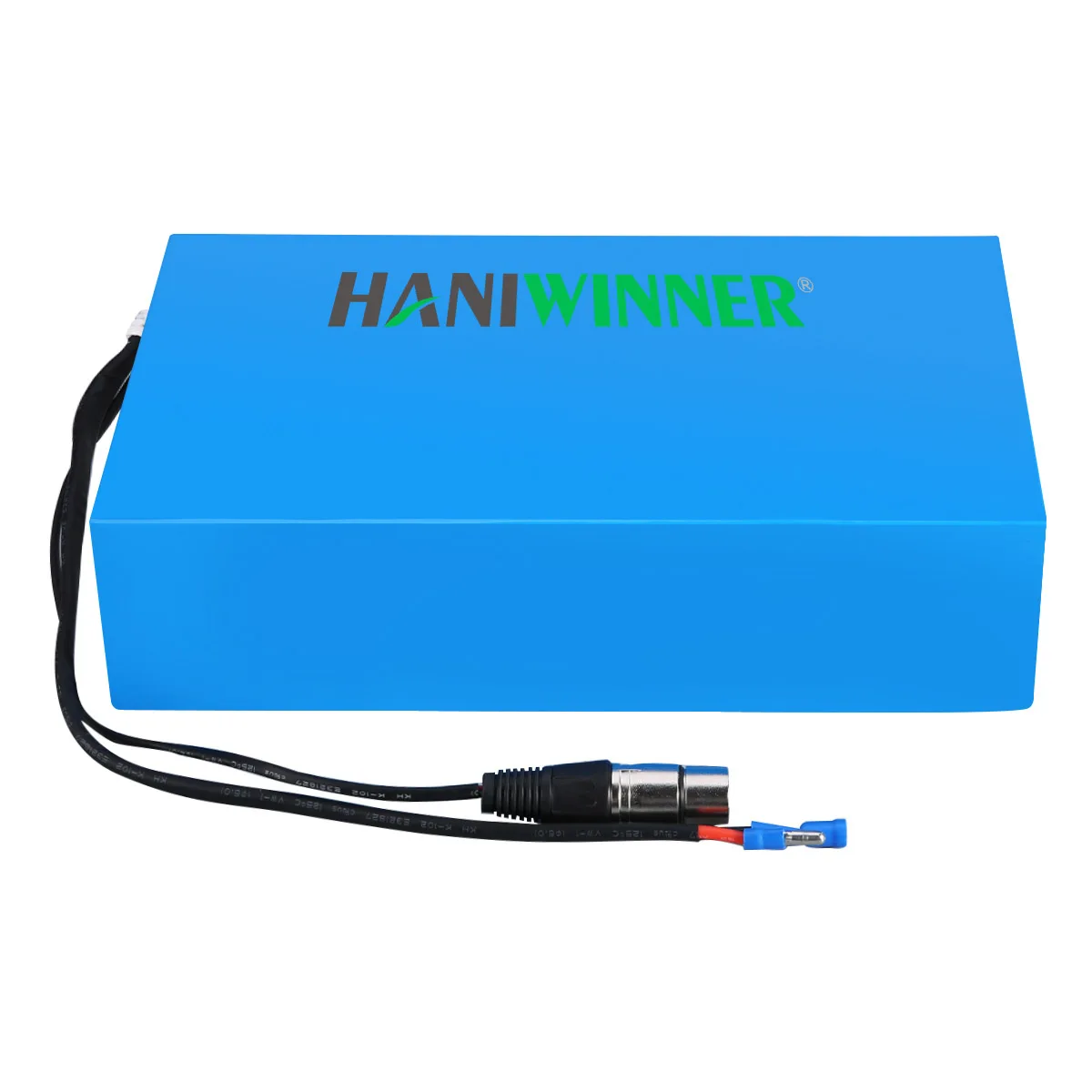

Custom Electric Bike Battery Case 18650 Cells 24V 36V 48V Lithium Ion Battery Pack For Ebike
- Category: >>>
- Supplier: Shenzhen Hani Energy Technology Co. Ltd.
Share on (1600966946190):
Product Overview
Description

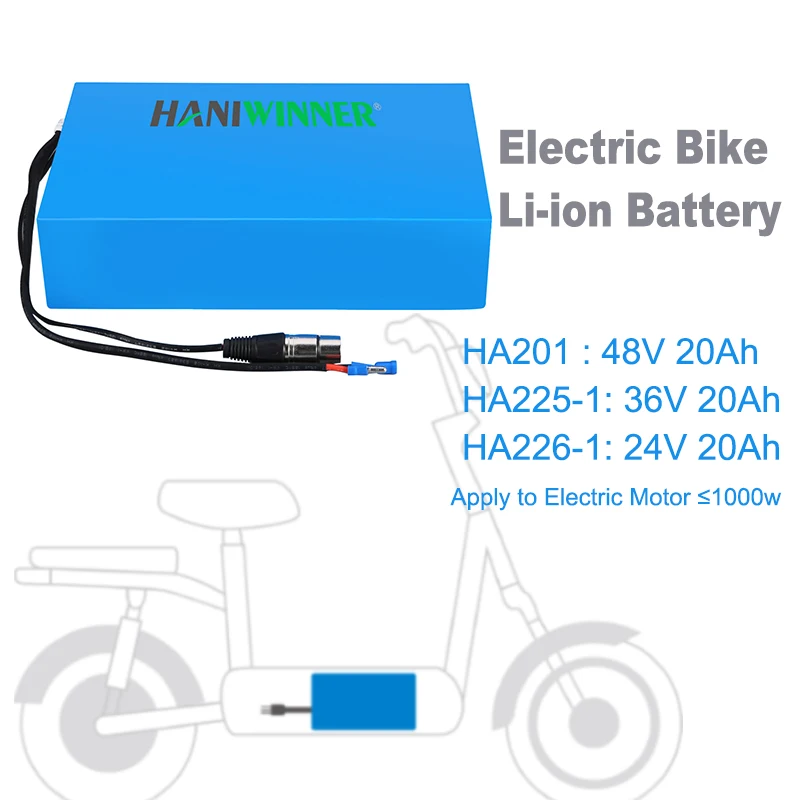

Custom Electric Bike Battery Case 18650 Cells 24V 36V 48V Lithium Ion Battery Pack For Ebike
Specification
Model | HA201 (EU/US STOCK) | HA225-1 (EU/US STOCK) | HA226-1 |
Rated Voltage | 48V | 36V | 24V |
Rated Capacity | 20Ah | 20Ah | 20Ah |
Battery Power | 960Wh | 720Wh | 480Wh |
Max Charge Voltage | 54.6V | 42V | 29.4V |
Discharge Cut-off Voltage | 36V | 27.5V | 27.5V |
Max. Charge Current | 5A | 5A | 5A |
Standard Discharge Current | 5A | 5A | 5A |
Max. Discharge Current(BMS) | 30A | 30A | 30A |
Over current protection | 120A | 120A | 120A |
Apply to Electric Motor Power | ≤1000W | ≤800W | ≤650W |

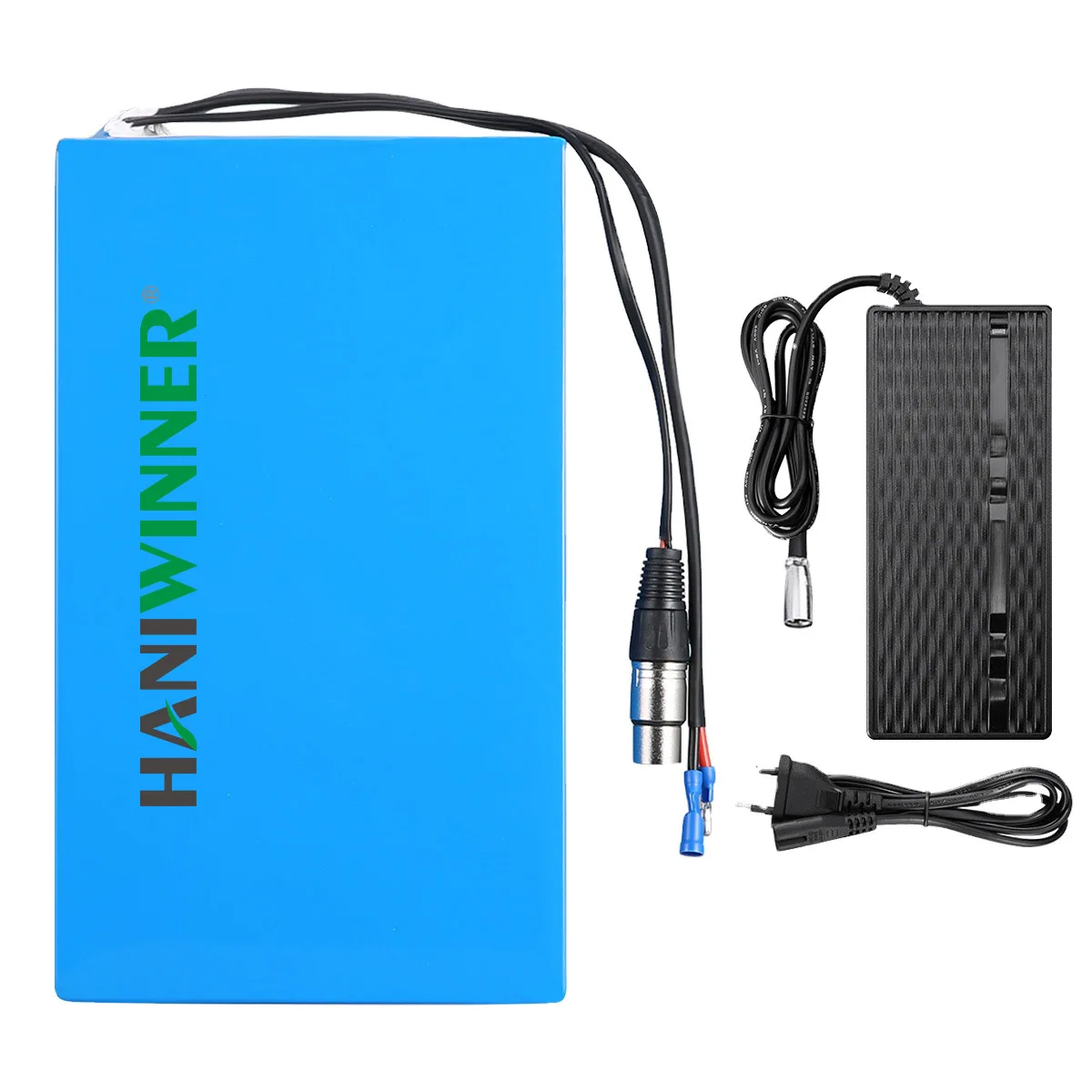

Battery Charger | 54.6V 2.5A | 42V 3A | 29.4V 3A |
Net weight | 5.4kg | 4.3KG | 3KG |
Gross weight | 6.4kg | 5.2KG | 4KG |

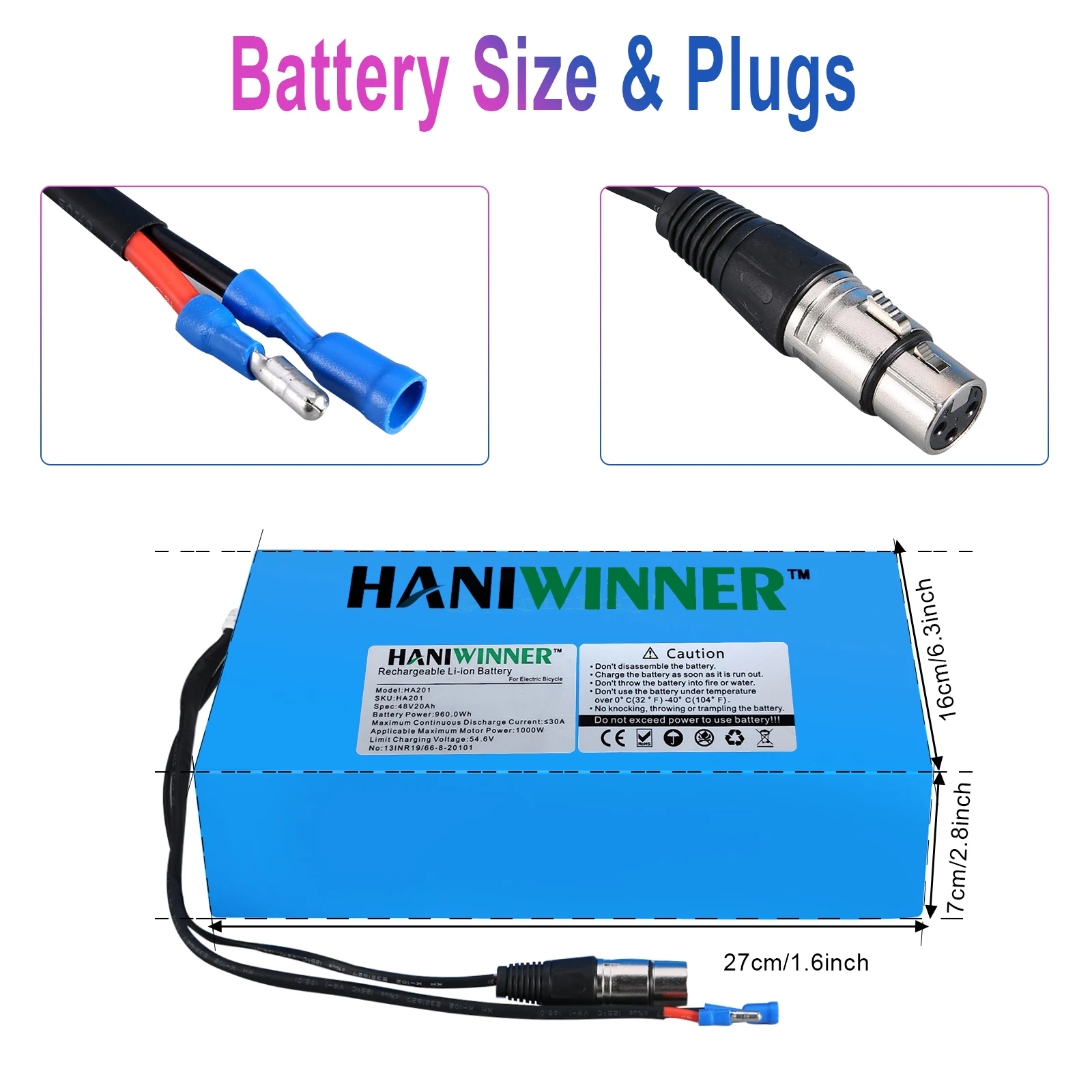

Battery size | 270×70×160mm | 210×160×70mm | 140*160*70mm |
Packing size | 470*190*170mm | ||||
Operating Temperature | Charge Temperature | 0℃～45℃ | |||
Discharge Temperature | -20℃～60℃ | ||||
Storage Temperature | Within a month | 0℃～45℃ | |||
Within a month to three months | 5℃～40℃ | ||||
Within three months to one year | 10℃～35℃ | ||||
Features
* Longer life compared to Lead-Acid battery
* Over-Charging safety protection
* 60% more energy
* Over-Discharging safety protection
* Up to 70% weight savings
* Over-Current safety protection
* Easy to install and remove
* Over-Charging safety protection
* 60% more energy
* Over-Discharging safety protection
* Up to 70% weight savings
* Over-Current safety protection
* Easy to install and remove
* Short Circuit safety protection
* Faster charging times
*High Temperature safety protection
*100% available capacity
*Built-in safety protection BMS
* No fire, No explosions
*Eco-friendly, no pollution
* Faster charging times
*High Temperature safety protection
*100% available capacity
*Built-in safety protection BMS
* No fire, No explosions
*Eco-friendly, no pollution
Product Description

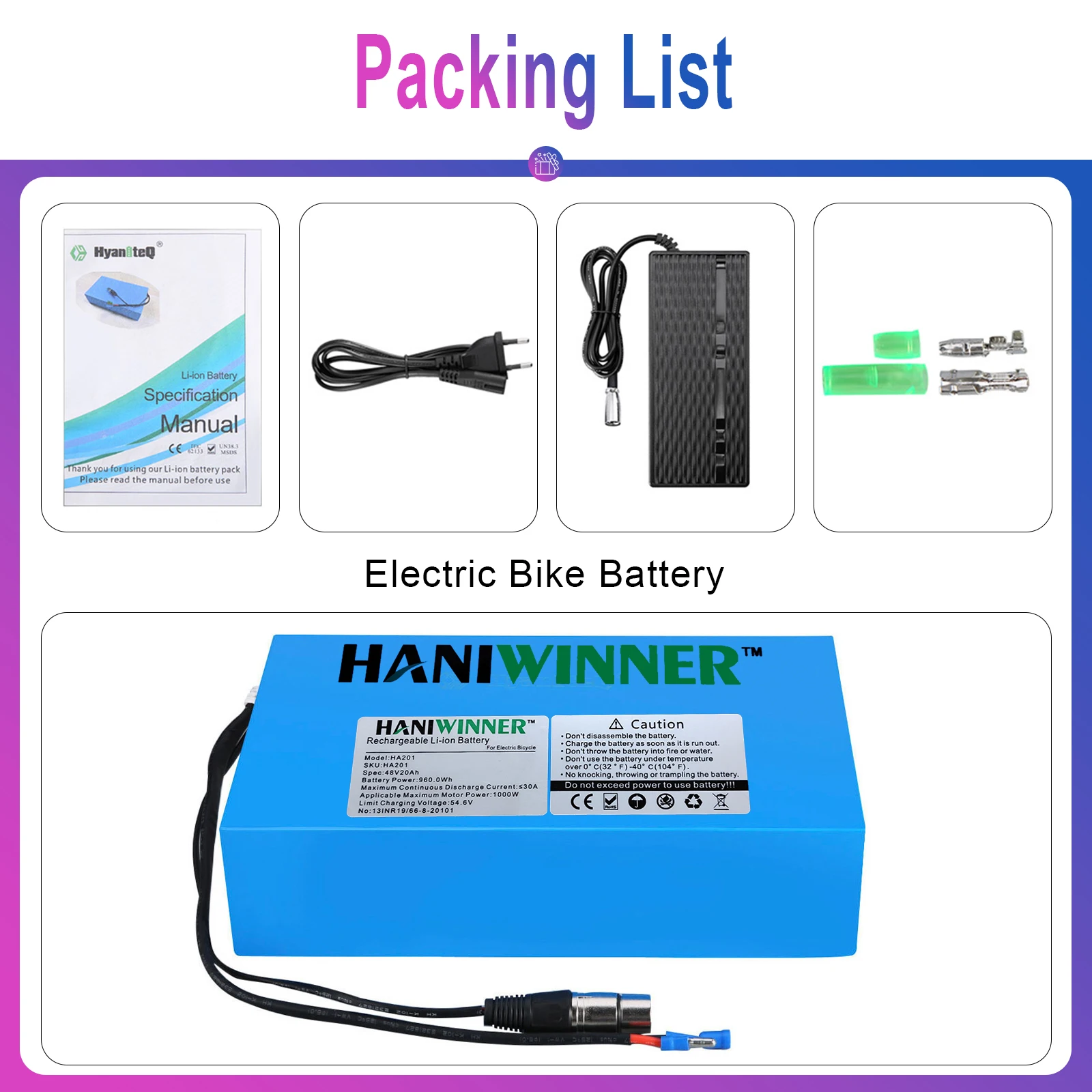

Packing & Delivery
EU/ STCOK 48V 36V 20Ah，FAST DELIVERY.

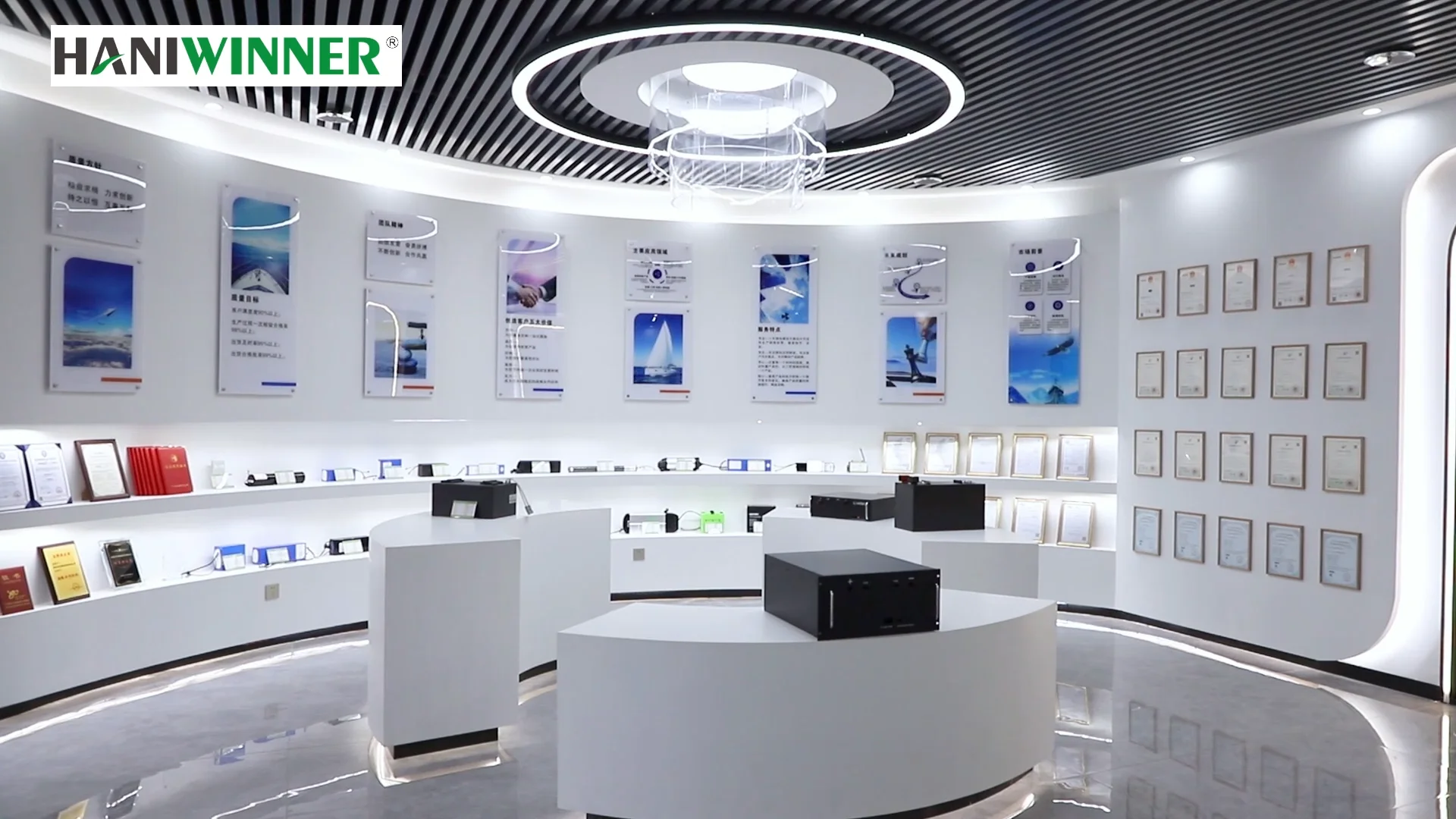

Company Profile
About us>>>
ShenZhen Hani Energy Technology Co., Ltd was established in 2012, a national high-tech enterprise sales of lithium batteries for 10 years specializing in R & D, design and sales of lithium batteries for 10 years. Our factory owns strong productivity strength which covers an area of 4000㎡ , and has more than two hundred employees.
Professional engineers monitor the entire production process at any time to ensure battery quality. Professional R&D team,
providing professional OEM, ODM, OBM customization services.
Shenzhen Hani Energy Technology Co., Ltd engaging itself in offering innovative batteries and energy solutions, will continue to concern customer needs in other fields of batteries, and strengthen the technical superiority, support energy conservation and environmental protection, sustainably provide customers with valuable products and services, become a genuine lithium battery
expert.
Certifications
Why Choose Us
10+ years experience
Our R&D team has focused on power solutions and batteries customization for already 10 years by provided battery packs for the world famous companies in the field.
Quality guarantee
All batteries are produced according to the strictest industry standards. we've cooperated with brand cells like Samsung, LG, Panasonic, etc for all battery packs.
Worldwide after-sales service
Wherever you are we try the best to response to your complaints at the first time. and we provide full 12 months warranty after ex-factory.
Convenient and fast
We have warehouses in Poland USA and UK. After you place an order, we will send it directly through DPD or FedEx. Generally, if in stock, batteries will be send in 3-7 days.
Our R&D team has focused on power solutions and batteries customization for already 10 years by provided battery packs for the world famous companies in the field.
Quality guarantee
All batteries are produced according to the strictest industry standards. we've cooperated with brand cells like Samsung, LG, Panasonic, etc for all battery packs.
Worldwide after-sales service
Wherever you are we try the best to response to your complaints at the first time. and we provide full 12 months warranty after ex-factory.
Convenient and fast
We have warehouses in Poland USA and UK. After you place an order, we will send it directly through DPD or FedEx. Generally, if in stock, batteries will be send in 3-7 days.
FAQ
1.How long is your warranty period?
A: One year. If it is our problems,we will provide new spare parts and guide you to repair by video.
2. How about your delivery time?
A: Generally, if in stock, batteries will be send in 5-7days. If no stock, the delivery time is 15-30 days. The specific delivery
time depends on the items and the quantity of your order.
3.How do you ship the goods?
A: We have warehouses in Poland, UK and USA . After you place an order, we will send it directly through DPD express.
4.Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

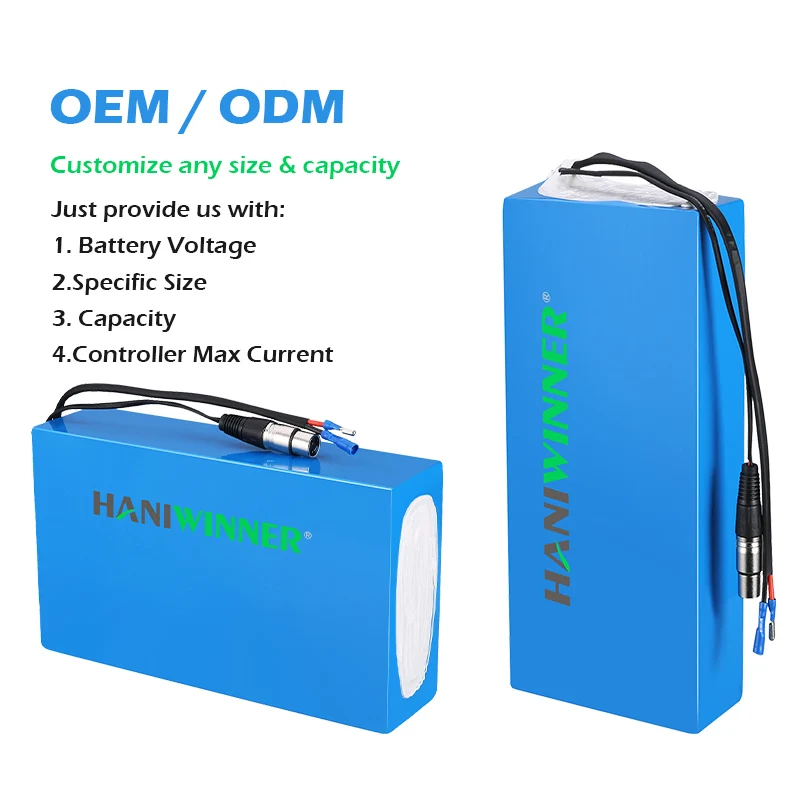

5.can you accept OEM?
A: Yes, OEM is available, we can print your picture or logo on the battery case, and you can offer your logo.
6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
A: One year. If it is our problems,we will provide new spare parts and guide you to repair by video.
2. How about your delivery time?
A: Generally, if in stock, batteries will be send in 5-7days. If no stock, the delivery time is 15-30 days. The specific delivery
time depends on the items and the quantity of your order.
3.How do you ship the goods?
A: We have warehouses in Poland, UK and USA . After you place an order, we will send it directly through DPD express.
4.Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
5.can you accept OEM?
A: Yes, OEM is available, we can print your picture or logo on the battery case, and you can offer your logo.
6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
