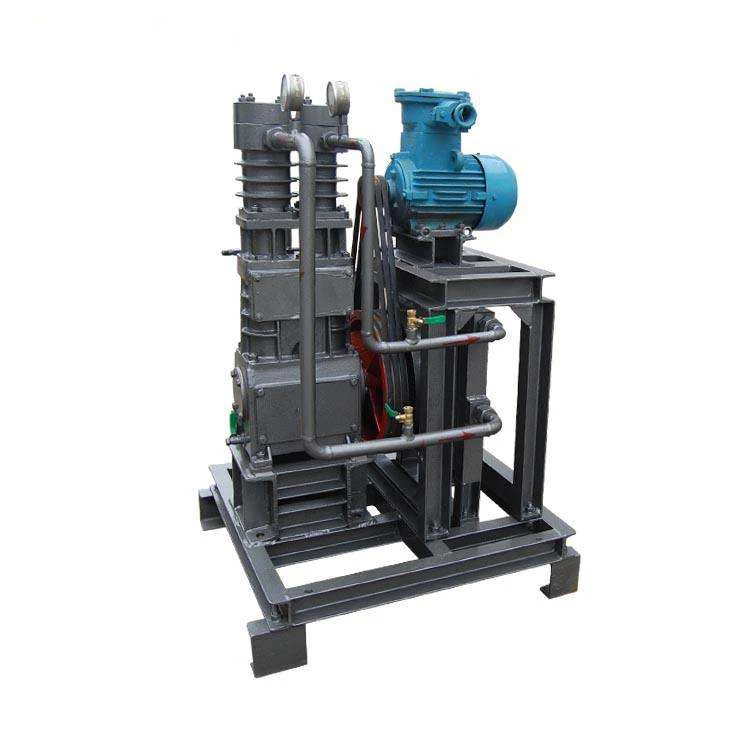

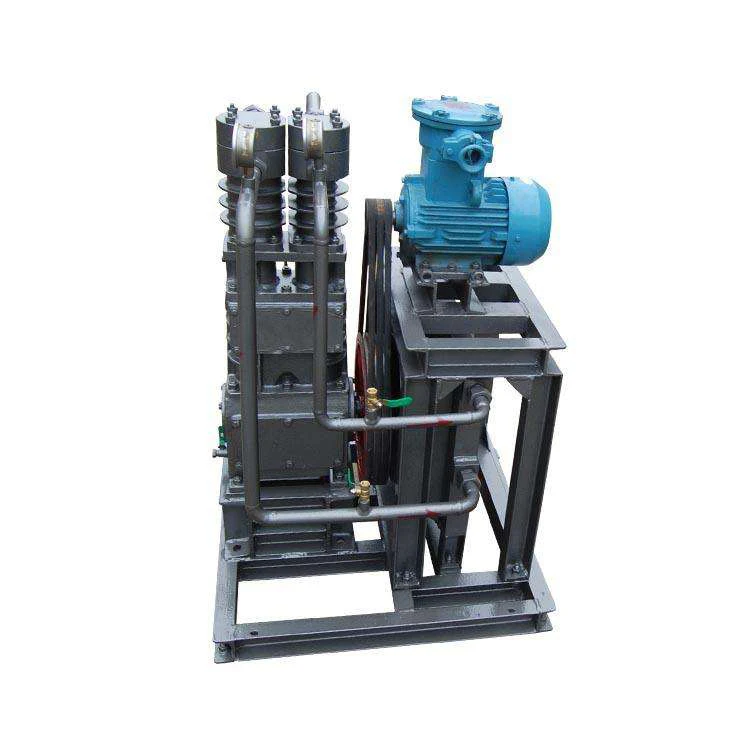

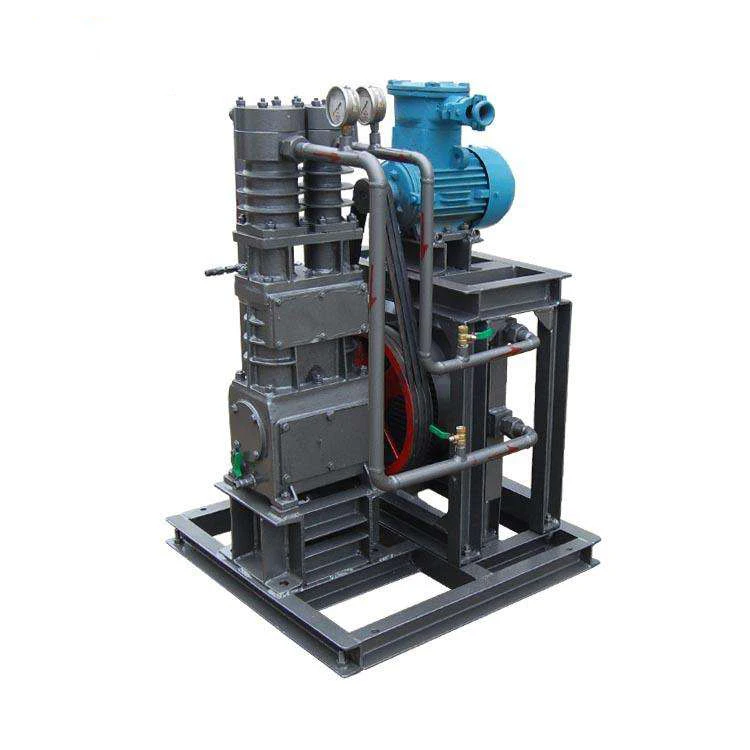

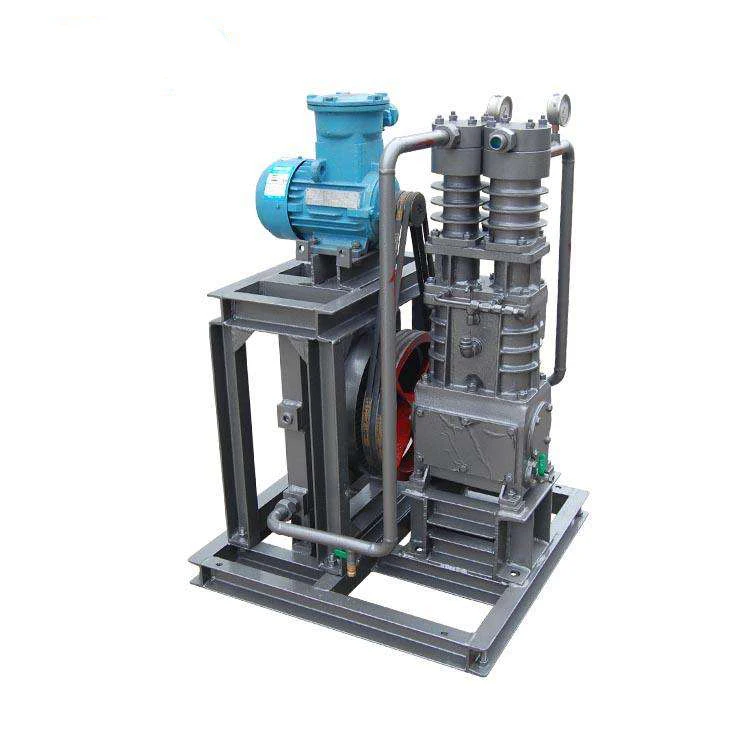

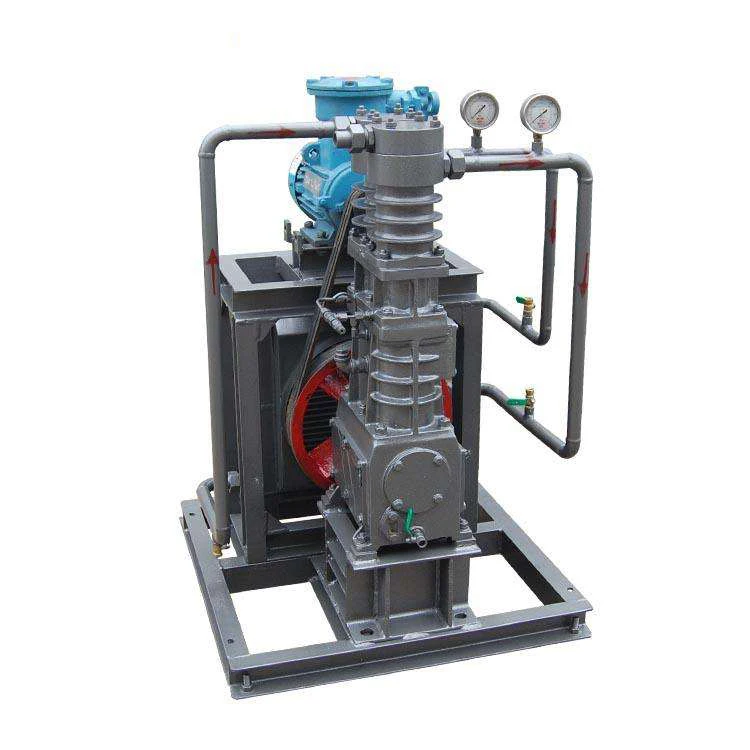

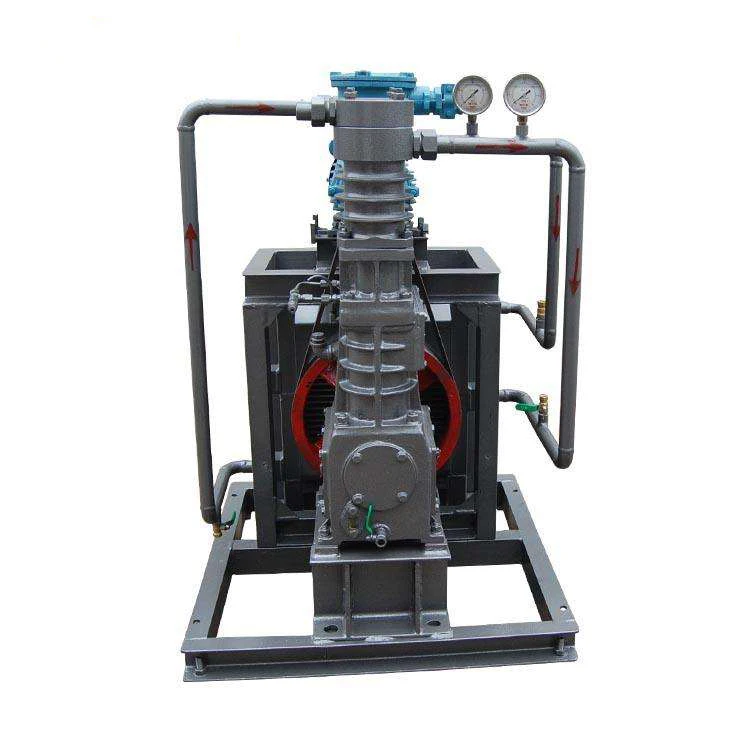

High Quality Custom Petroleum Compressor LPG Compressor for Natural Gas in Russia
- Category: >>>
- Supplier: Bengbu Aot Compressor Co. Ltd.
Share on (1600966974695):
Product Overview
Description
Product Description
The compressor adopts oil-free lubrication structure and can run continuously for a long time. Meet the process requirements, suitable for all kinds of gases. All oil-free lubrication compressors with various parameters and requirements can be customized according to customer requirements.
Main Industry: compression equipment
Various types of gas compressor: ammonia compressor/oxygen compressor/hydrogen compressor/hydrogen chloride gas compressor/compressor/freon compressor/nitrogen compressor/co2 compressor/methane compressor/liquefied petroleum gas compressor/propylene compressor/gas compressor/mixture compressor/BOG compressor/raw material gas compressor
Various types of gas compressor: ammonia compressor/oxygen compressor/hydrogen compressor/hydrogen chloride gas compressor/compressor/freon compressor/nitrogen compressor/co2 compressor/methane compressor/liquefied petroleum gas compressor/propylene compressor/gas compressor/mixture compressor/BOG compressor/raw material gas compressor
Detailed Images
Features:
The whole machine has the characteristics of safety and reliability, high stability, complete configuration and convenient maintenance
Technical Parameters
Compressor | Product Model | ZW-0.22/250 | |||
Type | Z Type | ||||
Compressed medium | Natural gas | ||||
Nominal volume flow(Nm³/h) | 600 | ||||
Compression stage | 2 | ||||
Cylinder number | 2 | ||||
Driving mode | Coupling | ||||
Noise (sound pressure level) dB(A) | ≤85 | ||||
Cooling mode | Air cooling | ||||
Rotational speed (r/min) | 740★ | ||||
Suction pressure(bar) | 30~250 | ||||
Discharge Pressure(bar) | 250 | ||||
Suction temperature (℃) | ≤40 | ||||
Discharge temperature (℃) | ≤150(After cooling≤50) | ||||
Lubrication type | Crankshaft, connecting rod, cross head | Oil lubrication | |||
Cylinder, Packing | Oil-free lubrication | ||||
Motor | Model | YB3-315S-8 | |||
Explosion-proof grade | DIIBT4 | ||||
Rotational speed (r/min) | 740 | ||||
Rated voltage (V) | 440 | ||||
Rated frequency(Hz) | 50 | ||||
Rated current (A) | 103 | ||||
Rated power (KW) | 55 | ||||
Compressor size (L×W×H) mm | ≈3600×1800×1300★ | ||||
Weight(kg) | ≈3800★ | ||||
Note:With the parameters of the logo will be subject to leave the factory
Scope of supply
No. | Name | Number |
1 | Compressor host | 1 |
2 | Explosion-proof motor | 1 |
3 | Gas-liquid separator | 2 |
4 | Shared chassis | 1 |
5 | The relief valve | 2 |
6 | Coupling | 1 set |
7 | Piping components | 1 set |
8 | Random spare parts | 1 set |
9 | The technical documentation | 1 set |
10 | Air cooling system | 1 set |
11 | Control system | 1 set Lubricating oil pressure is low, alarm is stopped; High outtake pressure, alarm shutdown; Low intake pressure, automatic alarm shutdown High intake pressure, automatic alarm stop |
12 | Oil injector | 1 set |
Five reasons to choose AOT compressor:
1.Overall skid-mounted humanized design:
Adopt integral skid-mounted design, compact structure, more convenient operation and maintenance.
2."Tailored" for customers:
According to the usage parameters and requirements provided by customers, provide the best solution to fully meet the needs of customers.
3.A machine a file:
Record the relevant data and information of the whole process of the equipment and the delivery place in detail, so as to
facilitate the timely tracking service.
4.24Monthly free warranty
All factory compressors are Free warranty for 24 months, lifetime warranty, so that users can be more assured.
5.Perennial spare parts support
Our company stock spare parts for every factory compressor, to ensure the long-term use of users, remove users' worries.
1.Overall skid-mounted humanized design:
Adopt integral skid-mounted design, compact structure, more convenient operation and maintenance.
2."Tailored" for customers:
According to the usage parameters and requirements provided by customers, provide the best solution to fully meet the needs of customers.
3.A machine a file:
Record the relevant data and information of the whole process of the equipment and the delivery place in detail, so as to
facilitate the timely tracking service.
4.24Monthly free warranty
All factory compressors are Free warranty for 24 months, lifetime warranty, so that users can be more assured.
5.Perennial spare parts support
Our company stock spare parts for every factory compressor, to ensure the long-term use of users, remove users' worries.
Our Company
Certifications
Why Choose Us
Packing & Delivery
FAQ
Q1: Why choose us?
A: Bengbu AOT Compressor Co., Ltd., is specialized in Special Gas Compressor. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Anhui, China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 30 to 60 days, if urgently order, please contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 15 years.
Q6: What's payment term?
A: T/T, L/C, Western Union, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours online service available. 48hours problem solved promise.
A: Bengbu AOT Compressor Co., Ltd., is specialized in Special Gas Compressor. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Anhui, China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 30 to 60 days, if urgently order, please contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 15 years.
Q6: What's payment term?
A: T/T, L/C, Western Union, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours online service available. 48hours problem solved promise.
Q8: How about your after-sales service?
A: Installation Services and online instructions. Well-trained engineers available to overseas service.
A: Installation Services and online instructions. Well-trained engineers available to overseas service.
