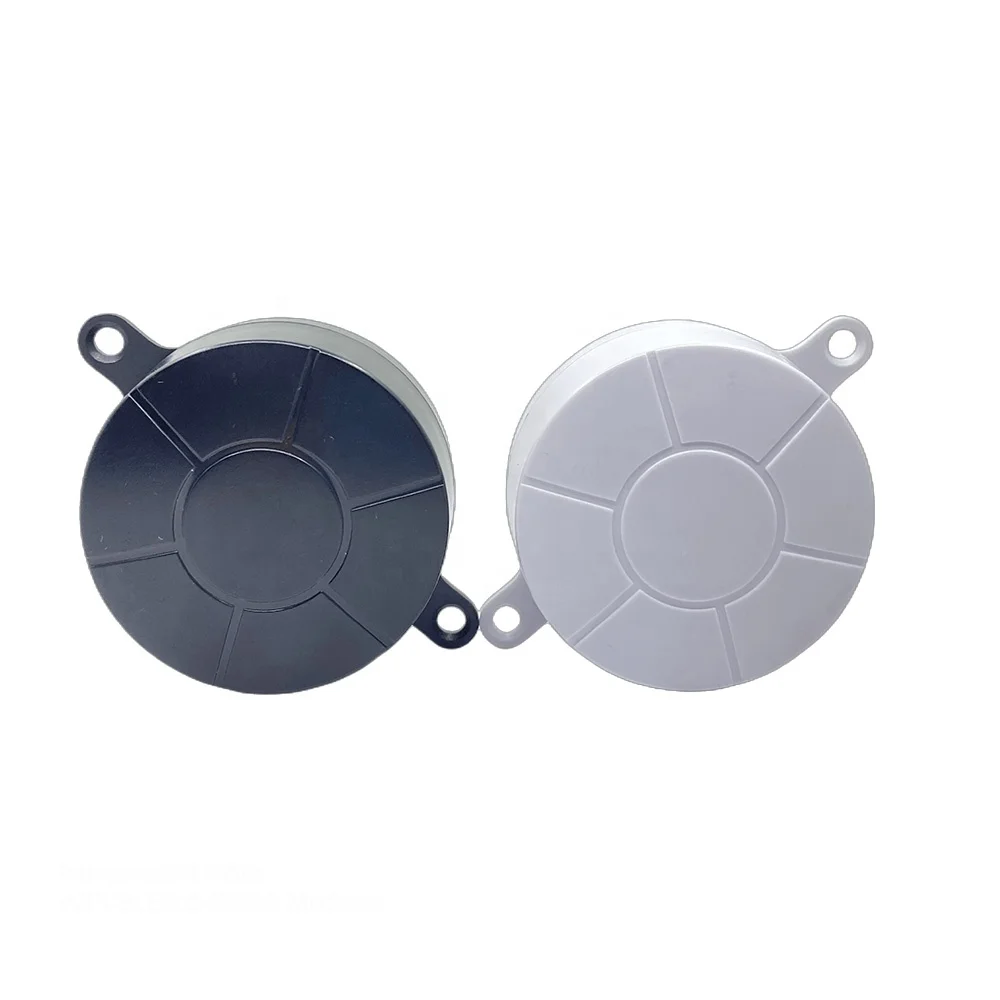

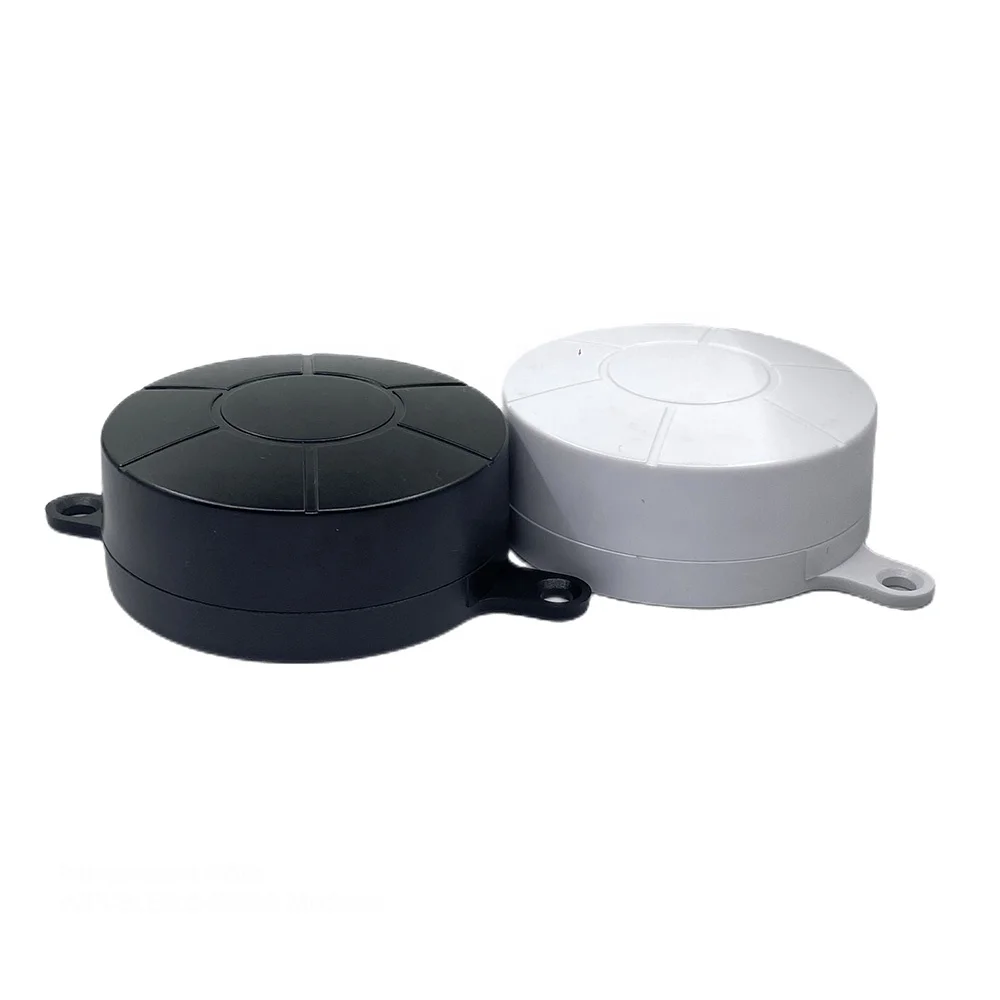

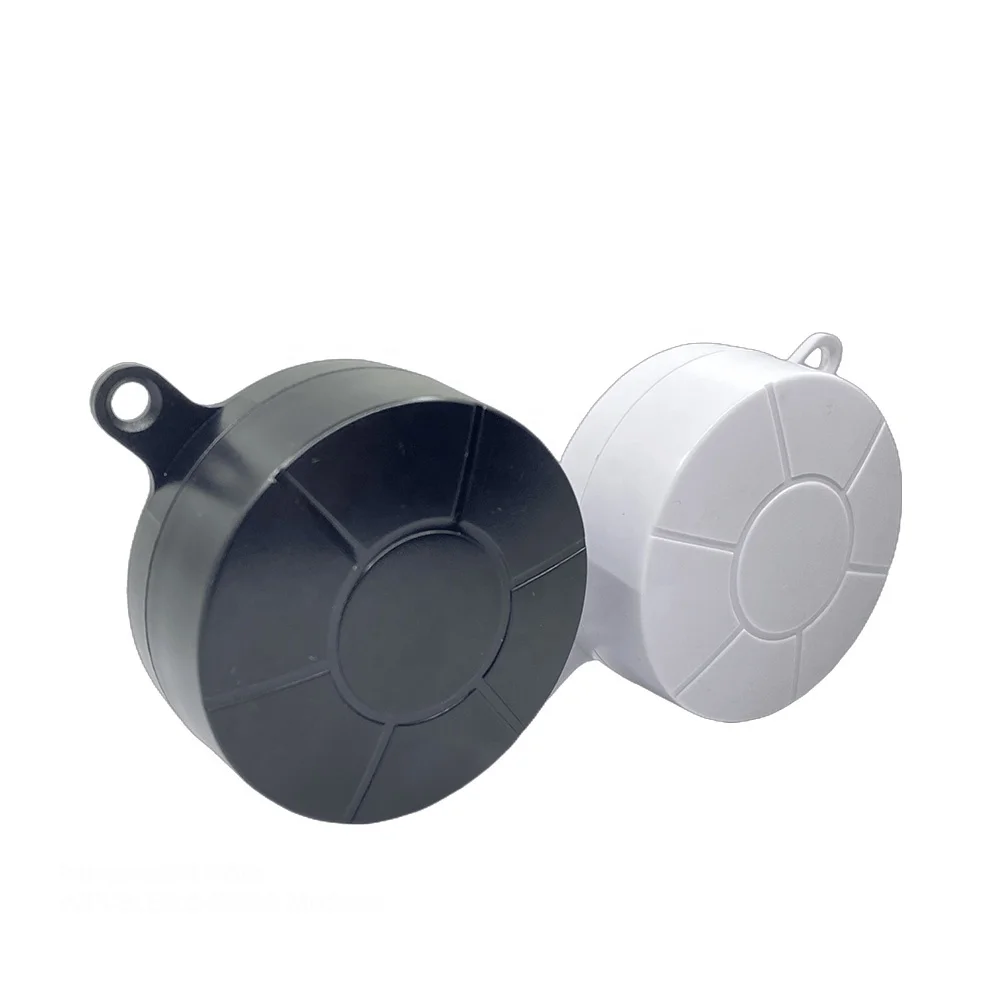

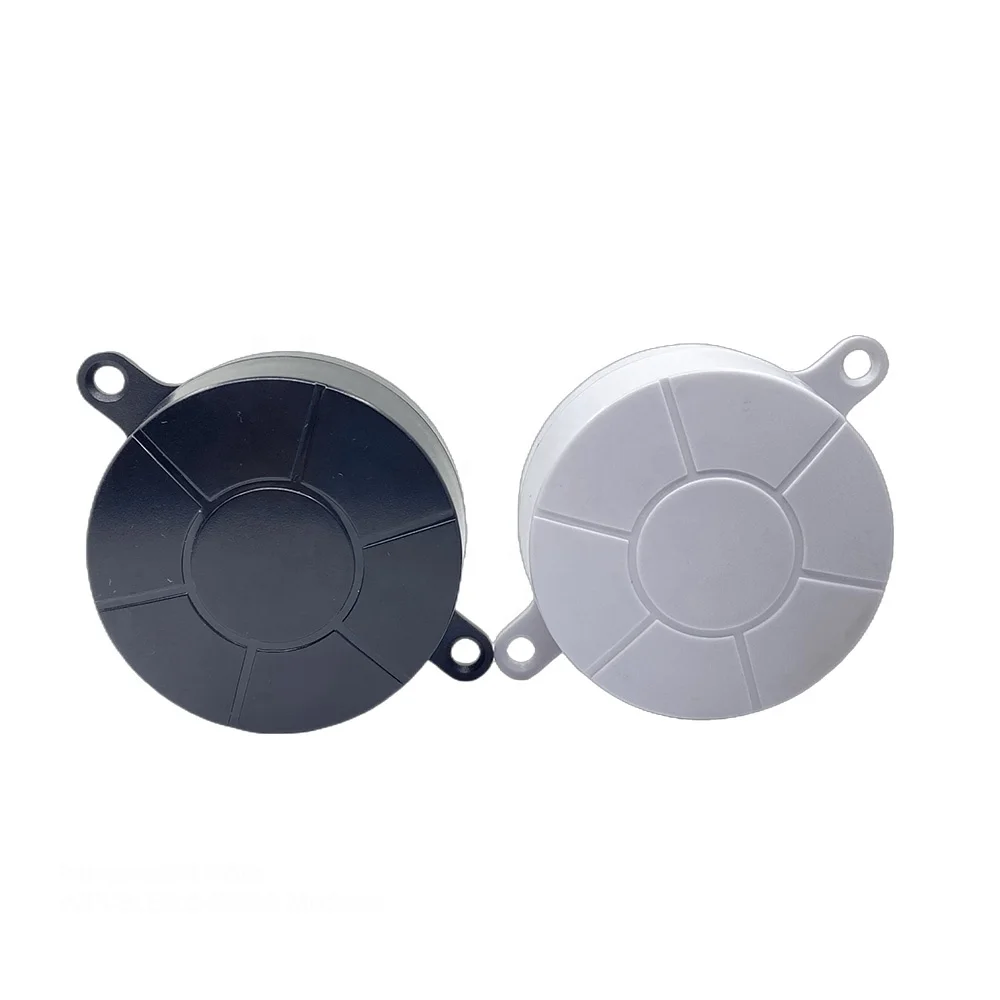

11 yrs temperature humidity sensing ble ibeacon tag bluetooth beacon
- Category: >>>
- Supplier: HoneyComm IoT Technology (Shenzhen) Co. Ltd.
Share on (1600967171981):
Product Overview
Description
Bluetooth Low Energy Beacon Overview
HCBB01 is a Bluetooth beacon based on low power Bluetooth chip which is powered by two ER14250 batteries and can be used for up to 5 years.
HCBB01 can broadcast UUID, Major, Minor, RSSI, battery power, Bluetooth name, Bluetooth MAC address and other information, where UUID, Major, Minor, Bluetooth name can be set through the mobile phone APP.
HCBB01 broadcast distance can reach 80 meters, using 3M glue can be easily installed and fixed.
HCBB01 can broadcast UUID, Major, Minor, RSSI, battery power, Bluetooth name, Bluetooth MAC address and other information, where UUID, Major, Minor, Bluetooth name can be set through the mobile phone APP.
HCBB01 broadcast distance can reach 80 meters, using 3M glue can be easily installed and fixed.
HCBB01 firmware is divided into connectable type and non-connect type. Connectivity type can change Bluetooth beacon
parameters at any time through mobile phone connection. Non-connect type can only connect and change parameters within 30 seconds
of Bluetooth beacon power on. HCBB01 default model without temperature and humidity sensor and acceleration sensor, if
necessary, please contact our sales.
parameters at any time through mobile phone connection. Non-connect type can only connect and change parameters within 30 seconds
of Bluetooth beacon power on. HCBB01 default model without temperature and humidity sensor and acceleration sensor, if
necessary, please contact our sales.
Hardware Parameters | ||
Part Number | HCBB01 | |
Antenna | PCB antenna | |
Battery | ER14250 of lithium batteries 2*1200 mAh | |
Voltage | 3.6 V | |
Dimensions (D×H) | 53.86*24.93 mm | |
Wireless performance | ||
Wireless standards | Bluetooth ®4.2 | |
Frequency range | 2400MHz---2483.5MHz | |
Data rate | 1Mbps | |
Modulation mode | GFSK Modulation | |
Encryption | AES HW Encryption | |
Transmission power | Tx Power -20to +4 dBm in 4dB Steps | |
Receiving sensitivity | 93 dBm at 1Mbps BLE | |
Work model | Peripheral | |
Other Parameters | ||
Working temperature :-40℃~85℃ | ||
Storage temperature :-40℃~85℃ | ||
Environment | Working humidity :10~90 Non-condensing per cent | |
Storage humidity :5~90 Non-condensing | ||
Temperature and humidity indicators (for Bluetooth beacons with temperature and humidity sensors) | ||
Measurement accuracy of humidity | ±1.5% RH | |
Humidity measurement resolution | 0.01% RH | |
Temperature measurement accuracy | ±0.1℃ (in the range of 20-60℃) | |
Temperature measurement resolution | 0.015℃ | |
Temperature measurement range | -40~125 ℃ | |

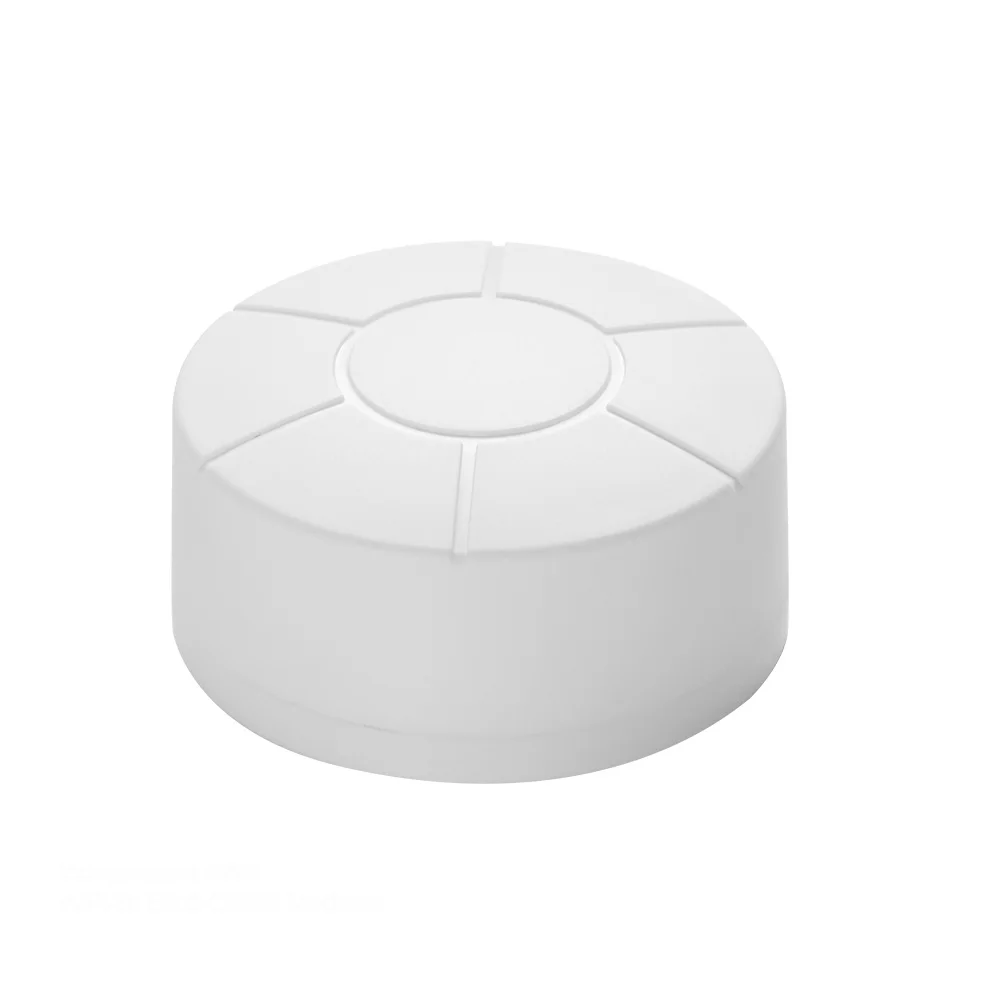

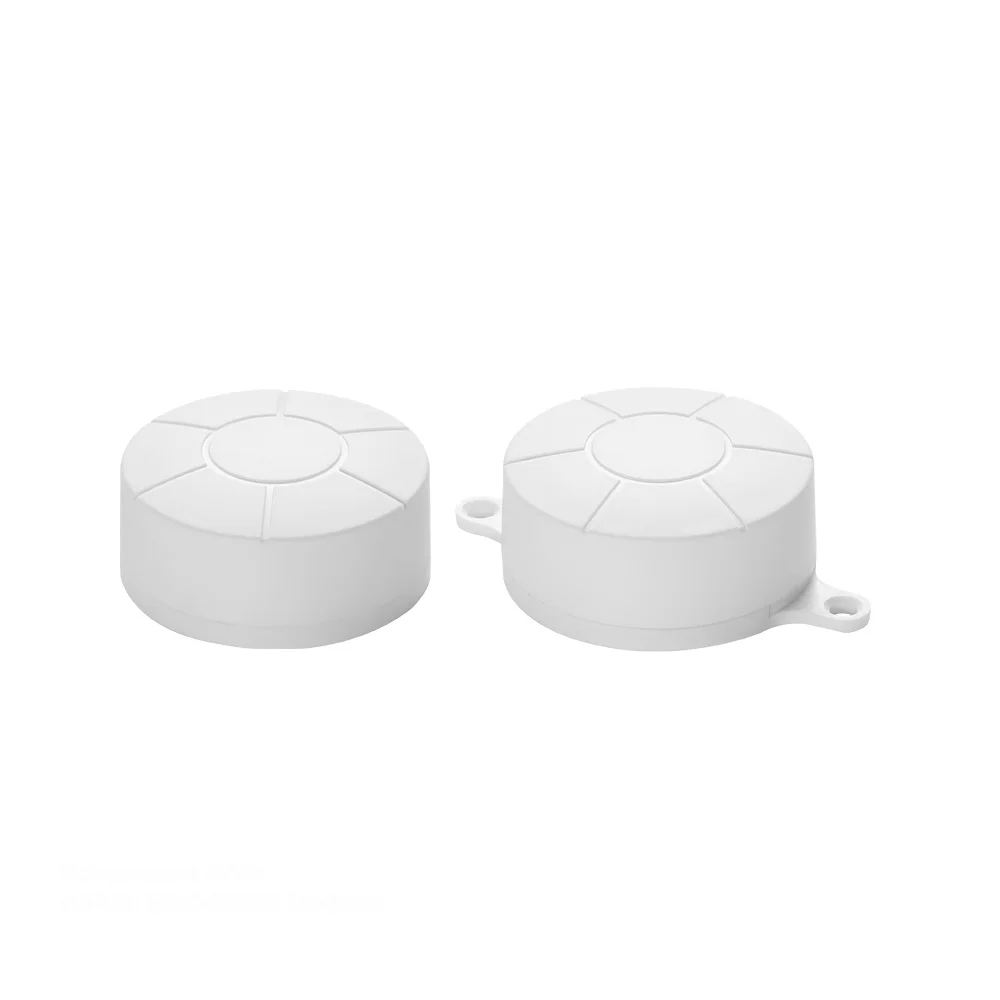

Standard Bluetooth Beacon

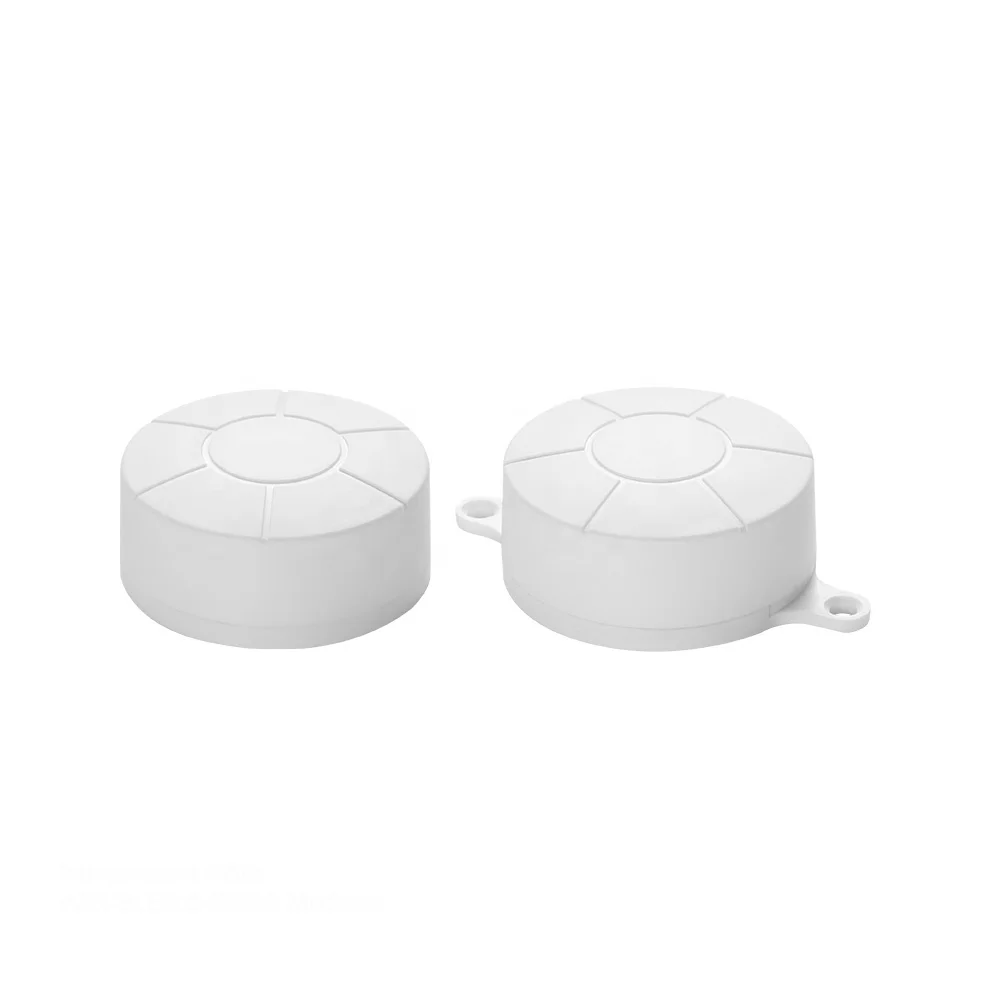

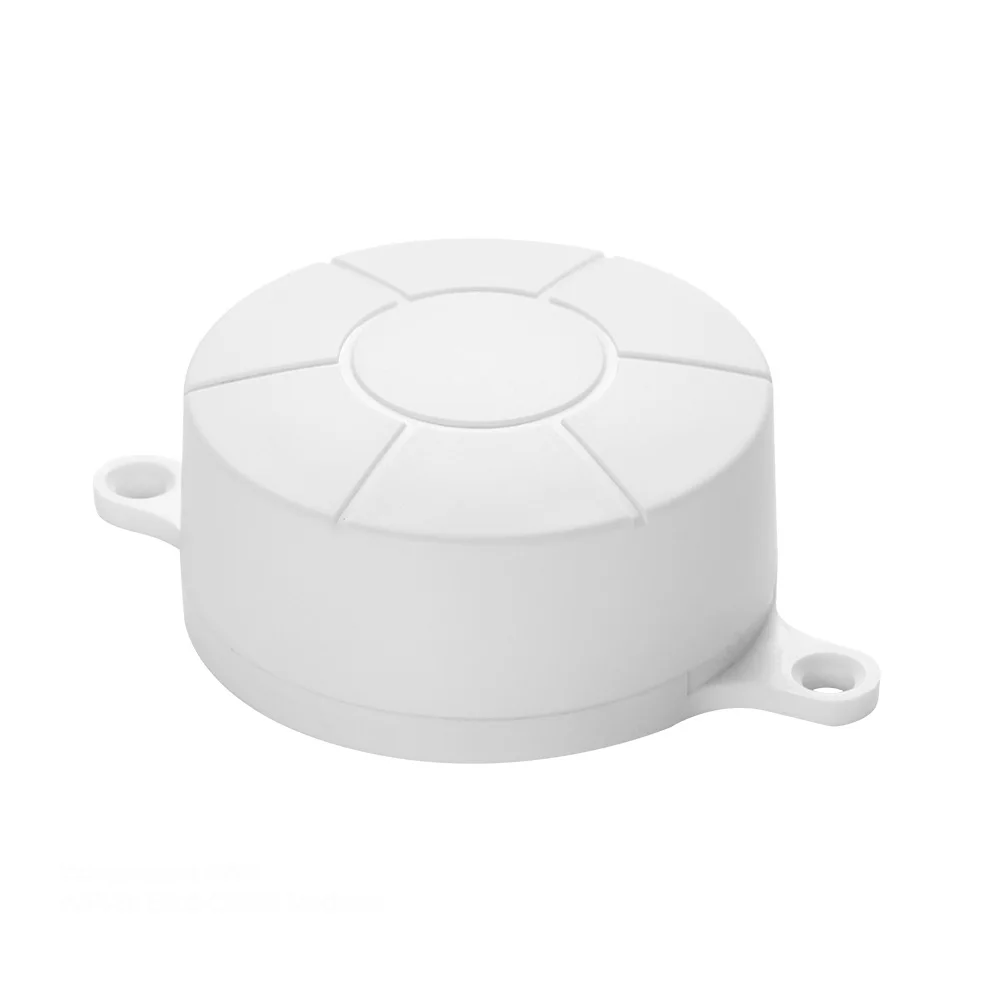

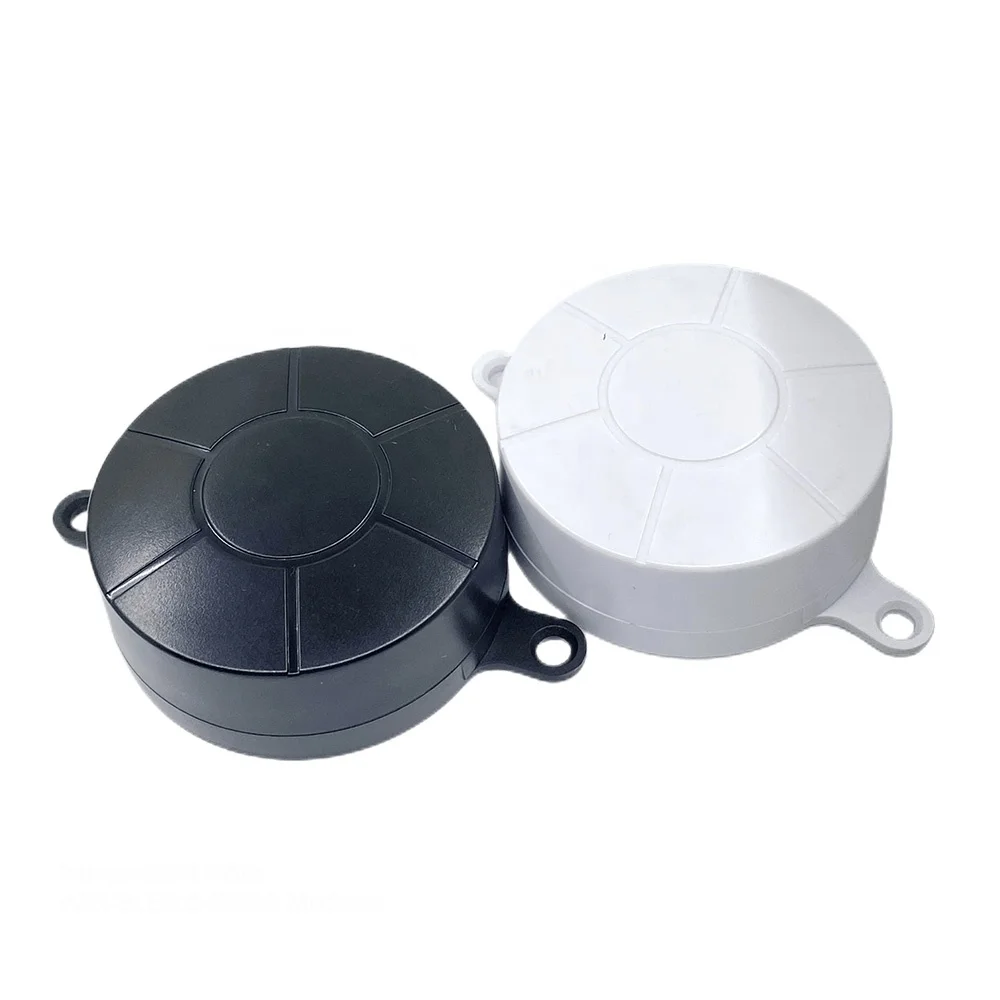

BLE Beacon with round ears
BLE 5.0 Beacon with temperature and humidity sensor
Transmission power | ||||||||
(dBm) | Broadcast distance | Broadcast intervals | Average current | Battery life | ||||
(m) | (ms) | (µA) | (year) | |||||
4 | 70 | 100 | 260 | 1.05 | ||||
4 | 70 | 500 | 50 | 5.48 | ||||
1000 | 30 | 9.13 | ||||||
0 | 50 | 100 | 200 | 1.37 | ||||
0 | 50 | 500 | 30 | 9.13 | ||||
1000 | 25 | 10.96 | ||||||
