Product Overview

Description



Product Description

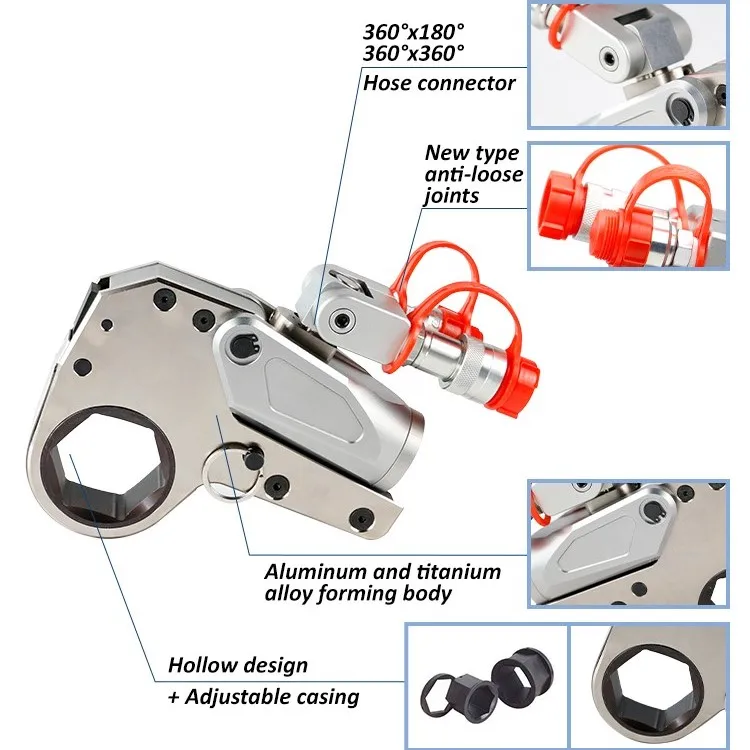

1. Thin design, made of high-strength aluminum titanium alloy material


2. Snap-in and interchangeable plugins, one power head can be used with multiple working heads


3.360x180 "rotary hose connector, suitable for compact applications and easy positioning


4. Torque repetition accuracy up to ± 3%


5. The strength design of the wrench components is sufficient, with an overall reaction arm, no space limitations, durability, and reliability


6. The work head is designed with expandable metric and English hexagonal inserts and sleeves


7. Special requirements can be designed and customized

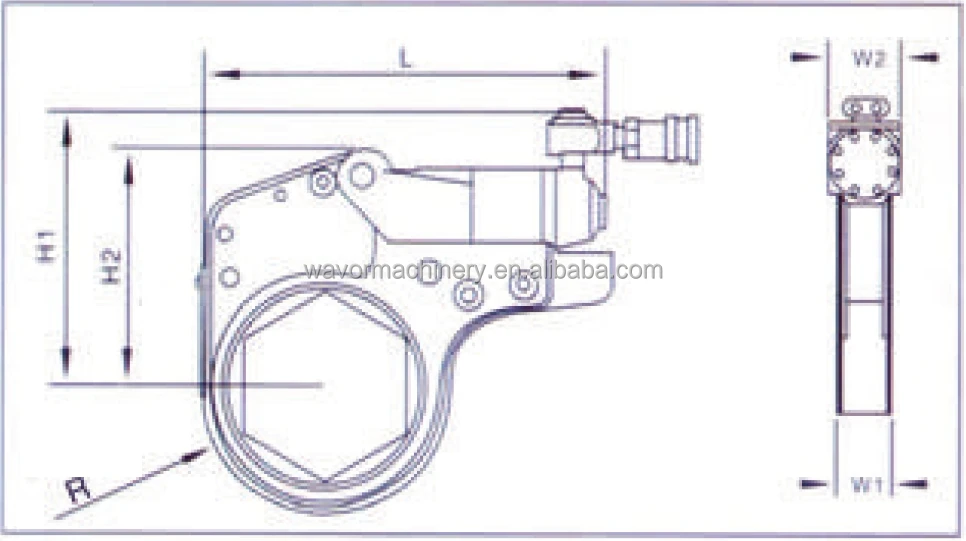

ModelHEX-02HEX-05HEX-10HEX-20HEX-25HEX-40HEX-50
Max Torque(Nm)22665188985517202230724063950956
Min Torque(Nm)2275199861720230740645095
Socket Size(mm)27-5027-6550-9065-11575-13580-155130-200
Power HeadHE02HE05HE10HE20HE25HE40HE50
Working HeadEX50EX65EX90EX115EX135EX155EX200
L (mm)205251.3302.5367400.5457.5502
H1 (mm)129163191223246282322
H2 (mm)100136166.5198224265328
W1 (mm)32415364708490
W2 (mm)50668399110132144
R (mm)25.834.839.846.850.856.859.8
Weight (Kg)2.34.9916.318.130.239.5













Packaging & Shipping

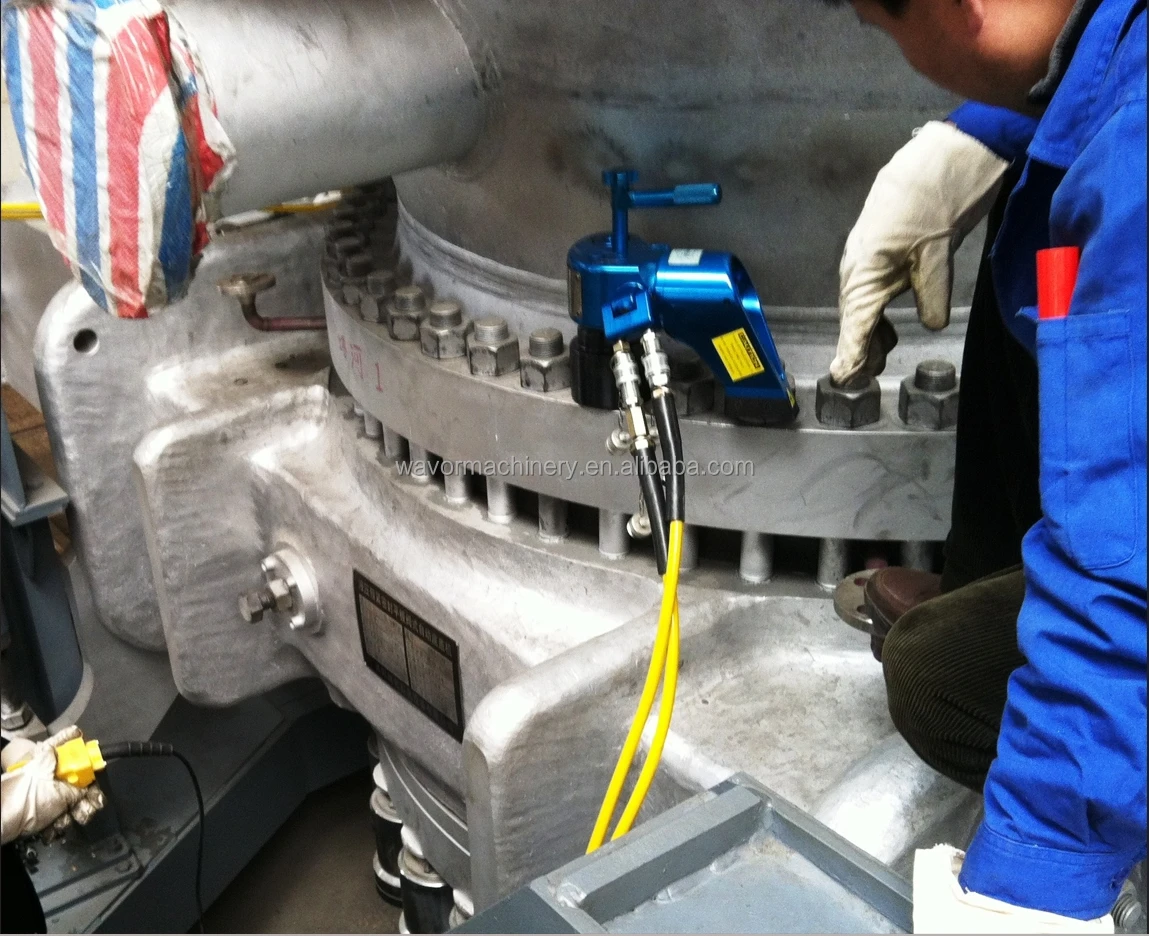

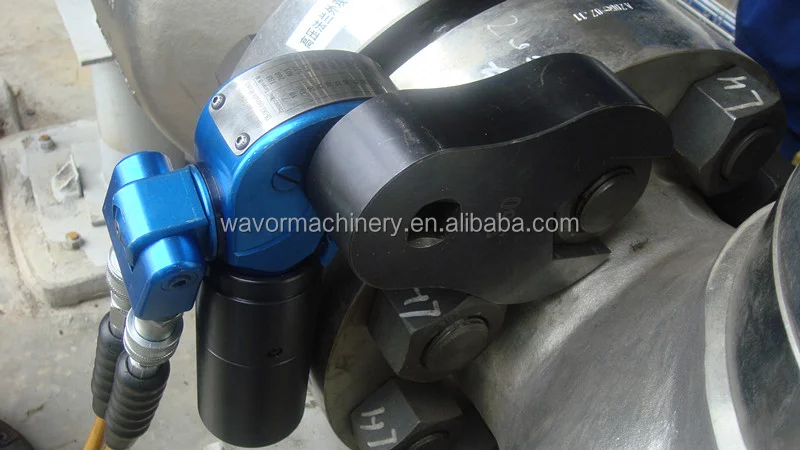

Product Uses
