insulated sandwich panel partition wall roof sandwich panel
- Category: >>>
- Supplier: Huacheng Boyuan Hebei Building Materials Technology Co. Ltd.
Share on (1600967251791):
Product Overview
Description
Our Advantages
Metal Building Material/ PU Sandwich Panel/glass wool/rock wool Sandwich board/sheet | ||
Width | 1000mm,The total length can be determined according to the design,transportation or installation conditions. | |
Thickness | 50mm,75mm,100mm,150mm,200mm(Standard or Customized) | |
Materials | up/down 0.4-0.8mm Color coated steel plate(galvanized plate, anti-static color coated steel plate) | |

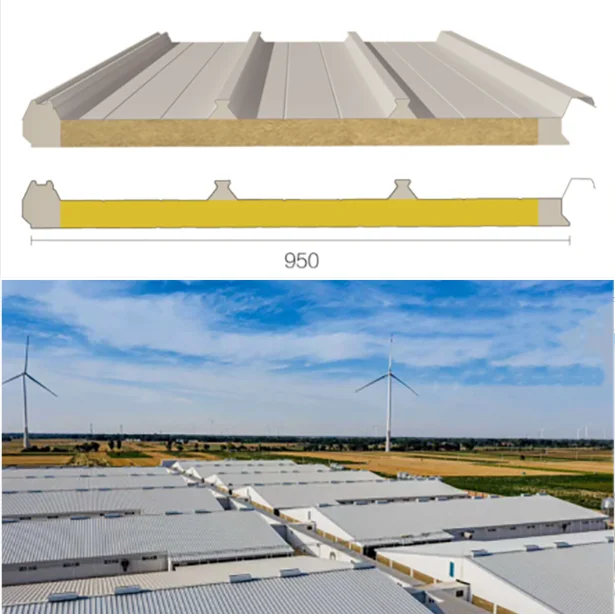

Dimensions | Corrugated height:42mm,wave crest spacing: 333mm | |
Advantage | high rigidity, good drainage effect, strong resistance to wind pressure, tight overlap and fast construction. | |

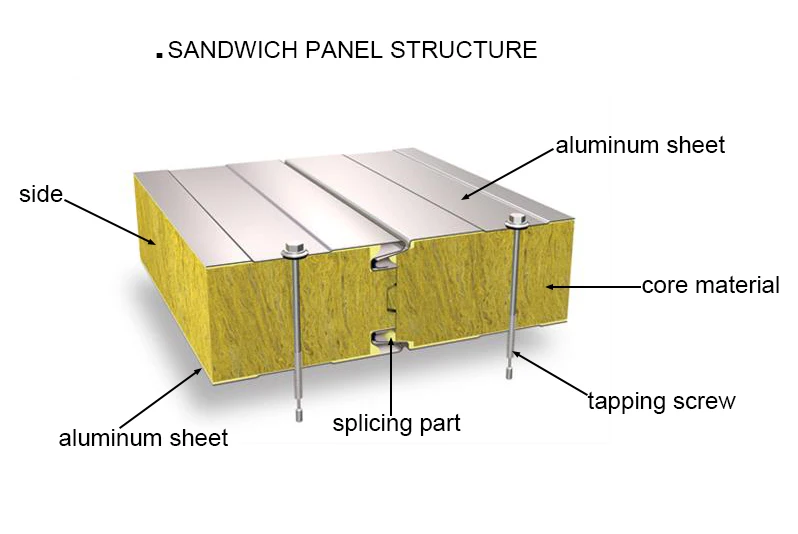

System composition | Upper pressure plate, High quality Glass wool,lower pressure plate, Polyurethane on both sides | |
Technology
PUR(PIR) in the raw material proportioning and process output, adopted in SIMENS automatic mixing and pouring technology
Machine Line
the first time to realize six component continuous foaming in China .
Prodcuts
The mixing process can be completed online once and for all, and the formula can be adjusted according to the environmental changes
Products Description
Prefab house fire rated fireproof interior exterior roof wall 50mm 100mm polyurethane pu sandwich panel
Polyurethane Sandwich Panel also called PU Sandwich Panel,the top & bottom sheet of this panel is Galvanized & Pre-painted steel sheets,and core material is 5 components Polyurethane glue, it is formed by heating, foaming & laminating. Polyurethane is the best material for heat and sound insulation. It can reduce the heat transmission caused by difference in the internal and external temperature, and get to maximum efficiency of freezing and refrigeration systems. It is a new type of heat insulation material for lower construction cost.Panels are in multiple varieties and specifications to meet the need of various sites and projects.Product Name | Prefab house fire rated fireproof interior exterior roof wall 40mm 50mm polyurethane pu sandwich panel | |||||||
Surface steel plate thickness: | 0.4-0.8mm | Standard thickness: | 50mm/75mm/100mm/150mm/200mm | |||||
Basic color: | White gray, silver gray, sea blue, red and so on. | Insulation performance: | Heat transfer coefficient ≤0.025W (M.K) | |||||
Core material density: | 42KG/m³ | Compressive strength(Kg/m²): | 0.2-0.7 | |||||
Recommended galvanized layer: | 150/m² Hot aluminum zinc plating | Installation method: | 1. Horizontal (horizontal) 2. Vertical (vertical) | |||||
*We can select the thickness of internal and external steel plate, coating and steel plate manufacturer according to customer demand. | ||||||||
Product Show

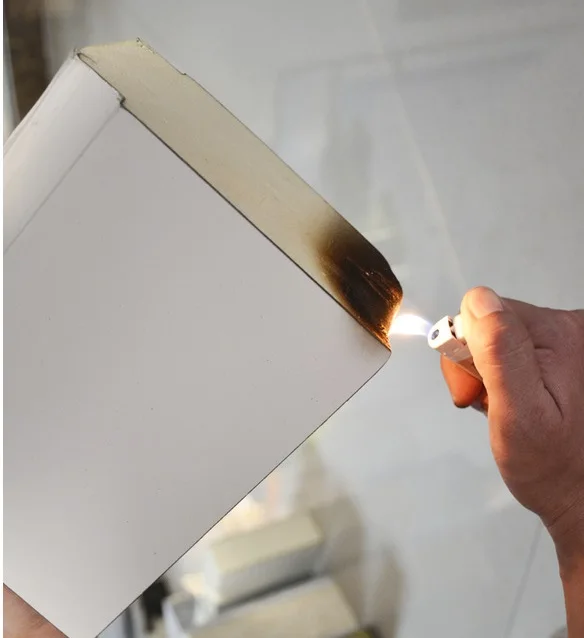

Fire performance:Grade B combustion performance, the highest operating temperature is 180°C (250°C for instant elbow), carbon
formation under the direct action of the flame, no dripping, no curling, no melting phenomenon, the surface forms a layer after the flame burns "Graphite Foam" layer, which effectively protects the foam structure within the layer.
formation under the direct action of the flame, no dripping, no curling, no melting phenomenon, the surface forms a layer after the flame burns "Graphite Foam" layer, which effectively protects the foam structure within the layer.
Excellent thermal insulation, heat insulation and sound insulation performance. In terms of anti condensation performance, the 35 mm thick air-cooled panel is equivalent to 1130 mm red wall.
The degree of prefabrication and assembly is high, and the construction is less affected by harsh weather. Therefore, compared
with the traditional construction method, the construction period can be shortened by more than 40%.
with the traditional construction method, the construction period can be shortened by more than 40%.
Lightweight, novel, and beautiful in shape.The heavy halo is generally 10 kg/m2-14 kg/m2, which is equivalent to 1/30 of the light wall. The surface color is absolutely, without surface decoration.
Strength, stiffness, stability, washout resistance, good shock resistance, corrosion resistance and atmospheric resistance. It can be used to maintain the structure and load-bearing structure. Generally, the house does not need beams and columns.
Company Profile
Huacheng BoYuan Hebei Building Materials Technology Co.,Ltd
Contact：Aria
Email：hcbybuild-sale@aliyun.com
Wetchat / whats app: +86-13931808496
Email：hcbybuild-sale@aliyun.com
Wetchat / whats app: +86-13931808496
Huacheng BoYuan Hebei Building Materials Technology Co.,Ltd is a comprehensive industrial company integrating research and development,manufacturing and sale as well as installation.
The main products and service: New type polyurethane composite board, new type rock/glass wool composite board, PU (PIR) sandwich building board, cold storage board, purification board, metal curtain wall board, profiled steel plate, Al-Mg-Mn alloy plate, environmental protection sound-absorbing board; container house, integrated house, prefabricated house, building envelope system service; Professional construction contracting, etc.
Production Procedure

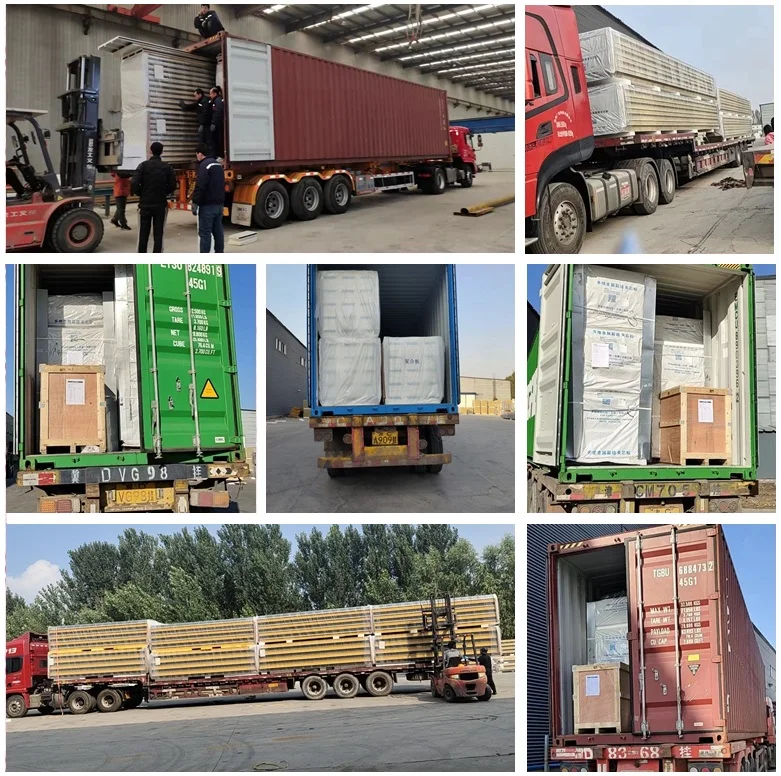

Finished Products&Packaging & Shipping
Installation Instructions
Preparation
must carry on the construction preparation before installation, include personnel, materials, etc
Checking
Before the installation of polyurethane wall panel, it should check whether the verticality and levelness of metope purlin installation requirements, wall frame column vertical degree meets the requirement.
Before polyurethane wall panel
First mounting plate bottom water retaining plate and the bottom of the window to block water board, water retaining plate and wall frame beam connection with self tapping screw fixed
Polyurethane wall panel links with ground

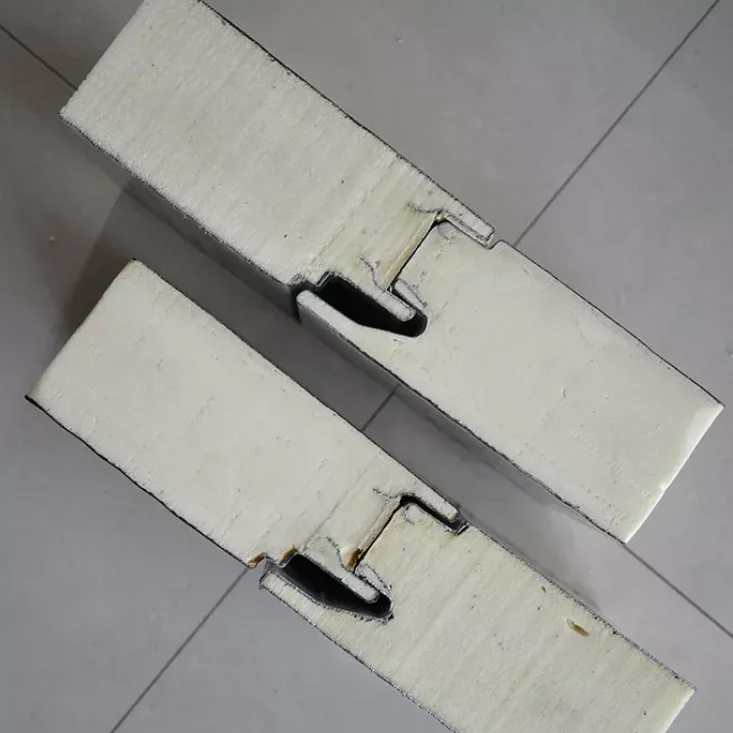

Vertical links: the gap between plates, using the dedicated button concave groove in the fixed polyurethane wall panel
FAQ
Q1: Are you a manufacturer?
A: Yes,we are a direct factory, our factory is located in the hometown of building Material where you can find most of building materials.
Q2: Do you offer guiding service for installation on site overseas?
A: Yes. We do. We will give detailed installation drawings and video for free. And if you need, we can send our engineers as
installation director even a working team to your construction site.
Q3: How can I get your quick quotation?
A: Yes,we are a direct factory, our factory is located in the hometown of building Material where you can find most of building materials.
Q2: Do you offer guiding service for installation on site overseas?
A: Yes. We do. We will give detailed installation drawings and video for free. And if you need, we can send our engineers as
installation director even a working team to your construction site.
Q3: How can I get your quick quotation?
A: The more exhaustive your description is, the quicker our quote would be. You can chat
with us at anytime via phone,online contact,email or leave your message on our website. We will give you quotation ASAP.
Q4:Do you have quality control system?
A: Yes,we have strict quality control laboratory, all our goods leave factory must be finished test
Q4:Do you have quality control system?
A: Yes,we have strict quality control laboratory, all our goods leave factory must be finished test
