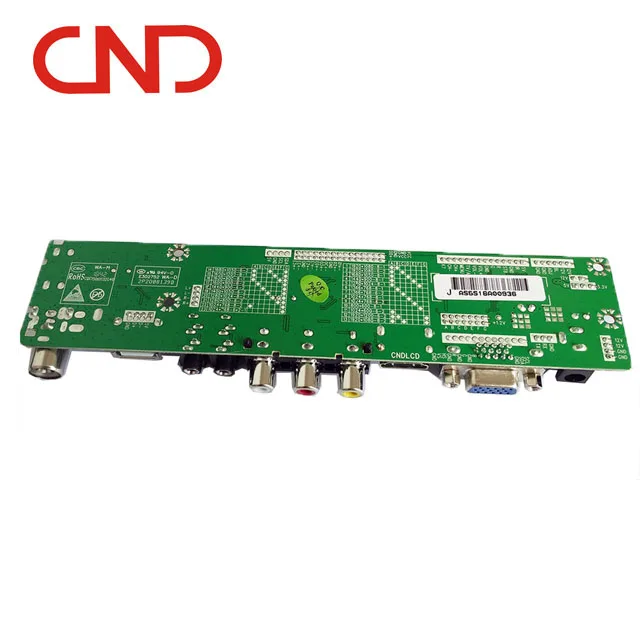

CND Universal lcd led tv main board 32 inch with multi resolution choice by jumper setting
- Category: >>>
- Supplier: CND Electronic Technology (shenzhen) Co. Ltd.
Share on (1600967270978):
Product Overview
Description
Product Description

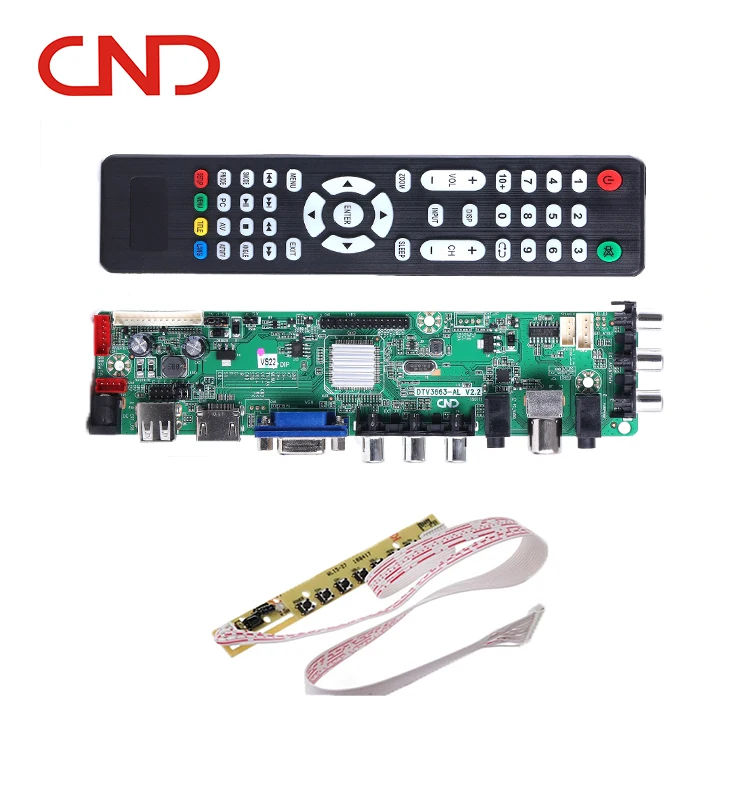

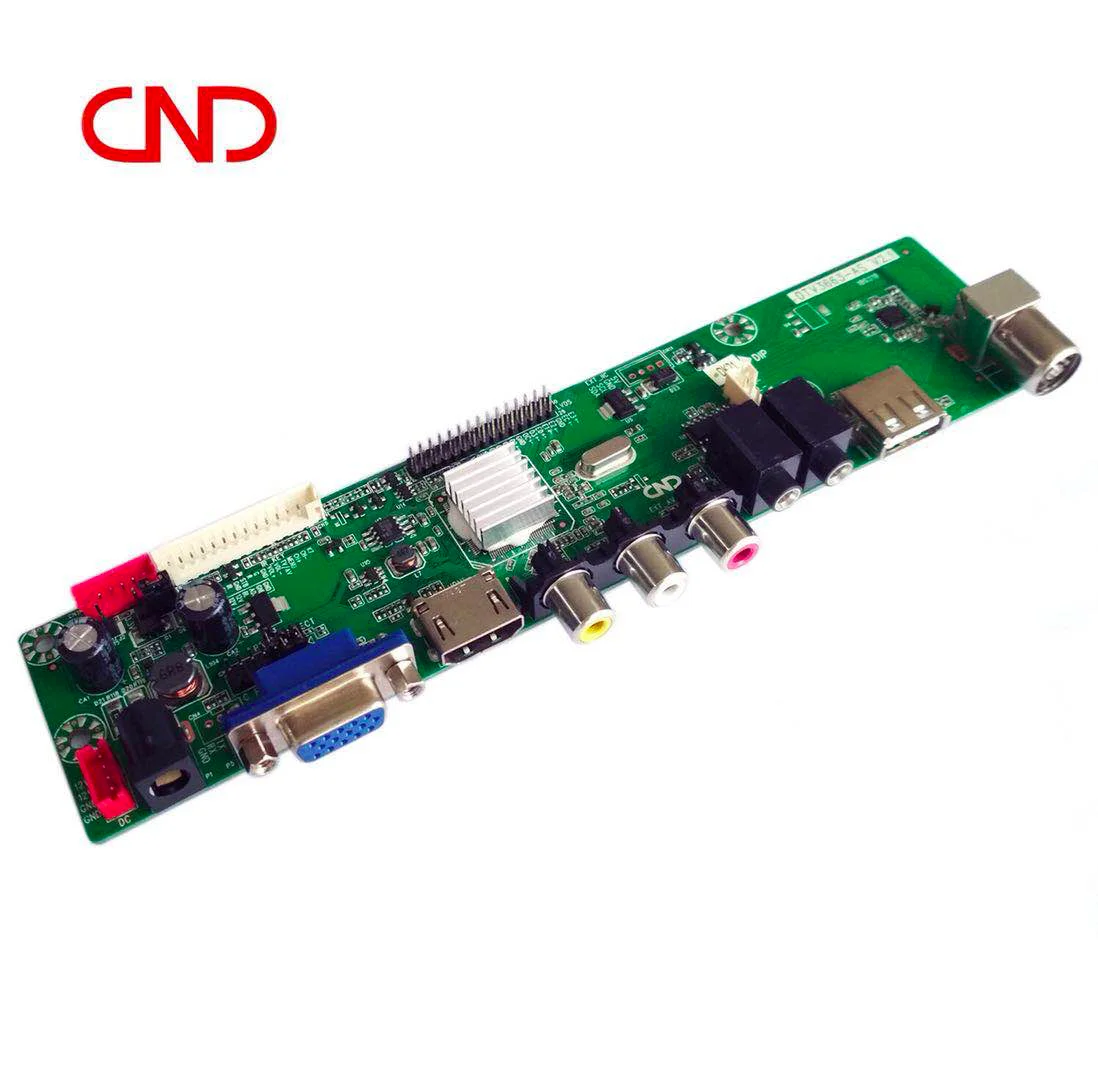

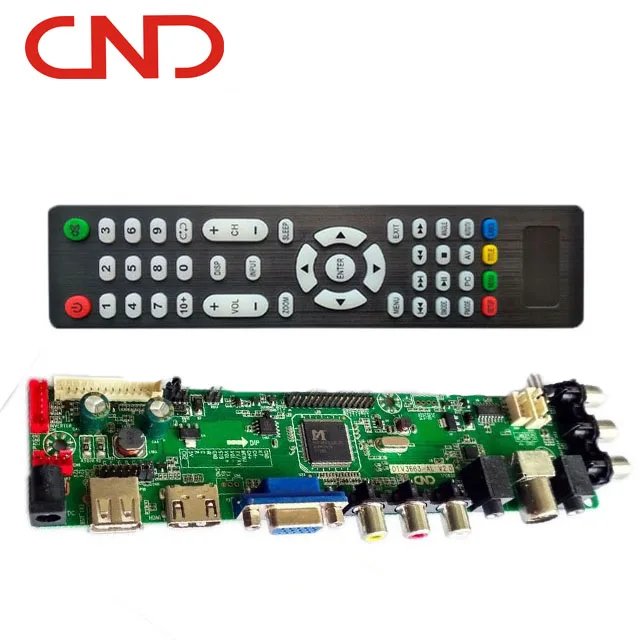

CND Universal lcd led tv main board 32 inch with multi-resolution choice by jumper setting
1)This tv board is suitable for worldwide analog TV system PAL/SECAM,
2)digital tv system support DVB-T2 / DVB-T / DVB-C
3)It can support any brand of panel like SAMSUNG, CMO, AU, LGP,SHARP,BOE etc,It can reappear real world image color and sound.
OSD LANGUAGE | English, French, German, Italian , Spanish , Portuguese | |||||
PANEL | Interface | Single Dual LVDS,2X15 needle | ||||
Resolution | Max 1920x1080@60Hz | |||||
TV input | TV | Received frequency range | 49MHz----863MHz | |||
Input impedance | 75Ω | |||||
Color system | PAL,SECAM | |||||
Sound system | BG,DK,I,L/L’ | |||||
Digital tv | Received frequency range | VHF(174MHz---230MHz) | ||||
UHF(474MHz---862MHz) | ||||||
Input impedance | 75 ohm | |||||
channel | 7MHz/8MHz | |||||
adjust | COFDM 2K/8K QPSK, 16QAM,64QAM | |||||
Color system | MPEG-2 MP@ML | |||||
Sound system | MPEG I/II layer 1/2/3 | |||||
Image input | VGA | format | Max support1920X1080@60Hz | |||
AV | Color system | DVB-T2 DVB-T DVB-C , PAL, NTSC, SECAM | ||||
Video standard | 1Vp-p@75ohm | |||||
HDMI | 480i,480p,576i,576p,720i,720p,1080i,1080p | |||||
Audio input | VGA | Earphone | 0.2---2.0Vrms | |||
AV | white,red RCA interface | 0.2---2.0Vrms | ||||
| ||||||
Audio output | Audio output max powe 2*3W (8ohm) | |||||
power | extend+12V power supply | |||||
size | 188.5mm(L)X43mm(W)X18mm(H) | |||||
interface | input | ATV/DTV | IDE interface | |||
AV | 3 RCA yellow white red | |||||
VGA | 1 VGA 15pin blue connector | |||||
VGA_AUDIO | 1 black earphone socket | |||||
HDMI | 1HDMI socket | |||||
USB | 1USB socket | |||||
earphone | 1 blace earphone socket | |||||
Key feature
- TV system support PAL+SECAM system, optional full standard system
- Max supports FULL HD 1920X1080 resolution TFT-LCD screen
- HDMI + VGA + USB + RCA + Earphone
- USB function is to update firmware and play Audio Video, image, text file.
- Support TV system: DVB-T2 DVB-T DVB-C, PAL, NTSC, SECAM
- Rating of Audio loudspeaker output is 3W*2(8ohm)
- Automatically detect input video format
Packaging & Shipping
Product Overviews
Company Information
FAQ
Q: We are using several panel. how to match and change the software?

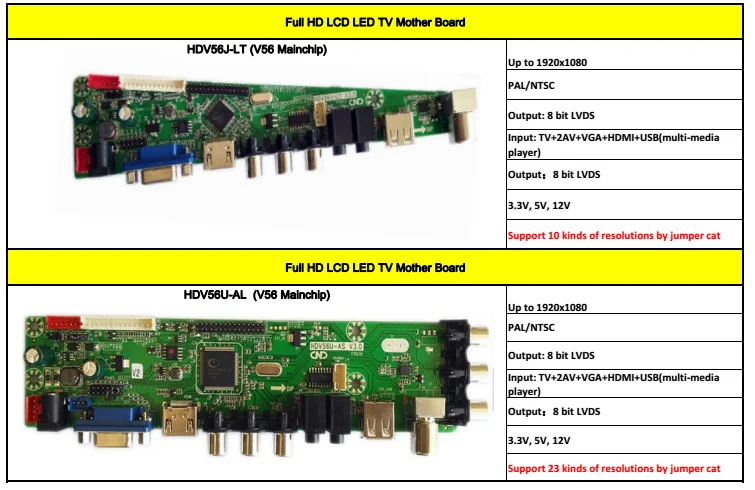

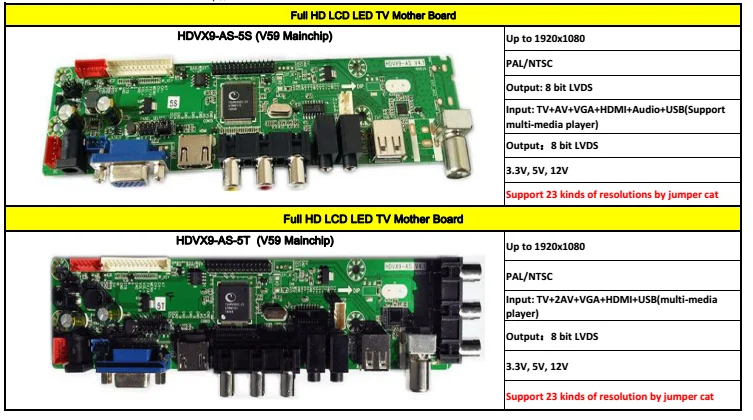

A: Our software supports MULTI-RESOLUTION choice by changing jumper cat. no need change software for different panel.
Q: What's delivery time? what's the shipping way?
A: General sample order is in stock within 3 days; General order is about 15 days after get deposit; Flexible delivery time can be negotiable.
Q: What are our product applied in, and who is our Customer?
A: our AD board solutions have applied in:
1.Domestic rail,like subway, high-speed rail, train.. at least 80% market share in China.
2.Household &civil markets likeTV board, monitor board, QHD&UHD 4k*2k display board. Monitors of some Famous Chinese Brand, for example BOE, HKC, AOC, ViewSonic,Sony... etc.
3.Industrial monitor, The main board for POS and security monitor....
4. With strength of customizing board,like SONY PS4 Monitor board,Janpan Brother printer board....
5. Touch-Screen ATM Display of BOC (Bank of China), ICBC,CBC,ABC, etc
Q: What are our capability and advantages?
A: We've proud that:
1. Integrated Customization sevices from OSD/LOGO, PC OSD Menu, Uart extension, IR extension
2.Our products follow the standard of UL DI5501, ISO9001,RoHs & REACH
