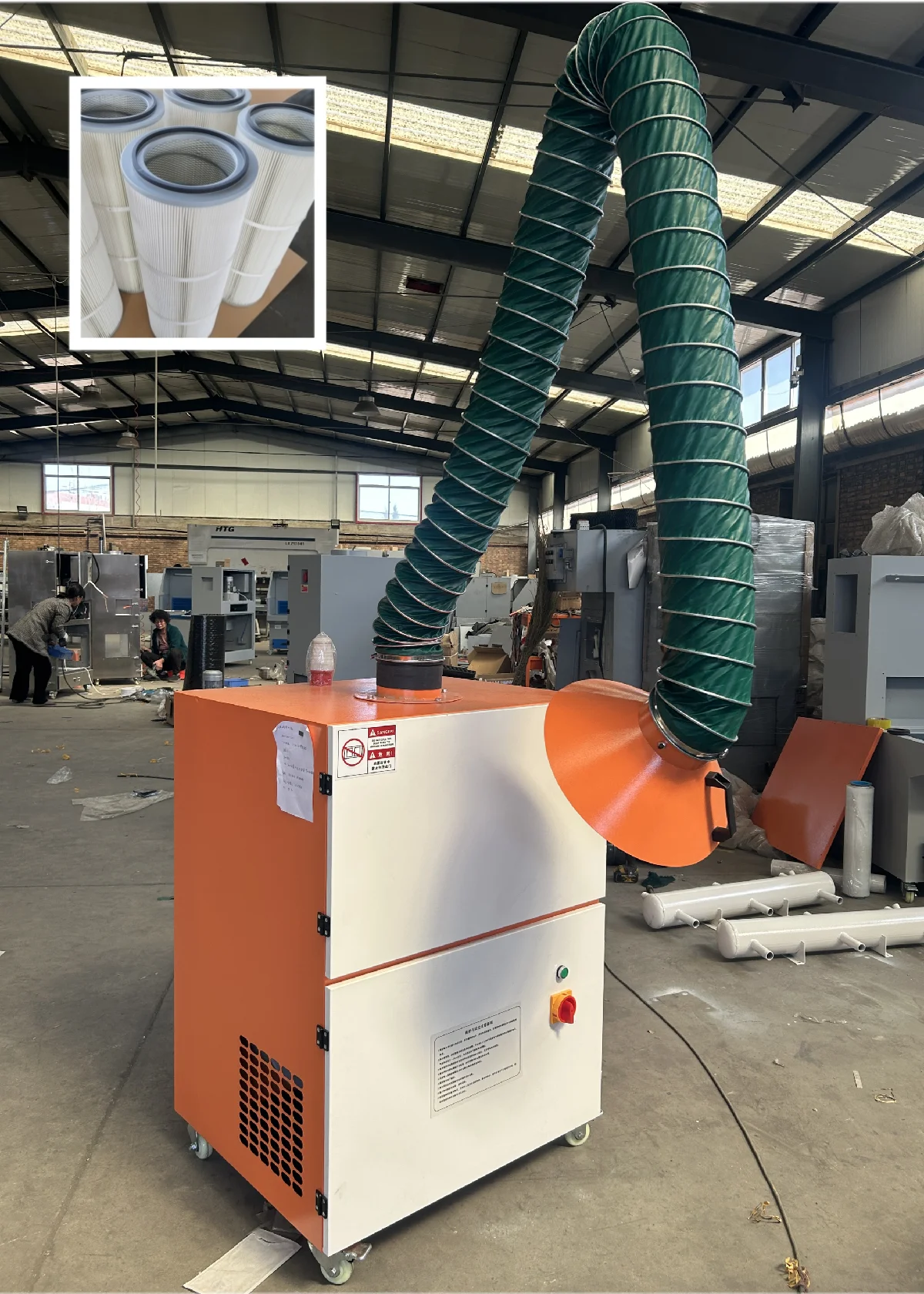

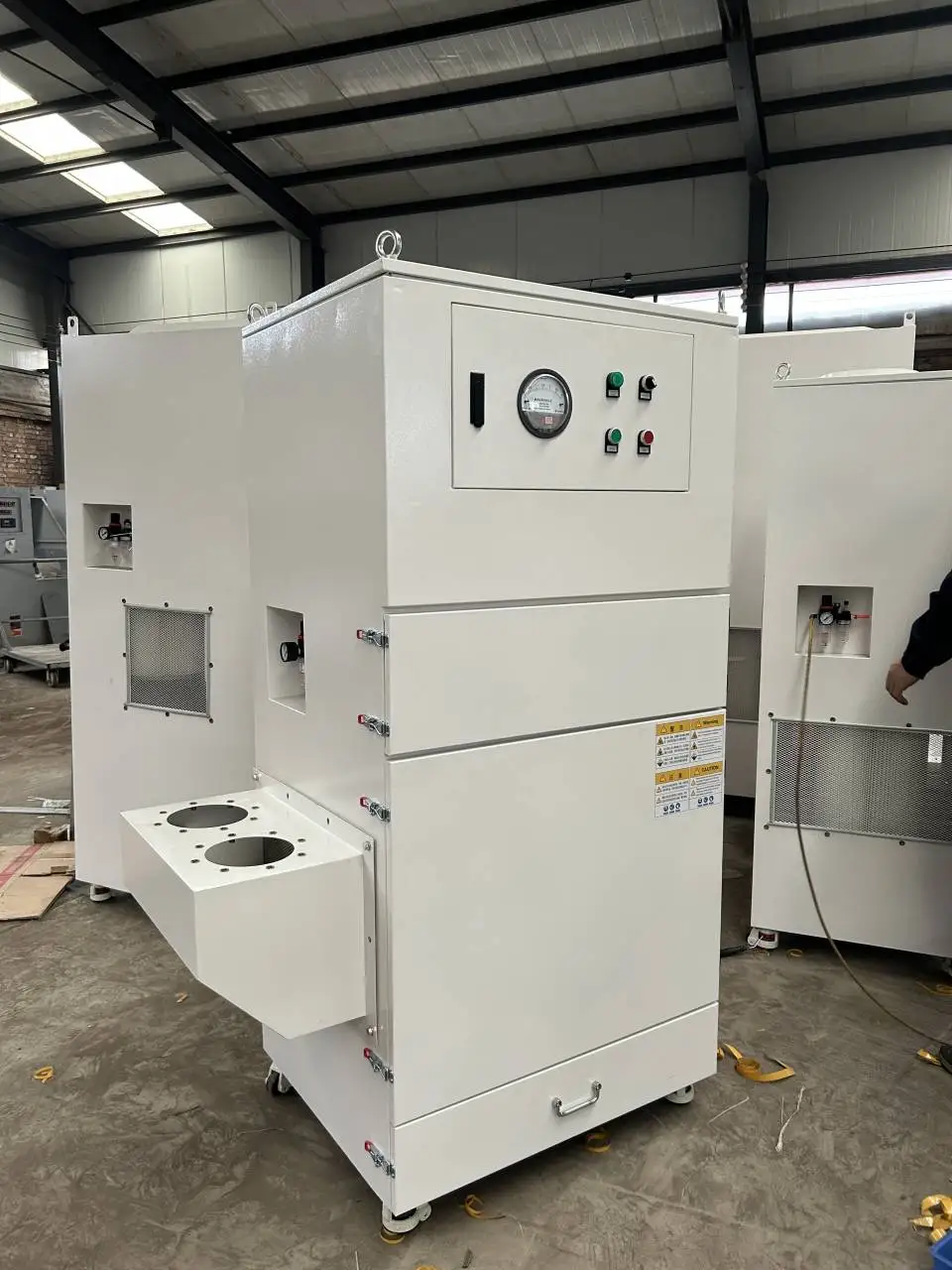

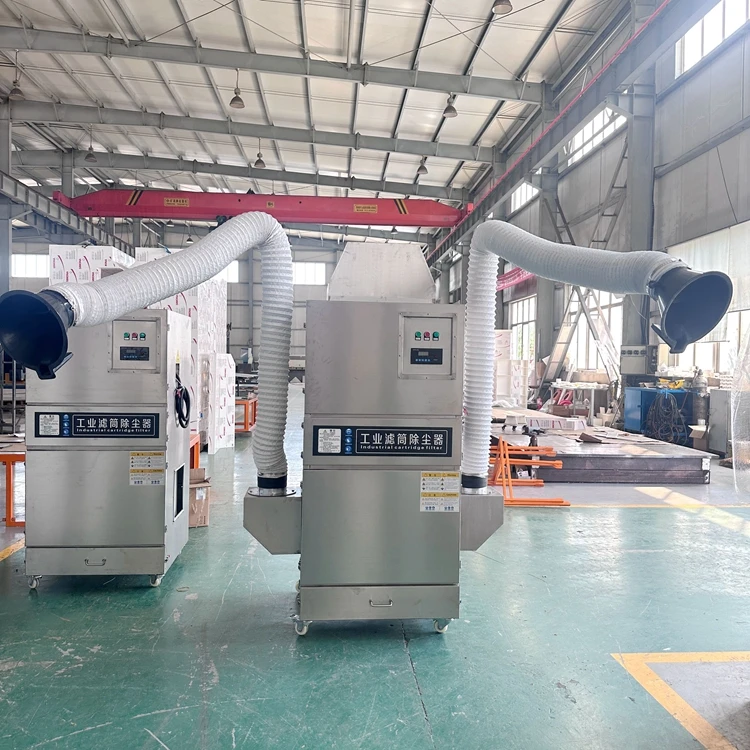

large air intake and low noise Smoke Dust Collector welding fume extractor
- Category: >>>
- Supplier: Qingdao Allway Tech Co. Ltd.
Share on (1600967338651):
Product Overview
Description
Product Description
Specification
product name | welding fume extractor |
fan power | 2.2kw |
air flow capacity | 3800m³/h |
filter cartridge | 324*600mm |
filter area | 15㎡ |
2Suction Arm | 2Unit x Ø160mm x 2 Meter |
Filtration Efficiency | >99.9% |
outside size | 500mm x 500mm x 1300mm |
Input Voltage | 380v 3 phase 50Hz |
Features of the product
1.The purifier shell through pensu processing, beautiful and easy, with four directions at the bottom of the rubber wheel, can protect free to move within the work place.
Match the standard arm length is 2 m or 3 meters, 1.5 meters can be produced according to customer's special requirements, 4 meters, 5 meters, 7 meters, 9 meters. Standard size: 160 mm, 200 mm
2. Advanced fan design, large air volume, low power consumption. Customers can choose different shapes according to the actual situation of suction mouth, to meet the needs of different working conditions, such as: bell mouth, mouth water chestnuts.

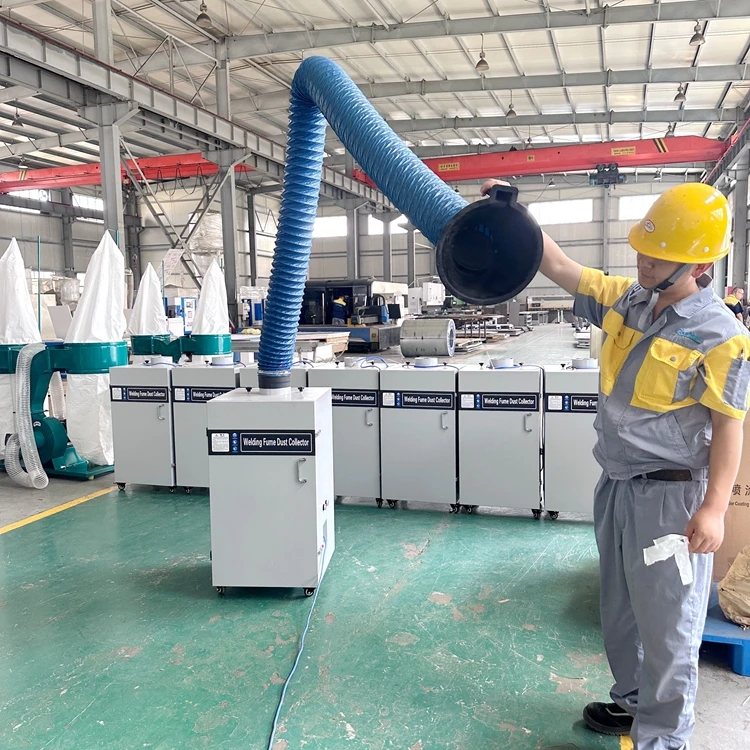

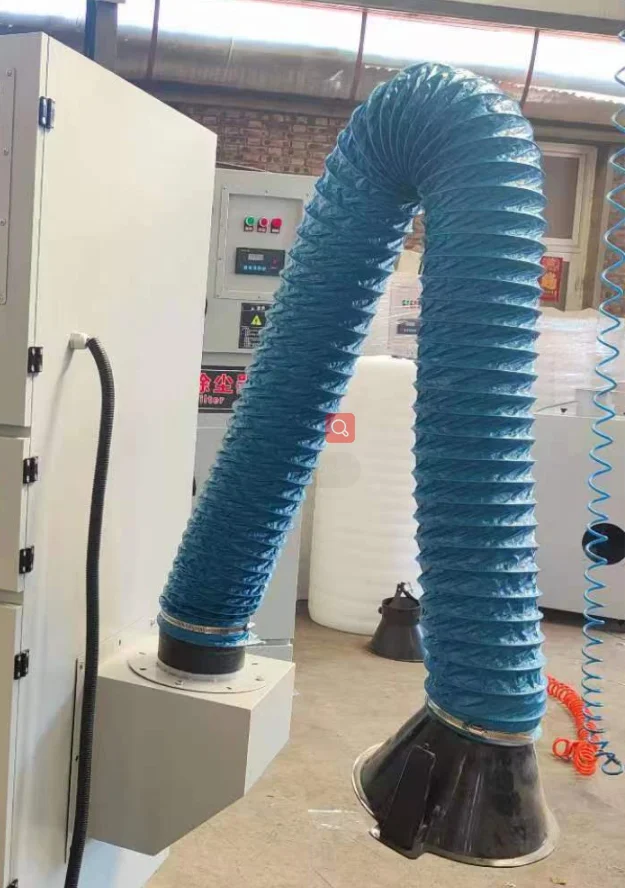

3. The suction hood can extend to any want to together with the suction arm reach position. He can breathe in with flexible arm or breathe in two flexible arm. Suction arm can be 360 ° and optional activities, from flue gas in the flue gas absorption, greatly improving the flue gas collection rate, guarantee the health of workers.
4. The filter cartridge adopts anti-static effect of polyester fiber material, higher adsorption performance, security, better filtering effect > 99.9%, long service life and can absorb 0.3 mu m dust particles.

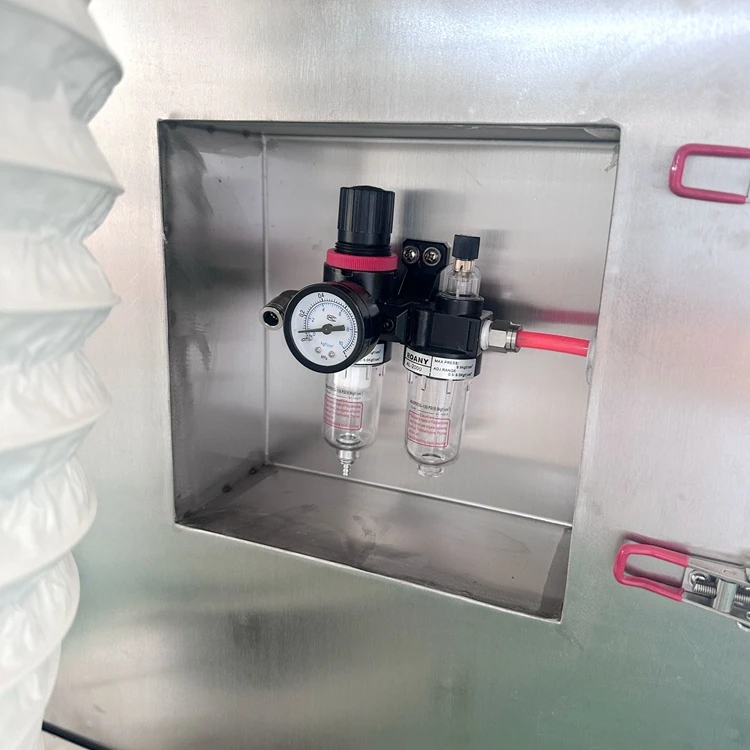

5. Reverse blowing device: manually after the demolition of cartridge dust or semi-automatic soot connect air compressor.
6. Clean air from the outlet grille direction uniformly lead and dispersed, and the casing keep noise to a built-in special sound insulation cotton.
7. The product design, using arms to two location used at the same time, in addition to the welding smoke effect is 99%.
Match the standard arm length is 2 m or 3 meters, 1.5 meters can be produced according to customer's special requirements, 4 meters, 5 meters, 7 meters, 9 meters. Standard size: 160 mm, 200 mm
2. Advanced fan design, large air volume, low power consumption. Customers can choose different shapes according to the actual situation of suction mouth, to meet the needs of different working conditions, such as: bell mouth, mouth water chestnuts.
3. The suction hood can extend to any want to together with the suction arm reach position. He can breathe in with flexible arm or breathe in two flexible arm. Suction arm can be 360 ° and optional activities, from flue gas in the flue gas absorption, greatly improving the flue gas collection rate, guarantee the health of workers.
4. The filter cartridge adopts anti-static effect of polyester fiber material, higher adsorption performance, security, better filtering effect > 99.9%, long service life and can absorb 0.3 mu m dust particles.
5. Reverse blowing device: manually after the demolition of cartridge dust or semi-automatic soot connect air compressor.
6. Clean air from the outlet grille direction uniformly lead and dispersed, and the casing keep noise to a built-in special sound insulation cotton.
7. The product design, using arms to two location used at the same time, in addition to the welding smoke effect is 99%.
Product structure
Company Profile
We have 8000 square meter production workshop ,we have laser cutting machine,shearing machine,bending
machine,punching machine,drilling machine,welding machine and painting booth in our factory.
We have 60 production workers,18 installation workers,10 engineers for oversea installation service and 16 technician for project
designing. Our office is 2000 square meter,we have international trade department,technology department,
production department,financial department,purchasing department and so on,total 52 office stuff.
machine,punching machine,drilling machine,welding machine and painting booth in our factory.
We have 60 production workers,18 installation workers,10 engineers for oversea installation service and 16 technician for project
designing. Our office is 2000 square meter,we have international trade department,technology department,
production department,financial department,purchasing department and so on,total 52 office stuff.
Certifications
Customer visiting
FAQ
1.Installation?
Deliver with detailed specification of installation and operation
2.Payment terms?
T/T,30% for deposit and the balance 70% before loading into container
3.More products models?
Products showcase on Alibaba: allway99.en.alibaba.com
Deliver with detailed specification of installation and operation
2.Payment terms?
T/T,30% for deposit and the balance 70% before loading into container
3.More products models?
Products showcase on Alibaba: allway99.en.alibaba.com
