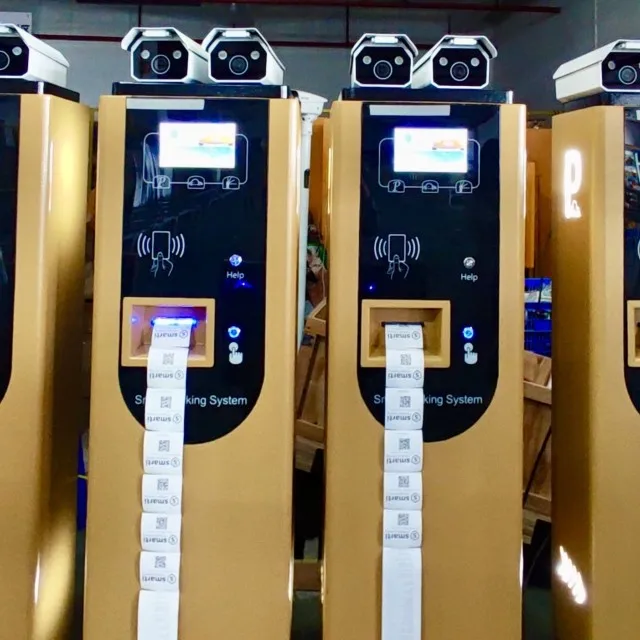

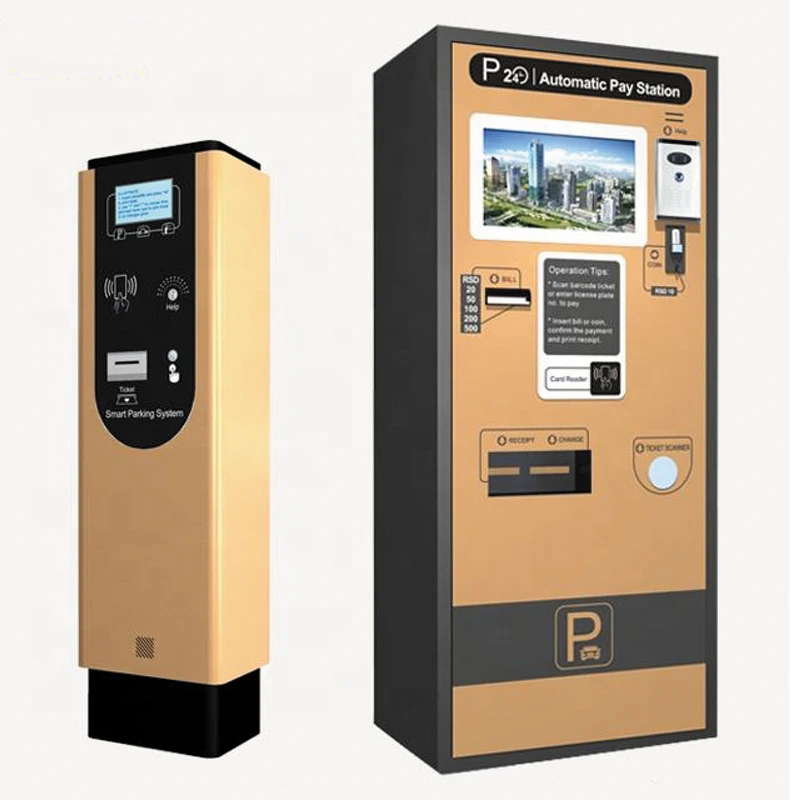

2023 factory direct sale smart car parking system ticket with automatic payment kiosk machine
- Category: >>>
- Supplier: Guangzhou Coma Electronics Co. Ltd.
Share on (1600967390358):
Product Overview

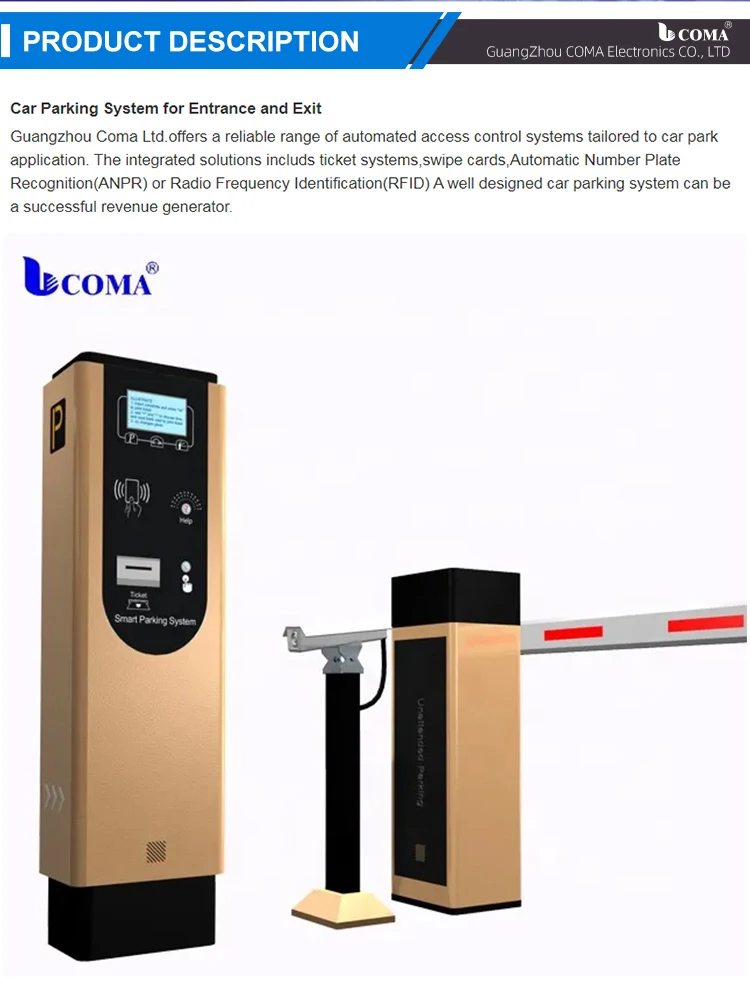

Description
Why Choose Us

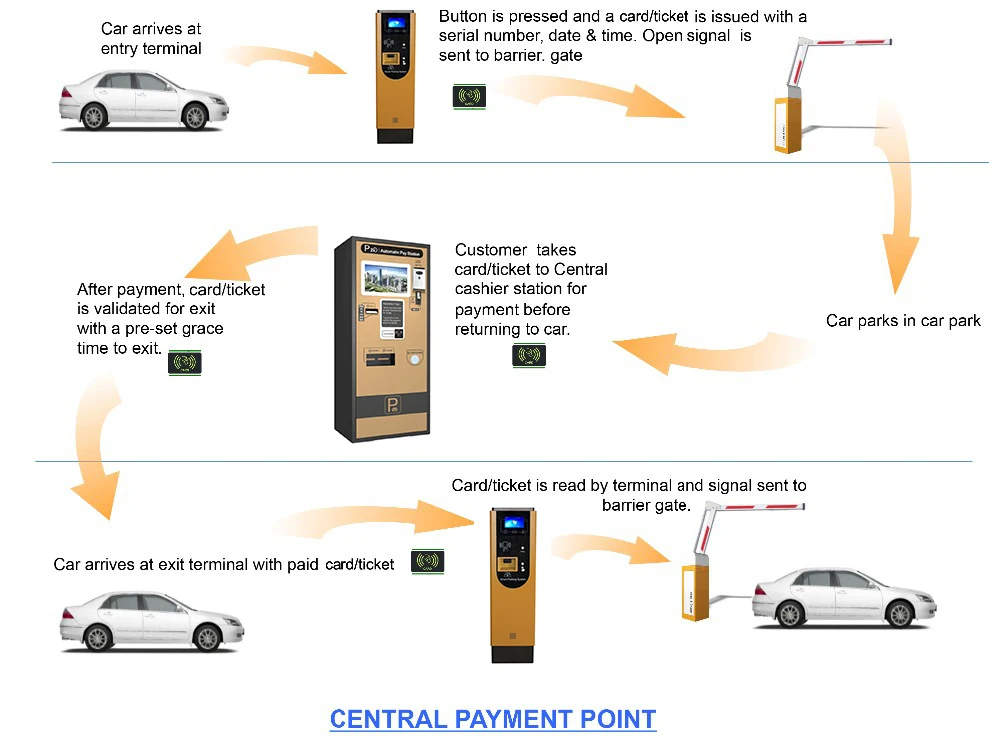

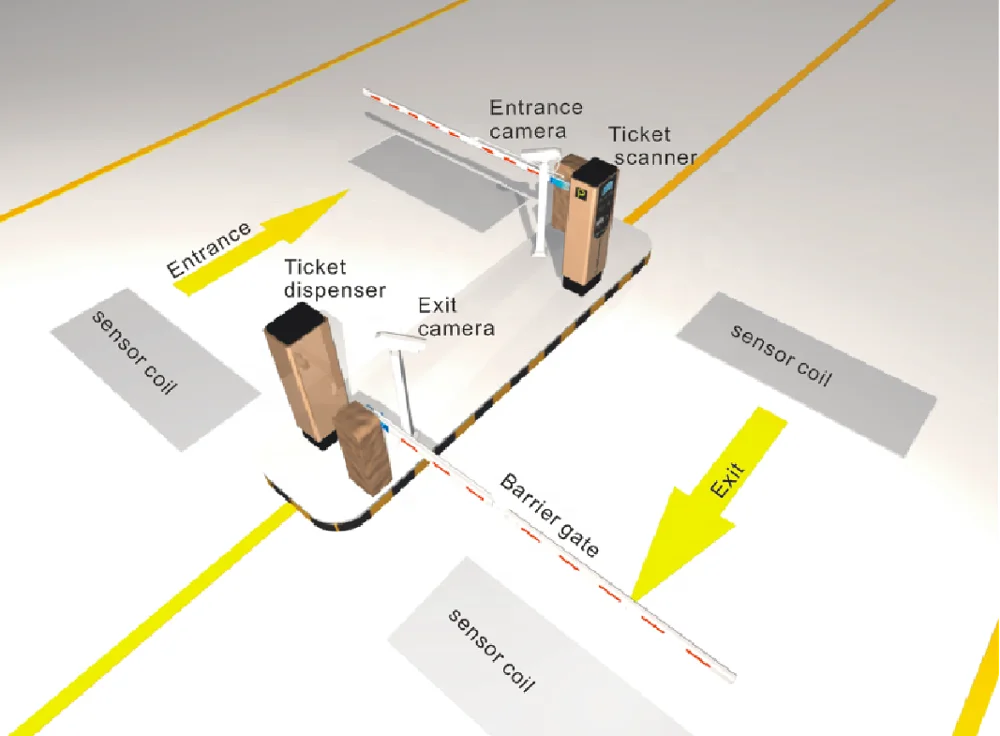

Working process
Entrance
1.LED display gives word welcome and remind driver to enter
1.LED display gives word welcome and remind driver to enter
2.Voice prompt reminds driver to take a card or ticket ,
3.Driver needs to get a ticket/card from the dispenser in the cabinet, for monthly card holder, he justneeds to swipe the card in the reading area.
4.After the driver takes the card/ticket or swiping the card , the barrier gate will automatically open, thenthe driver can drive his car into the parking lot.
5.When the vehicle detector cannot detect a car's coming, the control cabinet and barrier wil never startworking, in this case, even a man press the green buon, the Entrance cabinet will never dispense acard/ticket.
Exit
1.LED display gives word byebye and reminds driver to leave
Exit
1.LED display gives word byebye and reminds driver to leave
2.The card/ticket should be passed to toll collector if there is charge at the exit for monthly card holder.he just needs to swipe the card in the reading area.
3.After pavment the barrier gate will automatically open, then the driver can drive his car out of theparking lot.
4.When the vehicle detector cannot detect a car's coming, the control cabinet wil never start working.
the barrier will never open.
4.When the vehicle detector cannot detect a car's coming, the control cabinet wil never start working.
the barrier will never open.

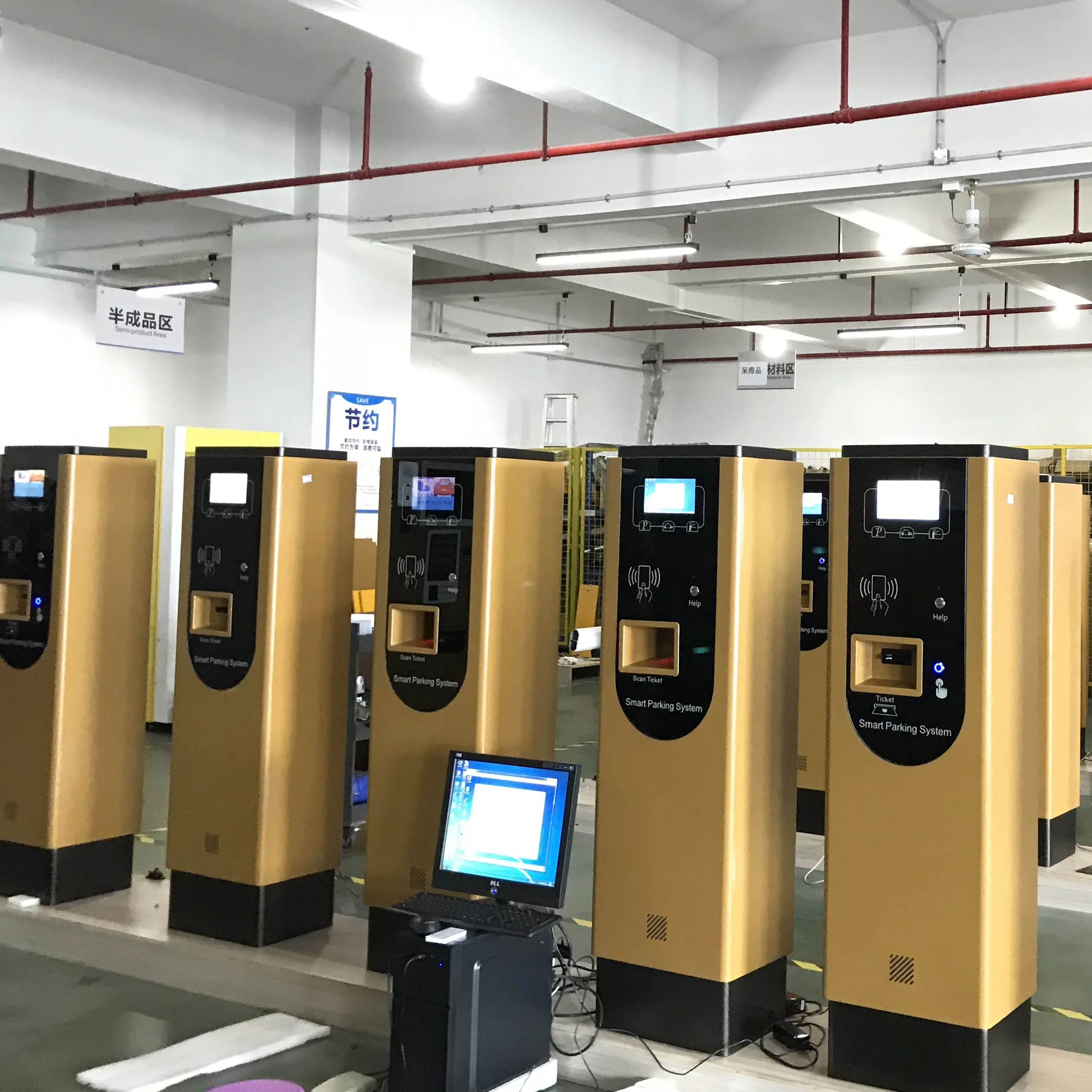

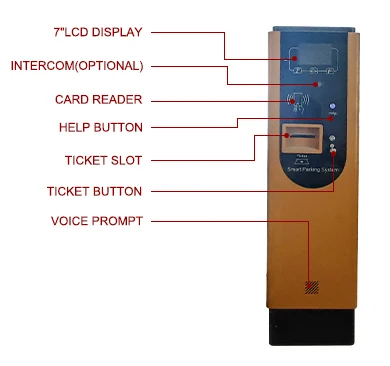

LATEST DESIGN CABINET
The cabinet adopts 2mm precise machining cold-rolled plate and static electricity sprayed anti-UV surface which is non- scale and un-fading, conformed to the IP54 dust-proof and water-proof.

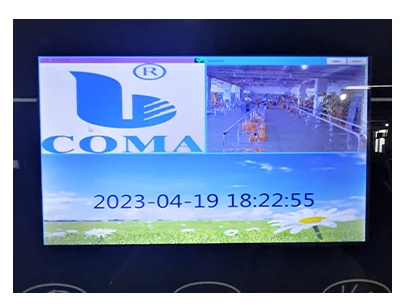

Can show customer's logo, date and time,prompt and play lane video in realtime.

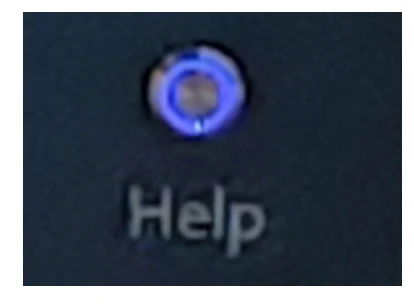

INTELLIGENT INTERCOM

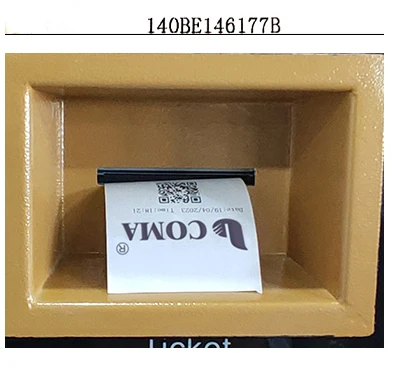

CUSTOMIZED TICKET

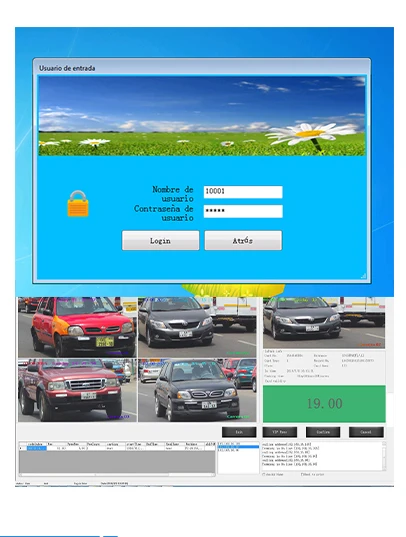

Camera will take a photo respectively at entrance and exit, and photos will be shown together side by side on PC for comparison.To ensure it is the same vehicle in and out.

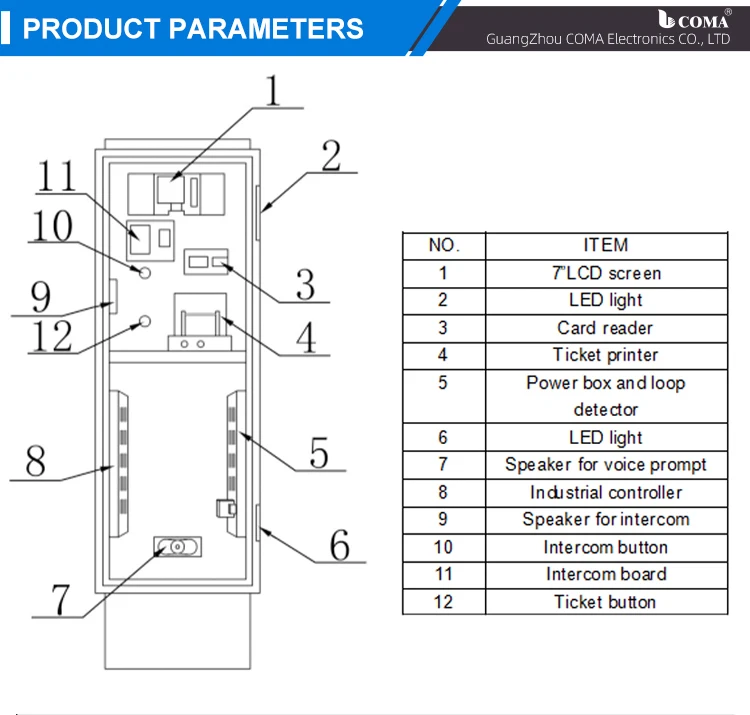

Product Paramenters
Specification CMK802 | ||
Power supply | AC 110/220V±10%, 50/60HZ, Max.1.5A | |
Environmental temperature: | -20℃- +50℃ | |
Humidity: | 10%～95% | |
Ticket type: | Barcode | |
Ticket size: | 80mm（W） | |

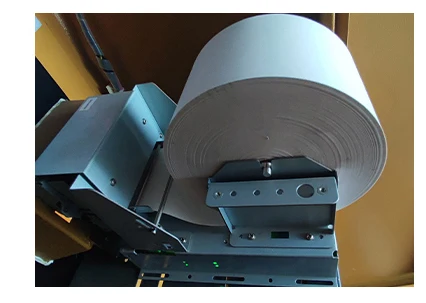

Capacity: | 2000-2500 pcs. (diameter150mm) per roll | |
Ticket Cutter: | high strength, free maintenance | |
Ticket dispensing time: | <1s | |
Card reader Interface: | Rs 232 interface | |
Card Reader type: | ID/IC card | |
Card reading and verifying time | <1s | |
Reading range: | 0-8cm | |
LCD Display: | 7 inch TFT resolution 800×480 Brightness: 400 cd/㎡ Contrast: 500:1 | |
Intelligent Control Unit: | J1900 4-cores, 2.0G | |
Rs232×5 no.s | ||
Multi Relay output | ||
HDMI×1 | ||
USB×4 | ||
Audio output×1 | ||
Dimension (mm) | 410*320*1470 | |
Net weight: (KG) | 45 | |
Gross weight: (KG) | 55 | |
