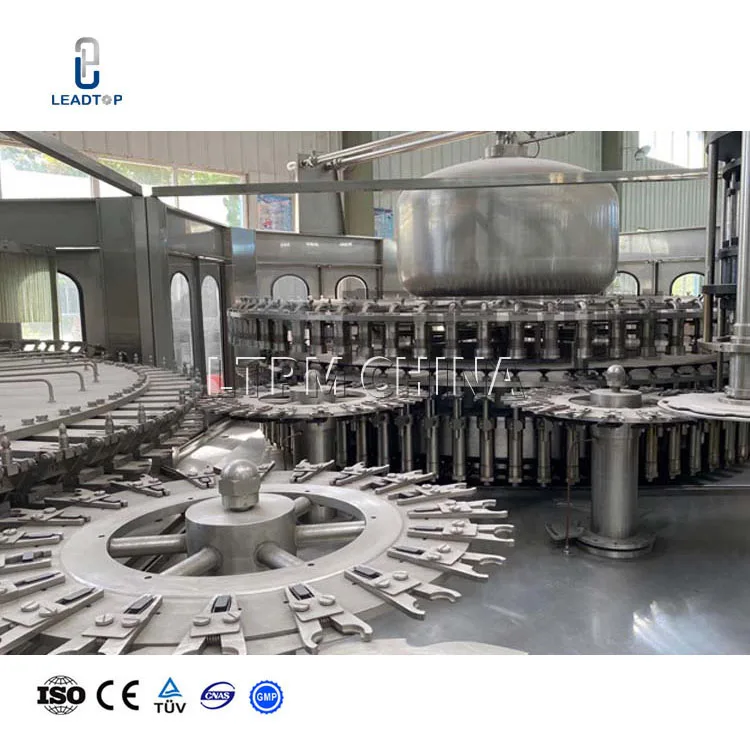

Good Quality Custom Drawings Automatic 1 2 Gallon Bottle 5 L Water Bottle Filling Machine Production Line
- Category: >>>
- Supplier: Zhejiang Leadtop Pharmaceutical Machinery Co. Ltd.
Share on (1600967403308):
Product Overview
Description
Main Feature
Characteristics of Rotafill series filling machines
Efficiency:
The 3-in-1 rotary liquid filling machine combines bottle washing, filling, and capping functions into one automated process. This significantly improves production efficiency, reduces labor costs, and decreases production time.
Flexibility:
Flexibility:
This machine is suitable for various types of liquid products such as juice, mineral water, and beverages. It can accommodate different bottle shapes and sizes, allowing for more flexibility and diversification in the production process.
Accuracy:
Accuracy:
The 3-in-1 rotary liquid filling machine utilizes advanced filling technology to ensure precise liquid distribution and filling volumes. This helps maintain product consistency and quality, ultimately improving customer satisfaction.
Resource-saving:
Resource-saving:
The machine incorporates an automated control system that reduces energy and raw material waste. It also features automatic detection and alarm functions, promptly identifying and resolving potential issues to minimize unnecessary losses.
User-friendly operation and maintenance:
User-friendly operation and maintenance:
The 3-in-1 rotary liquid filling machine has a user-friendly interface and simple operating procedures. It is also relatively easy to clean and maintain, reducing downtime and maintenance costs.
Machine Data
Model | RotaFill-12 | RotaFill-15 | RotaFill-36 | ||
Capacity | 12000BPH (500ml) | 15000BPH (500ml) | 36000BPH (500ml) | ||
Bottle Height(mm) | 120～310 | 120～310 | 120～310 | ||
Bottle Diameter(mm) | ф50～ф96 | ф50～ф96 | ф50～ф96 | ||
Mouth Diameter(mm) | 26mm～40 | 26mm～40 | 26mm～40 | ||
Washing Head | 24pcs | 50pcs | 80pcs | ||
Washing Time | ＞2second | 1.5-2 second | ＞2second | ||
Filling Heads | 24 | 50 | 80 | ||
Filling Temperature | 85-90℃ | 85-90℃ | 85-90℃ | ||
Filling Pressure | 0.2～0.4Mpa | 0.2～0.4Mpa | 0.2～0.4Mpa | ||
Filling Valve Flow | 120～150ml/s | 140～160ml/s | 120～150ml/s | ||
Filling Pipe | SUS304, High temperature affordable | ||||
Capping Head | 8 | 12 | 18 | ||
Capping Strength | 0.6～2.8Nm | 0.6～2.8Nm | 0.6～2.8Nm | ||
Main Power | 5.5 KW | 13 KW | 15 KW | ||
Air Consumption | 1m 3/min | 1m 3/min | 1m 3/min | ||
Sterilized Water Consumption | 1.2m3/h | 1.5m3/h | 1.5m3/h | ||
Overall Dimension（mm) | 3000×2750×2500 | 3000×2750×2500 | 3000×2750×2500 | ||
Weight(kg) | 6000 | 12500 | 12500 | ||
Product Description
01.
-It adopts human-machine interface touch screen control, PLC computer control, frequency converter control and other technologies;
02.

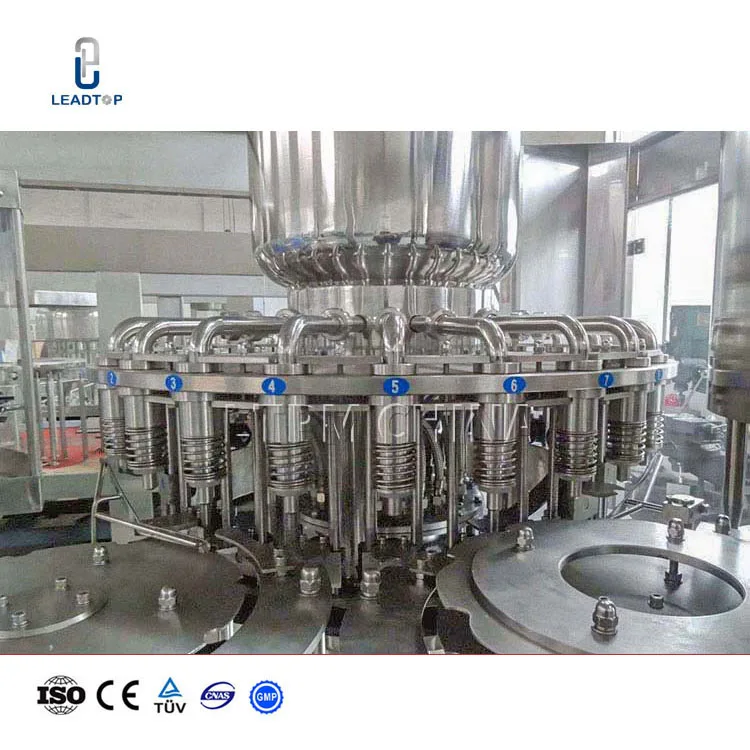

-It adopts the process design of card bottle neck suspension and automatic lifting of filling valve; it can meet the technical
requirements of hot filling below 95℃;
requirements of hot filling below 95℃;
03.
-After rigorous analysis and calculation, the machine can automatically align the bottle mouth with the fixed bottle cup of the conveying chain, and the use effect is good.
04.
-The main motor, reducer, main bearing, sealing parts, electrical components and pneumatic components of the whole machine are stable and durable.
05.
-All the parts in contact with the beverage are made of SUS304 stainless steel, and meet the hygienic standard.
Company Introduction
Our Company
- LTPM CHINA is one of China's leading system suppliers for the packaging sectors.
- Our portfolio includes machinery and plants as well as advanced process technology, components and comprehensive services. Used across diverse industries, they enhance the sustainability and efficiency of production processes globally.
- Our business model has evolved significantly since our founding in 1996 as a Machinery Company. Our machinery manufacturing bases all have been in this field for more than 15years which can give our client more reliable service. Professional, Service, Genuineness, Enthusiasm are our value. LTPM CHINA exports machinery to more than 30countries which includes European country and Americans. Through serving different companies in different country, we believe in success would affect success.
- Our company mission is creating a professional platform for the industry and achieving individual value. LTPM CHINA, Your best production solution!
- Our portfolio includes machinery and plants as well as advanced process technology, components and comprehensive services. Used across diverse industries, they enhance the sustainability and efficiency of production processes globally.
- Our business model has evolved significantly since our founding in 1996 as a Machinery Company. Our machinery manufacturing bases all have been in this field for more than 15years which can give our client more reliable service. Professional, Service, Genuineness, Enthusiasm are our value. LTPM CHINA exports machinery to more than 30countries which includes European country and Americans. Through serving different companies in different country, we believe in success would affect success.
- Our company mission is creating a professional platform for the industry and achieving individual value. LTPM CHINA, Your best production solution!
Our Machinery Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Sales Team
Our Customers
Orders from Alibaba
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q1: how many different liquid filling machine you have?
A: according to Machine filling style, we have linear type and Rotary Type.
Q2: Does one liquid filling machine can work for all kinds viscosity of liquid or paste?
A: Theoretically yes, by changing parts and filling pump we can achieve this. But normally this option is only recommended for our client who is doing R&D, but not production purpose. So we suggest client to use specific pump for specific material for achieving higher filling accuracy.
Q3: Why there are so many liquid filler looks same, but in huge difference on price?
A: Because different manufacturers are using different method to manufacture the machine which will effect the filling accuracy and machine running life a lot. The same Oil material or cream material, A cheap manufacturer may use Pneumatic piston Pump for filling while a professional manufacturer is using Servo Stainless Steel Piston pump.
Q4: We have big filling range for our bottle, from 100-2000ml, can it work on the same machine?
A: Yes, these filling range is absolutely ok for our either Linear type machine or rotary type machine, we can easily achieve.
Q5: What is the warranty period for your machine?
A: 5 years free warranty.
Q6: Do you have manual or operation video for us to know more about the machine?
A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q7: How can I trust you for the first time business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q8: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q9: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
A: according to Machine filling style, we have linear type and Rotary Type.
Q2: Does one liquid filling machine can work for all kinds viscosity of liquid or paste?
A: Theoretically yes, by changing parts and filling pump we can achieve this. But normally this option is only recommended for our client who is doing R&D, but not production purpose. So we suggest client to use specific pump for specific material for achieving higher filling accuracy.
Q3: Why there are so many liquid filler looks same, but in huge difference on price?
A: Because different manufacturers are using different method to manufacture the machine which will effect the filling accuracy and machine running life a lot. The same Oil material or cream material, A cheap manufacturer may use Pneumatic piston Pump for filling while a professional manufacturer is using Servo Stainless Steel Piston pump.
Q4: We have big filling range for our bottle, from 100-2000ml, can it work on the same machine?
A: Yes, these filling range is absolutely ok for our either Linear type machine or rotary type machine, we can easily achieve.
Q5: What is the warranty period for your machine?
A: 5 years free warranty.
Q6: Do you have manual or operation video for us to know more about the machine?
A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q7: How can I trust you for the first time business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q8: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q9: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
