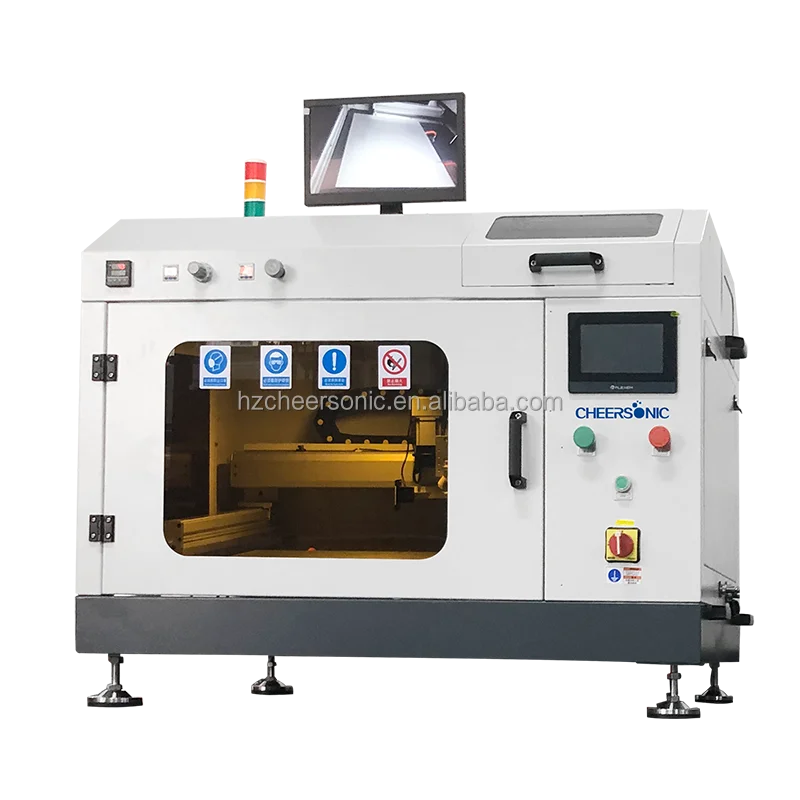

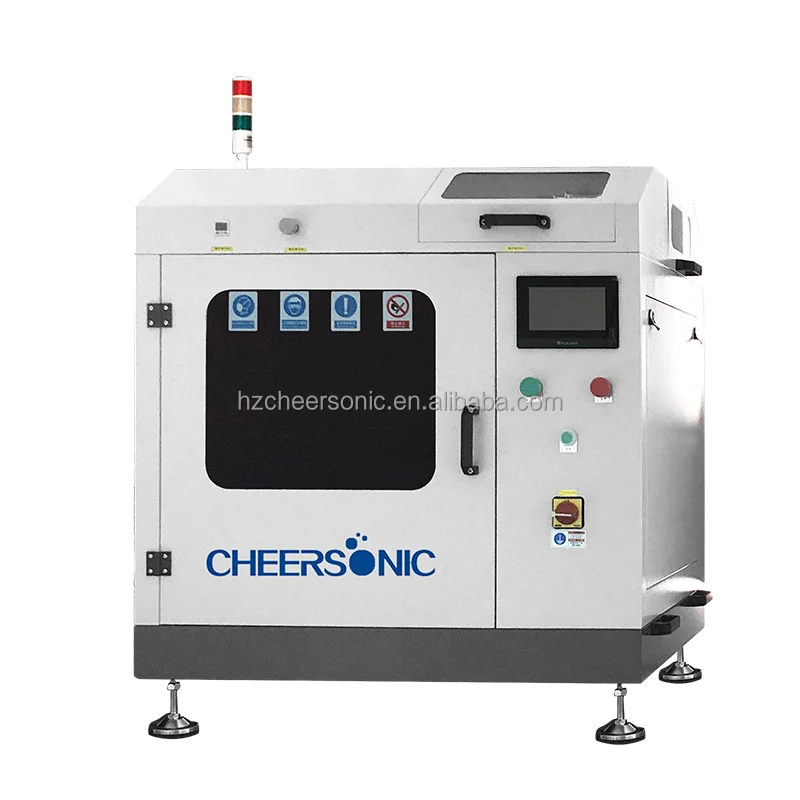

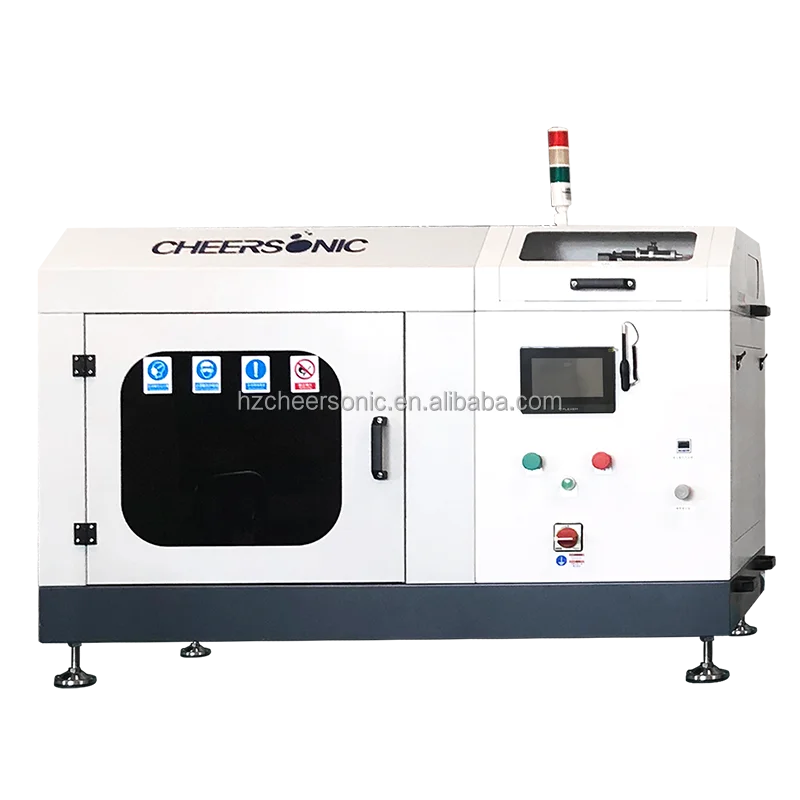

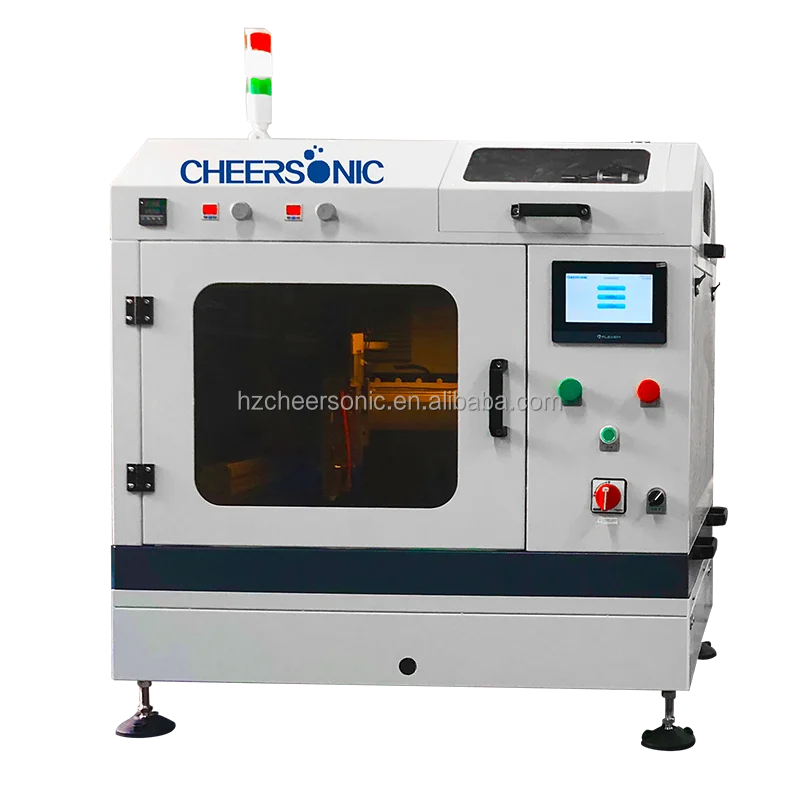

ultrasonic spray coating sofc spray machine for CCM manufacture
- Category: >>>
- Supplier: Hangzhou Cheersonic Ulltrasonics Equipments Co. Limited
Share on (1600967403583):
Product Overview
Description
Please contact us for more information. Cheersonic Linked with success. We follow this guiding principle by constantly developing our technologies and products so that we can continue to produce optimum plastic connections. Our corporate history is also associated with success: continuous growth ensured that we were able to expand our customer base.

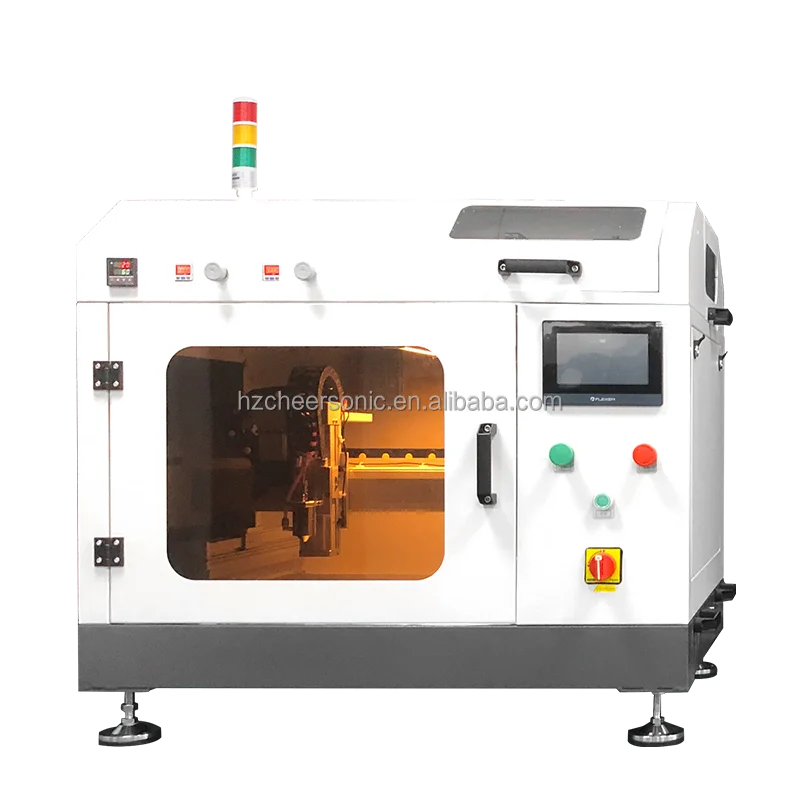

UAM4000L Ultrasonic Spray Coating
Product Description
UAM4000L Ultrasonic Spray Coating Uses Ultrasonic High-Frequency Oscillation to atomize liquid into uniform micron-sized fruit particles. Compared with the traditional two-fluid nozzle, the patented ultrasonic nozzle can obtain more uniform, thinner and more controllable film spraying and spraying Pyrolysis, and not easy to plug nozzle.
As the ultrasonic nozzle only need a small amount of kilo-level air volume, the spraying process is almost no spatter, so the coating utilization rate as high as 95%, four times the two-fluid nozzle. The technology is being widely used in thin film solar cells, fuel cells, semiconductor photoresists, electronic sensors, PCB Huang Huang, non-woven functional coatings, glass coating and other nano and submicron film preparation.
UAM4000L ultrasonic spraying machine combined with the world’s latest spraying and control technology, in accordance with the treatment, spray particles, spray volume and other process requirements, customers can design professional spray head and a full set of ultrasonic nano-particle spraying equipment.
| Ultrasonic gas filling method: precision gas |  |
| After the gas spray shape: focusing linear | |
| Low-pressure air is jetted from a small hole in the center of the nozzle, and the sprayed liquid is injected into the surface of the nozzle by an external pipe to generate fine liquid particles | |
| For implantable medical devices, stents and high-precision electronic components and other coatings | |
| The spray is gentle, low speed but precise and can be spray-coated to the target position | |
| The ultrasonic pressure nozzle non-blocking situation, reducing paint waste |
| Ultrasonic gas filling method: focusing type gas |  |
| After the gas spray shape: focusing beam type | |
| Ultrasonic atomization nozzle combined with low pressure air to produce a soft and highly focused small droplet fine spray | |
| Suitable for medical equipment, ultra-thin coating of energy electronic batteries | |
| The spray is gentle, low speed but precise and can be spray-coated to the target position | |
| So that the ultrasonic nozzle is not blocked, reducing downtime |
| From the acoustic way: wide-type gas |  |
| Aerosol spray shape: divergent fan-shaped | |
| The main use of high-speed impact air jet control, air flow controllable | |
| Suitable for sub-spraying aerated non-woven fabrics, glass and other mobile-type membrane | |
| Controllable ultrasonic spray coating for uniform coating reduces paint waste | |
| So that the ultrasonic nozzle is not blocked, reducing downtime |
Advantage
• Spray uniformity, high controllability
• It is not easy to block the nozzle
• High utilization of raw materials to eliminate waste
• No high-pressure gas required
• Any head can be unloaded / replaced
• Ultra-fine particle ultrasonic spray head
• Self-developed 6-axis controller
Application
• Three-dimensional spray
• Flat spray
• Moisturizing
• Spray drying
• Dust reduction
Parameter
| UAM4000L Ultrasonic Spray Coating | |
| Frequency | 50khz—120khz |
| Average particle size | 10-40μm |
| Maximum flow | 30ml/min |
| Spray uniformity | <2% |
| Ultrasonic nozzle | Can be equipped with a variety of patented ultrasonic nozzle |
| Viscosity size | <20cps |
| The maximum width of spray | 80mm |
| The maximum spraying range | 350*500mm |
| Enter the power | 220V AC 50/60Hz |
| Whether to add gas | YES |
| Air pressure range | 0.1μpa—0.3μpa |
| Control System | Six-axis control system |
| Machine size | 1400*900*1600mm |
| Weight | 650kg |
| Voltage | 220V |
| Install the aperture | ≥25mm |
| Power consumption | 0.2A |
| Rated power | 3kw |
| Standard configuration | |
| Control System | 6 pumping control system, 7-inch full color touch LCD screen, can be set to automatic mode, jog mode, with secret security system |
| Mechanical transmission | XYZ three-axis motion system, servo motor |
| Constant current injection pump system | High-precision injectionPump ,Automatic pumping fluid delivery, 24 hours a steady supply of liquid. Imported biological level sampler (optional) |
| Exhaust system interface | Exhaust fan, but also docking laboratory or clean room ventilation system |
| Ultrasound dispersed stirring | Ultrasonic dispersion of the pool, the suspension can be pre-dispersed (optional) Ultrasonic Dispersing Syringe, which can disperse and disperse the suspension on-line and avoid the precipitation of solid during spraying (optional) |
