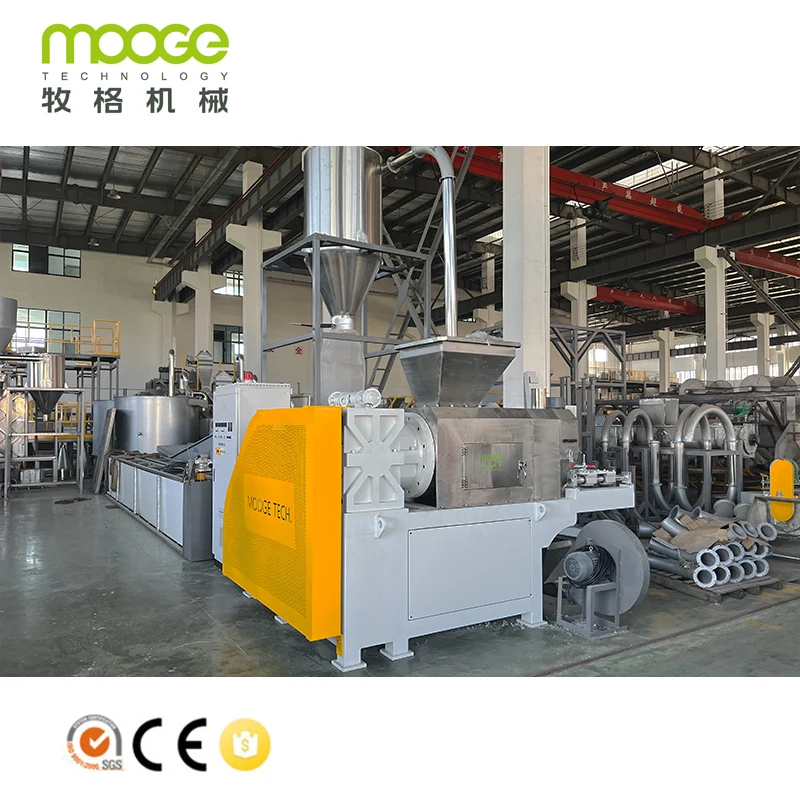

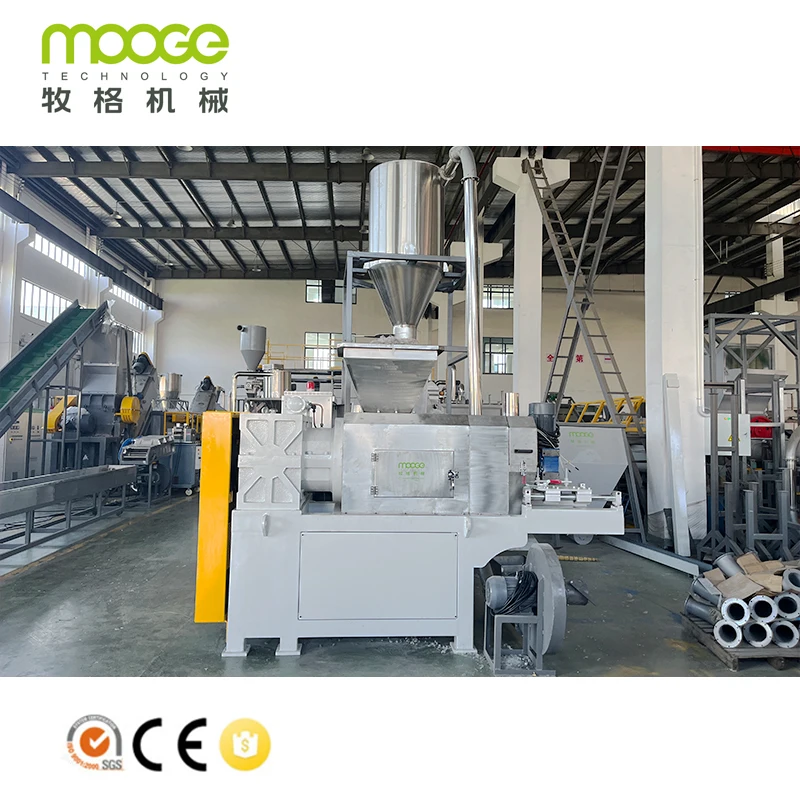

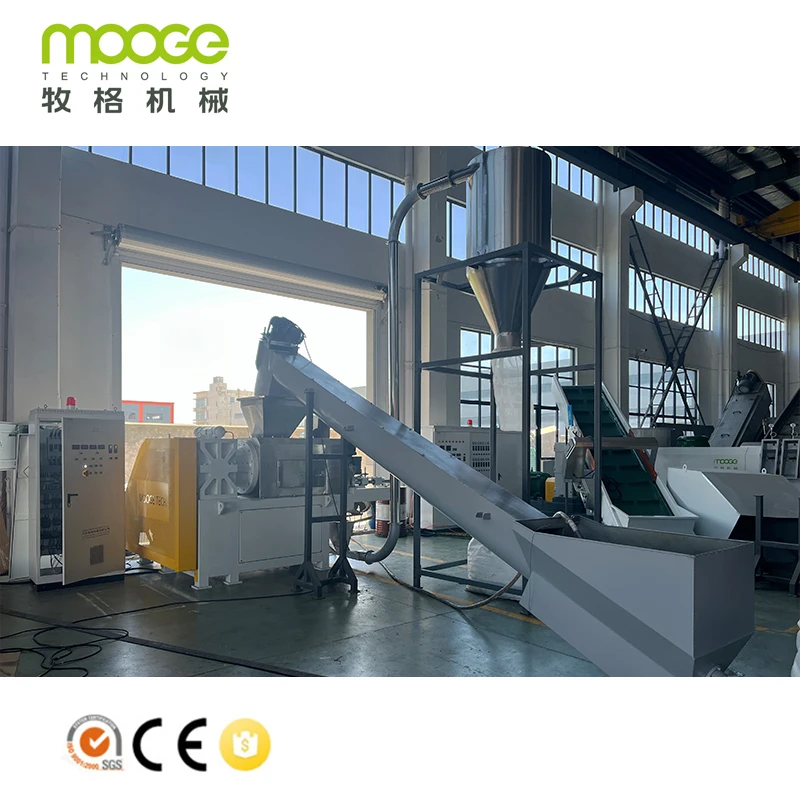

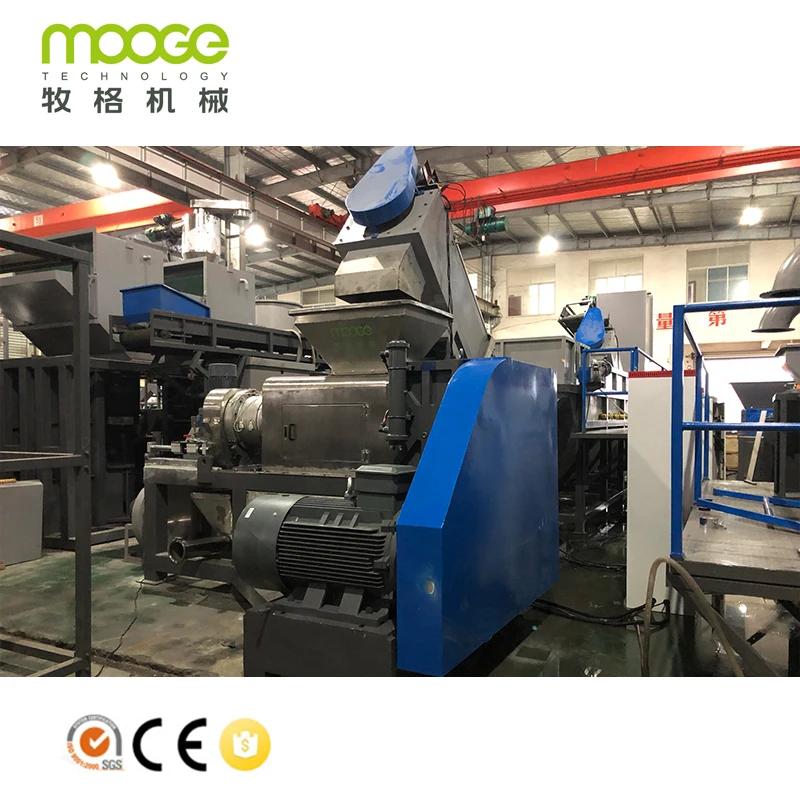

Price PE Film PP Woven Bags Squeezer Recycling Agglomerator Plastic Compactor Granulator Machine
- Category: >>>
- Supplier: Jiangsu Mooge Machine Co. Ltd.
Share on (1600967414920):
Product Overview
Description
Product Specification
This Plastic Film / Bags Squeezer Dryer Plastic Granulator Machine Is Used After The Plastic Film / Bags Washing Line ,Using The Squeeze Dewatering Principle, Squeeze The Water By Rotating Screw. The Water Will Flow Out From The Bottom, The Plastic Will Get Hot By High Intensity Extrusion Friction, And Will Plasticizing Mildly After The Mould Heating.Finally The Blade Will Cut The Granules From The Mould.
Advantage Of Squeezer Dryer Plastic Machine:
1. Low Power Consumption. No Need To Connection Drying Pipe System. Compare Transitional Horizontal Dewatering Machine+ Hot Air Drying
2. Small Land Occupied
3. Low Rotation Speed, Almost No Noise
4. Dewatering Function Is Better, Final Products Humidity Less Then <5%
5. After Squeeze Dry Granulating Machine, The Material Can Put Into Granulator Driectly, Do Not Need The Forced Feeding Machine.
Advantage Of Squeezer Dryer Plastic Machine:
1. Low Power Consumption. No Need To Connection Drying Pipe System. Compare Transitional Horizontal Dewatering Machine+ Hot Air Drying
2. Small Land Occupied
3. Low Rotation Speed, Almost No Noise
4. Dewatering Function Is Better, Final Products Humidity Less Then <5%
5. After Squeeze Dry Granulating Machine, The Material Can Put Into Granulator Driectly, Do Not Need The Forced Feeding Machine.
Machine Parmeter | ||||||||||
Model | FSP-250 | FSP-280 | FSP-315 | FSP-350 | FSP-400 | |||||
Capcity: kg/h | 250-300 | 300-400 | 400-500 | 600-800 | 800-1000 | |||||
Screw Dia:mm | Φ 250 | Φ 280 | Φ 315 | Φ 350 | Φ 400 | |||||
Main Motor : kw | 55/75 | 90 | 110 | 132 | 160 | |||||
Heating Power:kw | 8 | 9 | 11 | 12 | 15 | |||||
Cut Blade:pcs | 4 | 4 | 4 | 4 | 4 | |||||
Hole Dia:mm | 14 | 14 | 14 | 14 | 14 | |||||
Cut Power:kw | 4 | 5.5 | 5.5 | 7.5 | 7.5 | |||||
Blower Power:kw | 4 | 5.5 | 5.5 | 7.5 | 7.5 | |||||
Moisture: | <5% | <5% | <5% | <5% | <5% | |||||
Machine Video
1000 Kg /H Plastic Film/Bags Squeezing Squeezer Granulating / Pelletizing Machine Video
Details Images

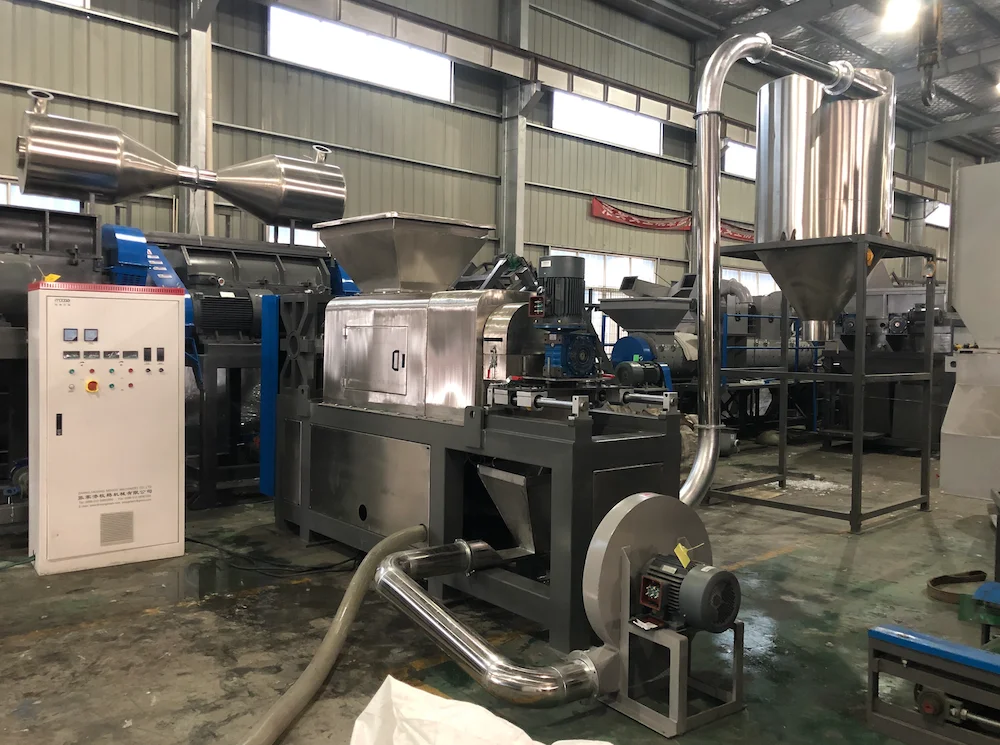

Plastic Film / Bags Squeezing / Squeezer / Granulating / Pelletizing Machine

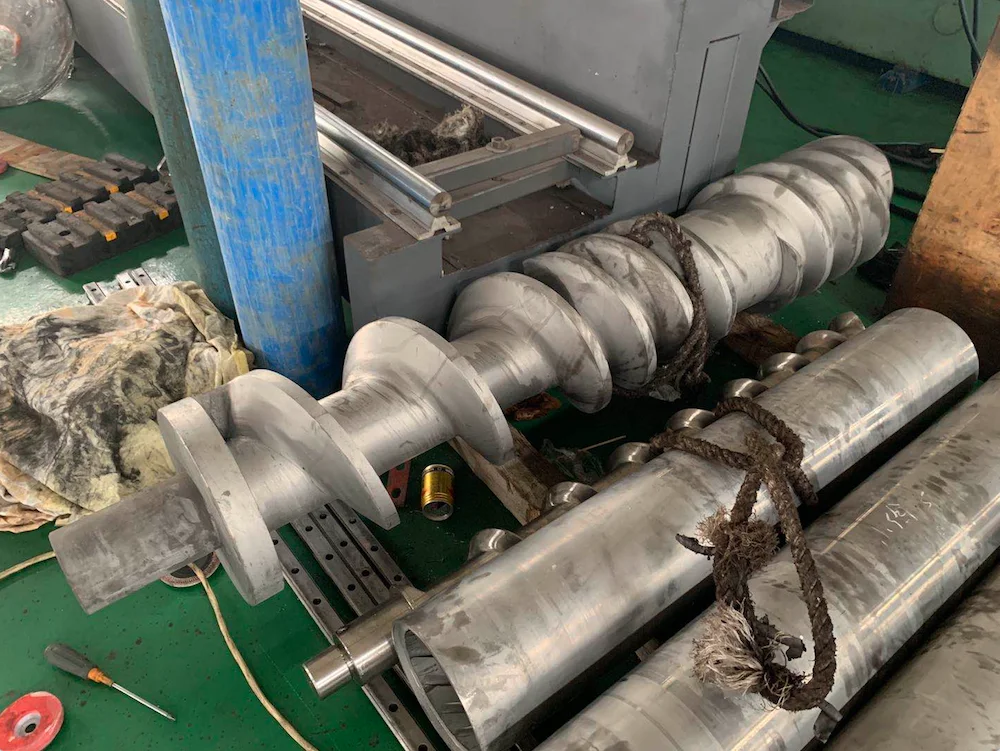

Plastic Squeezing / Squeezer / Pelletizing / Granulator / Granulating Machine Extruder screw + Barrel

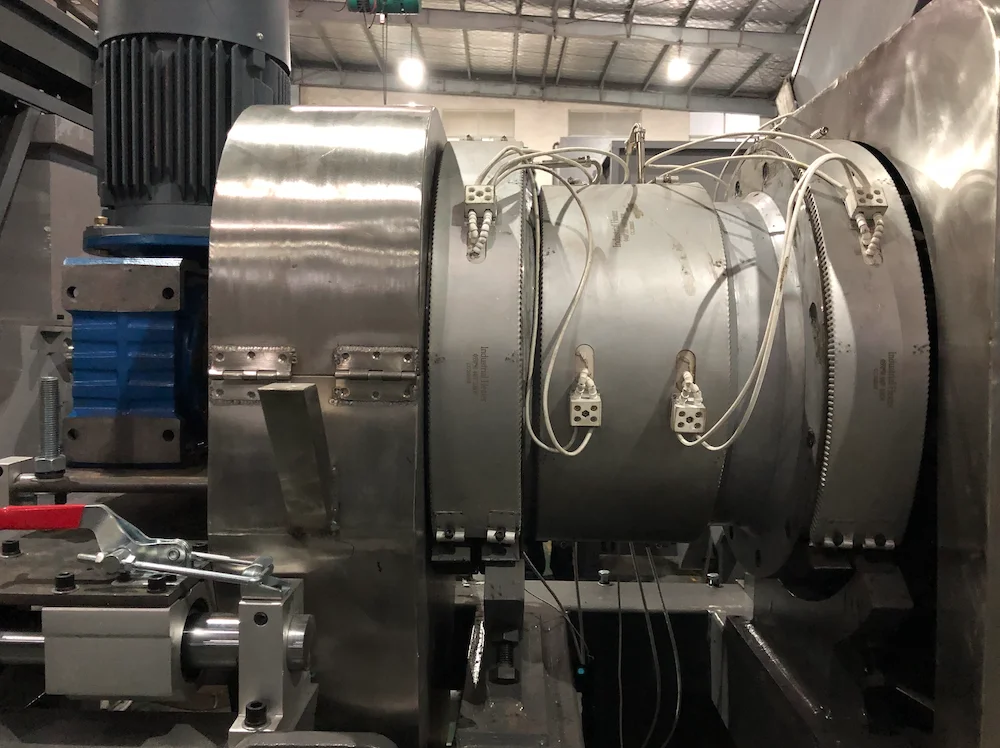

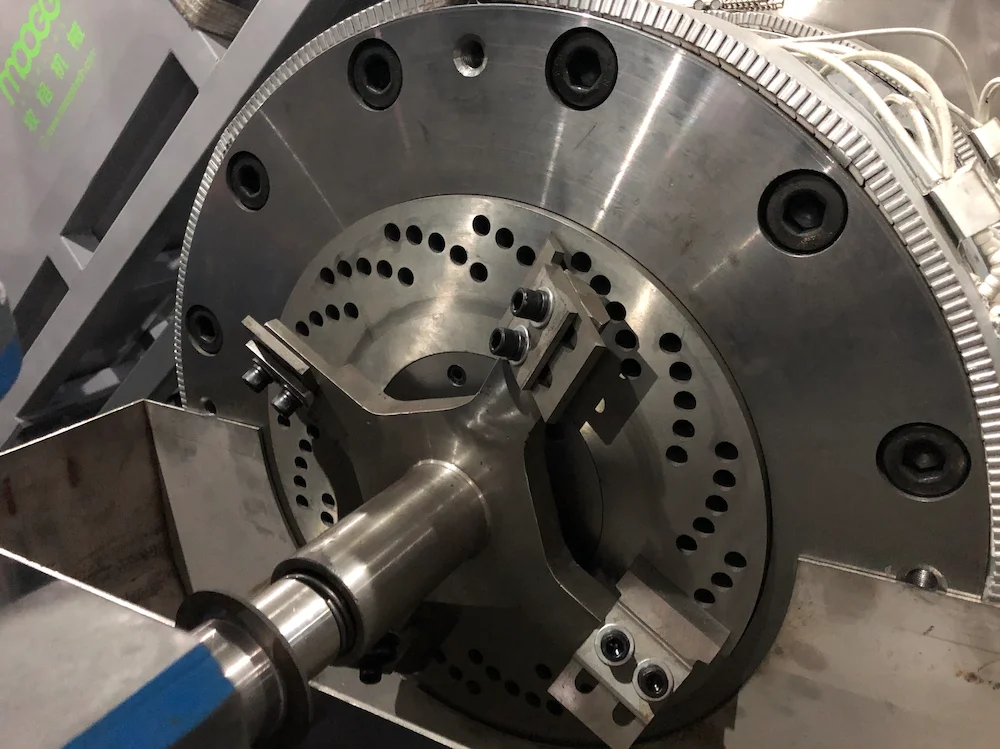

Plastic Squeezing / Squeezer / Pelletizing / Granulator / Granulating Machine Extruder Die Head
Plastic Squeezing / Squeezer / Pelletizing / Granulator / Granulating Machine Cutting blade

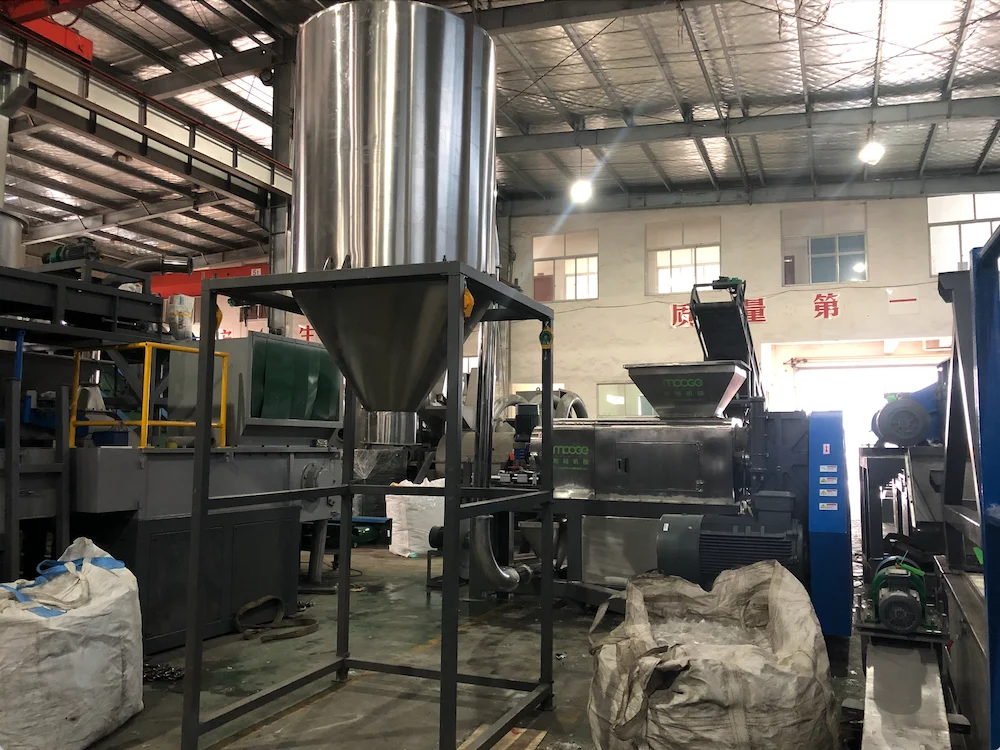

Plastic Squeezing / Squeezer / Pelletizing / Granulator / Granulating Machine Silo Packaging System
