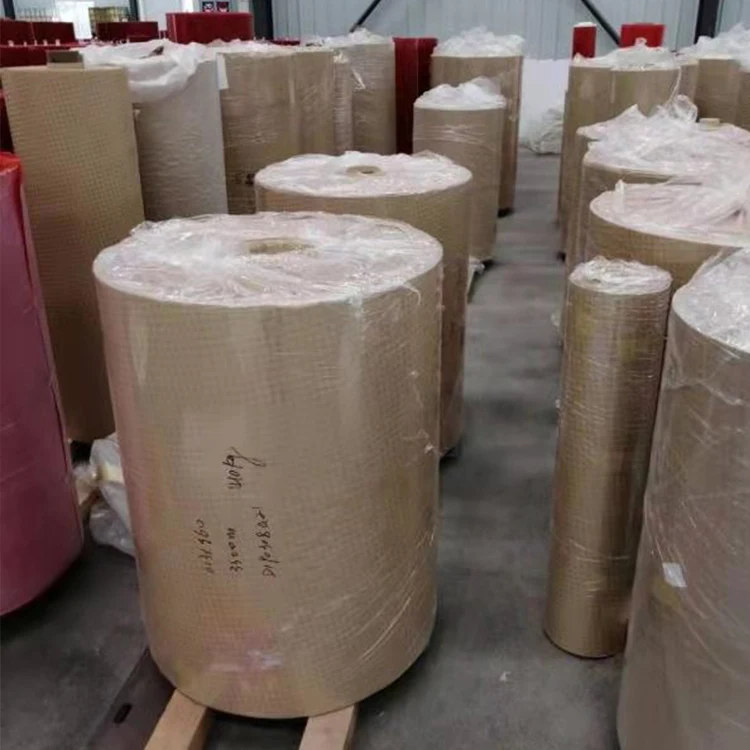

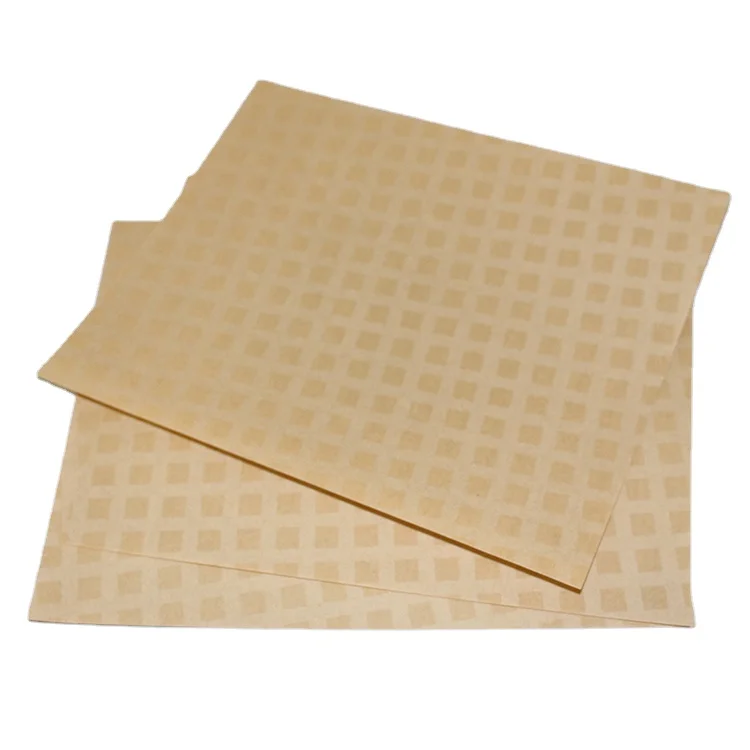

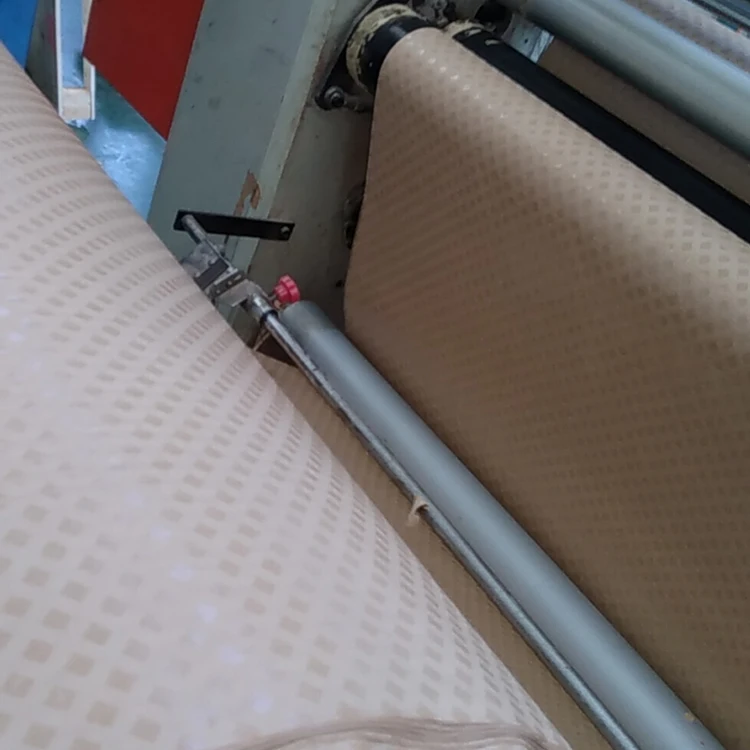

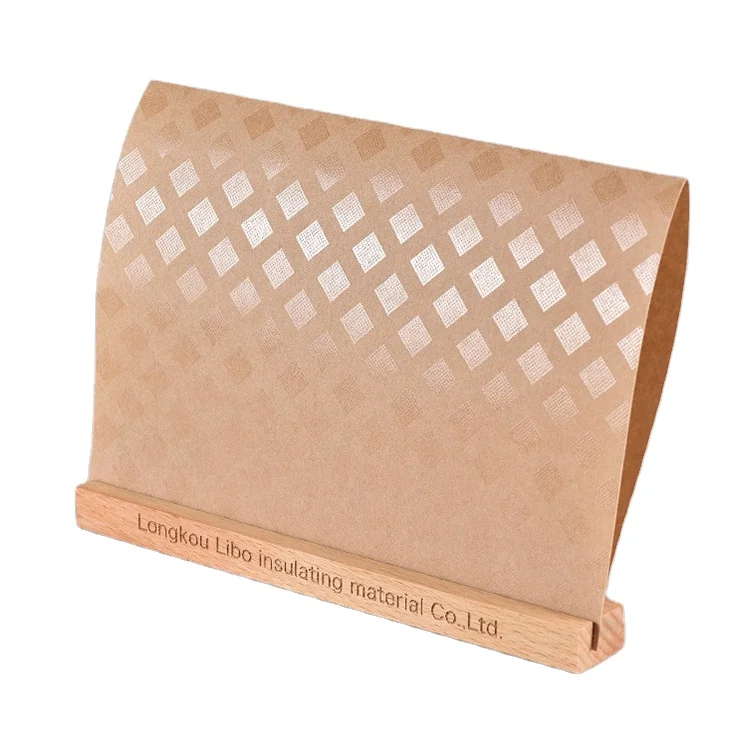

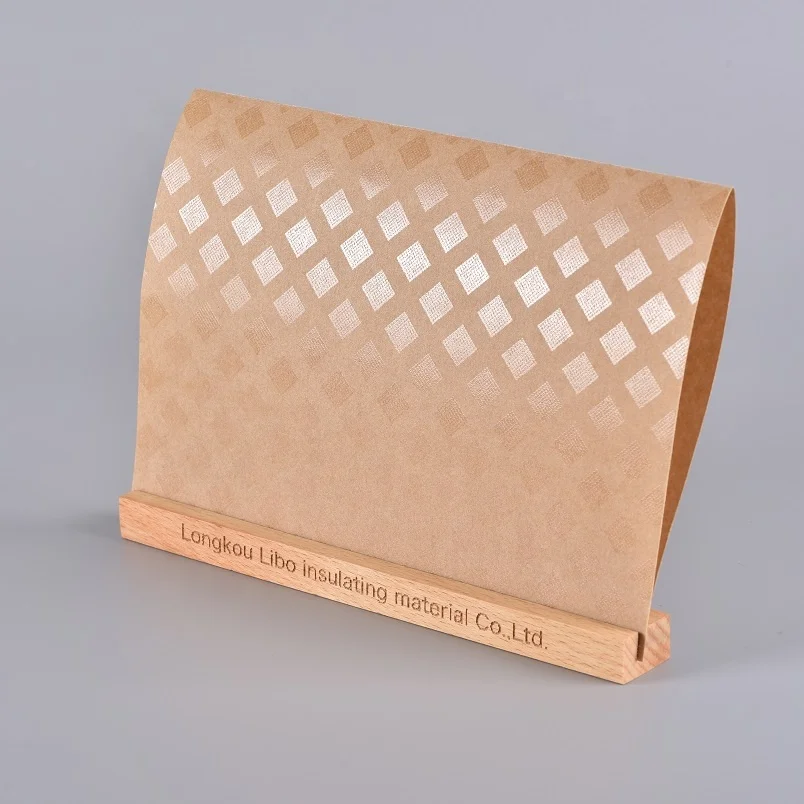

Electronic ROHS DDP Expory Diamond Dotted Insulation Paper for Oil Transformer
Electronic ROHS DDP Expory Diamond Dotted Insulation Paper for Oil Transformer
Electronic ROHS DDP Expory Diamond Dotted Insulation Paper for Oil Transformer
Electronic ROHS DDP Expory Diamond Dotted Insulation Paper for Oil Transformer
Electronic ROHS DDP Expory Diamond Dotted Insulation Paper for Oil Transformer
Electronic ROHS DDP Expory Diamond Dotted Insulation Paper for Oil Transformer
Electronic ROHS DDP Expory Diamond Dotted Insulation Paper for Oil Transformer

Electronic ROHS DDP Expory Diamond Dotted Insulation Paper for Oil Transformer

Share on (1600967449061):


Price:$2.10 - $2.85

Quantity:


Product Overview

Description





Specification


STANDARD:JB/T1004.3-2004

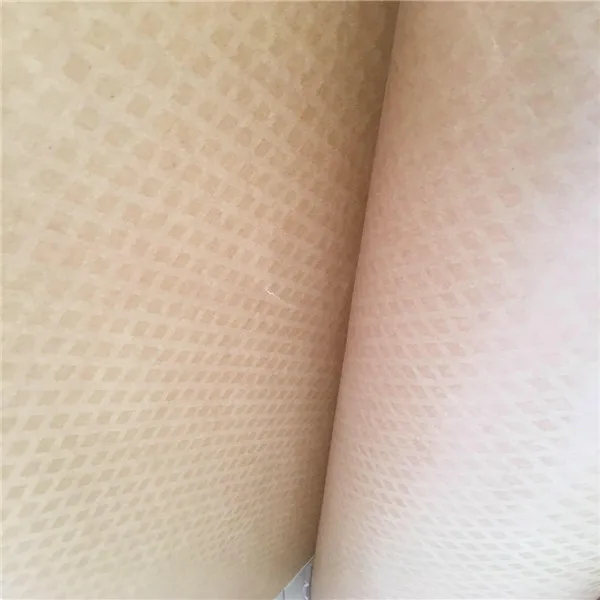

insulation between coils ddp diamond laminated kraft paper
Project
Unit
0.08
0.13
0.18
0.2
0.25
Thickness&Tolerance
mm
±0.005
±0.007
±0.010
±0.010
±0.010
Density
g/m2
0.85-1.1
Moisture Content

%
4.0-8.0
Water Extraction PH
----
6.5-8.5
Ash Content
%
≤1.0
Adhesive Thickness
μm
≤1.06-12
Oil Absorbency
%
≥20
Contamination to Transformer Oil
----
No Contamination
Bond Strength
Normal
Kpa
≥650
100℃±2℃
≥400
Tensile Strength
MD
N/10mm
≥60
≥110
≥160
≥180
≥230
CD
≥30
≥50
≥70
≥80
≥100
Elongation
Normal
%
≥2.0
100℃±2℃
≥4.0
Tear Strength
MD
MN
≥450
≥900
≥1350
≥1500
≥2000
CD
≥500
≥1000
≥1500
≥1700
≥2300
Breakdown Voltage
in the air
KV
≥0.8
≥1.37
≥2.00
≥2.10
≥2.25
In the oil
≥4.0
≥7.00
≥9.00
≥9.80
≥11.50


Products Description






Recommend Products




Why Choose Us






Customization






Company Profile




Yantai Libo International Trade Co.,Ltd.
The company are specialized in pro aminated paper DMD(with product thickness: 0.02 mm-0.23mm, and width:510mm-1500mm),Insulation Composite Laminated Material(DMD,NMN,NHN,100% saturated DMD,Aramid Paper,Diamond dotted paper),Insulation fiberglass Sleeving(2715PVC fiberglass sleeves,2751Siliconerubber fiberglass sleeves,2740Acrylic fiberglass sleeve,2753Silicone fiberglass sleeves,PU fiberglass sleeve) ,Mylar film(Polyester film,Milky white mylar film),Insulation tape(insulation pvc tape) and other electrical insulating material. They are used in motor,transformer, generator,reactor,etc. We have gained ISO9001,SGS and material ROHS and REACH certificate.
Our products are very popular in the international markets.We exported to many countries.like Erope,Turkey,Brazil,South korea,Tunisia,India,Russia and so on.
Our company‘s business philosophy : Customer care is our top priority. Welcome all the customers to visit us.


Certifications




FAQ


1.Can you produce the products with my own brand ?
Yes, we have been offering 0EM service for 10 years.

2.Could we pay a visit to your factory ?
Yes, you are always welcome to visit our factory.

3.Can you send us a sample to test quality before ordering ?
Yes, we can provide sample for free but the freight and other charges is payed by the customers.

4.Can you help us do the custom clearance ?
Yes, we can. We can help you find a professional custom clearance company to do it..

5.Can we get the goods without your company name to export ?
Yes, we can. We are allowed to use your designated agent's name if you have one..

6.How can you guarantee the quality of mass goods is same as the sample sent to me before?
We kept another same sample and marked on company when we sent to customer. So our production will be based on.
