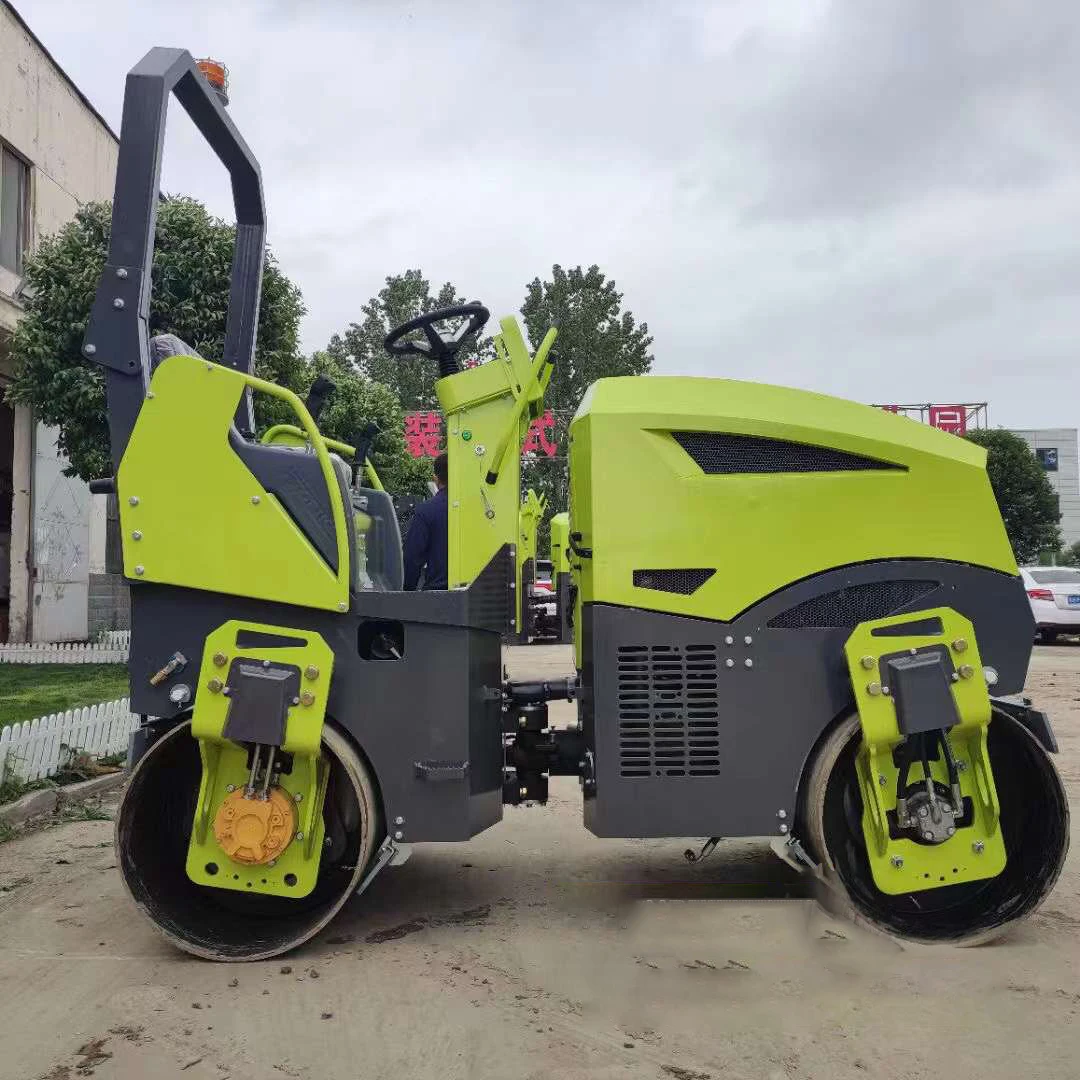

1 ton asphalt vibratory double drum roller remote control double drum trench road roller weight of road roller
- Category: >>>
- Supplier: Shandong Storike Engineering Machinery Co. Ltd.
Share on (1600967479731):
Product Overview
Description
Product Description
Road Roller is used in soil, asphalt road, walkway, bridge, parking, gym and narrow site. Operate radius small, can work in small area,suitable for groove backfill.
We could supply diferent famous engine, like Yanmar, Kubota
According to your requirments,we will supply OEM and recommend service.
We could supply diferent famous engine, like Yanmar, Kubota
According to your requirments,we will supply OEM and recommend service.
Specification
FEATURES
● Equipped with famous brand engine, could guarantee quality stability and excellent performance.
● Hawkeye-shaped body design, wide field of vision and beautiful appearance
● Used international famous brand hydraulic pump and motor, which can be steplessly shifted and walk forward and backward.
● LED display instrument panel and Ergonomic chair.
● Assembled with, working light and warning light, could work at night.
● Passed CE, SGS and ISO certification and won Red Star Award design
● The steel wheels are equipped with outline marker lamps, could ensure the safety of the operator.
● Equipped with famous brand engine, could guarantee quality stability and excellent performance.
● Hawkeye-shaped body design, wide field of vision and beautiful appearance
● Used international famous brand hydraulic pump and motor, which can be steplessly shifted and walk forward and backward.
● LED display instrument panel and Ergonomic chair.
● Assembled with, working light and warning light, could work at night.
● Passed CE, SGS and ISO certification and won Red Star Award design
● The steel wheels are equipped with outline marker lamps, could ensure the safety of the operator.
Model | ST2000 | ST3000 | ST4000 | ST5000 | ||||
Operating Weight | 2000 kg | 3000 kg | 4000 kg | 5000 kg | ||||
Static linear load | 110/105 N/cm | 106/94 N/cm | 135/120 N/cm | 155/140 N/cm | ||||
Dimensions | ||||||||
Size | 2445*1050*2255 mm | 2400*1355*2630 mm | 2480*1370*2630 mm | 2850*1580*2680 mm | ||||
Turning radius | 2955/4005 mm | 2405/3760mm | 2405/3760 mm | 4380 mm | ||||
Drum size | 630*900 mm *2 | 630*1200 mm*2 | 720*1200 mm*2 | 900*1400mm*2 | ||||
Wheel base | 1565 mm | 1650 mm | 1650 mm | 1950 mm | ||||
Engine | ||||||||
Model | Changchai/Yanmar/Kubota | Changchai/Yanmar/Kubota | Changchai/Yanmar/Kubota | Changchai/Yanmar/Kubota | ||||
Power | 12/18.6/19.9KW | 28.5/33KW | 28.5/33KW | 36/34.5/33.6 KW | ||||
Rating speed | 3600 rpm | 3600 rpm | 3600 rpm | 3600 rpm | ||||
Driving Character Istics | ||||||||
Walking speed | 0-8Km/h | 0-10 Km/h | 0-10 Km/h | 0-12 Km/h | ||||
Climbing ability | 35 % | 35 % | 40 % | 40 % | ||||
Steering | ||||||||
Steering mode | Hydraulic steering | Hydraulic steering | Hydraulic cylinder, articulated steering | Hydraulic cylinder, articulated steering | ||||
Steering system | Swing articulated | Swing articulated | Swing articulated | Swing articulated | ||||
Exciter System | ||||||||
Vibrating drum | Front+Rear | Front+Rear | Front+Rear | Front+Rear | ||||
Driving Form | Hydraulic motors | Hydraulic motors | Hydraulic motors | Hydraulic motors | ||||
Frequency | 65 HZ | 65 HZ | 65 HZ | 65 HZ | ||||
Amplitude | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | ||||
Centrifugal force | 30 KN*2 | 35 KN*2 | 40 KN*2 | 45 KN*2 | ||||
Sprinkler System | ||||||||
Type of sprinkling | Pressure | Pressure | Pressure | Pressure | ||||
Capacities | ||||||||
Hydraulic oil | 45 L | 46 L | 48 L | 60 L | ||||
Fuel | 36 L | 42 L | 44 L | 45 L | ||||
Water | 140 L | 140 L | 180 L | 180 L | ||||

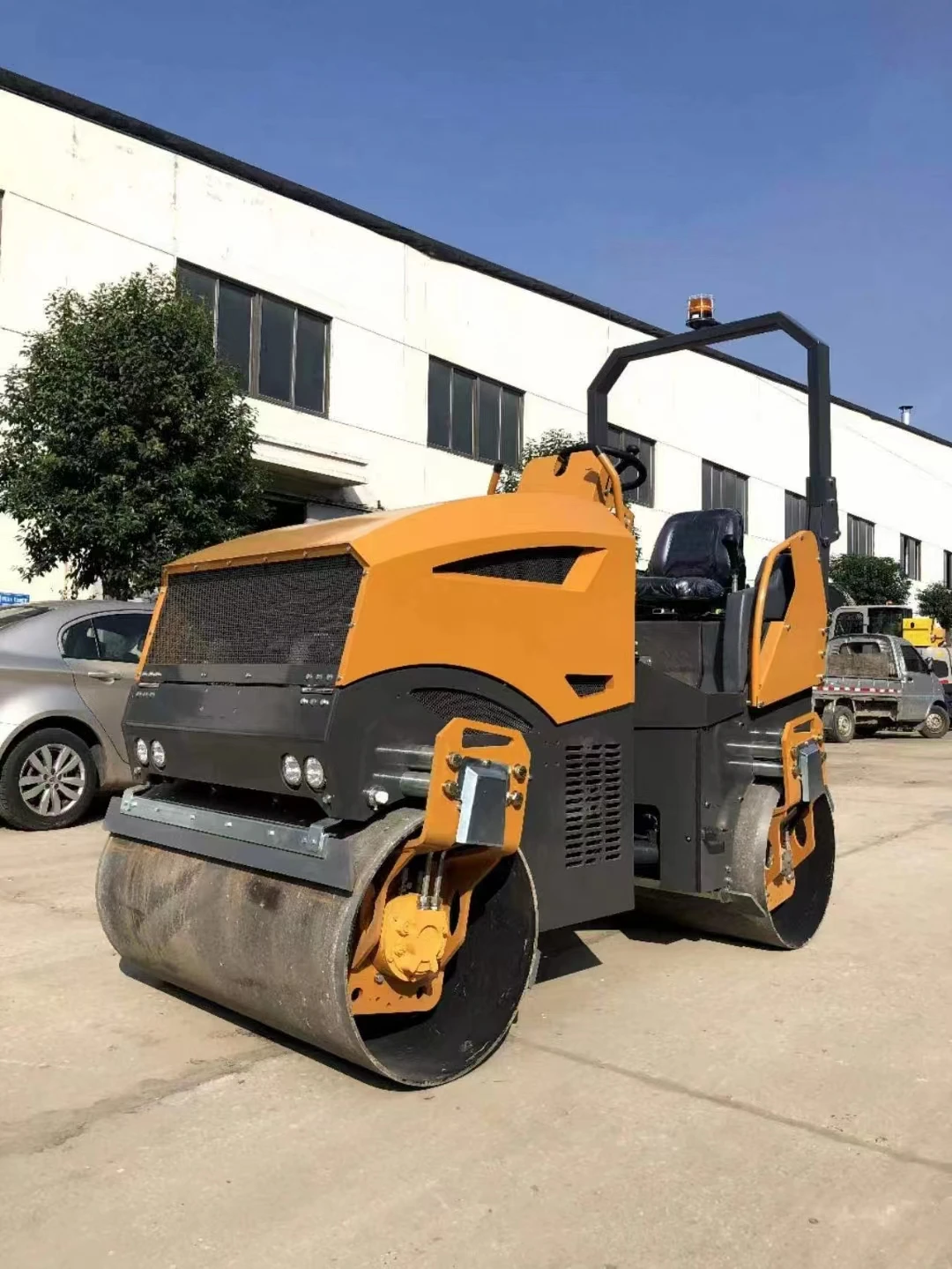

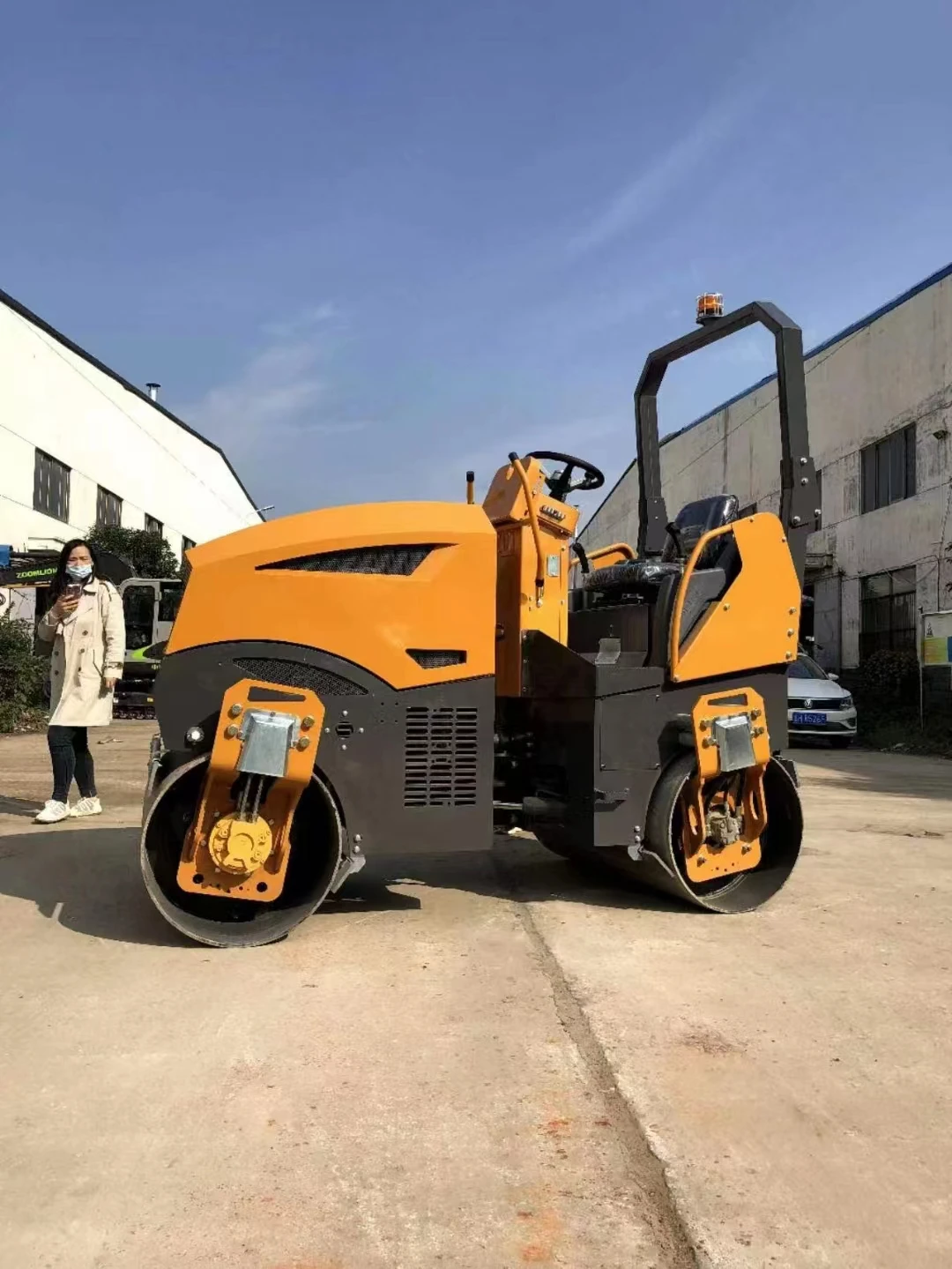

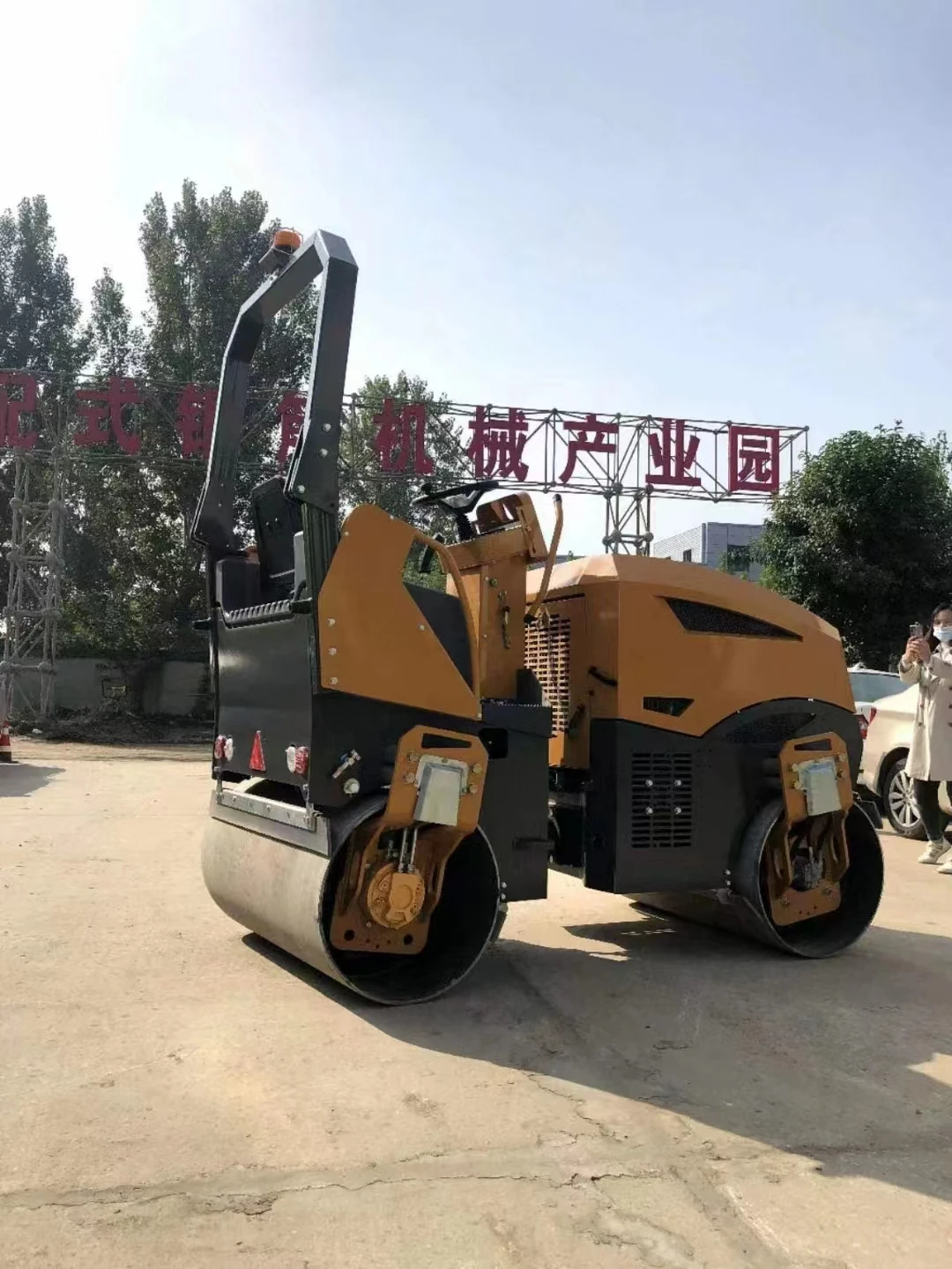

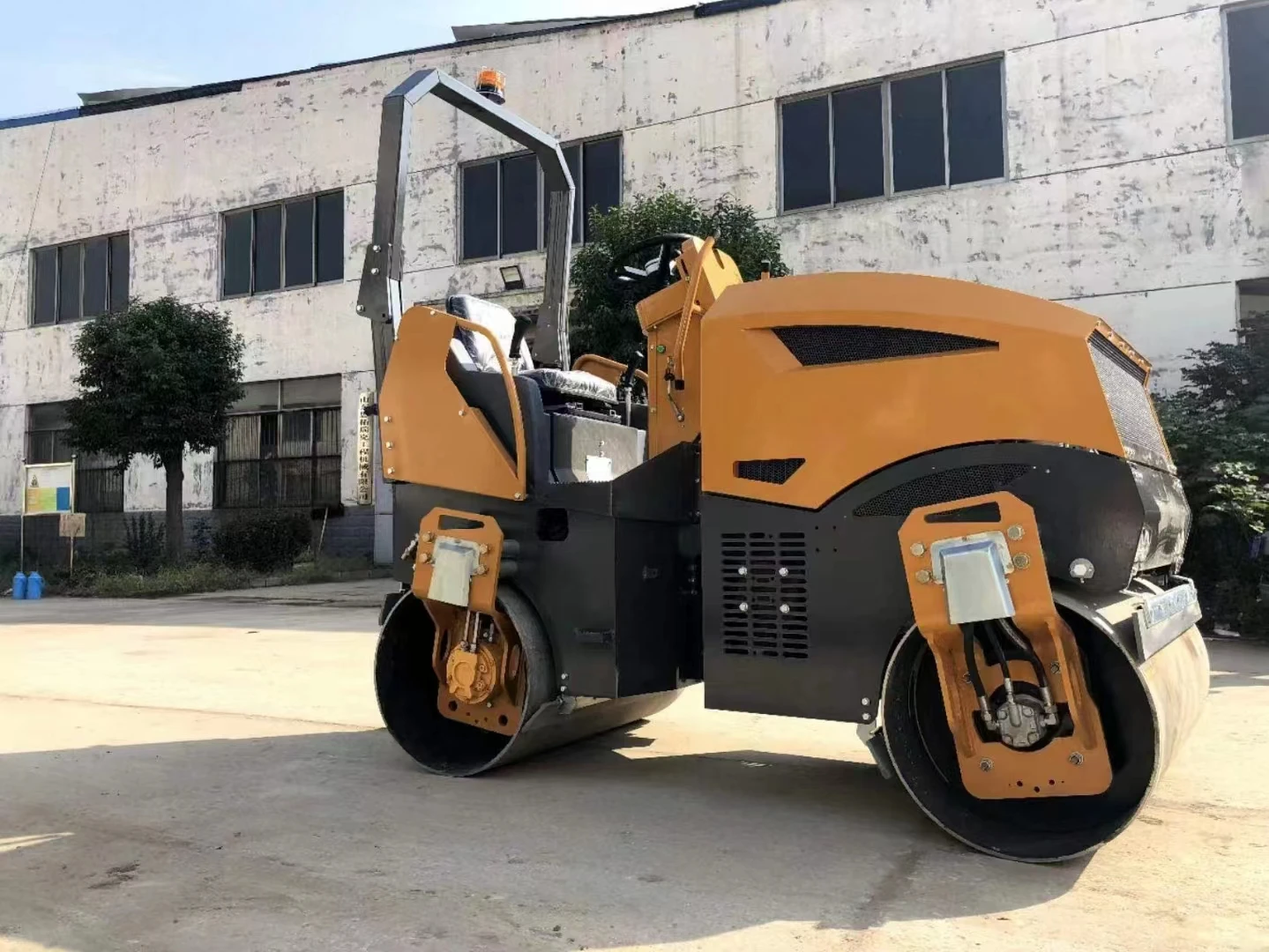

Details Images
Packing & Delivery
Company Profile
Shandong Storike Engineering Machinery Co., Ltd. was one of the top three small road roller manufacturer in China, located in Jining city, Chinese construction machinery production base. Our company was established in 2011, covered an area of 6,000 square meters with 100,000 units annual output, had rich experience in production and sales. We have 5 major categories: compaction machinery, mobile lighting machinery, concrete machinery, pavement maintenance machinery and hydraulic machinery. Road roller, mobile lighting tower, concrete scarifier, and hydraulic equipment was our hot-selling product.
Our company has passed ISO9001 and SGS certification, and some products got CE certificate. Products were exported to more than 50 countries and regions such as USA, Canada, Columbia, Philippines, India and etc. For the domestic market, we have distributors in every area of China.
"Integrity, tolerance, innovation, service" is our philosophy. STORIKE believed that Integrity is the foundation of all cooperation. Tolerance is the prerequisite for solving problems. Innovation is the tool for development. Service is the foundation for creating value.
We also do ODM and OEM for trading companies. Welcome friends from all over the world to our company for visiting and cooperation.
Our company has passed ISO9001 and SGS certification, and some products got CE certificate. Products were exported to more than 50 countries and regions such as USA, Canada, Columbia, Philippines, India and etc. For the domestic market, we have distributors in every area of China.
"Integrity, tolerance, innovation, service" is our philosophy. STORIKE believed that Integrity is the foundation of all cooperation. Tolerance is the prerequisite for solving problems. Innovation is the tool for development. Service is the foundation for creating value.
We also do ODM and OEM for trading companies. Welcome friends from all over the world to our company for visiting and cooperation.
