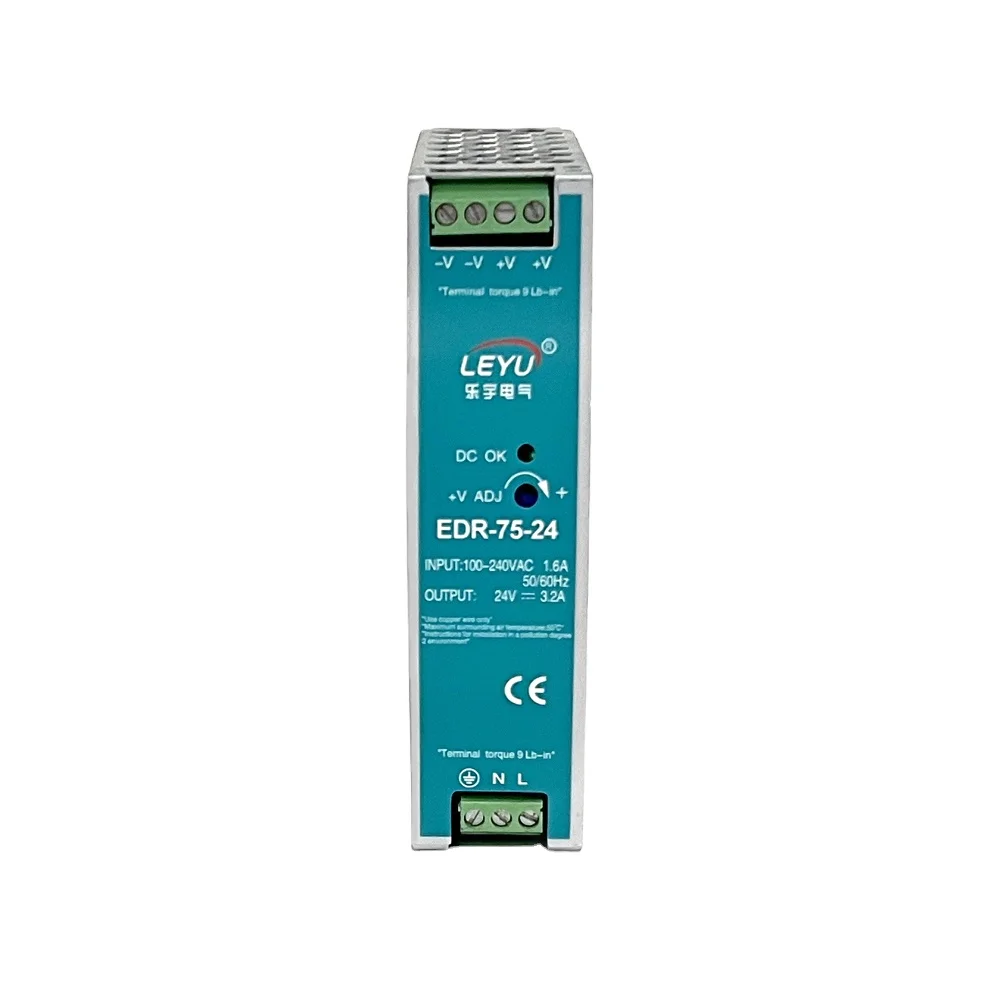

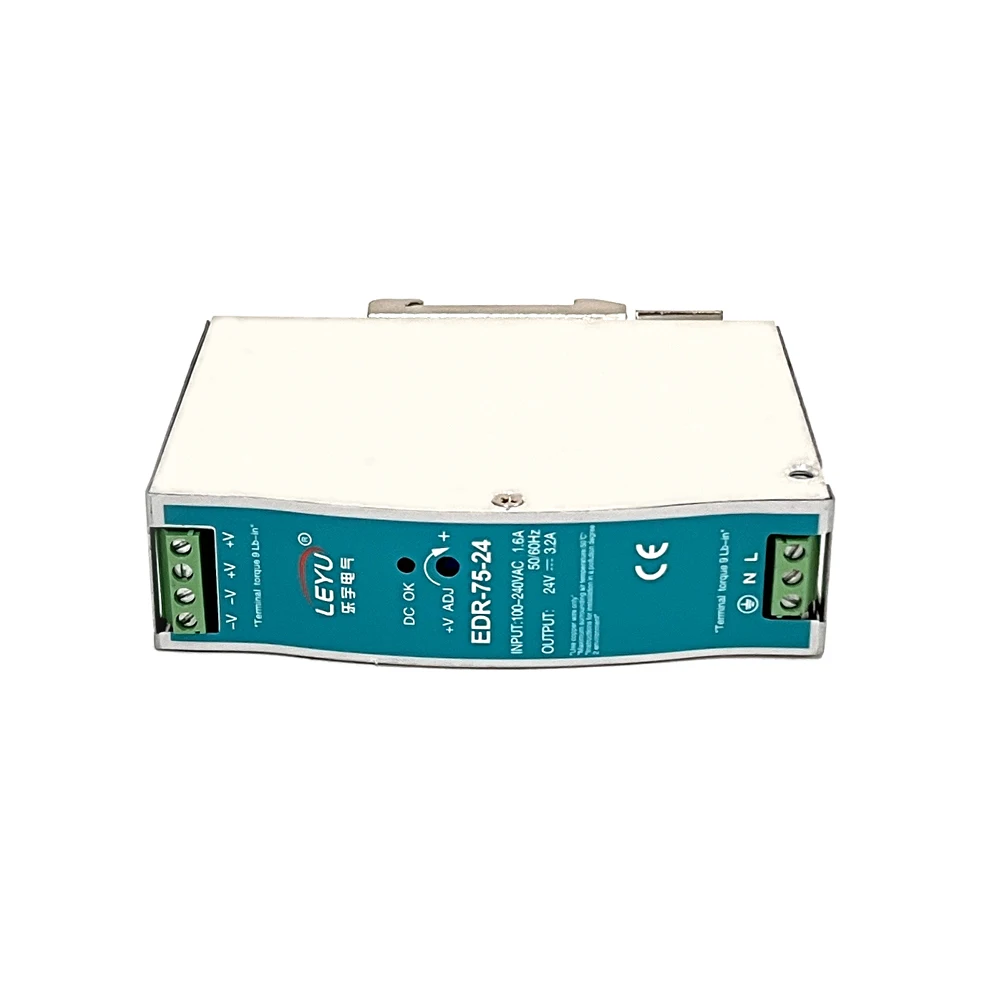

EDR 75 75W 12V DC economical power supply single output switching power supply
EDR-75 75W 12V DC economical power supply single output switching power supply
EDR-75 75W 12V DC economical power supply single output switching power supply
EDR-75 75W 12V DC economical power supply single output switching power supply
EDR-75 75W 12V DC economical power supply single output switching power supply
EDR-75 75W 12V DC economical power supply single output switching power supply

EDR 75 75W 12V DC economical power supply single output switching power supply

Share on (1600967482697):


Price:$11.00 - $13.50

Quantity:


Product Overview

Description



Product Description




Specification


SPECIFICATIONS
OUTPUT
Model
EDR-75-12
EDR-75-24
EDR-75-48
DC Voltage
12V
24V
48V
Rated Current
6.3A
3.2A
1.6A
Current Range
0-6.3A
0-3.2A
0-1.6A
Rated Power
75.6W
76.8W
76.8W
Ripple & Noise
100mVp-p
120mVp-p
150mVp-p
Voltage Adj. Range
12-14V
24-28V
48-53V
Voltage Tolerance
±2%
±1%
±1%
Setup, Rise Time
1000ms,60ms/230VAC 1800ms,60ms/115VAC at full load
Hold Up Time
60ms/230VAC 12ms/115VAC at full load
Voltage Range
85~264VAC 47~63 Hz; 120~370VDC
AC Current
1.6A/115V 0.96A/230V
Efficiency
83%
85%
86%
Inrush Current
Cold start 20A/115VAC 40A/230VAC
Leakage Current
<1mA/240VAC
Over Load
105%~150%
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage
120%~140%
Protection type: Shut down o/p voltage, re-power on to recover
Over Temp.
TSW1≥85℃±5℃
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down
Working Temp., Humidity
-10℃~+60℃; 20%~90%RH
Storage Temp., Humidity
-20℃~+85℃; 10%~95%RH
Vibration
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
Withstand Voltage
I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
EMC Standard
EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2
Dimension
32.5*102*125.2mm(L*W*H)
Weight
0.45Kg
Packing
30pcs/16Kg/1.1CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

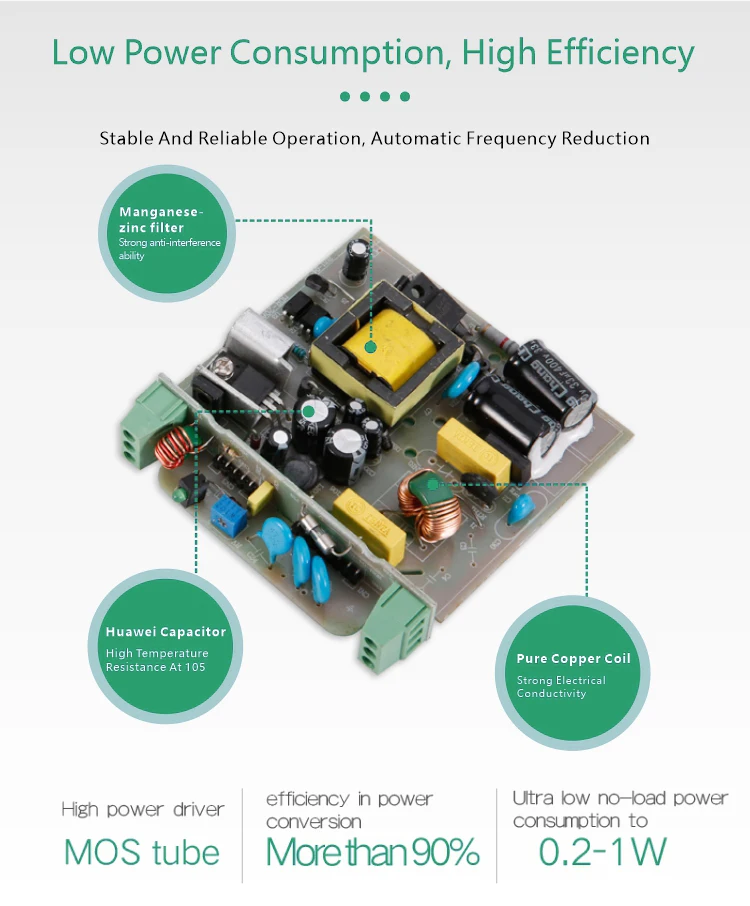

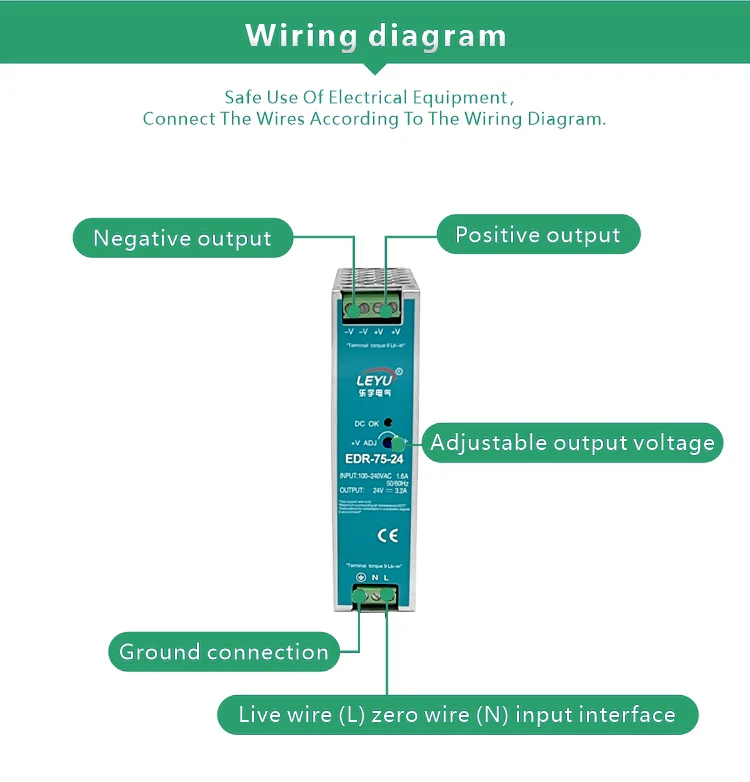

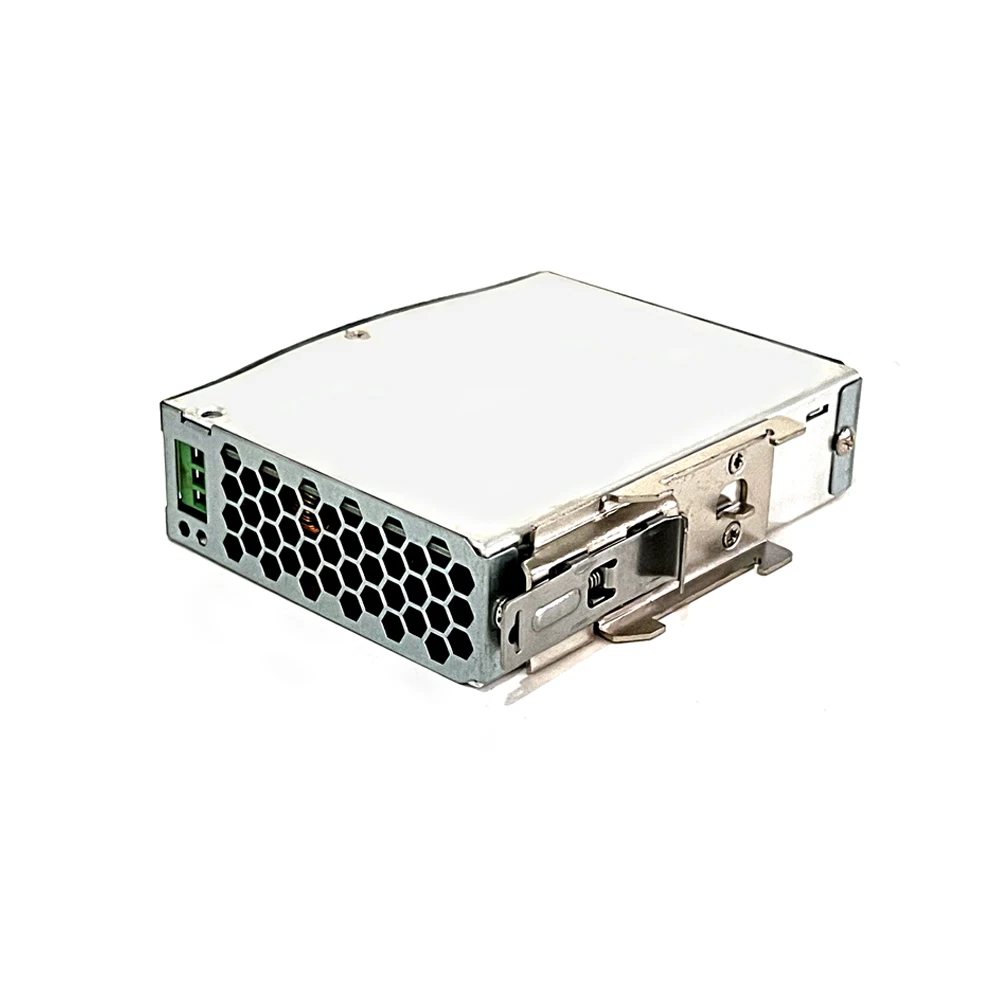

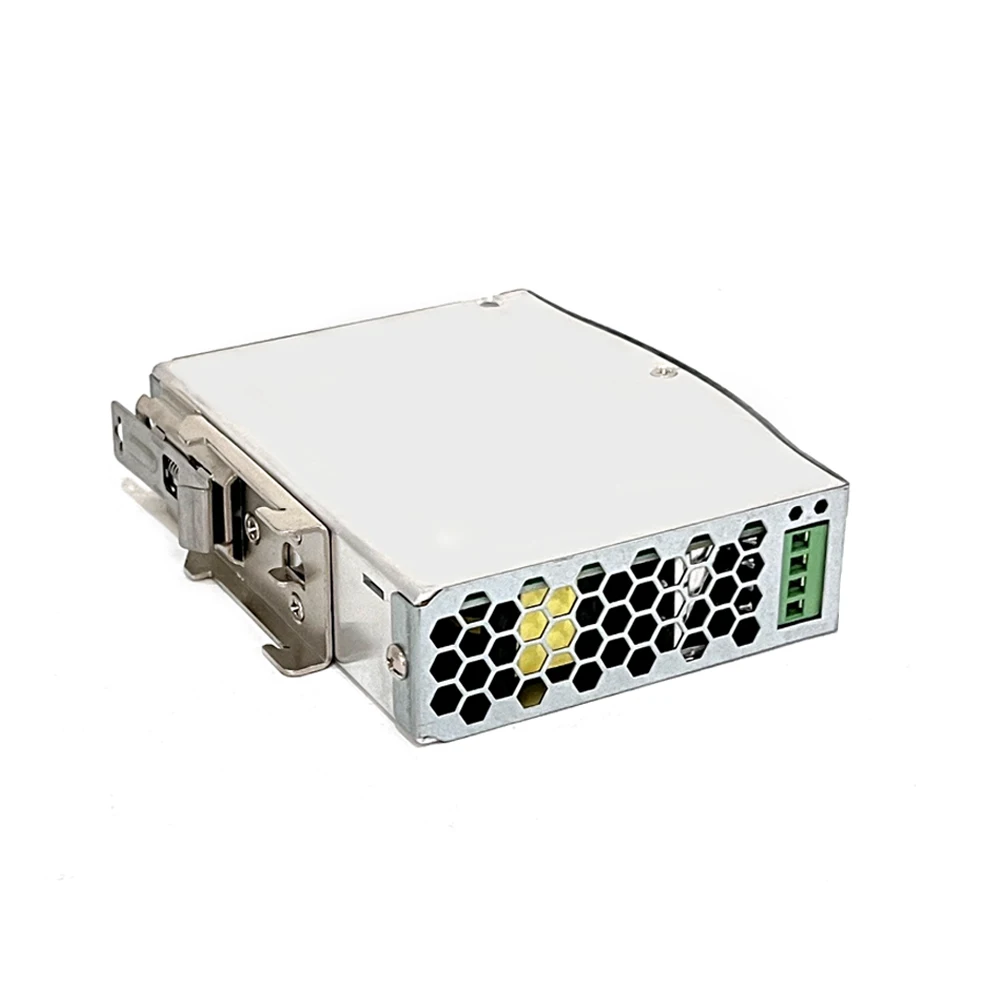

Details Images






Recommend Products


DR-15
DR-30
DR-45


DR-60
DR-75
DR-120


Company Profile










Packing & Delivery


Standard packing or as for your requirement .
