2 Pipe 4 Pipe Thermostat Fan Coil Programmable Tuya Wifi Smart Room Thermostat
- Category: >>>
- Supplier: Guangdong Chico Electronic Inc.
Share on (1600967600265):
Product Overview
Description
Product Description
CCST6001 WIFI/Modbus Programmable Fan Coil Thermostat
>> This is a durable, safe and reliable thermostat for Fan Coil Unit HVAC System, which is easy to install and program. It can ensure even and comfortable temperature control.
>> With the free mobile app, you can conveniently control your thermostat from anywhere and anytime, which suits your lifestyle and provides you with an energy-saving and comfortable living environment.
>> It is suitable for use in office buildings, hospitals, schools and entertainment facilities for temperature control.
MODEL DEFINITION
Two pipe; Control Fan Coil Unit and Two Wired Motorized Valve
Four pipe; Control Fan Coil Unit and Two Wired Heat Valve and Two Wired Cool Valve.
>> With the free mobile app, you can conveniently control your thermostat from anywhere and anytime, which suits your lifestyle and provides you with an energy-saving and comfortable living environment.
>> It is suitable for use in office buildings, hospitals, schools and entertainment facilities for temperature control.
MODEL DEFINITION
Two pipe; Control Fan Coil Unit and Two Wired Motorized Valve
Four pipe; Control Fan Coil Unit and Two Wired Heat Valve and Two Wired Cool Valve.
Technical Data
Power Supply | 95 ~ 240 VAC, 50 ~ 60HZ |
Application | Two pipe, on/off valve; Four pipe,on/off valve; |
Sensor | NTC3950,10K |
Accuracy | ±0.5ºC |
Set Temp.Range | 5-35ºC |
Dispply Temp.Range | 5~99ºC |
Ambient Humidity | 5~95%RH(Non Condensing) |
Storage Temp | -5~45ºC |
Power Consumption | <1.5W |
Timing Error | <1% |
Protection Class | IP20 |
Buttons | Capactive Touch Buttons |
Shell Material | PC +ABS ( Fireproof) |

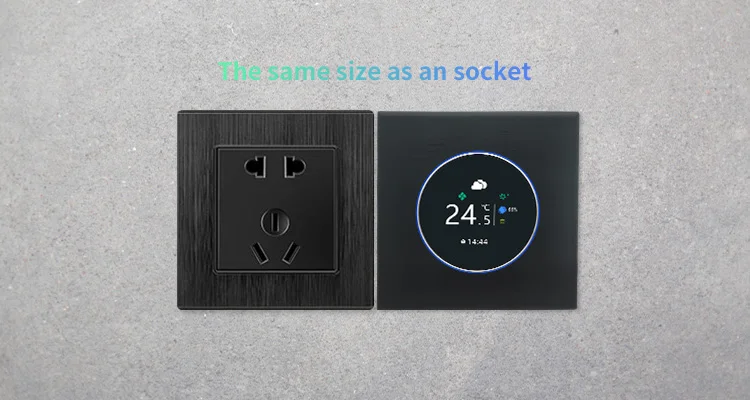

Installation Box | 86 * 86mm Square or European 60mm Round Box |

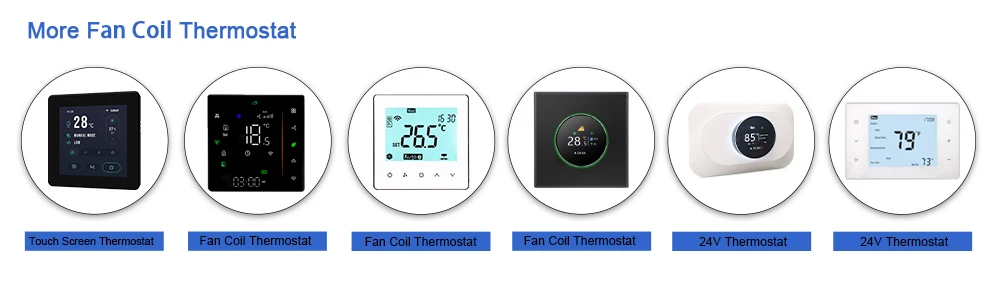

Know more information about another type of HVAC Thermostat and customized product, Please contact us for any further information.

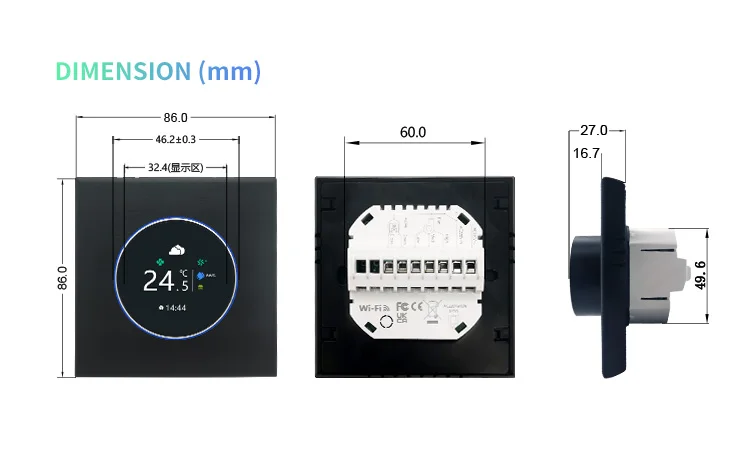

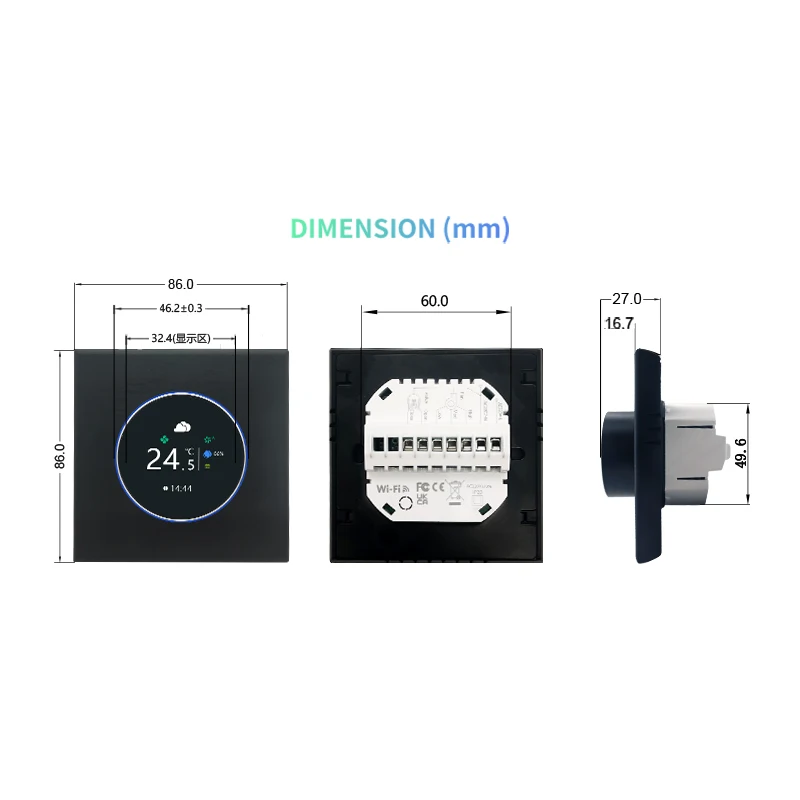

Detailed Images

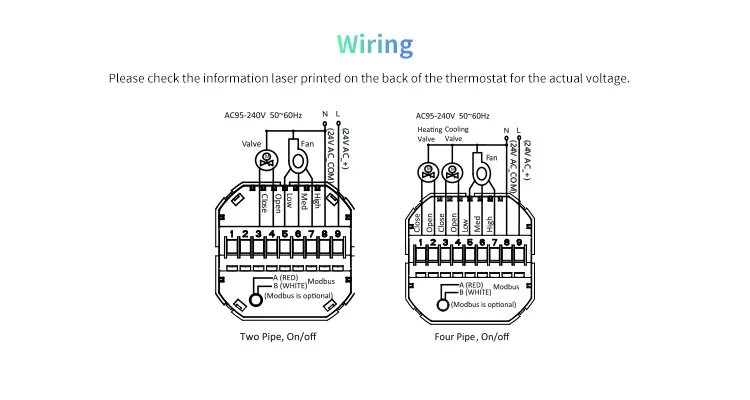

Wiring diagram
Features

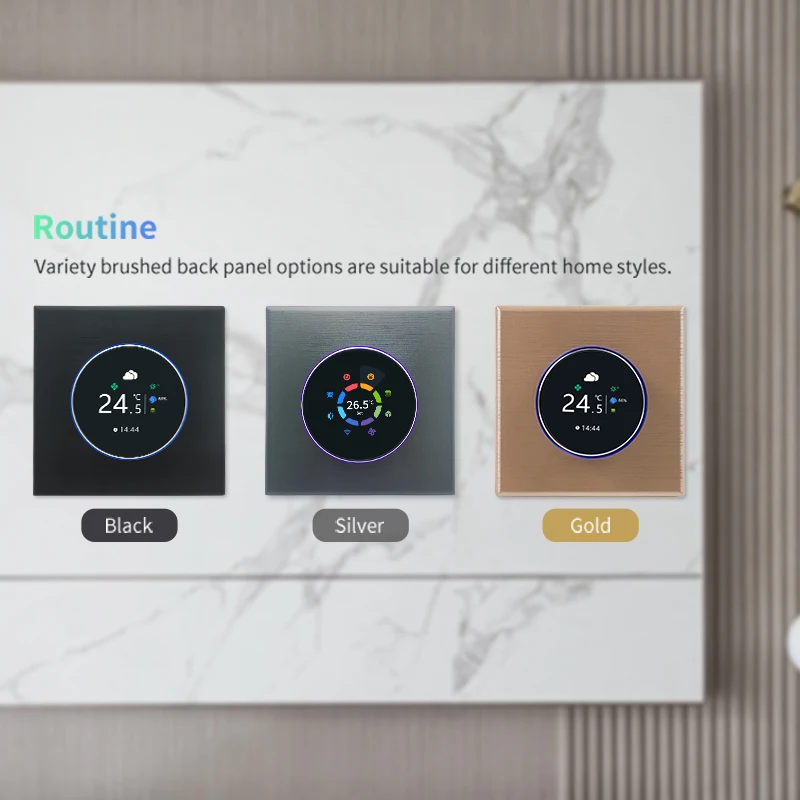

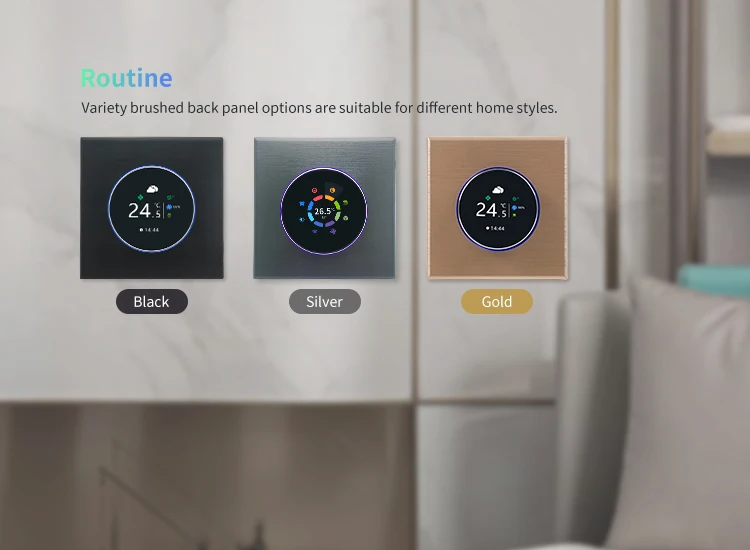

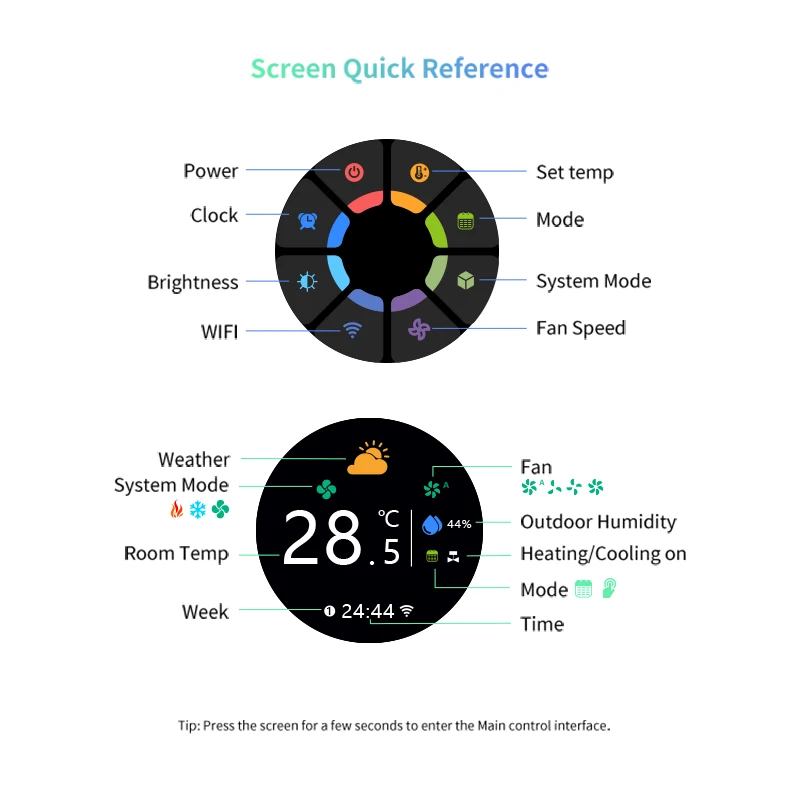

>> Variety brushed back panel options are suitable for different home styles.>> The eight main control options are set directly by twisting knob.

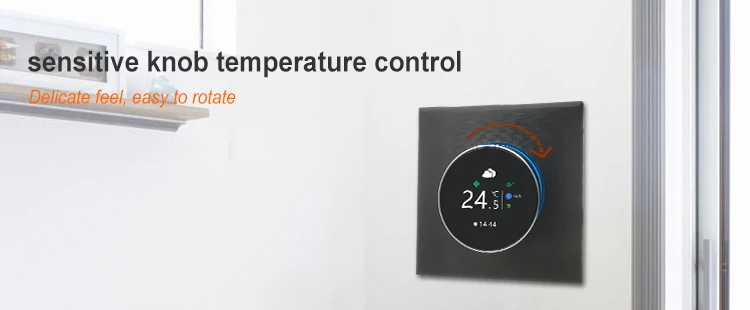

>> Compared to traditional button control, knob control hase faster reponse and better feel.

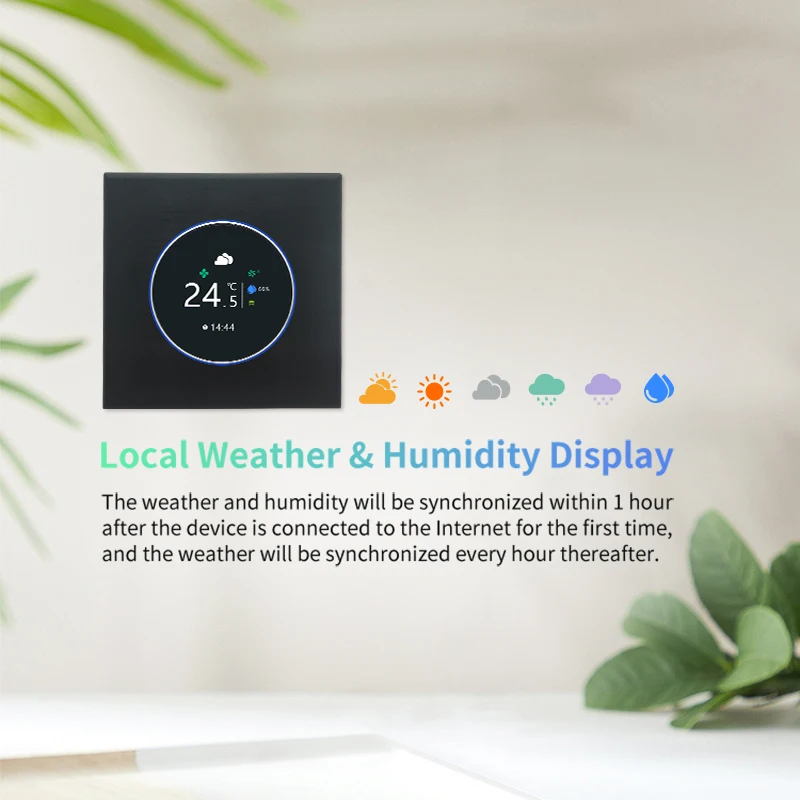

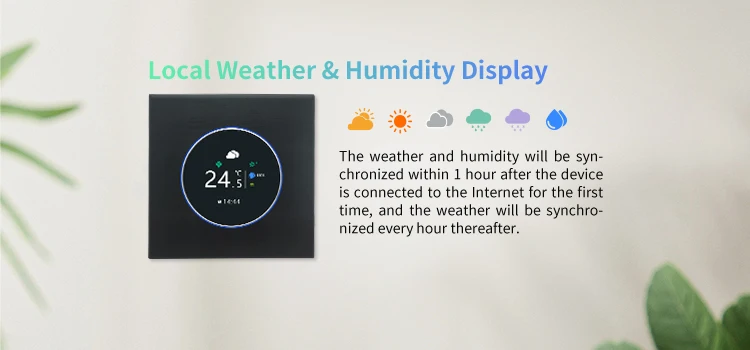

>> The weather and humidity can be synchronized after the device is connected to the Internet.

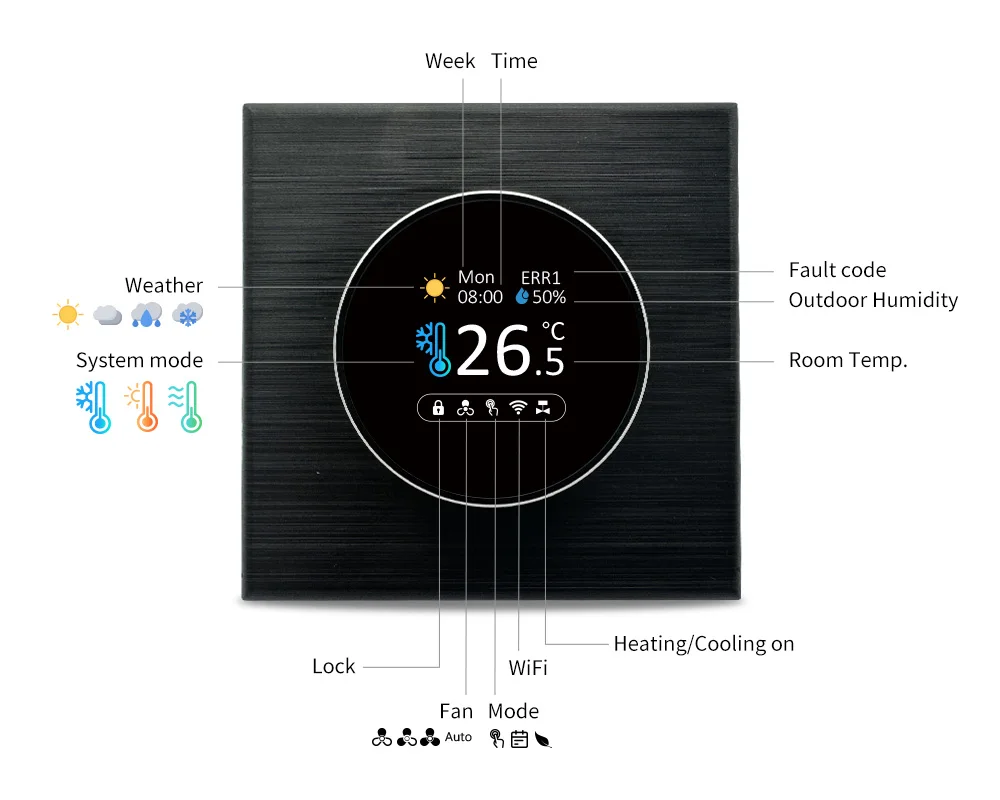

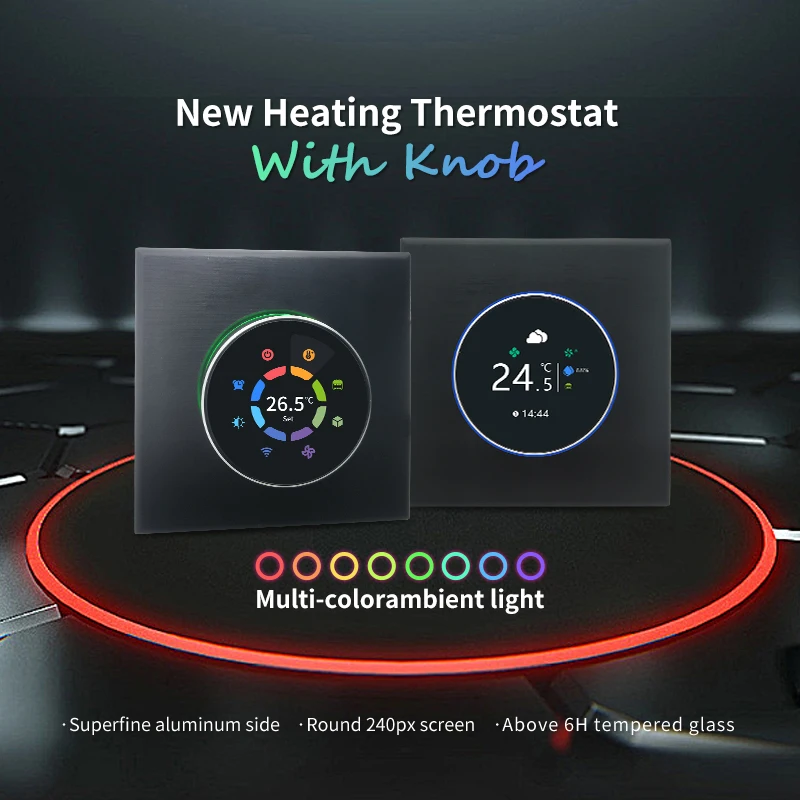

>> Colorful stereo knob with TFT true color screen. The display is really beautiful.
>> Sensititive knob control, APP control and voice control-multiple interactive methods to create more convenient temperature control.
Products can be customized. Please contact us for any further information.
>> Compared to traditional button control, knob control hase faster reponse and better feel.
>> The weather and humidity can be synchronized after the device is connected to the Internet.
>> Colorful stereo knob with TFT true color screen. The display is really beautiful.
>> Sensititive knob control, APP control and voice control-multiple interactive methods to create more convenient temperature control.
Products can be customized. Please contact us for any further information.
