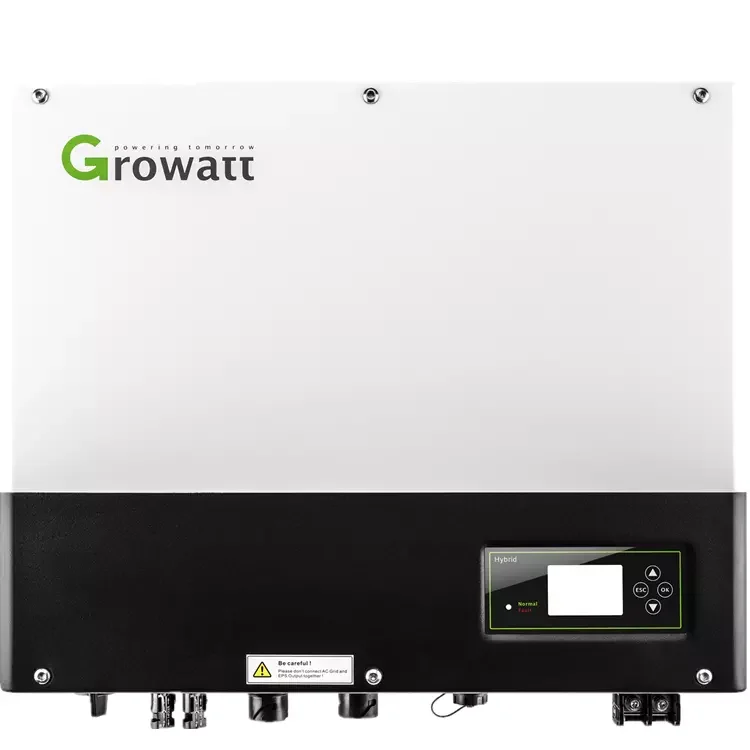

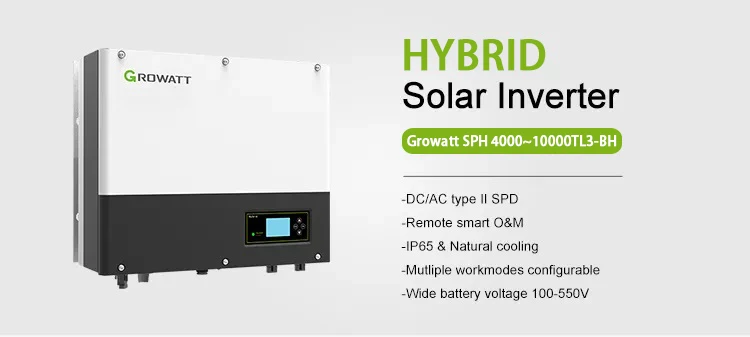

Growatt 10000w sph 10000tl3 bh dc to ac inverter 3 phase off grid hybrid 10kw solar inverter growatt
- Category: >>>
- Supplier: Xiamen Kseng New Energy Co. Ltd.
Share on (1600967607457):
Product Overview
Description
EU warehouse Growatt Solar Inverters 6kw 230VAC Low Frequency Off grid Inverter Growatt SPF 6000 ES Plus With Wifi
Products Description
*Growatt inverters have obtained more than 20 certifications around the world, and the products have been sold to more than 100 countries and regions in Australia, Europe, America, Asia, Africa, and Latin America on a large scale.
*After-sales stations are located in more than 20 countries around the world.
Key Features:
●UPS function, 10ms transition
●100% three-phase imbalance output
●Smart phase-level export limitation function ●AC-coupled function compatible with third-party Inverter
●1.5 DC/AC ratio, 10kW system with 15kW solar input
●13.5A solar input current for high power modules
●Self-diagnostic function for easy installation and commission
●VPP interface ready
●Scalable system configuration
●Safety standard set by LCD directly
Datasheet | SPH4000TL3 BH-UP | SPH5000TL3 BH-UP | SPH6000TL3 BH-UP | SPH7000TL3 BH-UP | SPH8000TL3 BH-UP | SPH10000TL3BH-UP | ||||||
Input data(PV) | ||||||||||||
Max. recommended PV power(for module STC) | 6000W | 7500W | 9000W | 10500W | 12000W | 15000W | ||||||
Max. DC voltage | 1000 | |||||||||||
Start voltage | 120V | |||||||||||
PV voltage range | 120V-550V | |||||||||||
MPP voltage range | 120V-1000V/600V | |||||||||||
No. of MPP trackers | 2 | |||||||||||
No. of PV strings per MPP tracker | 1 | |||||||||||
Max. input current per MPP tracker | 13.5A | |||||||||||
Max. short-circuit current per MPP tracker | 16.9A | |||||||||||
Output data(AC) | ||||||||||||
AC nominal power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W | ||||||
Max. AC apparent power | 4000VA | 5000VA | 6000VA | 7000VA | 8000VA | 10000VA | ||||||
Nominal AC voltage (range) | 230V/400V (310~476V) | 16A | 22A | 22A | 22A | 27A | ||||||
AC grid frequency (range) | 50Hz/60Hz (45Hz-55Hz/55Hz-65Hz) | |||||||||||
Max. output current | 6.1A | 7.6A | 9.1A | 10.6A | 12.1A | 15.2A | ||||||
Adjustable power factor | 0.8leading…0.8lagging | |||||||||||
THDI | <3% | |||||||||||
AC grid connection type | 3W+N+PE | |||||||||||
Battery data (DC) | ||||||||||||
Battery voltage range | 230Vac | |||||||||||
Rated AC output frequency | 50/60Hz | |||||||||||
Automatic switchover time | <0.5S | |||||||||||
Battery data | ||||||||||||
Battery voltage range | 100~550V | |||||||||||
Max charging and discharging current | 58V | |||||||||||
Max charging and discharging current | 25A | |||||||||||
Continuous charging and discharging power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W | ||||||
Type of battery | lithium /Lead-acid | |||||||||||
Backup power(AC) | ||||||||||||
Max. AC output power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W | ||||||
Max. output current | 6.1A | 7.6A | 9.1A | 10.6A | 12.1A | 15.2A | ||||||
Nominal AC output voltage | 230V/400V | 97.5% | 97.5% | 97.6% | 97.6% | 97.7% | ||||||
Nominal AC output frequency | 50/60HZ | 97.0% | 97.0% | 97.1% | 97.1% | 97.1% | ||||||
THDv | <3% | |||||||||||
Switch time | <10ms | |||||||||||
Efficiency | yes | |||||||||||
MAX. efficiency | 97.6% | 97.80% | 98.0% | 98.2% | 98.2% | 98.2% | ||||||
European efficiency | 97% | 97.2% | 97.30% | 97.40% | 97.40% | 97.50% | ||||||
Protection devices | yes | |||||||||||
DC switch | Yes | |||||||||||
DC reverse polarity protection | Yes | |||||||||||
AC/DC surge protection | Yes | |||||||||||
Battery reverse protection | Yes | |||||||||||
AC short-circuit protection | Yes | |||||||||||
Ground fault monitoring | Yes | |||||||||||
Grid monitoring | Yes | |||||||||||
Anti-islanding protection | Yes | |||||||||||
Residual-current monitoring unit | Yes | |||||||||||
Insulation resistance monitoring | Yes | |||||||||||

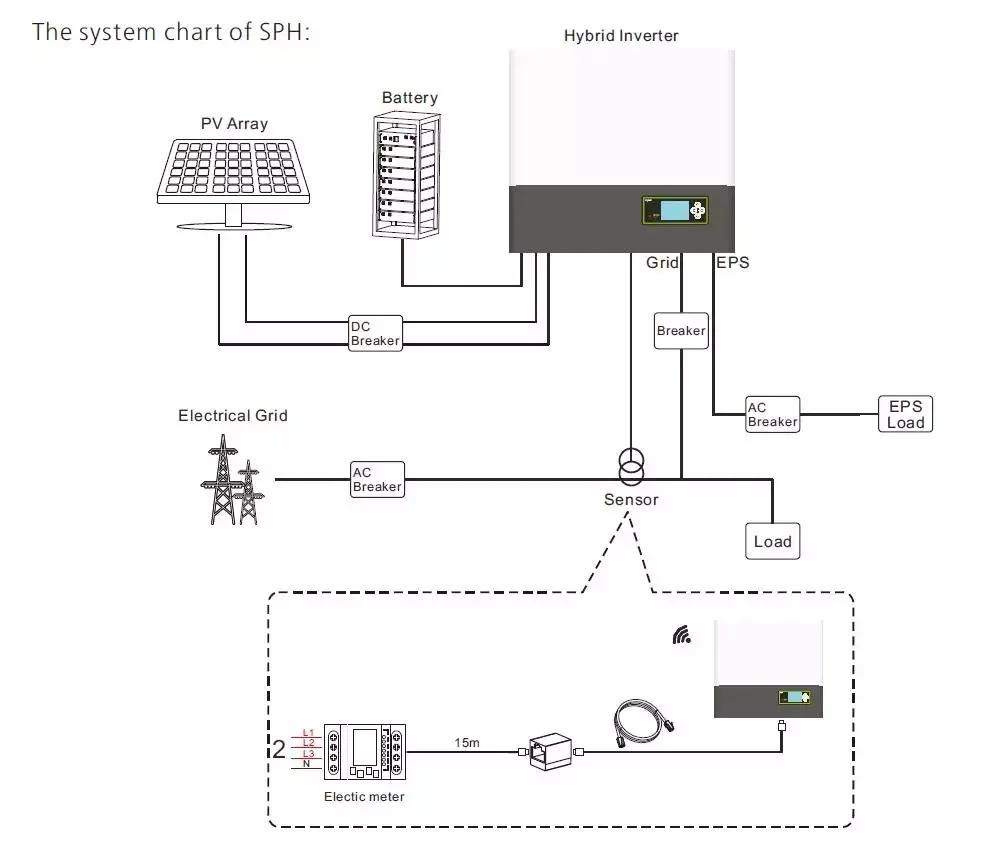

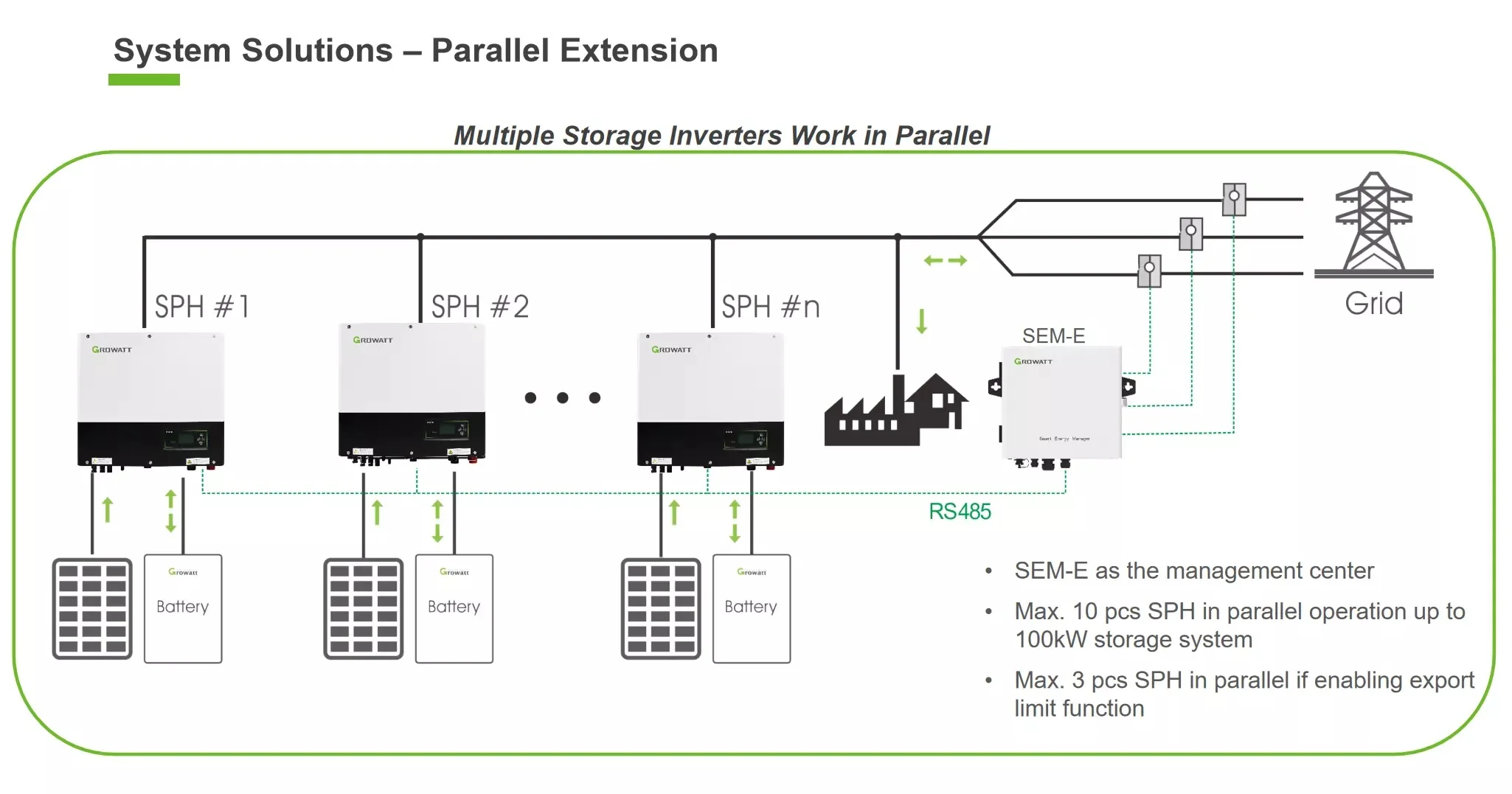

Hybrid Storage Solar System
Product Application

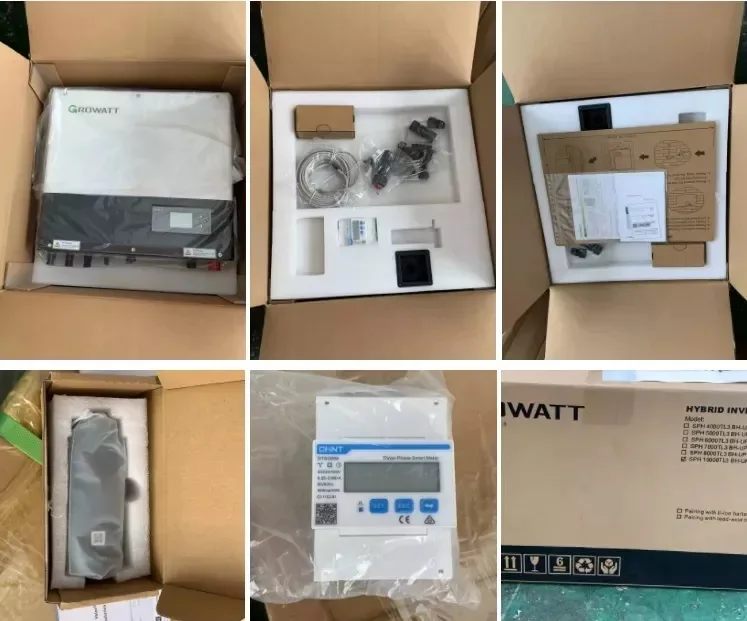

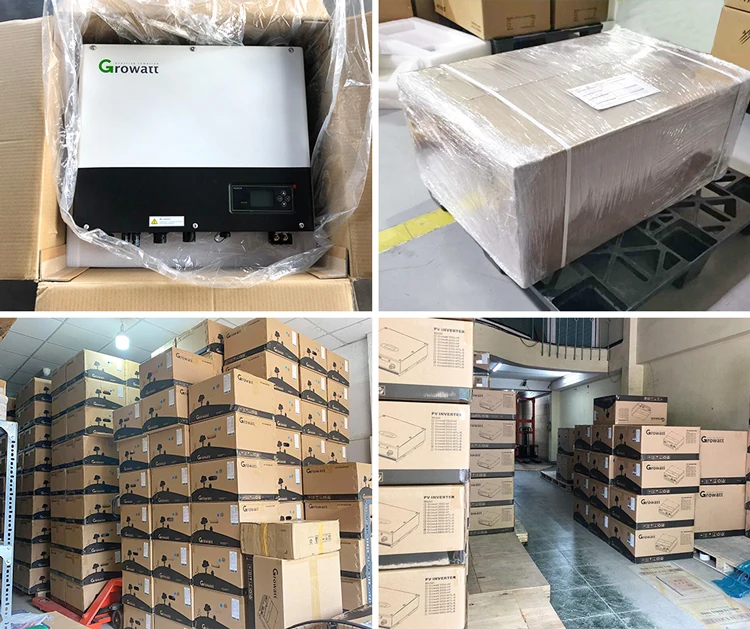

Product packaging

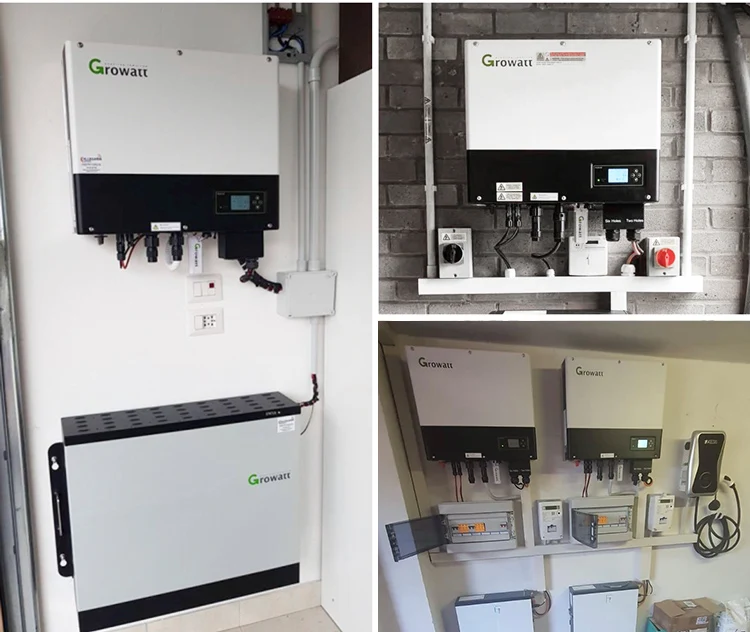

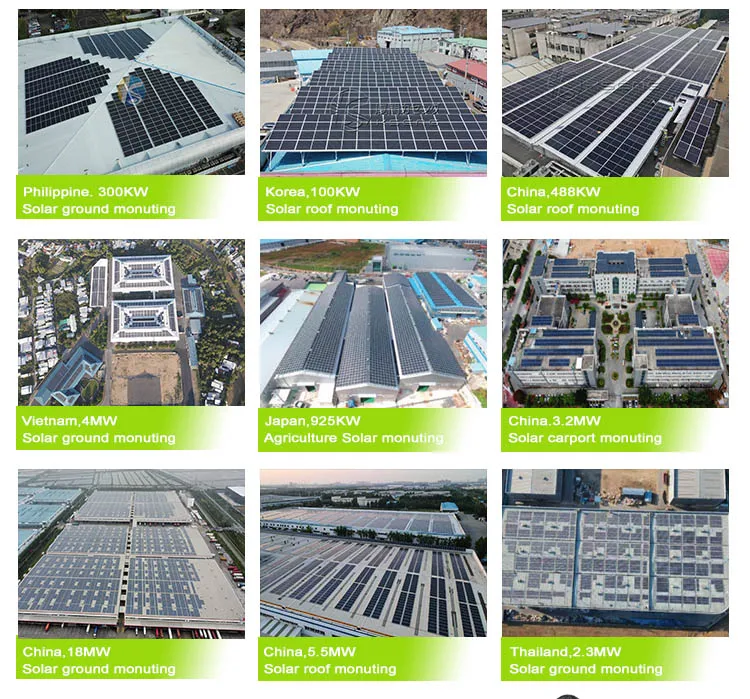

Project Case
Company Profile
Xiamen Kseng New Energy Co.,Ltd , is a high-tech enterprise integrate R&D, manufacture and marketing. One stop solar system for residential and medium-sized commercial solar applications. Annual production capacity can reach 5GW. Located in Xiamen in China, enjoying convenient transportation and beautiful environment, and offices in Hong Kong S.A.R, Australia, Malaysia, Japan, South Korea, Vietnam and other countries and regions. We set up warehouses in Europe. Kseng also has its own independent factory covering an area of 30000 square meters and has several hundred employees. Our company has abundant experience in the solar PV industry. Our main products contain solar panels, inverters, mounting systems, batteriesy and all in one solar power systems, all of them are mainly exported to 100 plus countries and regions, such as Japan, Korea, Brazil, Australia, Southeast Asia, Europe and so on. We have an internal R&D team of more than 80 people, Every year we invest massive capital in research and develop new products to meet customers’ different and special requirements. Last but not least, we adhere to the business principle of mutual
benefits, entitledanda professional and reliable reputations among our customers all the way because of our experienced and considerate services, top quality products and competitive prices. Willingly to work together with the new and old customers to contribute to the development of solar applications, and to strive to create a beautiful green, pollution-free environment for human society. Make a contribution to the green world.
benefits, entitledanda professional and reliable reputations among our customers all the way because of our experienced and considerate services, top quality products and competitive prices. Willingly to work together with the new and old customers to contribute to the development of solar applications, and to strive to create a beautiful green, pollution-free environment for human society. Make a contribution to the green world.
