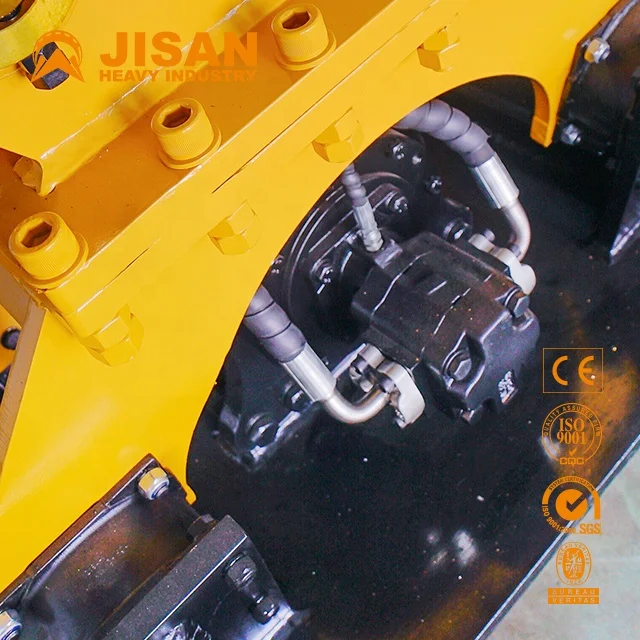

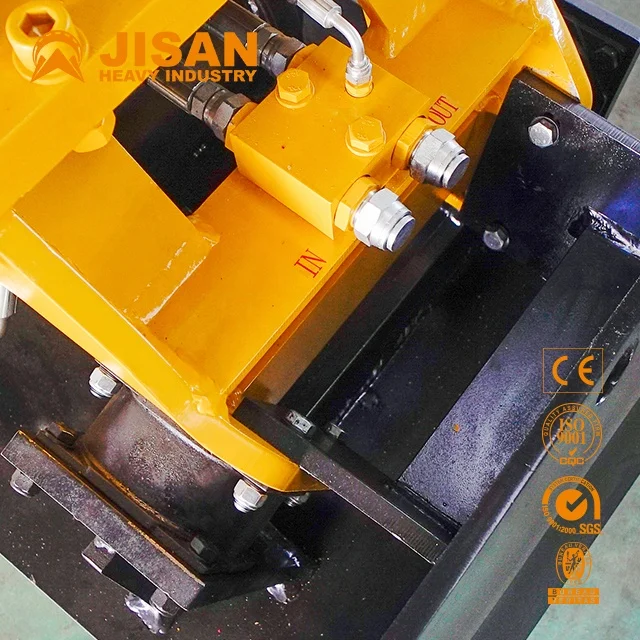

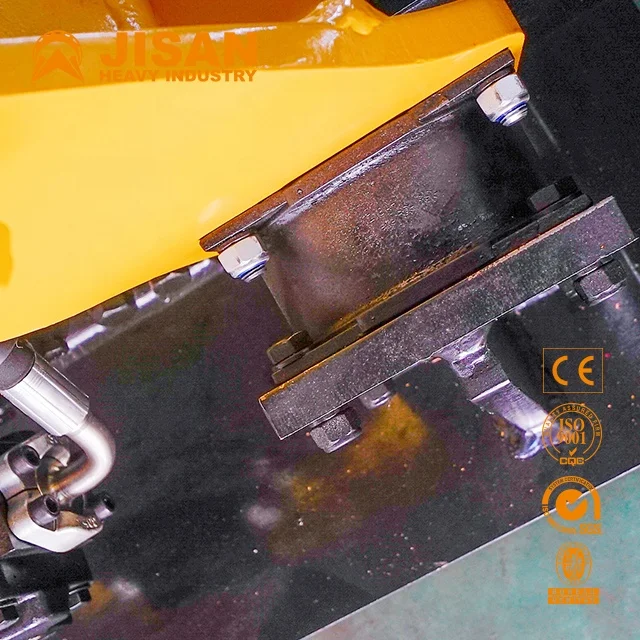

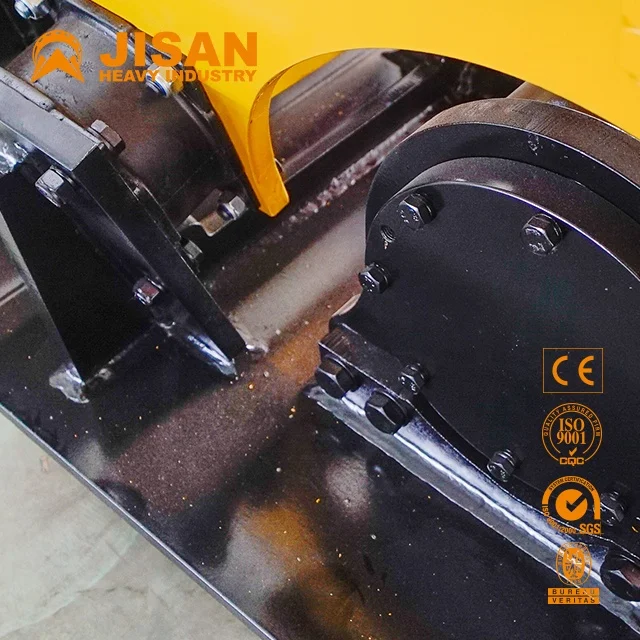

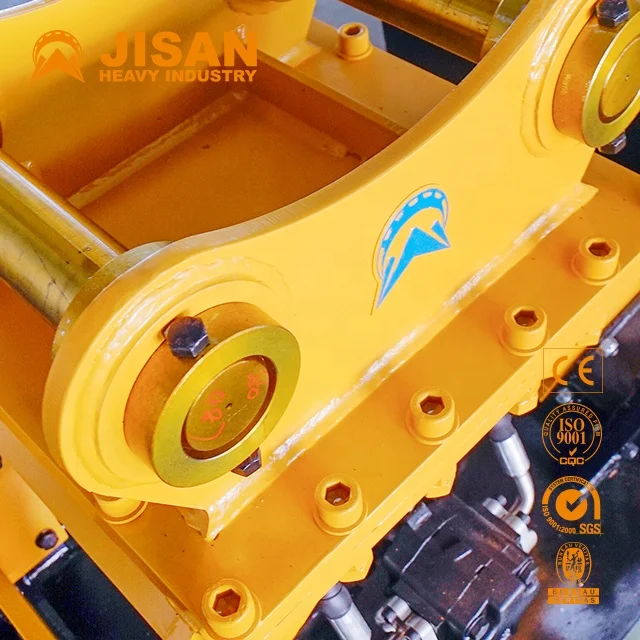

jisan hydraulic soil plate compactor for excavator and backhoe loader
- Category: >>>
- Supplier: Yantai Jisan Heavy Industry Ltd.
Share on (1600967680727):
Product Overview
Description
Product Description
Specification
Hydraulic Plate Compactor | ||||||||||||
Item/Model | Unit | JSC02 | JSC04 | JSC06 | JSC08 | JSC10 | ||||||
Suitable Excavator | ton | 2-3 | 4-9 | 10-16 | 17-23 | 24-30 | ||||||
Power Of Impulse | ton | 3 | 6 | 10 | 15 | 15 | ||||||
Maximum Vibration Frequency | r/min | 1800 | 1800 | 1800 | 1800 | 1800 | ||||||
Working Flow | lpm | 25-40 | 45-75 | 85-105 | 120-170 | 120-170 | ||||||
Working Pressure | bar | 100-130 | 100-130 | 100-130 | 120-180 | 120-180 | ||||||
Weight | kg | 110 | 300 | 500 | 900 | 950 | ||||||
Bottom Measurement | L*W,mm | 650*470 | 825*550 | 862*700 | 1100*900 | 1100*900 | ||||||
Height | mm | 600 | 760 | 920 | 1060 | 1100 | ||||||
Width | mm | 410 | 550 | 700 | 900 | 900 | ||||||
Feature Details
1.JISAN series hydraulic compactor can be applicable to any position, such as horizon compaction, step compaction, brige abutment, the trench pit compaction, subgrade compaction,the corner turning point, backfill compacted, concrete pavement patching compacted, tube side compaction etc.
2.Our hydraulic compactor can also be used for pulling piles and broken when necessary.
3.Specially designed 45degree inclined vibration-proof rubber absorbs and minimizes shock power.
4.Longer lifetime of damper.
5.No pressure adjustment due to a high pressure generating motor.
Applications
Packing&Shipping
1. Inner is stretch film, outside is export wooden case or as customer's request.
2.The standard free spare parts: one equipment, one hoses, one set of repair tools with tool box, one certificate and one brochure.
Recommend Products
Why Choose Jisan Heavy Industry
1.JISAN HEAVY INDUSTRY LTD. is one of the largest and most professional hydraulic breaker manufacturers with 11 years experience,
specialized in R&D and manufacture of JISAN Series Hydraulic Breaker.
2.Our products have been exported to many countries in the world including India, Saudi Arabia, South America, Australia,
New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
3.Main Advantages of JISAN Hydraulic Breaker:
Korea made cylinder;
NOK oil seal, Oil seal durability design;
Low noisy. Full-closed housing to protect the main body;
Strong impact;
Longer lifetime of usage;
specialized in R&D and manufacture of JISAN Series Hydraulic Breaker.
2.Our products have been exported to many countries in the world including India, Saudi Arabia, South America, Australia,
New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
3.Main Advantages of JISAN Hydraulic Breaker:
Korea made cylinder;
NOK oil seal, Oil seal durability design;
Low noisy. Full-closed housing to protect the main body;
Strong impact;
Longer lifetime of usage;
equipment
Company environment and equipment.
exhibition
JISAN winned well recognition by clients from different countries on exhibition.
team
There is an excellent team to escort the product.
certificate
Various patent certificates
