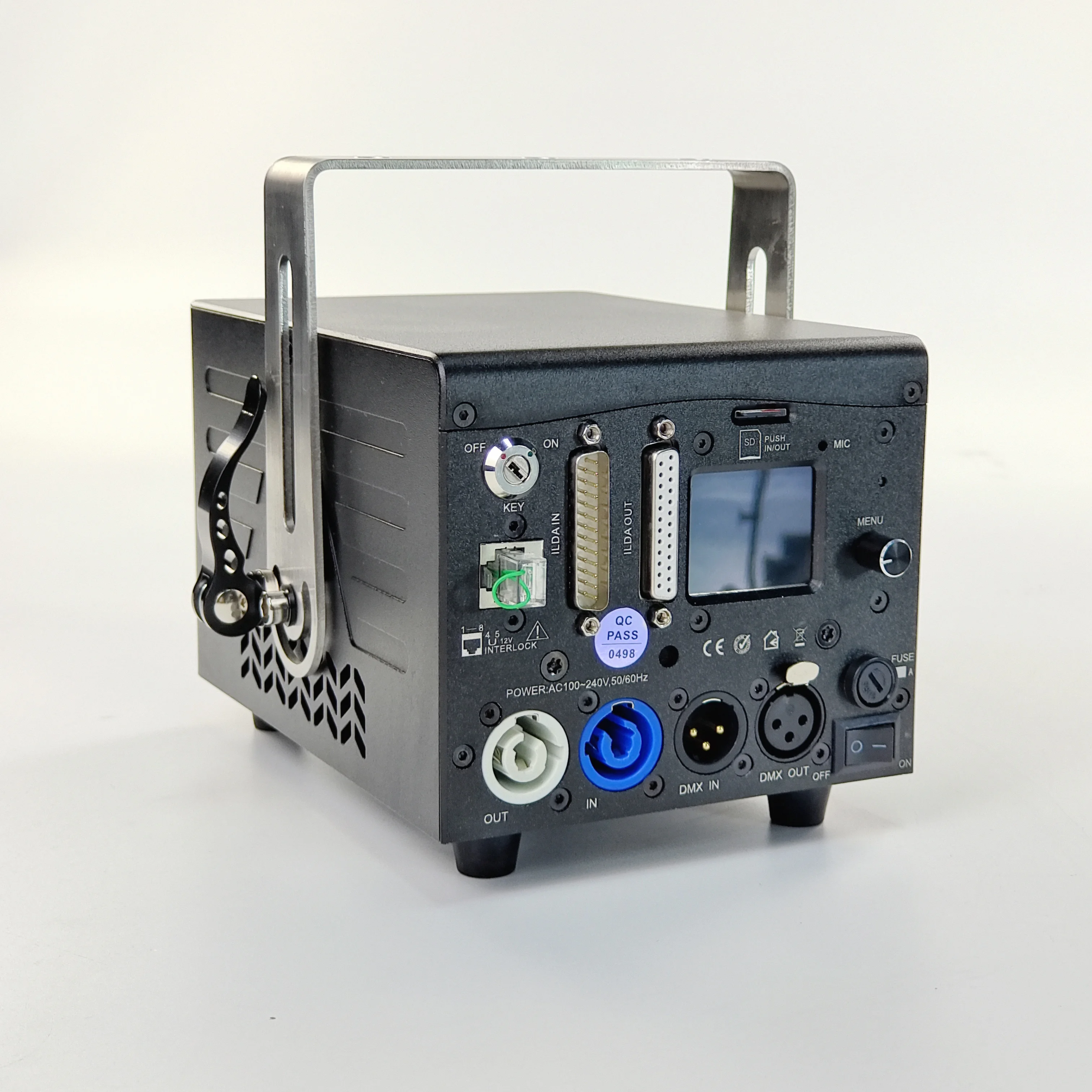

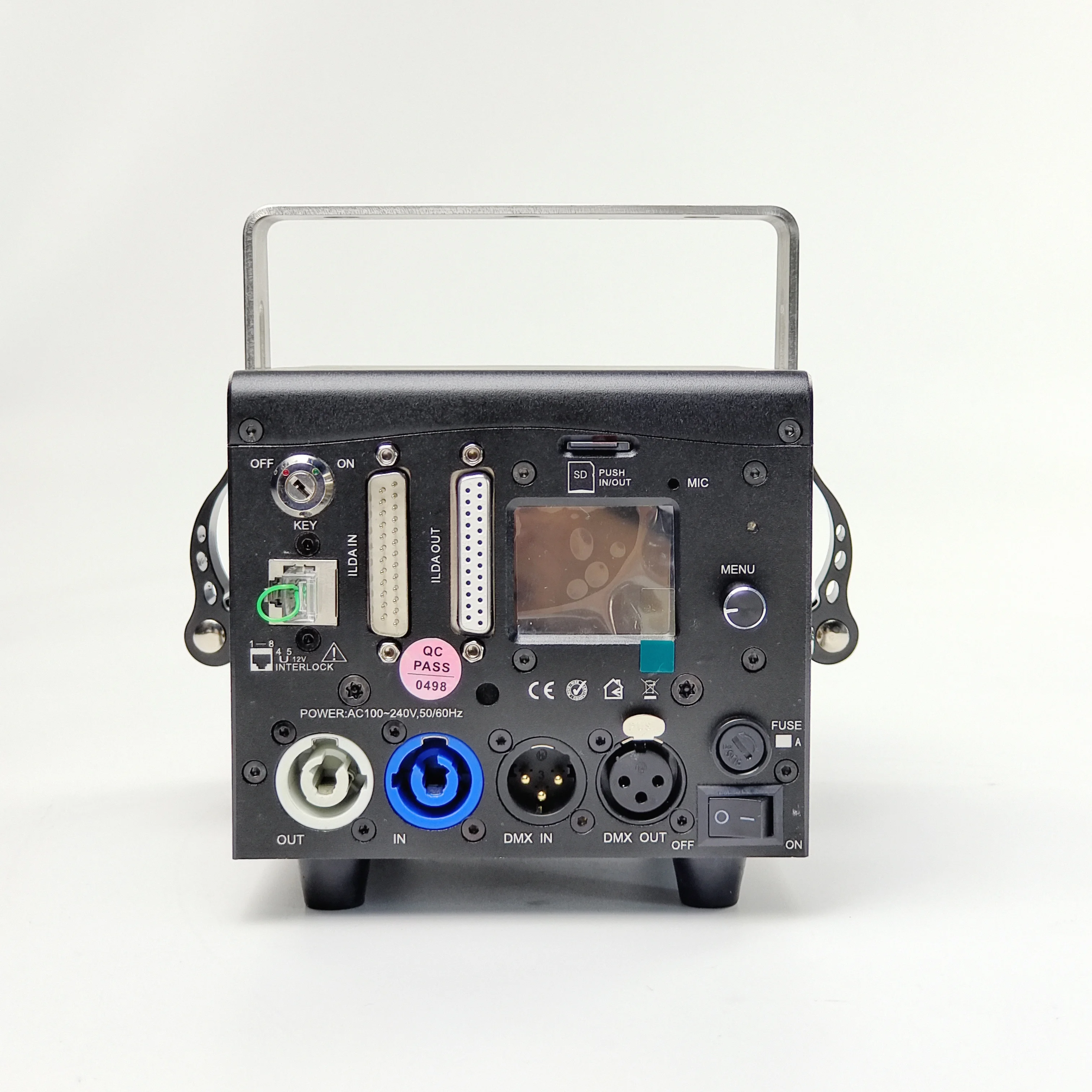

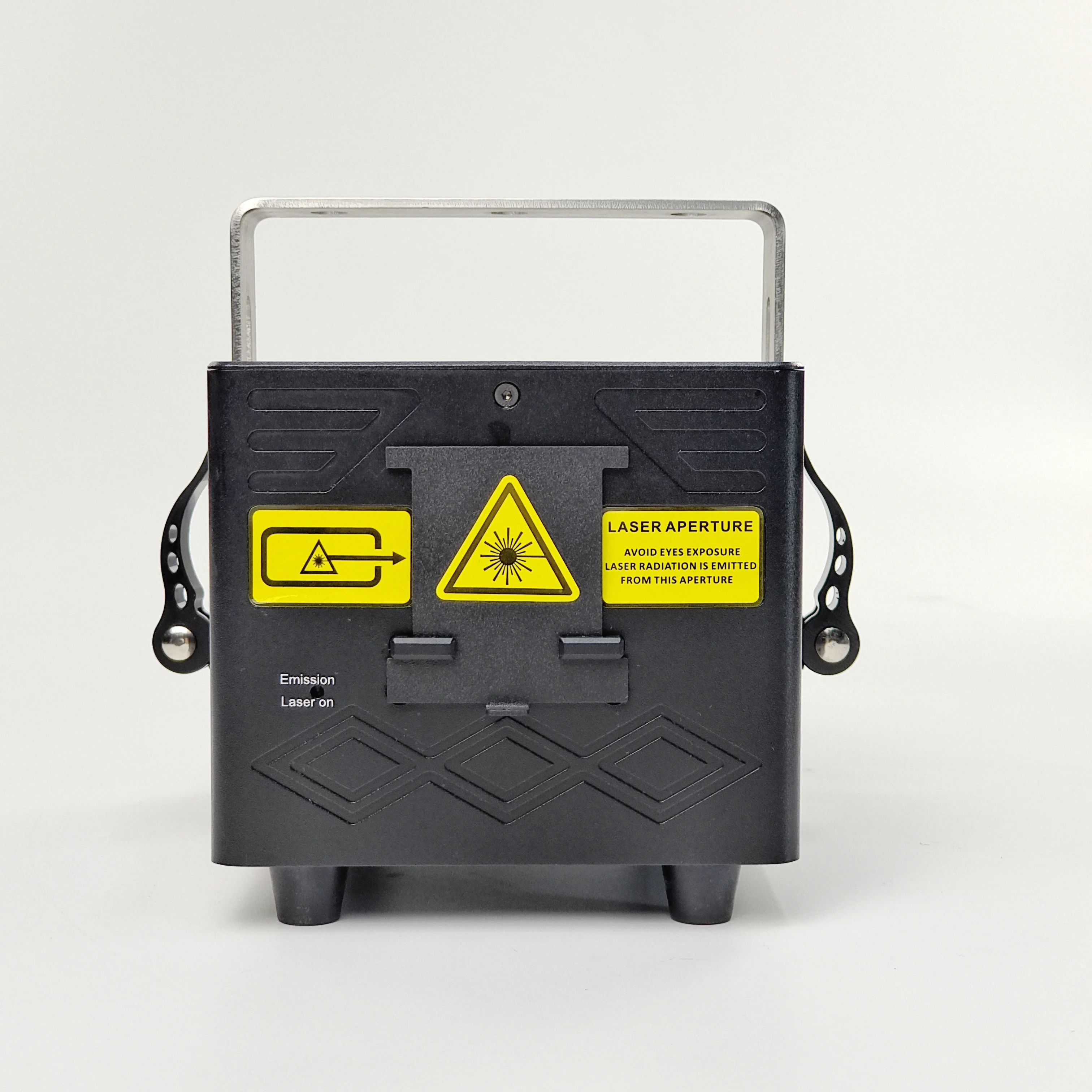

Optlaser 5.5W RGB Laser Show System ILDA Animation
- Category: >>>
- Supplier: Shenzhen Optlaser Technologies Co. Ltd.Shenzhen Ltd.
Share on (1600967690469):
Product Overview
Description
Product Description
Specification
| Models | PR5500-RGB |
| Source | Type: | Semiconductor diode | Full-colour RGB laser projector |
| Suitability: | indoor laser displays [atmospheric, abstract, text, animations] |
| Beam Size@Aperture[mm] | 2.5*6mm |
| Divergence(full angle) | 1.1mrad |
| System control | Auto, Sound to light, SD-Card, DMX512 , ILDA |
| Scanning System | OPT-40B 40Kpps@8° ±30°MAX |
| Wavelength [nm] | R/638 G/520 B/445 |
| Laser Power [mW] | 1300mW / 1200mW / 3000mW |
| Guaranteed opt. output [mW] | 5.5W |
| Modulation [kHz] | >60 KHz | analogue |
| Power Supply | 100~240V 50~60Hz |
| Power Consumption [W] | <100W |
| Weight [kg] | 3.42Kg |
| Size [WxHxD, mm] | 156*224*125mm |
| Cooling: | Heatsink+Casting Aluminum Housing+Fans (at bottom) |
| Packaging: | Carton+foam; (Peli case - available on request) |
| Operation temperature [°C]: | minus 20℃ to 40℃ |
1. Packing List
After opening the package, check if all the items hereunder are inside, and contact your supplier if anything is missing:
1 x PR laser projector;
1 x AC Power cord;
2 x Keys, and 2 x CAT5 connector( for Interlock);
Other customized accessories such as ILDA cable, control systems, etc.
OEM Service
FB4 Optional:
(1). FB4-standard: SD card + Network port;
(2). FB4-DMX: SD card + Network port + DMX In & out;
(3). FB4-MAX: SD card + Network port + DMX In & out + ILDA In & out
After-sales service and warranty:
(1). Two years warranty for the device.
(2). The components and accessories costs are charged after the warranty period.
(2-1). Warranty voids for the damages or injuries caused by force majeure, like, earthquakes,
typhoons, and so on.
(2-2). Warranty voids for the damages or injuries caused by improper operation and projection, such as wrong input voltage, water immerse, physical shock, and so on.
