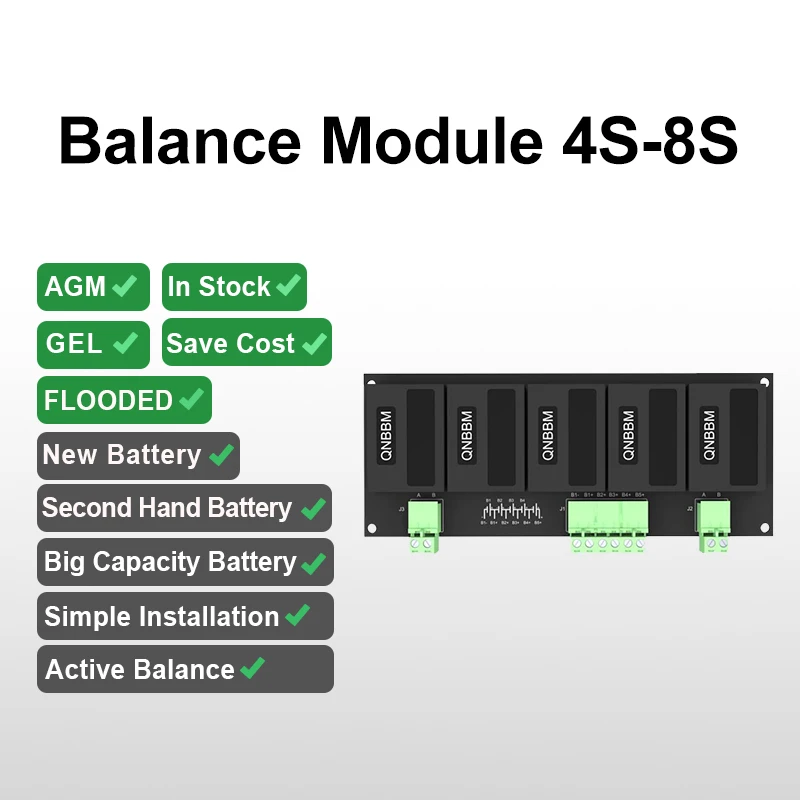

Deligreen 4S 12V 8S 24V 16S 48V Lithium Battery Active Equalizer Balancer For LiFePO4 Battery
- Category: >>>
- Supplier: Changsha Deligreen Power Co. Ltd.
Share on (1600967720327):
Product Overview
Description
Product Description
Specification
Main Technical Parameters | ||
Battery capacity limited | Unlimited | |
Battery count limited | 2s~unlimited At least balance 2 cells | |
Battery type limited | Battery:Lifepo4,LiMnO4 etc AGM,Gel,Flooded battery and so on | |
Working voltage | 1.8V~5v(2v lead acid battery and lithiumbattery) 4v~9v(6v lead acid battery) 9V~15V(12V lead acid/Li battery) | |
Power consumption | <50mw per 1s | |
Balance method | Energy transfer &Dynamic | |
voltage difference vs Balance current | 300mv-1A; 1V-3A | |
Voltage difference after using the equalizer | <10mv <30mv(12V lead acid ) | |
Working efficiency when balance current is 1A | >94% | |
Working temperature | -40~+80℃: | |
Storage temperature | -40~+100℃ | |
BMS limited | can work with BMS or can work independently | |

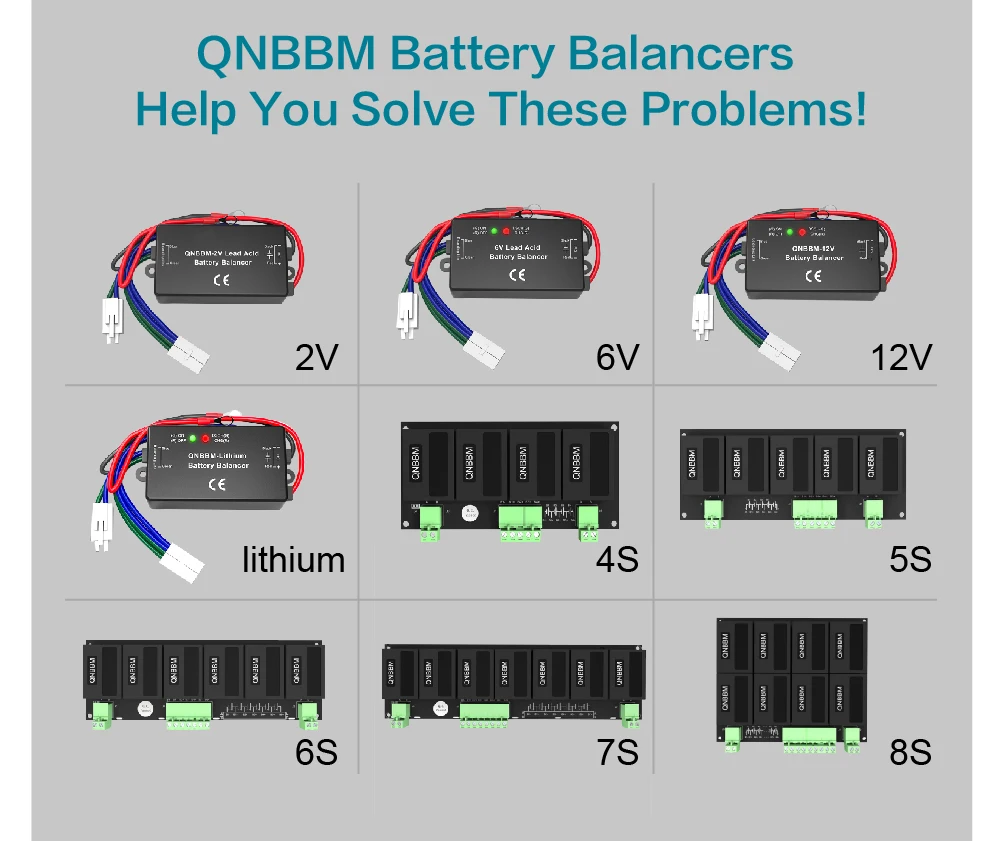

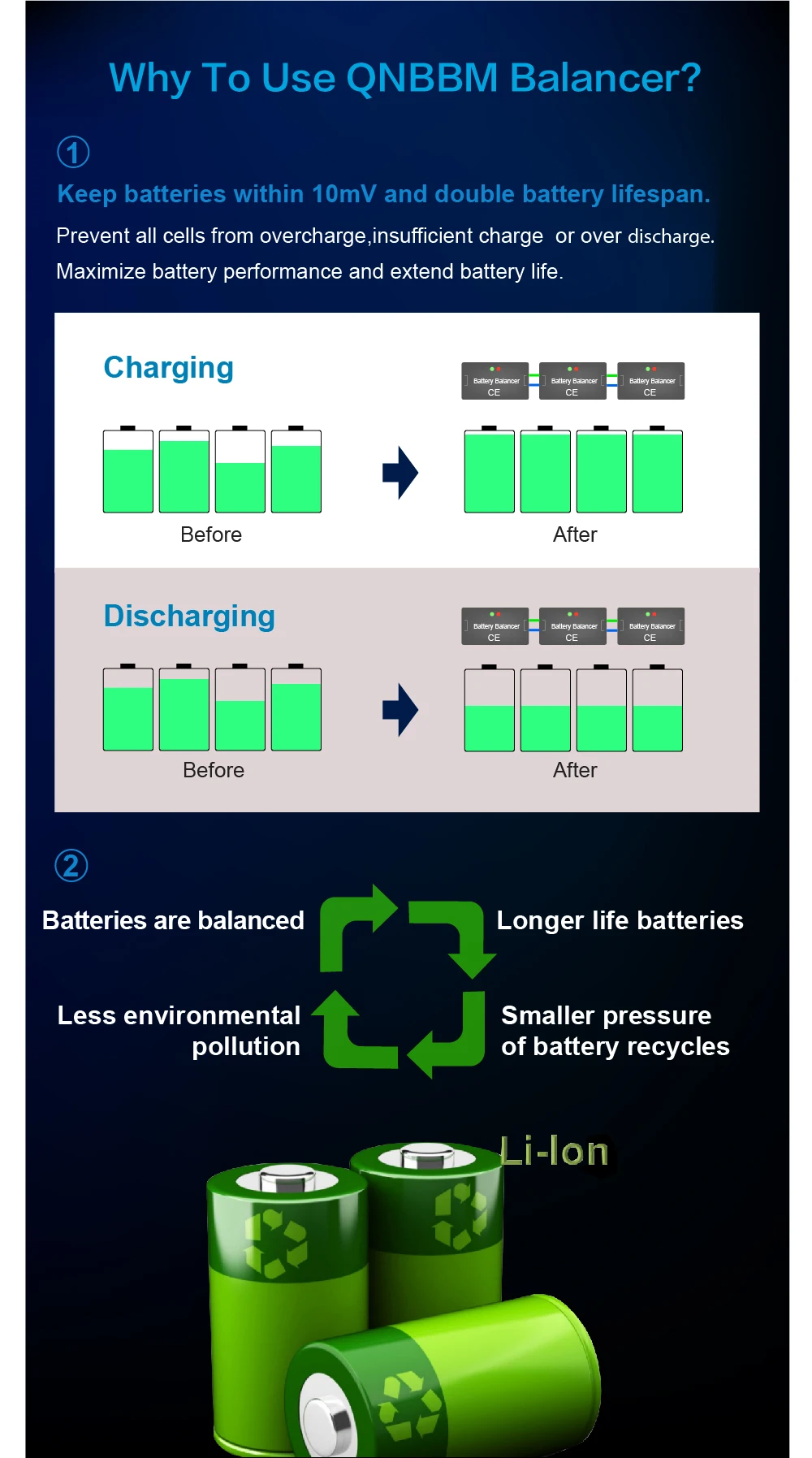

Why To Use QNBBM Balancer?
1.Keep batteries within 10mV and double battery lifespan；
Prevent all cells from overcharge,insufficient charge or over discharge；
Maximize battery performance and extend battery life.
2.Batteries are balanced；
Less environmental pollution；
Longer life batteries；
Maximize battery performance and extend battery life.
2.Batteries are balanced；
Less environmental pollution；
Longer life batteries；
Smaller pressure of battery recycles.

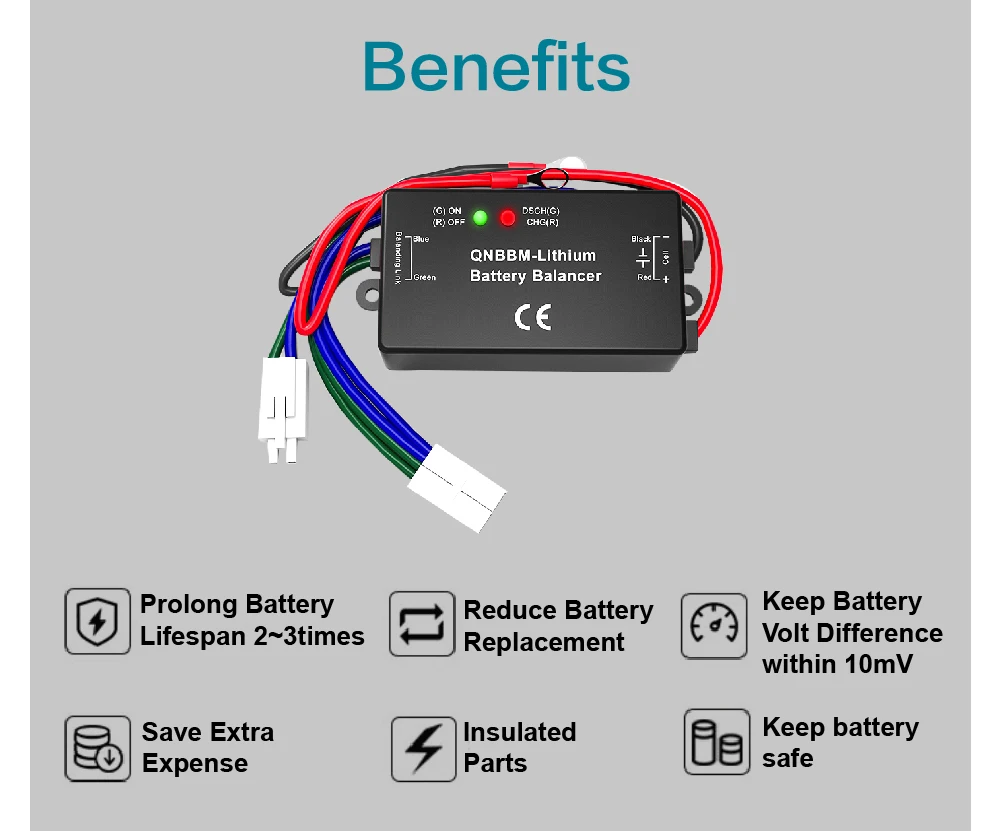

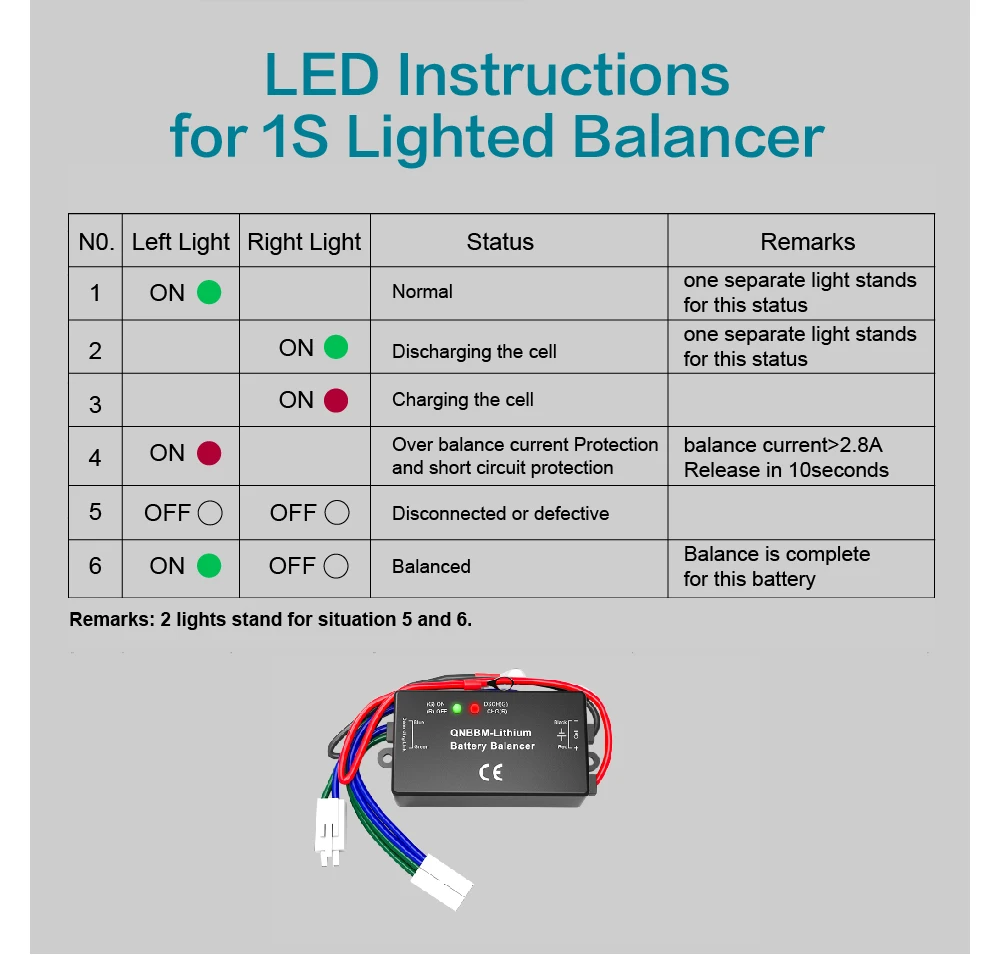

Left: green light is normal and working
Right: means charge / discharge, green light is charge.
Right: means charge / discharge, green light is charge.

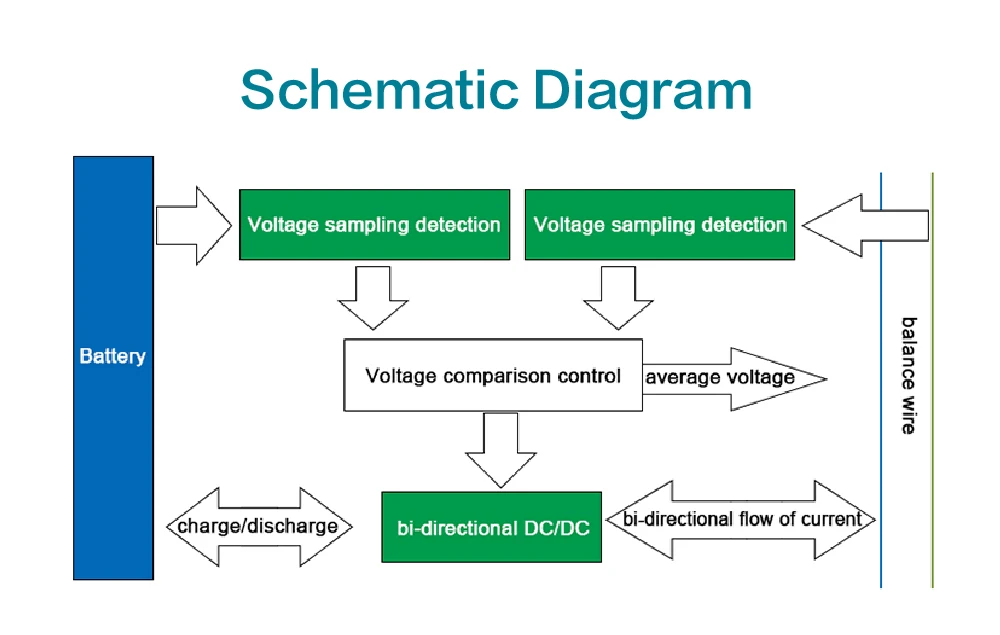

Here is our battery balance how to work:
