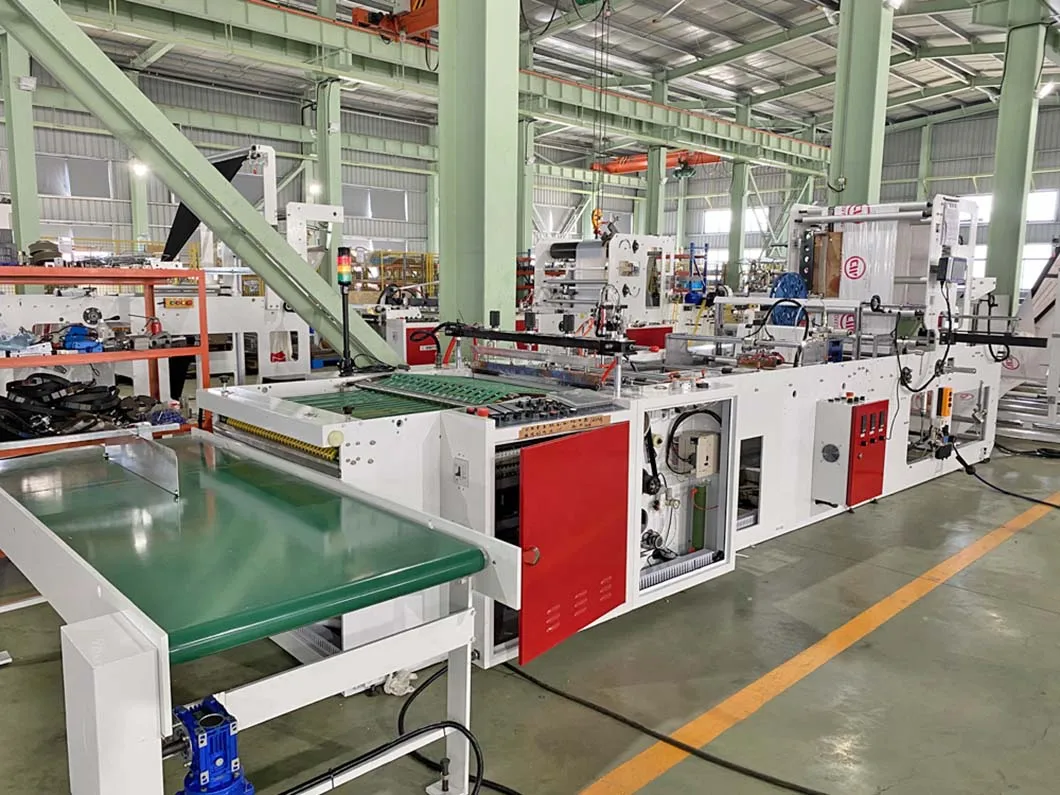

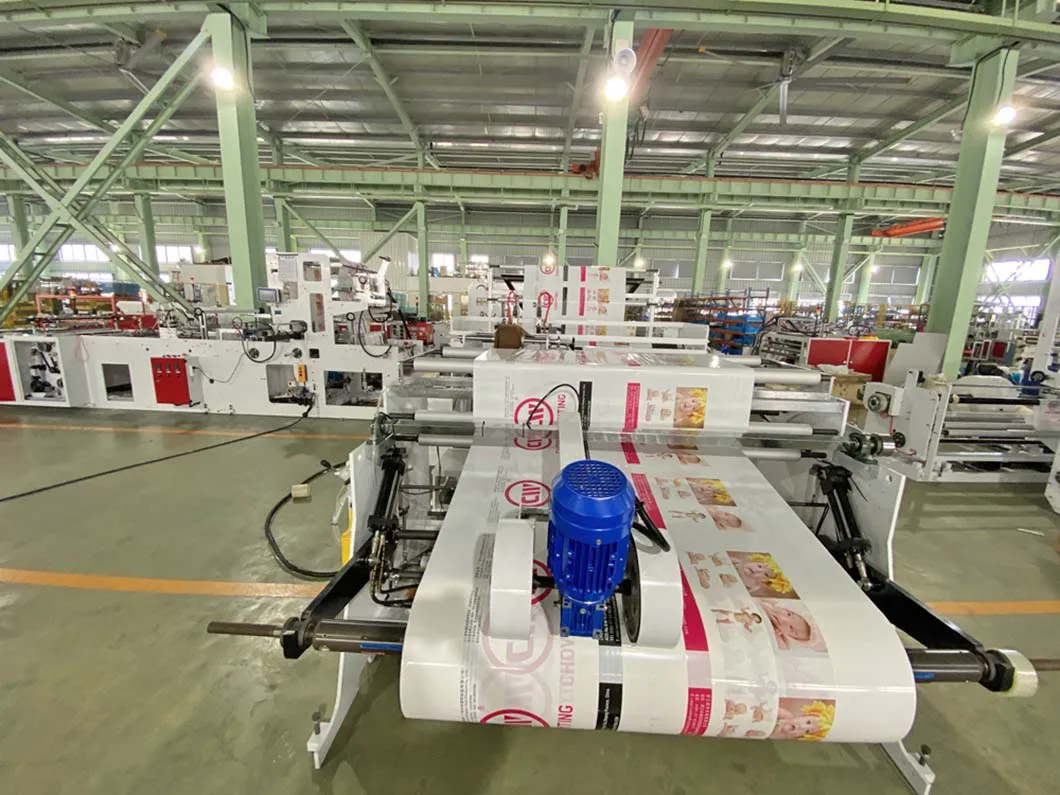

Bank Cash Money Security Storage Bag Plastic Election Envelope Bag Making Machine
- Category: >>>
- Supplier: Zhejiang Chovyting Machinery Co. Ltd.
Share on (1600967724189):
Product Overview
Description
Product Description
Brief Introduction

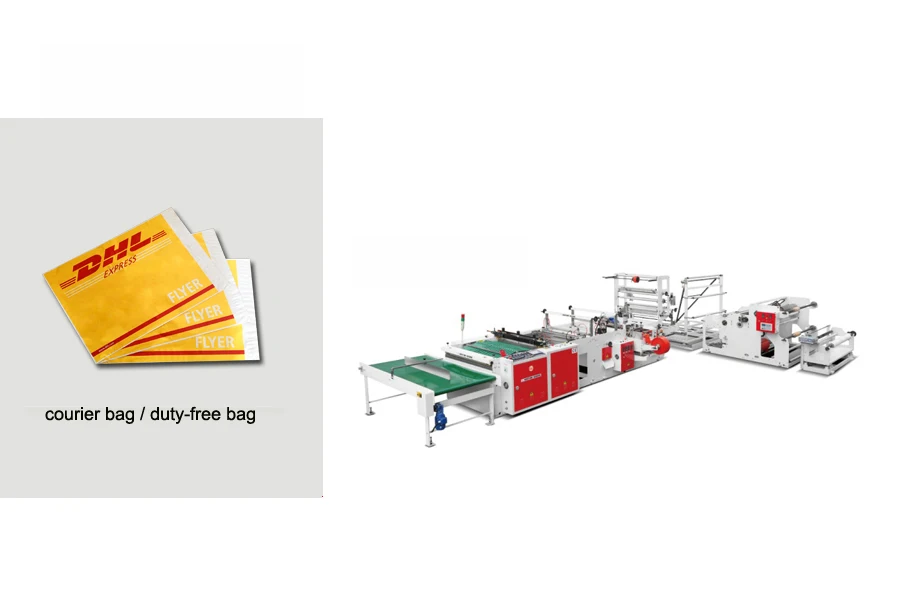

This machine is the high quantity DHL bag making machine,fully automatic design,easy operation.
Main Features
1)Newly design DHL bag with longitudinal seal knife structure.
2)Newly design side sealing water circulate cooling device.
3)Top continuous sealing device.
Optional
1.Bottom seal and double seal knife.
2.OPP flower knife.
3.Hot sealing device(for producing DHL bag).
4.Perforation line device.
5.Adhesive tape device.
Technical Parameter
Type | CW-800SBD+DHL | ||
Length of bag making (height of bag) | 250-750mm | ||
Width of bag making | 250-600mm | ||
Speed of bag making | DHL bag | 70pcs/min | |
Die cut bag | 90pcs/min | ||
OPP bag | 110pcs/min | ||
Top folding | 50-75mm | ||
Bottom Gusset | 20-60mm | ||
Total power | 10KW | ||
Machine weight | 2300kg | ||
Machine dimension | 6500X1600X1870mm | ||
Air comperssor | 5HP | ||

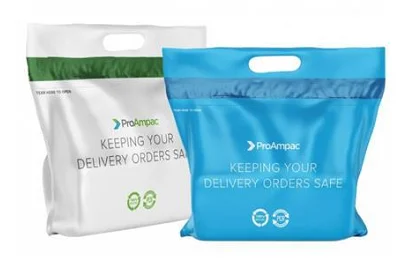

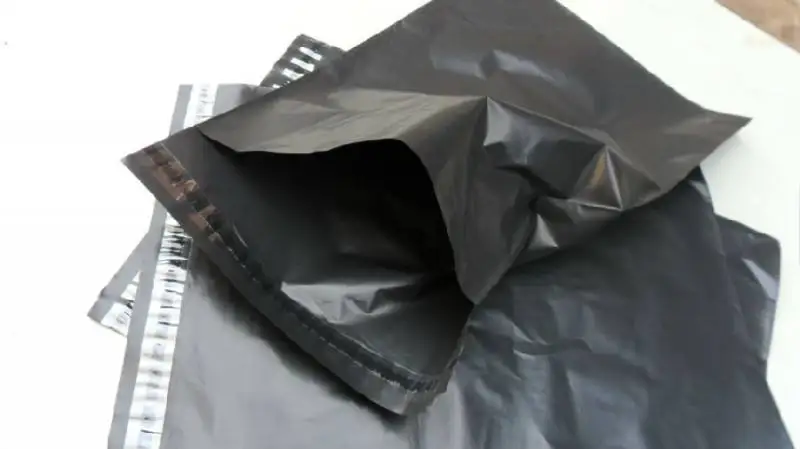

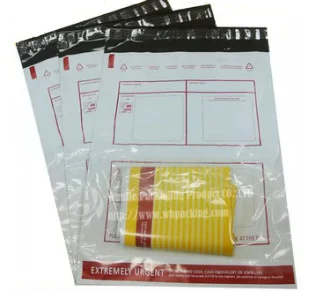

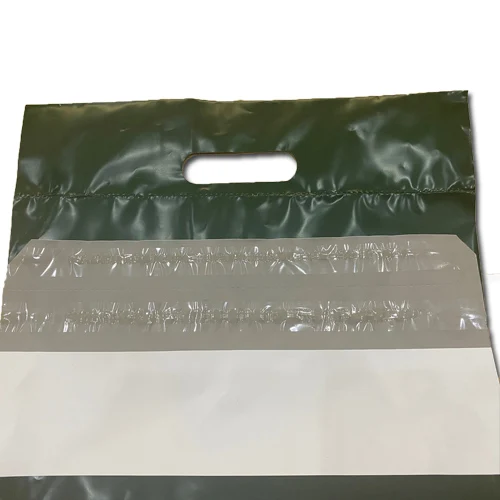

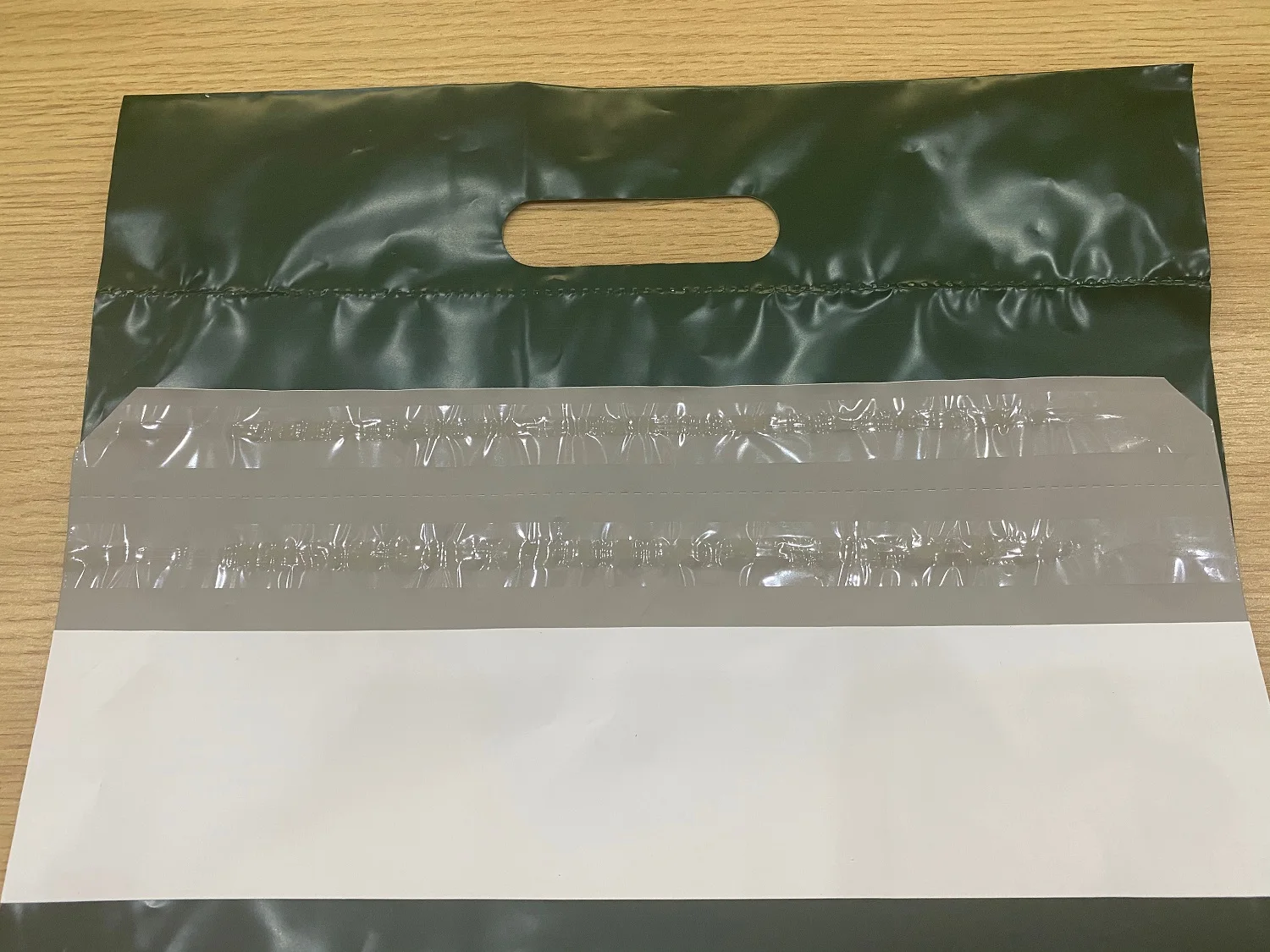

Sample Bag
Detailed Images

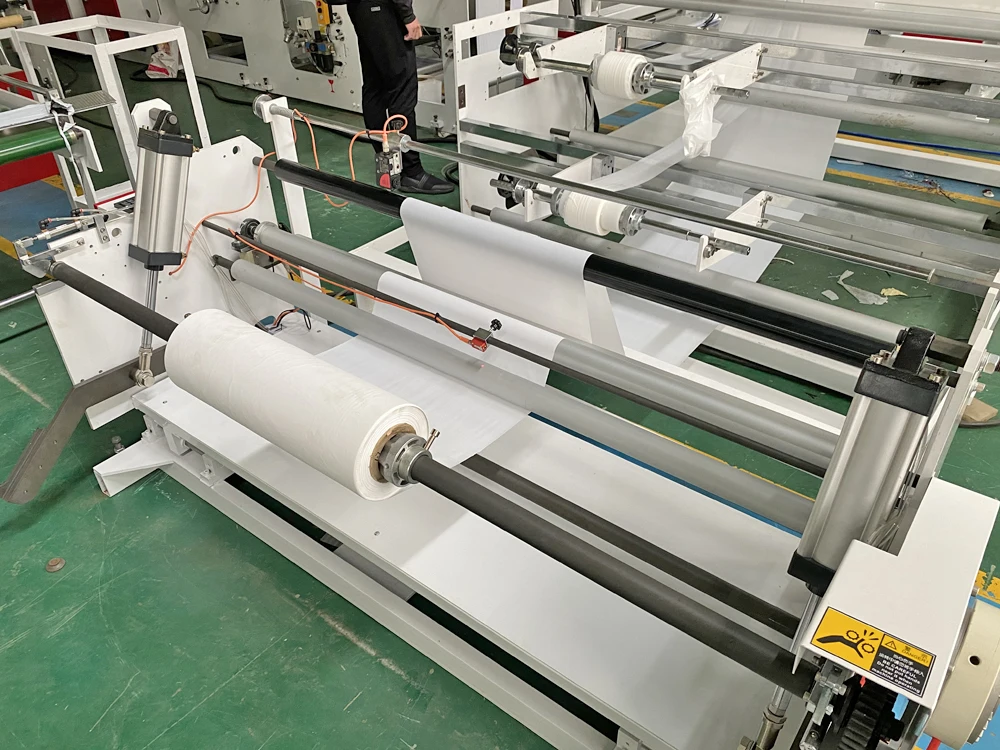

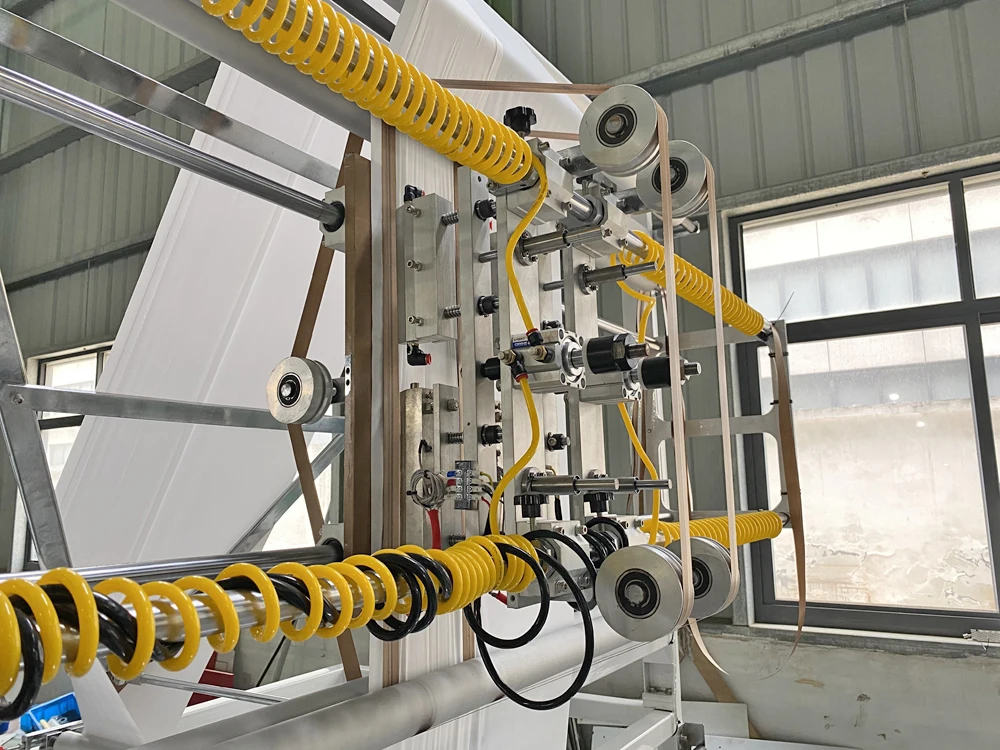

Unwinding part
Pocket hot sealing

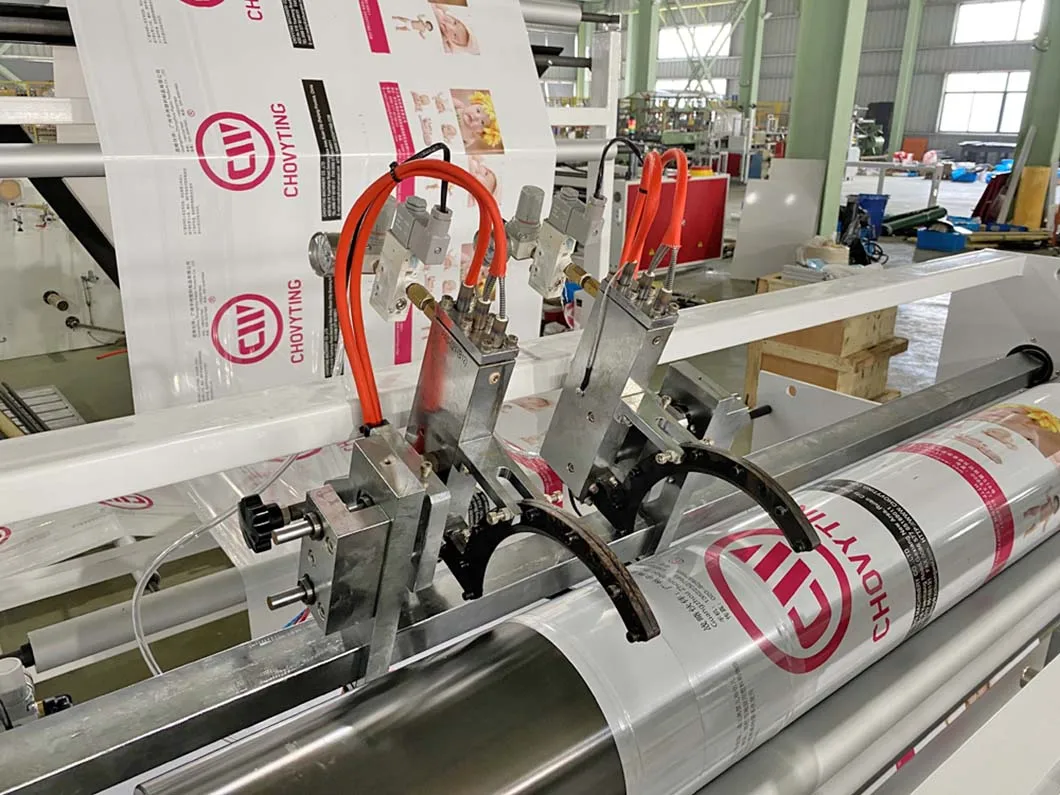

Spray glue decive

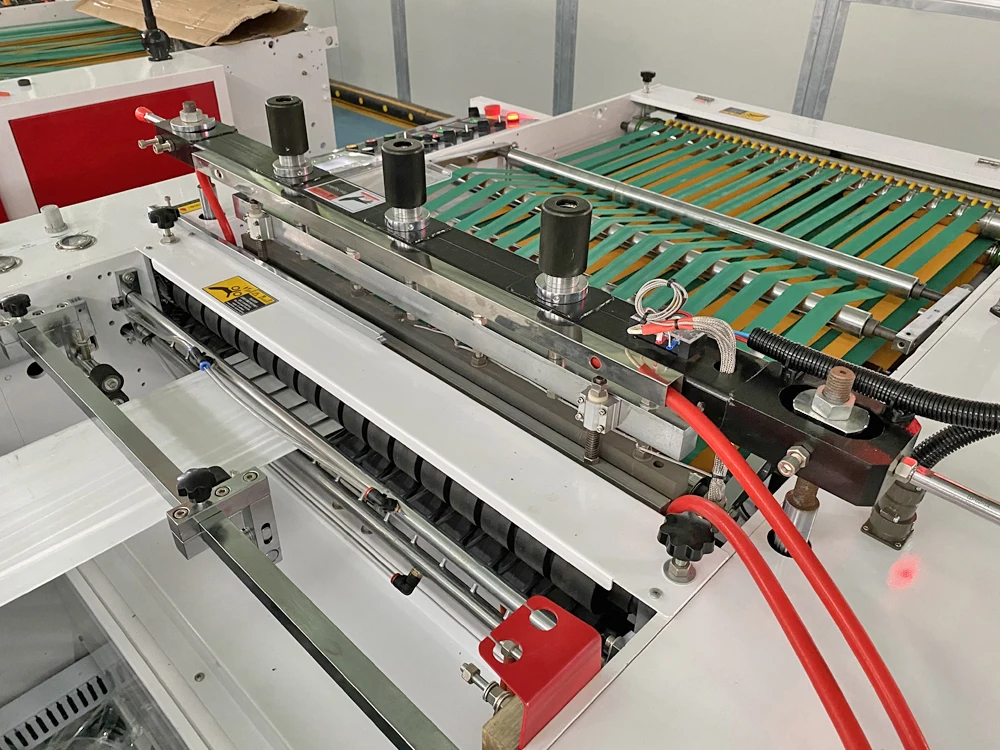

Side sealing anf cutting
Side sealing anf cutting

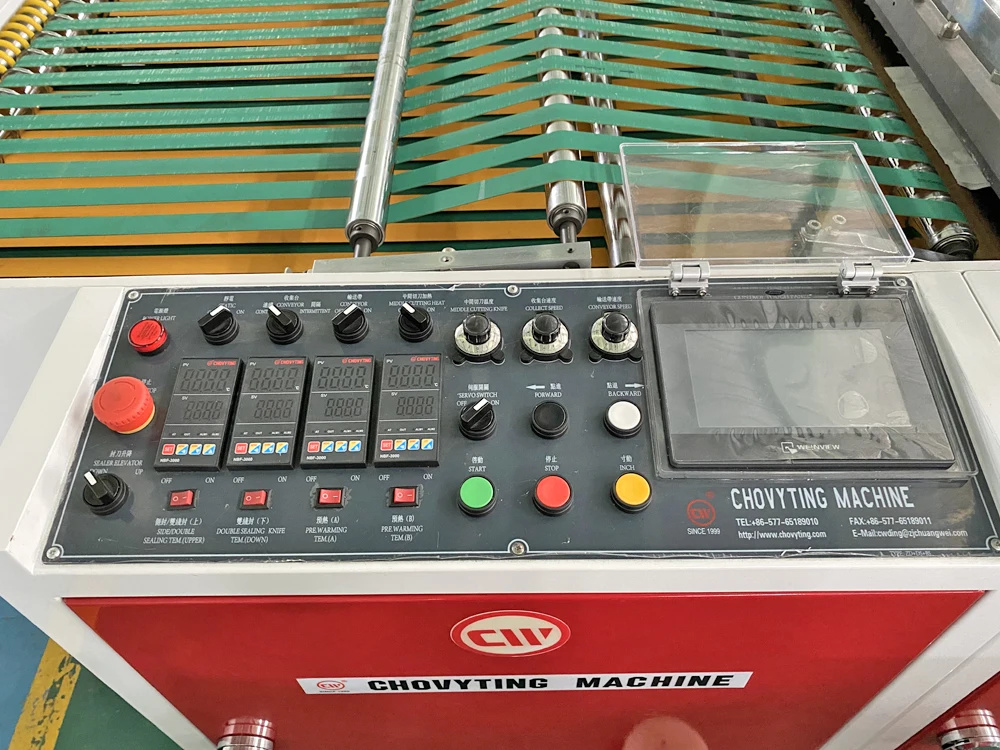

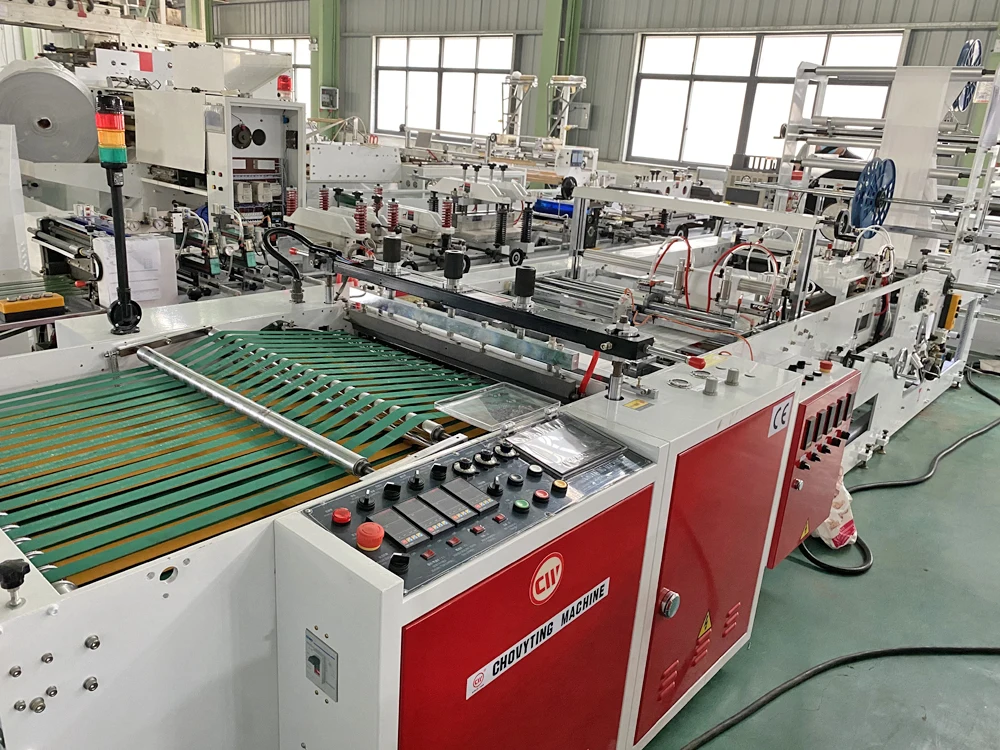

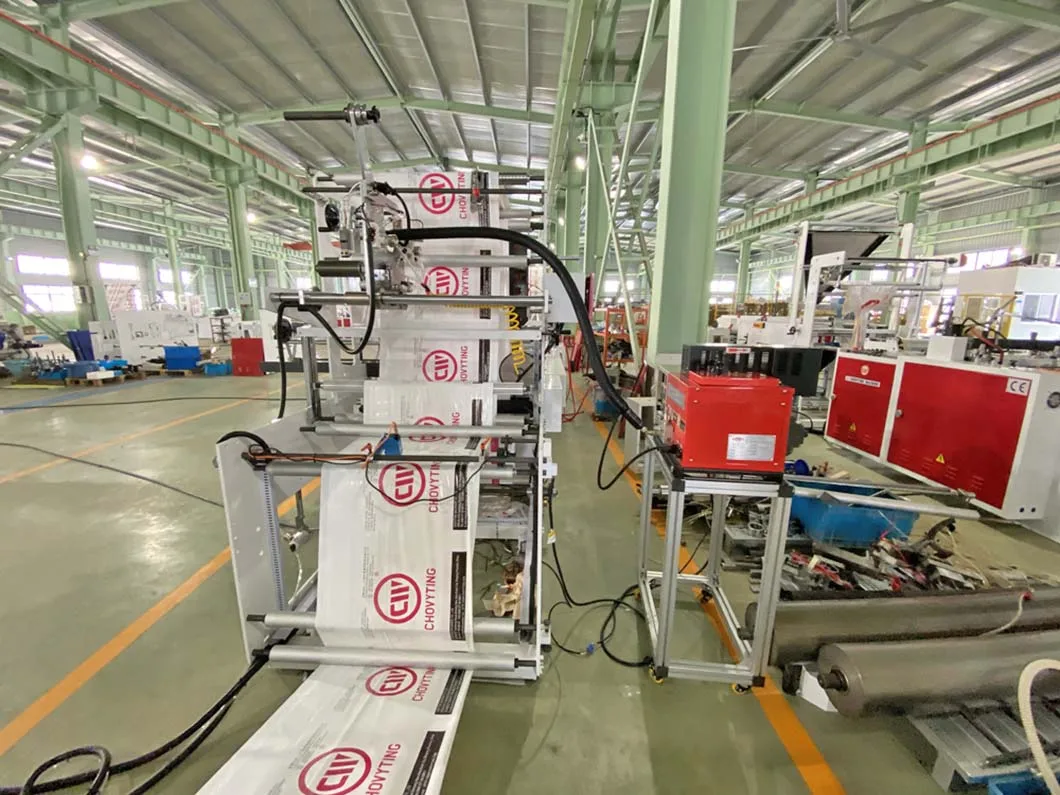

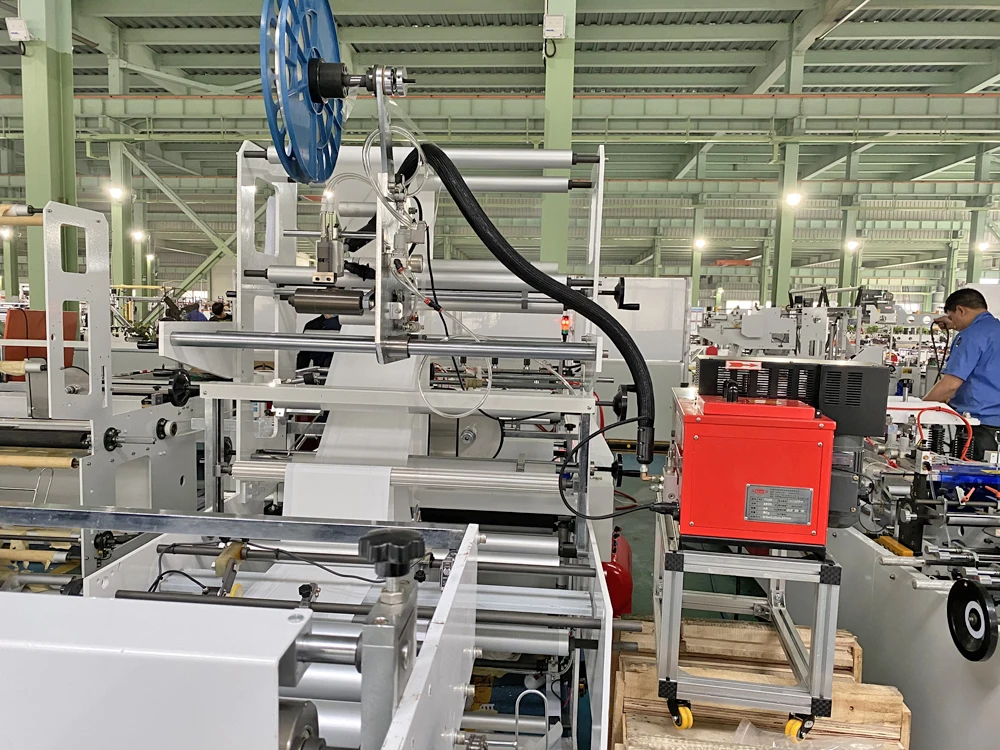

Main machine
