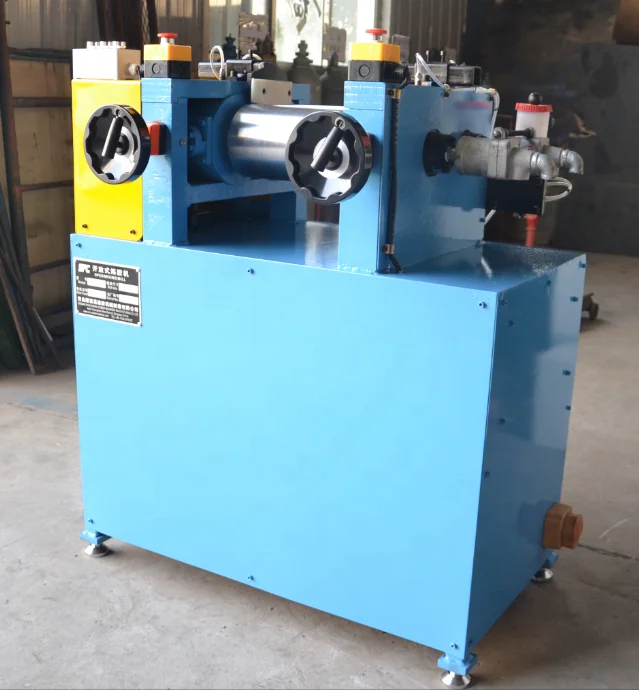

Two Roll Mill for Mixing Silicone Rubber / 6 Inch Open Mixing Mill for Lab / 6 Inch Rubber Mixing Machine

Product Overview

Description

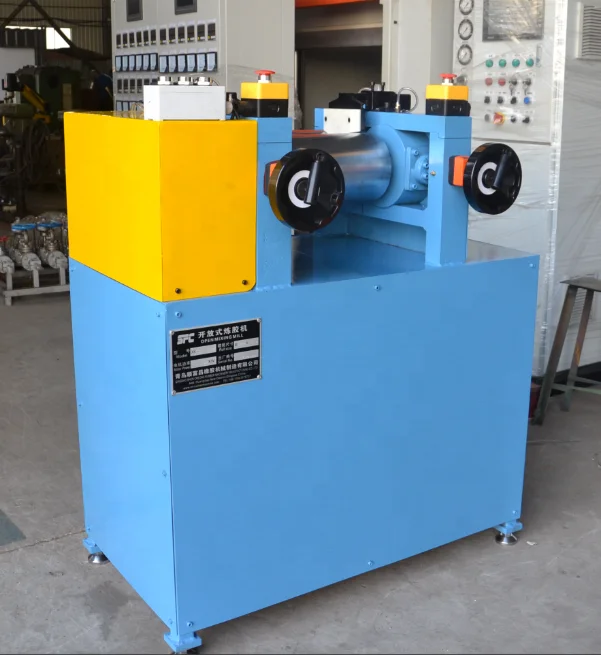

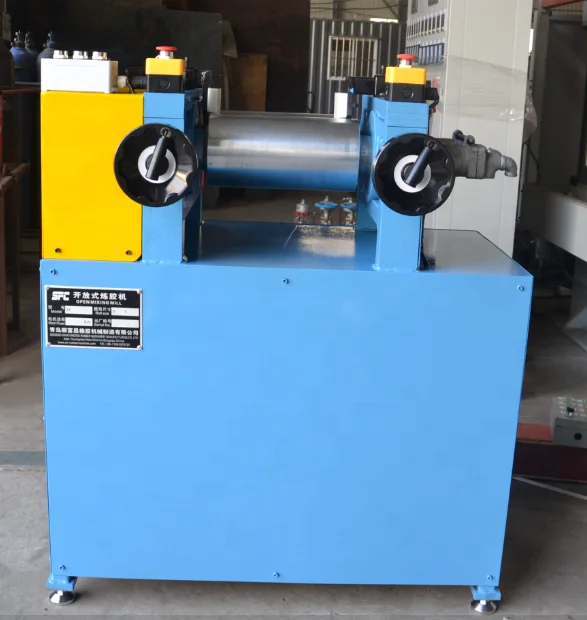

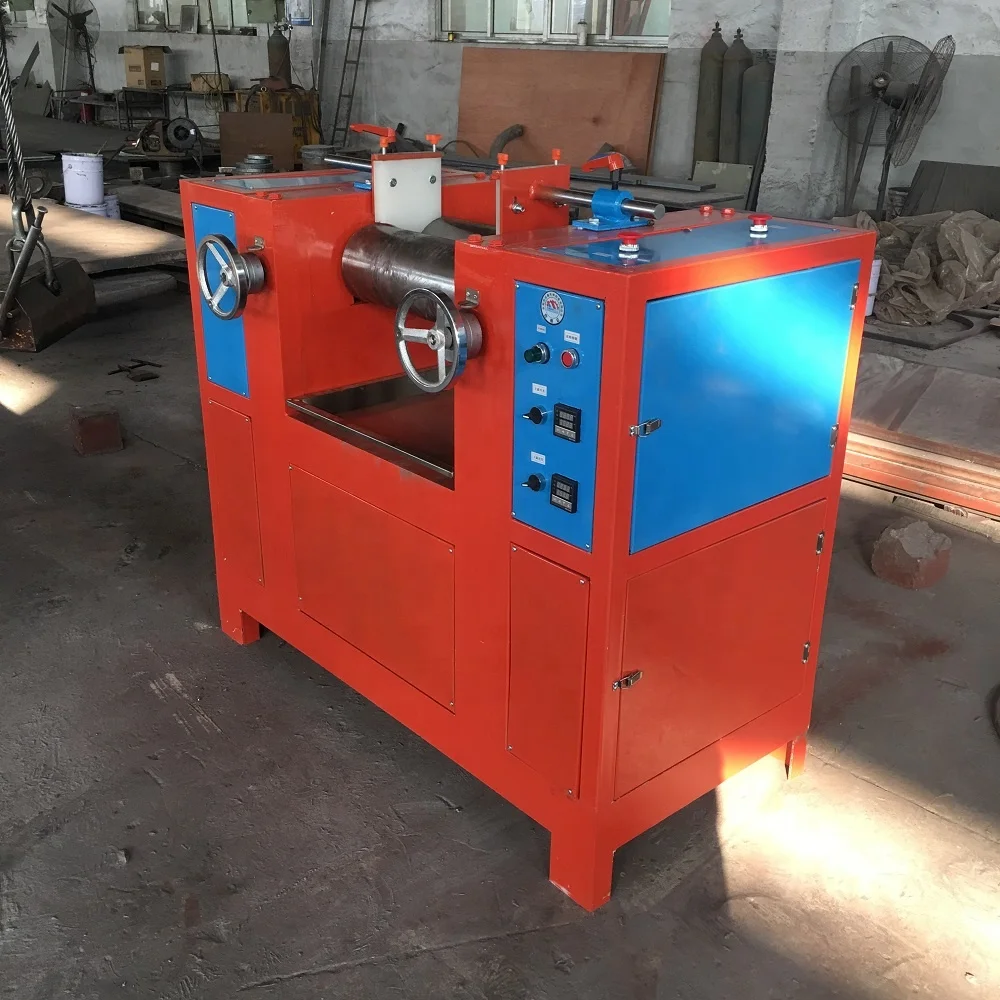

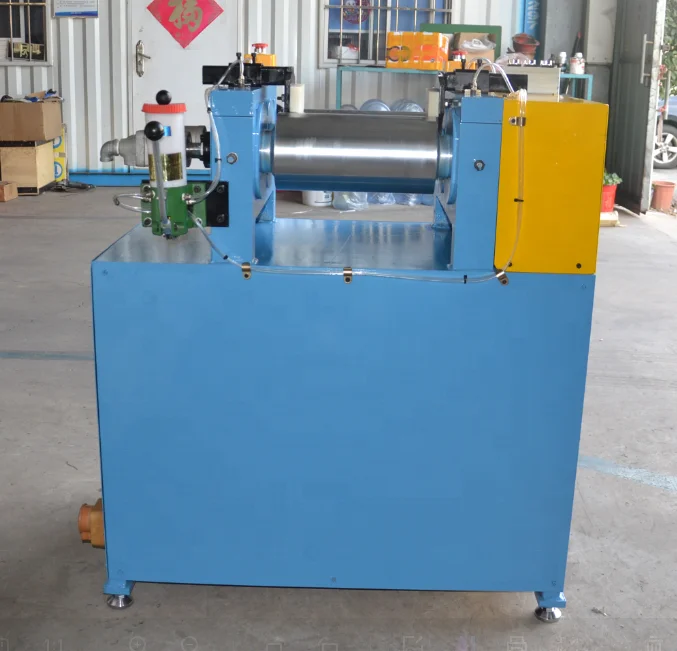

Two Roll Mill for Mixing Silicone Rubber / 6 Inch Open Mixing Mill for Lab / 6 Inch Rubber Mixing Machine



This Lab Mixing Mill ensures the perfect and uniform blending of natural and synthetic rubber with other raw materials. The lab mixing mill mixes all the raw materials to the desired specifications.

1. Lab Mixing Mill can be equipped with infrared, in order to ensure the safety of the operator.

2. We can produce electric heating, steam heating and water cooler rubber mixing mill.

3. The workers can operation the machine in front and back. Lab Mixing Mill is equipped with emergency stop devices below the machine which can stop at any time to meet an emergency situation, thus ensure the safety of personnel.

4. Can be equipped with manual and automatic hanging plastic device, ease of tapping and increase staff safety factor.

5. Protective cover can be equipped upward the roller, to ensure the safety of operating personnel.



Model	Roller(DxL)(mm)	Front Roller Linear Speed(m/min)	Friction Ratio	Motor Power (KW)	Overall Dimension (LxWxH)(mm)
XK-160	φ160x320	8.95	1:1.37	5.5	1500x750x1500
XK-230	φ230x600	10.21	1:1.19	15	2800x1200x1120
XK-250	φ250x620	14.1	1:1.17	18.5	3400x1500x1650
XK-300	φ300x750	15.1	1:1.25	22	3500x1600x1700
XK-360	φ360x900	16.25	1:1.25	30	3780x1850x1750
XK-400	φ400x1000	18.65	1:1.27	37	4350x1850x1785
XK-450	φ450x1200	24.26	1:1.27	55	5200x2380x1840
XK-560	φ560xφ510x1530	27.72	1:1.2	90	5845x2284x1978
XK-550B	φ550x1500	27.94	1:1.22	110	5870x2475x2045
XK-610	φ610x2000	28.42	1:1.17	160	7070x2290x1840
XK-660	φ660x2130	28.6	1:1.24	245	7465x3662x2080
XK-710	φ710x2200	30	1:1.09	280	7500x3500x1800
