JSN Hot Melt Gear Pumps Are Used Extrusion Machine Polymer Melt Pump Suppliers
- Category: >>>
- Supplier: Shanghai Jishen Instrument And Meter Co. Ltd.
Share on (1600967732034):
Product Overview
Description
Product Description
Extrusion melt pump/metering pump/gear pump
Melt pump belongs to positive displacement gear pump, there is a pair of cylindrical gear with external teeth relative rotation to transport high viscosity melt fluids. There are straight tooth, helical tooth and herringbone tooth, three types of tooth to choose from. Every pair of gear is finished and assembled accurately to get precise flow rate. According to different extrusion situation, the pump and gear will do special disposition.
How an Extrusion Gear Pump/melt pump Works:
An extrusion gear pump/melt pump is a positive displacement device, which consist of a pair of cylindrical gears with external teeth within bearings and a close tolerance housing. Polymer melt is transported from the inlet side and precisely metered to the discharge side.
The volume of polymer melt between each gear tooth is precisely the same and every revolution will deliver a consistent, linear volume of output (measured in cc/rev), which can realize that the polymer comes out of the extruder screw into the inlet and then outlet of the gear pump, keeping the pressure of the melt stable.
Gear Pump/melt pump is for all most common extrusion applications and will process a broad range of melt viscosities and densities.
Melt pump belongs to positive displacement gear pump, there is a pair of cylindrical gear with external teeth relative rotation to transport high viscosity melt fluids. There are straight tooth, helical tooth and herringbone tooth, three types of tooth to choose from. Every pair of gear is finished and assembled accurately to get precise flow rate. According to different extrusion situation, the pump and gear will do special disposition.
How an Extrusion Gear Pump/melt pump Works:
An extrusion gear pump/melt pump is a positive displacement device, which consist of a pair of cylindrical gears with external teeth within bearings and a close tolerance housing. Polymer melt is transported from the inlet side and precisely metered to the discharge side.
The volume of polymer melt between each gear tooth is precisely the same and every revolution will deliver a consistent, linear volume of output (measured in cc/rev), which can realize that the polymer comes out of the extruder screw into the inlet and then outlet of the gear pump, keeping the pressure of the melt stable.
Gear Pump/melt pump is for all most common extrusion applications and will process a broad range of melt viscosities and densities.
Technical Parameter
Product Name | Extrusion melt pump/metering pump/gear pump |
Material | Material for Melt Pump Body:High Temperature Tool Steel or Chromiumnickel Steel Material for Gear: High Temperature Tool Steel or Nitrided Steel Material for Sliding Bearing: High Temperature Tool Steel |
Viscosity | ≤40000 Pa.s |
Working Temperature | ≤400℃( 750°F) |
Cleaning Temperature | ≤450℃( 850°F) |
Input pressure | ≤12Mpa |
Output pressure | ≤45Mpa |
Max pressure difference | ≤25Mpa |
Model/Volume Range | 0.5CC- 12000cc |
Material viscosity | 40000Pas |
Voltage | 220/380VAC |
Outlet Size | 0.1 -5000 |
Gear tooth types | Straight tooth, Helical or Herringbone |
Shaft Sealing | Spiral Sealing,Packing Sealing,Spiral sealing and Packing,sealing or other Combined Sealing |
Heating System | Electrical Rod Heating |
Application | Automotive Industry, Biofuel Industry, Food and Beverage Industry, Industrial Utilities, Machining, Metal and Equipment Manufacturers, Pharmaceutical industry |
<General Information>
B series standard melt pump is mainly used for extruder or pressurization stabilizing flow and transportation of medium or high viscosity polymer. This series of melt pump adopts electric heating.and appliers to PS, PP, PET, PVC, PC, PMMA, PA,ABS,PE-LLD, ctc.

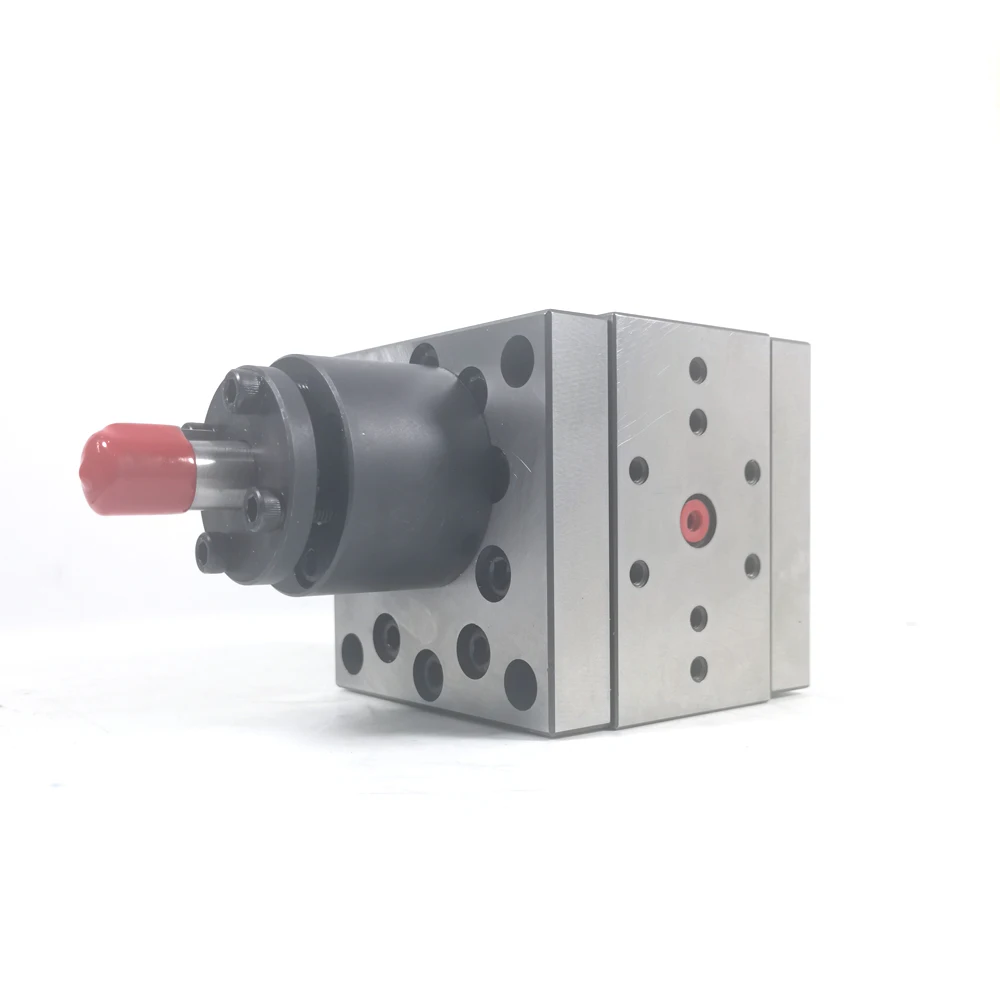

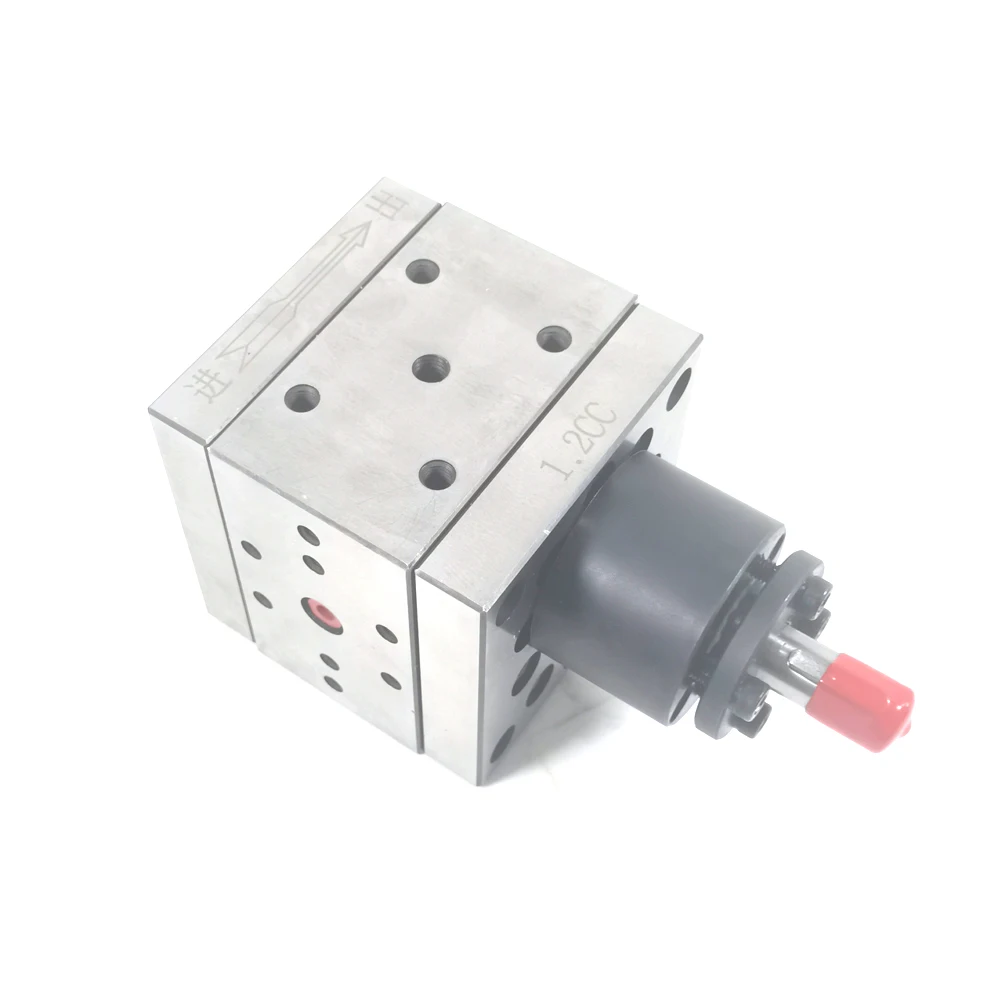

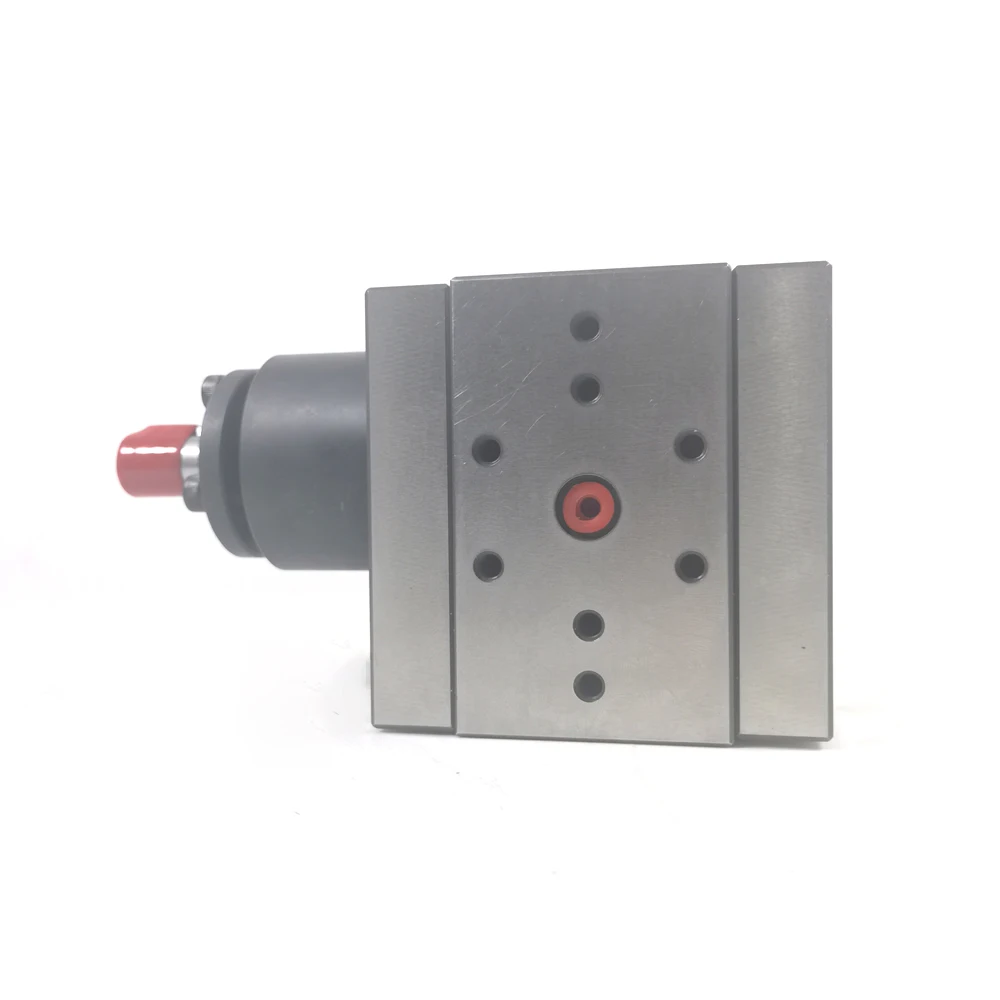

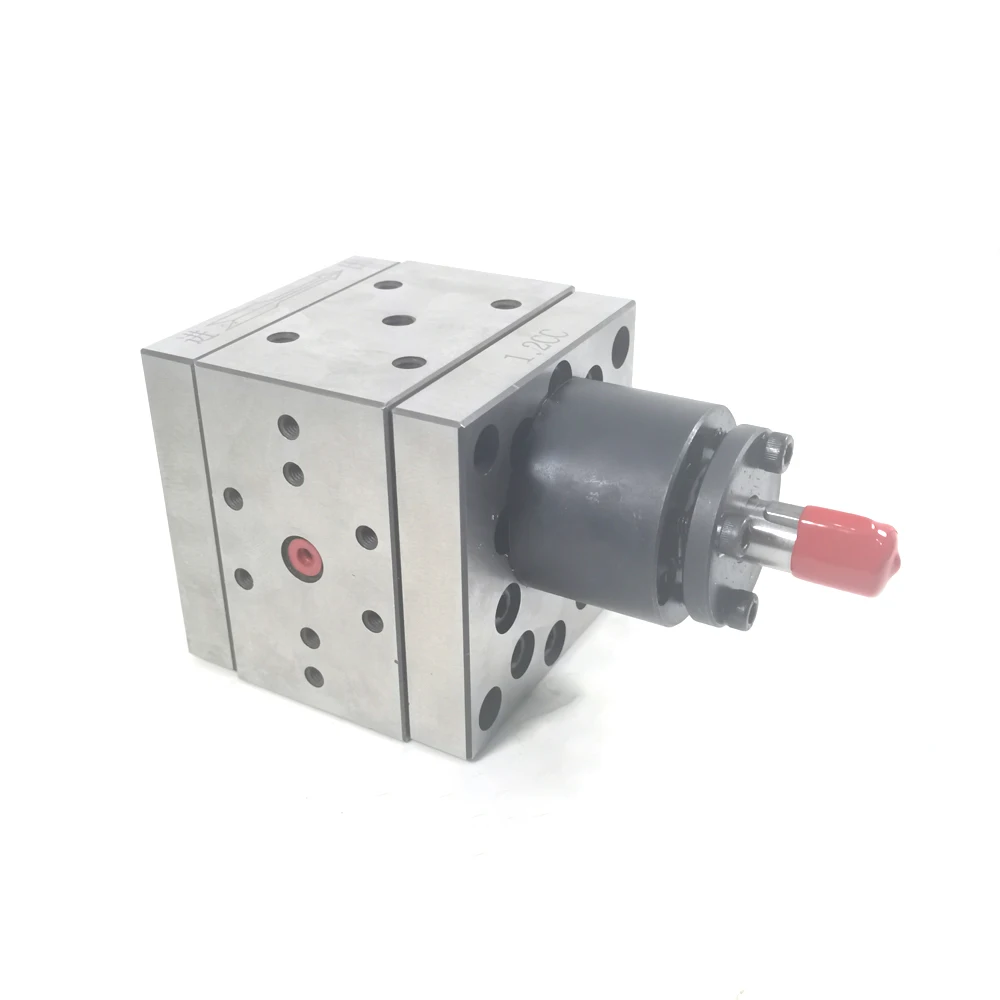

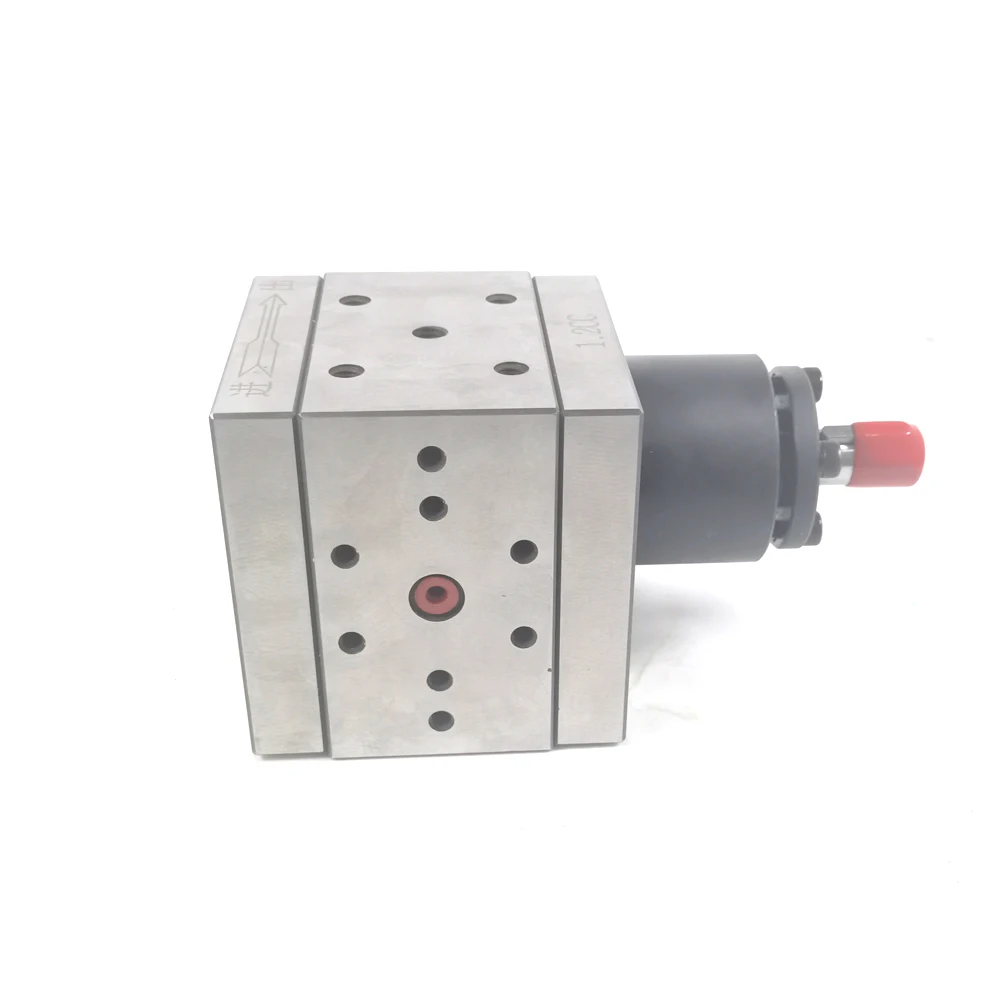

Product Show
Company Profile
Shanghai JSN Micro Flow Meter CO.,LTD is located in Shanghai Songjiang industrial park. We are the professional flow meter manufacture who integrate R&D, production and sales as one manufacturers. The factory is equipped with advanced production and calibration equipment at home and abroad, ample high-end technical personnel, and a well-established domestic standardized production workshop.
We are specialized and strictly enforce ISO9001 standard in the research and production of micro flow meters, rotary piston flow meter,spur gear flow meter,high viscosity low flow meter,corrosive liquid flow meter,epoxy resin pump,glue metering pump,ABS dosing pump，Chemical liquid magnetic pump,explosion-proof stainless steel metering pump etc.
Our company adhering to the "integrity first, conscientiously do a good job in every product", strict control of each manufactured product . It focuses on improving the status of process control industry in the international arena, and continues to work hard.
We are specialized and strictly enforce ISO9001 standard in the research and production of micro flow meters, rotary piston flow meter,spur gear flow meter,high viscosity low flow meter,corrosive liquid flow meter,epoxy resin pump,glue metering pump,ABS dosing pump，Chemical liquid magnetic pump,explosion-proof stainless steel metering pump etc.
Our company adhering to the "integrity first, conscientiously do a good job in every product", strict control of each manufactured product . It focuses on improving the status of process control industry in the international arena, and continues to work hard.
FAQ
Q1.Are you a factory?
A1:We are based in Shanghai, China, start from 2011.Main production and sales of various industrial flow meters and other products.Welcome to visit!
Q2.what can you buy from us?
A2:We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.
Q3. What is your terms of packing?
A3: Generally, JSN brand colorful cardboard boxes packing.OEM brandbrown cardboard boxes packing.
Q4. How about your delivery time?
A4: Generally, standard type : 6-7 working days after confirm the order.non-standard type: 8-10 working days after confirm the order.
Q5. What's your MOQ?
A5: We have no MOQ demand, 1 piece for test purpose at first is acceptable.
Q6. How do you ensure good product quality?
A6: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
Q7. How long your quotation valid?
A7: Our quotation valid for 1 months.
Q8. Can you accept OEM brand?
A8: Yes, we can accept the OEM brand without extra charge.
Q9. How long is your product warranty?
A9: 7 days replacement and 12 months repair free of charge for quality problem.
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
