Product Overview
Description
Product Description
Model | TDF-101 | Voltage/current | 220V/6A |
Rotating speed | 0-1400 r/min | Power | 375W |
Application Tube Diameter | ₵6.35-₵25.4 mm | Host weight | 13 kg |
Host size | 350*200*170 mm | Water pipe | 20 m |
Flexible shaft and cleaning brush matching recommendation
The flexible shaft and cleaning brush need to be selected according to the inner diameter of the pipe.
For specific specifications, please refer to the following table.
If you have any questions about the choice of flexible shaft and cleaning brush, please contact customer service for consultation.
Flexible shaft specifications OD of protective tube | ID range for pipe to clean | Flexible shaft brush end thread size | Specifications of matching brush |
6 mm | 7-9.5 mm | M4 | 6.5/7.9/9.5 mm |
8 mm | 10-12.7 mm | M6 | 10/11.1/12.7 mm |
10 mm | 12.7-15.9 mm | M6 | 12.7/14.3/15.9 mm |
12 mm | 15.9-25.4 mm | M6 | 15.9/17.5/19.1/20.6/22.1/23.8/25.4 mm |

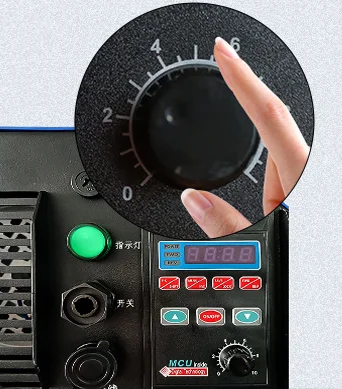

Precise control of cleaning rhythm
0-1400 r/min speed adjustable
The stepless rotating frequency conversion speed regulation is suitable for various difficult and easy working conditions, and the
speed can be adjusted according to the on-site working conditions.
The stepless rotating frequency conversion speed regulation is suitable for various difficult and easy working conditions, and the
speed can be adjusted according to the on-site working conditions.
Not easy to rust and durable

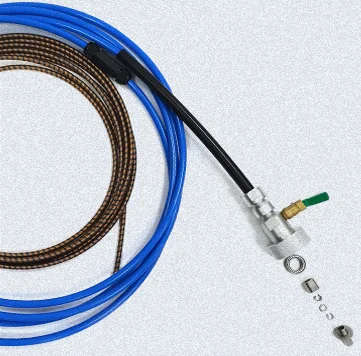

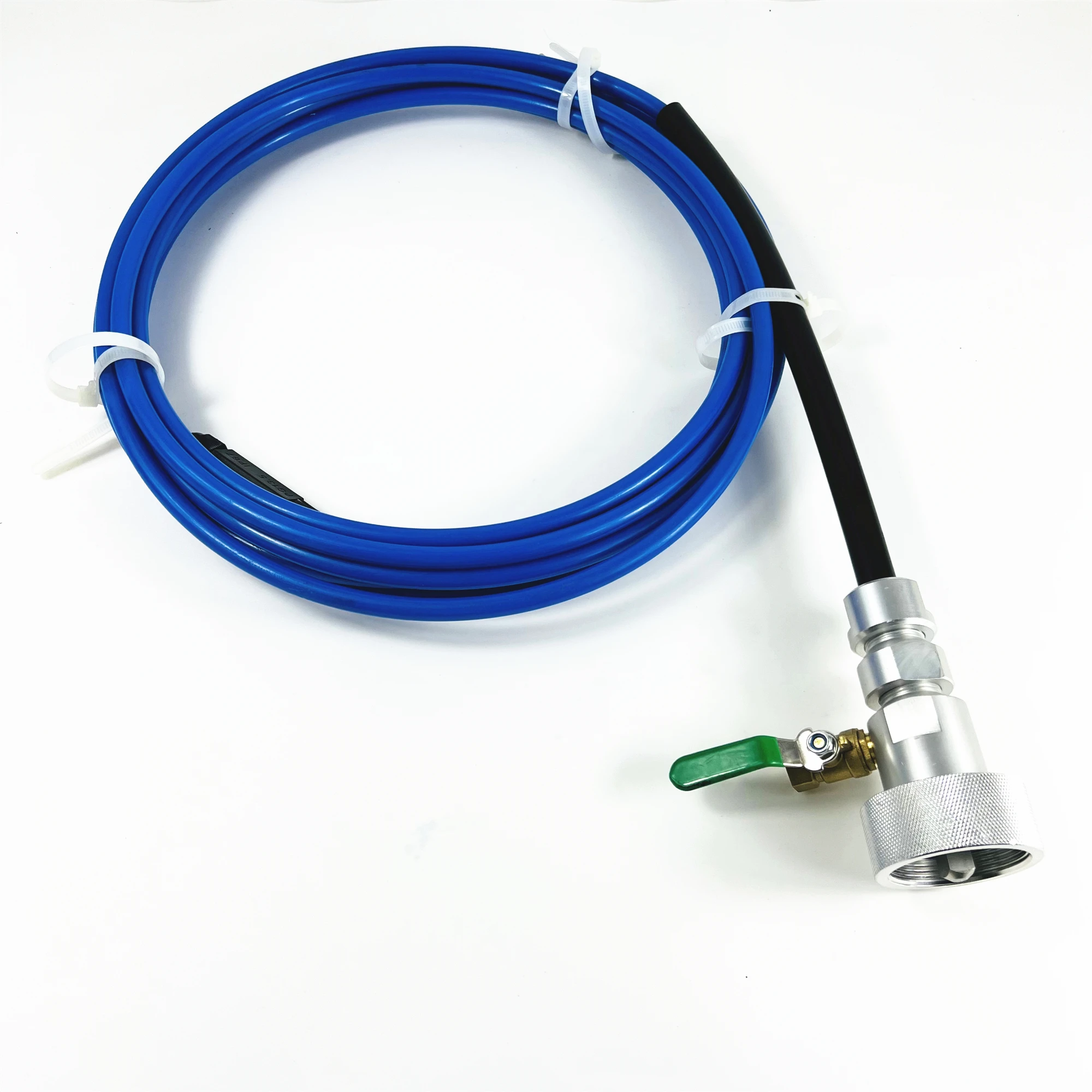

Detachable flexible shaft
The flexible shaft is detachable design, the shaft can be easily pulled out, the service life of the
flexible shaft is prolonged, the flexible shaft does not rust, and the use is longer.
flexible shaft is prolonged, the flexible shaft does not rust, and the use is longer.

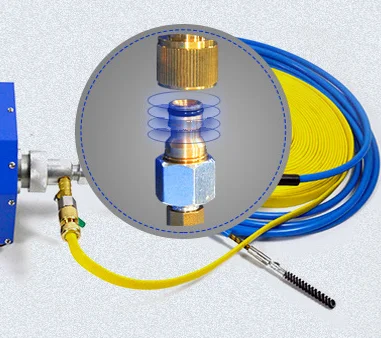

Wet and dry separation to protect the host
The flexible shaft directly enters the water
This design breaks through the international problem that it is difficult to seal the
water directly on the main engine, avoids the accident of water entering the main engine due to damaged seals, and prolongs the
service life of the main engine.
water directly on the main engine, avoids the accident of water entering the main engine due to damaged seals, and prolongs the
service life of the main engine.
Pipe wall cleaning 0 damage

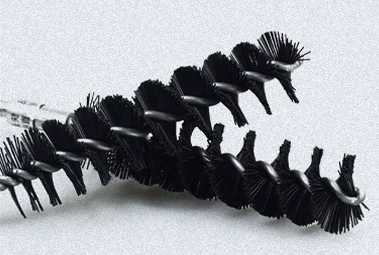

Flush brush design
Professional pipe cleaning brush, the brush head is made of high-grade nylon wire by semi-manual method, and
this design does not cause any damage to the pipe wall.
this design does not cause any damage to the pipe wall.
Specification
Advantage:
1. Innovative brush and flush technology.
2. The motor drives the flexible shaft.
3.The flexible shaft drives the brush to rotate at high speed.
4. The brush speed is adjustable.
5. The water flows through the flexible shaft, which protect the main unit from water.
2. The motor drives the flexible shaft.
3.The flexible shaft drives the brush to rotate at high speed.
4. The brush speed is adjustable.
5. The water flows through the flexible shaft, which protect the main unit from water.

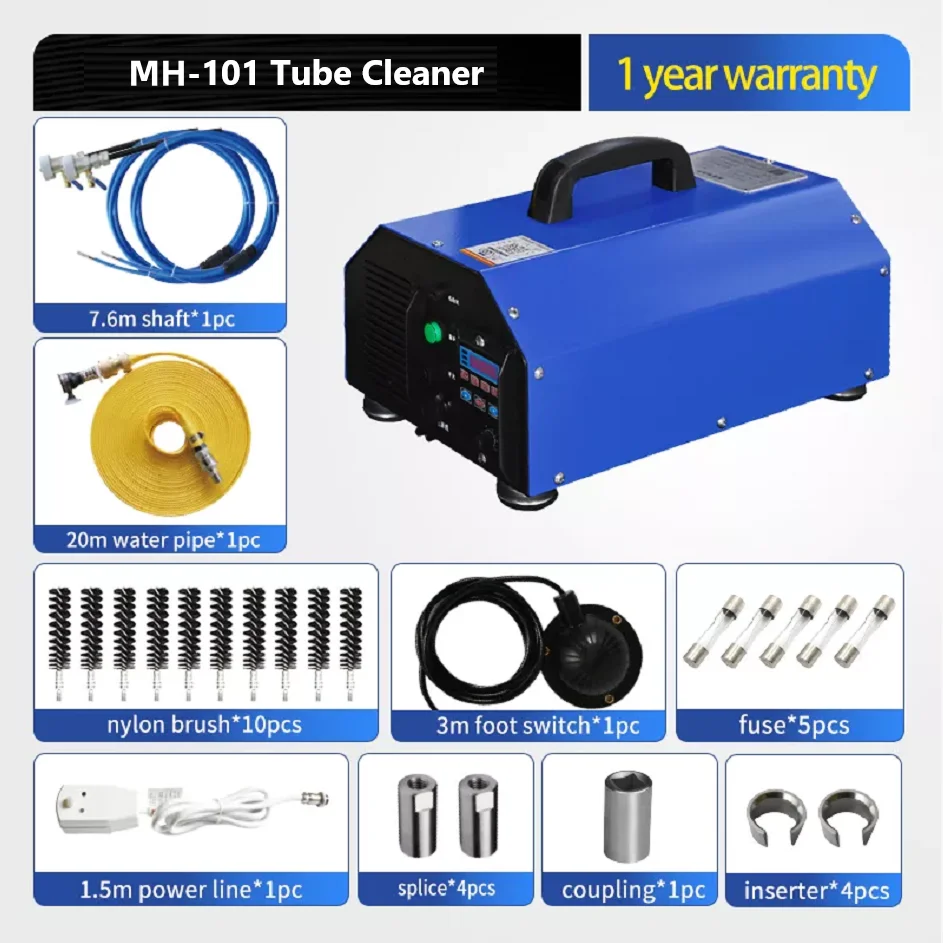

Paking List:
Main unit | 1pc |
Flexible shaft | 1pc |

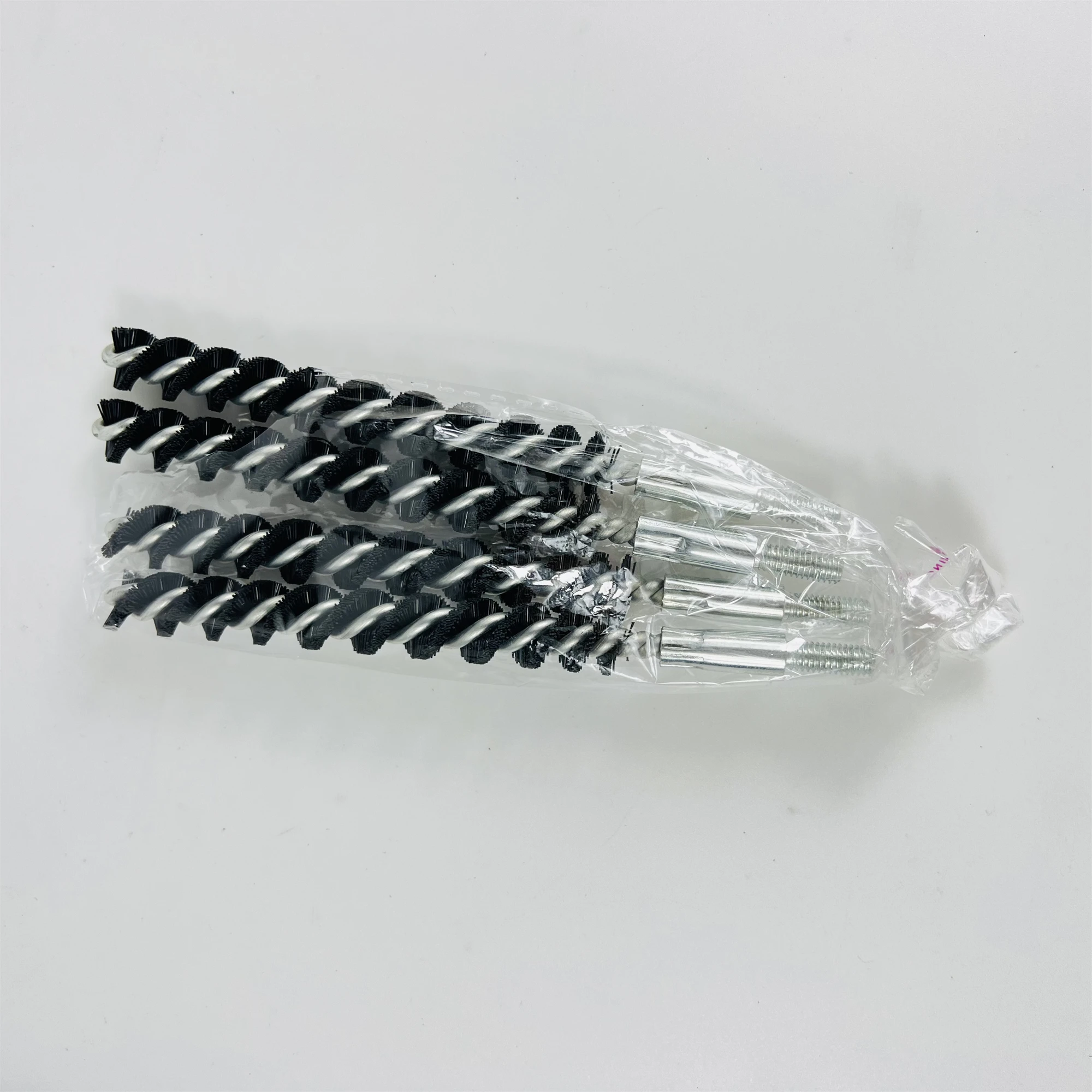

Brush | 10pcs (6.5-25.4mm for option) |

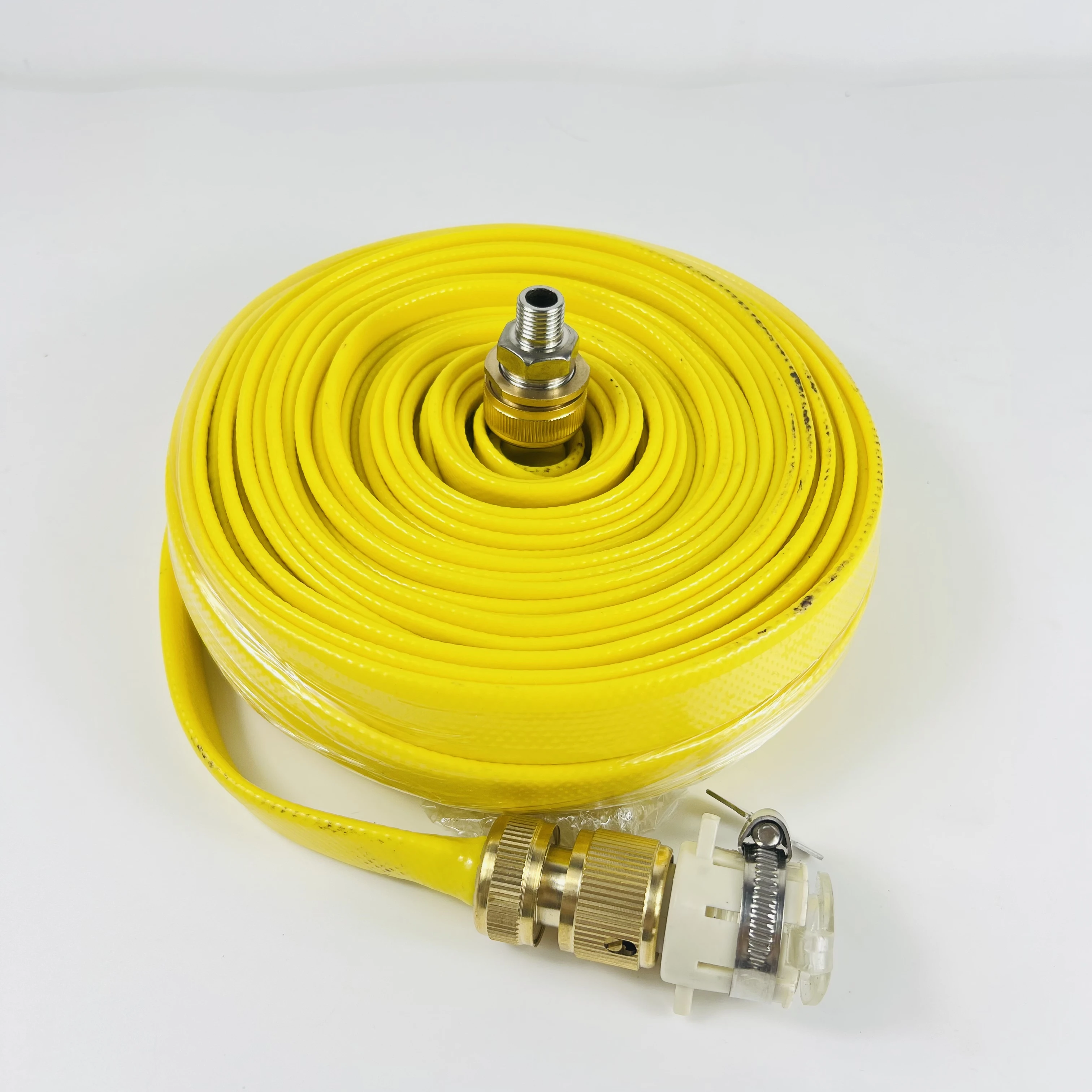

Water pipe | 1pc, 20m |
Manual | 1pc, english version |
Warranty card | 1pc |
item | value |
Place of Origin | China |
Anhui | |
Brand Name | MH |
Model Number | MH-101 |
Feature | Sustainable |
Material | Iron, copper, plastic and more |
Application | Boiler,HVAC,Power plant,and more |
Power | 375 W |
Speed | 0-1400r/min |
Voltage | 220V/10A |
Cleaning Range | 6.35-25.4mm |
Fuel | Electric |
Cleaning Process | Cold Water Cleaning |
Cleaning Type | Drill or brush & spray |
Package | neutral packing |

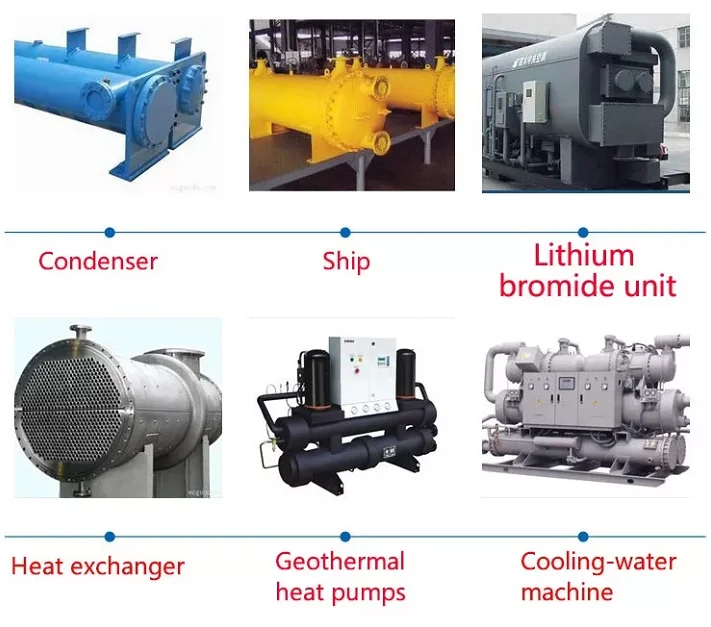

Application

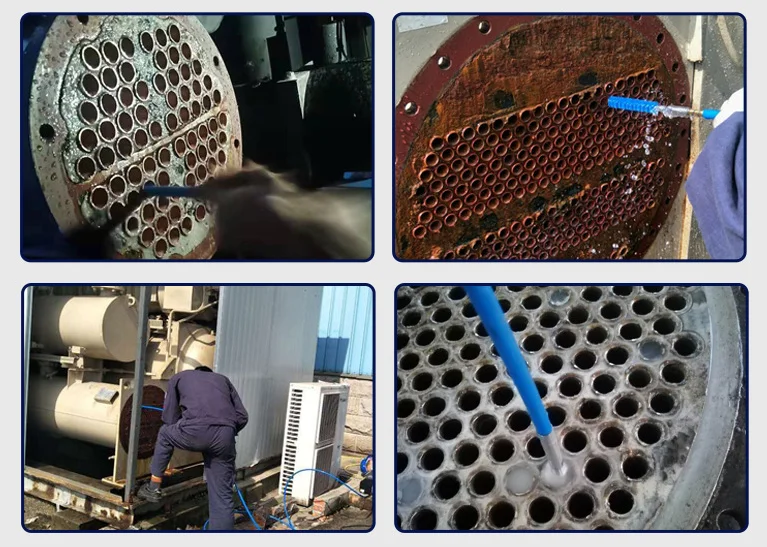

Customer Photos

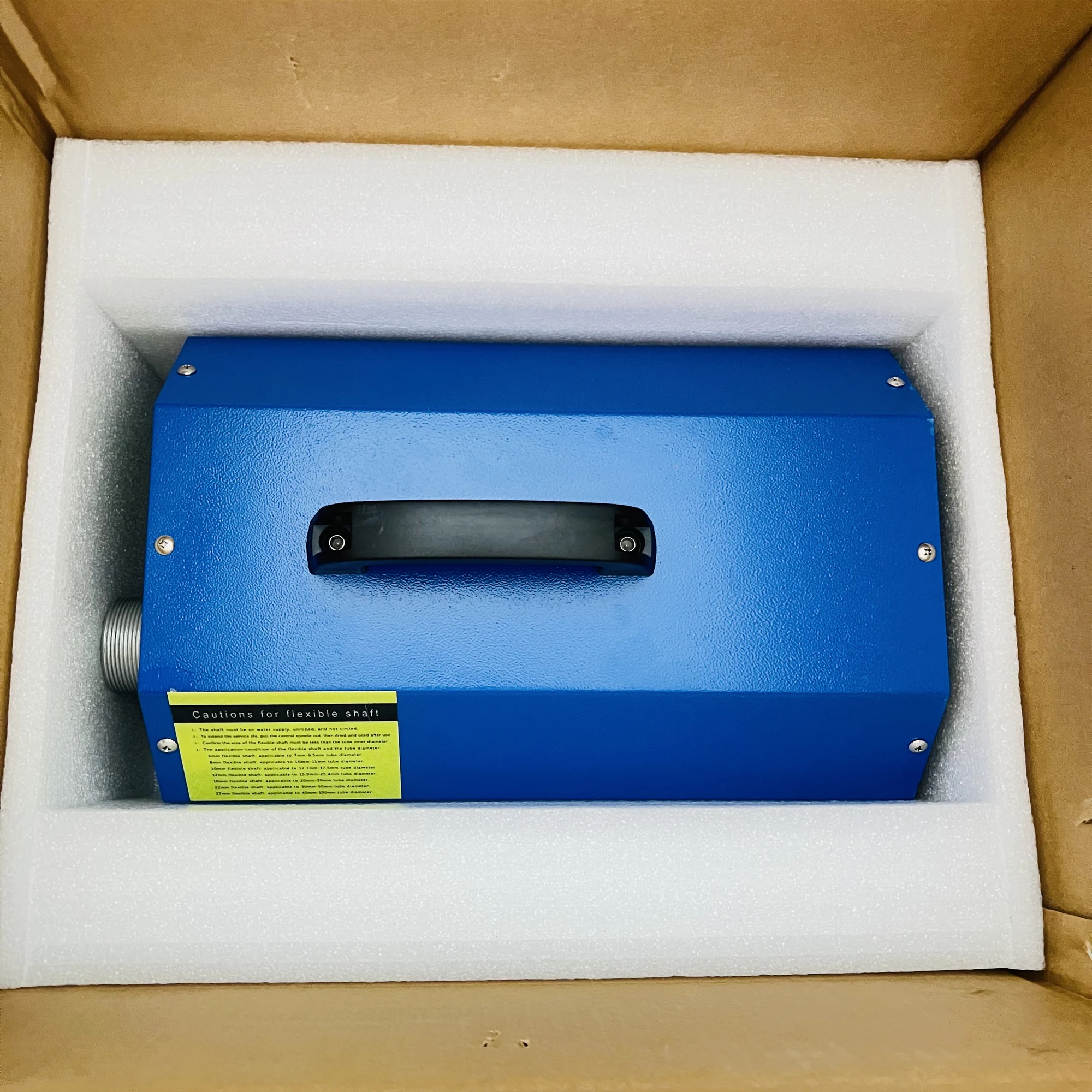

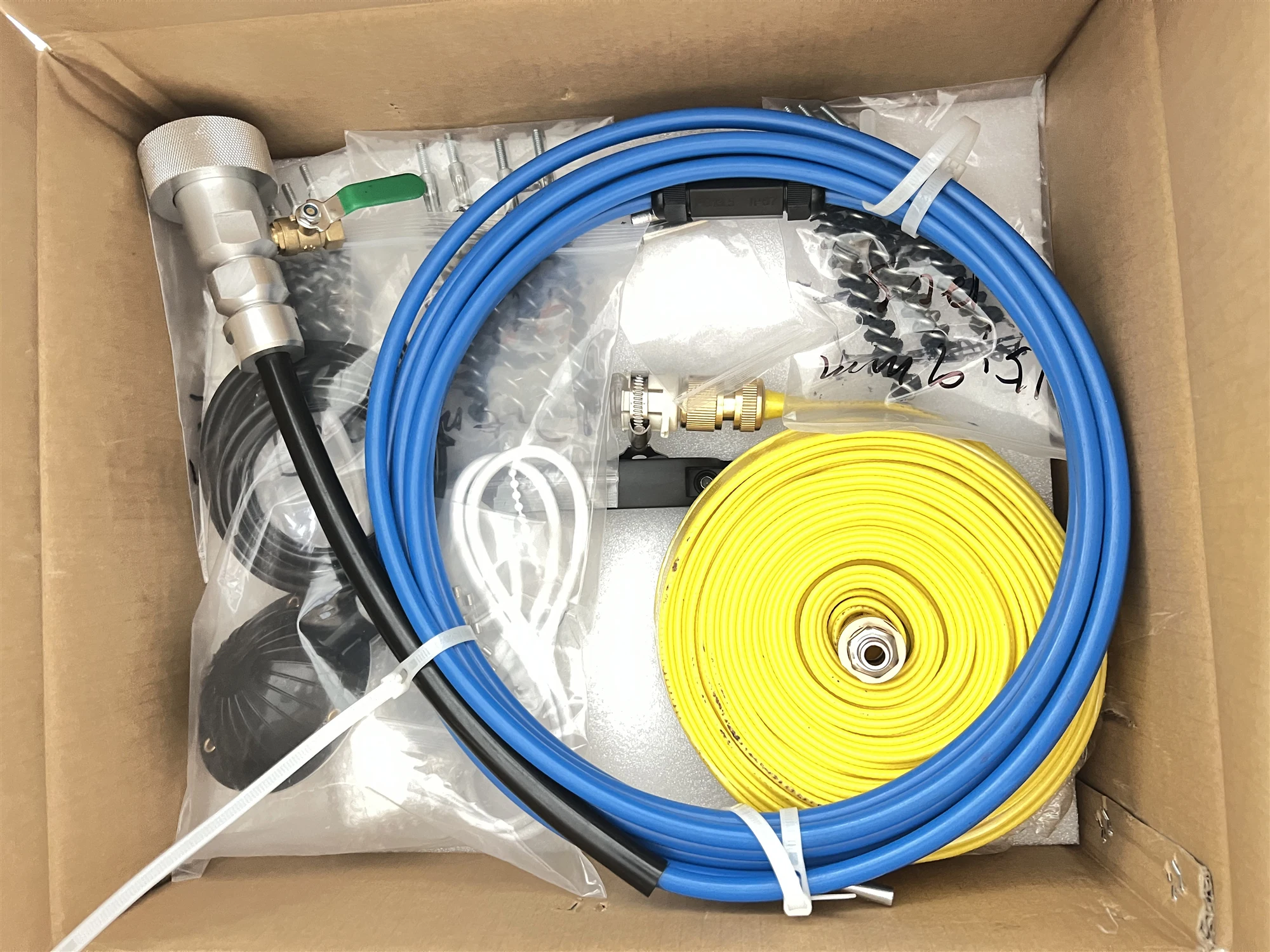

Packing & Delivery
OPP bag or customized
